1. Status of the Diamond Light Source ESLS XXII Workshop Grenoble, 25 November 2014 R. Bartolini Diamond Light Source and John Adams Institute, University of Oxford

2. Outline Operation statistics The “10 years vision” exercise Conclusions ESLS XXII Workshop Grenoble, 25 November 2014

3. Operation statistics ESLS XXII Workshop Grenoble, 25 November 2014 MTBF target of 72 h still elusive courtesy V. Kempson

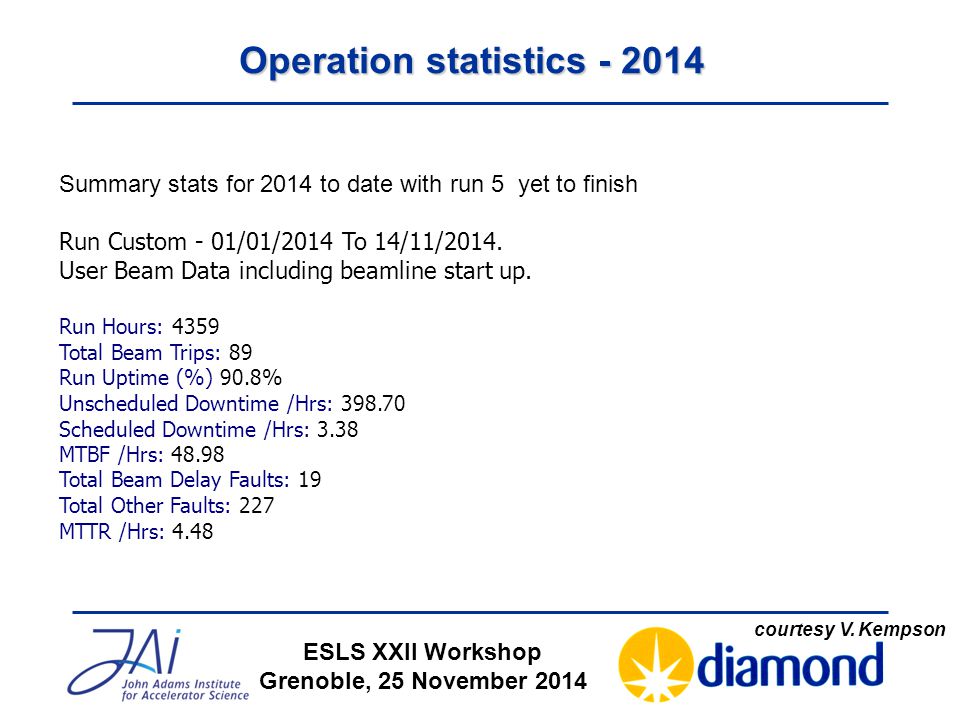

4. Operation statistics - 2014 ESLS XXII Workshop Grenoble, 25 November 2014 Summary stats for 2014 to date with run 5 yet to finish Run Custom - 01/01/2014 To 14/11/2014. User Beam Data including beamline start up. Run Hours: 4359 Total Beam Trips: 89 Run Uptime (%) 90.8% Unscheduled Downtime /Hrs: 398.70 Scheduled Downtime /Hrs: 3.38 MTBF /Hrs: 48.98 Total Beam Delay Faults: 19 Total Other Faults: 227 MTTR /Hrs: 4.48 courtesy V. Kempson

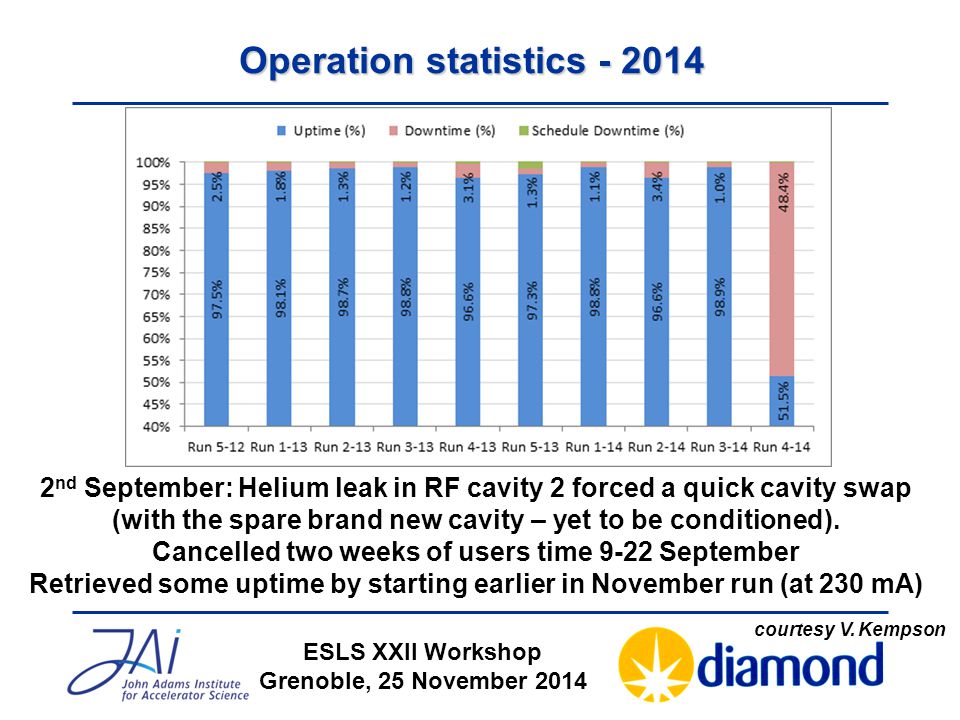

5. Operation statistics - 2014 ESLS XXII Workshop Grenoble, 25 November 2014 2 nd September: Helium leak in RF cavity 2 forced a quick cavity swap (with the spare brand new cavity – yet to be conditioned). Cancelled two weeks of users time 9-22 September Retrieved some uptime by starting earlier in November run (at 230 mA) courtesy V. Kempson

6. Trips statistics ESLS XXII Workshop Grenoble, 25 November 2014 Trips dominated by the SC RF courtesy V. Kempson

7. RF trips statistics ESLS XXII Workshop Grenoble, 25 November 2014 We took the following remedial actions: Probe blip: added a filter at circuit board level after the LLRF comparator to smooth out the blips IOT connection: checked all connections on IOTs (fault was in the connections on the delivered assembly) Vacuum trips: continuing with warm-ups and conditioning Drive amp chain: dispersed all parts of the faulty chain amongst the different systems ISC: started high power RF conditioning rather than DC conditioning. Focus coil: checked isolation of all coils and reworked suspicious radiation shielding IOT LLRF: changed closed-loop LLRF gain to reduce noise and reset interlock levels to allow 7-IOT operation (still not completely tested) Filament current: Quench detector: swapped out the quench detector unit with the spare courtesy C. Christou

8. … and now looking at installing a NC RF ESLS XXII Workshop Grenoble, 25 November 2014 the loss of two weeks at the start of the last run went down badly, particularly with industrial users; general reliability of superconducting cavities has been brought into question - cavity failure is a catastrophic event putting Diamond out of action for several weeks - commonly accepted lifetime to failure of cavities is around 6 years - repair of cavity can be very slow (CLS cavity has taken 2 years) normal conducting cavities have been considered as an option for some time - at the moment we envisage adding normal conducting cavities, not replacing superconducting cavities - normal conducting cavities will bring their own problems - removal of common modes of failure board meeting resolved to add copper cavities sooner rather than later “the Board didn’t just approve the plan, but instructed us to go ahead” courtesy C. Christou

9. e.g. EU HOM damped cavity ESLS XXII Workshop Grenoble, 25 November 2014 courtesy C. Christou international collaboration, BESSY, ESRF, ALBA, … coupler, tuner and HOMs mounted radially requires external pumping

10. Hybrid RF straight section ESLS XXII Workshop Grenoble, 25 November 2014 courtesy C. Christou Install pair of EU cavities in the RF straight in place of the third SC cavity Two new cavities can be powered by existing amplifier No new breakthroughs into storage ring Cavities protected by small-bore sector valve

11. 10 years vision ESLS XXII Workshop Grenoble, 25 November 2014 25-th April – Science away day 9-th June – Science away day Draft document on 10 Years Vision – October 2014 5-th November: presented and discussed at the SAC

12. 10 years vision Science driven (7 key scientific areas: biomaterials, chemistry, condensed matter, earth science, integrated structure biology, heritage, soft condensed matter) beamline development (optics, detectors, stability, …) Machine development reliability stability Source development CPMUs (in house) DDBA Conceptual design for Diamond II bid within next CSR – 2016; first beam >2020

13. Consolidate operation with low V emittance 8 pm ESLS XXII Workshop Grenoble, 25 November 2014 Diamond operates with a very good control of the beam optics Optics deviation (beta-beating) redecue to 1% level Emittance [2.78 - 2.74] (2.75) nm Energy spread [1.1e-3 - 1.0-e3] (1.0e-3) Emittance coupling ~0.08% achieved → vertical emittance ~ 2.0 pm 6  m rms vertical Transparent realignment of the machine to easy operation at low coupling (see M. Apollonio’s talk) Diamond is currently running at reduced coupling 0.3% (8pm V) for users

14. stability One beamline has been given control of the electron beam with a window of 20 um H and V to adjust for long term beam movement and static alignment courtesy G. Rehm Now coupling electron beam stability and photon beam stability at sample Feedback on beamline component not obvious (mirrors 1.4 m long) Electron beam “easier” to move for small high frequencies variations Motion relative to the beam size

15. IDs ESLS XXII Workshop Grenoble, 25 November 2014 Seven planned CPMU + SCU development with ASTeC and RAL TD courtesy J. Schouten New cooling system (already under development) In situ shimming (wish list) which will require a bench to measure both warm and cold develop cold measuring bench (use experience from Bessy, ESRF)

16. DDBA ESLS XXII Workshop Grenoble, 25 November 2014 Modifying one straight section to add an ID – DDBA cell 24 DDBA cell provide a 270pm emittance Insertion Device existing DBA cell modified DDBA cell BM beamline ID beamline Magnets, vessel, BPM buttons contract placed now progressing reasonably well towards their FDR First magnet due by April 2015 – installation 8 weeks SD in August 2016 Beam back November 2016 (one week AP commissioning time)

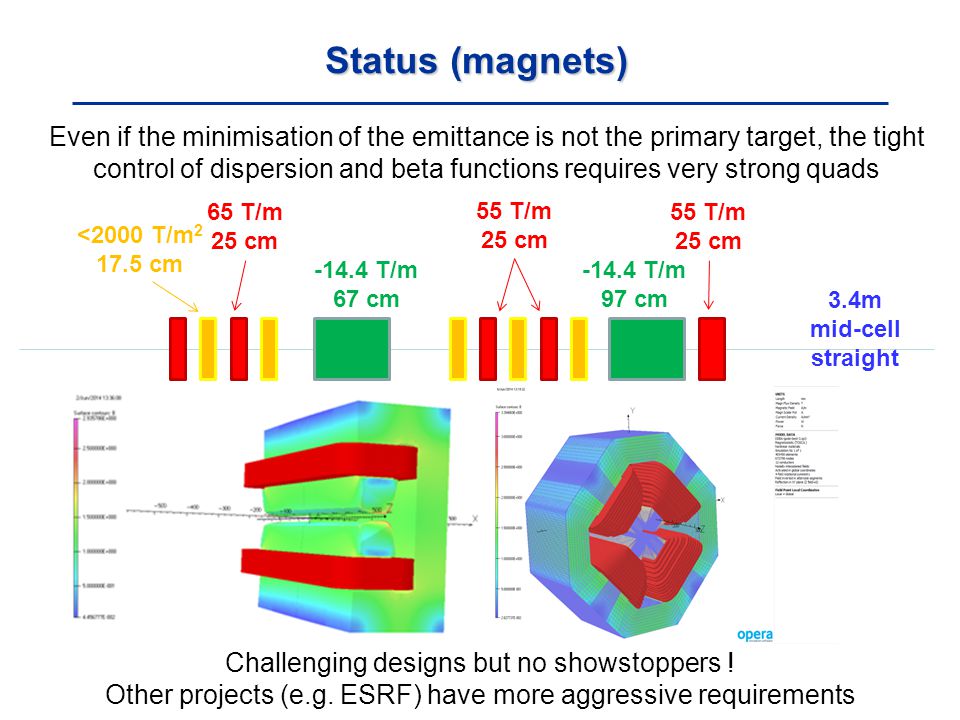

17. Status (magnets) 3.4m mid-cell straight 55 T/m 25 cm 65 T/m 25 cm -14.4 T/m 67 cm -14.4 T/m 97 cm 55 T/m 25 cm <2000 T/m 2 17.5 cm Challenging designs but no showstoppers ! Other projects (e.g. ESRF) have more aggressive requirements Even if the minimisation of the emittance is not the primary target, the tight control of dispersion and beta functions requires very strong quads

18. Diamond II ESLS XXII Workshop Grenoble, 25 November 2014 DLS will produce a Conceptual Design report for Diamond II ~2016 Initial studies are based on MBA (modified 4BA or 5BA – 140-270 pm) Making a strong effort to tailor the machine design to the user requirements customised optics length of the shutdown is not a settled questions yet… Most of technological choices and engineering issues are expected to be similar to the single cell DDBA Possible new are of development (wrt to DDBA) magnet design – permanent magnet – longitudinal gradient vacuum chamber design and vacuum system (antechamber - NEG) diagnostics for stability (including electron and photons)

19. (preliminary) SAC feedback SAC requested a clear assessment of the overall benefit of a low emittance upgrade beamline by beamline

20. An example: dispersive branch in I20 (WIP) This beamline requires large horizontal divergence in order to have a large photon energy span at the sample The energy range is correlated with the angle of incidence on the polychromatic mirror (dispersive beamline) Source divergence defined by the slits opening angle in the FE if ID (wiggler) radiation fan has divergence >> than the slit opening angle Design the straight section with large electron beam divergence + use a wiggler? May prove sufficient…

21. Conclusions ESLS XXII Workshop Grenoble, 25 November 2014 Diamond is continuously striving to provide a reliable and stable source of high brightness X-rays to users A 10 years vision is being shaped beamline upgrade optic, detectors machine upgrade reliability stability source development new IDs DDBA conceptual design for Diamond II New low emittance lattice by 202x (0  x  1)
