1. 1 GE Equipment Services Trailer Fleet Services Our New Asset Intelligence Business Unit GE - Trailer Fleet Services Monitors trailers 135,000+ Assets 100 Branches GE Healthcare Monitors Mobile MRI trailers Liquid Helium GE Energy Monitors Portable Generators GE Water Monitors Mobile Water Treatment Systems Creating a Telematics Center of Excellence… Aggressively Targeting Additional Industry Segments

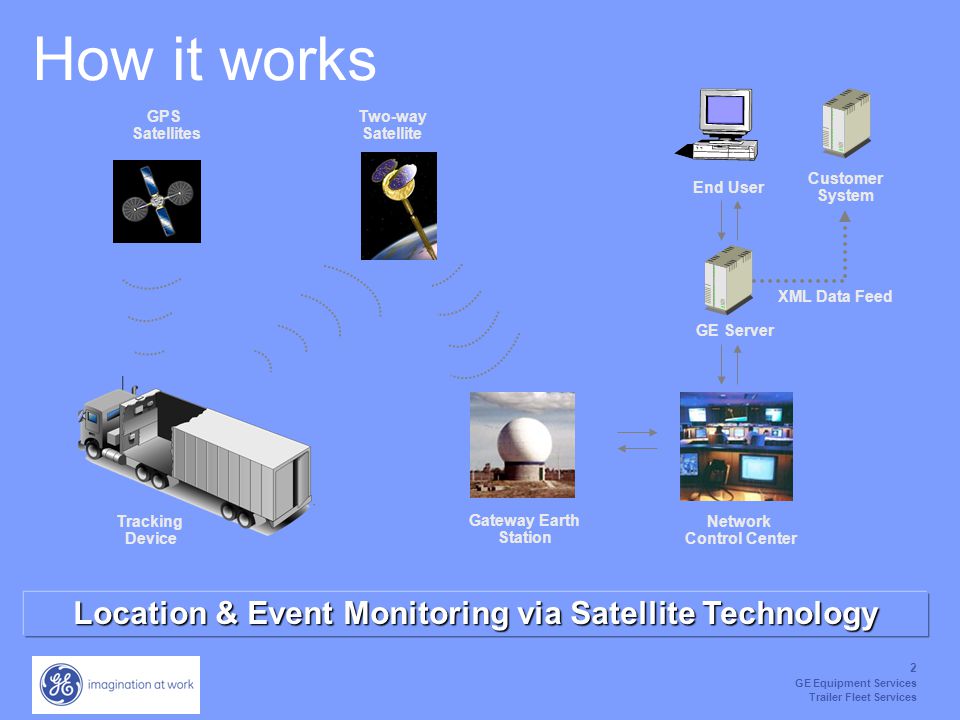

2. 2 GE Equipment Services Trailer Fleet Services How it works GPS Satellites Gateway Earth Station GE Server Network Control Center End User Two-way Satellite Tracking Device XML Data Feed Customer System Location & Event Monitoring via Satellite Technology

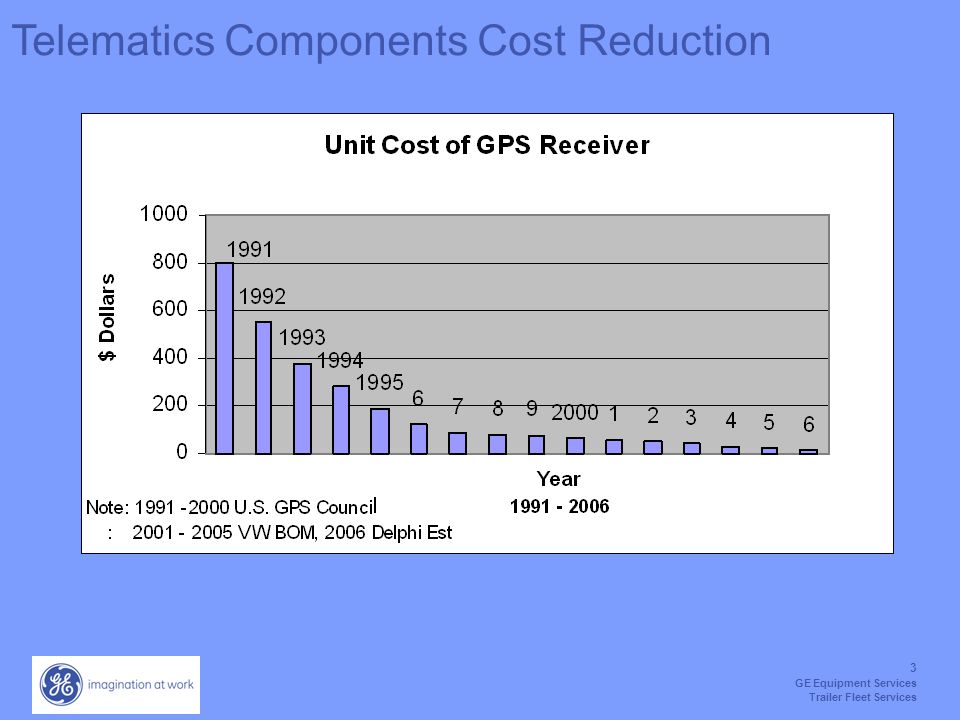

3. 3 GE Equipment Services Trailer Fleet Services Telematics Components Cost Reduction

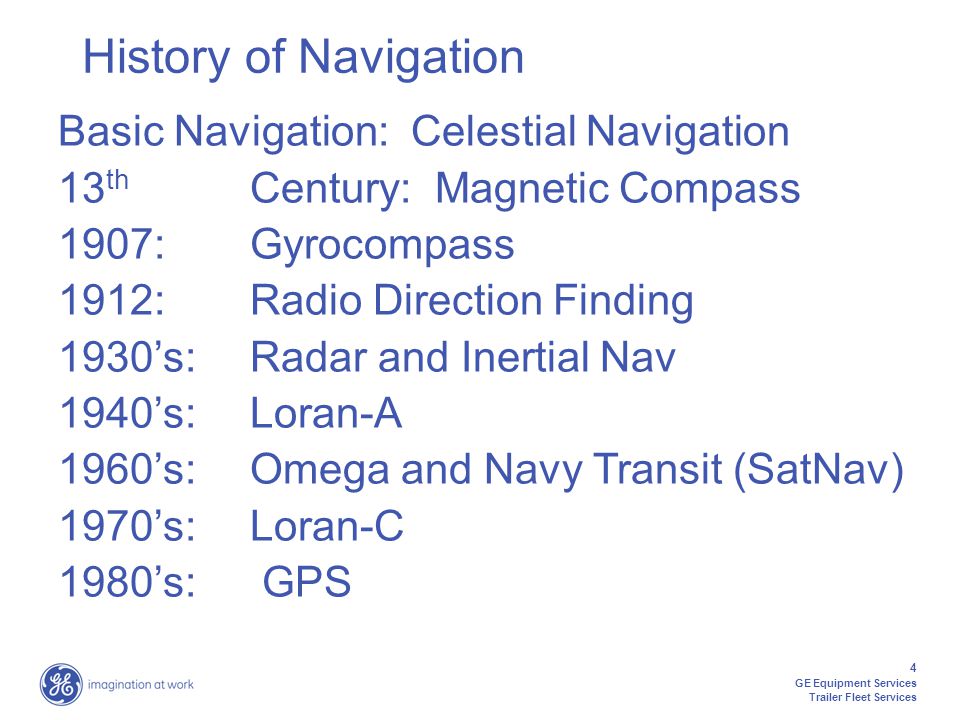

4. 4 GE Equipment Services Trailer Fleet Services History of Navigation Basic Navigation: Celestial Navigation 13 th Century: Magnetic Compass 1907: Gyrocompass 1912: Radio Direction Finding 1930’s: Radar and Inertial Nav 1940’s: Loran-A 1960’s: Omega and Navy Transit (SatNav) 1970’s: Loran-C 1980’s: GPS

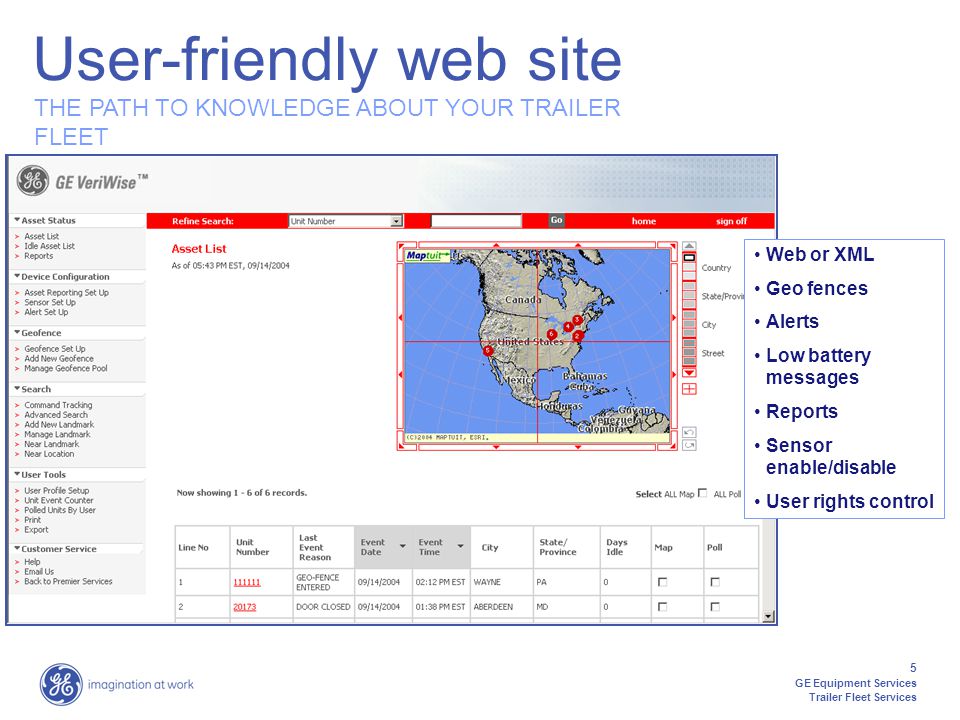

5. 5 GE Equipment Services Trailer Fleet Services THE PATH TO KNOWLEDGE ABOUT YOUR TRAILER FLEET User-friendly web site Web or XML Geo fences Alerts Low battery messages Reports Sensor enable/disable User rights control

6. 6 GE Equipment Services Trailer Fleet Services THE PATH TO KNOWLEDGE ABOUT YOUR TRAILER FLEET Pre-defined reports or export data to Excel to create your own. Web-based reports

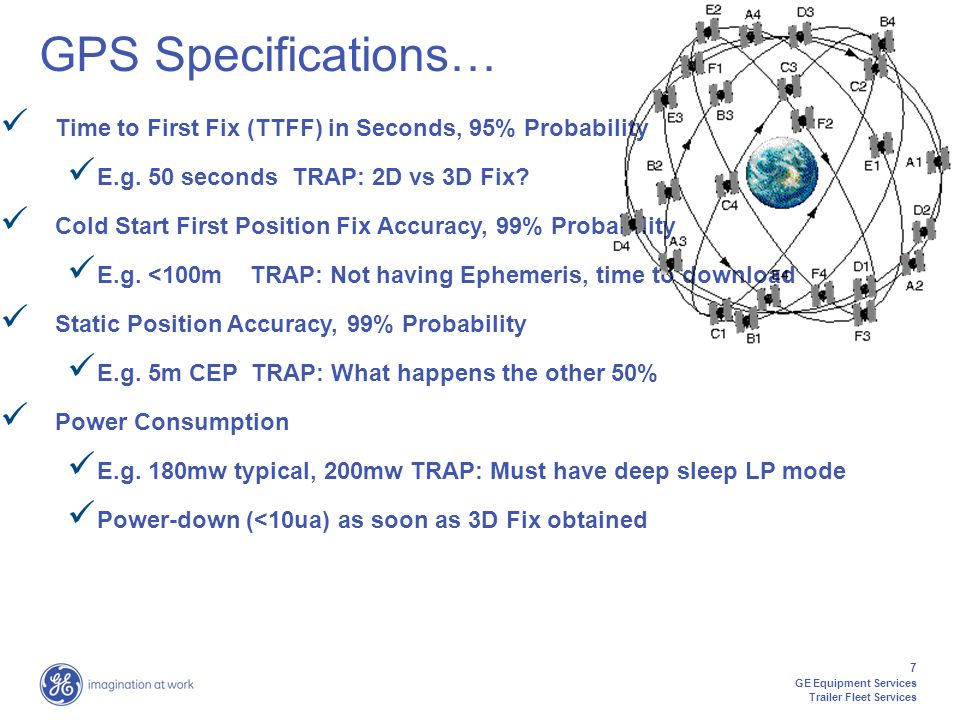

7. 7 GE Equipment Services Trailer Fleet Services GPS Specifications… Time to First Fix (TTFF) in Seconds, 95% Probability E.g. 50 seconds TRAP: 2D vs 3D Fix? Cold Start First Position Fix Accuracy, 99% Probability E.g. <100m TRAP: Not having Ephemeris, time to download Static Position Accuracy, 99% Probability E.g. 5m CEP TRAP: What happens the other 50% Power Consumption E.g. 180mw typical, 200mw TRAP: Must have deep sleep LP mode Power-down (<10ua) as soon as 3D Fix obtained

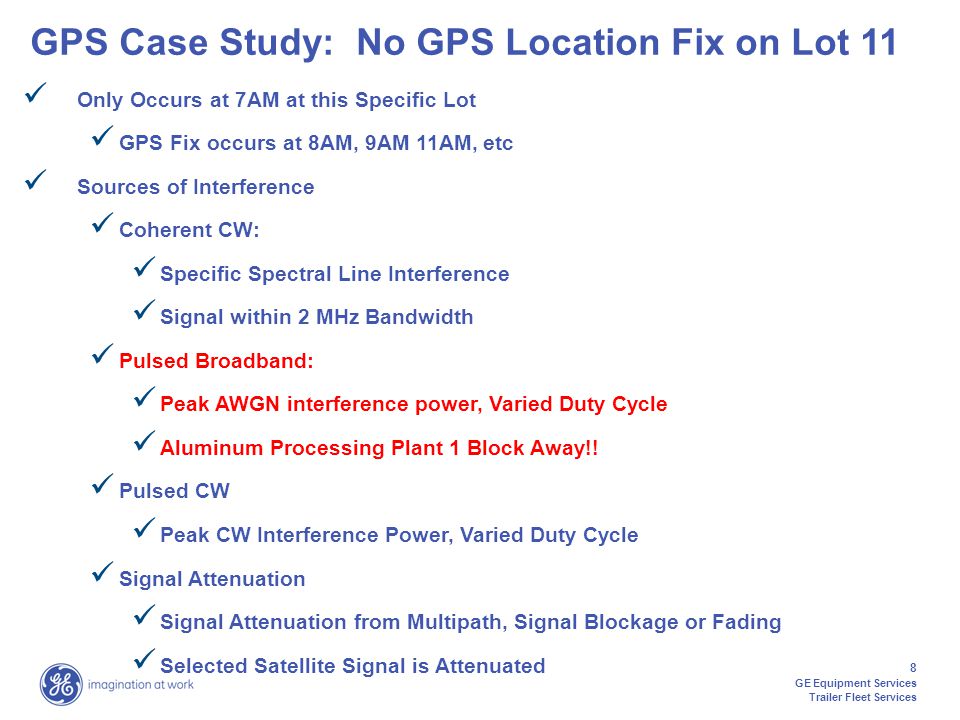

8. 8 GE Equipment Services Trailer Fleet Services GPS Case Study: No GPS Location Fix on Lot 11 Only Occurs at 7AM at this Specific Lot GPS Fix occurs at 8AM, 9AM 11AM, etc Sources of Interference Coherent CW: Specific Spectral Line Interference Signal within 2 MHz Bandwidth Pulsed Broadband: Peak AWGN interference power, Varied Duty Cycle Aluminum Processing Plant 1 Block Away!! Pulsed CW Peak CW Interference Power, Varied Duty Cycle Signal Attenuation Signal Attenuation from Multipath, Signal Blockage or Fading Selected Satellite Signal is Attenuated

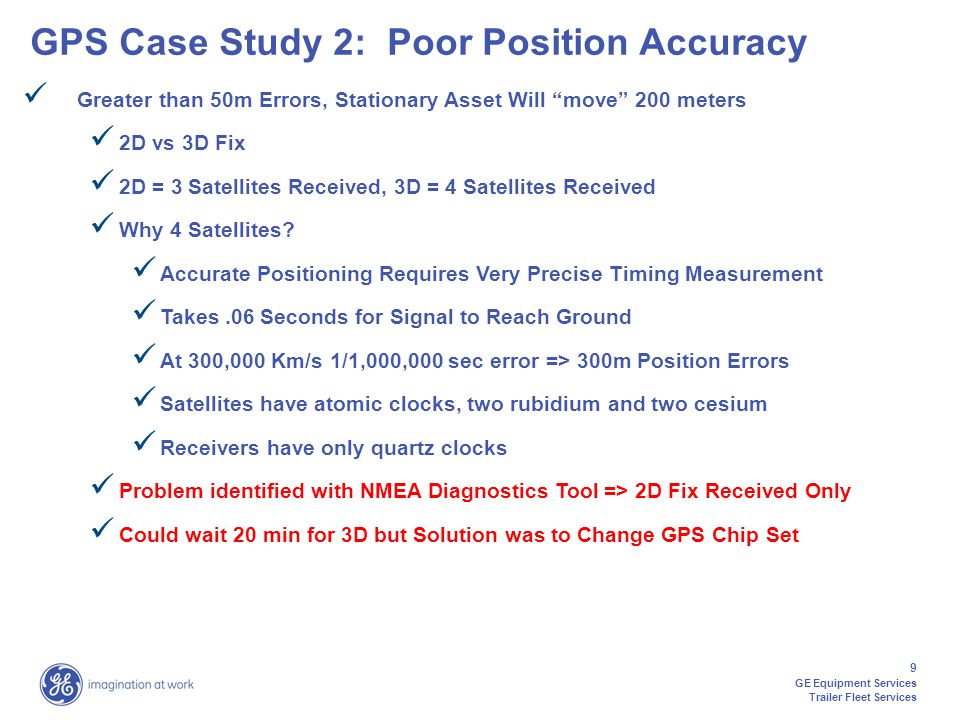

9. 9 GE Equipment Services Trailer Fleet Services GPS Case Study 2: Poor Position Accuracy Greater than 50m Errors, Stationary Asset Will “move” 200 meters 2D vs 3D Fix 2D = 3 Satellites Received, 3D = 4 Satellites Received Why 4 Satellites? Accurate Positioning Requires Very Precise Timing Measurement Takes.06 Seconds for Signal to Reach Ground At 300,000 Km/s 1/1,000,000 sec error => 300m Position Errors Satellites have atomic clocks, two rubidium and two cesium Receivers have only quartz clocks Problem identified with NMEA Diagnostics Tool => 2D Fix Received Only Could wait 20 min for 3D but Solution was to Change GPS Chip Set

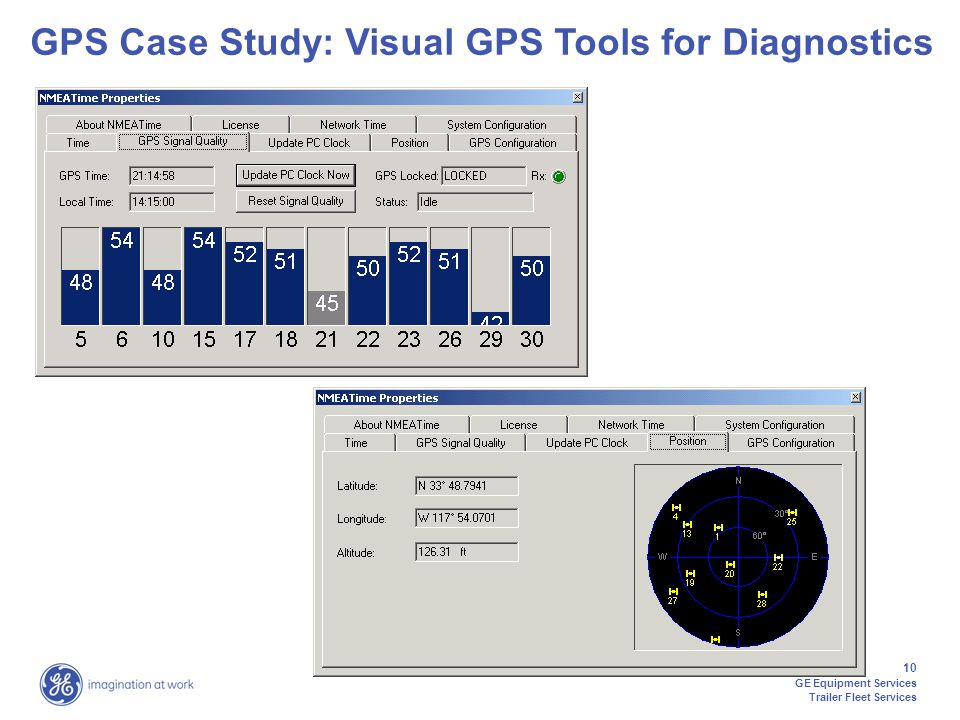

10. 10 GE Equipment Services Trailer Fleet Services GPS Case Study: Visual GPS Tools for Diagnostics

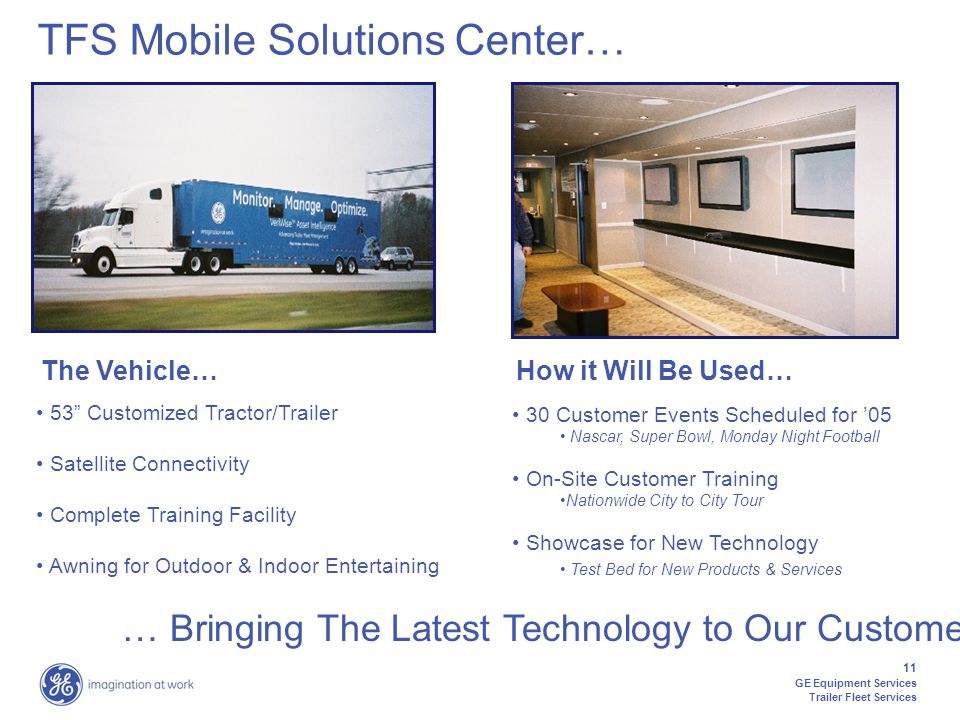

11. 11 GE Equipment Services Trailer Fleet Services TFS Mobile Solutions Center… 53” Customized Tractor/Trailer Satellite Connectivity Complete Training Facility Awning for Outdoor & Indoor Entertaining 30 Customer Events Scheduled for ’05 Nascar, Super Bowl, Monday Night Football On-Site Customer Training Nationwide City to City Tour Showcase for New Technology Test Bed for New Products & Services The Vehicle…How it Will Be Used… … Bringing The Latest Technology to Our Customers

12. 12 GE Equipment Services Trailer Fleet Services Gives us… “visibility for customer service, and the ability to update the positioning of equipment around the country. This helps our Operations group plan capacity as new orders come in.” - Bekins Van Lines “We’re looking to data we’ll be able to harvest from the new GE VeriWise™ features coming online, such as geo-fencing, to get us where we need to be from a reliability and security standpoint.” - G&P Trucking “Via our website, we currently offer our customers the best shipment-tracking system available…We’re in the process of integrating the GE VeriWise™ technology with this system; together they allow us to track more than the shipment; we can track down to the SKU. That will allow us to really bring this technology to bear on our entire operation.” - Caldwell Freight Customer reaction: VeriWise™ TRAILER FLEET SERVICES FROM GE

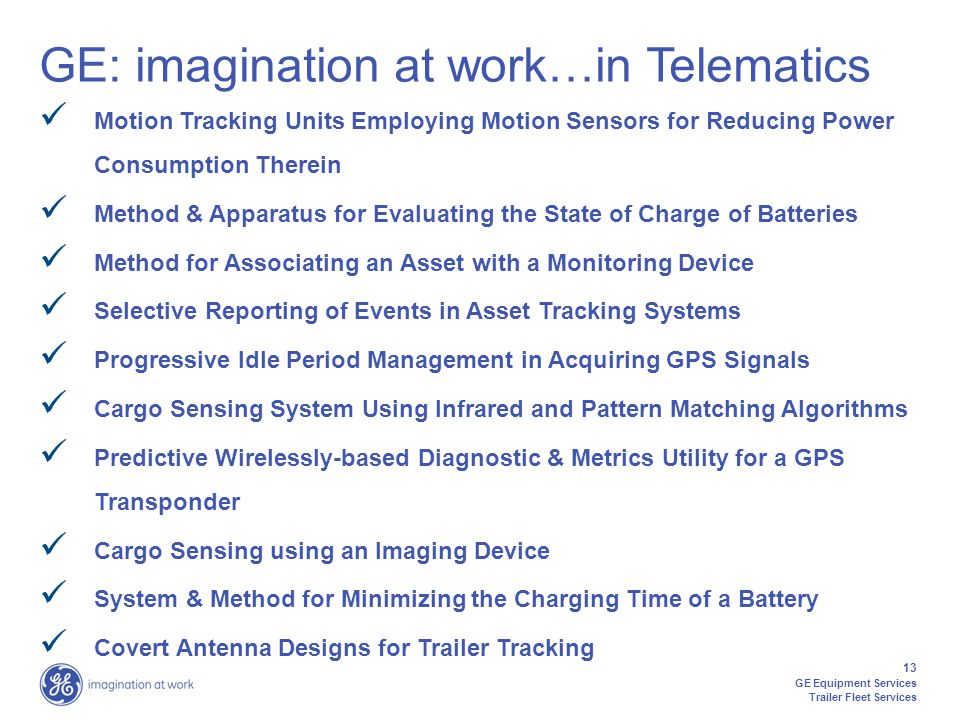

13. 13 GE Equipment Services Trailer Fleet Services GE: imagination at work…in Telematics Motion Tracking Units Employing Motion Sensors for Reducing Power Consumption Therein Method & Apparatus for Evaluating the State of Charge of Batteries Method for Associating an Asset with a Monitoring Device Selective Reporting of Events in Asset Tracking Systems Progressive Idle Period Management in Acquiring GPS Signals Cargo Sensing System Using Infrared and Pattern Matching Algorithms Predictive Wirelessly-based Diagnostic & Metrics Utility for a GPS Transponder Cargo Sensing using an Imaging Device System & Method for Minimizing the Charging Time of a Battery Covert Antenna Designs for Trailer Tracking
