Presentation on theme: "1 Simplex Overview. 2 1.The Remote Simplex Telemetry System is a very low cost, very low data rate (100 bps) Simplex Appliqué on the existing Globalstar."— Presentation transcript:

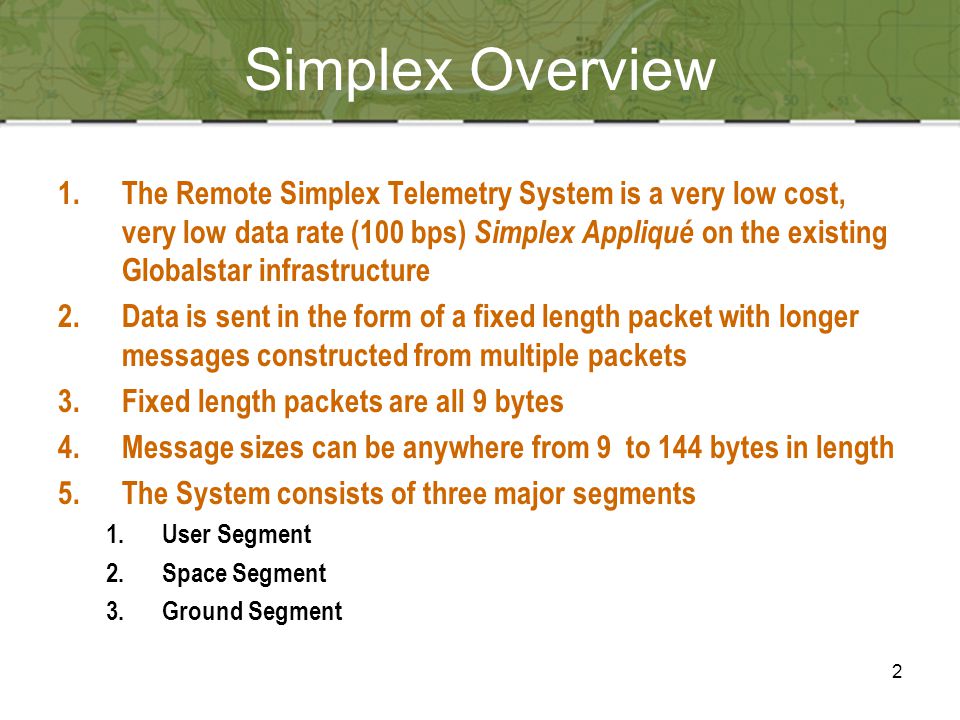

2 1.The Remote Simplex Telemetry System is a very low cost, very low data rate (100 bps) Simplex Appliqué on the existing Globalstar infrastructure 2.Data is sent in the form of a fixed length packet with longer messages constructed from multiple packets 3.Fixed length packets are all 9 bytes 4.Message sizes can be anywhere from 9 to 144 bytes in length 5.The System consists of three major segments 1.User Segment 2.Space Segment 3.Ground Segment
3 How Simplex Works L-Band and C-Band Signal Flow

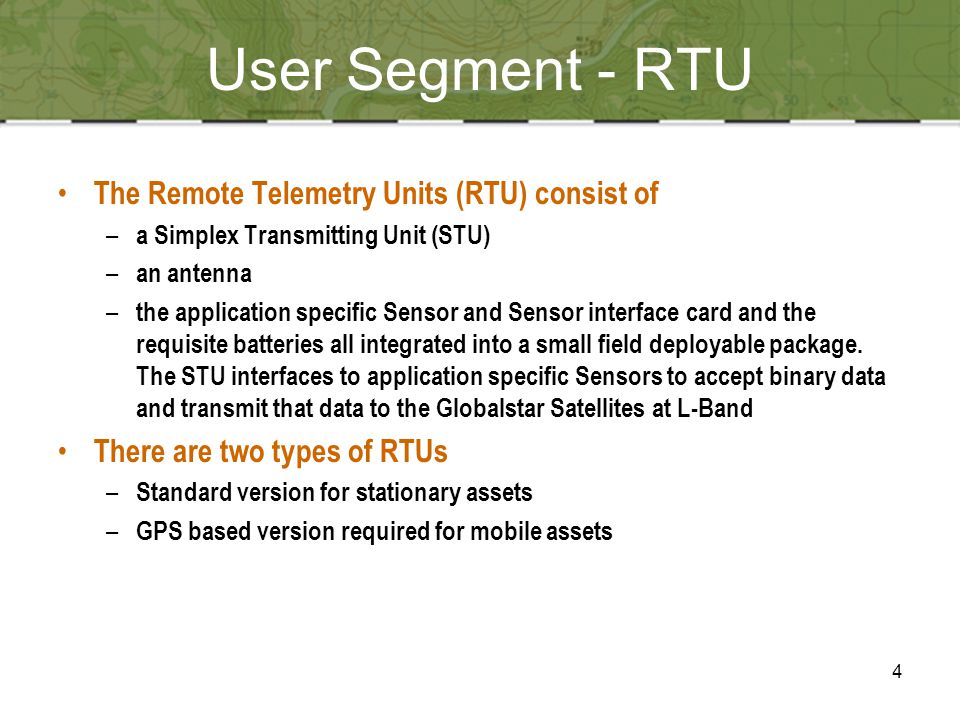

4 User Segment - RTU The Remote Telemetry Units (RTU) consist of – a Simplex Transmitting Unit (STU) – an antenna – the application specific Sensor and Sensor interface card and the requisite batteries all integrated into a small field deployable package. The STU interfaces to application specific Sensors to accept binary data and transmit that data to the Globalstar Satellites at L-Band There are two types of RTUs – Standard version for stationary assets – GPS based version required for mobile assets

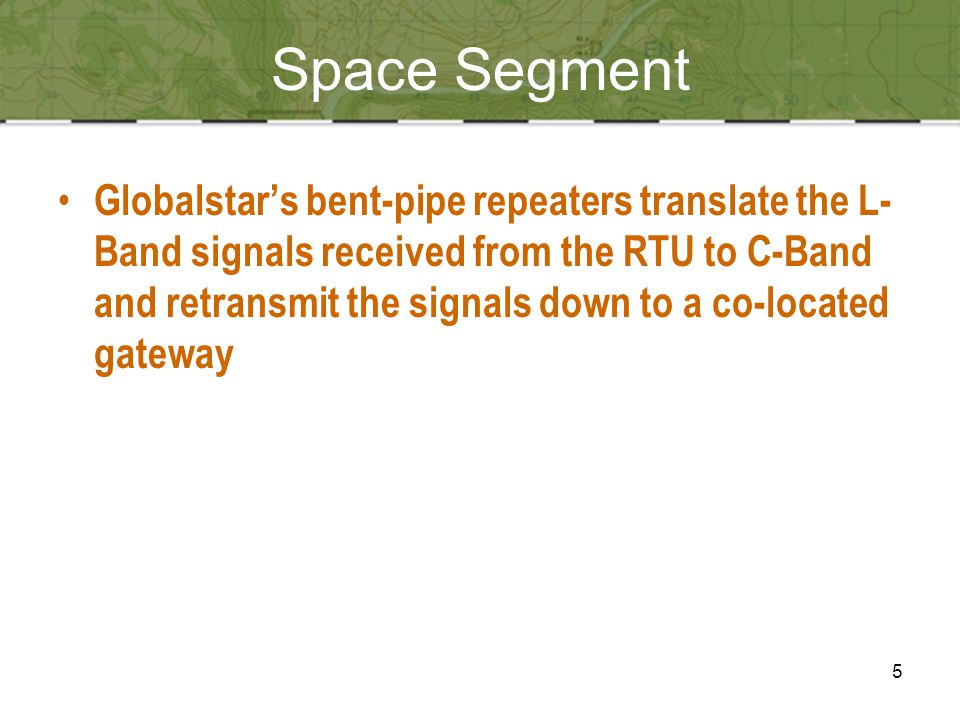

5 Space Segment Globalstar’s bent-pipe repeaters translate the L- Band signals received from the RTU to C-Band and retransmit the signals down to a co-located gateway
6 Ground Segment - Gateway The GWA extracts the RTU signals and passes the messages to the Back-Office (BOF) via the Globalstar Data Network (GDN) The GDN connects all gateways to the Globalstar Operational Control Centers (GOCC) in Milpitas and El Dorado Hills (back-up GOCC) in California

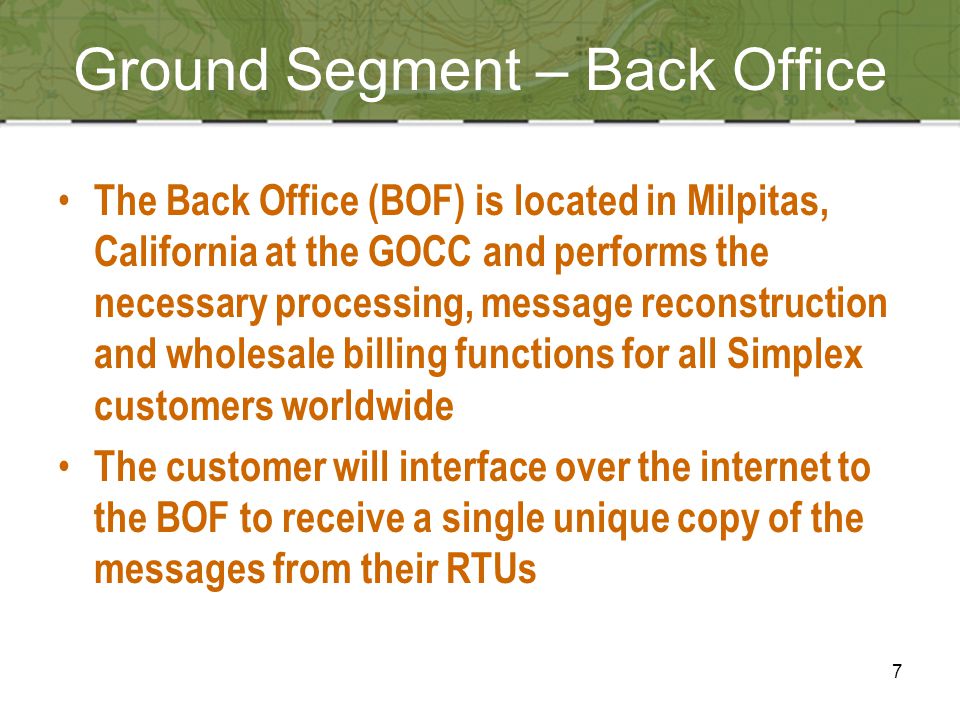

7 Ground Segment – Back Office The Back Office (BOF) is located in Milpitas, California at the GOCC and performs the necessary processing, message reconstruction and wholesale billing functions for all Simplex customers worldwide The customer will interface over the internet to the BOF to receive a single unique copy of the messages from their RTUs

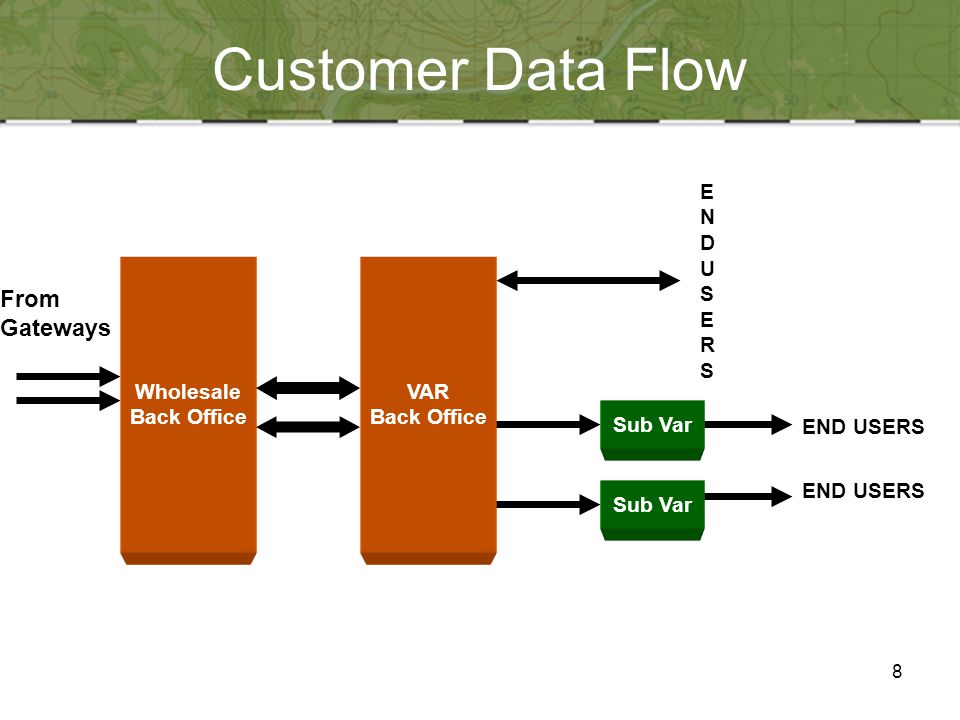

8 Customer Data Flow Sub Var Wholesale Back Office VAR Back Office ENDUSERSENDUSERS END USERS From Gateways

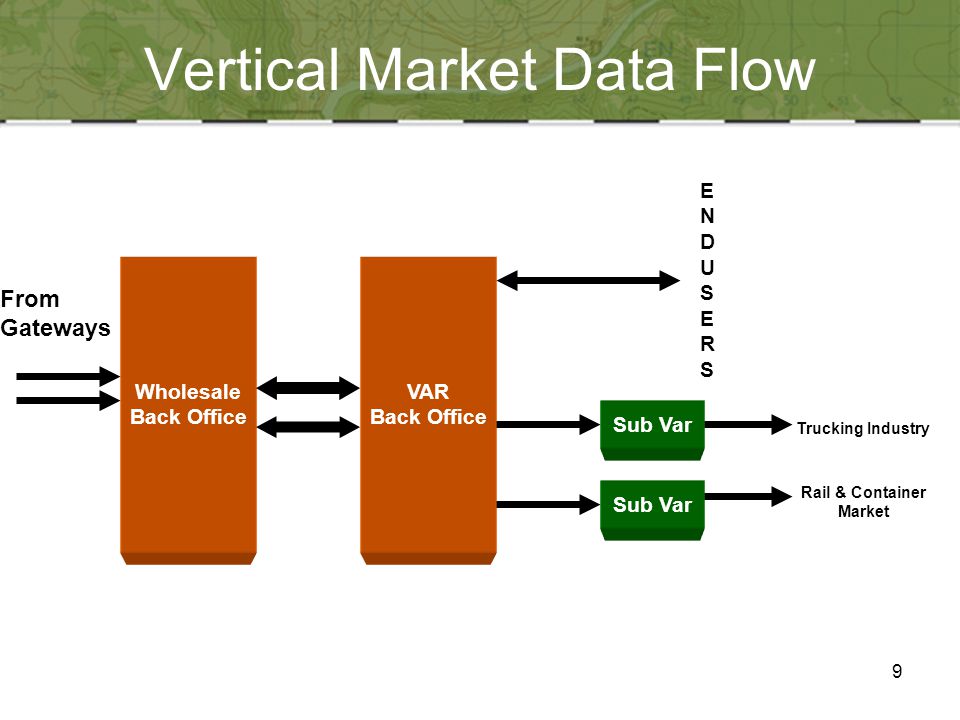

9 Vertical Market Data Flow Sub Var Wholesale Back Office VAR Back Office ENDUSERSENDUSERS Trucking Industry Rail & Container Market From Gateways

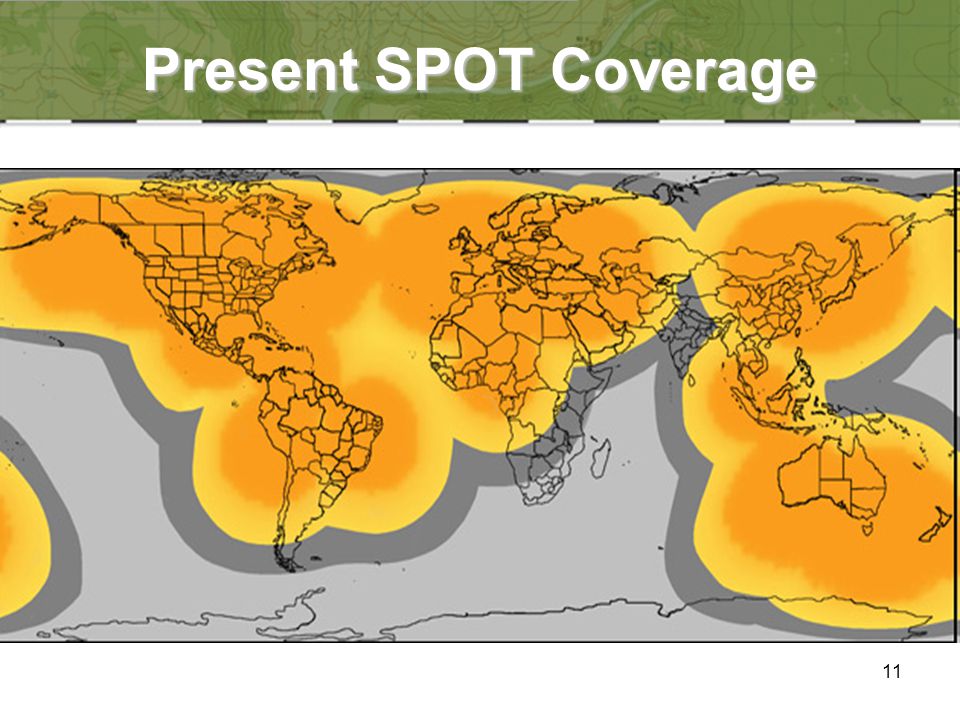

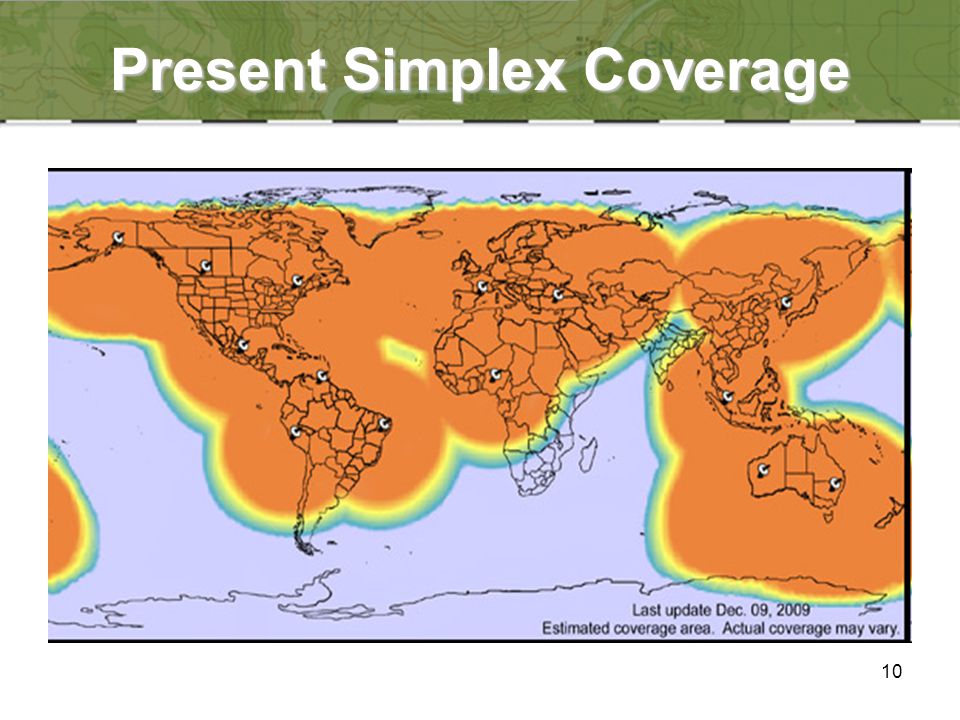

12 Robust System Design Simplex Transmits Messages Multiple Times Simplex Transmits Messages Multiple Times – Timing between messages allow for satellites to change position – Messages are seen from multiple gateways which helps ensure message delivery – Gateway coverage for simplex larger than for voice Simplex Operates On L and C Band Frequencies Simplex Operates On L and C Band Frequencies
13 Robust System Design Continued Future Friendly Future Friendly – Adding of one rack of equipment to any Globalstar gateway expands coverage – As usage goes up capacity can be increase easily by adding an additional rack of equipment – Preliminary testing of these upgrades expand our current Simplex data subscriber messaging capacity by as much as 10 times and increase our receiver sensitivity of the network by up to 40 percent Our coverage and message capacity continues to grow!!!!!

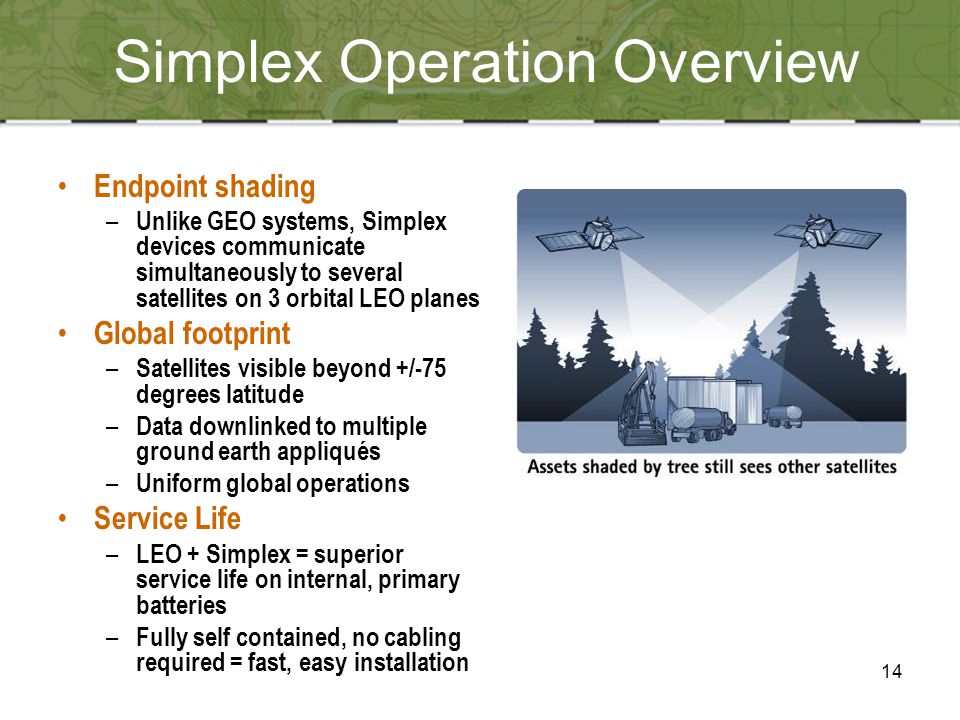

14 Simplex Operation Overview Endpoint shading – Unlike GEO systems, Simplex devices communicate simultaneously to several satellites on 3 orbital LEO planes Global footprint – Satellites visible beyond +/-75 degrees latitude – Data downlinked to multiple ground earth appliqués – Uniform global operations Service Life – LEO + Simplex = superior service life on internal, primary batteries – Fully self contained, no cabling required = fast, easy installation

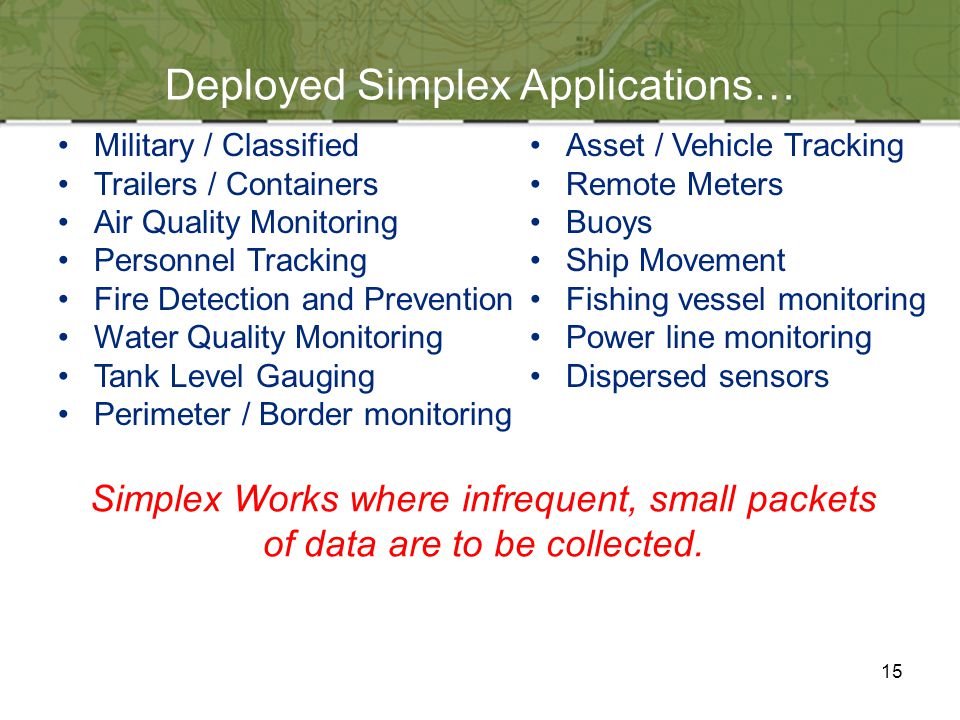

15 Deployed Simplex Applications… Simplex Works where infrequent, small packets of data are to be collected. Military / Classified Trailers / Containers Air Quality Monitoring Personnel Tracking Fire Detection and Prevention Water Quality Monitoring Tank Level Gauging Perimeter / Border monitoring Asset / Vehicle Tracking Remote Meters Buoys Ship Movement Fishing vessel monitoring Power line monitoring Dispersed sensors

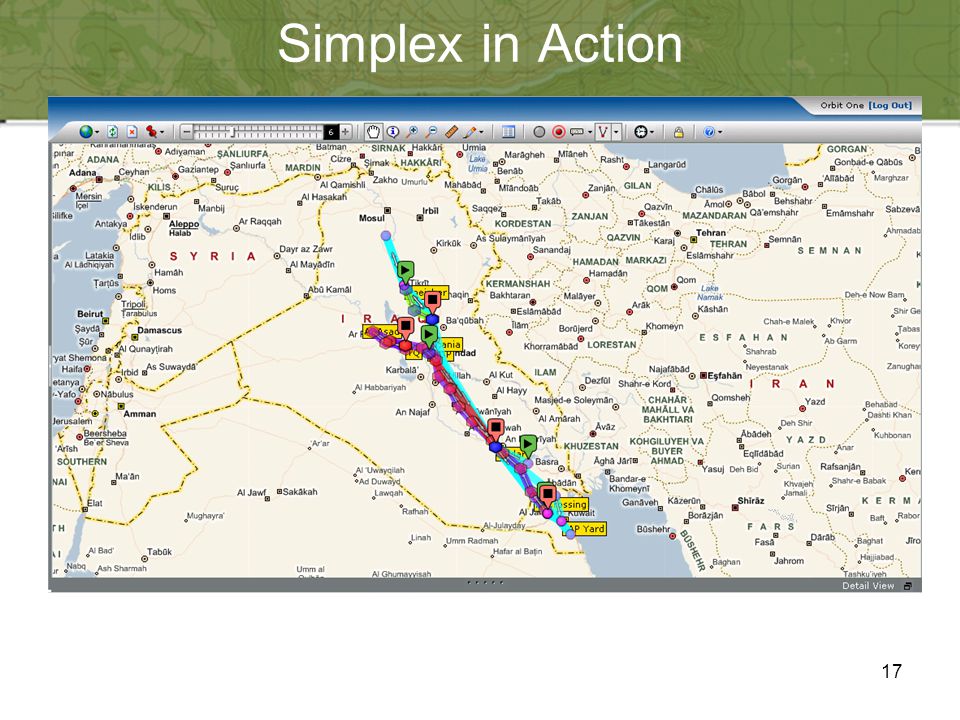

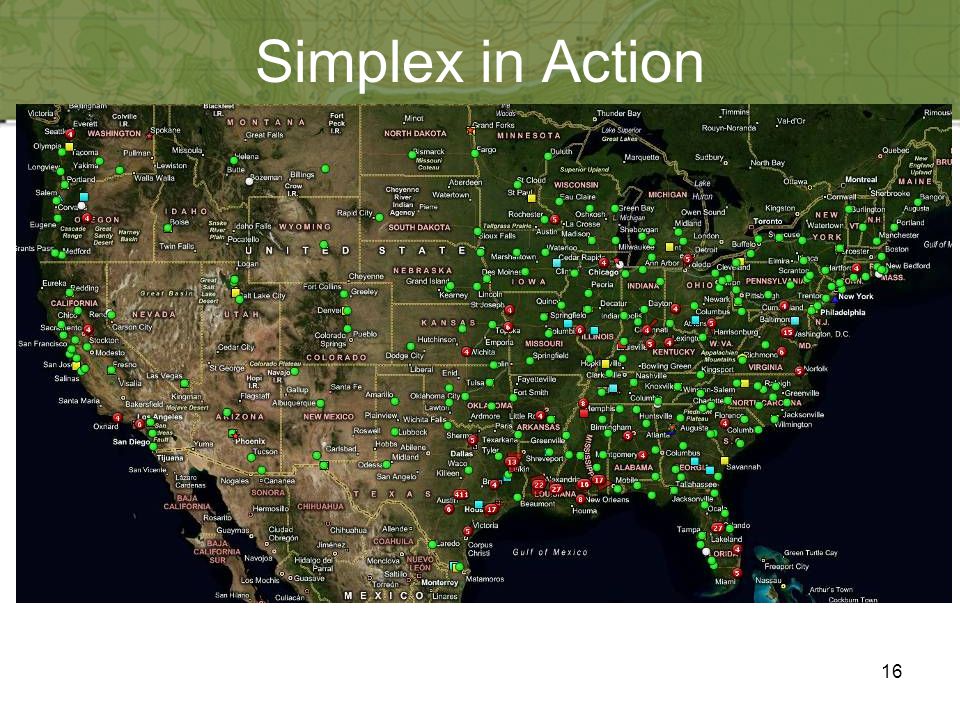

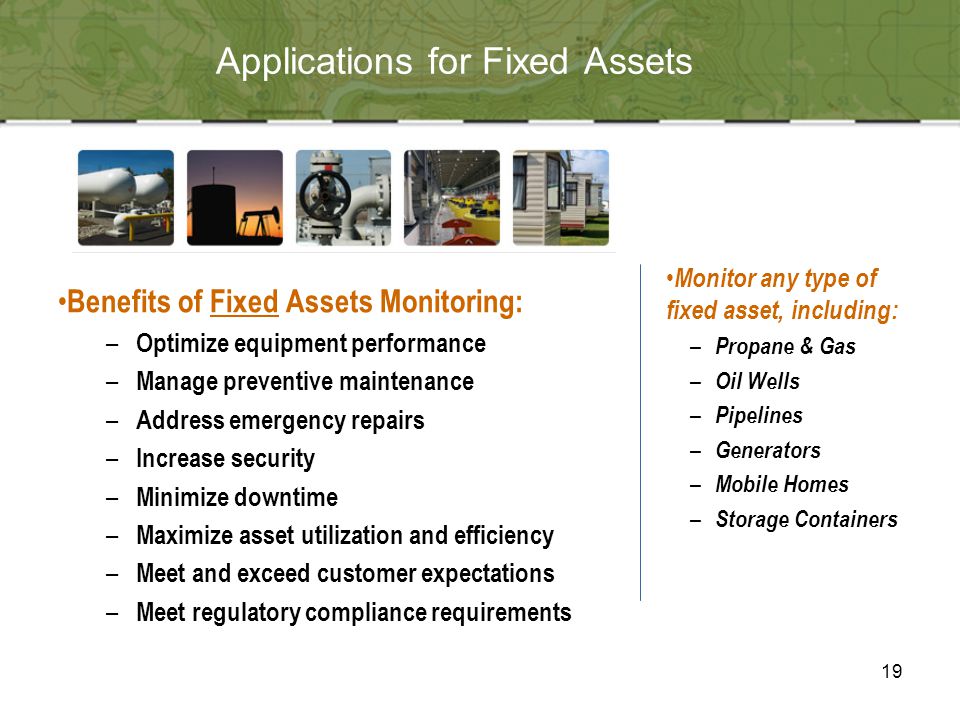

19 Applications for Fixed Assets Benefits of Fixed Assets Monitoring: – Optimize equipment performance – Manage preventive maintenance – Address emergency repairs – Increase security – Minimize downtime – Maximize asset utilization and efficiency – Meet and exceed customer expectations – Meet regulatory compliance requirements Monitor any type of fixed asset, including: – Propane & Gas – Oil Wells – Pipelines – Generators – Mobile Homes – Storage Containers
20 Benefits of Mobile Assets Monitoring: – Increase asset utilization – Improve operator efficiency – Reduce theft – Speed recovery of missing assets – Reduce fuel costs, decrease down time – Protect cargo from damage – Enhance customer service – Reduce insurance premiums Monitor any type of mobile asset, including: – Trailers – Railcars – Heavy Equipment – Maritime (Boats/Barges) – Containers – Military Vehicles – Service Vehicles – Mobile Homes Applications for Mobile Assets
