Modern Application for Introductory Physics: Bloodstain Pattern Analysis John Eric Goff Lynchburg College.

Similar presentations


Presentation on theme: "Modern Application for Introductory Physics: Bloodstain Pattern Analysis John Eric Goff Lynchburg College."— Presentation transcript:

1 Modern Application for Introductory Physics: Bloodstain Pattern Analysis John Eric Goff Lynchburg College

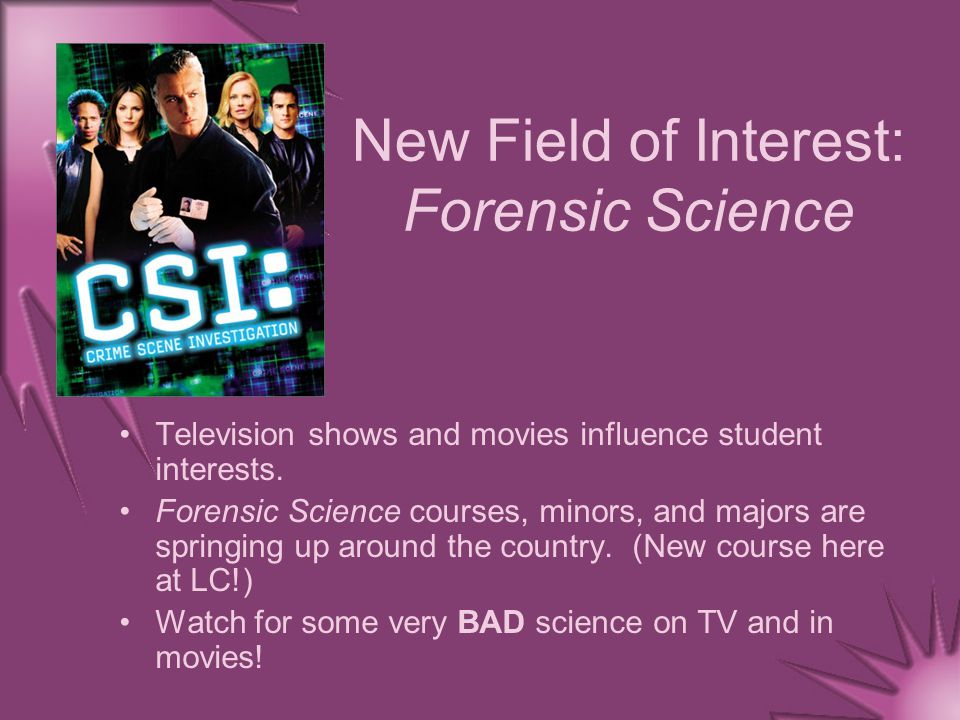

2 New Field of Interest: Forensic Science Television shows and movies influence student interests. Forensic Science courses, minors, and majors are springing up around the country. (New course here at LC!) Watch for some very BAD science on TV and in movies!

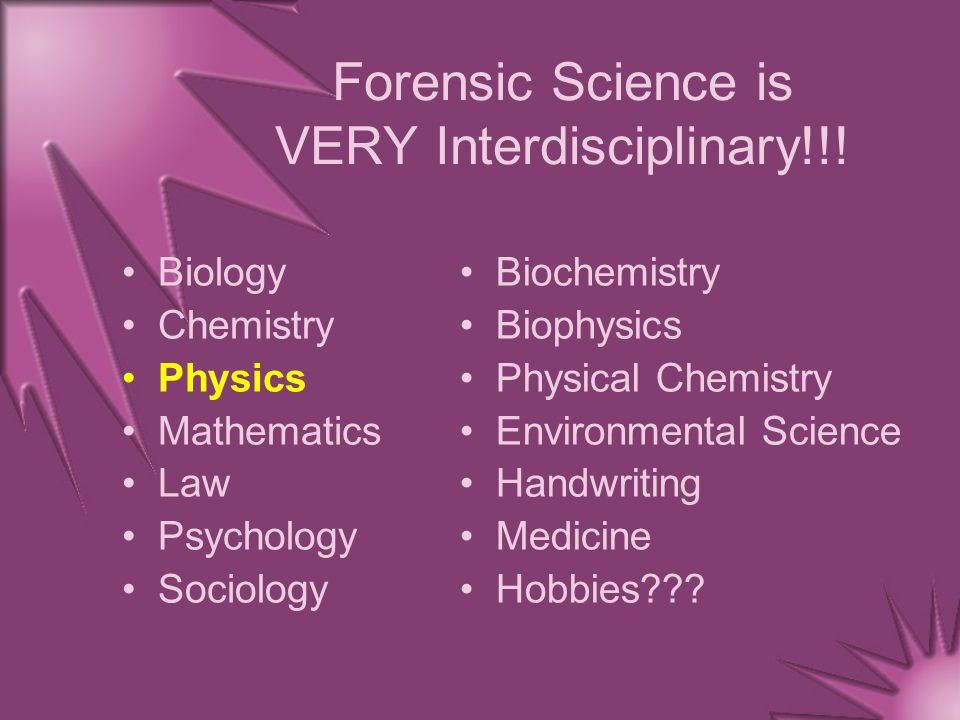

3 Forensic Science is VERY Interdisciplinary!!! Biology Chemistry Physics Mathematics Law Psychology Sociology Biochemistry Biophysics Physical Chemistry Environmental Science Handwriting Medicine Hobbies???

4 I got help with this talk! (The tutorial is great! However, beware of some poor physics in a few places!)

5 Bloodstain Patterns Physical Evidence Usually Found at Violent Crime Scenes Gives Clues as to WHAT Happened May Suggest Sequence of Events Analysis MUST be placed in context of all aspects of crime scene investigation in order to reconstruct (possible) criminal events.

6 Different Types of Bloodstain Patterns Passive Bloodstains (drops, pools, etc.) Transfer Bloodstains (wipe a weapon, etc.) Active (or “Projected”) Bloodstains (bullets, stepping in blood, etc.)

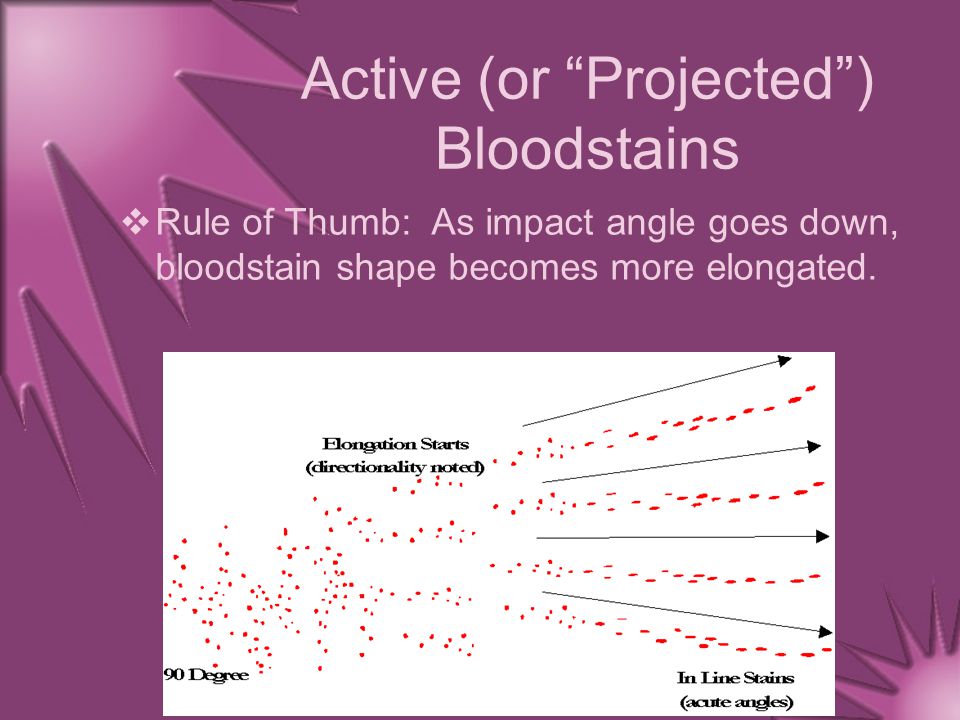

7 Active (or “Projected”) Bloodstains  Rule of Thumb: As impact angle goes down, bloodstain shape becomes more elongated.

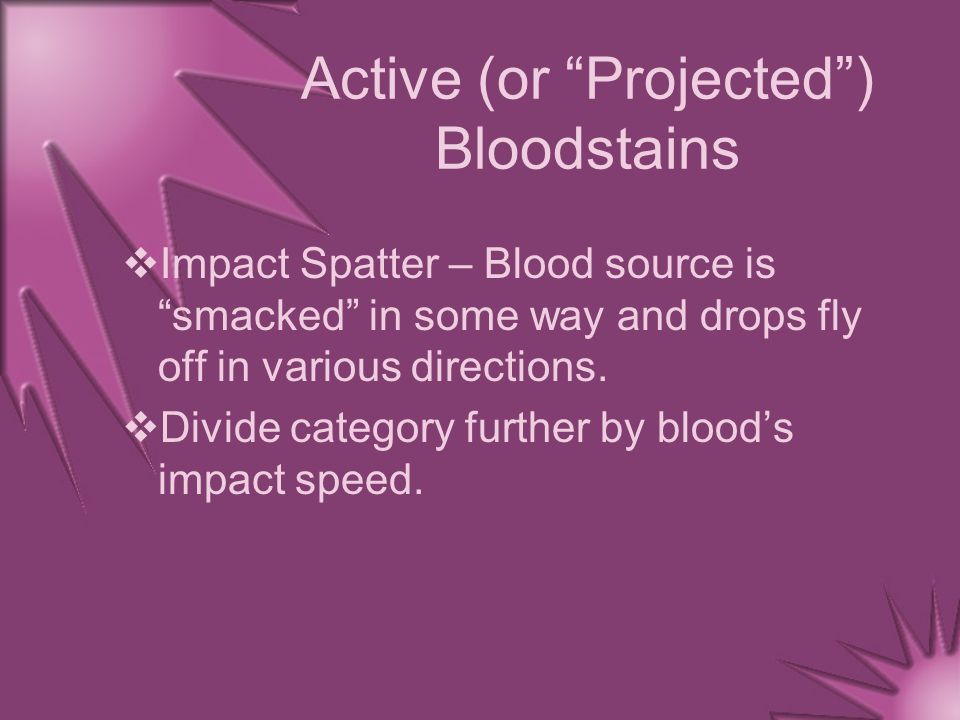

8 Active (or “Projected”) Bloodstains  Impact Spatter – Blood source is “smacked” in some way and drops fly off in various directions.  Divide category further by blood’s impact speed.

9 Low Velocity velocity ≤ 5 ft/s stain size is (relatively) large: diameter ≥ 4mm examples: blood drops into blood and footstep spatters

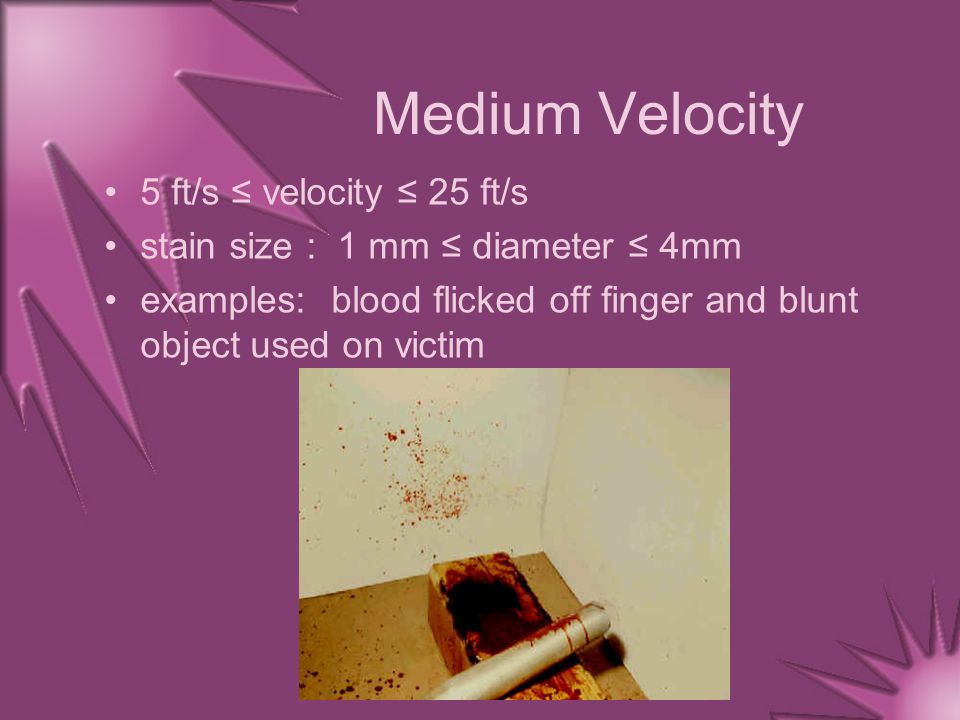

10 Medium Velocity 5 ft/s ≤ velocity ≤ 25 ft/s stain size : 1 mm ≤ diameter ≤ 4mm examples: blood flicked off finger and blunt object used on victim

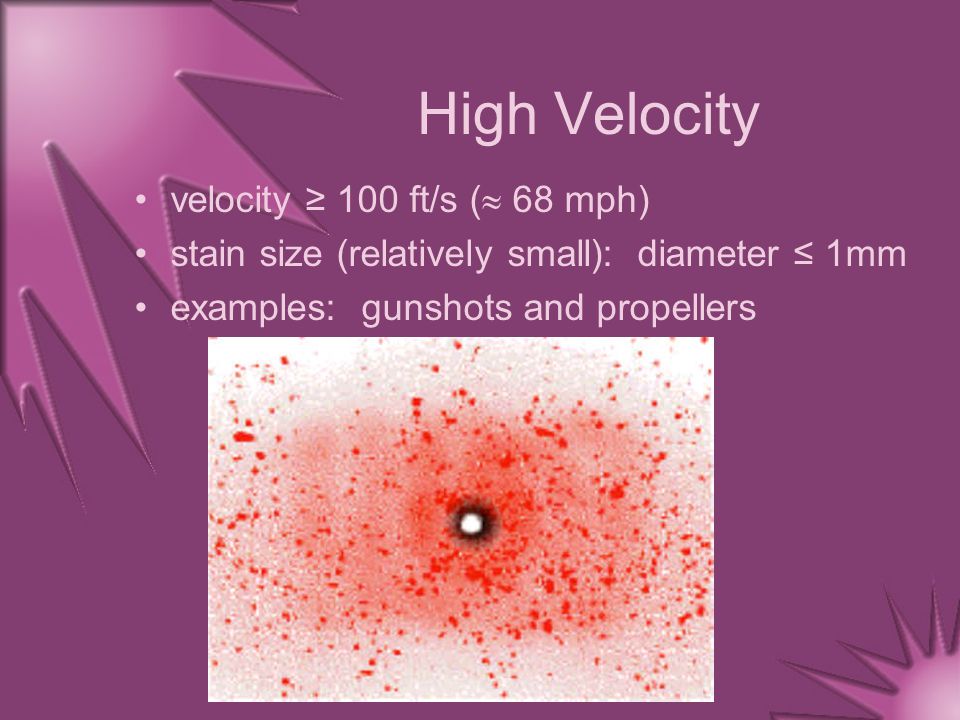

11 High Velocity velocity ≥ 100 ft/s (  68 mph) stain size (relatively small): diameter ≤ 1mm examples: gunshots and propellers

12 Time for Physics!  Big Forensic Science Question: “From where did the blood come???”

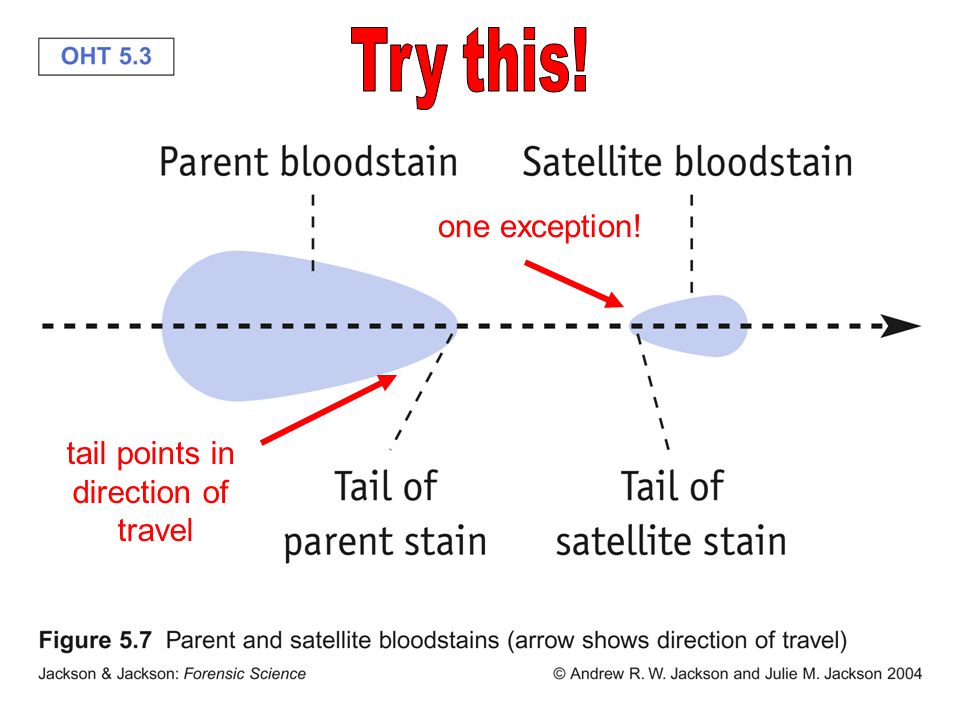

13 tail points in direction of travel one exception!

14 sin θ = W / L W L What does W = L mean? sin θ = 1 → θ = 90  Drop is a circle!

15 Real World!  What if blood drop is not a pretty oval?!? Do the best you can!!!

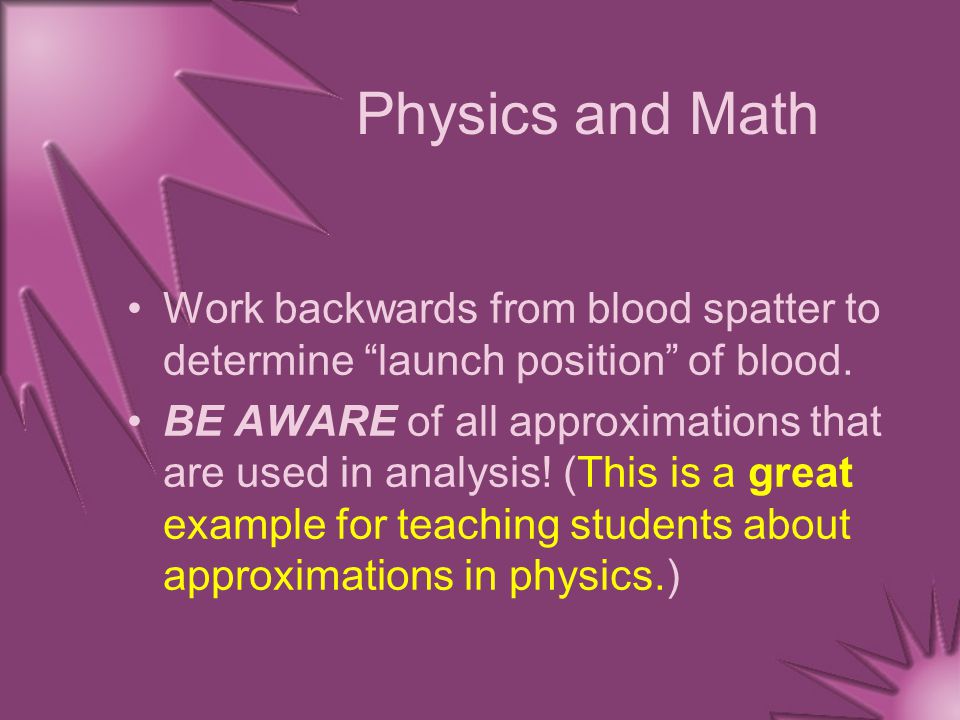

16 Physics and Math Work backwards from blood spatter to determine “launch position” of blood. BE AWARE of all approximations that are used in analysis! (This is a great example for teaching students about approximations in physics.)

17

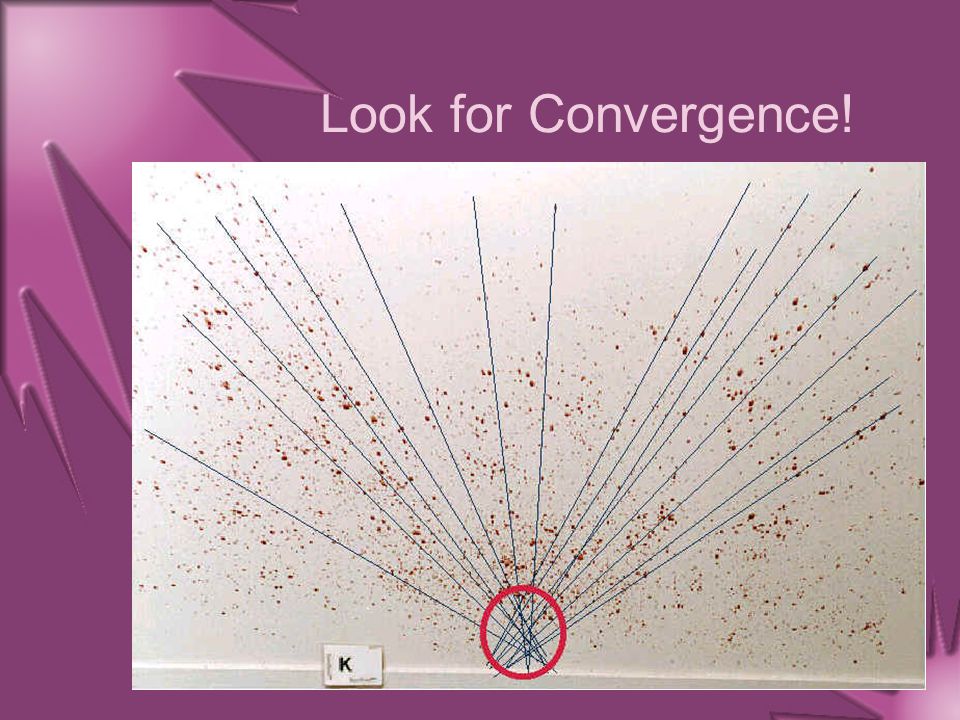

18 Look for Convergence!

19 Real Crime Scene

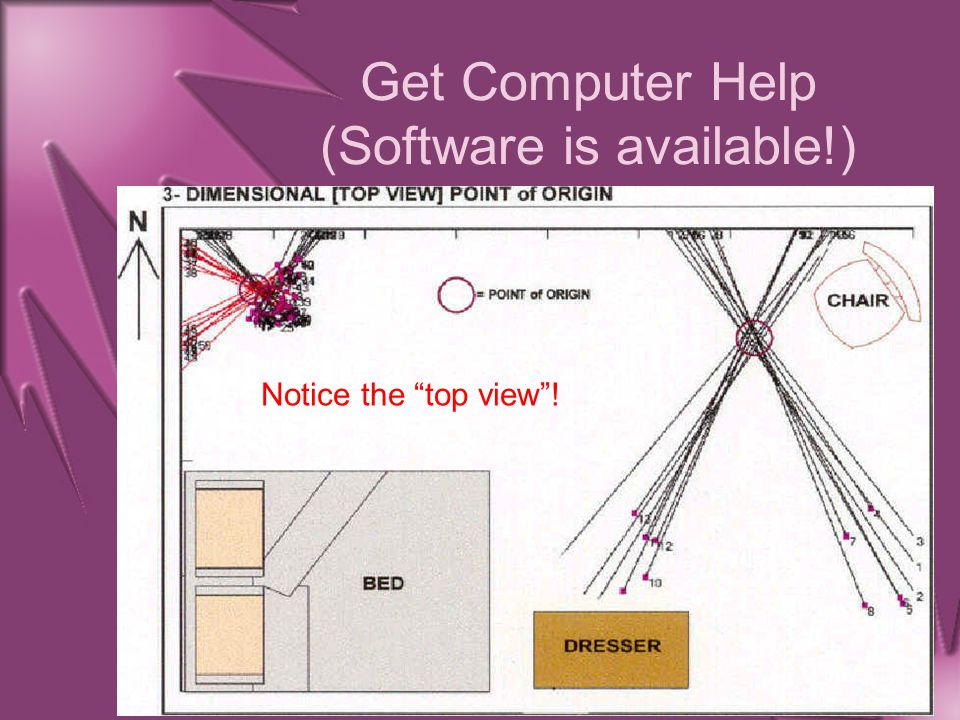

20 Get Computer Help (Software is available!) Notice the “top view”!

21 Big Problem!!!  Neither blood nor anything else travels unaided in a straight line through the air!

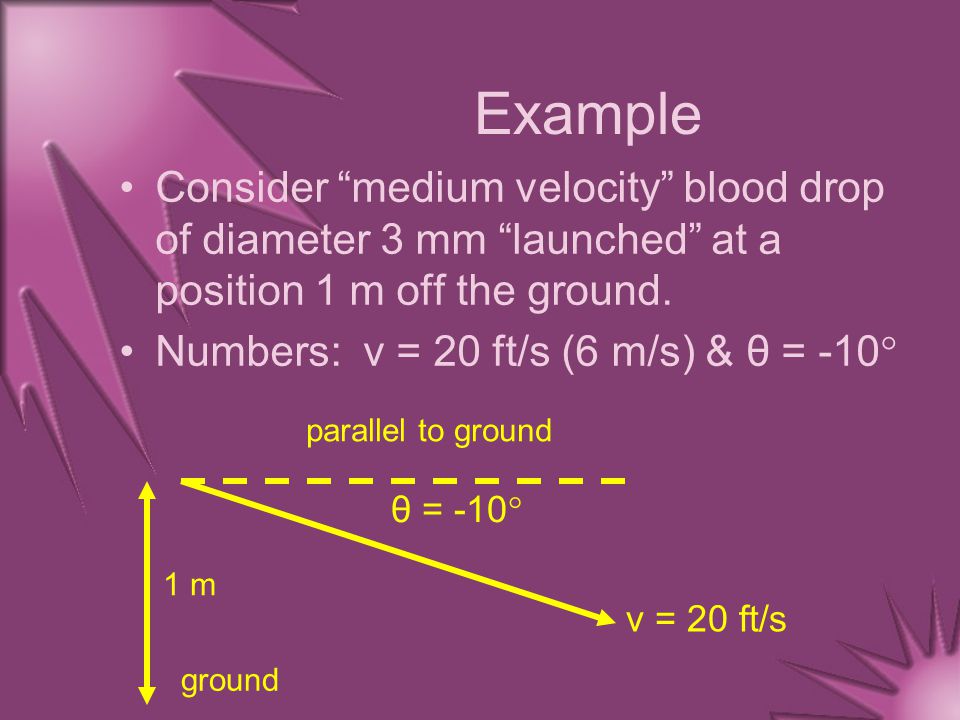

22 Example Consider “medium velocity” blood drop of diameter 3 mm “launched” at a position 1 m off the ground. Numbers: v = 20 ft/s (6 m/s) & θ = -10  θ = -10  v = 20 ft/s parallel to ground 1 m ground

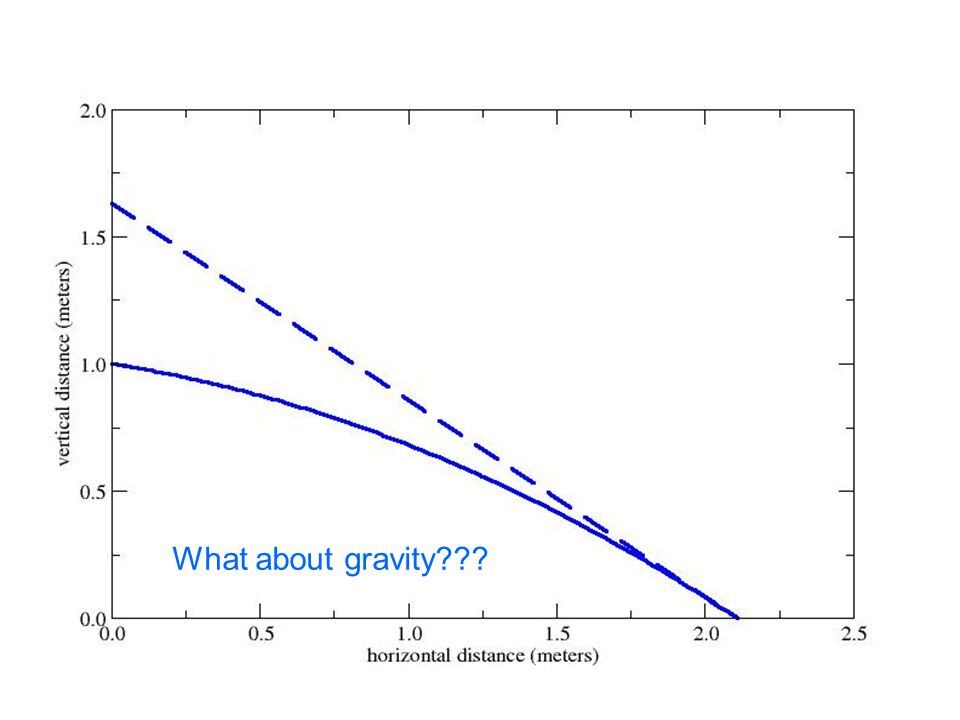

23 What about gravity???

24 What about air resistance??? (Drop’s speed and size are needed. Tough to know!)

25 Moral of the Story  Calculation using “straight-line” trajectory (no gravity and no air resistance) predicts a “launch” point higher than actual point.  “Straight-line” trajectory is reasonable for high “launch” velocities and/or stain and “launch” points “close” together. (The idea is to keep the flight time as short as possible.)  More accuracy requires a better model and more specialized work.

26 Forensic Science Literature The Directional Analysis of Bloodstain Patterns: Theory and Experimental Validation by A. L. Carter  “Therefore, the best one can do here is to estimate an upper limit for the height of the source.” (p. 181) Can. Soc. Forens. Sci. J. Vol. 34. No. 4 (2001) pp
