1 Modeling Lecture 1. Modeling and Sustainability CE4505 Surface Water Quality Engineering CE4505 – Surface Water Quality Engineering

2 Sustainability In our every deliberation we must consider the impact of our decisions on the next seven generations. Iroquois Confederacy Meeting the needs of the present without compromising the ability of future generations to meet their own needs. World Commission on Environment and Development, 1987 CE4505 – Surface Water Quality Engineering

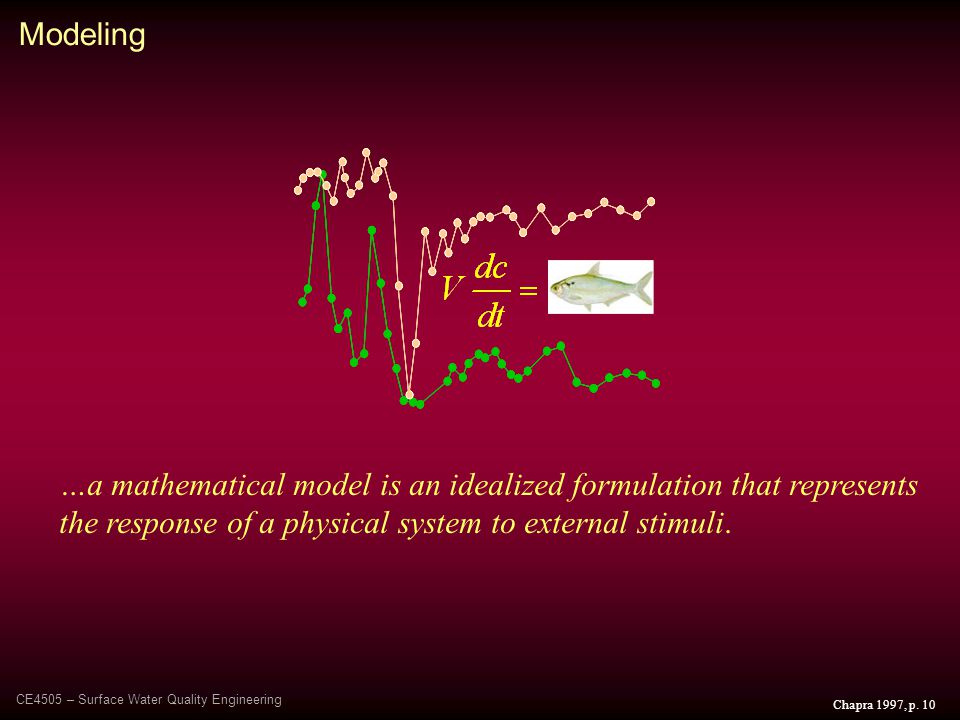

3 …a mathematical model is an idealized formulation that represents the response of a physical system to external stimuli. Chapra 1997, p. 10 Modeling CE4505 – Surface Water Quality Engineering

4 Toward Sustainability 1) a knowledge of the way a system works. We might think of this as a research model. 2) a manner of predicting cause and effect. We might think of this as a management model. Decisions supporting a sustainable future require: CE4505 – Surface Water Quality Engineering

5 Understanding the System The Blind Men and the Elephant John Godfrey Saxe, CE4505 – Surface Water Quality Engineering

6 It was six men of Indostan To learning much inclined, Who went to see the Elephant (Though all of them were blind), That each by observation Might satisfy his mind The First approached the Elephant, And happening to fall Against his broad and sturdy side, At once began to bawl: “God bless me! but the Elephant Is very like a wall!” The Second, feeling of the tusk, Cried, “Ho! what have we here So very round and smooth and sharp? To me ’tis mighty clear This wonder of an Elephant Is very like a spear!” The Third approached the animal, And happening to take The squirming trunk within his hands, Thus boldly up and spake: “I see,” quoth he, “the Elephant Is very like a snake!” To Better See the Elephant … The Fourth reached out an eager hand, And felt about the knee. “What most this wondrous beast is like Is mighty plain,” quoth he; “ ‘Tis clear enough the Elephant Is very like a tree!” The Fifth, who chanced to touch the ear, Said: “E’en the blindest man Can tell what this resembles most; Deny the fact who can This marvel of an Elephant Is very like a fan!” The Sixth no sooner had begun About the beast to grope, Than, seizing on the swinging tail That fell within his scope, “I see,” quoth he, “the Elephant Is very like a rope!” And so these men of Indostan Disputed loud and long, Each in his own opinion Exceeding stiff and strong, Though each was partly in the right, And all were in the wrong! So oft in theologic wars, The disputants, I ween, Rail on in utter ignorance Of what each other mean, And prate about an Elephant Not one of them has seen! CE4505 – Surface Water Quality Engineering

7 To provide a better understanding of the mechanisms and interactions that give rise to various types of water quality behavior, such understanding to be sharpened by the formulation and testing of hypotheses of the cause-effect relationships between residual inputs and resulting water quality. (Thomann and Mueller 1987) Research Models CE4505 – Surface Water Quality Engineering

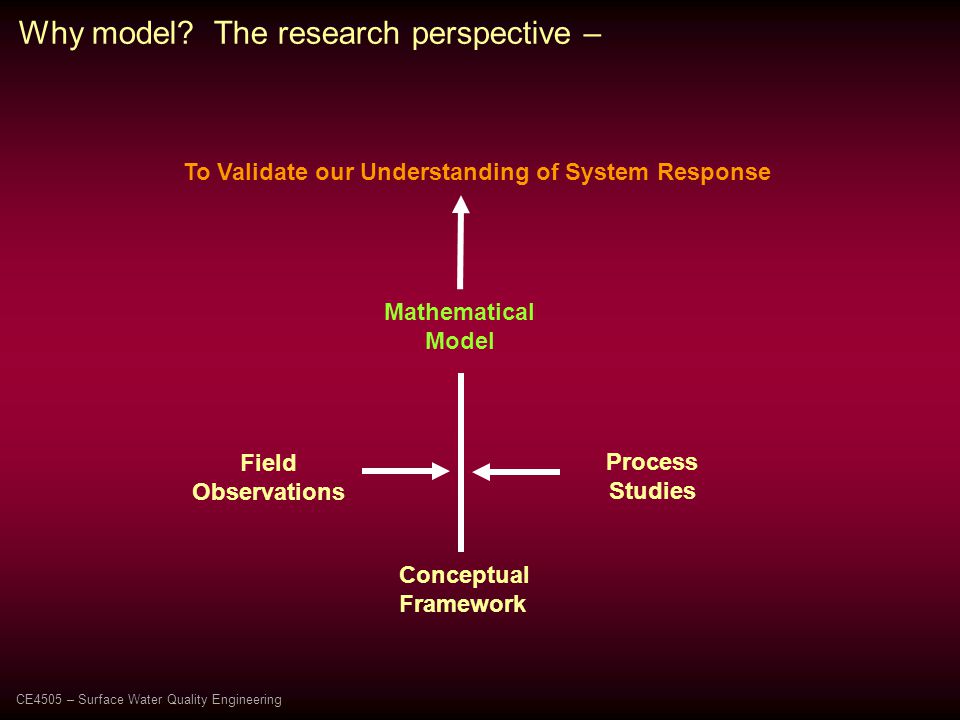

8 Field Observations Mathematical Model Process Studies Conceptual Framework To Validate our Understanding of System Response Why model? The research perspective – CE4505 – Surface Water Quality Engineering

9 Predicting Cause and Effect CE4505 – Surface Water Quality Engineering

10 Cause & Effect: firing a projectile by Trial and Error CE4505 – Surface Water Quality Engineering

11 Cause and Effect: achieving sustainability by Build and Measure CE4505 – Surface Water Quality Engineering

12 underdesign - …the environmental engineering equivalent of building a bridge that falls down. (Thomann and Mueller 1987, p. ix) Undesirable Outcomes CE4505 – Surface Water Quality Engineering

13 overdesign - …the environmental engineering equivalent of building a bridge to nowhere. (Thomann and Mueller 1987, p. ix) Undesirable Outcomes CE4505 – Surface Water Quality Engineering

14 Cause and Effect: firing a projectile by Applying a Model angle distance CE4505 – Surface Water Quality Engineering

15 Linking … Action and Reaction Perturbation and Response Cause and Effect by Applying a Model Cause and Effect: achieving sustainability CE4505 – Surface Water Quality Engineering

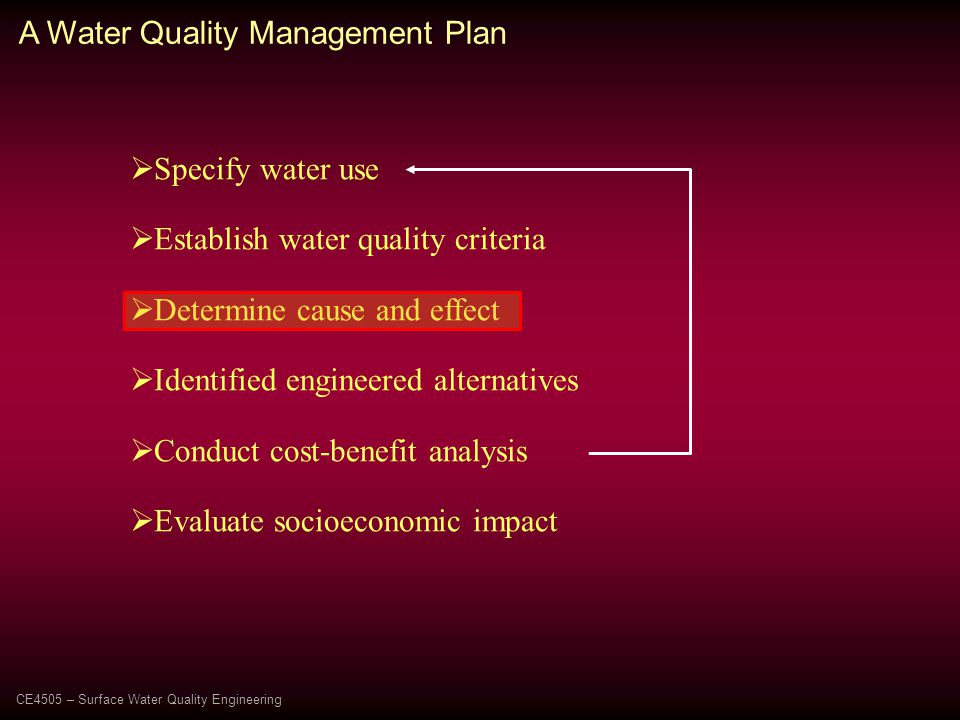

16  Specify water use  Establish water quality criteria  Determine cause and effect  Identified engineered alternatives  Conduct cost-benefit analysis  Evaluate socioeconomic impact A Water Quality Management Plan CE4505 – Surface Water Quality Engineering

17 To provide a more rational basis for making water quality control decisions, such a basis to include a defensible, credible, predictive framework, within the larger framework of cost-benefit analysis. (Thomann and Mueller 1987) Why Model? CE4505 – Surface Water Quality Engineering

18 Why model? CE4505 – Surface Water Quality Engineering Guidance for Management Actions Quantification of Loads Characterization of Fate & Transport Mathematical Model Engineered Solutions

19 Model Implementations CE4505 – Surface Water Quality Engineering Define “a” as an assimilation factor, L 3 ·T -1 Simulation Mode Design Mode 1 – assimilative capacity Design Mode 2 – environmental modification

20 (Chapra 1997, Figure 1.1) Water and Wastewater in an Urban Setting CE4505 – Surface Water Quality Engineering

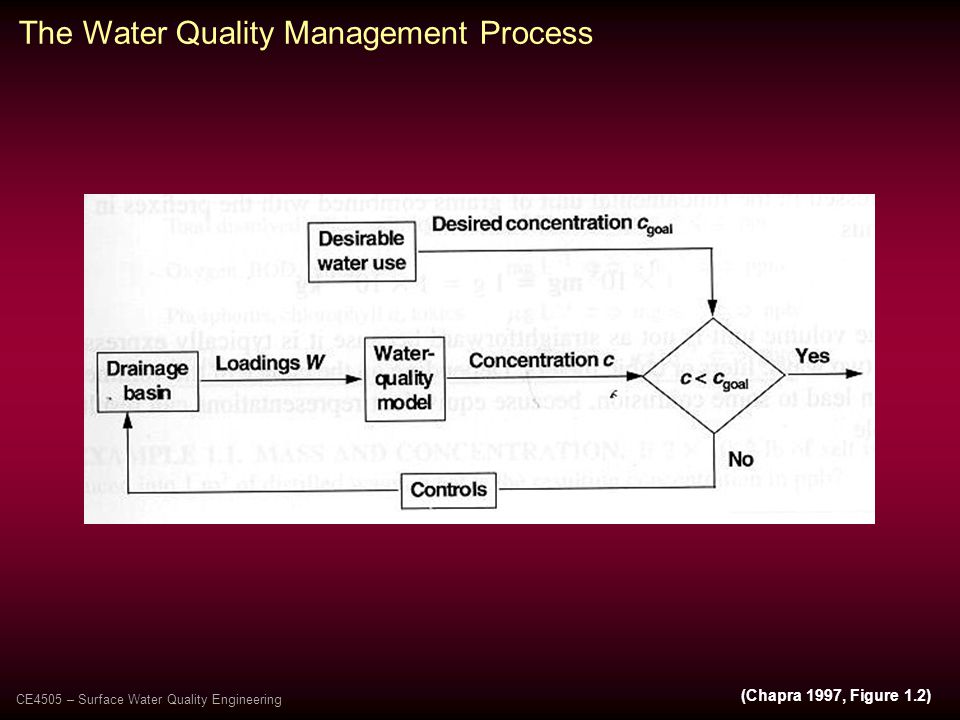

21 (Chapra 1997, Figure 1.2) The Water Quality Management Process CE4505 – Surface Water Quality Engineering

22 CE5504 – Surface Water Quality Modeling universities/institutes (UFI) government (LLRS) consulting (LTI) EPA Large Lakes Research Station Grosse Ile, Michigan Limno Tech, Inc. Ann Arbor, Michigan Upstate Freshwater Institute Syracuse, New York Opportunities
