1 Head jig usage procedure RKC London Office

2 Set the head jig 2) Put two screws with loose condition 3) Lock the plate 4) Tighten two head jig screws 5) Release the plate Print Head Head Jig 1) Put the head jig

3 Remove the Print head 1) Remove two print head screws 2) Remove the print head Print Head Head jig 3) You can keep the original Head position

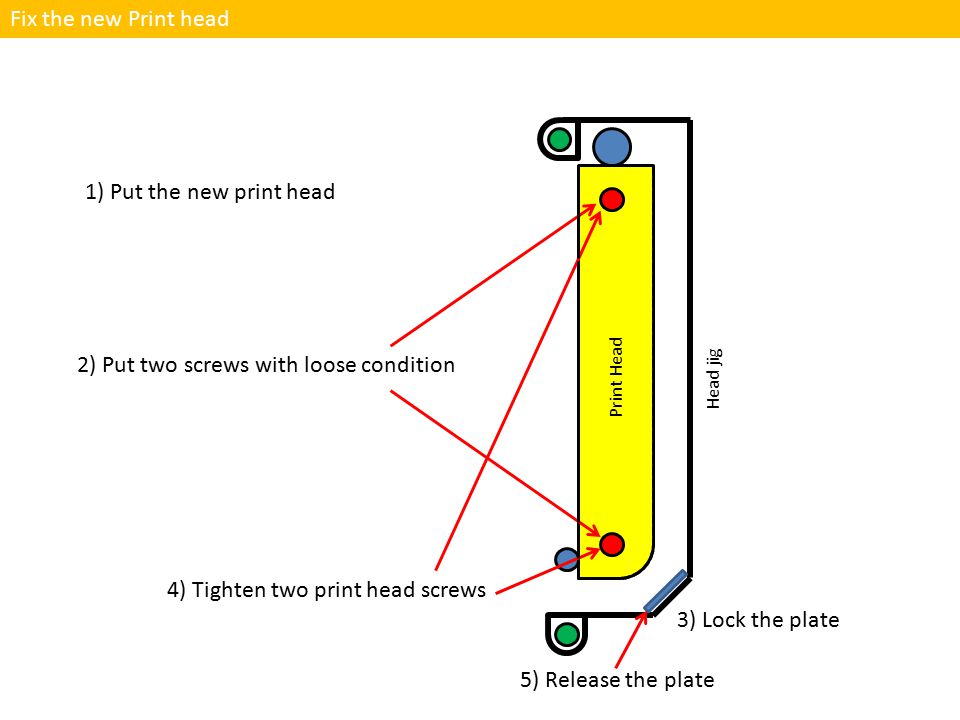

4 Fix the new Print head 1) Put the new print head 4) Tighten two print head screws Print Head Head jig 2) Put two screws with loose condition 3) Lock the plate 5) Release the plate

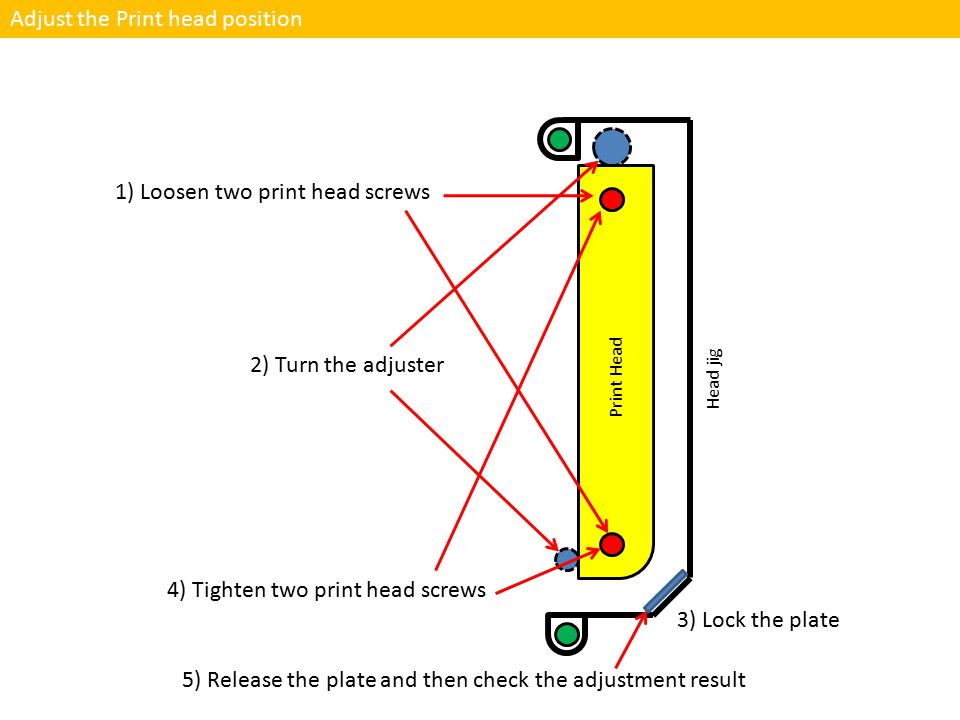

5 Adjust the Print head position 1) Loosen two print head screws 4) Tighten two print head screws Print Head Head jig 2) Turn the adjuster 3) Lock the plate 5) Release the plate and then check the adjustment result
