1. 8-12-05 Ken Kopka LBWID Staff Manager STREET SWEEPING AS A BMP THE LAKE BARCROFT WATERSHED EXPERIENCE

2. WHY STREETS ARE SWEPT Primarily for aesthetic improvement of the roadways Because it is required Maintain roadside safety Remove roadside debris before it clogs storm sewers or ends up degrading area streams

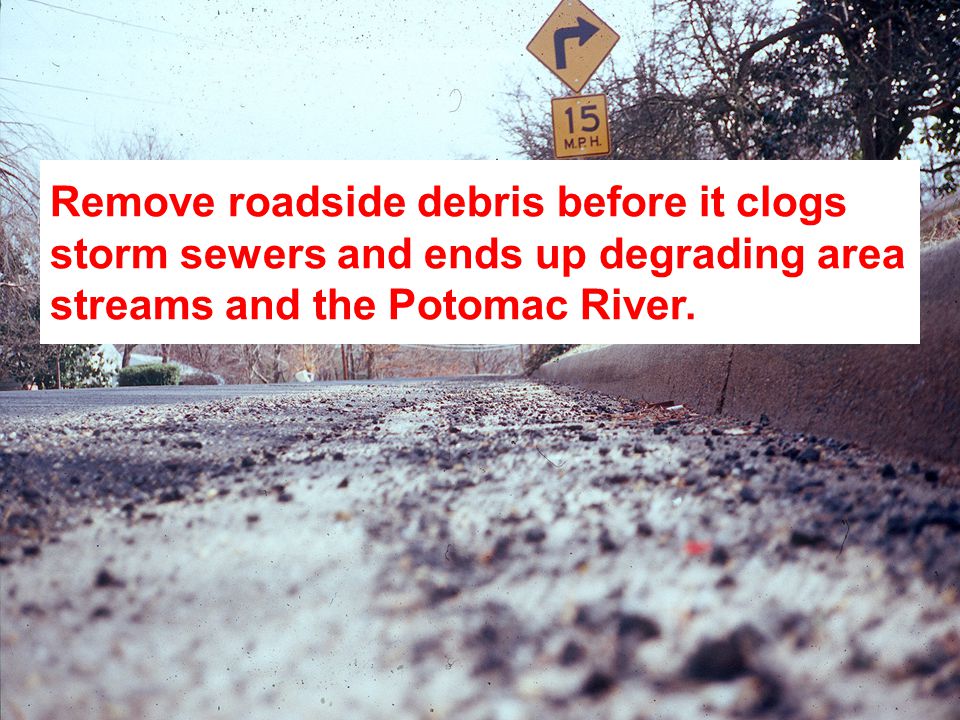

3. Remove roadside debris before it clogs storm sewers and ends up degrading area streams and the Potomac River.

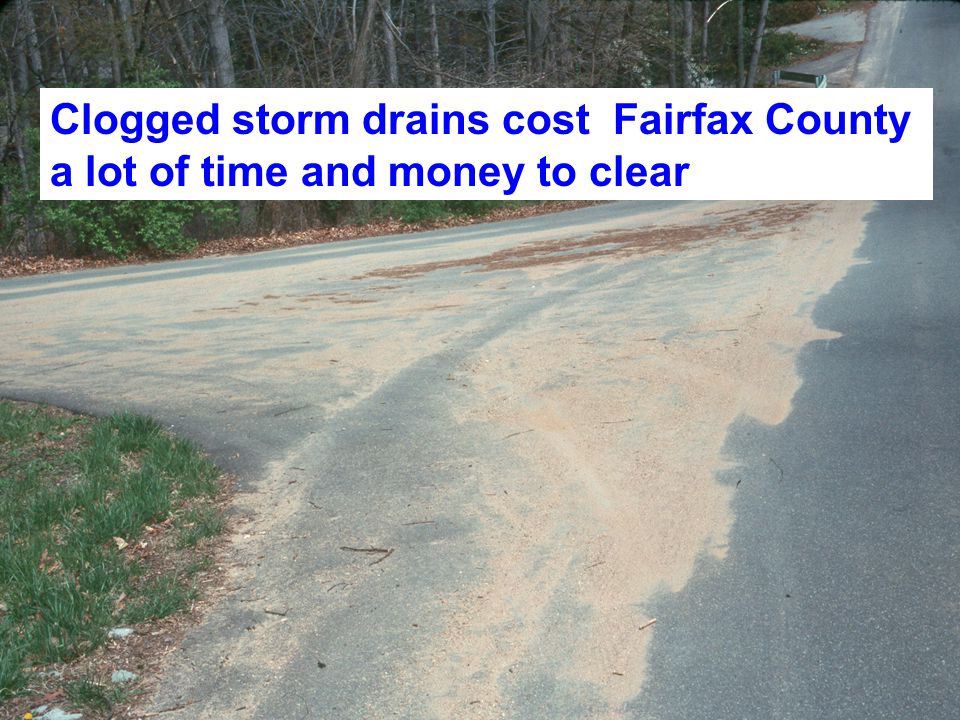

4. Clogged storm drains cost Fairfax County a lot of time and money to clear

5. Unclear storm sewers can flood and damage roads as well as cause a driving hazard

6. Road sand and debris that reaches the storm sewer system is eventually flushed…

7. …into our area streams and severely degrades water quality.

8. The LBWID Performed sweeping studies over the span of 6 years (1996 – 2001) We compared various sweeper equipment and techniques to design a practical suburban / urban sweeping program.

9. SWEEPER TYPES COMPARED

10. Regenerative air -- brush and vacuum

12. Fine particulate dustless -- brush and vacuum

13. A dustless sweeper demonstration for the LBWID, Arlington & Fairfax County

14. Mechanical broom

15. Unique high dump capability

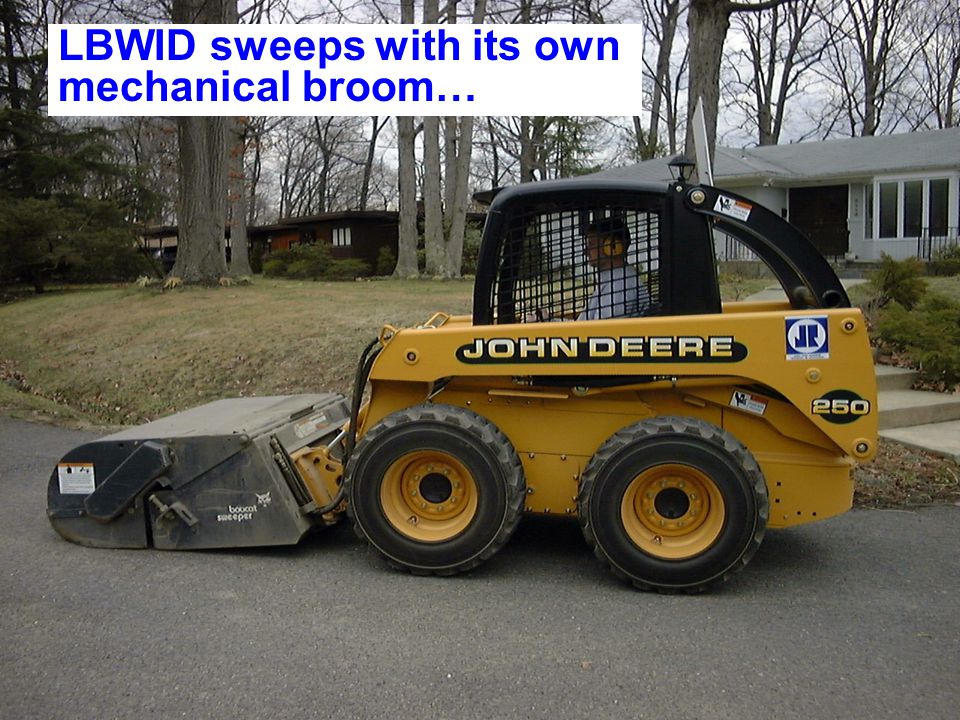

16. LBWID sweeps with its own mechanical broom…

17. … and dumps into its dump truck.

18. The most significant change in the sweeper industry is that all leading manufacturers of sweepers offer every style of sweeper. WHAT’S NEW! since 2001

19. 5 PERAMETERS TRACKED Distance Load Count Weight of each load Time Cost

20. SWEEPING METHODS COMPARED

21. Dry sweeping vs. wet sweeping

22. Single sweep vs. tandem sweep

23. Contract sweeping vs. In-house sweeping

24. Every load was weighed on a truck scale

25. Averages from 6 years of data collection $80 Per Hour 1700 Pounds per Hour 2.12 Miles per Hour 800 Pounds per Mile $0.05 Per Pound $38 Per Mile

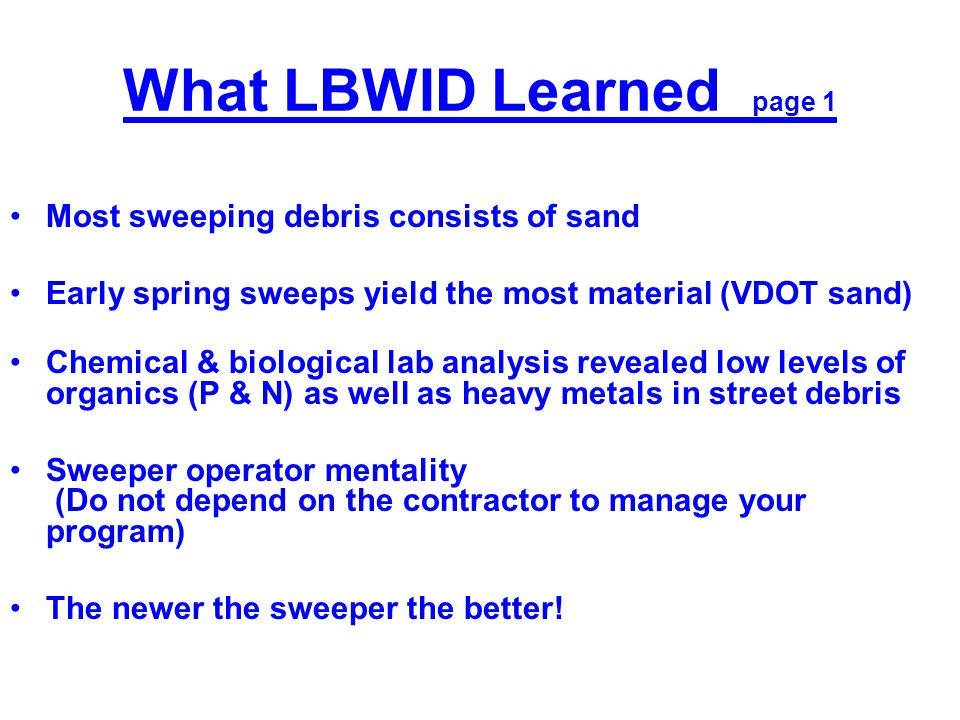

26. What LBWID Learned page 1 Most sweeping debris consists of sand Early spring sweeps yield the most material (VDOT sand) Chemical & biological lab analysis revealed low levels of organics (P & N) as well as heavy metals in street debris Sweeper operator mentality (Do not depend on the contractor to manage your program) The newer the sweeper the better!

28. What LBWID Learned page 1 Most sweeping debris consists of sand Early spring sweeps yield the most material (VDOT sand) Chemical & biological lab analysis revealed low levels of organics (P & N) as well as heavy metals in street debris Sweeper operator mentality (Do not depend on the contractor to manage your program) The newer the sweeper the better!

30. What LBWID Learned page 1 Most sweeping debris consists of sand Early spring sweeps yield the most material (VDOT sand) Chemical & biological lab analysis revealed low levels of organics (P & N) as well as heavy metals in street debris Sweeper operator mentality (Do not depend on the contractor to manage your program) The newer the sweeper the better!

32. What LBWID Learned page 2 Regenerative air brush & vacuum sweepers best overall Mechanical broom sweepers work best for rough material like asphalt chips Fine particulate dustless sweepers were more practical for small areas with little travel as well as environmentally sensitive zones Tandem sweeps are good but costly, 1 regenerative air sweeper does an adequate job

33. What LBWID Learned page 3 Keep your dump site local if possible – transfer later to larger disposal site Not just a curb-and-gutter program Weather may affect your sweeping program In most cases contractor sweeping is more cost effective Many private shopping (strip) malls have effective sweeping programs Public parking lots (schools, libraries, pools etc) are rarely swept

35. What LBWID Learned page 3 Keep your dump site local if possible – transfer later to larger disposal site Not just a curb-and-gutter program Weather may affect your sweeping program In most cases contractor sweeping is more cost effective Many private shopping (strip) malls have effective sweeping programs Public parking lots (schools, libraries, pools etc) are rarely swept

36. VDOT is responsible for sweeping most all roads in Fairfax County. A daunting task! Sweeping streets needs to be viewed as an aesthetic as well as and environmental necessity. Some Final Thoughts

37. Ideally every road in Fairfax County should be swept a minimum of 4 times per year. THE SOLUTION Pressure needs to be exerted on VDOT to increase their sweeping program 4 fold.
