Electricity Unit 8, Chapter 20

3

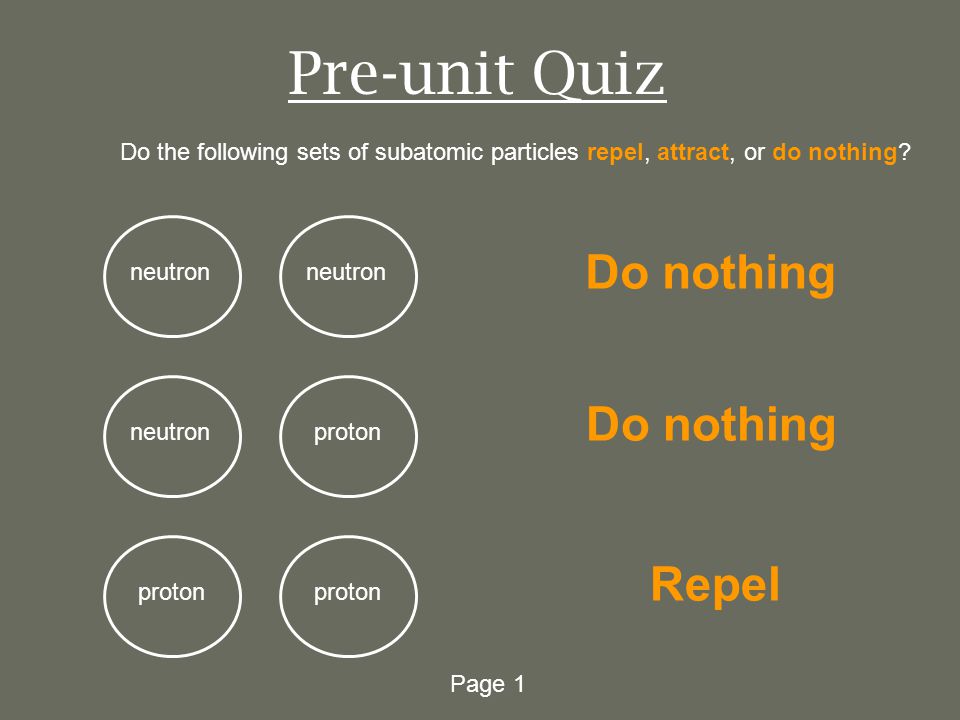

Pre-unit Quiz Do the following sets of subatomic particles repel, attract, or do nothing? protonneutron proton Do nothing Repel Page 1

4

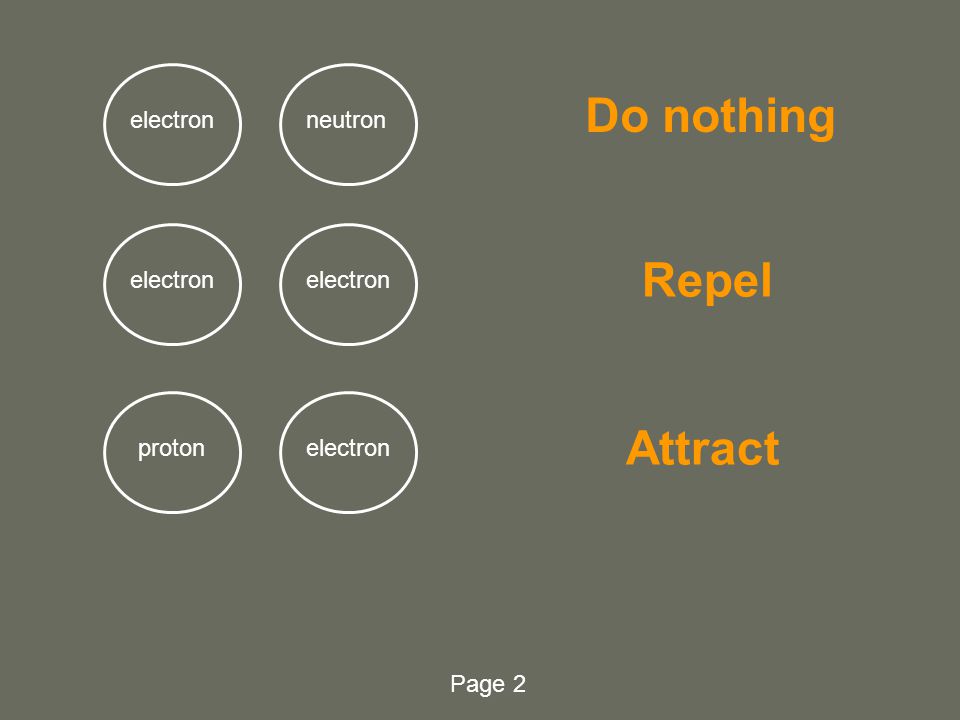

electronneutronelectronprotonelectron Do nothing Repel Attract Page 2

5

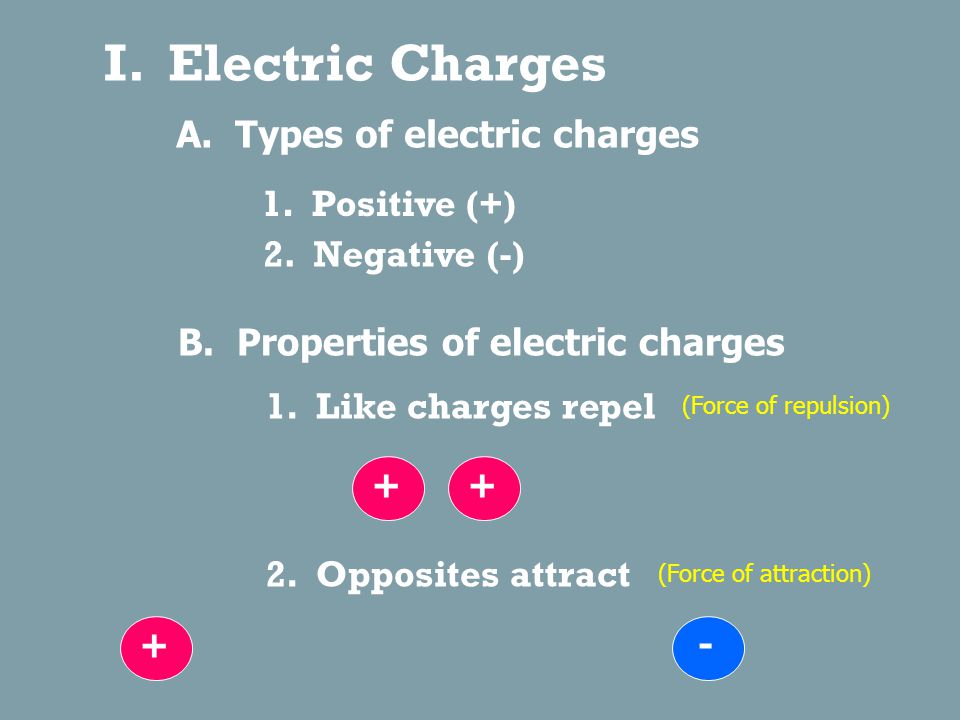

I. Electric Charges 1. Positive (+) 2. Negative (-) A. Types of electric charges B. Properties of electric charges 1. Like charges repel 2. Opposites attract ++ +- (Force of repulsion) (Force of attraction)

6
C. An object gains an electric charge by gaining or losing electrons + - + + + + + + + + + - - - - - - - - - Two neutral objects Positive objectNegative object

7
II. Static electricity A. Build up of electric charges B. There are three ways to separate electric charge.

8

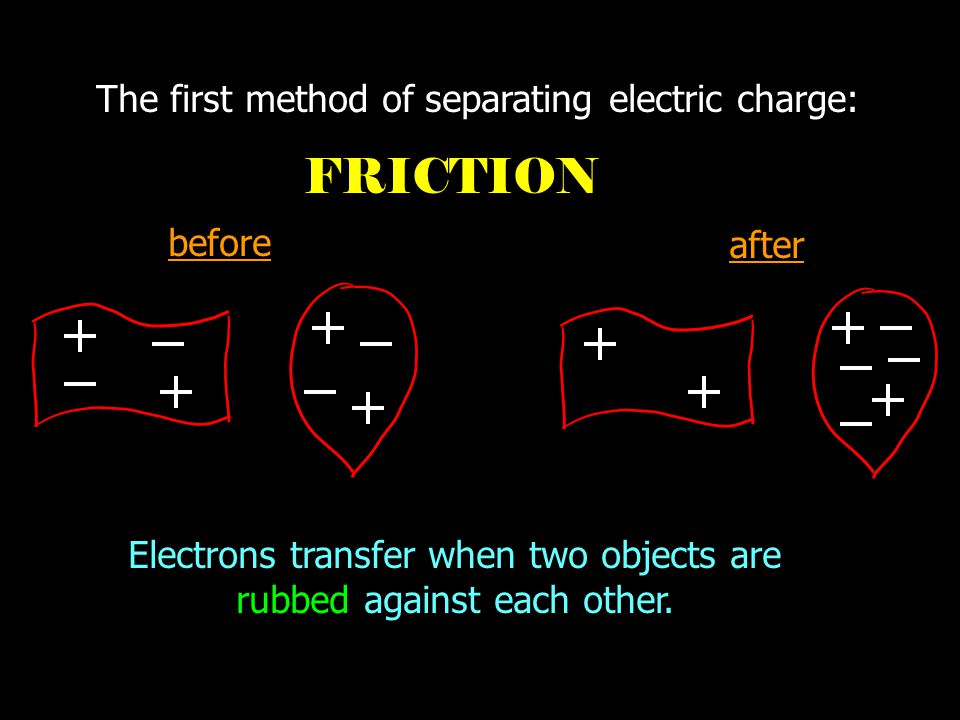

The first method of separating electric charge: FRICTION before after Electrons transfer when two objects are rubbed against each other.

9

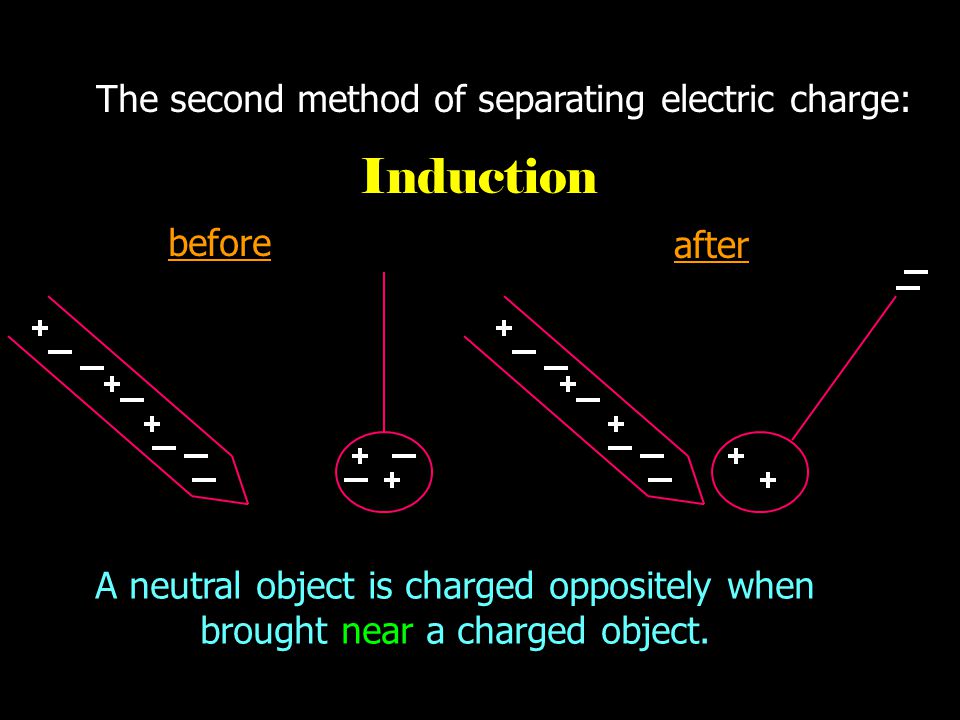

The second method of separating electric charge: Induction before after A neutral object is charged oppositely when brought near a charged object.

10

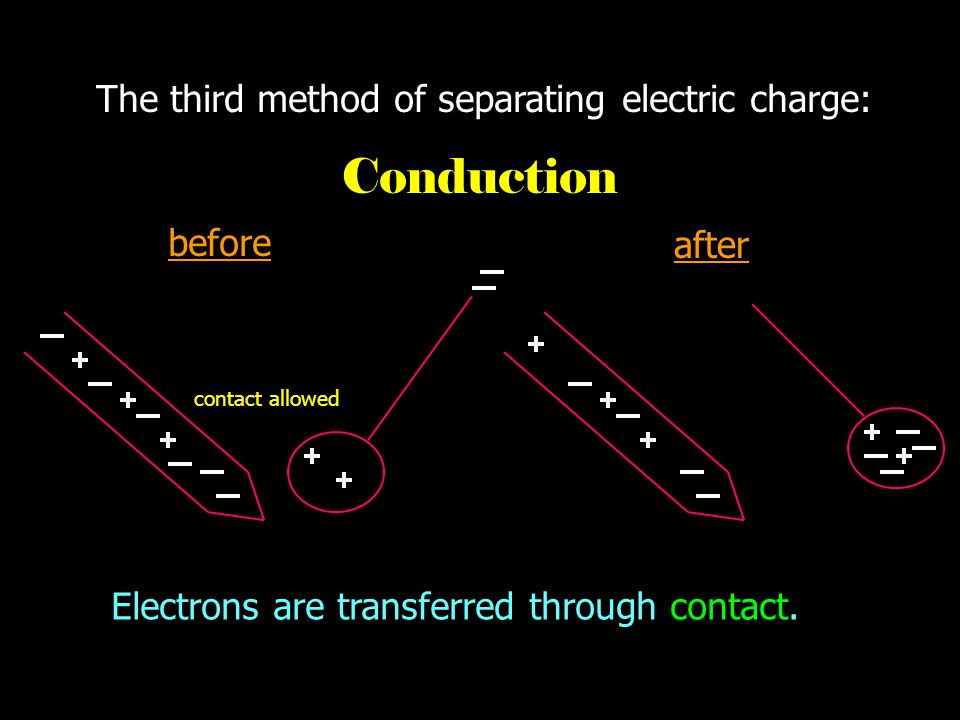

The third method of separating electric charge: Conduction before after contact allowed Electrons are transferred through contact.

11

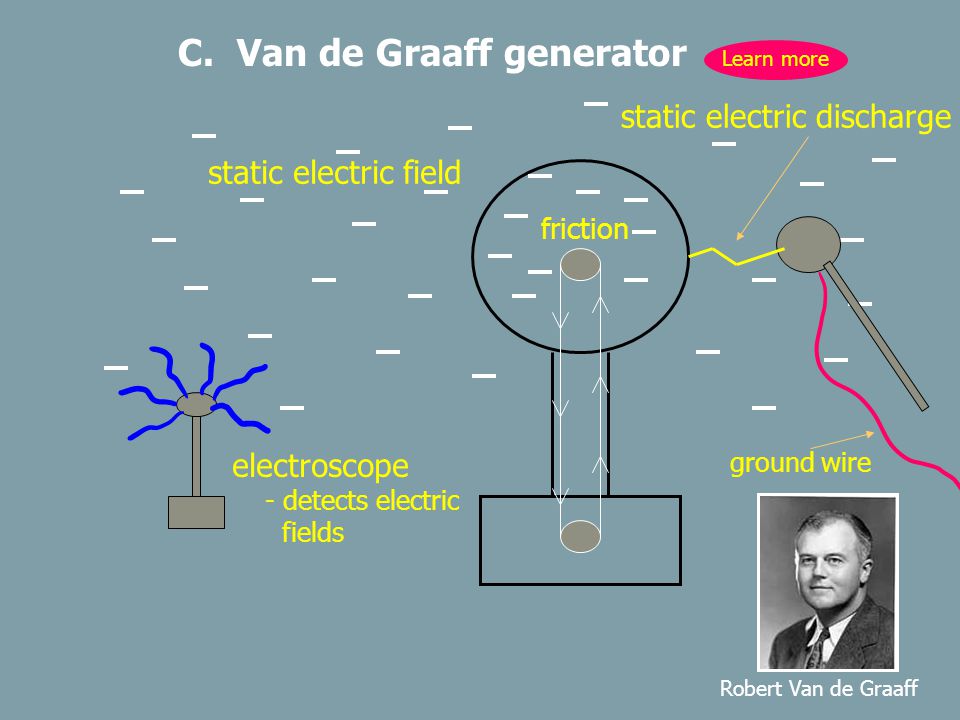

Learn more C. Van de Graaff generator friction static electric field electroscope - detects electric fields static electric discharge ground wire Robert Van de Graaff

12
D. Thunder storms ice crystals + updraft friction induction static discharge static discharge

13

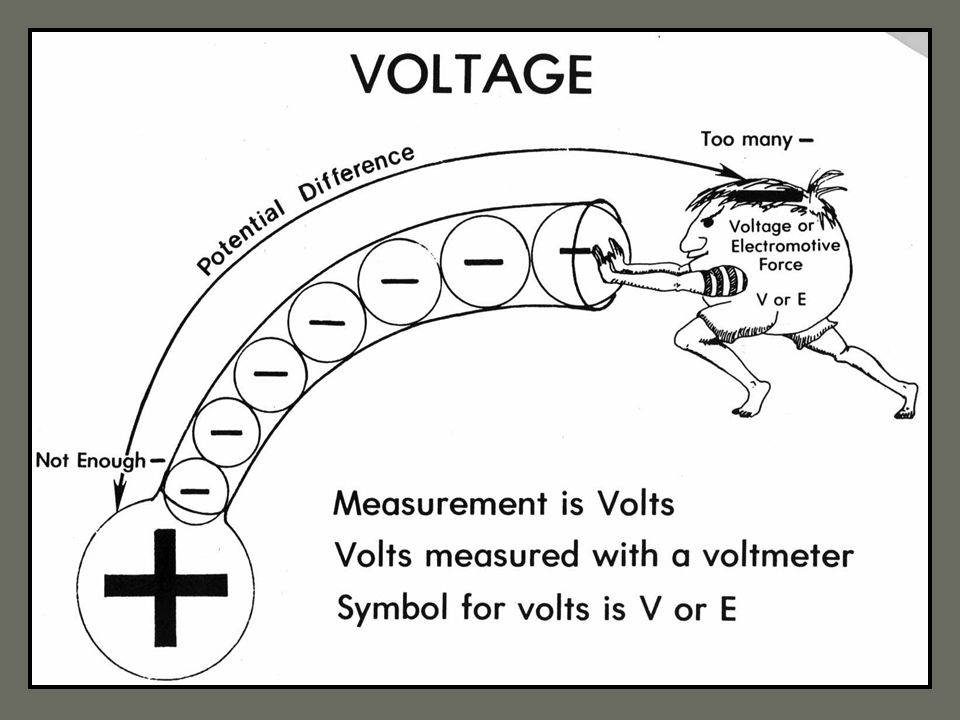

III. The flow of electricity A. Voltage (V) 1. Pushes the electrons through a wire (analogous to water pressure in a pipe) 2. Called potential difference 3. Measured in volts Bonus: Named after Count Alessandro Antonio Anastasio Volta Count Volta invented the battery.

15

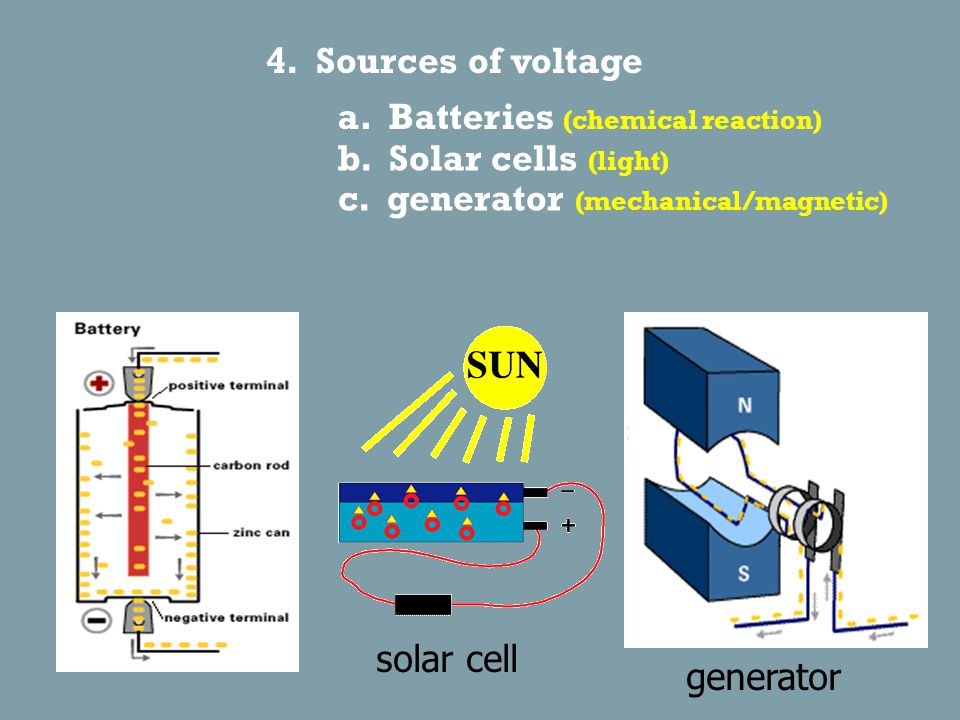

4. Sources of voltage a. Batteries (chemical reaction) b. Solar cells (light) c. generator (mechanical/magnetic) solar cell generator

16

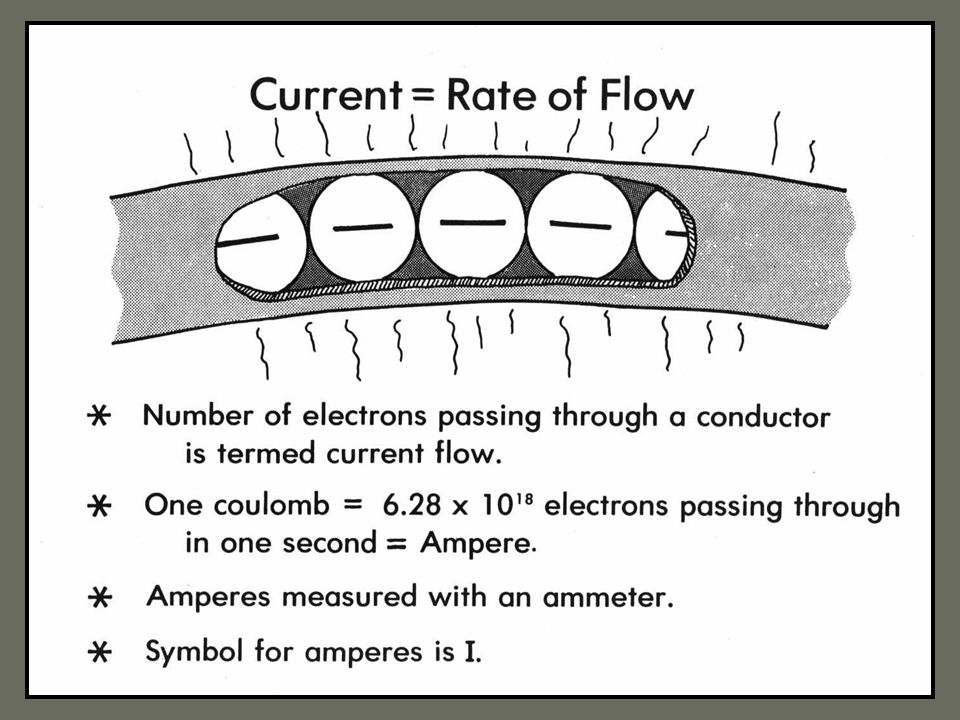

B. Current (I) 1. Flow of electrons through a wire (analogous to the flow of water in a pipe) 2. Measured in amperes or amps 3. Detected by an ammeter Bonus: Named after André Marie Ampère Made discoveries in electromagnetism concerning electric current

18
4. Two types of current a. alternating current- AC - current regularly changes direction - can be transmitted over long distances - produced by generators

19

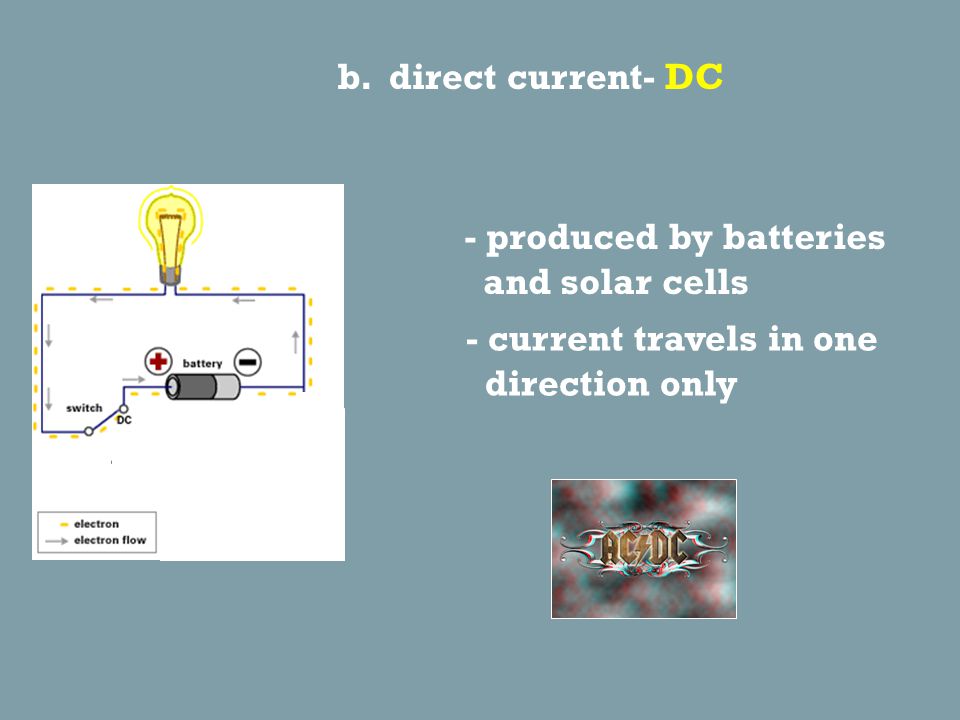

b. direct current- DC - produced by batteries and solar cells - current travels in one direction only

20

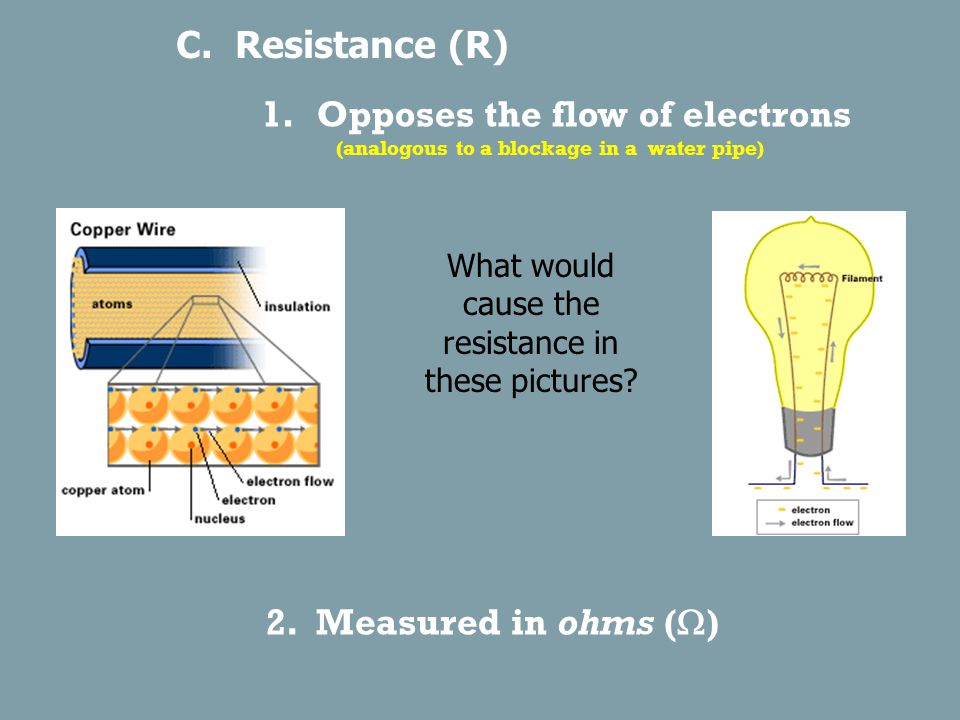

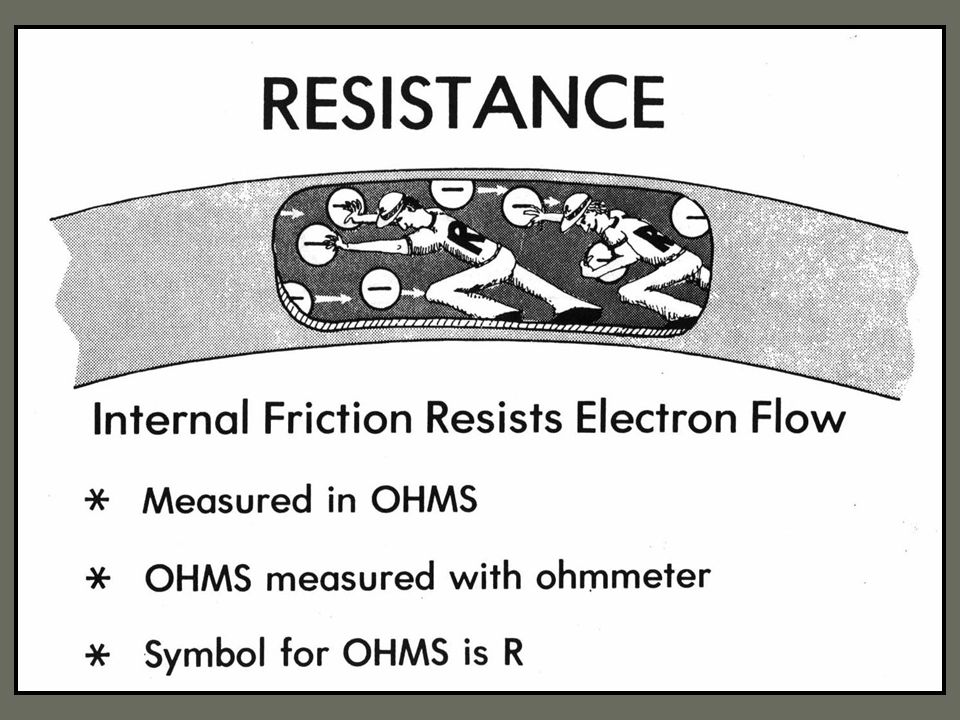

C. Resistance (R) 1. Opposes the flow of electrons (analogous to a blockage in a water pipe) 2. Measured in ohms ( ) What would cause the resistance in these pictures?

22

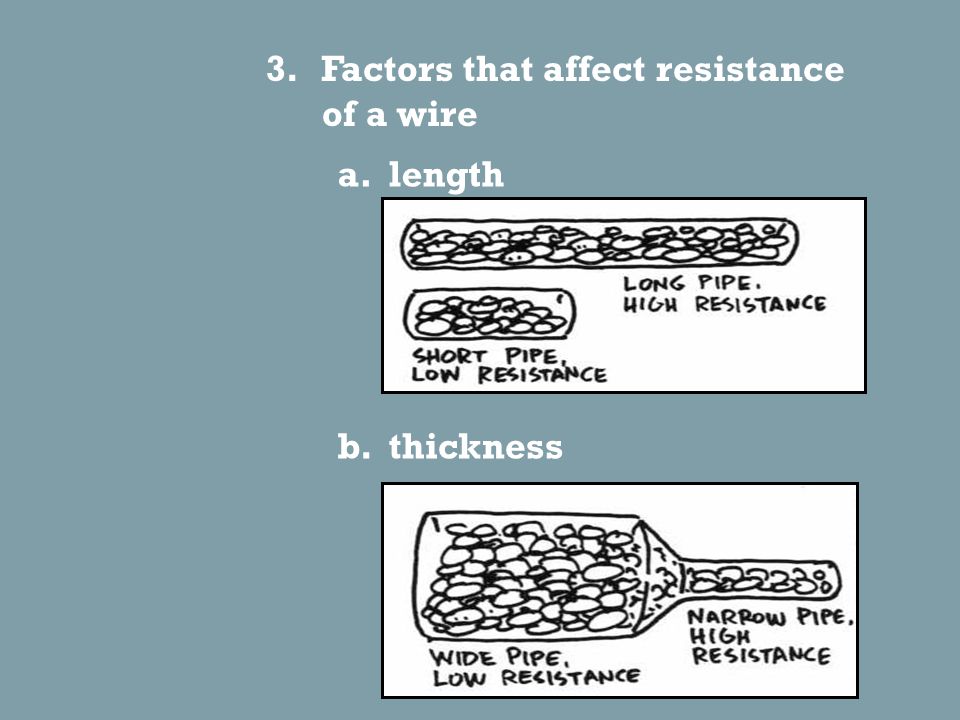

3. Factors that affect resistance of a wire a. length b. thickness

23

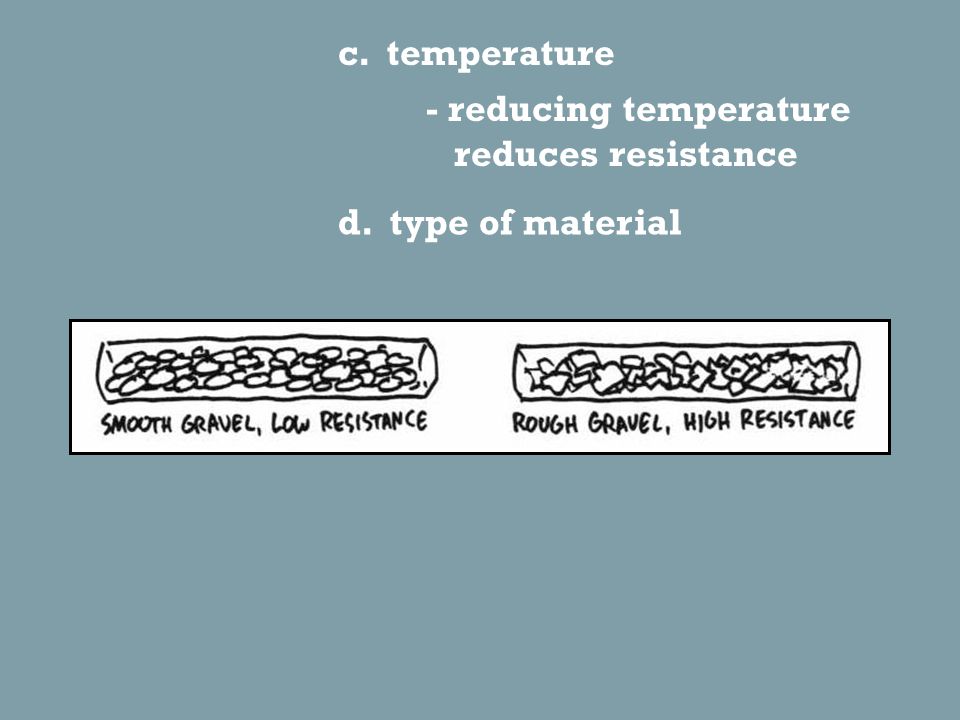

c. temperature d. type of material - reducing temperature reduces resistance

24

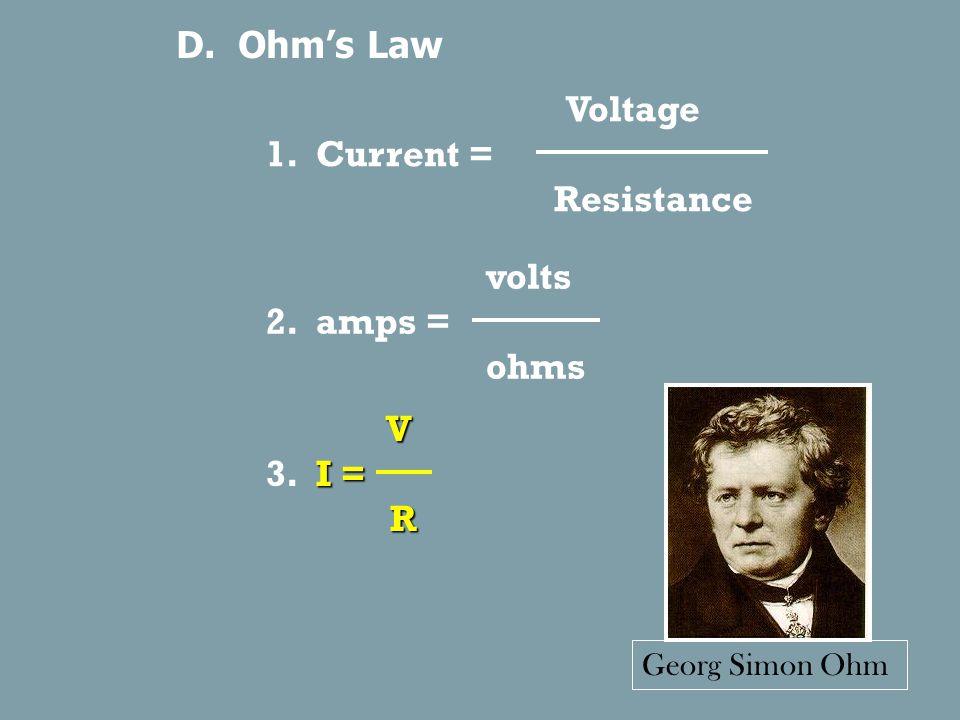

D. Ohm’s Law Voltage 1. Current = Resistance volts 2. amps = ohms V V I = 3. I = R R Georg Simon Ohm

25
IV. Circuits A. A circuit is a complete loop for electrons to flow around B. Circuit symbols 1. wire 2. switch 3. resistor 4. light 5. battery 6. ammeter 7. voltmeter + - V A

26

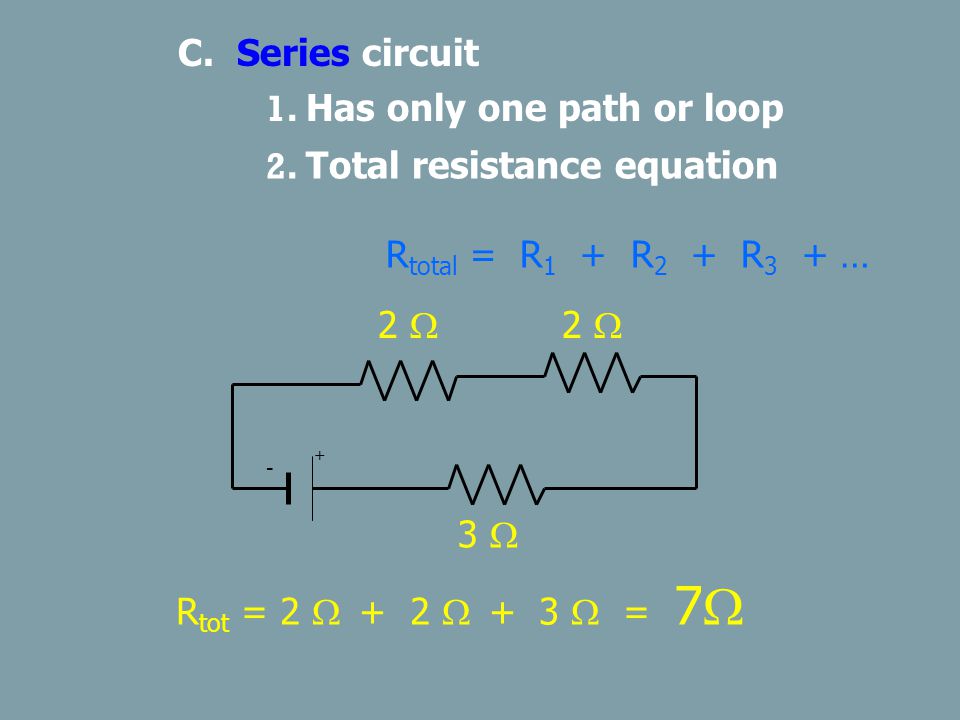

C. Series circuit 1. Has only one path or loop 2. Total resistance equation R total = R 1 + R 2 + R 3 + … 2 3 R tot = 2 + 2 + 3 = 7 2 + -

27

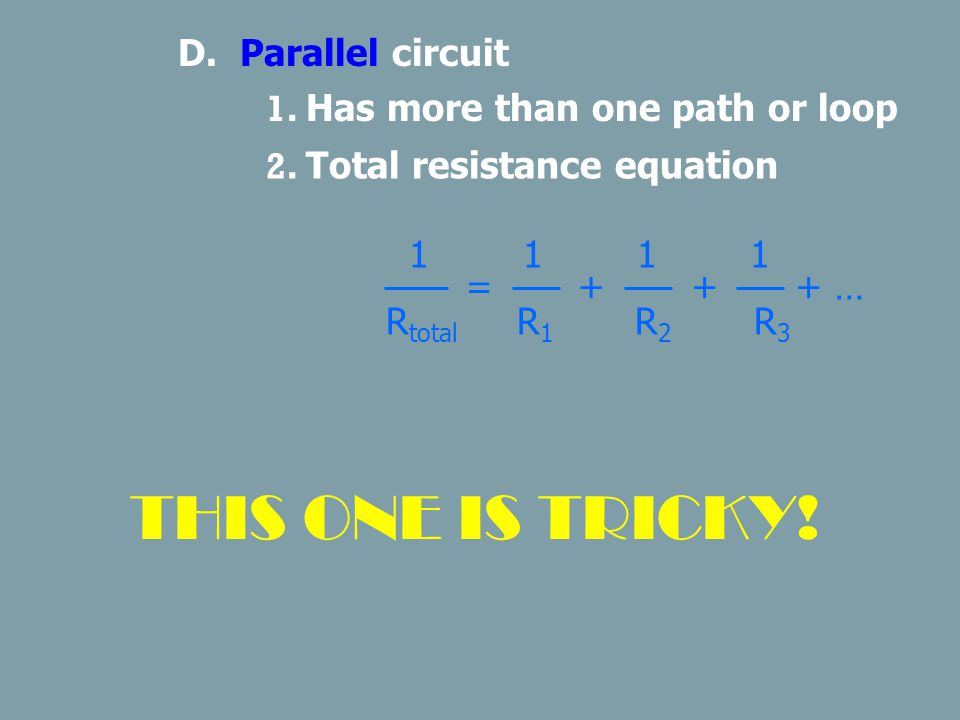

D. Parallel circuit 1. Has more than one path or loop 2. Total resistance equation THIS ONE IS TRICKY! 1 1 1 1 R total R 1 R 2 R 3 =+++ …+ …

28

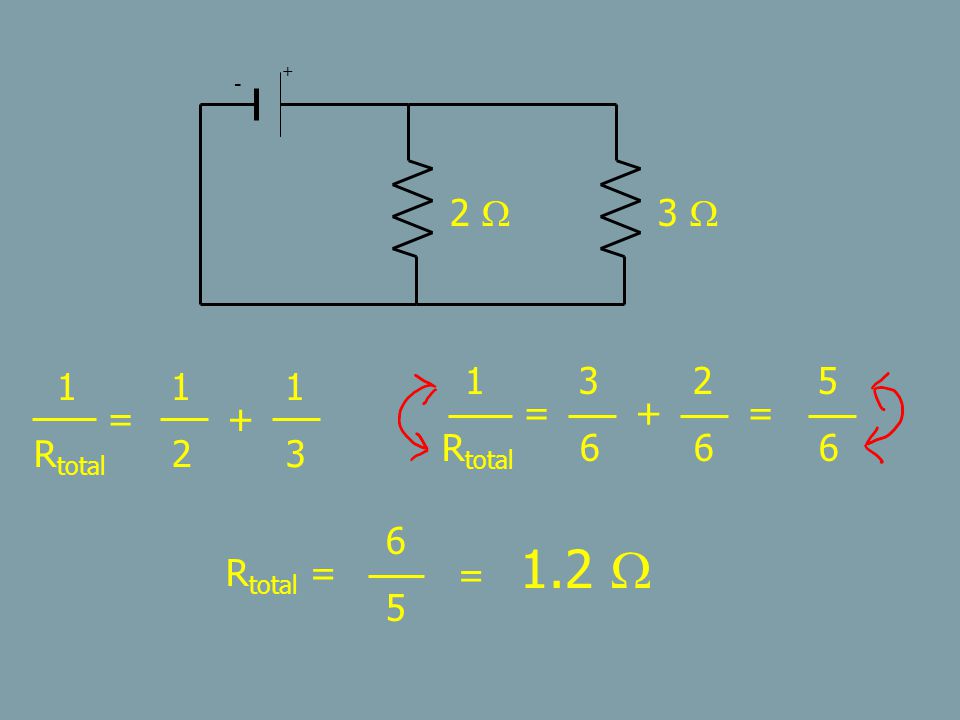

1 1 1 R total 2 3 =+ 1 3 2 5 R total 6 6 6 =+= 6565 R total = = 1.2 2 3 + -

29
My Electric Bill

30

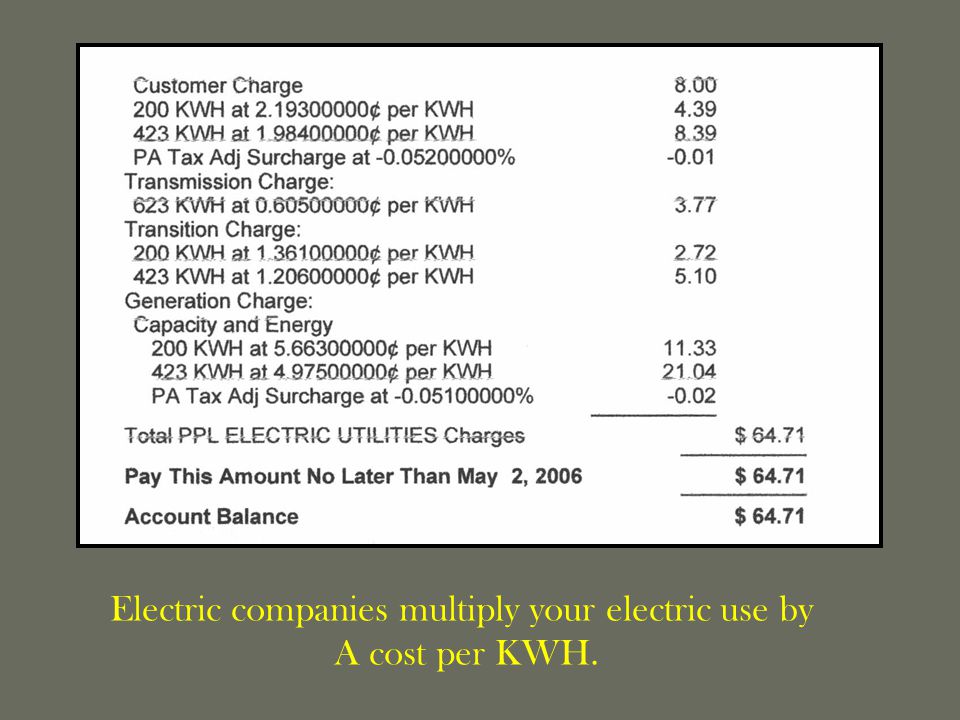

Electric companies multiply your electric use by A cost per KWH.

31
V. Electric Power A. Power is measured in Watts (W) B. Power = voltage X current P = VI Watts = volts x amps James Watt invented the steam engine

32
VI. Electric Energy A. Energy is measured in kilowatt-hours (kWh) B. Energy = Power X time E = Pt kWh = kilowatts x hours PP&L’s definition
