1 To Begin, visit Updating the Software Step 1 Eclipse AVN726E / AVN76D

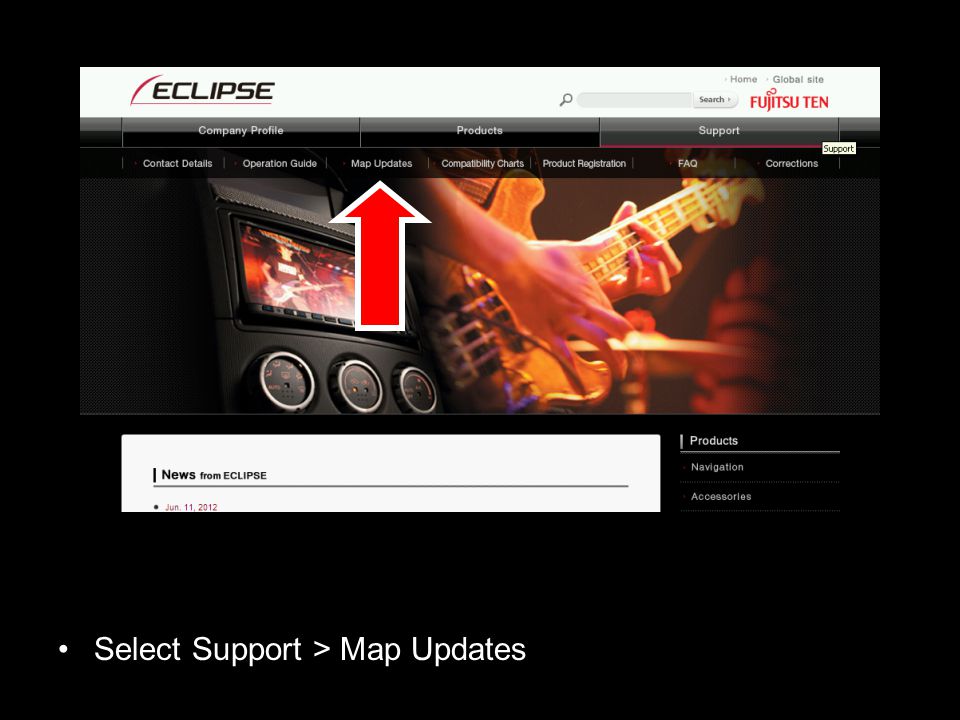

2 Select Support > Map Updates

3 Select AVN726E / AVN76D Detail

4 Prepare a Blank CD-R Scroll Down to Software Update Download

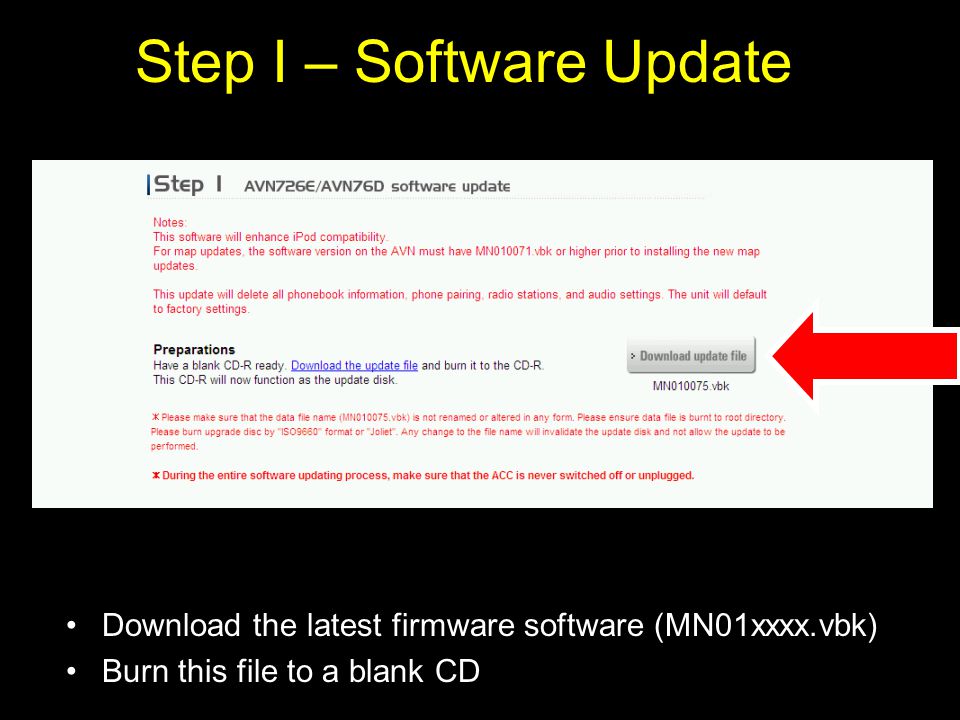

5 Step I – Software Update Download the latest firmware software (MN01xxxx.vbk) Burn this file to a blank CD

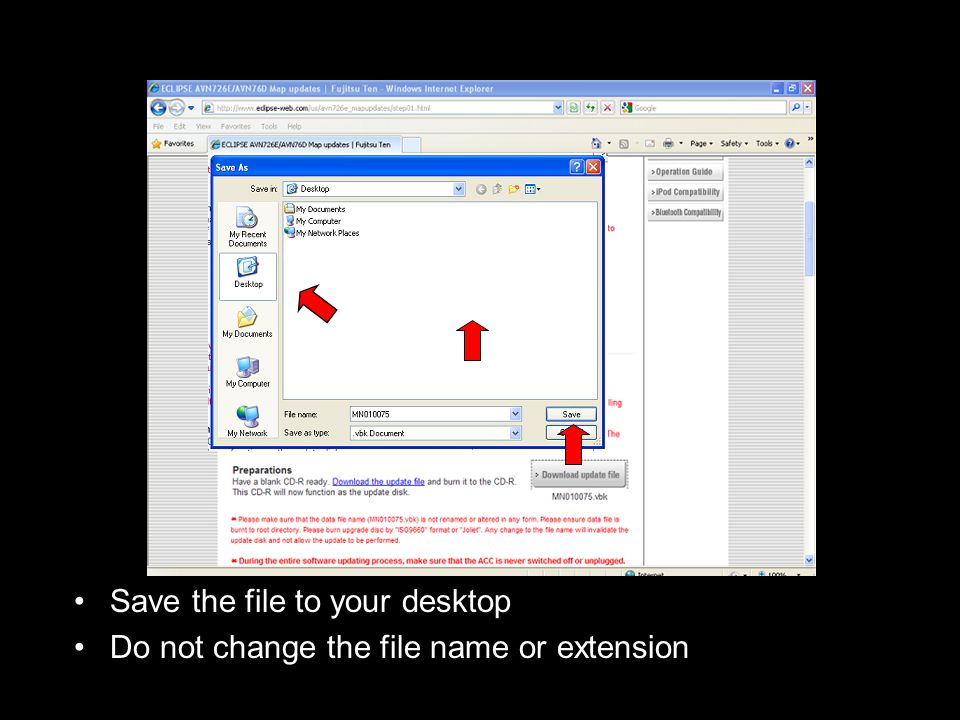

6 Save the file to your desktop Do not change the file name or extension

7 Once complete select Close

8 Load a blank CD and Copy the file from the PC Desktop to the CD-R Drive If you Receive a Confirm Stream Loss message – Click Yes

9 Write the Files to a blank CD-R Eject CD-R from PC for use with the AVN and begin software update

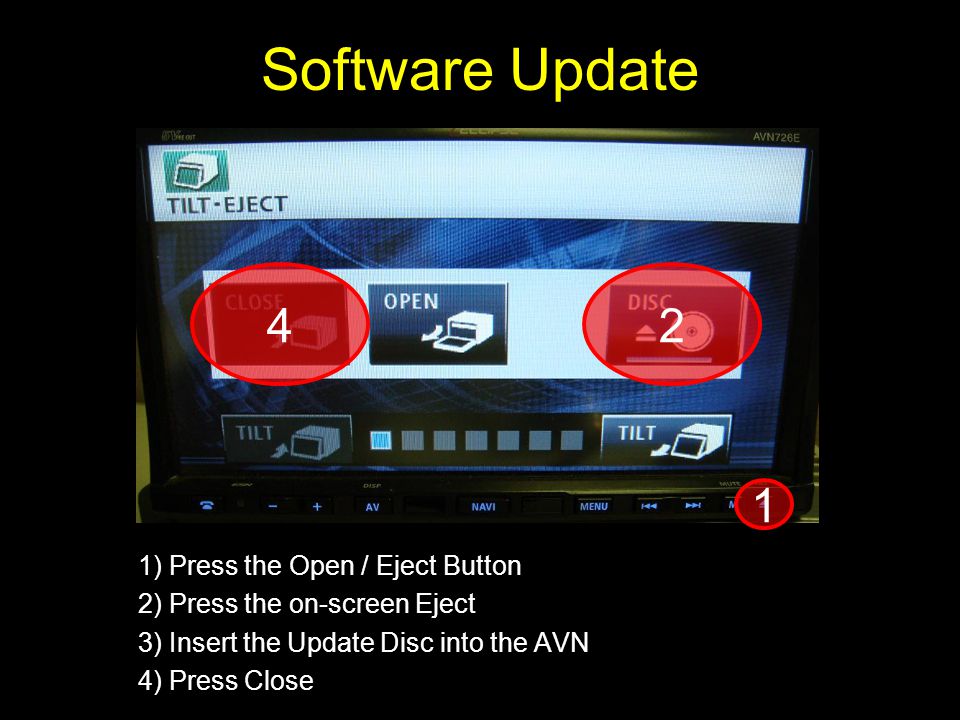

10 Software Update 1) Press the Open / Eject Button 2) Press the on-screen Eject 3) Insert the Update Disc into the AVN 4) Press Close 2 1 4

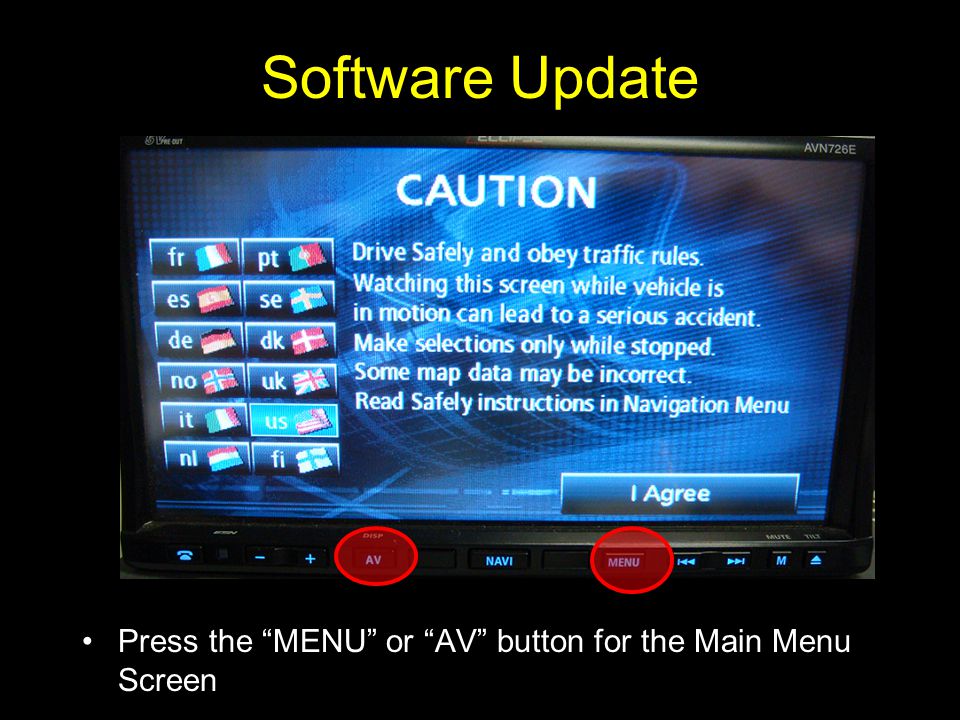

11 Software Update Press the “MENU” or “AV” button for the Main Menu Screen

12 Software Update Press “Audio Off”

13 Software Update In sequence, press and release the four corners of the screen as indicated

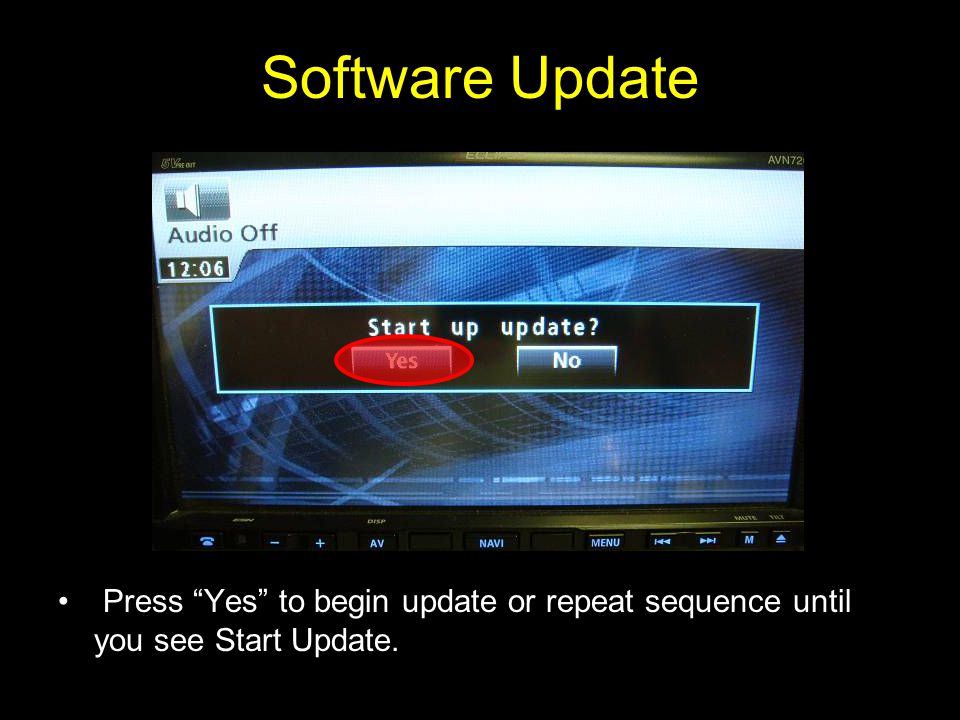

14 Software Update Press “Yes” to begin update or repeat sequence until you see Start Update.

15 Software Update Wait for Screen to show “ECU Selection” (The disc should have already been inserted)

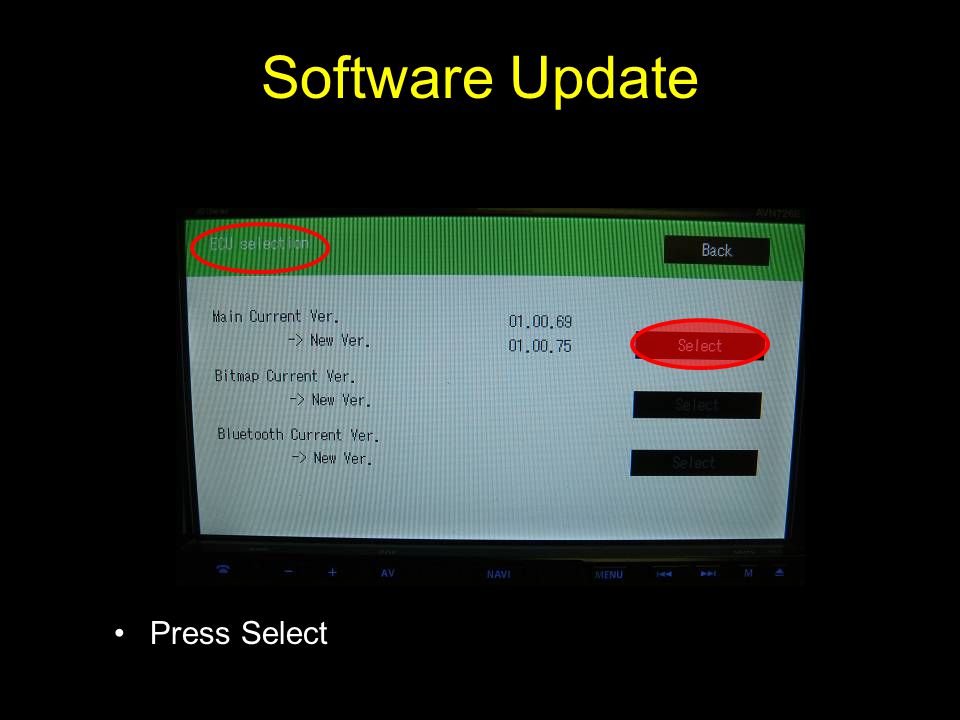

16 Software Update Press Select

17 Software Update Press “OK” to begin Updating Process IMPORTANT ! Do Not Turn Off the Vehicle This process takes approximately 2 minutes

18 Software Update Screen will show “Program Loading” and show the blue progress bar

19 Software Update Wait for the “Updating Complete” Press “OK”

20 Software Update The screen will verify that the New Version of software has properly loaded Press “End”

21 Software Update Process Completed Turn off the vehicle and wait approximately 10 seconds Turn on the vehicle Push “Eject” and remove the update disc The Firmware Update Process is now complete

22 Proceed to Updating the Maps Step 2 Eclipse AVN726E / AVN76D
