1
© 2009 Pearson Education Canada 16/1 Chapter 16 Game Theory and Oligopoly

2

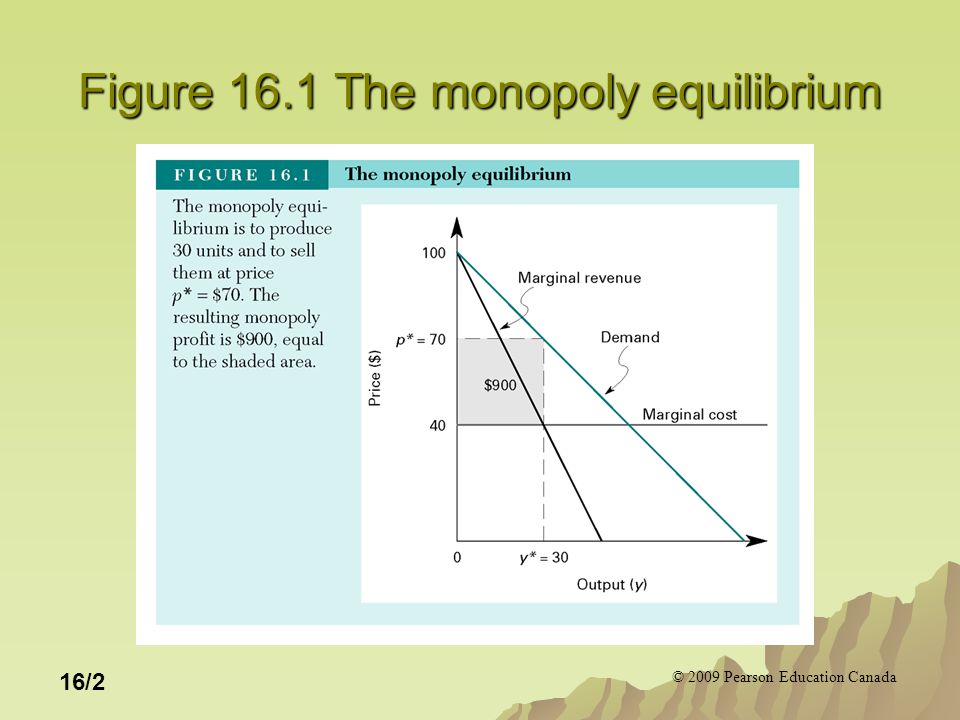

© 2009 Pearson Education Canada 16/2 Figure 16.1 The monopoly equilibrium

3

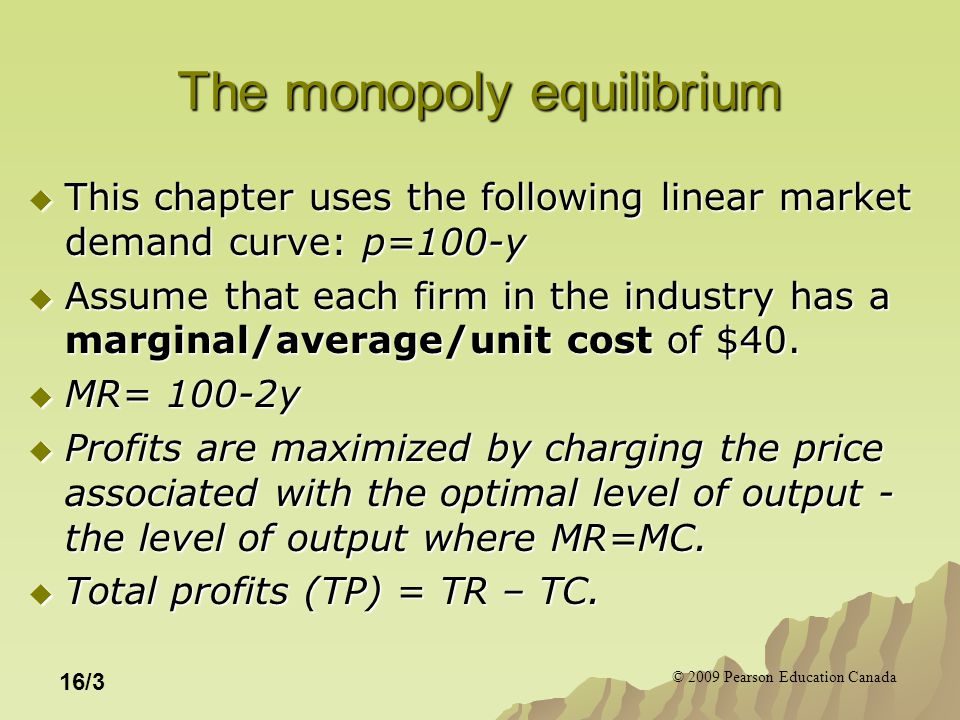

© 2009 Pearson Education Canada 16/3 The monopoly equilibrium This chapter uses the following linear market demand curve: p=100-y Assume that each firm in the industry has a marginal/average/unit cost of $40. MR= 100-2y Profits are maximized by charging the price associated with the optimal level of output - the level of output where MR=MC. Total profits (TP) = TR – TC.

4

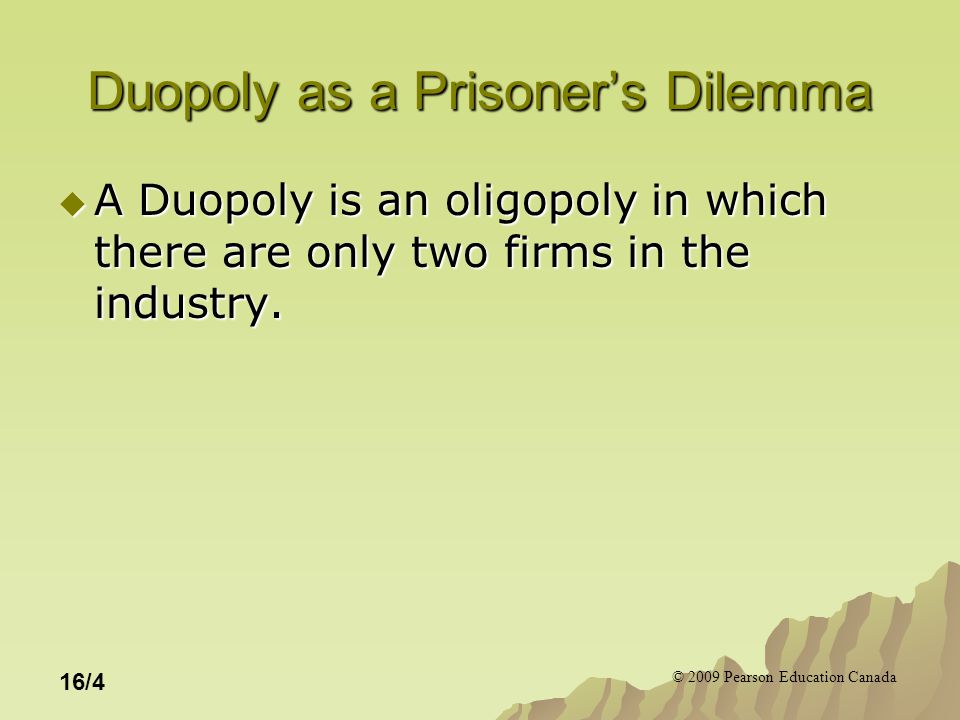

© 2009 Pearson Education Canada 16/4 Duopoly as a Prisoner’s Dilemma A Duopoly is an oligopoly in which there are only two firms in the industry.

5

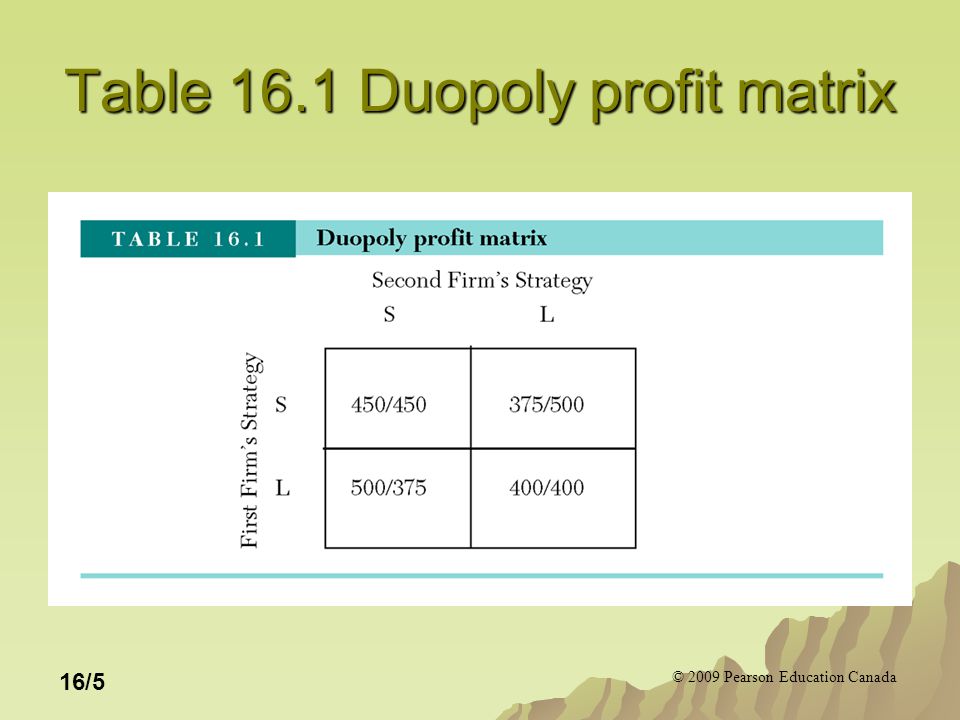

© 2009 Pearson Education Canada 16/5 Table 16.1 Duopoly profit matrix

6

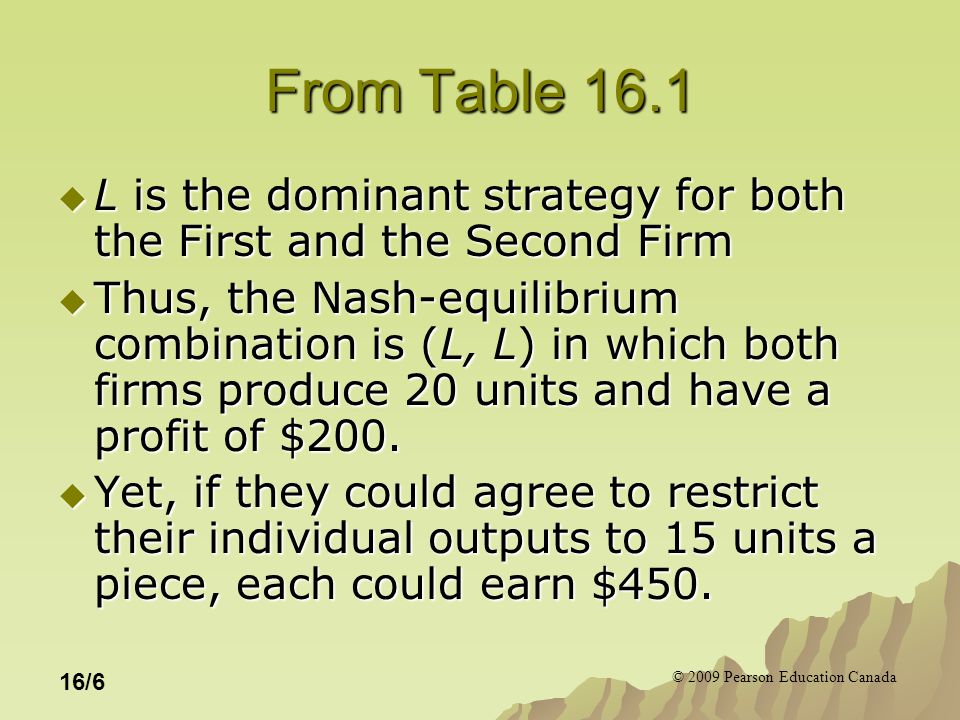

© 2009 Pearson Education Canada 16/6 From Table 16.1 L is the dominant strategy for both the First and the Second Firm Thus, the Nash-equilibrium combination is (L, L) in which both firms produce 20 units and have a profit of $200. Yet, if they could agree to restrict their individual outputs to 15 units a piece, each could earn $450.

7
© 2009 Pearson Education Canada 16/7 The Oligopoly Problem Oligopolists have a clear incentive to collude or cooperate. Oligopolists have a clear incentive to cheat on any simple collusive or cooperative agreement. If an agreement is not a Nash equilibrium, it is not self-enforcing.

8
© 2009 Pearson Education Canada 16/8 The Cournot Duopoly Model Central features of the Cournot Model: 1. Each firm chooses a quantity of output instead of a price. 2. In choosing an output, each firm takes its rival’s output as given.

9

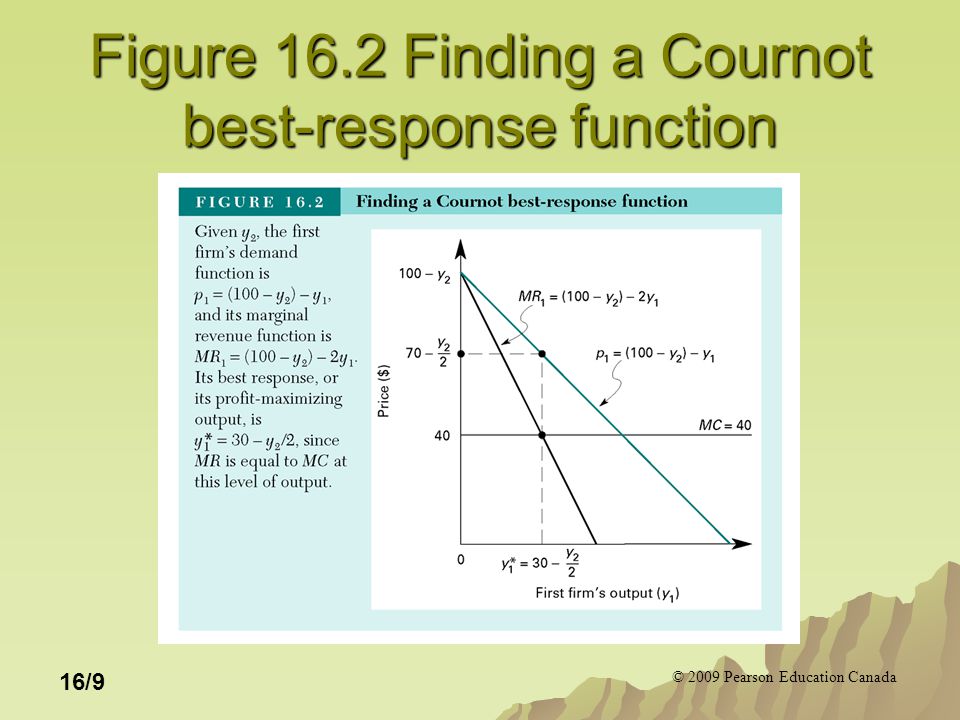

© 2009 Pearson Education Canada 16/9 Figure 16.2 Finding a Cournot best-response function

10
© 2009 Pearson Education Canada 16/10 From Figure 16.2 The First firm’s best response function is: y 1 * =30 – y 2 /2 The Second firm’s best response function is y 2 * =30 – y 1 /2 Taken together, these two best response functions can be used to find the equilibrium strategy combination for Cournot’s model.

11
© 2009 Pearson Education Canada 16/11 Figure 16.3 The Cournot equilibrium

12

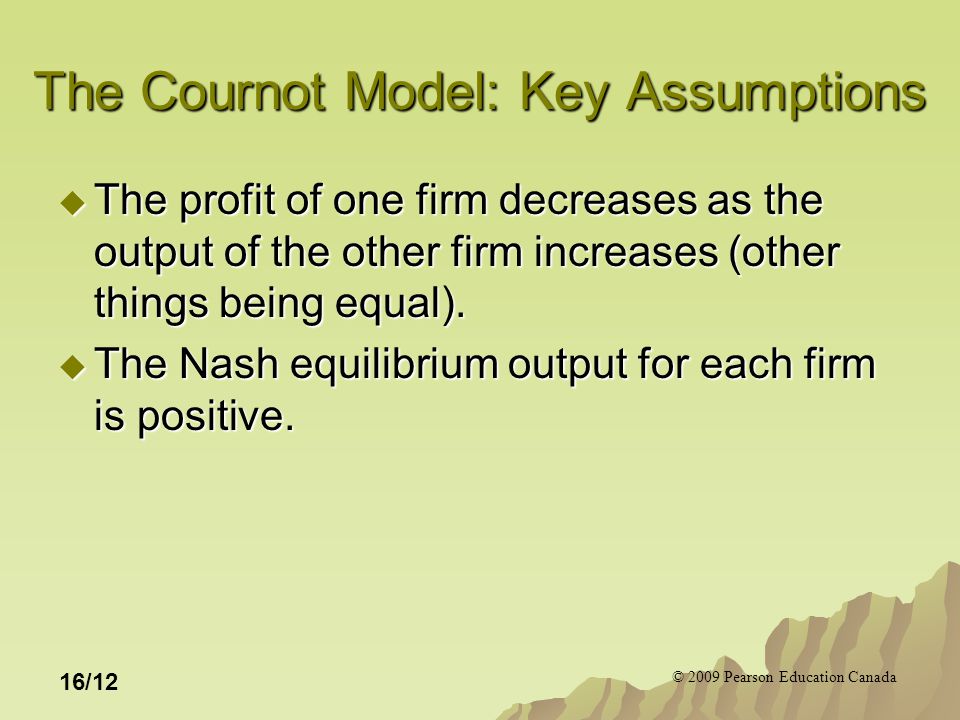

© 2009 Pearson Education Canada 16/12 The Cournot Model: Key Assumptions The profit of one firm decreases as the output of the other firm increases (other things being equal). The Nash equilibrium output for each firm is positive.

13
© 2009 Pearson Education Canada 16/13 Isoprofit Curves All strategy combinations that give the first firm the chosen level of profits is known as an indifference curve or isoprofit curve. Profits are constant along the isoprofit curve.

14
© 2009 Pearson Education Canada 16/14 Figure 16.4 Isoprofit or indifference curves

15
© 2009 Pearson Education Canada 16/15 From Figure 16.4 y 1 * maximizes profits for the first firm, given the second firm’s output of y 2 *. Any strategy combinations below the isocost curve gives the first firm more profit than the Nash equilibrium. The result above relates to the key assumption that the first firm’s profit increases as the second firm’s output decreases.

16

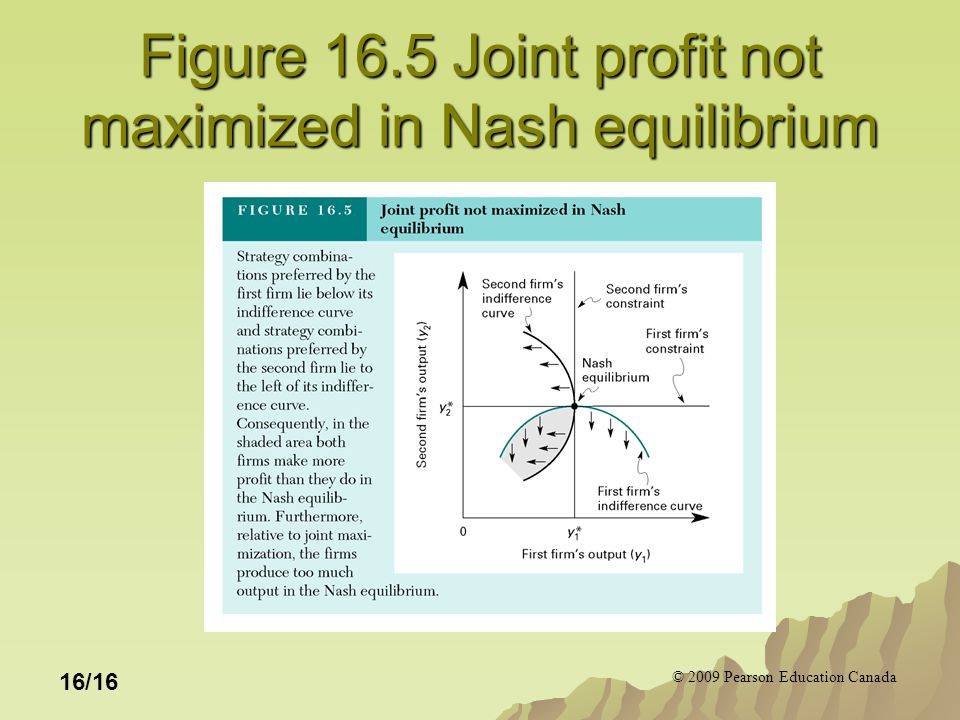

© 2009 Pearson Education Canada 16/16 Figure 16.5 Joint profit not maximized in Nash equilibrium

17

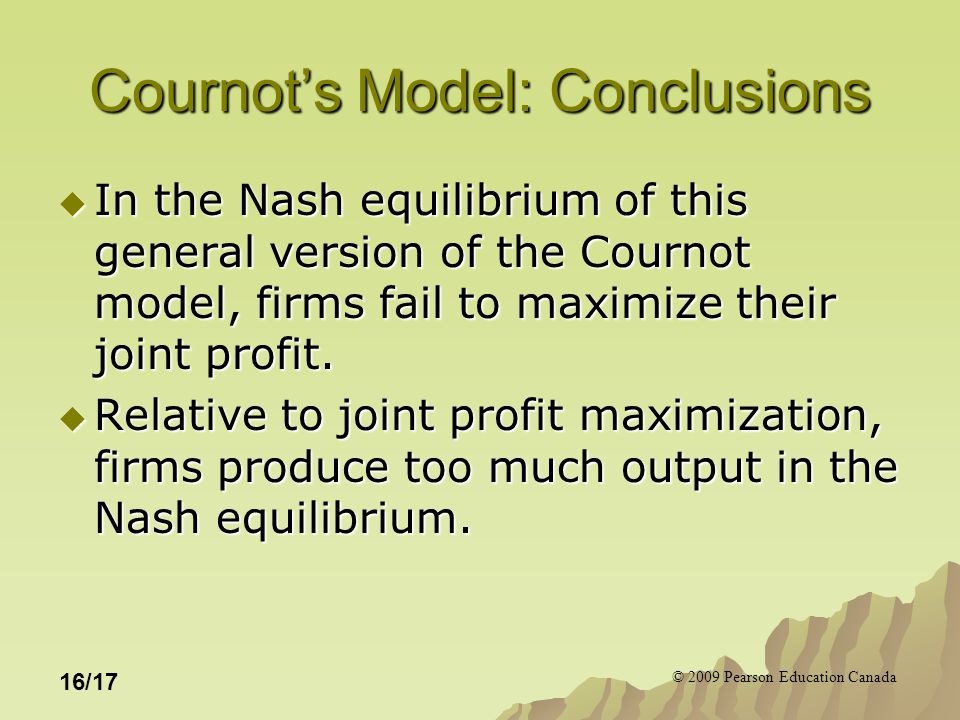

© 2009 Pearson Education Canada 16/17 Cournot’s Model: Conclusions In the Nash equilibrium of this general version of the Cournot model, firms fail to maximize their joint profit. Relative to joint profit maximization, firms produce too much output in the Nash equilibrium.

18
© 2009 Pearson Education Canada 16/18 The Cournot Model with Many Firms With only one firm in the market, the Cournot-Nash equilibrium is the monopoly equilibrium. As the number of firms increase, output increases. As a result, price and aggregate oligopoly profits decrease. When there are infinitely many firms, the Cournot model is, in effect, the perfectly competitive model.

19
© 2009 Pearson Education Canada 16/19 The Cournot Model with Compliments The Cournot-Nash equilibrium in which firms produce the same good is not Pareto-optimal, as the firms produced too much. The Cournot-Nash equilibrium in which firms produce complements is not Pareto-optimal, as the firms produced too little.

20
© 2009 Pearson Education Canada 16/20 The Bertrand Model The substitutes prices for quantities as the variables to be chosen. The Bertrand model substitutes prices for quantities as the variables to be chosen. The goal is to find the Nash (the Bertrand- Nash) equilibrium strategy combination when firms choose prices instead of quantities.

21

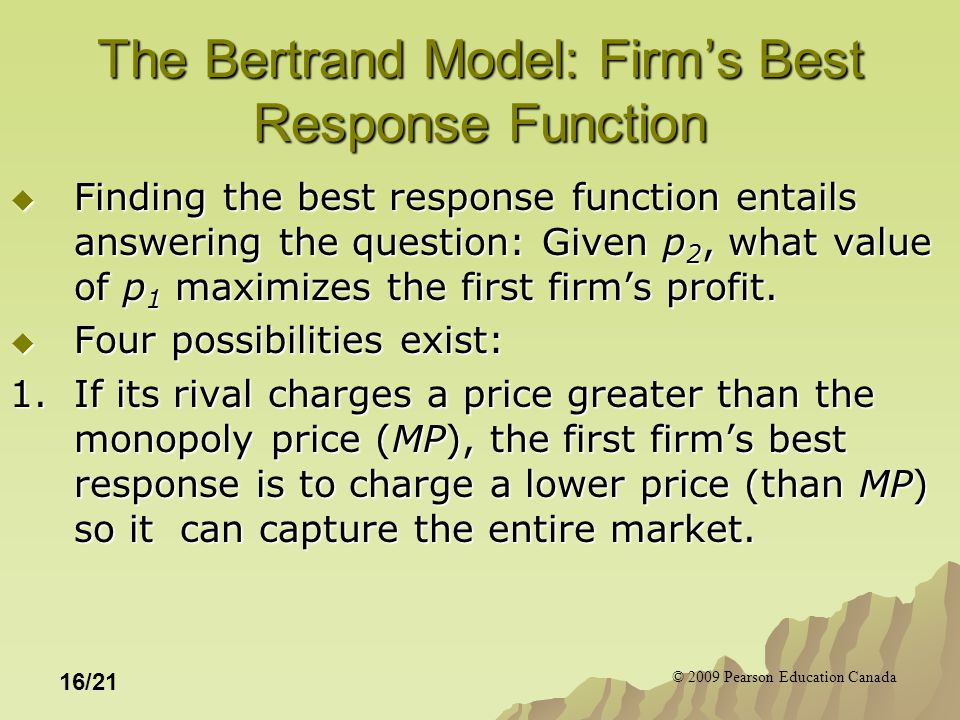

© 2009 Pearson Education Canada 16/21 The Bertrand Model: Firm’s Best Response Function Finding the best response function entails answering the question: Given p 2, what value of p 1 maximizes the first firm’s profit. Four possibilities exist: 1.If its rival charges a price greater than the monopoly price (MP), the first firm’s best response is to charge a lower price (than MP) so it can capture the entire market.

22
© 2009 Pearson Education Canada 16/22 The Bertrand Model: Firm’s Best Response Function 2.If its rival charges a price less than the per unit cost of production (p 2 ), the first firm’s best response is to choose any price greater than this because firm one will attract no business and incur a zero profit. This outcome is superior to matching or undercutting p 2, and posting losses.

23
© 2009 Pearson Education Canada 16/23 The Bertrand Model: Firm’s Best Response Function 3. If the second firm’s price is greater than the per unit cost of production and less than the monopoly price. –If p 1 < p 2, the first firm captures the entire market and its profits increase as its price increases. –When p 1 = p 2, the two firms split the profit. –When p 1 > p 2, the first firm’s profit is zero because it sells nothing when its price exceeds the second firm’s price. (see Figure 16.6).

24

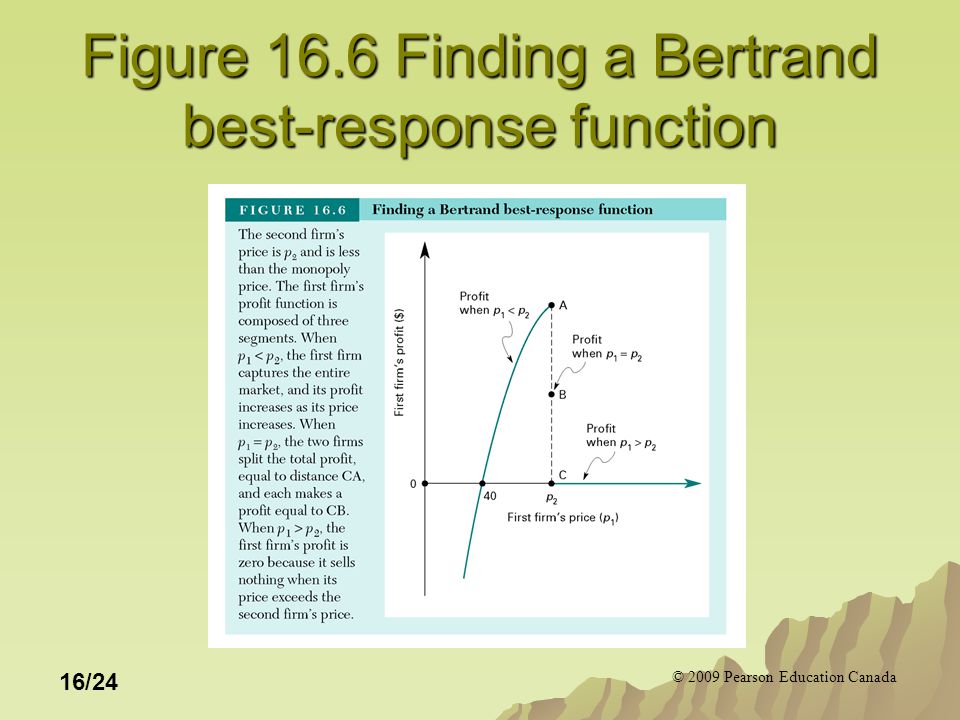

© 2009 Pearson Education Canada 16/24 Figure 16.6 Finding a Bertrand best-response function

25

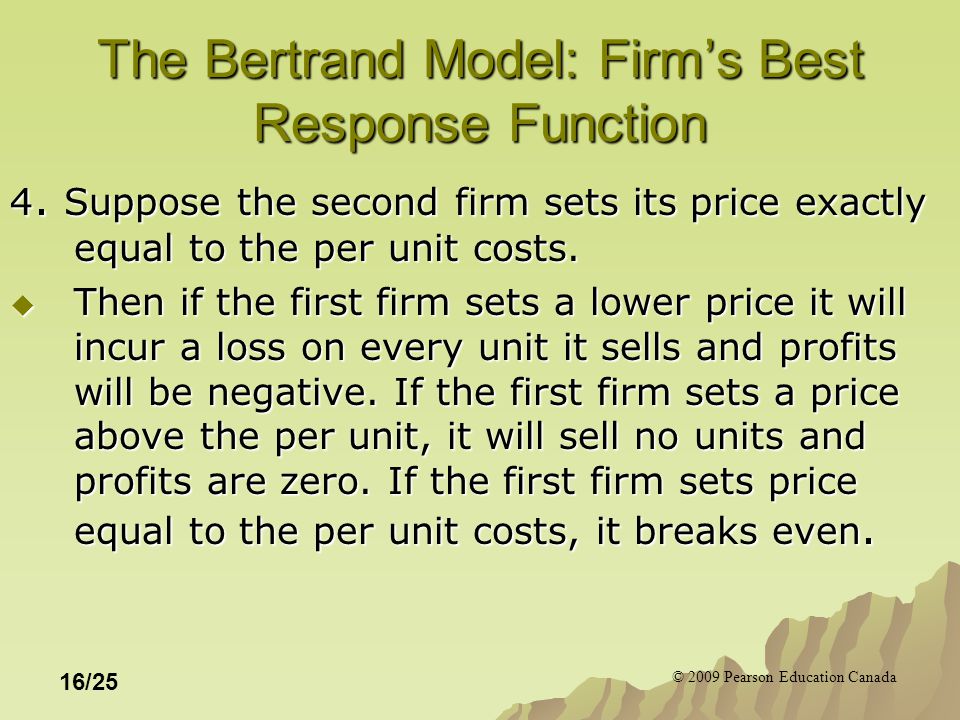

© 2009 Pearson Education Canada 16/25 The Bertrand Model: Firm’s Best Response Function 4. Suppose the second firm sets its price exactly equal to the per unit costs. Then if the first firm sets a lower price it will incur a loss on every unit it sells and profits will be negative. If the first firm sets a price above the per unit, it will sell no units and profits are zero. If the first firm sets price equal to the per unit costs, it breaks even.

26
© 2009 Pearson Education Canada 16/26 The Bertrand-Nash Equilibrium The Bertrand-Nash equilibrium strategy combination has the second firm and the first firm charging a price equal to the per unit cost of production. At this equilibrium, each firm’s profit is exactly zero.

27

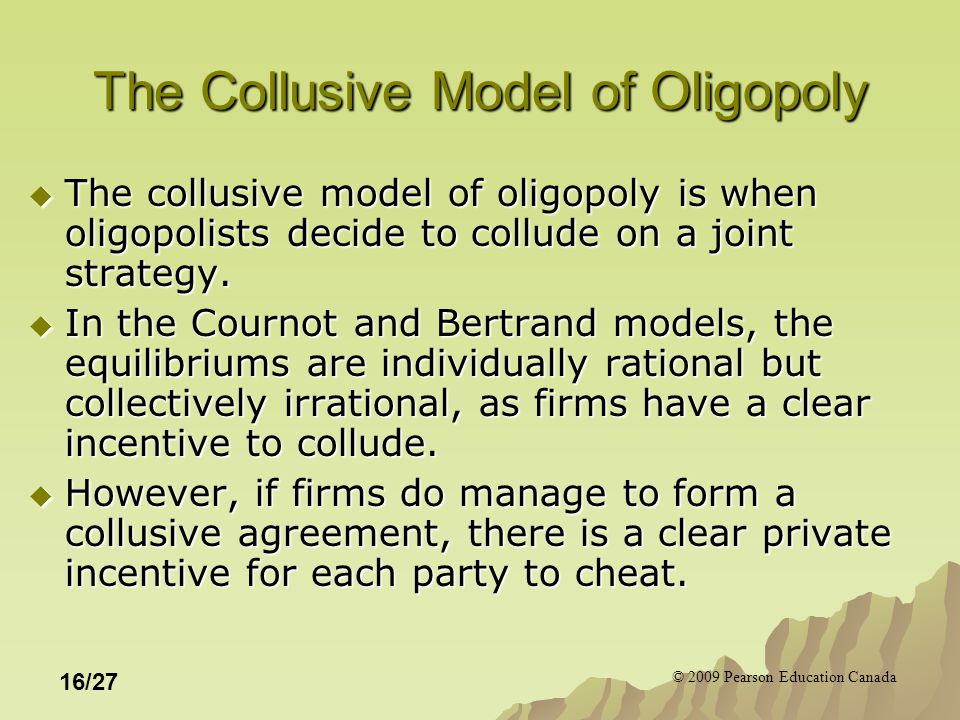

© 2009 Pearson Education Canada 16/27 The Collusive Model of Oligopoly The collusive model of oligopoly is when oligopolists decide to collude on a joint strategy. In the Cournot and Bertrand models, the equilibriums are individually rational but collectively irrational, as firms have a clear incentive to collude. However, if firms do manage to form a collusive agreement, there is a clear private incentive for each party to cheat.

28
© 2009 Pearson Education Canada 16/28 The Collusive Model of Oligopoly In the Cournot model, the individual incentive to cheat on the collusive agreement increases as the number of parties to the agreement increases. This means that the larger the number of firms in an industry, the less likely is a collusive equilibrium. If the number of firms is large enough, some firm or firms will succumb to the temptation to cheat, thereby destroying the collusive agreement.

29

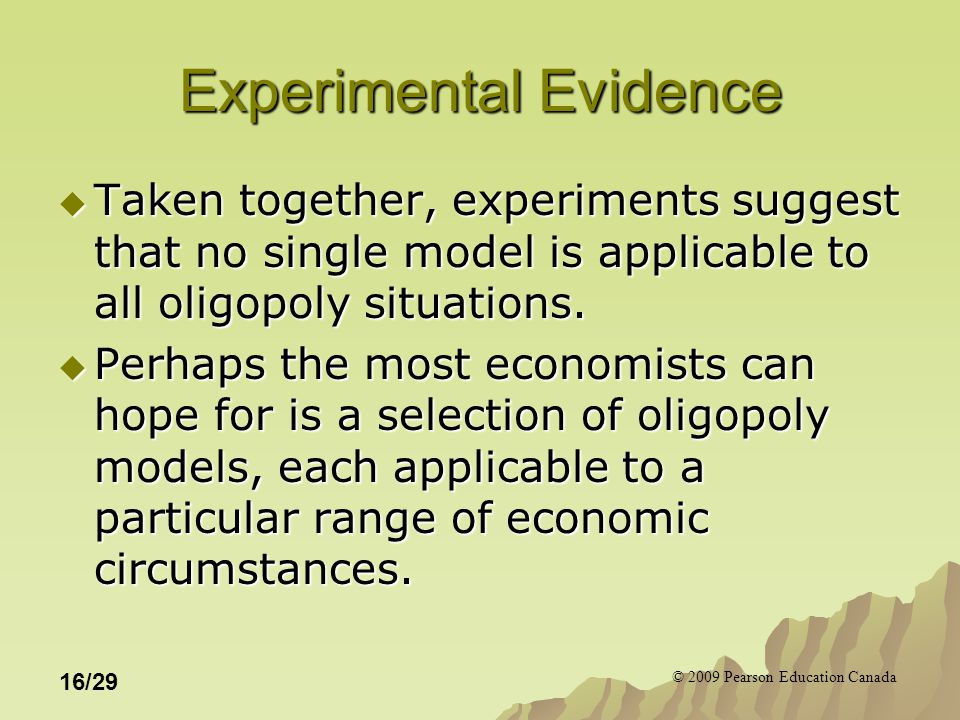

© 2009 Pearson Education Canada 16/29 Experimental Evidence Taken together, experiments suggest that no single model is applicable to all oligopoly situations. Perhaps the most economists can hope for is a selection of oligopoly models, each applicable to a particular range of economic circumstances.

30
© 2009 Pearson Education Canada 16/30 The Limited-Output Model In the long run, the number of firms (market structure) is endogenous. The number of firms in an industry is determined by economic considerations. The key process in determining the long- run equilibrium is the possibility of entry.

31
© 2009 Pearson Education Canada 16/31 The Limited Output Model Limited output models or limited price models focus on the theory of the oligopoly in the long run, where the number of firms is determined endogenously and there is the possibility of entry.

32

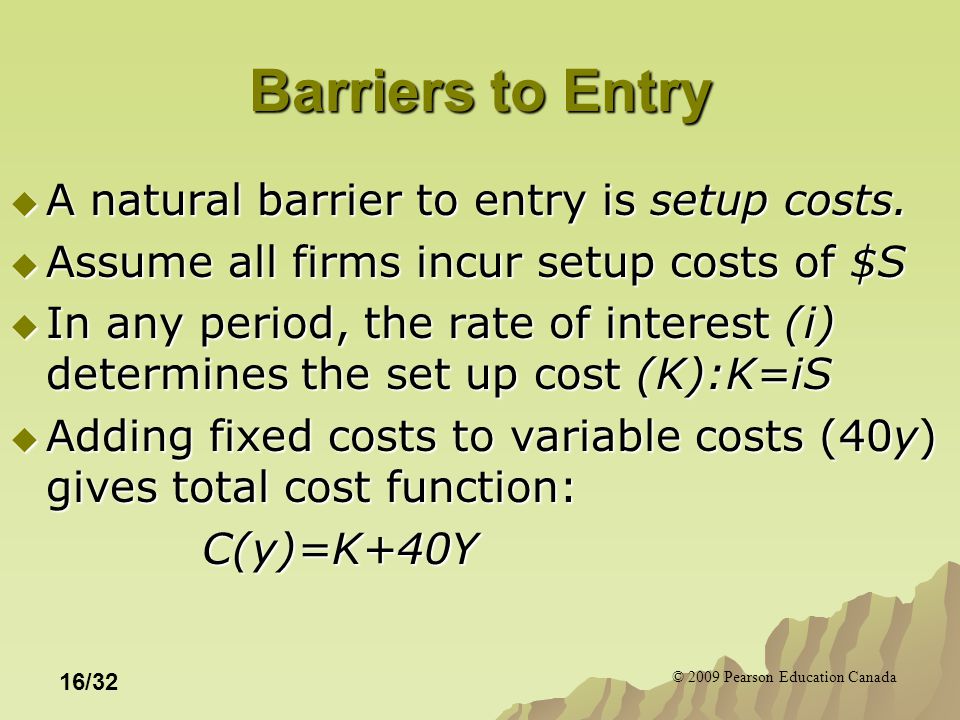

© 2009 Pearson Education Canada 16/32 Barriers to Entry A natural barrier to entry is setup costs. Assume all firms incur setup costs of $S In any period, the rate of interest (i) determines the set up cost (K):K=iS Adding fixed costs to variable costs (40y) gives total cost function: C(y)=K+40Y

33
© 2009 Pearson Education Canada 16/33 Inducement to Entry If the fixed costs (K) are a barrier to entry, what is an inducement to entry? An inducement to entry is the excess of revenue over variable costs.

34
© 2009 Pearson Education Canada 16/34 Figure16.7 The inducement to entry

35
© 2009 Pearson Education Canada 16/35 Inducement to Entry The entrant’s best response function is: y E * =30-y/2 The entrant’s residual demand function is: P e =(100-y)-y e The price that will prevail if the entrant produces y e * units is: P e *=70-y/2 Profit per unit is: P e * - 40=30-y/2

36
© 2009 Pearson Education Canada 16/36 Inducement to Entry The inducement to entry, y e * times (p e *- 40) is then (30-y/) 2. This expression gives the revenue over variable costs that the entrant would earn if established firms continued to produce y units after entry. Entry will occur if inducement to enter exceeds K.

37

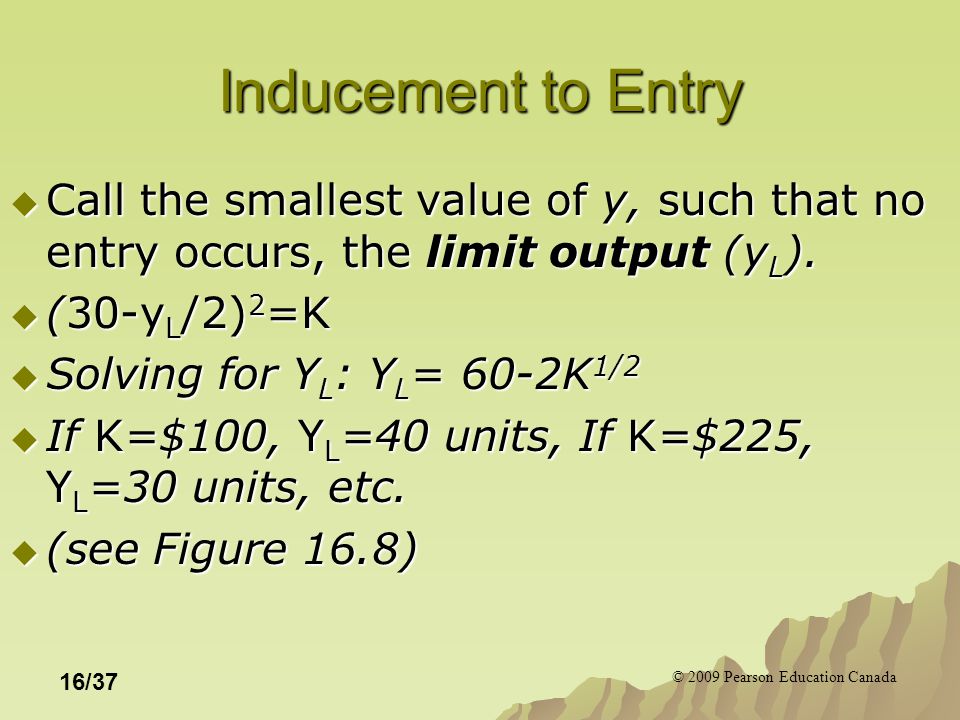

© 2009 Pearson Education Canada 16/37 Inducement to Entry Call the smallest value of y, such that no entry occurs, the limit output (y L ). (30-y L /2) 2 =K Solving for Y L : Y L = 60-2K 1/2 If K=$100, Y L =40 units, If K=$225, Y L =30 units, etc. (see Figure 16.8)

38
© 2009 Pearson Education Canada 16/38 Inducement to Entry The no entry condition says entry will not occur if the output of established firms is greater than or equal to the limit output (y L ) The limit price (p L ) is the price associated with the limit output. In this example: p L =100-y L or p L = 40+2K 1/2 p L =100-y L or p L = 40+2K 1/2

39
© 2009 Pearson Education Canada 16/39 Figure 16.8 Identifying the limit price and the limit output

40

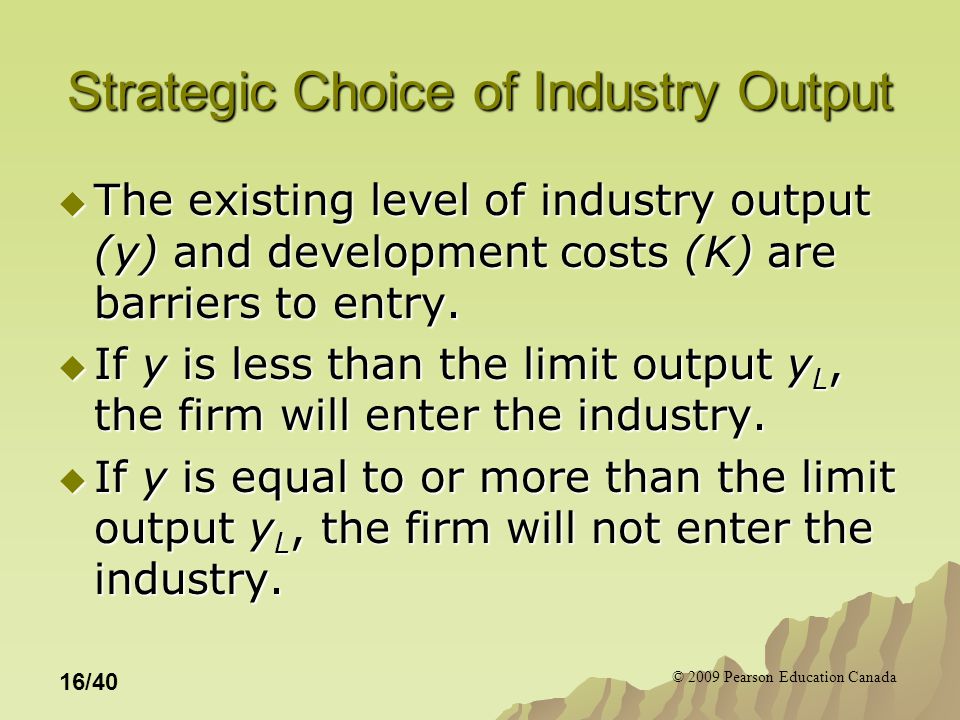

© 2009 Pearson Education Canada 16/40 Strategic Choice of Industry Output The existing level of industry output (y) and development costs (K) are barriers to entry. If y is less than the limit output y L, the firm will enter the industry. If y is equal to or more than the limit output y L, the firm will not enter the industry.

41
© 2009 Pearson Education Canada 16/41 Strategic Choice of Industry Output We have calculated that if K=$225, then y L =30 (the monopoly output). Thus, if setup costs are $225 or higher, the monopoly output of 30 will successfully deter entry – a natural monopoly scenario.

42

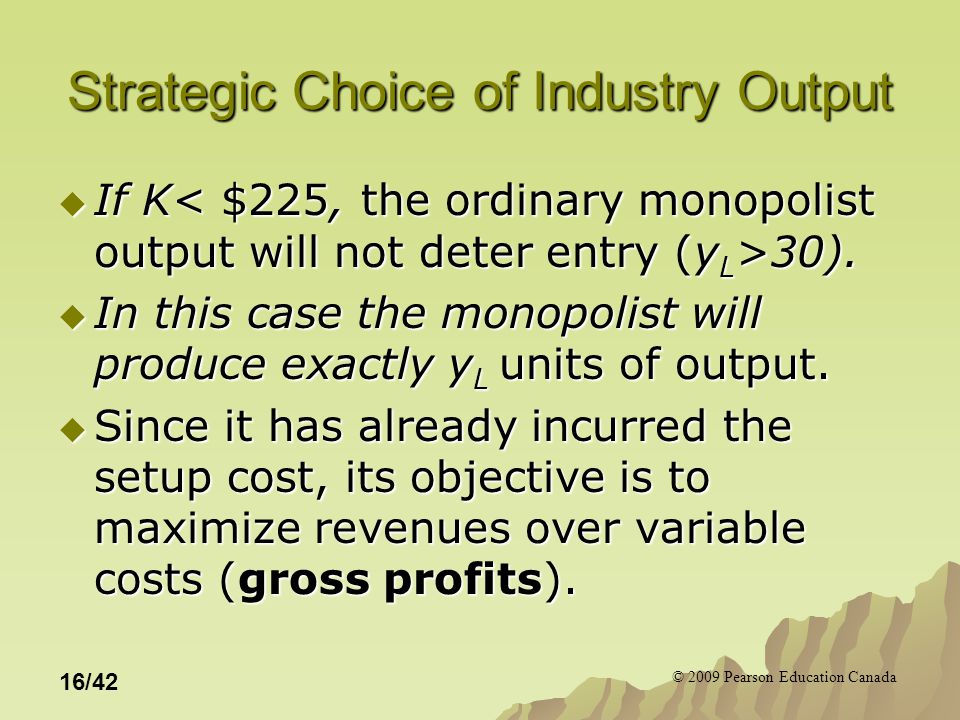

© 2009 Pearson Education Canada 16/42 Strategic Choice of Industry Output If K 30). In this case the monopolist will produce exactly y L units of output. Since it has already incurred the setup cost, its objective is to maximize revenues over variable costs (gross profits).

43

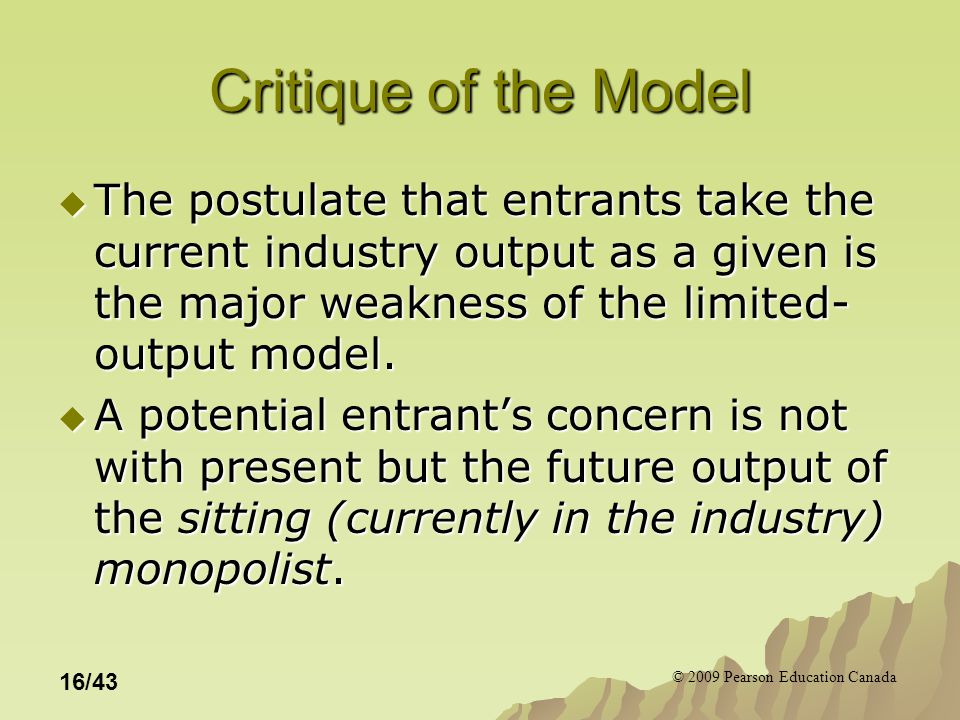

© 2009 Pearson Education Canada 16/43 Critique of the Model The postulate that entrants take the current industry output as a given is the major weakness of the limited- output model. A potential entrant’s concern is not with present but the future output of the sitting (currently in the industry) monopolist.

44
© 2009 Pearson Education Canada 16/44 Critique of the Model When a sitting monopolist produces the limit output, its decision is intended as a credible warning to potential entrants that it will continue to produce the limit output in the future. If entrants take this warning seriously, they will stay out of the market.
