1 Lattice Technology New Product Feature Highlights February 2011 Product Release

2 XVL Converter Plug-in / Server /Scheduler and Manager Ver. 7.1

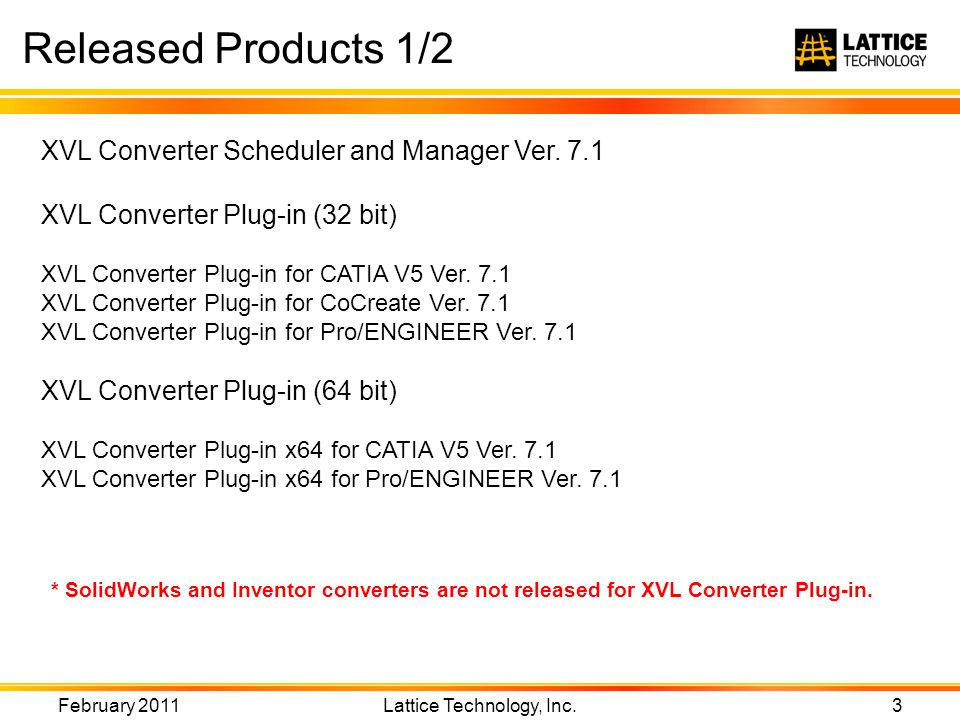

3 Released Products 1/2 February 2011 Lattice Technology, Inc. 3 XVL Converter Scheduler and Manager Ver. 7.1 XVL Converter Plug-in (32 bit) XVL Converter Plug-in for CATIA V5 Ver. 7.1 XVL Converter Plug-in for CoCreate Ver. 7.1 XVL Converter Plug-in for Pro/ENGINEER Ver. 7.1 XVL Converter Plug-in (64 bit) XVL Converter Plug-in x64 for CATIA V5 Ver. 7.1 XVL Converter Plug-in x64 for Pro/ENGINEER Ver. 7.1 * SolidWorks and Inventor converters are not released for XVL Converter Plug-in.

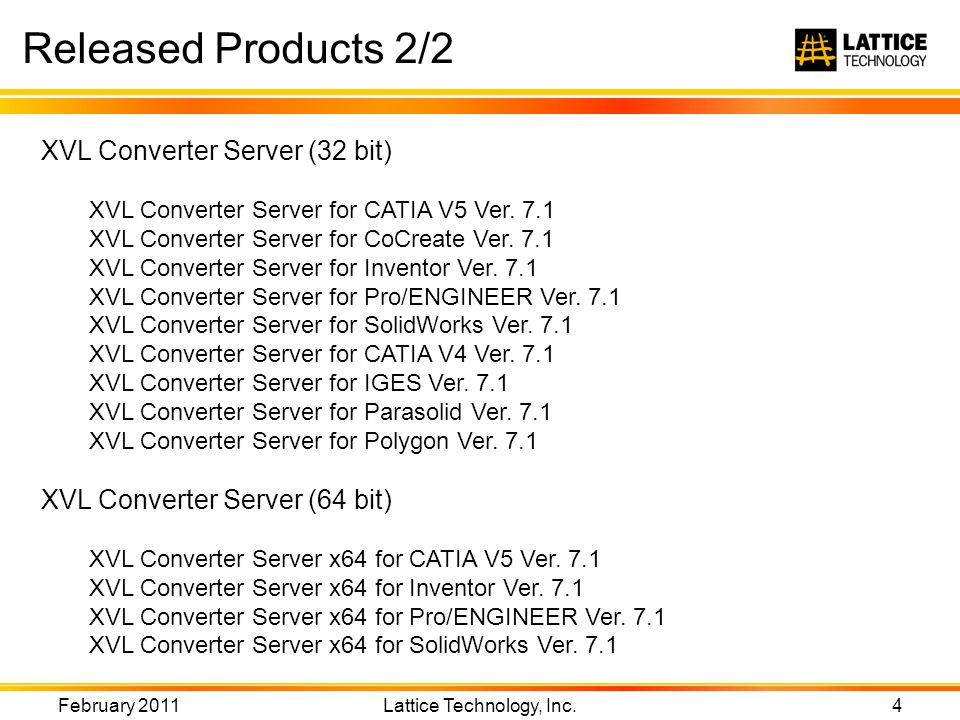

4 Released Products 2/2 February 2011 Lattice Technology, Inc. 4 XVL Converter Server (32 bit) XVL Converter Server for CATIA V5 Ver. 7.1 XVL Converter Server for CoCreate Ver. 7.1 XVL Converter Server for Inventor Ver. 7.1 XVL Converter Server for Pro/ENGINEER Ver. 7.1 XVL Converter Server for SolidWorks Ver. 7.1 XVL Converter Server for CATIA V4 Ver. 7.1 XVL Converter Server for IGES Ver. 7.1 XVL Converter Server for Parasolid Ver. 7.1 XVL Converter Server for Polygon Ver. 7.1 XVL Converter Server (64 bit) XVL Converter Server x64 for CATIA V5 Ver. 7.1 XVL Converter Server x64 for Inventor Ver. 7.1 XVL Converter Server x64 for Pro/ENGINEER Ver. 7.1 XVL Converter Server x64 for SolidWorks Ver. 7.1

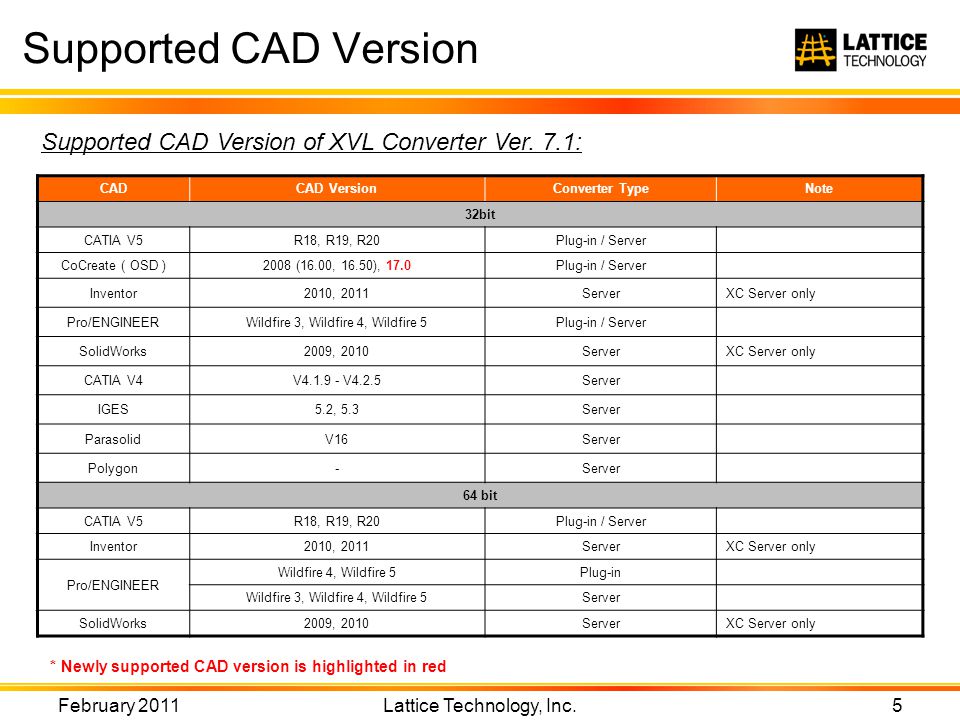

5 Supported CAD Version February 2011 Lattice Technology, Inc. 5 CADCAD VersionConverter TypeNote 32bit CATIA V5R18, R19, R20Plug-in / Server CoCreate ( OSD )2008 (16.00, 16.50), 17.0Plug-in / Server Inventor2010, 2011ServerXC Server only Pro/ENGINEERWildfire 3, Wildfire 4, Wildfire 5Plug-in / Server SolidWorks2009, 2010ServerXC Server only CATIA V4V V4.2.5Server IGES5.2, 5.3Server ParasolidV16Server Polygon-Server 64 bit CATIA V5R18, R19, R20Plug-in / Server Inventor2010, 2011ServerXC Server only Pro/ENGINEER Wildfire 4, Wildfire 5Plug-in Wildfire 3, Wildfire 4, Wildfire 5Server SolidWorks2009, 2010ServerXC Server only Supported CAD Version of XVL Converter Ver. 7.1: * Newly supported CAD version is highlighted in red

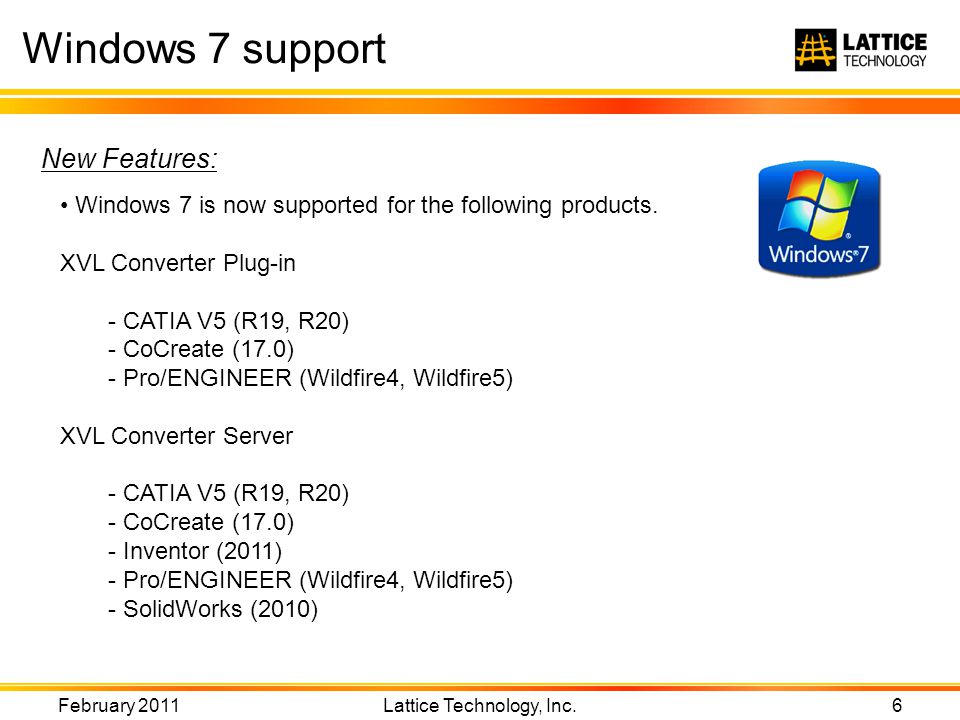

6 Windows 7 support February 2011 Lattice Technology, Inc. 6 New Features: Windows 7 is now supported for the following products. XVL Converter Plug-in - CATIA V5 (R19, R20) - CoCreate (17.0) - Pro/ENGINEER (Wildfire4, Wildfire5) XVL Converter Server - CATIA V5 (R19, R20) - CoCreate (17.0) - Inventor (2011) - Pro/ENGINEER (Wildfire4, Wildfire5) - SolidWorks (2010)

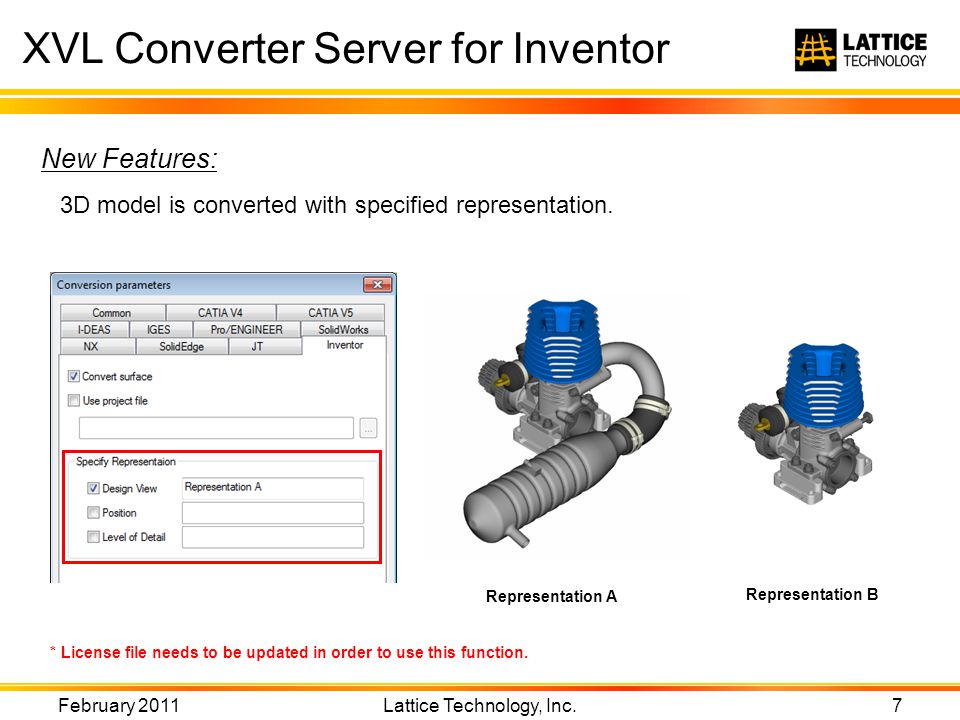

7 XVL Converter Server for Inventor February 2011 Lattice Technology, Inc. 7 New Features: 3D model is converted with specified representation. Representation A Representation B * License file needs to be updated in order to use this function.

8 XVL Converter Server for SolidWorks February 2011 Lattice Technology, Inc. 8 New Features: 3D model is converted with specified configuration. Configuration B Configuration C Configuration A * License file needs to be updated in order to use this function.

9 February 2011 Lattice Technology, Inc. 9 Questions? E. T F W.www.lattice3d.com
