1. Presentation of LITESTAR 4D to the Partners of LITESTAR Project

2. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR Project: simplicity

3. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR Project La Mairie de Paris, the body that manages the public lighting installations in the city of Paris, has invested in OxyTech with LITESTAR Pro

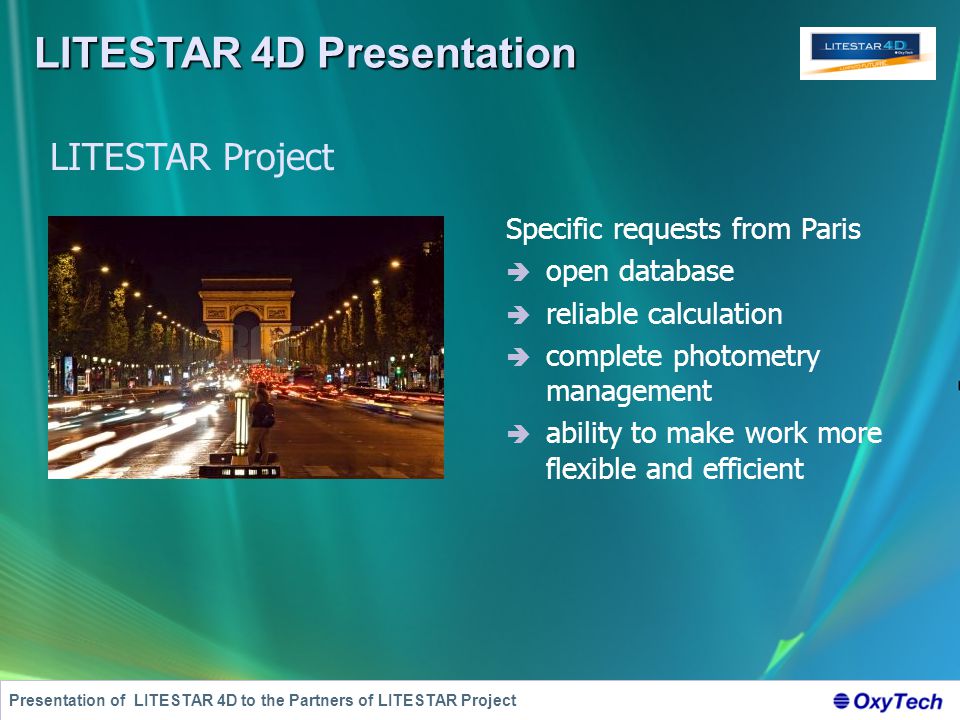

4. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project Specific requests from Paris  open database  reliable calculation  complete photometry management  ability to make work more flexible and efficient LITESTAR Project

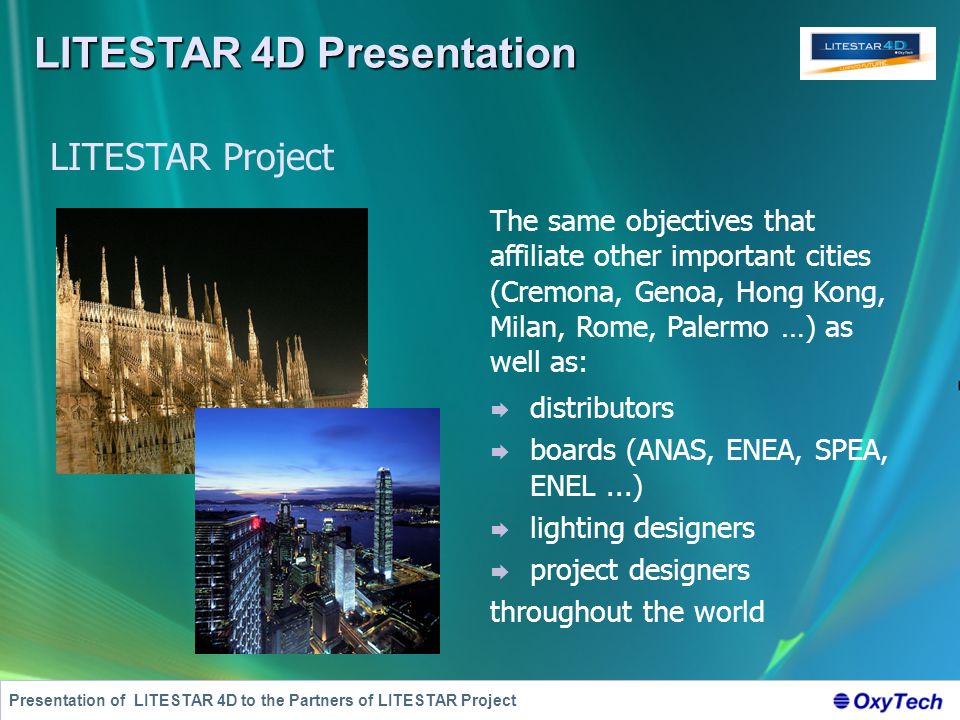

5. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project The same objectives that affiliate other important cities (Cremona, Genoa, Hong Kong, Milan, Rome, Palermo …) as well as: LITESTAR Project  distributors  boards (ANAS, ENEA, SPEA, ENEL...)  lighting designers  project designers throughout the world

6. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project … the aim to respond to the various needs of the situation, the manufacturers and a certain market, whose perspective on their way of working on lighting projects is changing LITESTAR Project is …

7. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR Project: example … but the means we use to supply information such as:  paper catalogs  static catalogs via Internet are extremely limited !! Product data changes every day ! LITESTAR Project gives a simple answer to be faster and effective at all levels !!

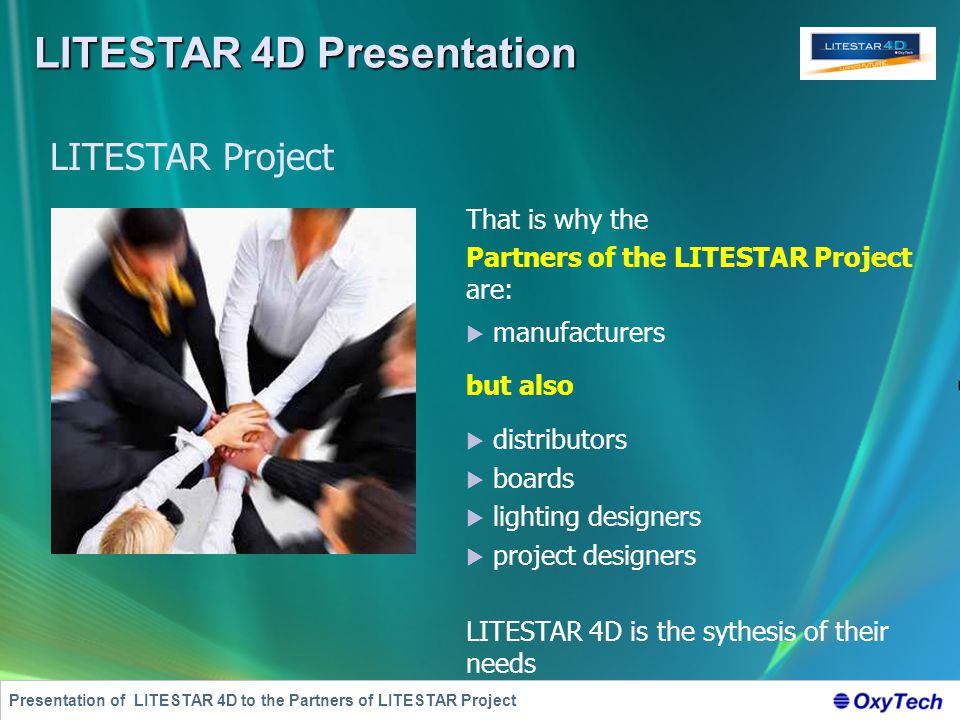

8. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project That is why the Partners of the LITESTAR Project are:  manufacturers but also  distributors  boards  lighting designers  project designers LITESTAR 4D is the sythesis of their needs LITESTAR Project

9. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D: a leap into the future

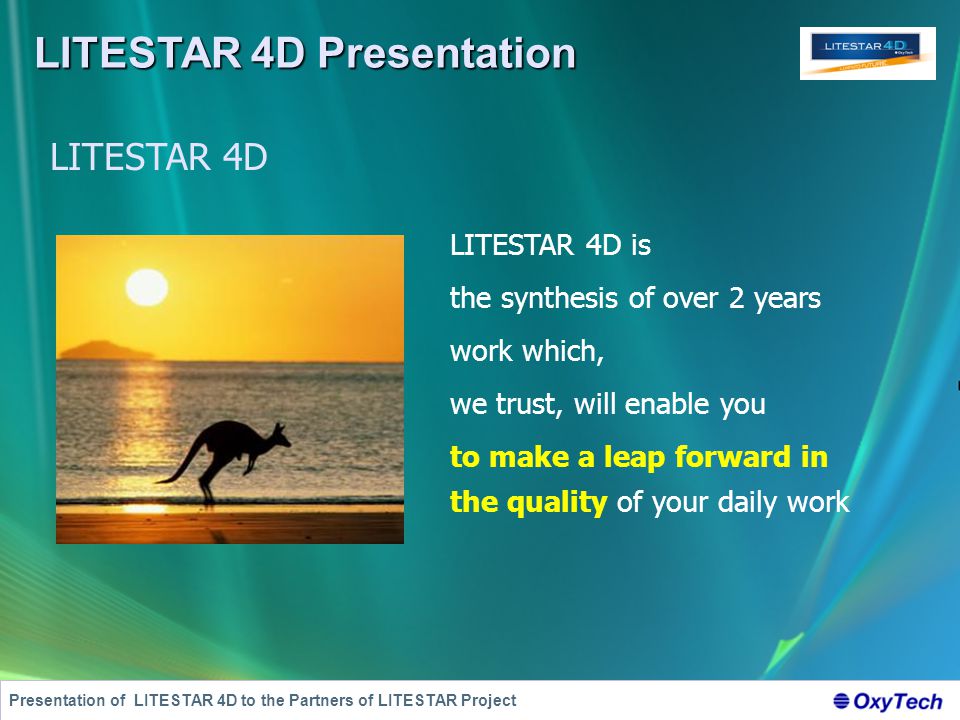

10. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D LITESTAR 4D is the synthesis of over 2 years work which, we trust, will enable you to make a leap forward in the quality of your daily work

11. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D – The interface  intuitive  straightforward  dynamic  integrated with Internet  and, we hope, enjoyable LITESTAR 4D has a new interface:

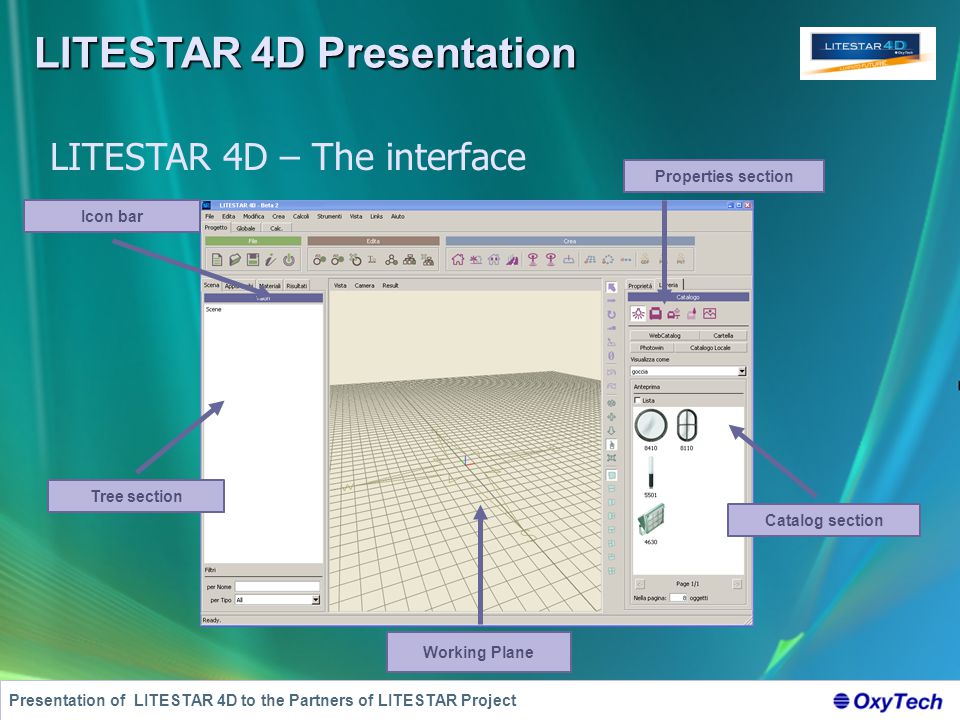

12. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D – The interface Tree section Properties section Catalog section Working Plane Icon bar

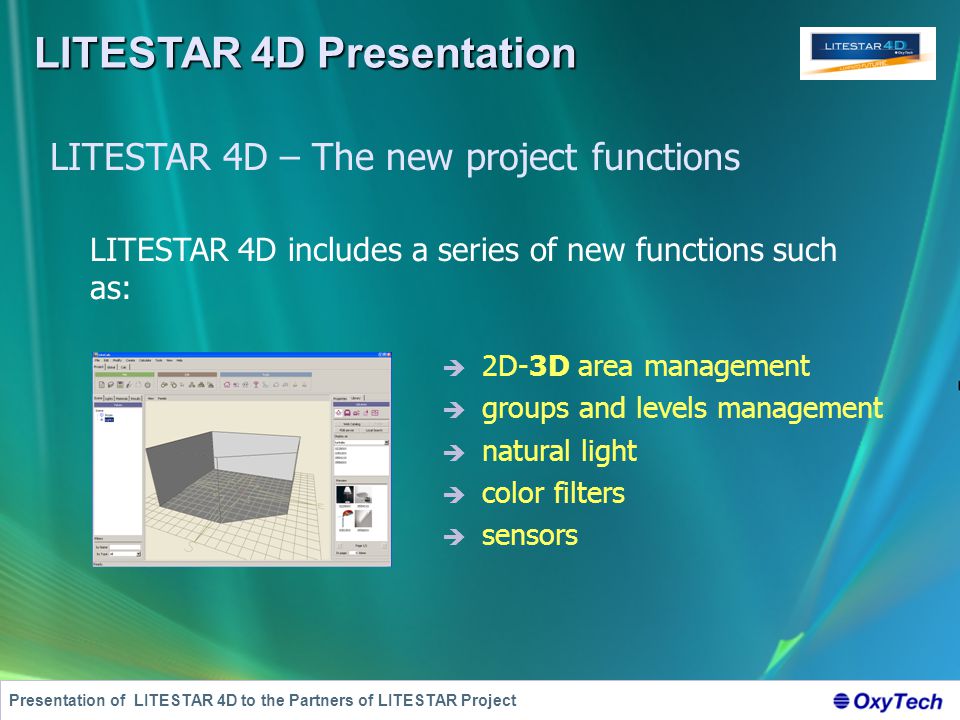

13. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D – The new project functions  2D-3D area management  groups and levels management  natural light  color filters  sensors LITESTAR 4D includes a series of new functions such as:

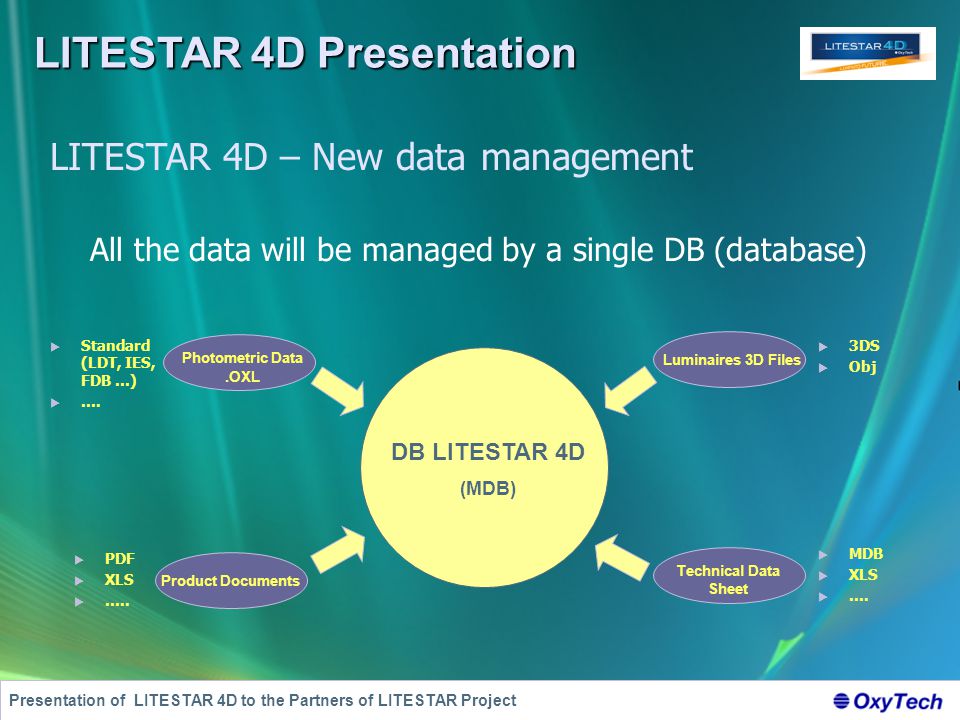

14. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D – New data management All the data will be managed by a single DB (database) Photometric Data.OXL Luminaires 3D Files DB LITESTAR 4D (MDB) Product Documents Technical Data Sheet  3DS  Obj  Standard (LDT, IES, FDB …)  ….  PDF  XLS  …..  MDB  XLS  ….

15. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D – New data management All done via Drag & Drop !! Interactive Electronic Catalog WebCatalog Local Folder The catalog of the most used products

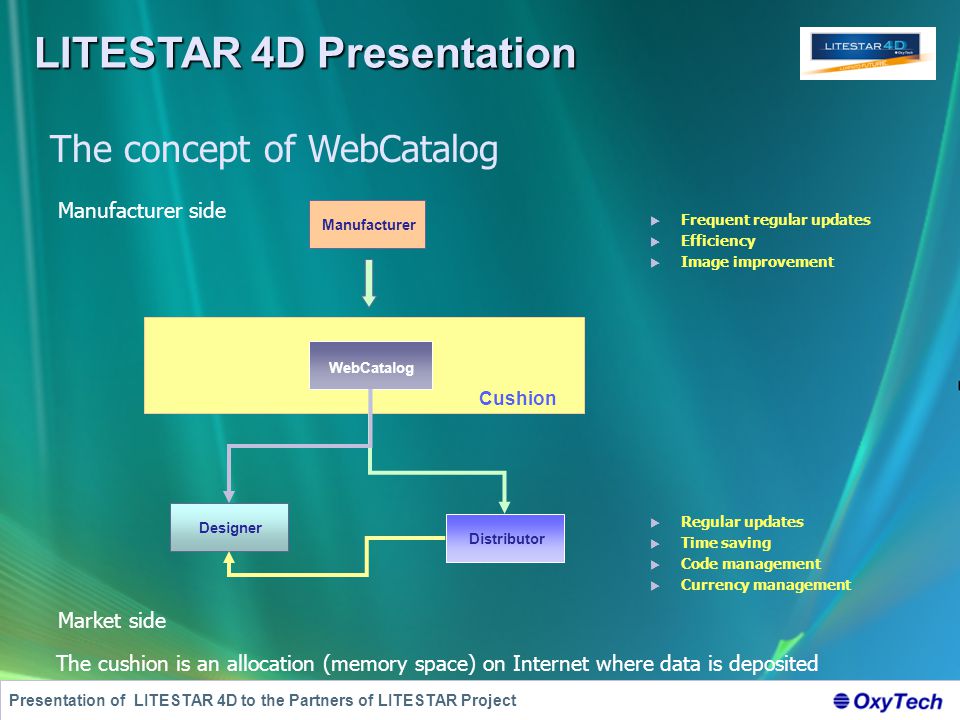

16. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project Manufacturer side Market side The concept of WebCatalog Cushion Manufacturer Designer WebCatalog Distributor  Frequent regular updates  Efficiency  Image improvement  Regular updates  Time saving  Code management  Currency management The cushion is an allocation (memory space) on Internet where data is deposited

17. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project The concept of WebCatalog: the cushion Manufacturer’s Web Site WebOxy (Service Web Site) Distributor’s Web Site A single DB …. …. different visualizations Great advantages !!

18. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR 4D – Demo

19. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project LITESTAR Rendered with Litestar 10 in less than 2 minutes!

20. LITESTAR 4D Presentation Presentation of LITESTAR 4D to the Partners of LITESTAR Project Thank you!
