Modifying the interconnection thermal shields during LS1. Graeme Barlow - TE-MSC-CMI1

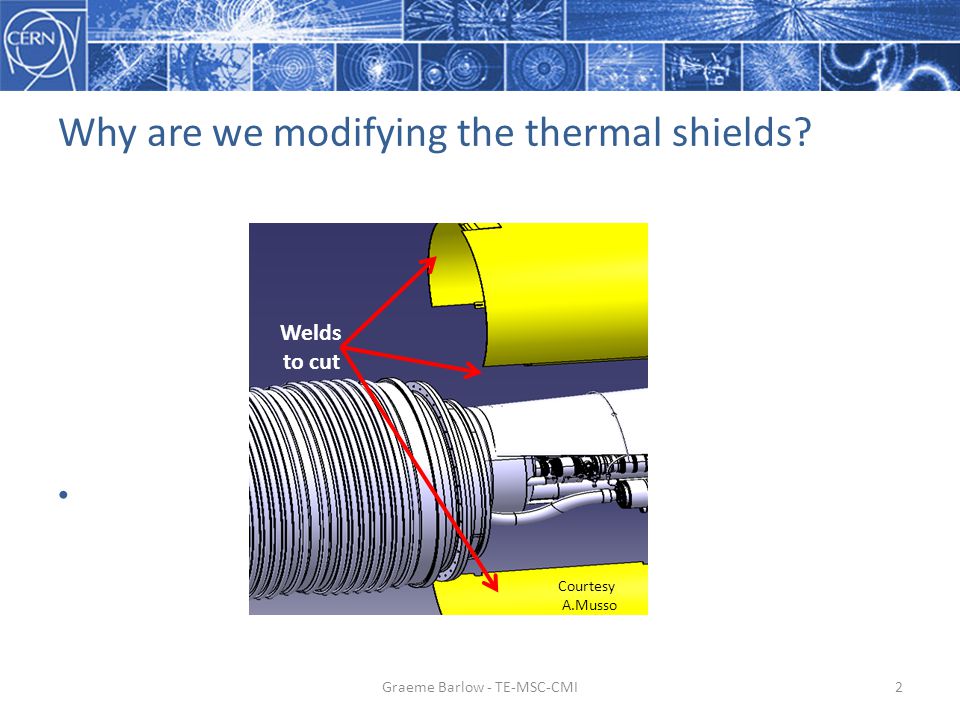

Why are we modifying the thermal shields? Graeme Barlow - TE-MSC-CMI Welds to cut 2 Courtesy A.Musso

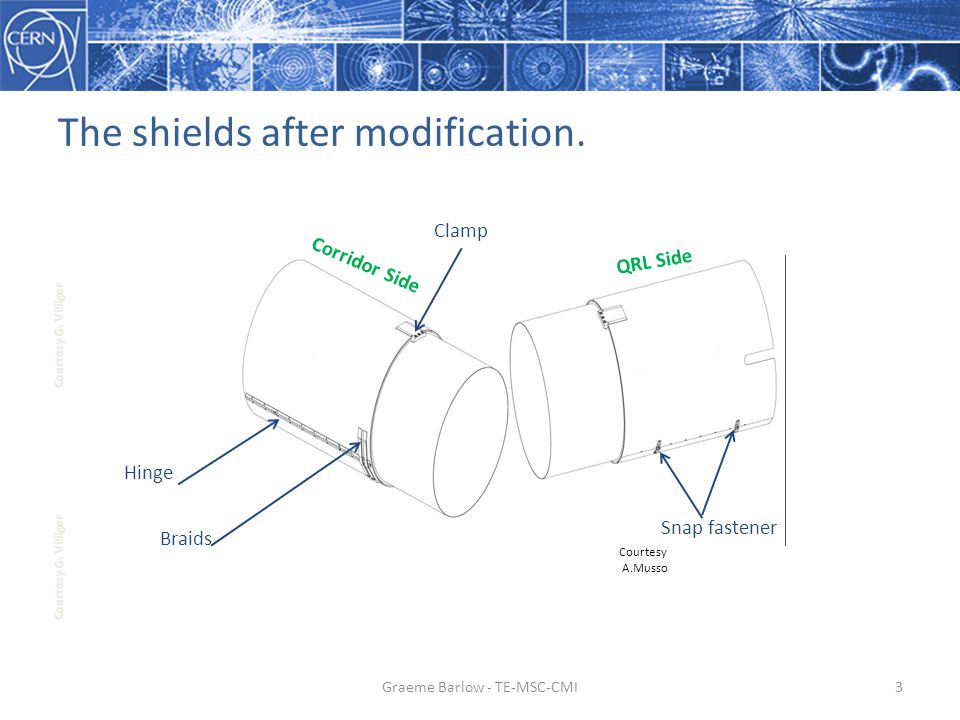

The shields after modification. Graeme Barlow - TE-MSC-CMI Courtesy G. Villiger Hinge Braids Clamp Snap fastener QRL Side Corridor Side 3 Courtesy A.Musso

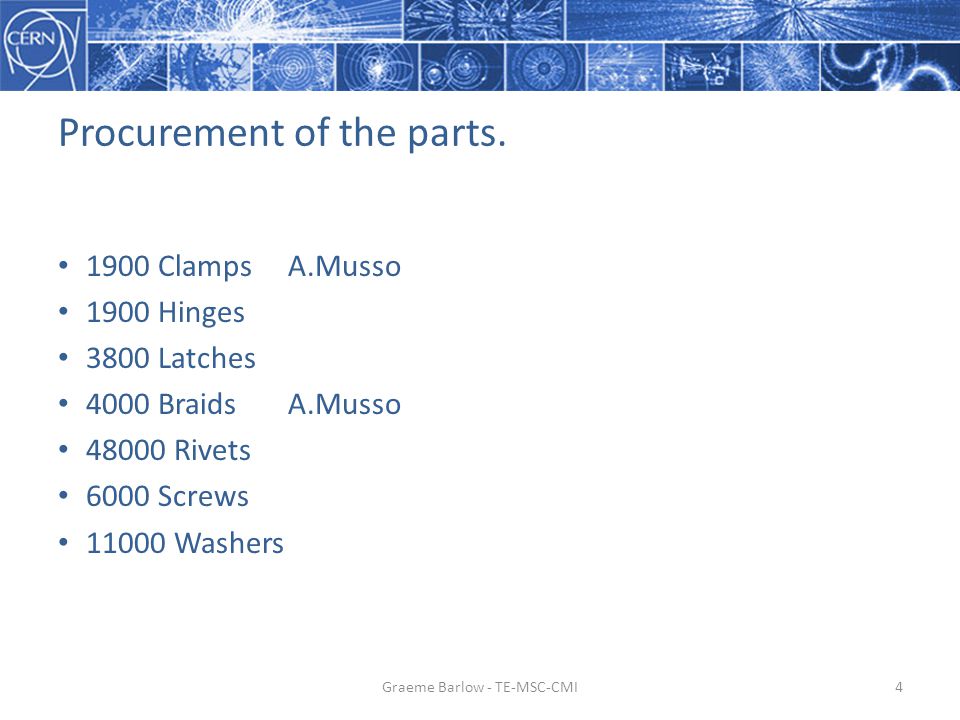

Procurement of the parts Clamps A.Musso 1900 Hinges 3800 Latches 4000 Braids A.Musso Rivets 6000 Screws Washers Graeme Barlow - TE-MSC-CMI4

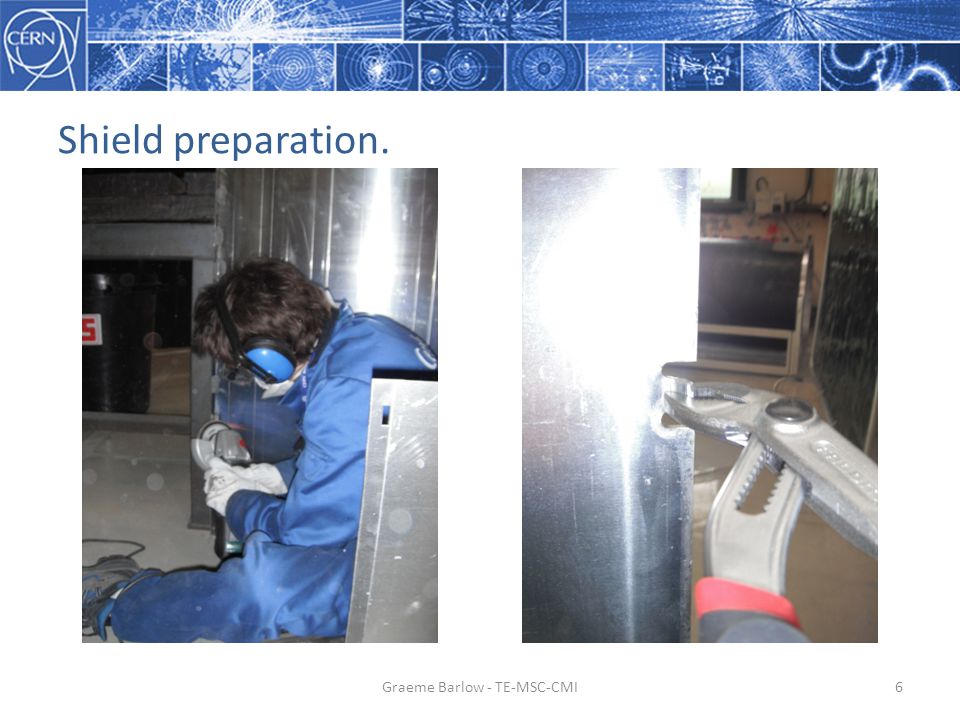

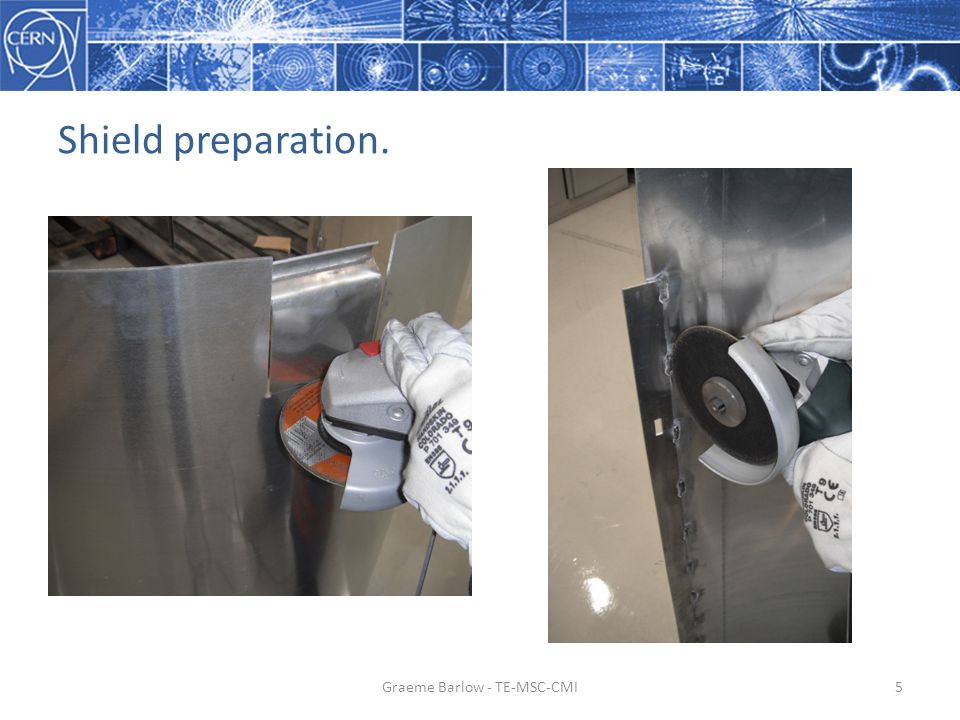

Shield preparation. Graeme Barlow - TE-MSC-CMI5
Shield preparation. Graeme Barlow - TE-MSC-CMI6
The Parts needed for the modification. Graeme Barlow - TE-MSC-CMI7

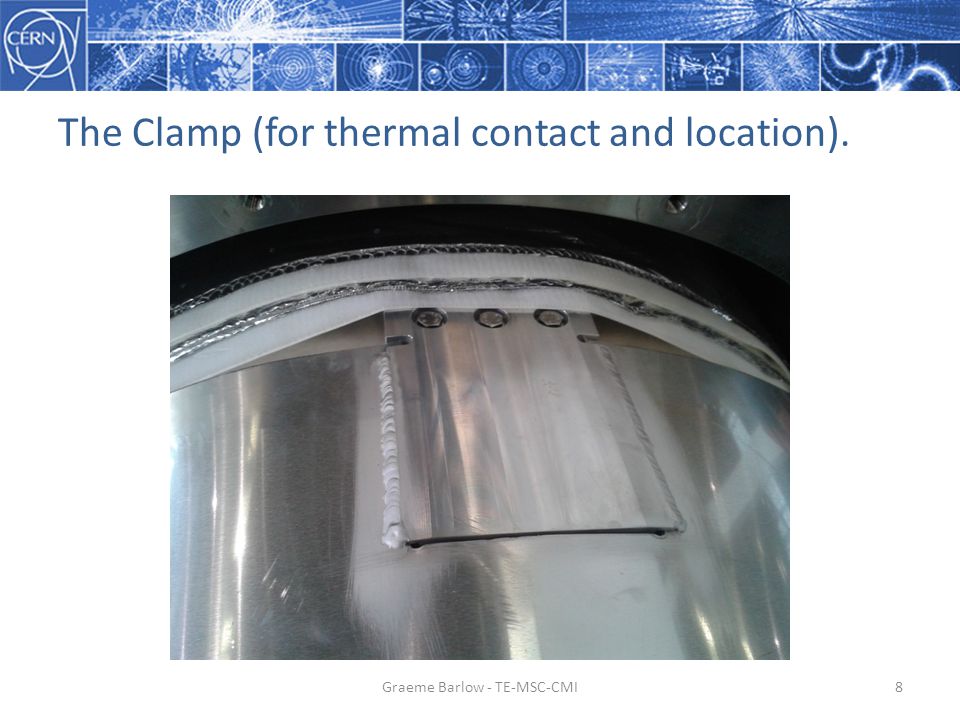

The Clamp (for thermal contact and location). Graeme Barlow - TE-MSC-CMI8

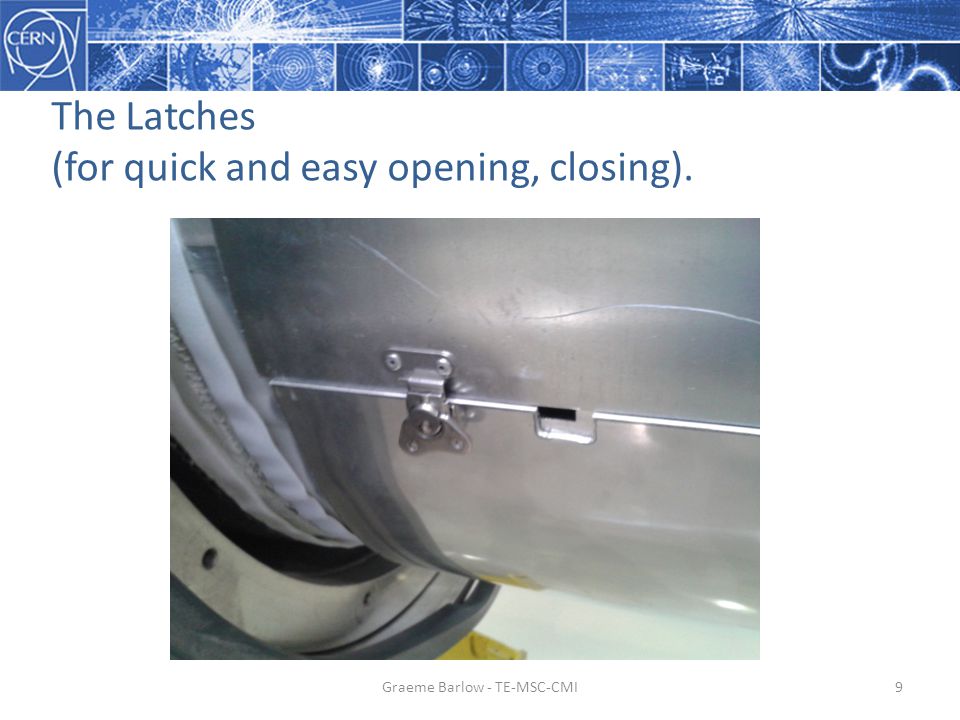

The Latches (for quick and easy opening, closing). Graeme Barlow - TE-MSC-CMI9

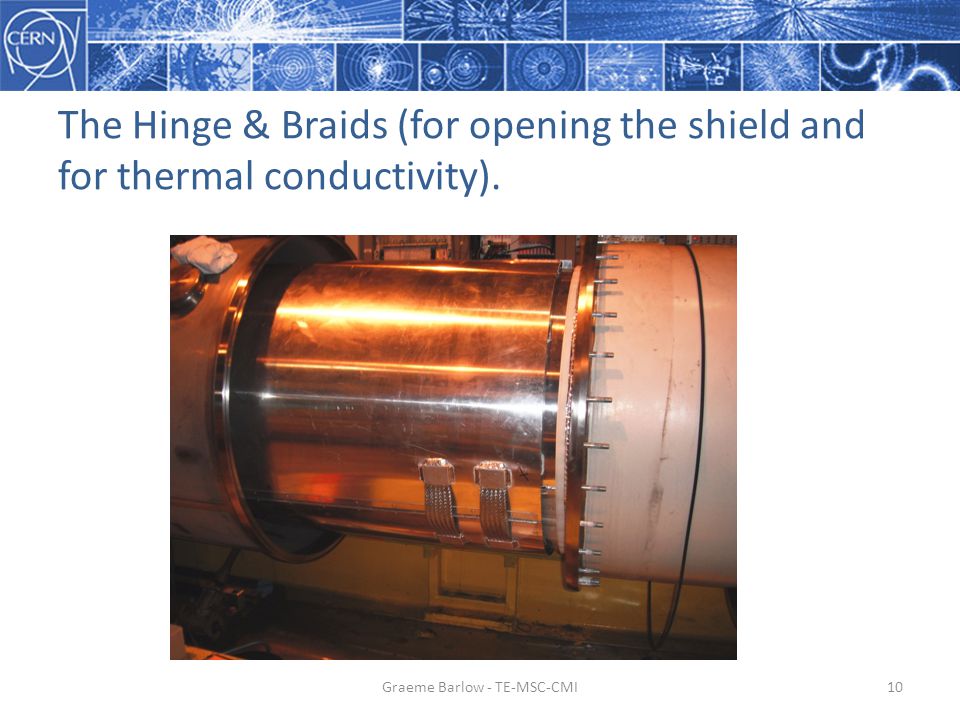

The Hinge & Braids (for opening the shield and for thermal conductivity). Graeme Barlow - TE-MSC-CMI10

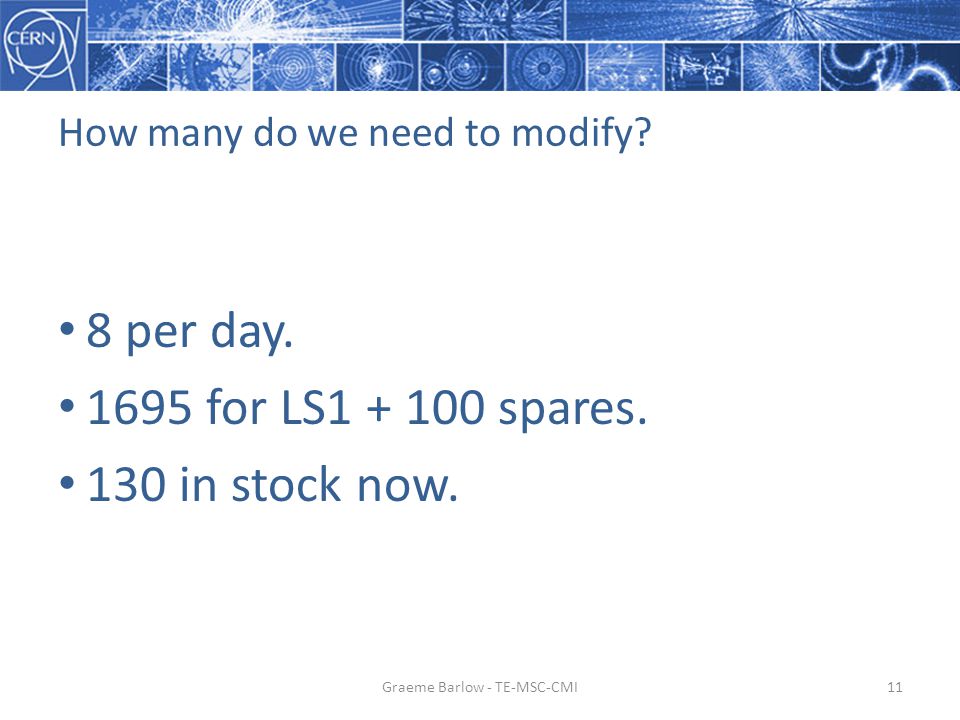

How many do we need to modify? 8 per day for LS spares. 130 in stock now. Graeme Barlow - TE-MSC-CMI11

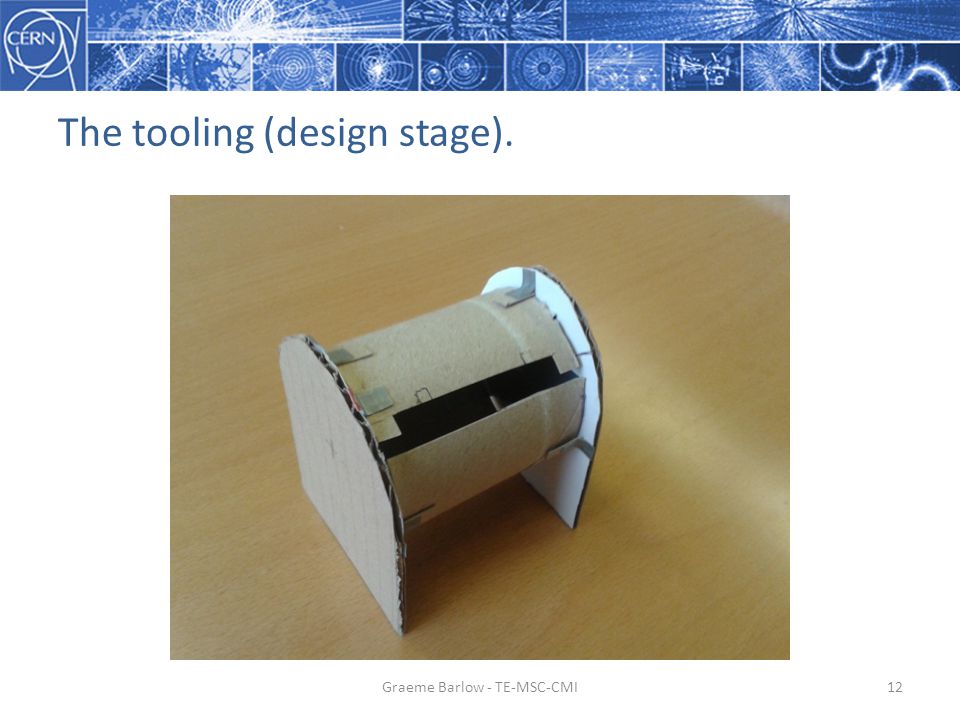

The tooling (design stage). Graeme Barlow - TE-MSC-CMI12
The Tooling (ready to go). Graeme Barlow - TE-MSC-CMI13
The team. Graeme Barlow - TE-MSC-CMI14
Where are the modifications taking place? Graeme Barlow - TE-MSC-CMI15
New area in January 2013 ! Graeme Barlow - TE-MSC-CMI16

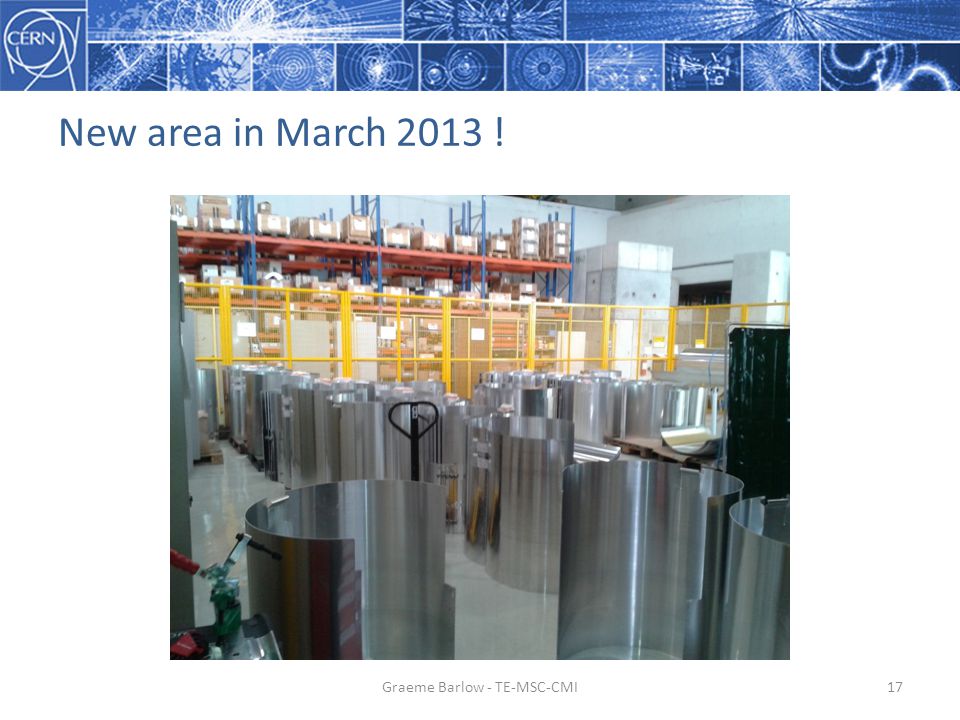

New area in March 2013 ! Graeme Barlow - TE-MSC-CMI17
Modifications to the tooling. Graeme Barlow - TE-MSC-CMI18 Change of the clamps to hold the shields and templates.
Original clamps on the tooling. Graeme Barlow - TE-MSC-CMI19
New clamps. Graeme Barlow - TE-MSC-CMI20
New clamps on the tooling. Graeme Barlow - TE-MSC-CMI21
Modifications to the tooling. Change from manual to pneumatic rivet gun. Graeme Barlow - TE-MSC-CMI22

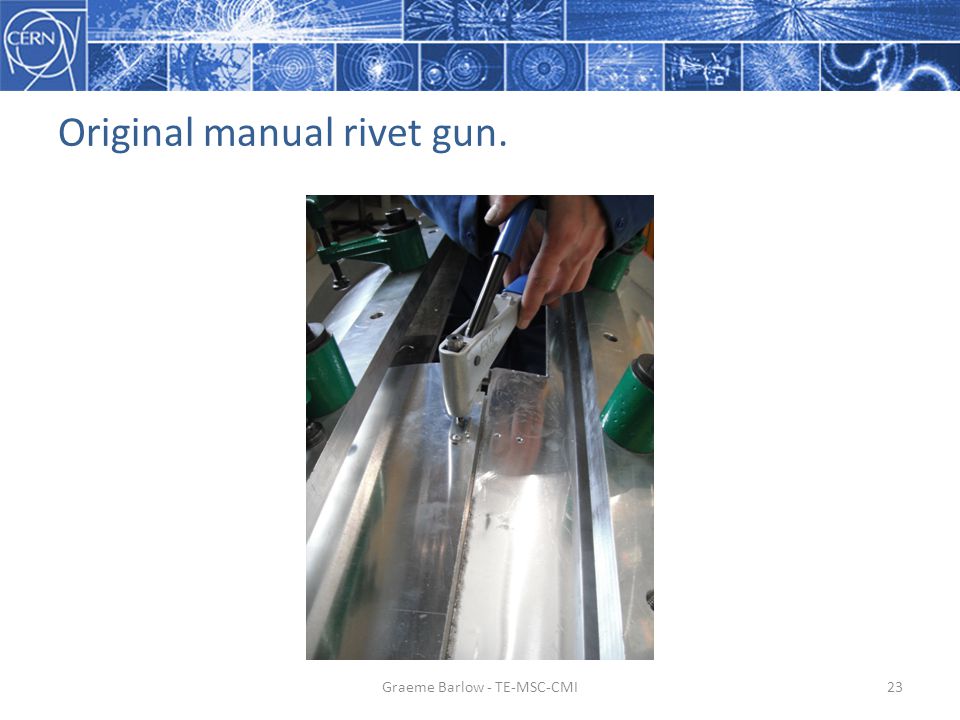

Original manual rivet gun. Graeme Barlow - TE-MSC-CMI23

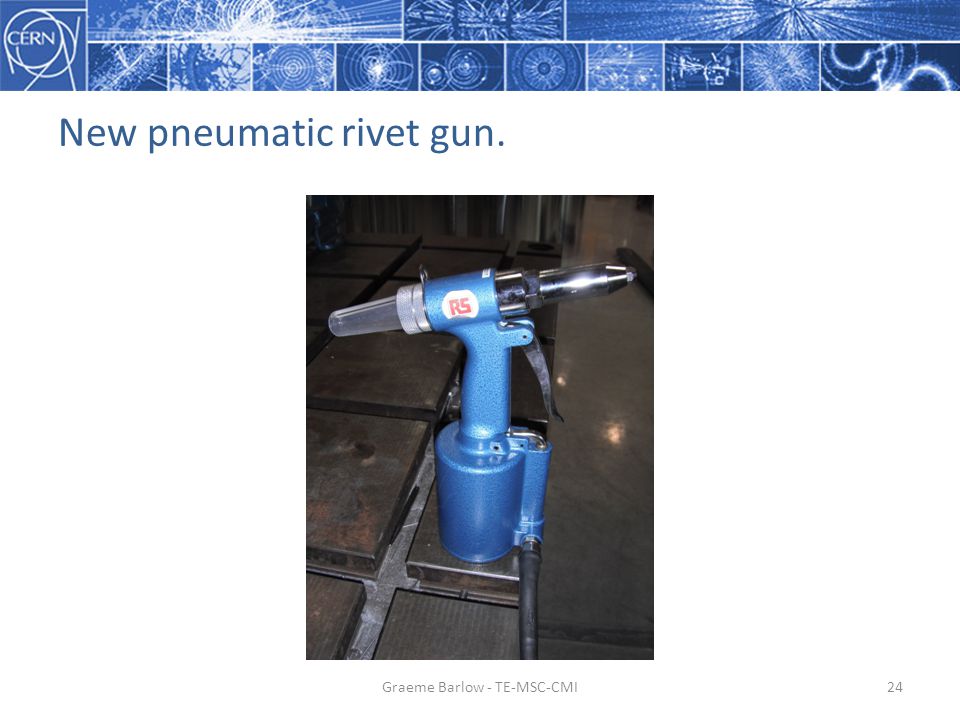

New pneumatic rivet gun. Graeme Barlow - TE-MSC-CMI24
Modifications to the tooling. Hole templates with holes aligned to the components. Graeme Barlow - TE-MSC-CMI25

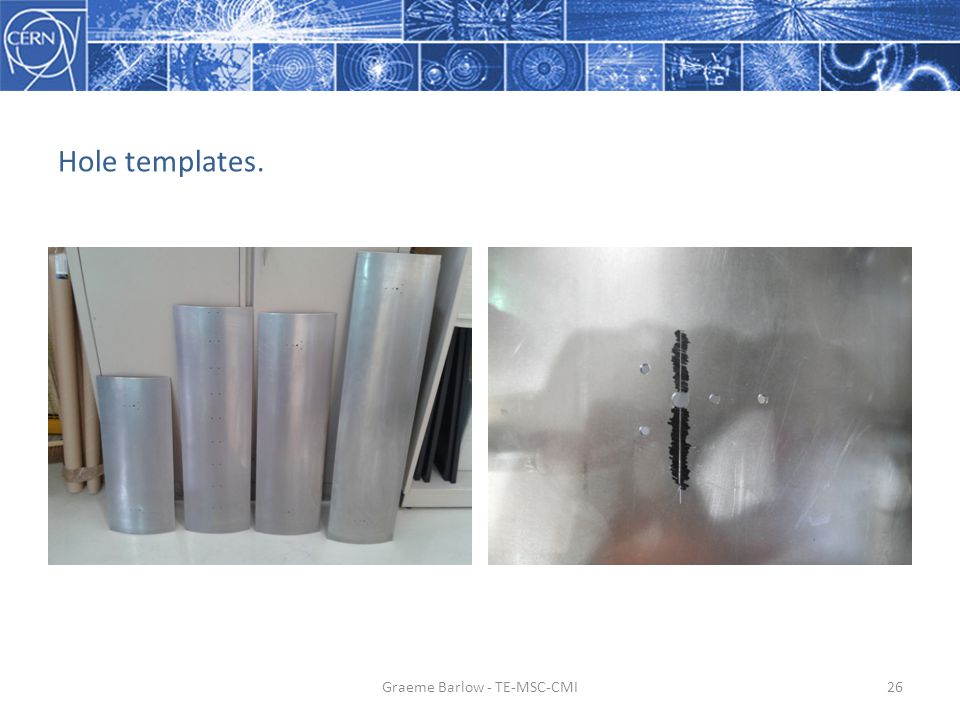

Hole templates. Graeme Barlow - TE-MSC-CMI26

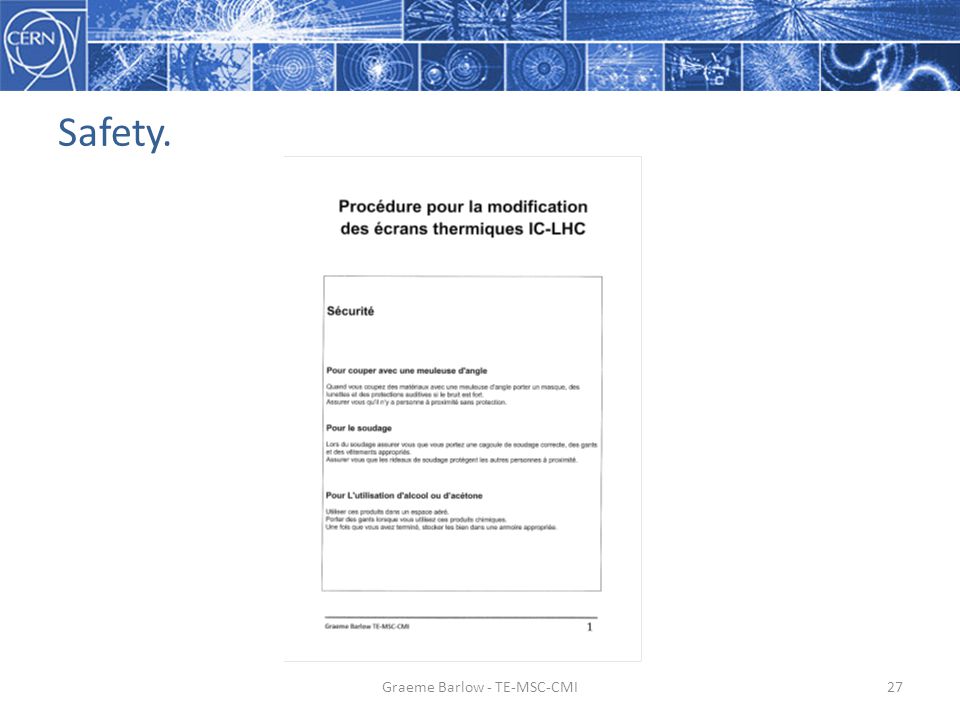

Safety. Graeme Barlow - TE-MSC-CMI27
Chemical cupboard. Graeme Barlow - TE-MSC-CMI28

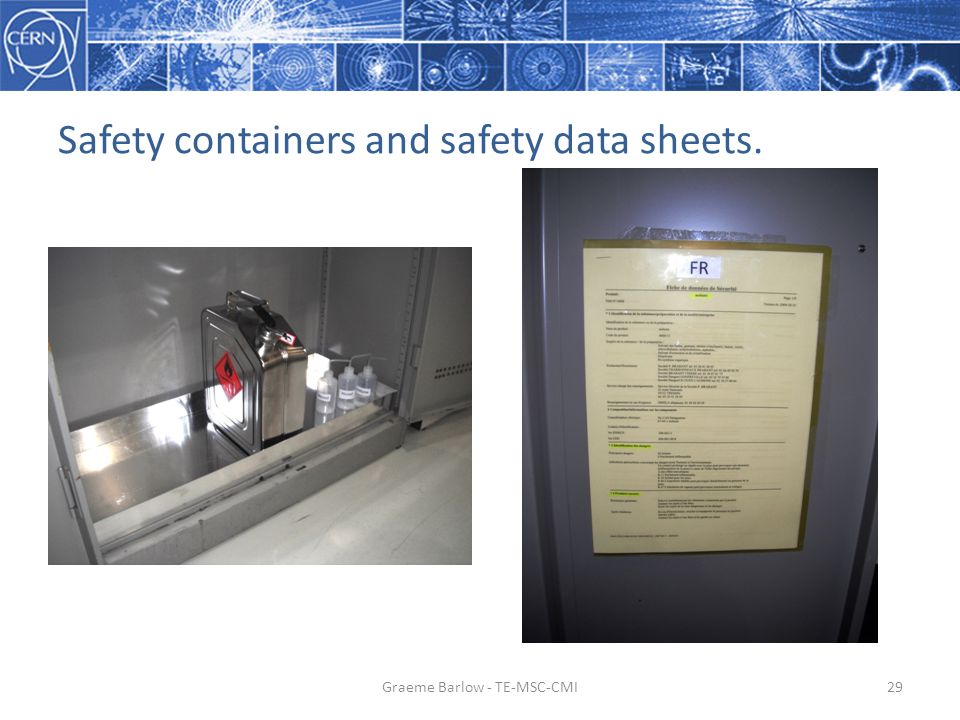

Safety containers and safety data sheets. Graeme Barlow - TE-MSC-CMI29
Eye wash and plaster station. Graeme Barlow - TE-MSC-CMI30
Now we are ready to modify the interconnection thermal screens in a productive and safe way during LS1. Graeme Barlow - TE-MSC-CMI31
