Fabricating a Watertight Precast Concrete Septic Tank Dan Wagner – Milan Vault, Inc.

Similar presentations


Presentation on theme: "Fabricating a Watertight Precast Concrete Septic Tank Dan Wagner – Milan Vault, Inc."— Presentation transcript:

1 Fabricating a Watertight Precast Concrete Septic Tank Dan Wagner – Milan Vault, Inc.

2 SEPTIC TANK QUALITIES What qualities do we want in a septic tank? COST BENEFIT

3

4

5 DEPENDABLE

6 ECONOMICAL

7 Barney buys a concrete septic tank

8 Components of Watertightness Engineering and Design Manufacturing Quality Assurance and Testing Installation

9 The septic tank must: Withstand all loading conditions – Surface Surcharge – Concentrated wheel loads – Lateral Loads – Soil Bearing Capacity Design Considerations

10 Click to edit the outline text format Second Outline Level  Third Outline Level Fourth Outline Level  Fifth Outline Level  Sixth Outline Level  Seventh Outline Level  Eighth Outline Level Ninth Outline LevelClick to edit Master text styles – Second level Third level – Fourth level » Fifth level NO TRAFFIC / NO LOADS

11 ASTM C 1227 LOADS

12 LIGHT TRUCK TRAFFIC

13 Click to edit the outline text format Second Outline Level  Third Outline Level Fourth Outline Level  Fifth Outline Level  Sixth Outline Level  Seventh Outline Level  Eighth Outline Level Ninth Outline LevelClick to edit Master text styles – Second level Third level – Fourth level » Fifth level The septic tank must not be buoyant; it must not float Design Considerations

14 Design Specifications Tanks should be designed at least to: ASTM C1227 – Stdandard Specification for Precast Concrete Septic Tanks ASTM C890 – Standard Practice for Minimum Structural Design Loading for Monolithic or Sectional Precast Concrete Water and Wastewater Structures Local Codes, CSA B66, IAPMO/ANSI

15 Manufacturing and Installation

16 NPCA Design Recommendations Minimum concrete thickness for conditions Clean forms in good conditions Proper reinforcement placement Prepour and post pour inspections A well designed concrete mix Proper finishing and curing Lifting inserts designed with S.F. = 4 min. Properly Sealed joints and fittings

17

18 The Manufacturing Process Raw Materials Mix Design Reinforcement Production Practices (Seals, Fittings, and Joints) Post-Pour Operations

19 Raw Materials Use quality, certified materials Aggregates Cement Water Admixtures

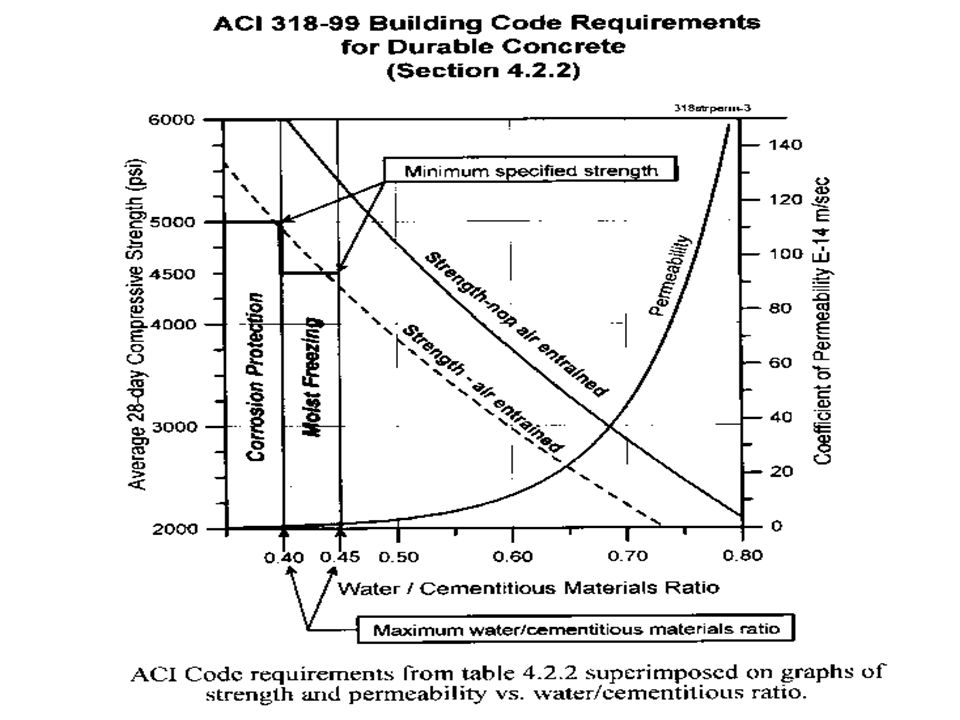

20 Mix Design for Watertightness Low Water/Cementitious Ratio! – A maximum of 0.45 (weight of water / weight of cement and pozzolans) Minimum 4,000 psi strength at 28 days – Minimum strength when shipped? Quality materials, well graded aggregates Volumetric proportioning (ACI 211) Air entrainment

21 WATER STRENGTHPOROSITY

22

23

24

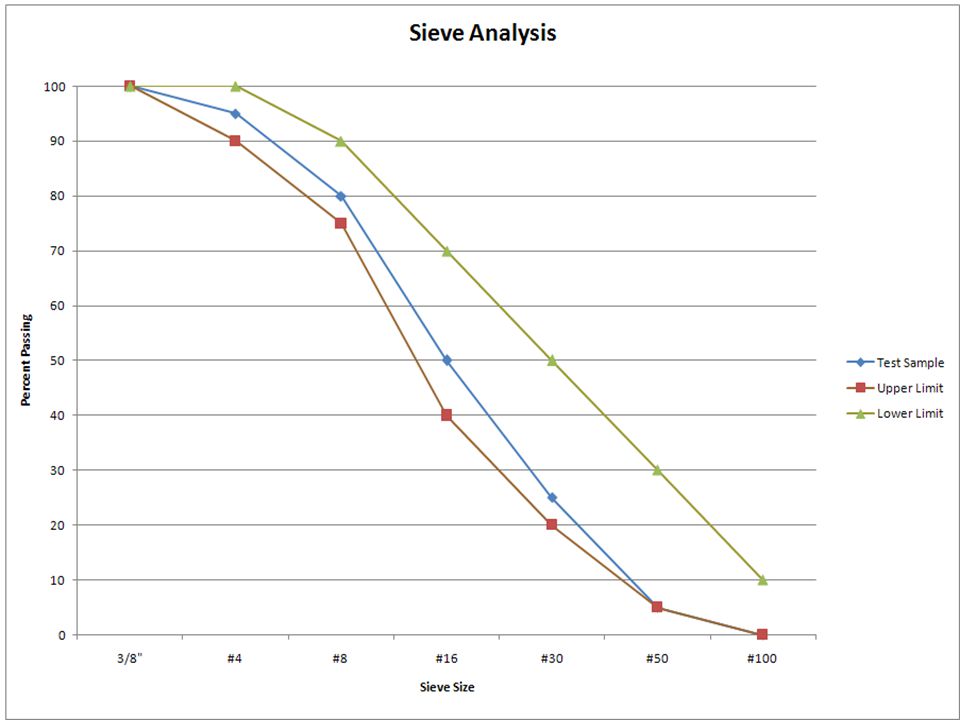

25 Aggregates Comprise of about 70% of the total volume Conform to ASTM C 33 Clean and well graded Free from deleterious substances Moisture content checked daily Properly handled and stored

26

27

28 Entrained Air = Desirable  Improves freeze/thaw resistance, ASR resistance, sulfate resistance  Improves workability Entrapped Air = Non-desirable  Bugholes  Released through adequate vibration Air Content

29

30 Purpose of Reinforcement Concrete is strong in compression but weak in tension Reinforcement supplies strength to withstand tensile and shear forces experienced by concrete Sometimes tanks experience greatest forces during stripping, handling, and transporting

31 Non-reinforced Concrete Behavior

32 Reinforced Concrete Behavior

33 Reinforcement Requirements Meet ASTM requirements (A615 or A706) Designed to withstand all loading conditions Provide adequate cover to protect from corrosion (1” min. ASTM C1227) Spaced properly, not touching formwork

34 REBAR SHOWING Visible problems

35 Click to edit the outline text format Second Outline Level  Third Outline Level Fourth Outline Level  Fifth Outline Level  Sixth Outline Level  Seventh Outline Level  Eighth Outline Level Ninth Outline LevelClick to edit Master text styles – Second level Third level – Fourth level » Fifth level Rebar Touching Form

36 Click to edit the outline text format Second Outline Level  Third Outline Level Fourth Outline Level  Fifth Outline Level  Sixth Outline Level  Seventh Outline Level  Eighth Outline Level Ninth Outline LevelClick to edit Master text styles – Second level Third level – Fourth level » Fifth level What it should look like

37

38 Pre-Pour Operations Pre-Pour activities include: – Setting of formwork Forms must be cleaned and inspected after each use – Positioning of steel reinforcement – Positioning of Blockouts – Positioning of embedded items (i.e. lifting apparatus)

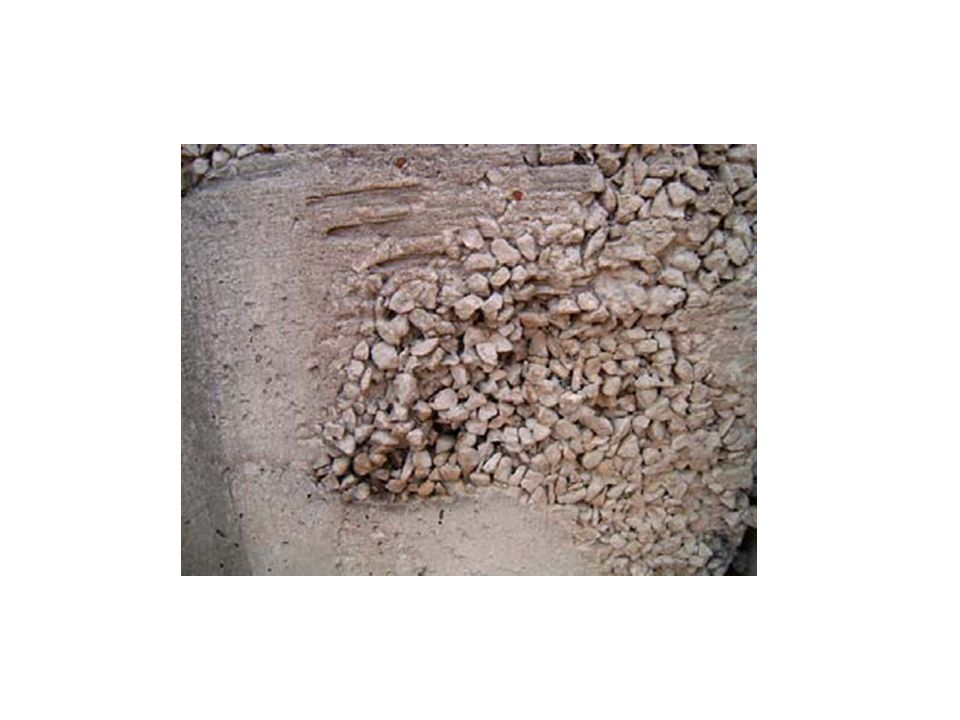

39 Casting Concrete Placement of concrete is important Consolidating Concrete – Insufficient vibration leads to poor consolidation, excessive vibration causes segregation – Proper vibration techniques lead to smooth, dense surfaces that promote impermeability

40

41

42 Curing Proper curing is important in developing strength, durability, and watertightness Two critical elements in curing  Maintaining Correct Moisture  Maintaining Concrete Temperature Note: ACI 305 Hot Weather Concreting ACI 306 Cold Weather Concreting

43 Post Pour Practices Sufficient Strength for stripping Handle to reduce or eliminate damage Perform a post poor inspection Mark the casting with all required information Store product to prevent damage in storage

44 TANK SEAM / JOINT SEAL 3/8” maximum gap between two mating joint surfaces BEFORE sealant is applied. ASTM C Section 10.3

45

46

47 PROOF TESTING ASTM C a 9.1 Proof testing is used to demonstrate the strength of the tank to resist anticipated external and internal loads Proof testing, when required by the purchaser, shall be performed in such a way as to simulate the actual anticipated loads.

48 PROOF TESTING Calculate for anticipated actual loads – Internal and external – Soil loads, lateral earth loads – Weight of tank Use live load at the surface of 300 lb/ft2 unless heavier loads are anticipated. Proof test to 150% of the anticipated actual loads

49 Proof Testing - Vacuum With 300 psf Live Load from ASTM C-1227

50 Proof Testing - Vacuum Top Loads (540 psf) x 150% = 810 psf Floor Loads (715 psf) x 150% = 1,073 psf Wall Loads (180 psf) x 150% = 270 psf Since the floor load is the highest load force, it can be used for vacuum testing. 1,073 psf = 14.9” Mercury With 300 psf Live Load from ASTM C-1227

51 Alternative Loads Typical loads for a septic tank are: – Soils – Internal fluids – External soil / saturated soils – Weight of tank – Incidental loads from a vehicle

52 Proof Testing - Vacuum With a concentrated wheel load of 2,250 pounds

53 Proof Testing - Vacuum Top Loads (325 psf) x 150% = 488 psf Floor Loads (500 psf) x 150% = 750 psf Wall Loads (220 psf) x 150% = 330 psf Since the floor load is the highest load force, it can be used for vacuum testing. 750 psf = 10.4” Mercury (Better) With a concentrated wheel load of 2,250 pounds

54 Proof Testing - Alternative Place tank on a bed of sand (about 3”-4”) Vacuum test for the wall loads – 330 psf or 4.6” of mercury Add weight to the top to simulate the additional live and soil loads – (750 psf) – (330 psf) = 420 lbs/ft2 Add 1,680 lbs. (4 ft2 x 420 lbs/ft2) on a 2’ x 2’ area in center Voluntary proof testing in Ohio - approved by ODH – 4” mercury + 2,000 lbs. on a 2’ x 2’ area

55 Area for Additional Weight 2’ x 2’ Footprint

56 Testing in Action Vacuum

57 Testing in Action

58 Watertight Testing Vacuum Testing 4” of Mercury (Hg), for 5 minutes, must hold 100% to pass certification. Per ASTM C a

59 Vacuum Testing

60 Watertight Testing: In-Plant Vacuum Test

61 Watertight Testing: In Field Vacuum Test

62 Watertight Testing Water Test – Fill the tank – Let stand for 24 hours – Refill the tank – Tank passes if water level does not drop within 1 hour Sealing a Watertight Septic Tank

63 Watertight Testing: In-Plant Water Test

64 Watertight Testing: In Field Water Test

65 Installation Site and Excavation – Locate buried utilities – Safe and free of hazards Trees Overhead power lines – Sloped or shored excavation if entry is required

66 Installation Bedding – Minimum of 4” of sand or granular bedding – a firm uniform base – Void of large boulders or rock edges – Design to resist flotation in high water table

67 Installation Placement of Tank – Confirm orientation – Inspect the bedding – Check level of tank – Slope should meet local plumbing and building codes – Use safe lifting devices designed for the load

68

69 Installation Sealing On-site – Use a high quality joint sealant Should conform to ASTM C 990 Should be compressible for the temperatures expected Molded into one continuous band – Joint free of loose debris – Remember to seal risers and lids also

70 Installation Backfilling – Uniform layers of less than 24” thick – Free of large stones (>3” in diameter) Don’t damage the tank!

71 Commitment to Excellence Adopt a good quality control program Have management committed to program Have trained QC personnel and production crew Design to standard specifications as minimum Plan for quality finished products

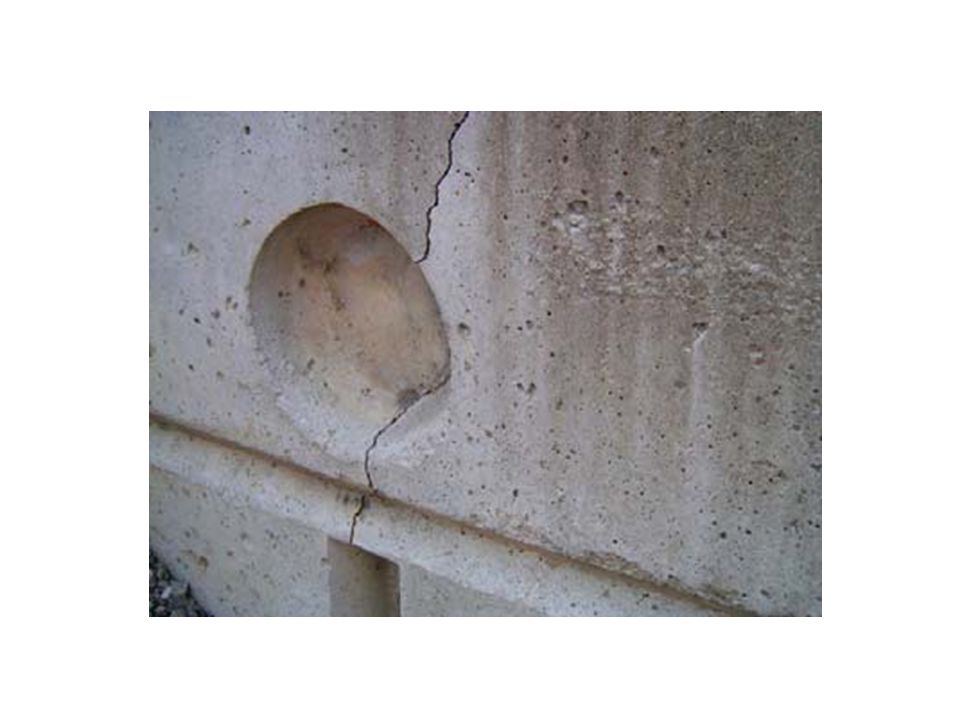

72
