1. Audio Signal Flow By Jodi Kidneigh Week 1 IMPMOOC

2. Introduction Hi I’m Jodi Kidneigh, and I live in Orlando, FL in the United States. Welcome to my lesson in Audio Signal Flow. This lesson is for week 1 of Introduction To Music Production at Coursera.org. I will be explaining a basic condenser microphone recording signal flow using the gear in my home studio which I like to call “Frog Song Studios”.

3. Signal Flow Diagram Voltage Variations Input Transducer Studio Projects B1 Condenser Mic Preamp Analog to Digital Converter Computer Cubase LE Digital Audio Workstation Interface TASCAM FW-1082 Sound Pressure Variations Air FireWire Cable Digital Signal (Binary) XLR Cable Analog Signal

4. Sound Source/Sound Pressure Compression Rarefaction Amplitude VoiceSound Pressure Variations Frequency

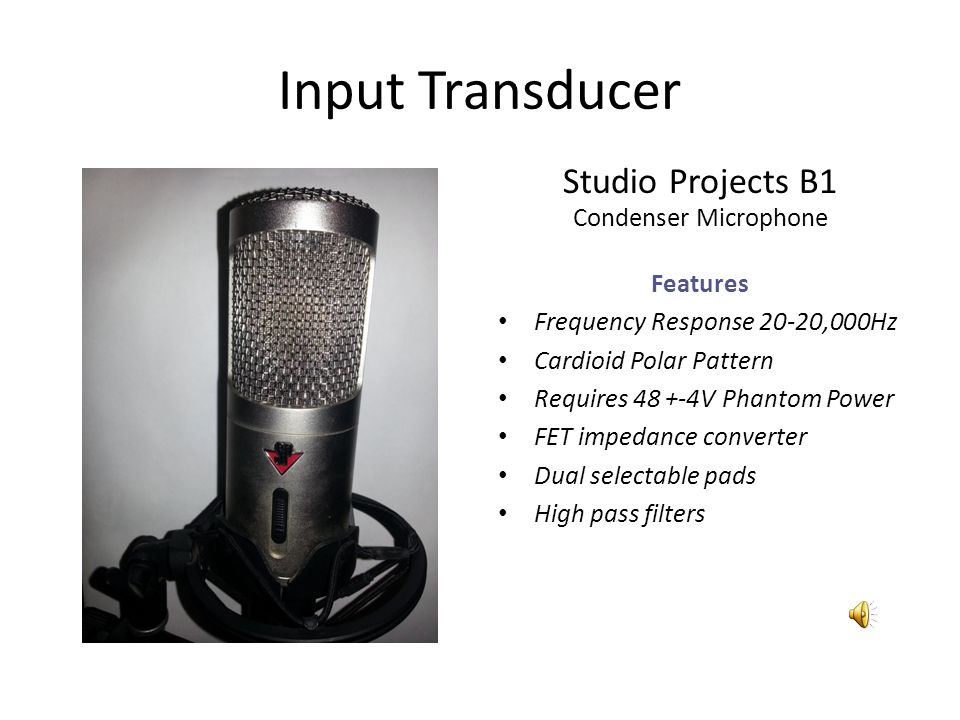

5. Input Transducer Studio Projects B1 Condenser Microphone Features Frequency Response 20-20,000Hz Cardioid Polar Pattern Requires 48 +-4V Phantom Power FET impedance converter Dual selectable pads High pass filters

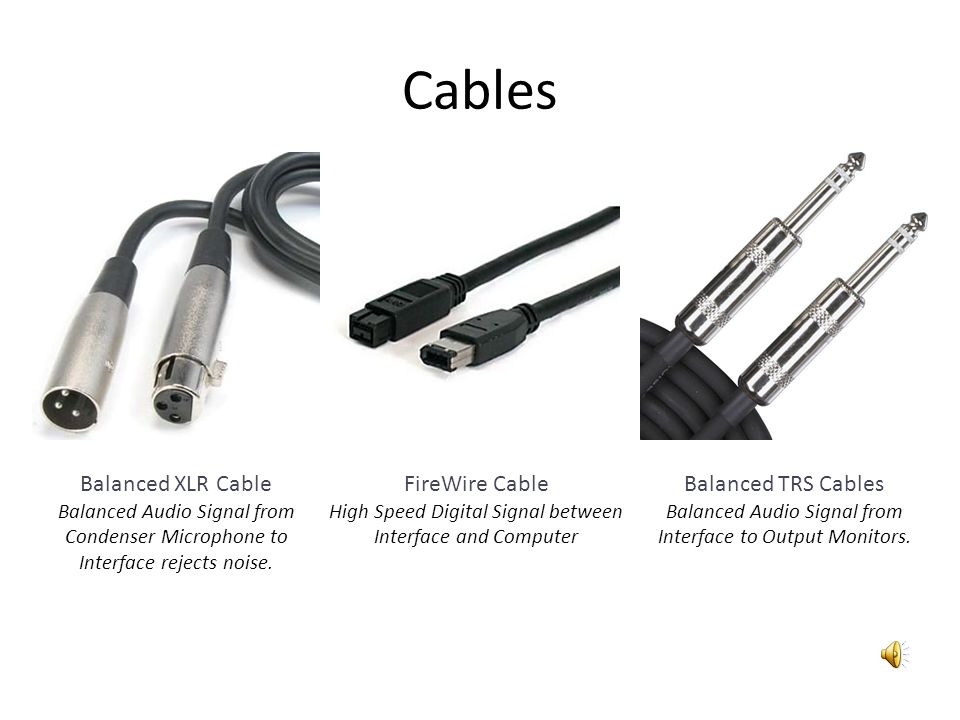

6. Cables Balanced XLR Cable Balanced Audio Signal from Condenser Microphone to Interface rejects noise. FireWire Cable High Speed Digital Signal between Interface and Computer Balanced TRS Cables Balanced Audio Signal from Interface to Output Monitors.

7. Audio Interface Front Panel TASCAM FW-1082

8. Audio Interface Front Panel TASCAM FW-1082 Left Front Panel Trim Pots Recording Select/Solo/Mute Buttons Channel Faders/Master Fader

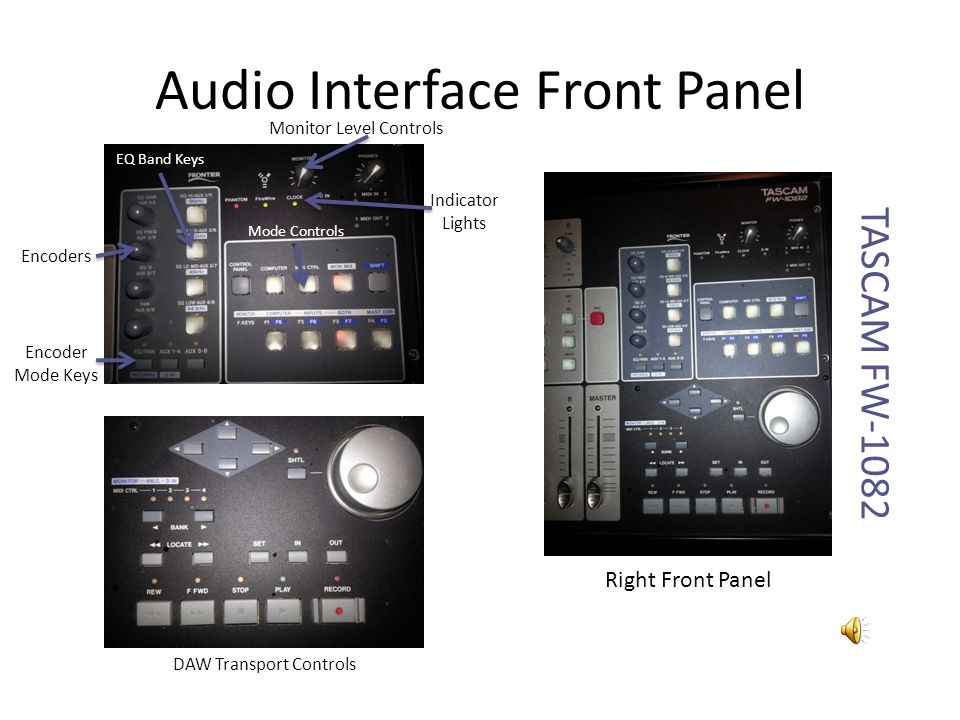

9. Audio Interface Front Panel TASCAM FW-1082 Right Front Panel Indicator Lights Encoders EQ Band Keys Encoder Mode Keys Mode Controls Monitor Level Controls DAW Transport Controls

10. Audio Interface Back Panel TASCAM FW-1082 Features Up to 10 channels simultaneous input (8 analog and 2 S/PDIF coaxial digital). 2 balanced line level outputs/1 stereo S/PDIF coaxial digital output. 4 XLR inputs with Phantom Power Switch. 2 midi in/out connectors 2 Insert channels for external processors Guitar Line input matches impedance of electric guitar/bass 2 Firewire ports Foot switch jack

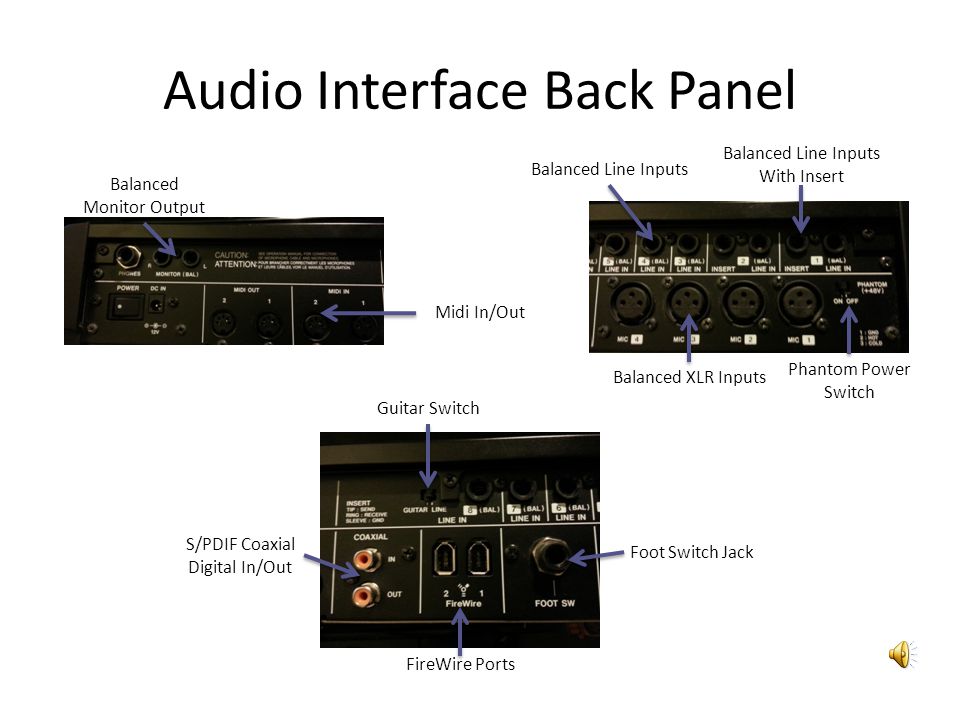

11. Audio Interface Back Panel Midi In/Out Balanced Monitor Output Balanced Line Inputs With Insert Balanced XLR Inputs Phantom Power Switch S/PDIF Coaxial Digital In/Out Guitar Switch Foot Switch Jack FireWire Ports

12. Output Transducer Features XLR and TRS Balanced Inputs RCA Unbalanced Input High Frequency Adjustment +1dB to -2dB KRK Rokit 5 Powered Studio Monitors

13. Reverse Signal Flow Diagram Voltage Variations Sound Pressure Variations Air Output Transducer KRK Rokit 5 Powered Studio Monitors Computer Cubase LE Digital Audio Workstation Digital to Analog Converter Interface TASCAM FW-1082 FireWire Cable Digital Signal (Binary) TRS Cables Analog Signal

14. Music Example

15. Reflections and Thanks Thank you for taking the time to review my lesson in Audio Signal Flow. I chose this topic to gain a deeper understanding of the equipment I’m using because I realize that I am not utilizing the full capabilities of my home studio setup. Any advice or techniques you wish to share are welcome and appreciated!
