1. X-inactivation
20/11/08

2. Males are haploid for X-linked genes expression

3. Barr body discovered (1949)

4. Lost twin?

5. Lyonization=X-inactivation
The hypothesis:
The heteropyknotic (..”condensed”) X chromosome was inactive.
Paternal or maternal in origin.
The inactivation occurred early in embryonic development.
The genetic facts that helped formulate the hypothesis:
X0 mice are normal fertile females (One X is enough).
Female mice heterozygous for coat colour show mosaic phenotype.

6. Dosage compensation
Dosage compensation refers to a regulatory mechanism that ensures the equalization of X-linked gene products in males and females.

7. Random X-inactivation (Placental mammals)

8. Imprinted X-inactivation
Imprinted refers to the skewed inactivation of the paternal X-chromosome.
Imprinted X-inactivation is found among marsupials and also in the extra-embryonic tissues in a subset of placental mammals.
(Duret et al., 2006)

9. Xic (X-inactivation center) locus
Ectopic expression of Xic transgene leads to X-inactivation in male cells.

10. Derivation of embryonic stem (ES) cells from blastocysts:
Mouse embryonic stem cells derived and cultured in-vitro (Martin et al)
Human embryonic stem cells derived and cultured in-vitro-1998 (Thomson et al)

11. ES cell give rise to the ~220 cell types that comprise the human body
I. Self renewal- Unlimited division while maintaining a pluripotent undifferentiated state in-vitro.
II. Differentiation- The ability to differentiate to cells from the three embryonic germ layers (in-vivo and in-vitro).

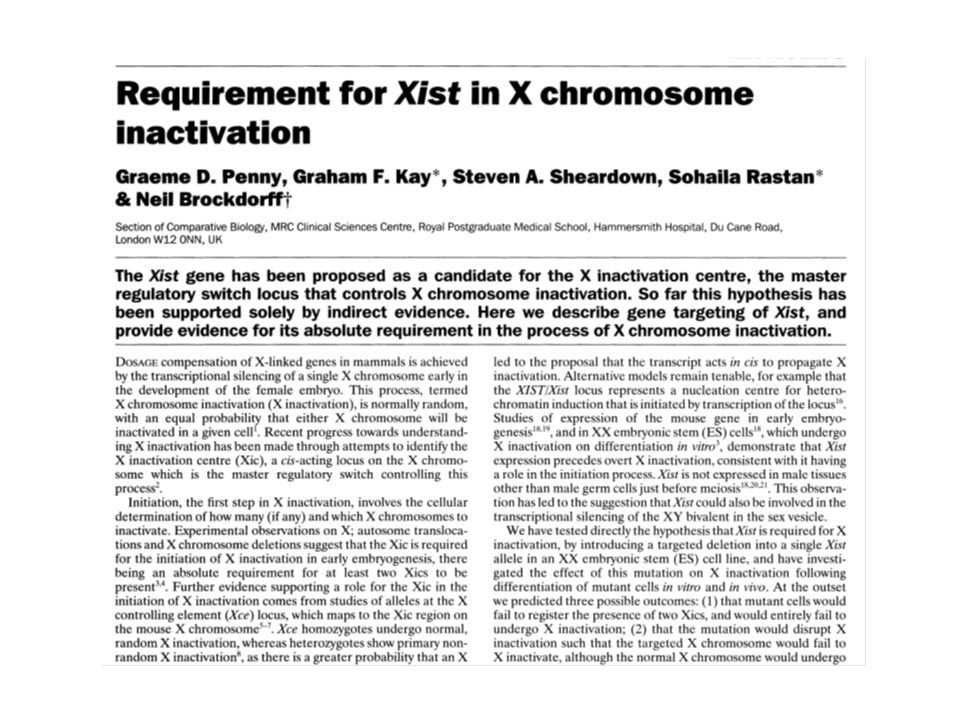

13. Targeted deletion of Xist in ES cells (1996)
Neo- positive selection for integration.
HSV-TK- negative selection for recombination that is not homologous (enters randomly on any chromosome)
Mutant ES clone –Probe (2) does not detect 129 allele (“B”-9kb) because it was deleted but probe 1 does recognize the PGK allele (“A”-5KB”).
Xist allele of 129 (From 129/PGK heterozygote cell line) was deleted using Homologous Recombination.

14. Targeted deletion of Xist in ES cells (1996)
Option I: The mutant ES cells will fail to undergo X inactivation.
Option II: The X-chromosome bearing the Xist mutation (129) will fail to x inactivate.
Option III: The mutation will have no effect at all on X-inactivation.
Bi-allelic expression because both X-chromosomes are active in ES.
Random X-inactivation of both the PGK and 129 X-chromosomes in WT ES because X-chromosome related genes are expressed randomly in sub-clones.
X-related gene expression (NOT Xist) detected only in B (129 allele deleted for Xist) due to no inactivation of the Xist deleted X chromosome (129 is B). This leads to skewed monoallelic expression between clones because A (PGK) is always inactivated and no X-related RNA is observed from it.
In-activation by Xist is in CIS

15. Xist RNA coats the inactive X (FISH )

16. Chromatin modification during initiation of X-chromosome inactivation
And Loss of euchormatin-associated histone modifications (H4ac, H3ac etc).
And DNA methylation

17. Xist spreading is LINE dependent
The x-chromosome is enriched for LINE sequences compared to autosomes.
These may serve as “way station” for Xist binding (due to high affinity for RNA binding).
Tanslocation of X/4 chromosomes showed that Xist spreading ended at the translocation point (correlates with a drop in LINE sequences in chromosome 4).

18. Xic pairing in ES undergoing differentiation (Bacher 2006)
The pairing was observed only in ES undergoing differentiation.
In Xic-Del ES cell line no pairing was observed.
The X chromosome harboring the deletion was repeatedly the one undergoing inactivation.

19. Tsix
A long untranslated RNA transcribed in the anti-sense direction of Xist which represses Xist by forming dsRNA hybrid that is processed and degraded.
Initially expressed on both X chromosomes (In ES) but persists on the active X after differentiation. It is downregulated from the Inactive X.
Tsix is regulated by DXpas34 and Xite elements- Deletion of DXpas34 leads to X inactivation.
Disruption of Tsix induces X-inactivation in XY ES. ?

20. Unresolved Questions
What are the mechanisms for choosing and counting?
How does the spreading along the chromosome occur?
How does X inactivation maintained in the female soma?
What is the difference between imprinted and random X inactivation?
How is X inactivation coupled with cell differentiation? 20

21. Nanog Oct4 and Sox2 are the master regulators of the pluripotent undifferentiated state of ES cells
Undifferentiated pluripotent ES colony (very small round cells) cultured in-vitro.
ES nucleus is positively stained (pink) for Nanog
Oct4 immunostaining
Sox2 immunostaining
Nanog immunostaining

22. Molecular Coupling of Xist and pluripotency (Navarro 2008)
Oct4, Sox2 and Nanog transcription factors (TFs), ,which are the master regulators of the pluripotent state in ES, bind to Intron1 of Xist thus repressing its transcription in ES cells.
When ES are induced to differentiate, Oct4, Sox2 and Nanog are downregulated and Xist is freed from their binding “grip” and rapidly accumulates on one of the X-chromosomes.
-/- Nanog ES=> Xist is upregulated.
WT ES=>Xist is repressed.
Binding site of Nanog in intron1 of Xist

23. Xist expression following downregulation of three TFs
TC induce differentiation by down regulating Oct4 expression.

24. Inconsistencies between syndromes and
X inactivation
If a normal XX female has one X inactivated, why is a X Turner female not normal?
Similarly, if XXY male has one X inactivated, why does he have Klinefelter syndrome?
Escape from X-inactivation ?
Carrel et al (2005) showed that ~15% of the genes on the inactive-X escaped from inactivation, complicating the story even further.. 24
