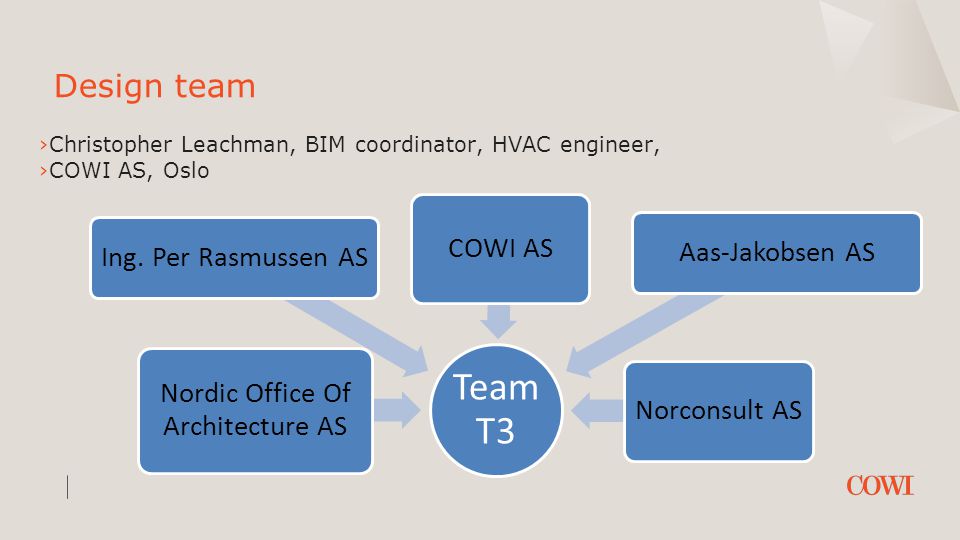

2. ›Christopher Leachman, BIM coordinator, HVAC engineer, ›COWI AS, Oslo Design team Team T3 Nordic Office Of Architecture AS Ing. Per Rasmussen AS COWI AS Aas-Jakobsen AS Norconsult AS

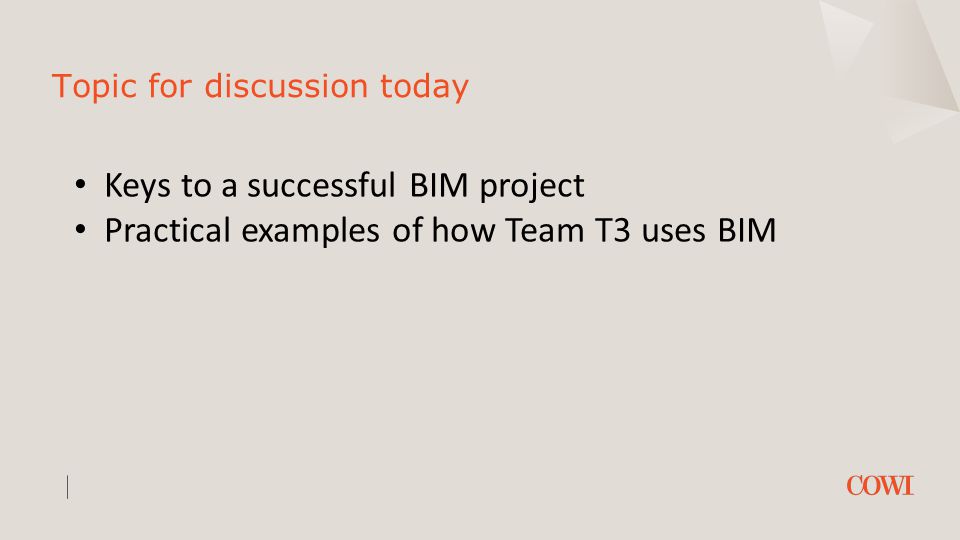

3. Topic for discussion today Keys to a successful BIM project Practical examples of how Team T3 uses BIM

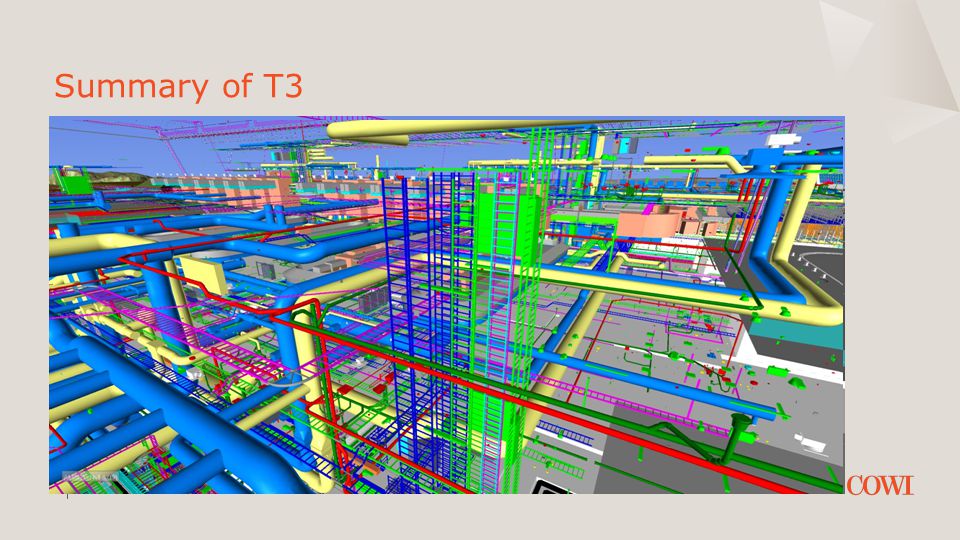

4. Summary of T3

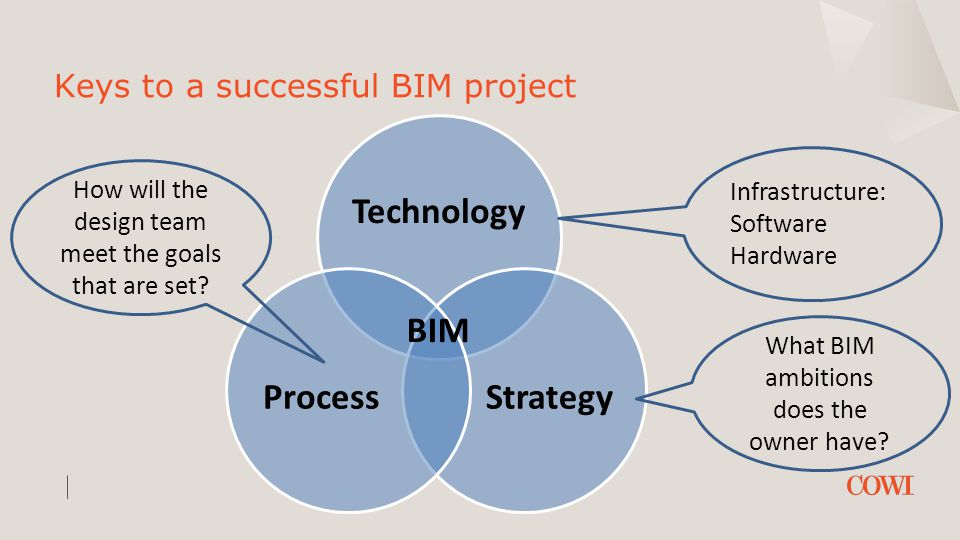

5. Keys to a successful BIM project Technology StrategyProcess BIM Infrastructure: Software Hardware What BIM ambitions does the owner have? How will the design team meet the goals that are set?

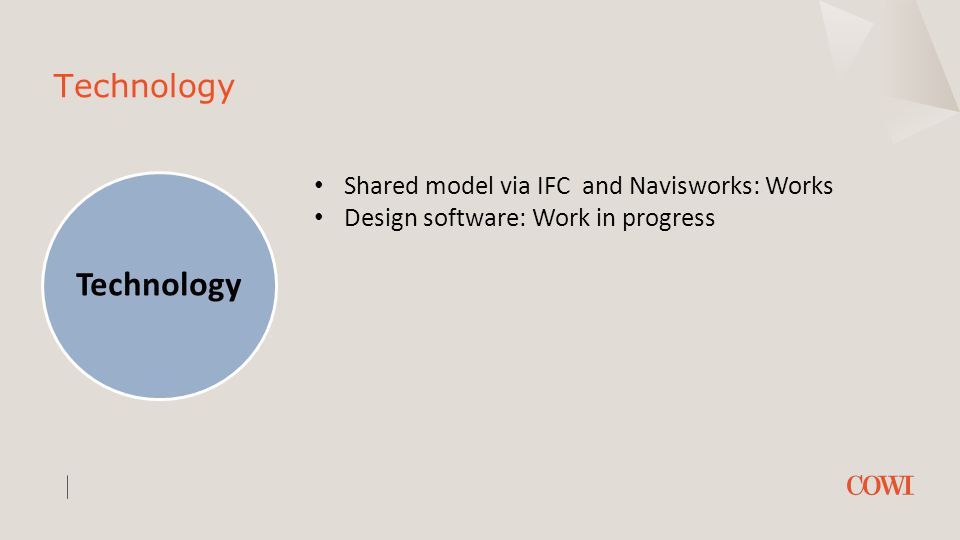

6. Technology Shared model via IFC and Navisworks: Works Design software: Work in progress Technology

7. Strategy AVINOR: ambitions of maximal use of BIM

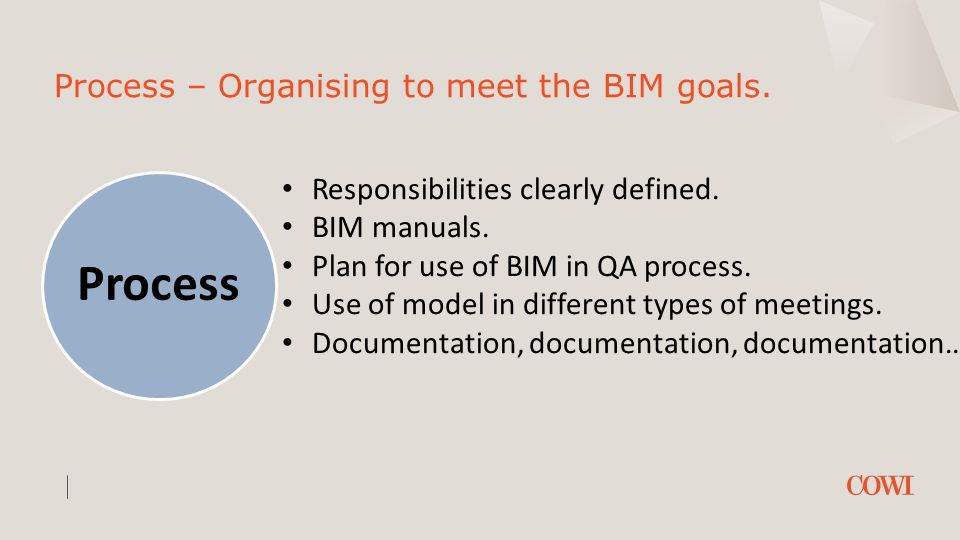

8. Process – Organising to meet the BIM goals. Process Responsibilities clearly defined. BIM manuals. Plan for use of BIM in QA process. Use of model in different types of meetings. Documentation, documentation, documentation…

9. T3-CAD/BIM Manager T3-New and exist. Terminals CAD/BIM Manager T3-New Terminal Discipline CAD/BIM Manager T3-New Terminal Discipline CAD/BIM Manager T3-Exist.Terminal Discipline CAD/BIM Manager T3-Exist.Terminal Discipline CAD/BIM Manager T3-Landside CAD/BIM Manager T3-Landside Discipline CAD/BIM Manager T3-Landside Discipline CAD/BIM Manager Responsibilities clearly defined

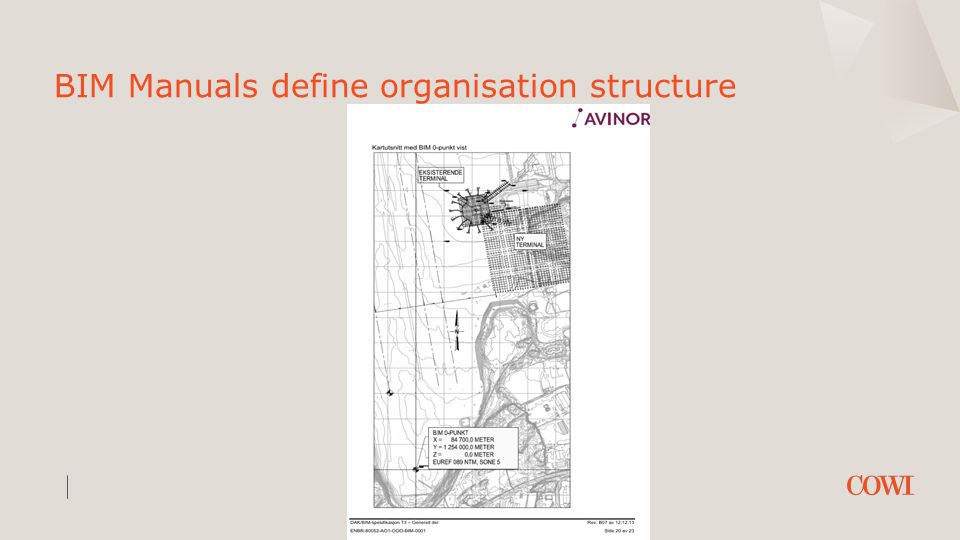

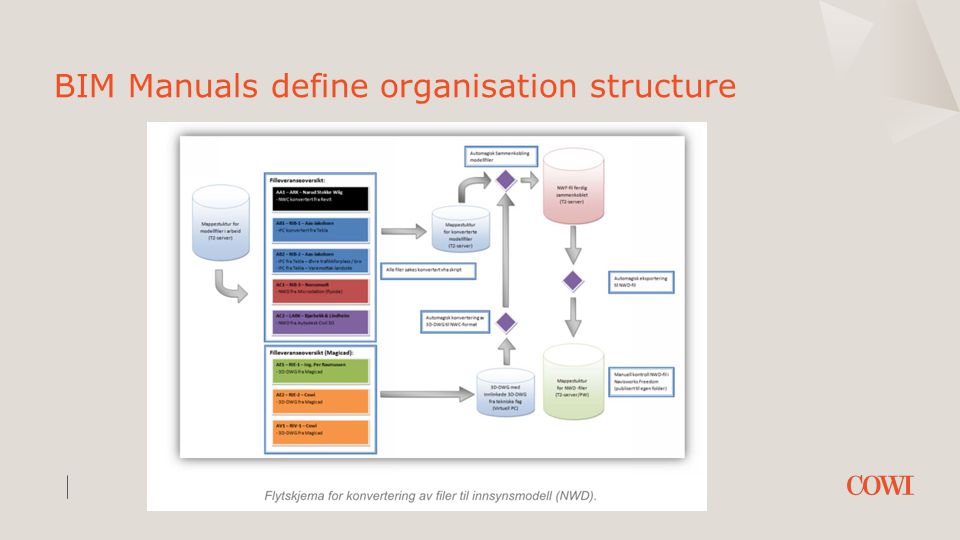

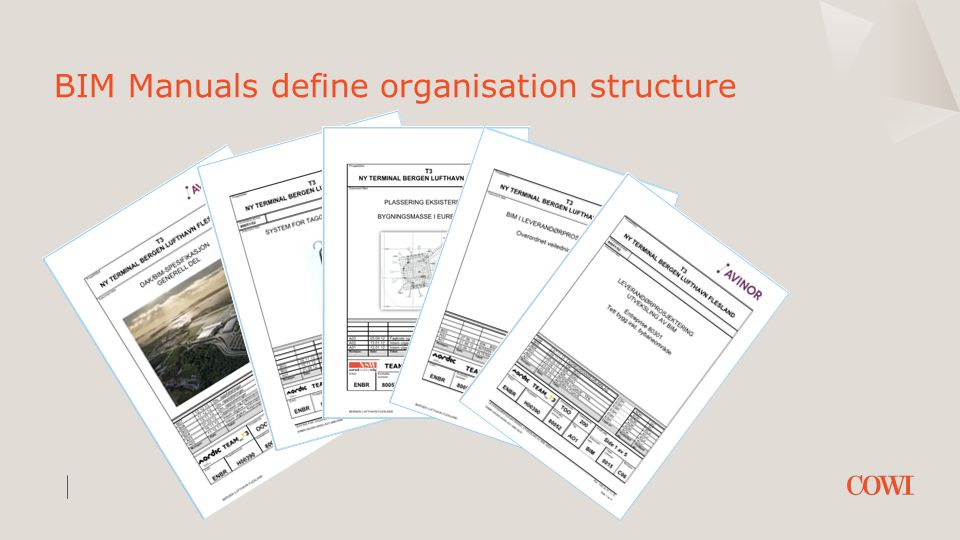

10. BIM Manuals define organisation structure

14. Plan for use of BIM in QA process

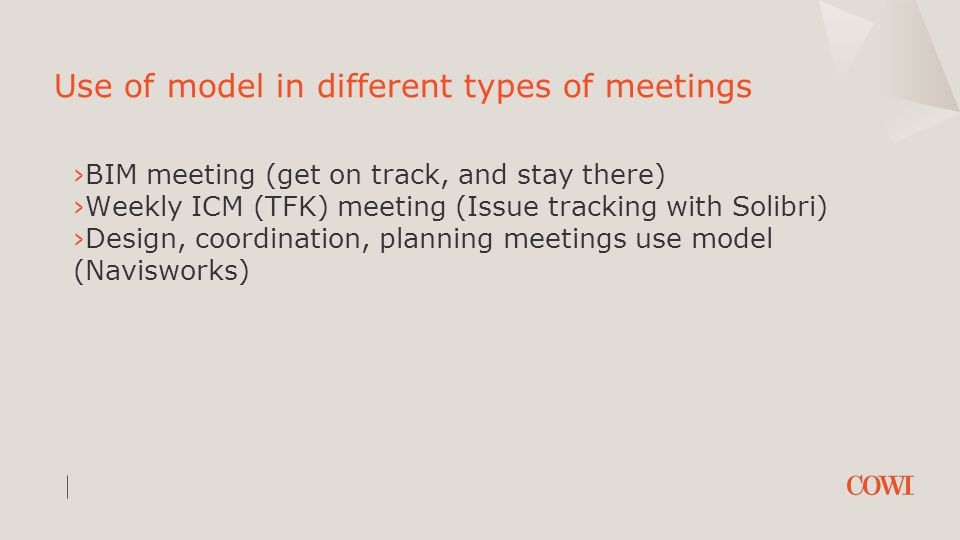

15. Use of model in different types of meetings ›BIM meeting (get on track, and stay there) ›Weekly ICM (TFK) meeting (Issue tracking with Solibri) ›Design, coordination, planning meetings use model (Navisworks)

16. Practical examples of how T3 uses BIM 16 ›Some examples of how we make use of the BIM model, now that we have one.

17. Ceiling coordination ›Old school: symbols in the ARCH drawings, objects in ours, coordination, changing, drawing, checking, re-drawing… ›New school: ARCH produces drawings with our objects. No symbols, or duplication. ›Coordination still required of course but no need for tedious cross-checking.

18. Sprinkler calculations 18 ›Sprinkler calculations via Magicad. Time savings and documentation.

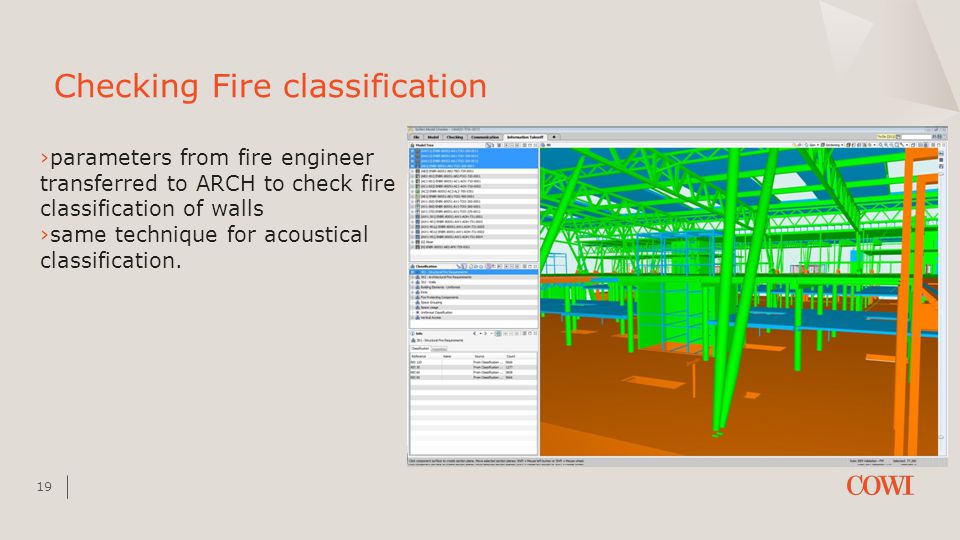

19. Checking Fire classification 19 ›parameters from fire engineer transferred to ARCH to check fire classification of walls ›same technique for acoustical classification.

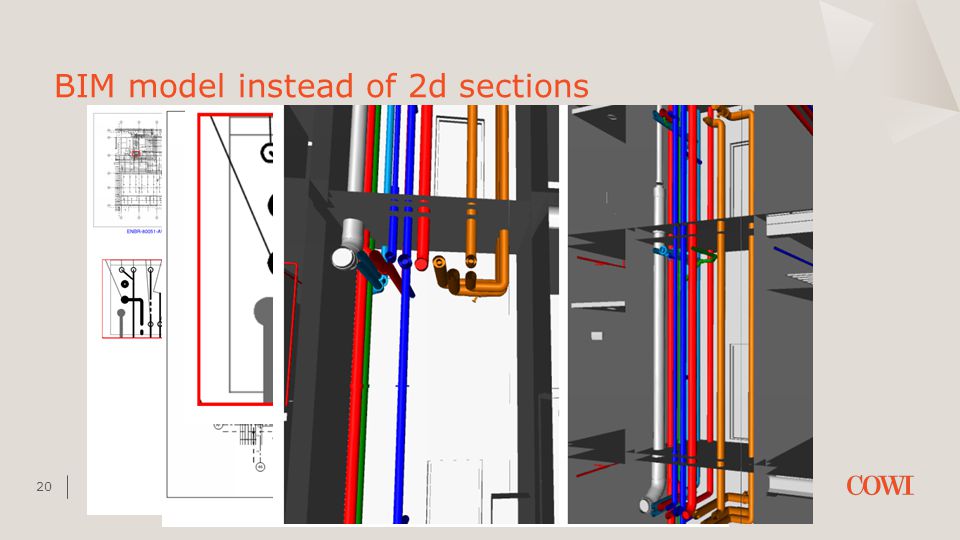

20. BIM model instead of 2d sections 20

21. BIM model instead of 2d sections 21

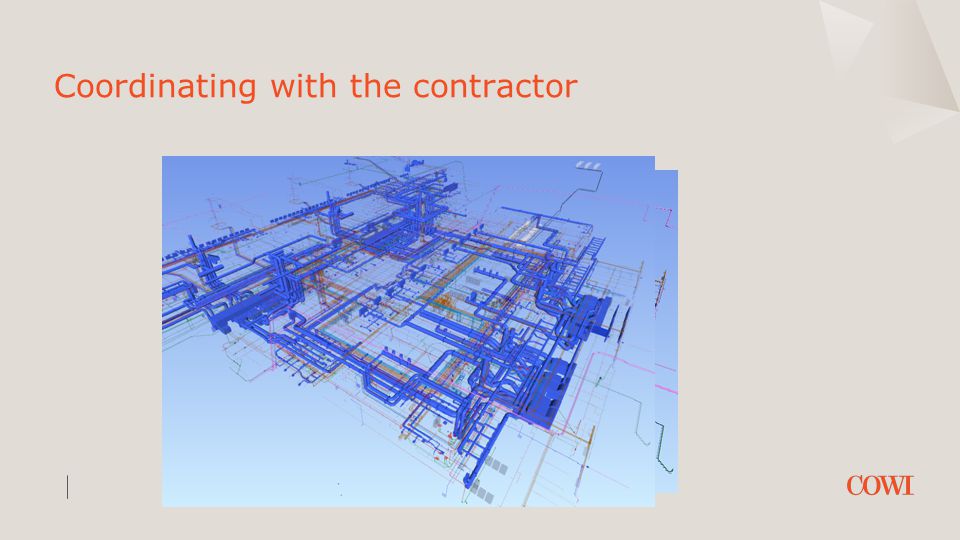

22. Coordinating with the contractor

23. NTI tools, Space tool 23

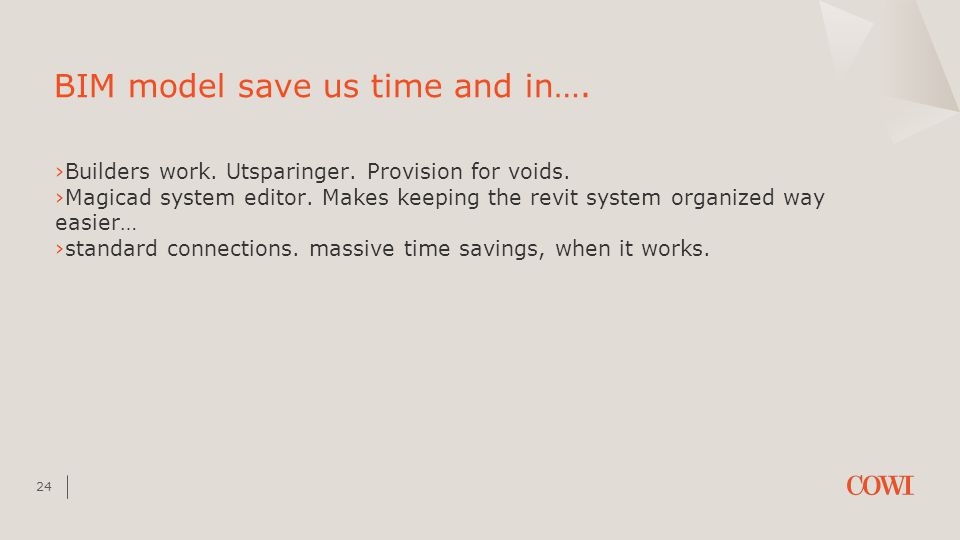

24. BIM model save us time and in…. 24 ›Builders work. Utsparinger. Provision for voids. ›Magicad system editor. Makes keeping the revit system organized way easier… ›standard connections. massive time savings, when it works.
