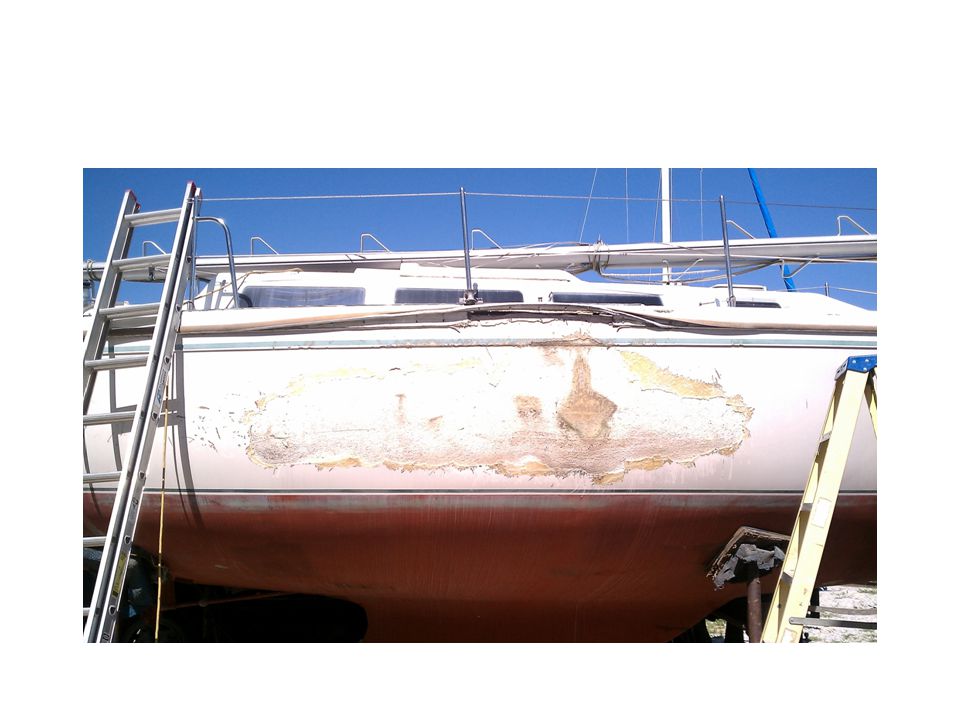

Catalina 30 Fiberglass, Gel Coat & Rub Rail Repairs.
Stair Step Glass Laying
Skim with tinted Gel Coat to Level
Matching Gel Coat (Cured) Color
1 More Attempt to Match
Spray 3-4 Coats of wet Gel Coat Use the Cove Stripe to Judge where the spraying stopped
The entire starboard side was NOT sprayed
Notice where the spray lines stop on the cove stripe
Wet sand & polish. Applied anti- fouling to the bottom
Port Side Detailed to Match
Rub Rail in Place and Polishing Complete
Starboard Side View from the Stern
Port Side View from the Stern
