Learning Factors Analysis – A General Method for Cognitive Model Evaluation and Improvement Hao Cen, Kenneth Koedinger, Brian Junker Human-Computer Interaction Institute Carnegie Mellon University

2

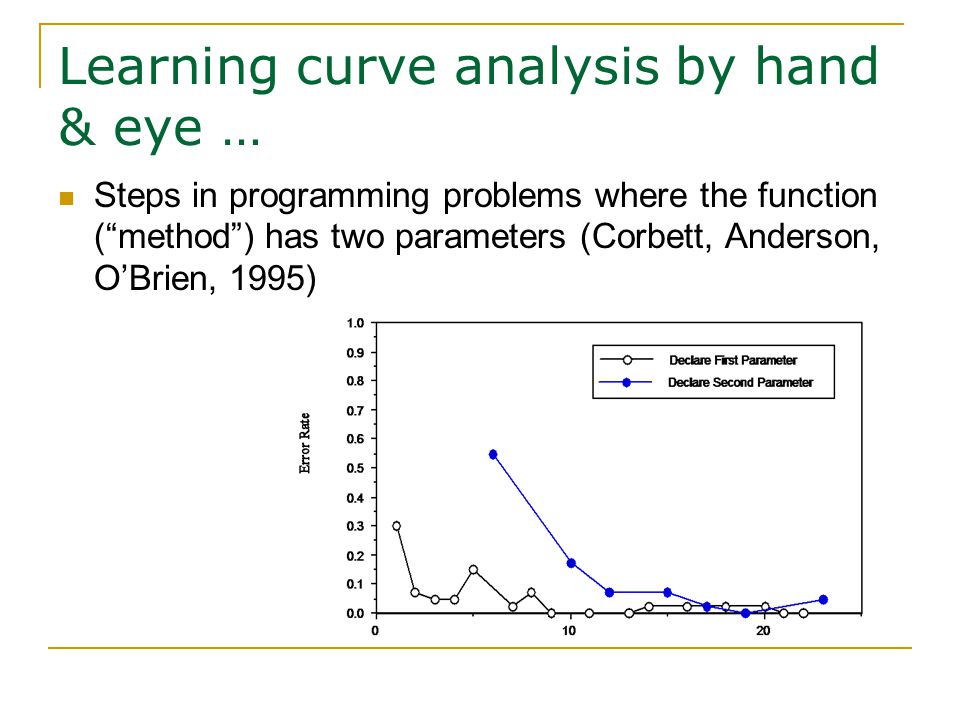

Learning curve analysis by hand & eye … Steps in programming problems where the function (“method”) has two parameters (Corbett, Anderson, O’Brien, 1995)

3

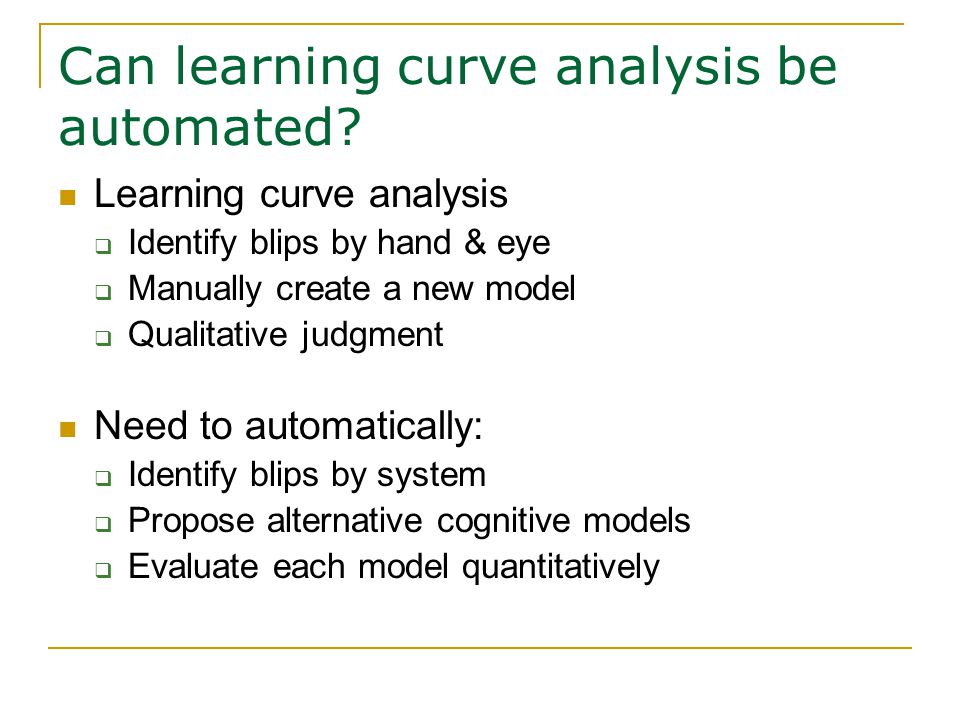

Can learning curve analysis be automated? Learning curve analysis Identify blips by hand & eye Manually create a new model Qualitative judgment Need to automatically: Identify blips by system Propose alternative cognitive models Evaluate each model quantitatively

4

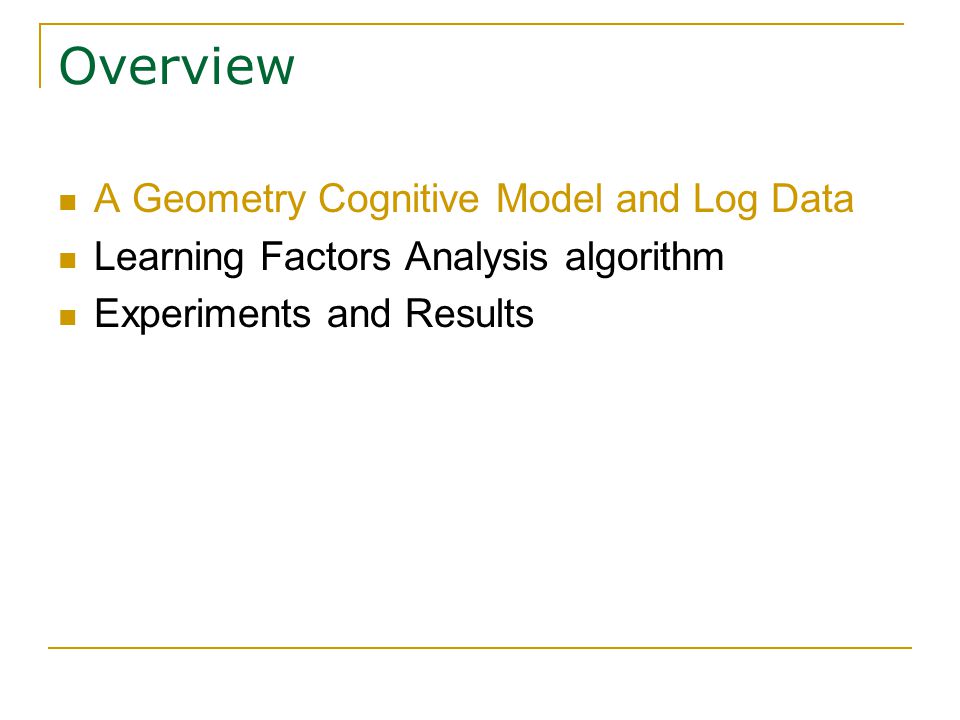

Overview A Geometry Cognitive Model and Log Data Learning Factors Analysis algorithm Experiments and Results

5

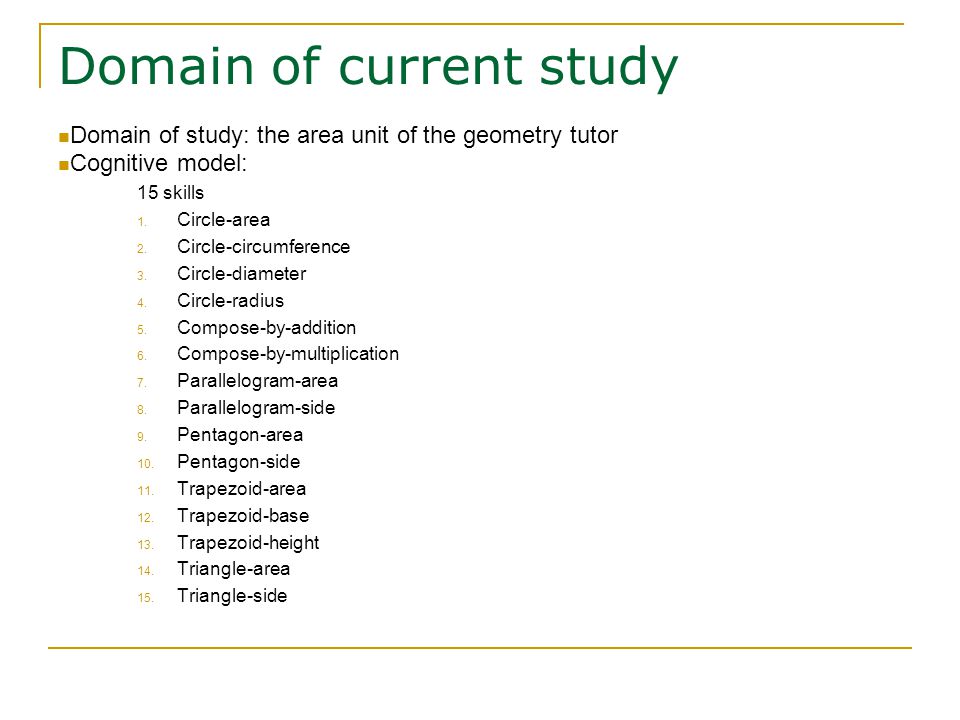

Domain of current study 15 skills 1. Circle-area 2. Circle-circumference 3. Circle-diameter 4. Circle-radius 5. Compose-by-addition 6. Compose-by-multiplication 7. Parallelogram-area 8. Parallelogram-side 9. Pentagon-area 10. Pentagon-side 11. Trapezoid-area 12. Trapezoid-base 13. Trapezoid-height 14. Triangle-area 15. Triangle-side Domain of study: the area unit of the geometry tutor Cognitive model:

6
Log Data -- Skills in the Base Model StudentStepSkillOpportunity Ap1s1Circle-area1 Ap2s1Circle-area2 Ap2s2Rectangle-area1 Ap2s3Compose-by-addition1 Ap3s1Circle-area3

7
Overview Cognitive Models & Cognitive Tutors Literature Reviews on Model Improvement A Geometry Cognitive Model and Log Data Learning Factors Analysis algorithm Experiments and Results

8
Learning Factors Analysis a set of factors that make a problem- solving step more difficult for a student Logistic regression, model scoring to fit statistical models to student log data A* search algorithm with “smart” operators for proposing new cognitive models based on the factors

9

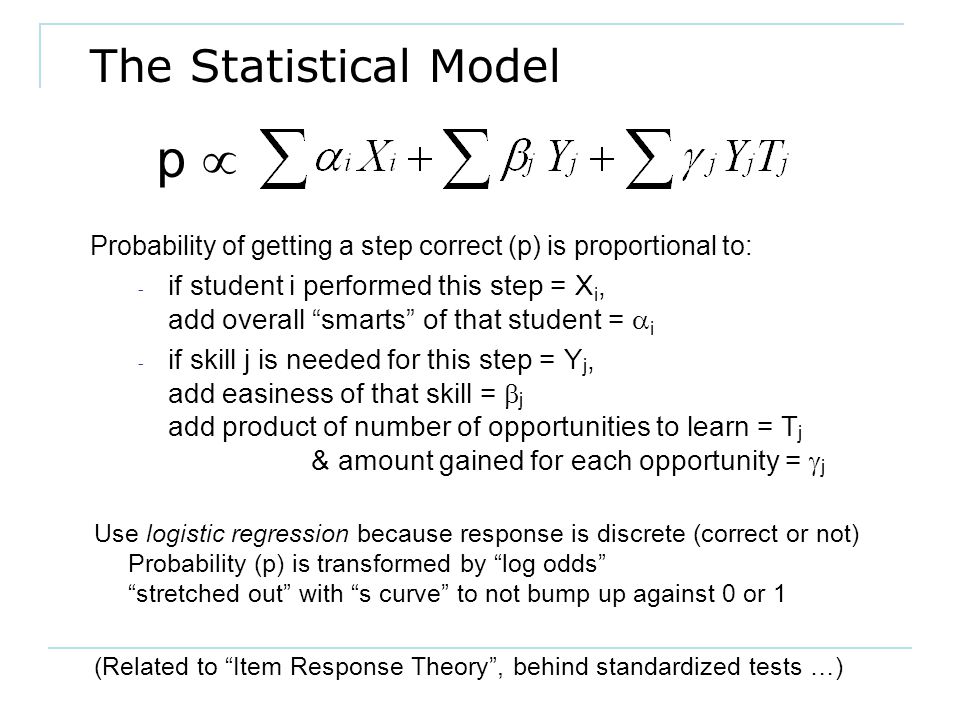

The Statistical Model Probability of getting a step correct (p) is proportional to: - if student i performed this step = X i, add overall “smarts” of that student = i - if skill j is needed for this step = Y j, add easiness of that skill = j add product of number of opportunities to learn = T j & amount gained for each opportunity = j p Use logistic regression because response is discrete (correct or not) Probability (p) is transformed by “log odds” “stretched out” with “s curve” to not bump up against 0 or 1 (Related to “Item Response Theory”, behind standardized tests …)

10

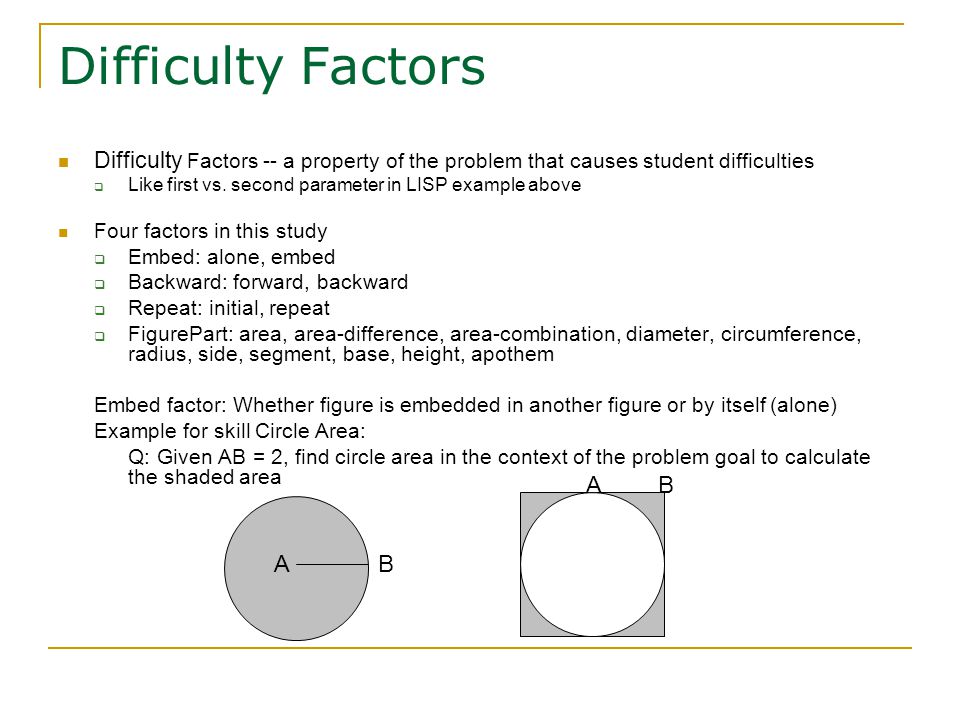

Difficulty Factors Difficulty Factors -- a property of the problem that causes student difficulties Like first vs. second parameter in LISP example above Four factors in this study Embed: alone, embed Backward: forward, backward Repeat: initial, repeat FigurePart: area, area-difference, area-combination, diameter, circumference, radius, side, segment, base, height, apothem Embed factor: Whether figure is embedded in another figure or by itself (alone) Example for skill Circle Area: Q: Given AB = 2, find circle area in the context of the problem goal to calculate the shaded area AB AB

11

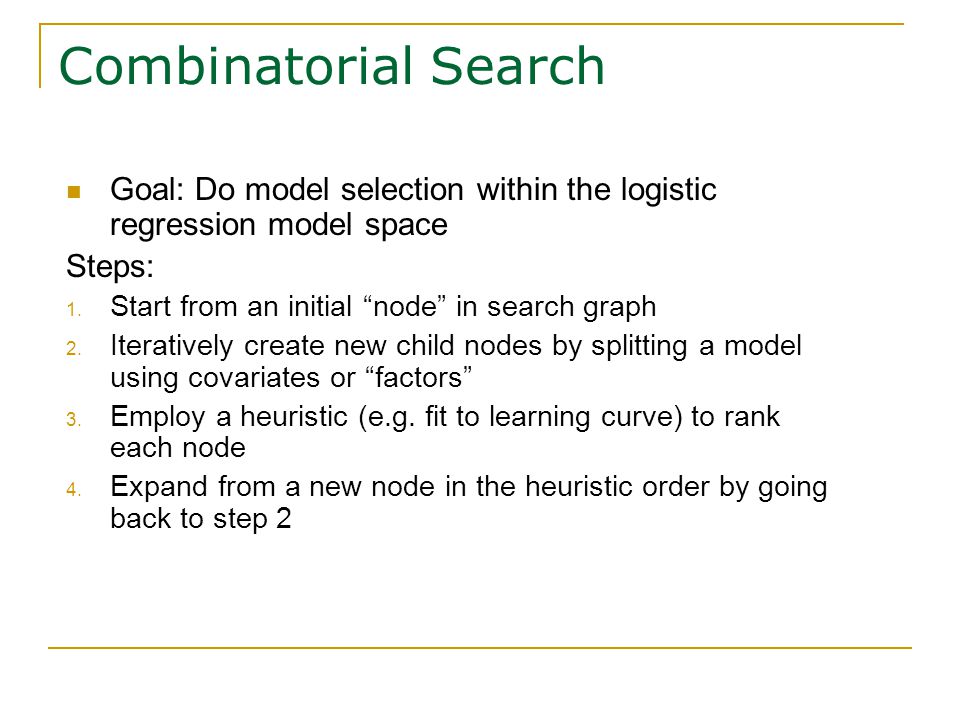

Combinatorial Search Goal: Do model selection within the logistic regression model space Steps: 1. Start from an initial “node” in search graph 2. Iteratively create new child nodes by splitting a model using covariates or “factors” 3. Employ a heuristic (e.g. fit to learning curve) to rank each node 4. Expand from a new node in the heuristic order by going back to step 2

12

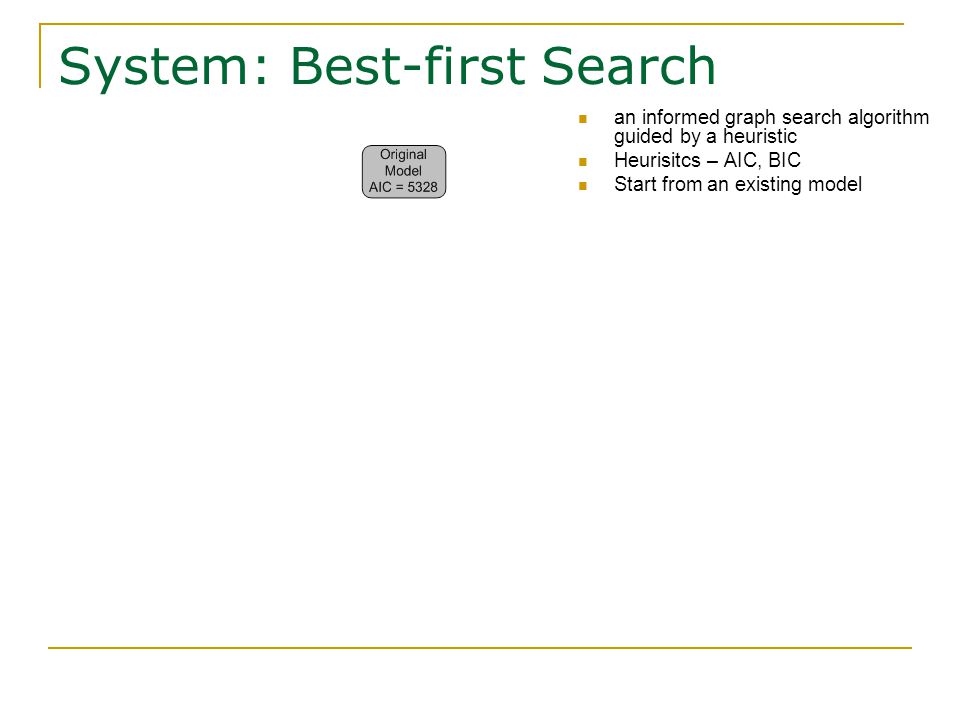

System: Best-first Search an informed graph search algorithm guided by a heuristic Heurisitcs – AIC, BIC Start from an existing model

13
System: Best-first Search an informed graph search algorithm guided by a heuristic Heurisitcs – AIC, BIC Start from an existing model

14

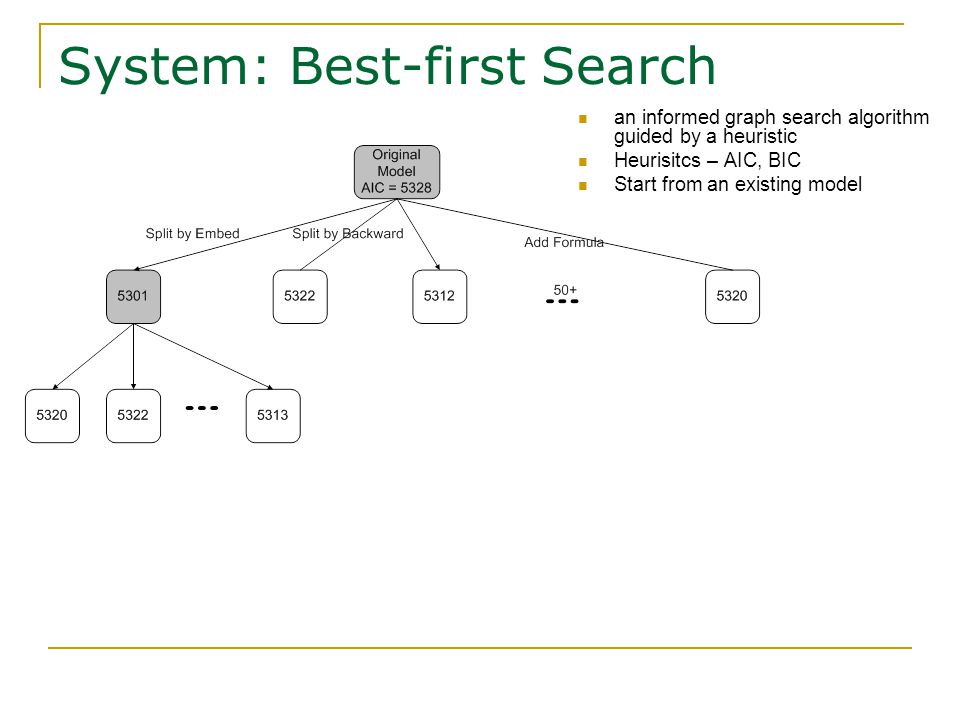

System: Best-first Search an informed graph search algorithm guided by a heuristic Heurisitcs – AIC, BIC Start from an existing model

15
System: Best-first Search an informed graph search algorithm guided by a heuristic Heurisitcs – AIC, BIC Start from an existing model

16
System: Best-first Search an informed graph search algorithm guided by a heuristic Heurisitcs – AIC, BIC Start from an existing model

17

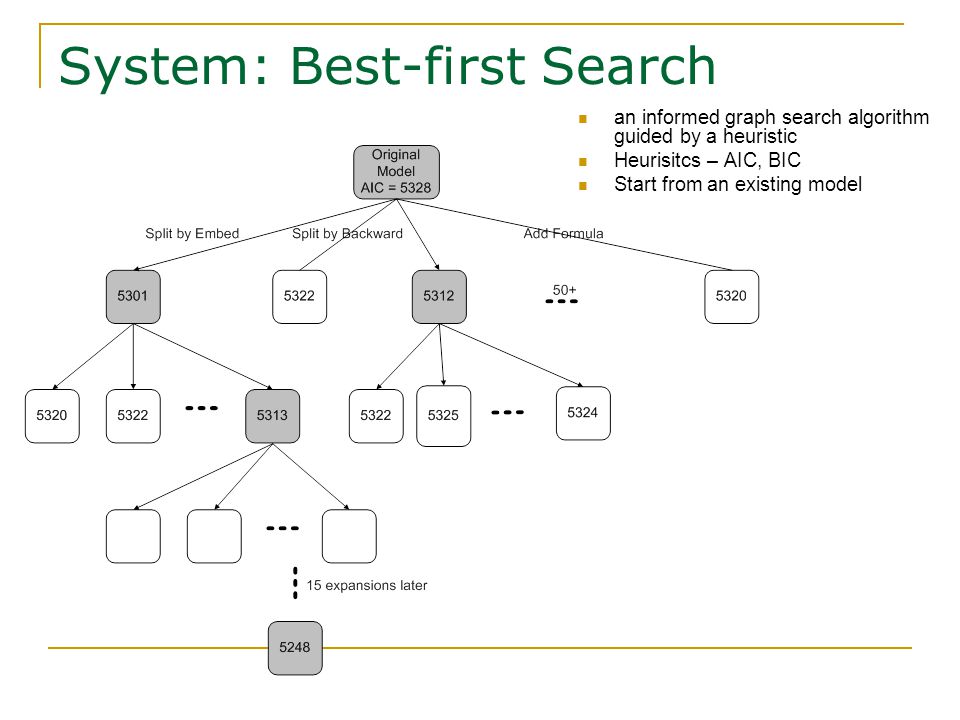

System: Best-first Search an informed graph search algorithm guided by a heuristic Heurisitcs – AIC, BIC Start from an existing model

18
The Split Binary Split -- splits a skill a skill with a factor value, & a skill without the factor value. StudentStepSkillOpportunity A p1s1 Circle-area-alone1 A p2s1 Circlearea-embed1 Ap2s2Rectangle-area1 Ap2s3 Compose-by- addition1 Ap3s1Circle-area-alone2 StudentStepSkillOpportunityFactor- Embed Ap1s1Circle-area1alone Ap2s1Circle-area2embed Ap2s2Rectangle-area1 Ap2s3 Compose-by- addition1 Ap3s1Circle-area3alone After Splitting Circle-area by Embed

19
The Heuristics Good model captures sufficient variation in data but is not overly complicated balance between model fit & complexity minimizing prediction risk (Wasserman 2005) AIC and BIC used as heuristics in the search two estimators for prediction risk balance between fit & parisimony select models that fit well without being too complex AIC = -2*log-likelihood + 2*number of parameters BIC = -2*log-likelihood + number of parameters * number of observations

20
Overview Cognitive Models & Cognitive Tutors Literature Reviews on Model Improvement A Geometry Cognitive Model and Log Data Learning Factors Analysis algorithm Experiments and Results

21

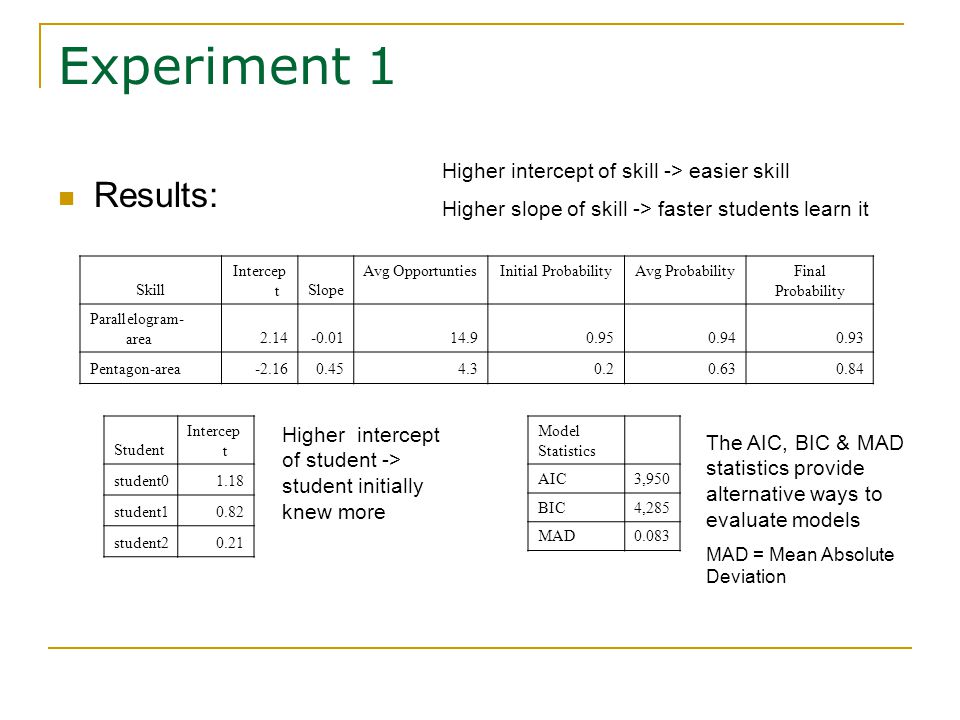

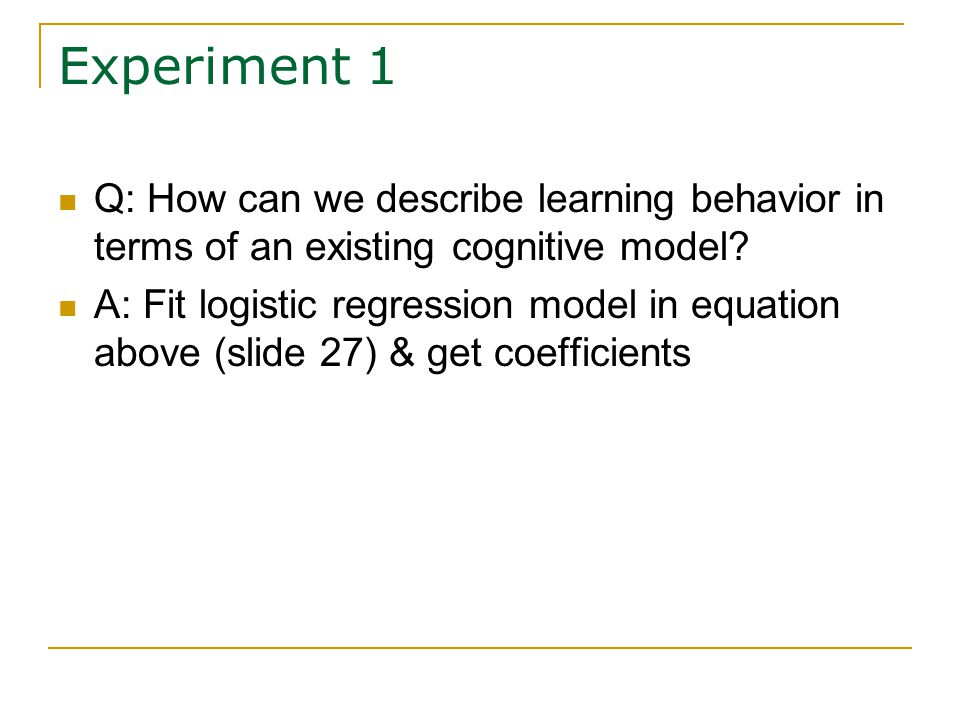

Experiment 1 Q: How can we describe learning behavior in terms of an existing cognitive model? A: Fit logistic regression model in equation above (slide 27) & get coefficients

22
Experiment 1 Results: Skill Intercep tSlope Avg OpportuntiesInitial ProbabilityAvg ProbabilityFinal Probability Parallelogram- area2.14-0.0114.90.950.940.93 Pentagon-area-2.160.454.30.20.630.84 Student Intercep t student01.18 student10.82 student20.21 Model Statistics AIC3,950 BIC4,285 MAD0.083 Higher intercept of skill -> easier skill Higher slope of skill -> faster students learn it Higher intercept of student -> student initially knew more The AIC, BIC & MAD statistics provide alternative ways to evaluate models MAD = Mean Absolute Deviation

23

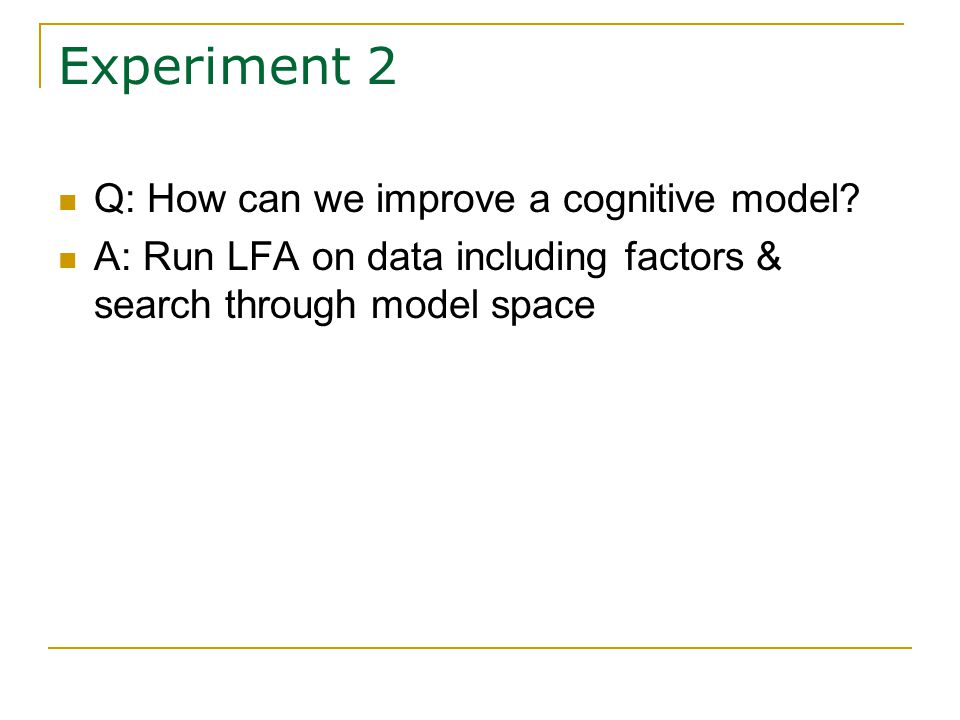

Experiment 2 Q: How can we improve a cognitive model? A: Run LFA on data including factors & search through model space

24

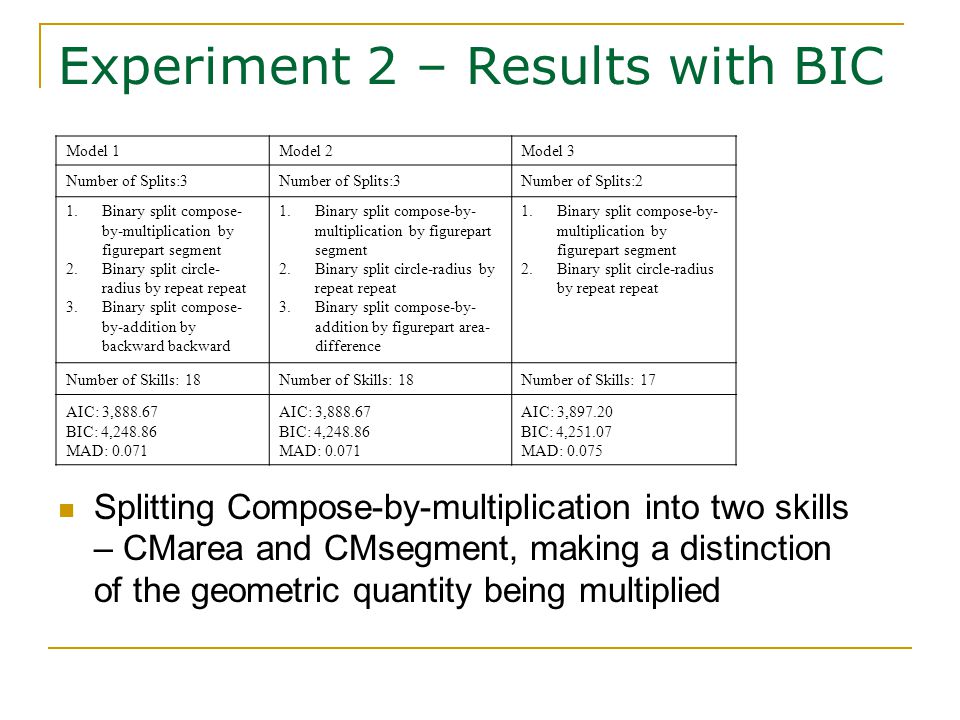

Experiment 2 – Results with BIC Splitting Compose-by-multiplication into two skills – CMarea and CMsegment, making a distinction of the geometric quantity being multiplied Model 1Model 2Model 3 Number of Splits:3 Number of Splits:2 1.Binary split compose- by-multiplication by figurepart segment 2.Binary split circle- radius by repeat repeat 3.Binary split compose- by-addition by backward backward 1.Binary split compose-by- multiplication by figurepart segment 2.Binary split circle-radius by repeat repeat 3.Binary split compose-by- addition by figurepart area- difference 1.Binary split compose-by- multiplication by figurepart segment 2.Binary split circle-radius by repeat repeat Number of Skills: 18 Number of Skills: 17 AIC: 3,888.67 BIC: 4,248.86 MAD: 0.071 AIC: 3,888.67 BIC: 4,248.86 MAD: 0.071 AIC: 3,897.20 BIC: 4,251.07 MAD: 0.075

25

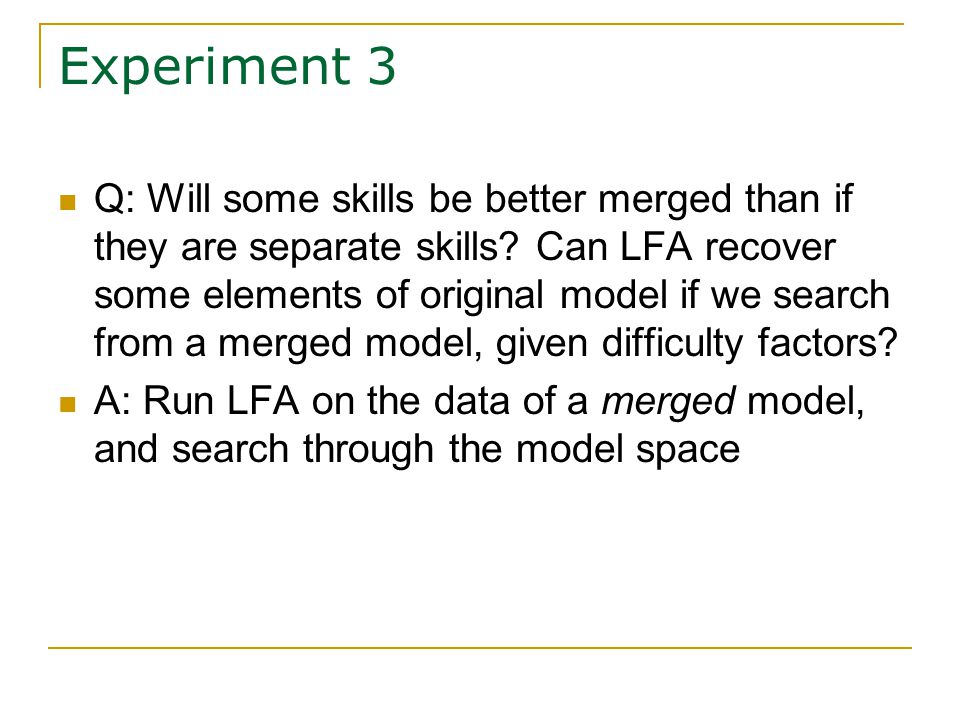

Experiment 3 Q: Will some skills be better merged than if they are separate skills? Can LFA recover some elements of original model if we search from a merged model, given difficulty factors? A: Run LFA on the data of a merged model, and search through the model space

26

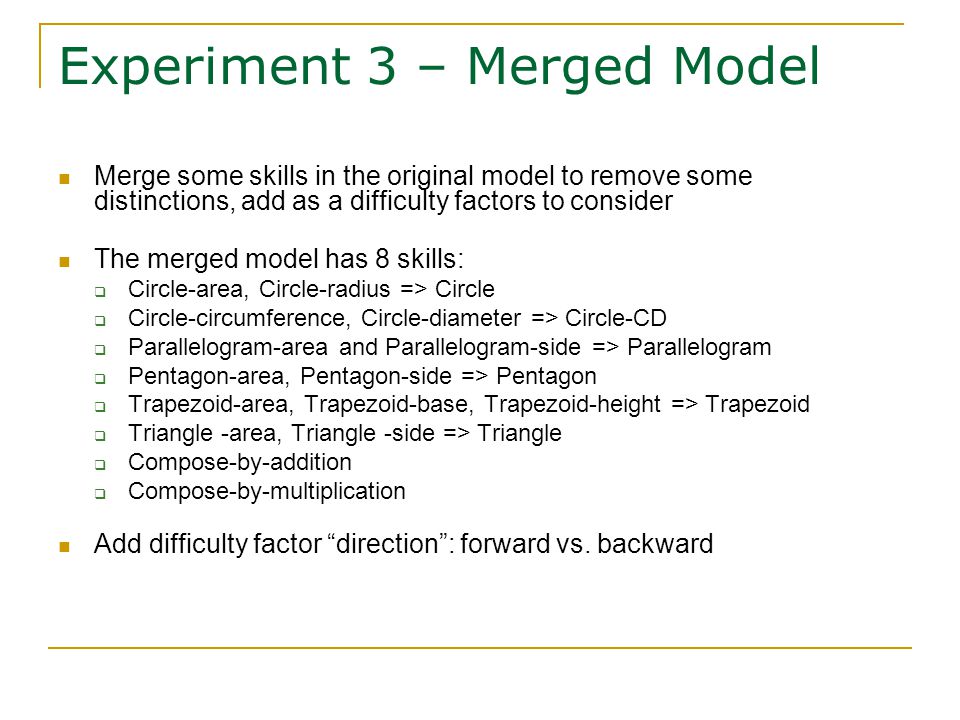

Experiment 3 – Merged Model Merge some skills in the original model to remove some distinctions, add as a difficulty factors to consider The merged model has 8 skills: Circle-area, Circle-radius => Circle Circle-circumference, Circle-diameter => Circle-CD Parallelogram-area and Parallelogram-side => Parallelogram Pentagon-area, Pentagon-side => Pentagon Trapezoid-area, Trapezoid-base, Trapezoid-height => Trapezoid Triangle -area, Triangle -side => Triangle Compose-by-addition Compose-by-multiplication Add difficulty factor “direction”: forward vs. backward

27
Experiment 3 – Results Model 1Model 2Model 3 Number of Splits: 4Number of Splits: 3Number of Splits: 4 Number of skills: 12Number of skills: 11Number of skills: 12 Circle *area Circle *radius*initial Circle *radius*repeat Compose-by-addition Compose-by-addition*area- difference Compose-by- multiplication*area-combination Compose-by- multiplication*segment All skills are the same as those in model 1 except that 1. Circle is split into Circle *backward*initial, Circle *backward*repeat, Circle*forward, 2. Compose-by-addition is not split All skills are the same as those in model 1 except that 1. Circle is split into Circle *backward*initial, Circle *backward*repeat, Circle *forward, 2. Compose-by-addition is split into Compose-by-addition and Compose-by-addition*segment AIC: 3,884.95AIC: 3,893.477AIC: 3,887.42 BIC: 4,169.315BIC: 4,171.523BIC: 4,171.786 MAD: 0.075MAD: 0.079MAD: 0.077

28

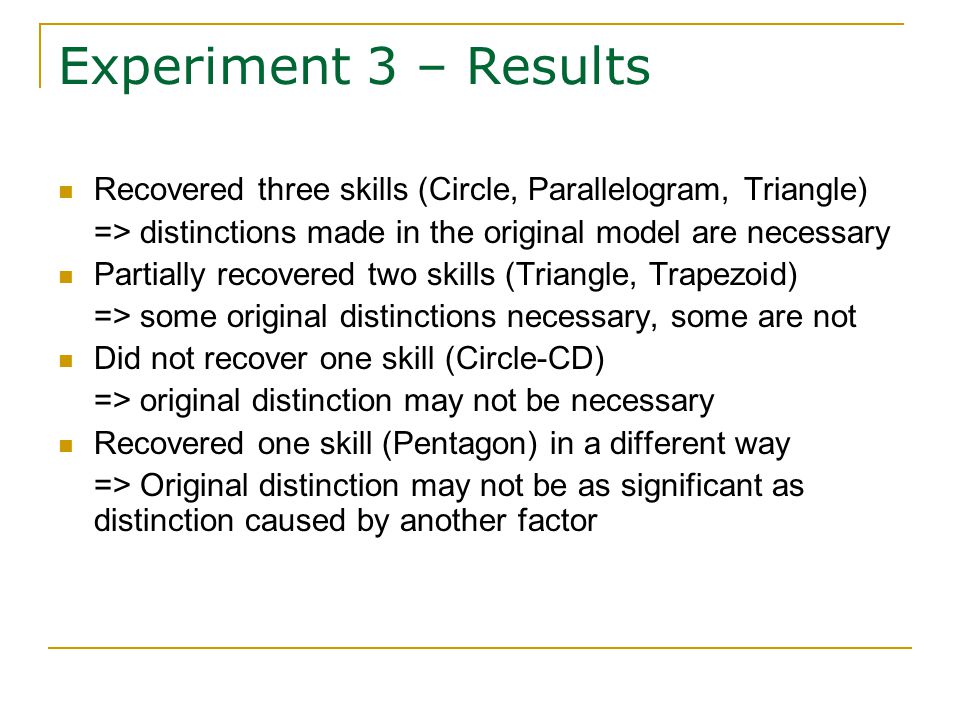

Experiment 3 – Results Recovered three skills (Circle, Parallelogram, Triangle) => distinctions made in the original model are necessary Partially recovered two skills (Triangle, Trapezoid) => some original distinctions necessary, some are not Did not recover one skill (Circle-CD) => original distinction may not be necessary Recovered one skill (Pentagon) in a different way => Original distinction may not be as significant as distinction caused by another factor

29
Beyond Experiments 1-3 Q: Can we use LFA to improve tutor curriculum by identifying over-taught or under-taught rules? Thus adjust their contribution to curriculum length without compromising student performance A: Combine results from experiments 1-3

30
Beyond Experiments 1-3 -- Results Parallelogram-side is over taught. high intercept (2.06), low slope (-.01). initial success probability.94, average number of practices per student is 15 Trapezoid-height is under taught. low intercept (-1.55), positive slope (.27). final success probability is.69, far away from the level of mastery, the average number of practices per student is 4. Suggestions for curriculum improvement Reducing the amount of practice for Parallelogram-side should save student time without compromising their performance. More practice on Trapezoid-height is needed for students to reach mastery.

31
Beyond Experiments 1-3 -- Results How about Compose-by-multiplication? InterceptslopeAvg Practice OpportuntiesInitial ProbabilityAvg ProbabilityFinal Probability CM-.15.110.2.65.84.92 With final probability.92 students seem to have mastered Compose-by-multiplication.

32
Beyond Experiments 1-3 -- Results However, after split CMarea does well with final probability.96 But CMsegment has final probability only.60 and an average amount of practice less than 2 Suggestions for curriculum improvement: increase the amount of practice for CMsegment InterceptslopeAvg Practice Opportunties Initial Probability Avg Probability Final Probability CM-.15.110.2.65.84.92 CMarea-.009.179.64.86.96 CMsegment-1.42.481.9.32.54.60

33
Conclusions and Future Work Learning Factors Analysis combines statistics, human expertise, & combinatorial search to evaluate & improve a cognitive model System able to evaluate a model in seconds & search 100s of models in 4-5 hours Model statistics are meaningful Improved models are interpretable & suggest tutor improvement Planning to use LFA for datasets from other tutors to test potential for model & tutor improvement

34
Acknowledgements This research is sponsored by a National Science Foundation grant to the Pittsburgh Science of Learning Center. We thank Joseph Beck, Albert Colbert, and Ruth Wylie for their comments.

35
END

36
To do Reduce DFA-LFA.ppt, get from ERM lecture Go over 2nd exercise on creating learning curves (from web site) in this talk & finish in 2nd session? Print paper …. Other Mail LOI feedback to Bett, add Kurt’s refs
