1 Progress with Progress Guarantees Erez Petrank - Technion Based on joint work with Anastasia Braginsky, Alex Kogan, Madanlal Musuvathi, Filip Pizlo, and Bjarne Steensgaard.

2 Responsive Parallelism Develop responsive parallel systems by developing stronger algorithms and better system support. Main tool: progress guarantees. – Guaranteed responsiveness, good scalability, avoiding deadlocks and livelocks. Particularly important in several domains – real-time systems – Interactive systems (also OS’s) – operating under service level agreement. Always good to have – If performance is not harmed too much.

3 A Progress Guarantee Intuitively: “ No matter which interleaving is scheduled, my program will make progress. ” “Progress” is something the developer defines. – Specific lines of code

4 Progress Guarantees Lock-Freedom If you schedule enough steps across all threads, one of them will make progress. Lock-Freedom If you schedule enough steps across all threads, one of them will make progress. Great guarantee, but difficult to achieve. Somewhat weak. Wait-Freedom If you schedule enough steps of any thread, it will make progress. Wait-Freedom If you schedule enough steps of any thread, it will make progress. Obstruction-Freedom If you let any thread run alone for enough steps, it will make progress. Obstruction-Freedom If you let any thread run alone for enough steps, it will make progress. The middle way ?

5 This Talk Advances with progress guarantees. – Some of it is work-in-progress. Attempts for lock-free garbage collection [PLDI 08, ISMM 07] Bounded lock-freedom and lock-free system services [PLDI 09] A lock-free locality-conscious linked-list [ICDCN 11] A Lock-free balanced tree [submitted] A wait-free queue [PPOPP 11] Making wait-freedom fast [submitted]

6 A Lock-Free Garbage Collector There is no such thing right now. A recent line of work on real-time GC, allows moving objects concurrently (while the program accesses them). See Pizlo, Petrank, and Steensgaard at [ISMM 2007, PLDI 2008]. What does it mean to “support” lock-freedom?

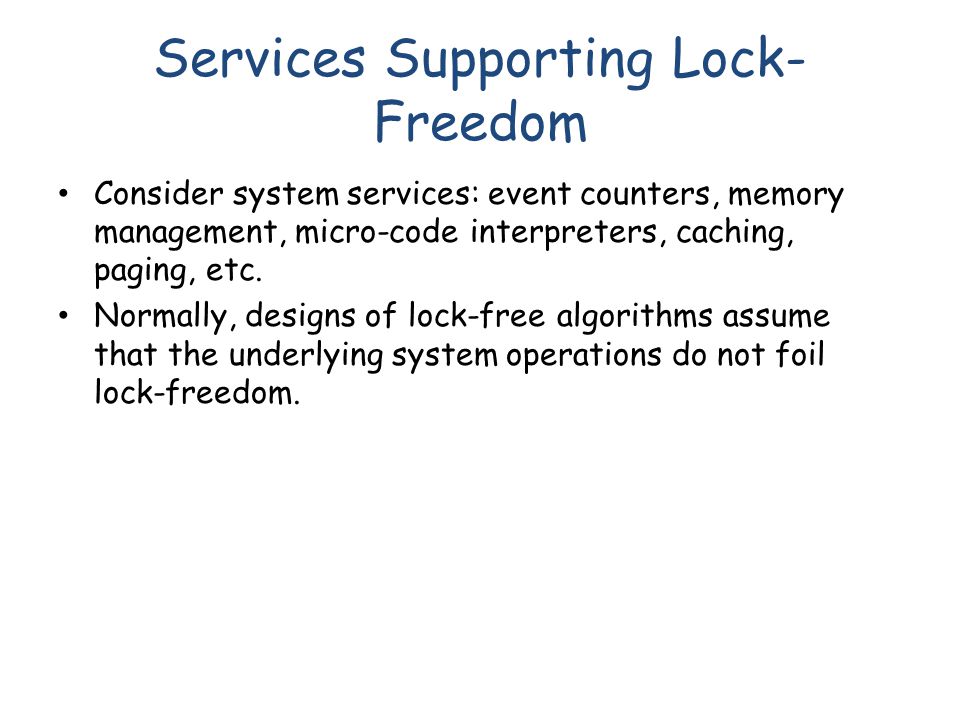

7 Services Supporting Lock- Freedom

8 Consider system services: event counters, memory management, micro-code interpreters, caching, paging, etc. Normally, designs of lock-free algorithms assume that the underlying system operations do not foil lock-freedom.

9 Can We Trust Services to Support Lock-Freedom ? Valois’ lock-free linked-list algorithm has a well known C++ implementation, which uses the C++ new operation. A hardware problem: lock Free algorithms typically use CAS or LL/SC, but LL/SC implementations are typically weak: spurious failures are permitted. Background threads increase the chaos (if syncing on shared variables). Conclusion: system support matters.

10 In the Paper Definition of a lock-free supporting service (including GC), Definition of a lock-free program that uses services, A composition theorem for the two. Also: bounded lock-freedom Musuvathi, Petrank, and Steensgaard. Progress Guarantee via Bounded Lock-Freedom. [PLDI 2009]

11 Open Questions for Progress Guarantees Some important lock-free data structures are not known – Can we build a balanced tree? Wait-free data structures are difficult to design. – Can we design some basic ones? Wait-free implementations are slow. – Can we make them fast?

12 A Locality-Conscious Linked-List [ICDCN’11] A Lock-Free B-Tree [Submitted] Anastasia Braginsky & Erez Petrank 12

13 A B-Tree An important instance of balanced trees, suitable for file systems. Typically a large node with many children. Fast access to the leaves in a very short traversal. A node is split or merged when it becomes too dense or sparse.

14 Lock-Free Locality-Conscious Linked Lists List of constant size ''chunks", with minimal and maximal bounds on the number of elements contained. Each chunk consists of a small linked list. When a chunk gets too sparse or dense, it is split or merged with its preceding chunk. Lock-free, locality-conscious, fast access, scalable

15 Chunk Split or Merge A chunk that needs splitting or merging is frozen. – No operations are applied on it anymore. – New chunks (with the updated data) replace it. 15

16 A list Structure (2 Chunks) Chunk A HEAD NextChunk Chunk B NextChunk NULL Key: 3 Data: G Key: 14 Data: K Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead 16

17 When No More Space for Insertion Chunk A HEAD NextChunk Chunk B NextChunk Key: 3 Data: G Key: 6 Data: B Key: 9 Data: C Key: 14 Data: K Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead Key: 12 Data: H Freeze 17 NULL

18 Split Chunk A HEAD NextChunk Chunk B NextChunk Key: 3 Data: G Key: 6 Data: B Key: 9 Data: C Key: 14 Data: K Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead Key: 12 Data: H Freeze Chunk C NextChunk Key: 3 Data: G Key: 9 Data: C EntriesHead Key: 6 Data: B Chunk D NextChunk Key: 12 Data: H EntriesHead Key: 14 Data: K 18 NULL

19 Split Chunk A HEAD NextChunk Chunk B NextChunk Key: 3 Data: G Key: 6 Data: B Key: 9 Data: C Key: 14 Data: K Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead Key: 12 Data: H Freeze Chunk C NextChunk Key: 3 Data: G Key: 9 Data: C EntriesHead Key: 6 Data: B Chunk D NextChunk Key: 12 Data: H EntriesHead Key: 14 Data: K 19 NULL

20 When a Chunk Gets Sparse HEAD Chunk B NextChunk Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead Chunk C NextChunk Key: 3 Data: G Key: 9 Data: C EntriesHead Key: 6 Data: B Chunk D NextChunk EntriesHead Key: 14 Data: K Freeze master Freeze slave 20 NULL

21 Merge HEAD Chunk B NextChunk Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead Chunk C NextChunk Key: 3 Data: G Key: 9 Data: C EntriesHead Key: 6 Data: B Chunk D NextChunk Key: 14 Data: K Freeze slave 21 NULL EntriesHead Freeze master Chunk E NextChunk Key: 3 Data: G Key: 6 Data: B Key: 9 Data: C Key: 14 Data: K EntriesHead

22 Merge HEAD Chunk B NextChunk Key: 25 Data: A Key: 67 Data: D Key: 89 Data: M EntriesHead Chunk C NextChunk Key: 3 Data: G Key: 9 Data: C EntriesHead Key: 6 Data: B Chunk D NextChunk Key: 14 Data: K Freeze slave 22 NULL EntriesHead Freeze master Chunk E NextChunk Key: 3 Data: G Key: 6 Data: B Key: 9 Data: C Key: 14 Data: K EntriesHead

23 Extending to a Lock-Free B-Tree Each node holds a chunk, handling splits and merges. Design simplified by a stringent methodology. Monotonic life span of a node: infant, normal, frozen, & reclaimed, reduces the variety of possible states. Care with replacement of old nodes with new ones (while data in both old and new node simultaneously). Care with search for a neighboring node to merge with and with coordinating the merge. 23

24 Having built a lock-free B-Tree, let’s look at a … Wait-Free Queue Kogan and Petrank PPOPP’10

25 FIFO queues A fundamental and ubiquitous data structures dequeue 32 enqueue 9

26 Existing wait-free queues There exist universal constructions – but are too costly in time & space. There exist constructions with limited concurrency – [Lamport 83] one enqueuer and one dequeuer. – [David 04] multiple enqueuers, one concurrent dequeuer. – [Jayanti & Petrovic 05] multiple dequeuers, one concurrent enqueuer.

27 A Wait-Free Queue First wait-free queue (which is dynamic, parallel, and based on CASes). We extend the lock-free design of Michael & Scott. – part of Java Concurrency package “Wait-Free Queues With Multiple Enqueuers and Dequeuers”. Kogan & Petrank [PPOPP 2011]

28 Building a Wait-Free Data Structure Universal construction skeleton: – Publish an operation before starting execution. – Next, help delayed threads and then start executing operation. – Eventually a stuck thread succeeds because all threads help it. Solve for each specific data structures: – The interaction between threads running the same operation. – In particular, apply each operation exactly once and obtain a consistent return code. The first makes it inefficient. The second makes it hard to design.

29 Results The naïve wait-free queue is 3x slower than the lock- free one. Optimizations can reduce the ratio to 2x. Can we eliminate the overhead for the wait-free guarantee?

30 Wait-free algorithms are typically slower than lock-free (but guarantee more). Can we eliminate the overhead completely ? Kogan and Petrank [submitted]

31 Reducing the Help Overhead Standard method: Help all previously registered operations before executing own operation. But this goes over all threads. Alternative: help only one thread (cyclically). This is still wait-free ! An operation can only be interrupted a limited number of times. Trade-off between efficiency and guarantee. But this is still costly !

32 Why is Wait-Free Slow ? Because it needs to spend a lot of time on helping others. Main idea: typically help is not needed. – Ask for help when you need it; – Provide help infrequently. Teacher: why are you late for school again? Boy: I helped an old lady cross the street. Teacher: why did it take so long? Boy: because she didn’t want to cross! Teacher: why are you late for school again? Boy: I helped an old lady cross the street. Teacher: why did it take so long? Boy: because she didn’t want to cross!

33 Fast-Path Slow-Path When executing an operation, start by running the fast lock-free implementation. Upon several failures “switch” to the wait-free implementation. – Ask for help, – Keep trying. Once in a while, threads on the fast path check if help is needed and provide help. The ability to switch between modes Fast path Slow path

34 Do I need to help ? Start yes Help Someone no Apply my op fast path (at most n times) Success ? no Apply my op using slow path Return yes

35 Results for the Queue There is no observable overhead ! Implication: it is possible to avoid starvation at no additional cost. – If you can create a fast- and slow- path and can switch between them.

36 Conclusion Some advances on lock-free garbage collection. Lock-free services, bounded lock-freedom. A few new important data structures with progress guarantees: – Lock-free chunked linked-list – Lock-free B-Tree – Wait-free Queue We have proposed a methodology to make wait- freedom as fast as lock-freedom. 36
