1 1 R&M FO Patch Panels Splice Version The convincing way to terminate fibers

2 2 Features of the R&M 19 patch panels, spliced version Integration into the 19 Foccos Features and benefits Competing products Contents of this presentation

3 3 Carrier solutions for every necessity 1U or 2U UniRack 19" 1U AirRack

4 4 Continuous development at R&M! 2 nd Generation 1 st Generation 3 rd Generation

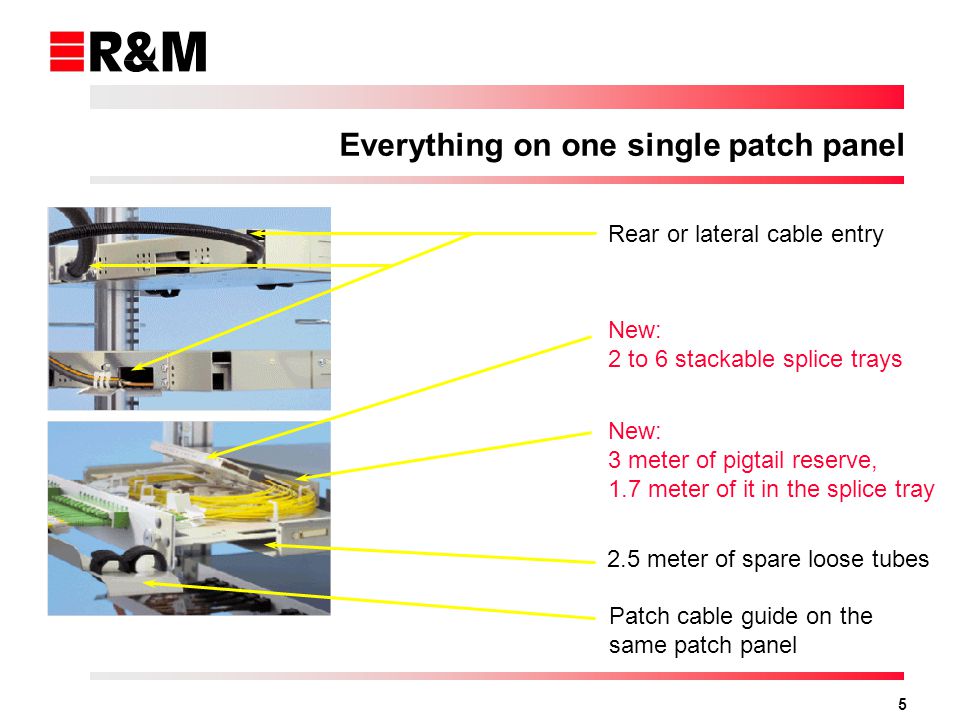

5 5 Everything on one single patch panel New: 2 to 6 stackable splice trays New: 3 meter of pigtail reserve, 1.7 meter of it in the splice tray 2.5 meter of spare loose tubes Rear or lateral cable entry Patch cable guide on the same patch panel

6 6 Outstanding features New: Recessed slide-in unit (0-55 mm) New: Plastic guide with integrated closing system New: Integrated labelling Loose tubes holder

7 7 Convenient splicing New: Sufficient fiber supply for several splicings later on Optimum access to the splice trays and the pigtail holder

8 8 Transmission quality even after 20 years No mechanical effects on the fiber or the loose tube

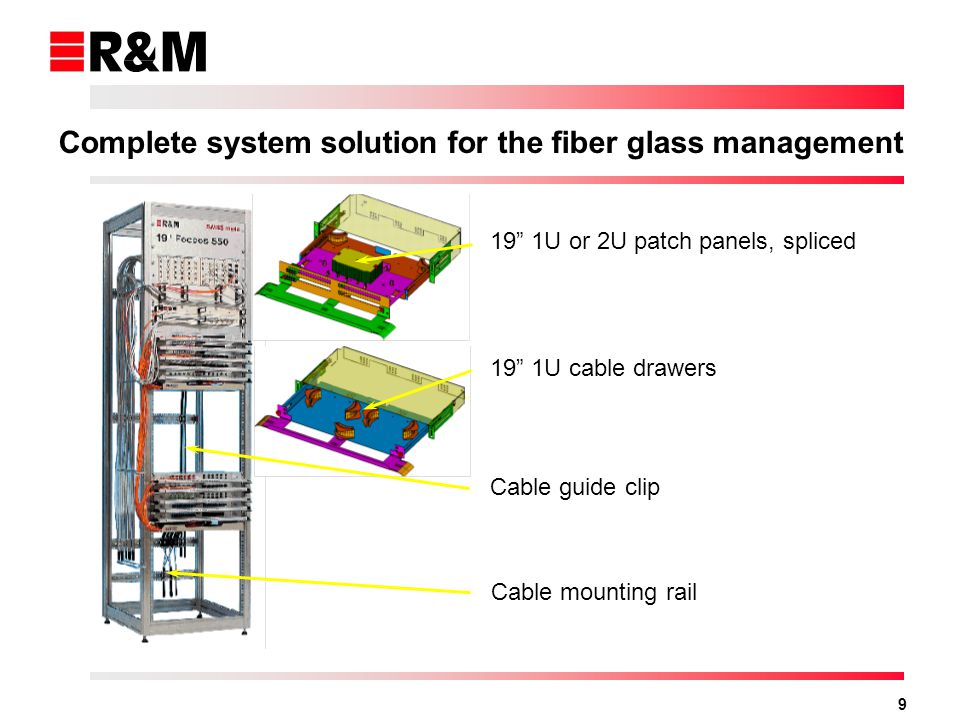

9 9 Complete system solution for the fiber glass management 19 1U or 2U patch panels, spliced 19 1U cable drawers Cable guide clip Cable mounting rail

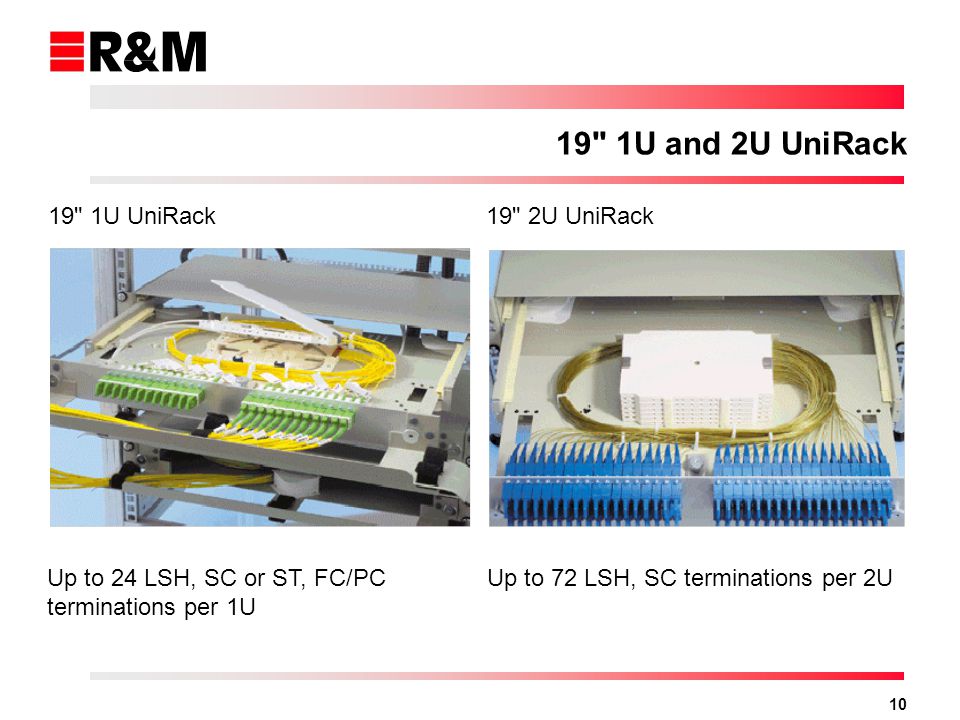

10 10 19" 1U and 2U UniRack Up to 24 LSH, SC or ST, FC/PC terminations per 1U 19" 1U UniRack Up to 72 LSH, SC terminations per 2U 19" 2U UniRack

11 11 19" 1U AirRack Up to 24 FO terminations with LSH or SC connector For guaranteed air circulation in the cross connection cabinet

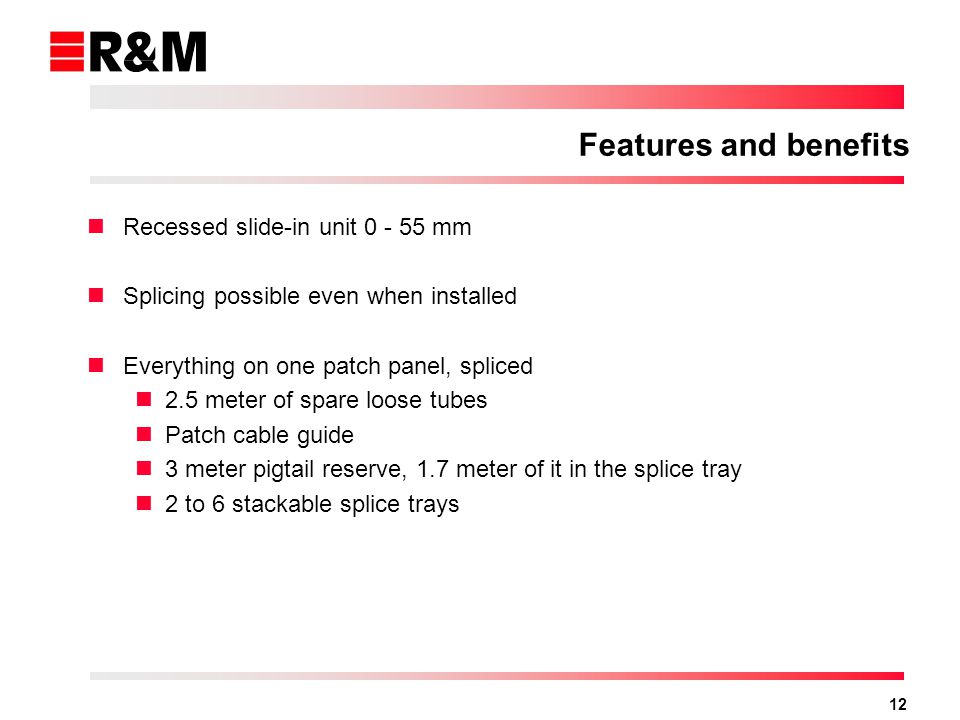

12 12 Features and benefits Recessed slide-in unit mm Splicing possible even when installed Everything on one patch panel, spliced 2.5 meter of spare loose tubes Patch cable guide 3 meter pigtail reserve, 1.7 meter of it in the splice tray 2 to 6 stackable splice trays

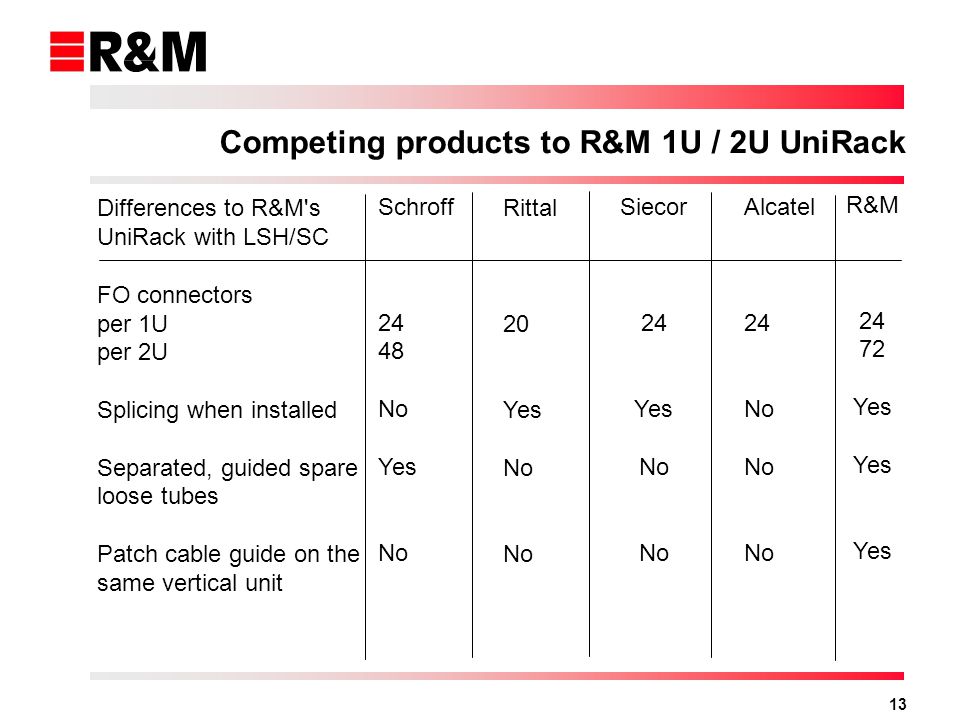

13 13 Competing products to R&M 1U / 2U UniRack Differences to R&M's UniRack with LSH/SC FO connectors per 1U per 2U Splicing when installed Separated, guided spare loose tubes Patch cable guide on the same vertical unit Schroff No Yes No Rittal 20 Yes No Siecor 24 Yes No Alcatel 24 No R&M Yes
