2008-04 INJEX Pharma GmbH INJEX Operation Needle-Free Injection Technology.

Similar presentations


Presentation on theme: "2008-04 INJEX Pharma GmbH INJEX Operation Needle-Free Injection Technology."— Presentation transcript:

1 INJEX Pharma GmbH INJEX Operation Needle-Free Injection Technology

2 Preparation of Transporter (I) - turn the green knurled nut of the Transporter, as shown, anticlockwise, until the cartridge can be placed in the Transporter´s compartment. Transporter

3 Preparation of Transporter (II) - take the cartridge and put it into the Transporter´s compartment. cartridge

4 Preparation of Transporter (III) -for a safe and firm seat of the cartridge, turn the green knurled nut of the Transporter clockwise, as shown, until the plunger softly touches the rubber end of the cartridge.

5 Preparation of Transporter (IV) - take the Transporter Adapter out of it´s sterile packaging. - screw the Transporter Adapter on to the Transporter. Ensure that the adapter needle pierces the rubber seal of the cartridge.

6 Filling of Ampoule (I) -take an INJEX-Ampoule out of it´s sterile packaging and press the plunger completely into the INJEX-Ampoule to force the air out of the Ampoule. Ampoule plunger

7 open the protective cap of the Transporter Adapter. -screw the INJEX-Ampoule, clockwise, as shown, into the open end of the Adapter until it fits tightly. Filling of Ampoule (II)

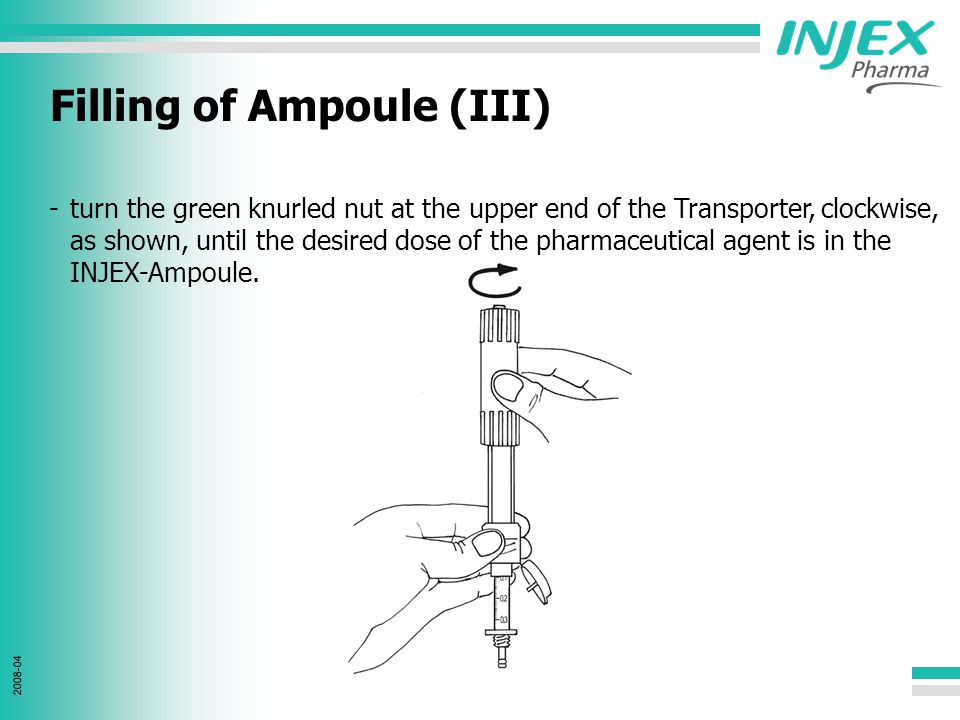

8 Filling of Ampoule (III) -turn the green knurled nut at the upper end of the Transporter, clockwise, as shown, until the desired dose of the pharmaceutical agent is in the INJEX-Ampoule.

9 unscrew the filled INJEX-Ampoule from the Adapter in an anticlockwise direction and close the protective cap. Filling of Ampoule (IV)

10 Preparation of the Injector (I) - take the loaded and safeguarded Injector out of the Reset Box. Injector Reset-Box

11 Preparation of the Injector (II) -screw the filled INJEX-Ampoule clockwise into the open end of the Injector (the last round goes a little bit harder, this is normal).

12 Preparation of the Injector (III) - push the green safety ring towards the Ampoule into Safe off position. Now the Injector is ready for use.

13 The Injection -hold the Injector under firm pressure perpendicularly to the injection site (i.e. abdomen), until a clear indentation forms on the skin. Press the trigger and release the injection. Hold the Injector on the injection site for another 1 – 2 sec.

14 unscrew the INJEX-Ampoule and discard it – domestic waste -. After the Injection (I)

15 push the green safety ring back into the Safe position. -store the secured and non-reset Injector and its accessories in the INJEX Case. After the Injection (II)

16 Thank you for your attention INJEX Pharma GmbH Buckower Damm Berlin, Germany Comments / Questions
