GENERATOR HEAT RECOVERY CONSIDERATIONS IN ARCTIC VILLAGE APPLICATIONS LCDR William Fraser, P.E.
Alaska Native Tribal Health Consortium Division of Environmental Health & Engineering June 2011 Who We Are
ANTHC Non-profit, statewide organization Provides a range of medical and community health services for more than 125,000 Alaska Natives. Part of the Alaska Tribal Health System, which is owned and managed by the 229 federally recognized tribes in Alaska and by their respective regional health organizations.
ANTHC History 1970s-1990s: Regional health organizations in Alaska Passage of P.L. 105-83 established ANTHC, the only THO established by statute December 1997: ANTHC incorporated as non-profit 501(c)(3) June 1998: Initial contract with IHS.
ANTHC History October 1998: Contract expanded to include Environmental Health & Engineering October 1998: ANTHC becomes a P.L. 93-638 Title III Self-Governance entity, signing the Alaska Tribal Health Compact
DEHE Designs and Constructs Health and Sanitation Facilities Provides operations support Monitors & develops standards for mitigating climate change impacts Health impact studies Environmental Grants & training
Water & Sewer- Why?
What does this have to do with Heat Recovery? Hospitalizations are 5 times higher in communities w/o piped water & sewer. Typical Fuel consumption for an Arctic WTP w/ piped water & sewer: 8000- 25,000 Gal / Year Fuel Oil Fuel Prices between $6.00 & $8.00 / Gal. and rising. Heat recovery can help make it affordable.
High Energy Use
HEAT RECOVERY FROM POWER PLANTS 2 basic types: Jacket recovery Stack recovery Small Scale: 50 KW to 3500 KW Ideal for space heat and process heat Considered a fuel saver, not a primary source of heat.
Kwigillingok Generator Facility
ADVANTAGES OF HEAT RECOVERY Very green- reduces carbon footprint. Can dramatically increase the economic viability of a community water system. Adds additional redundancy to the building heating system.
DISADVANTAGES OF HEAT RECOVERY Requires an agreement with the power utility, often with a charge for waste heat. Usually increases the complexity of the heating system, especially in Washeterias. Requires additional maintenance and coordination between power utility and building owner.
SO YOU WANT TO BE GREEN What do you need to know before you start? Estimating available waste heat Deciding on a heat recovery strategy Selecting system components
WHAT DO YOU NEED TO KNOW BEFORE YOU START? Who owns the generators and what are their conditions? Do you have a viable path between the waste heat source and the building? What type of building are you serving? Are there other buildings served by the waste heat? What type of monitoring do you want? Who is going to maintain it?
ESTIMATING AVAILABLE WASTE HEAT Q A =Q GEN – Q PIPE - Q O Q A :Minimum available waste heat for your building Q GEN :Average generator output during peak heating season (typically much less than rated capacity) in BTUs / Hour Q PIPE :Heat loss from distribution piping during peak heating season. Typically about 50-60 BTUH / LF Q O :Heat used by other buildings on the waste heat system (sometimes this is prioritized by order of connection, so be careful)
HEAT RECOVERY RULES OF THUMB: Generator Output: 1/3 Electricity, 1/3 Jacket heat, 1/3 Stack loss 1300-2000 BTU / KW-Hr (Available Jacket Heat) 100,000 BTU delivered heat = 1 gallon of diesel Annual Fuel Saved =.3 x Power plant annual fuel used x 0.6 Pumping Energy Costs <= 10% Fuel Value
BREAK EVEN TEMPERATURE DIFFERENCE T BR :Break even temperature difference between Generator Heating Supply and Building Heating Return (Deg F) P PUMP :Pump power (W) C E :Electrical cost ($ / kWh) C OIL :Fuel cost ($ / Gallon) (80% efficiency assumed) UA HX :Heat exchanger U factor multiplied by HX area (BTU/ Hr x Deg F) GPM:Heat exchanger glycol flow rate (GPM) (This formula only applies in special case of counterflow HX with matching flow rates and sufficient heating demand to use all of the waste heat) T BR = P PUMP x C E x 100 C OIL x UA HX P PUMP x C E x 100 900 x GPM x C OIL +
ESTIMATING WASTE HEAT DEMAND Q D =Q BLG + Q PROC Q D :Waste heat demand (typically does not include dryers) Q BLG :Building envelope heat losses (must engineer heating system for lower temperatures than typical heating systems) Q PROC :Heat required by process systems (includes circulation loops, raw water heat add, storage tanks, etc. This is where waste heat really shines)
SELECTING A HEAT RECOVERY STRATEGY Direct heat add to potable water: Double wall shell and tube, independent of boiler system (Kiana) Small system with single boiler: Pipe heat exchanger in series with boiler (Chenega Bay) Large system with multiple boilers: Pipe heat exchanger in primary / secondary arrangement (Kwigillingok)
GENERATOR HEAT RECOVERY ARRANGEMENT
RECOVERED HEAT INTO POTABLE WATER
HEAT EXCHANGER IN SERIES WITH BOILER
PRIMARY / SECONDARY HEAT EXCHANGER DIAGRAM
Minto Heat Recovery
WASTE HEAT CONTROLLER Turns on at 8 Deg F difference Turns off at 4 Deg F difference Built in HOA switch. Provides 1p/2t switch which can handle a 1 HP pump.
Plate / Frame Heat Exchanger
Brazed Plate Heat Exchangers
Shell & Tube Heat Exchangers

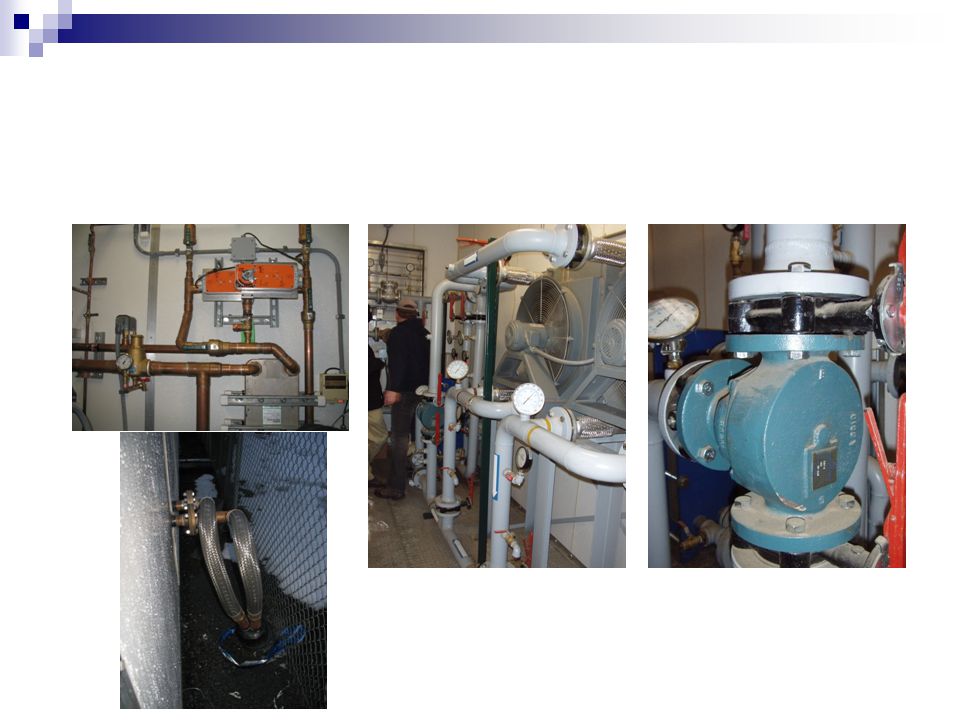

DESIGN COMMENTS Use Brazed Plate or Plate / Frame heat exchangers Provide controls to ensure heat is not transferred back to generator cooling system. Provide controls to minimize electric power consumption Provide BTU monitoring if being billed by local utility Provide pressure relief on pipeline Provide strainers on both sides of heat exchanger (reduces cleaning of heat exchanger). Provide air separator on pipeline side of system. Provide glycol system monitoring and makeup. Provide expansion compensation Dont use HDPE pipe. Copper, Steel, PEX, Stainless steel. Monitor pipeline for leaks and pressure.
