1 3x1 Suspension System Re-Inventing DuctSox Installation Pat. Pending

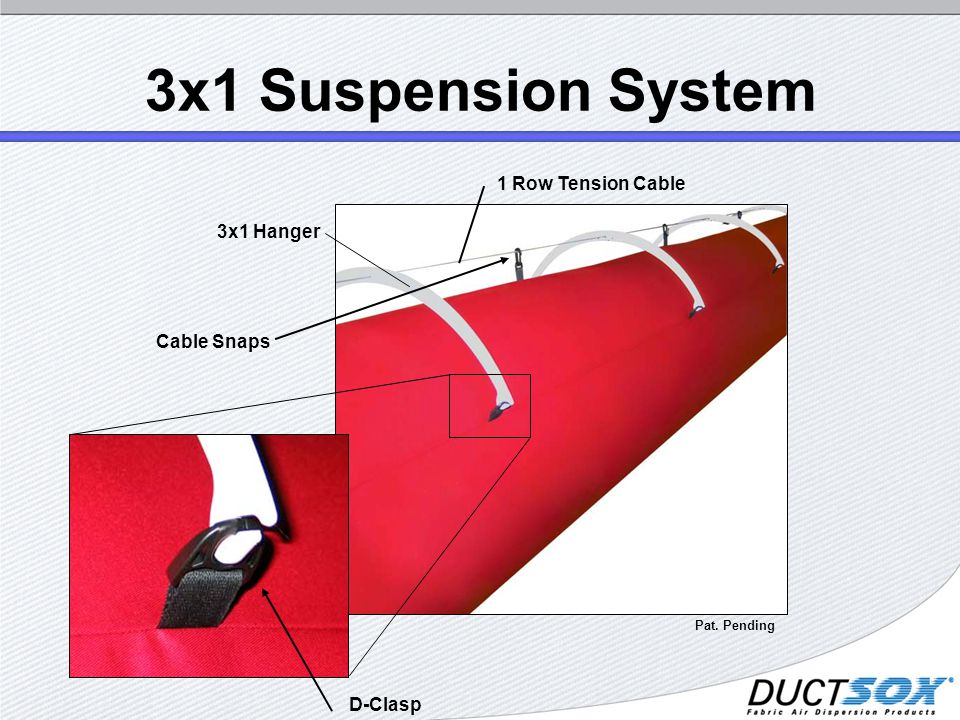

2 3x1 Suspension System D-Clasp Cable Snaps 3x1 Hanger 1 Row Tension Cable Pat. Pending

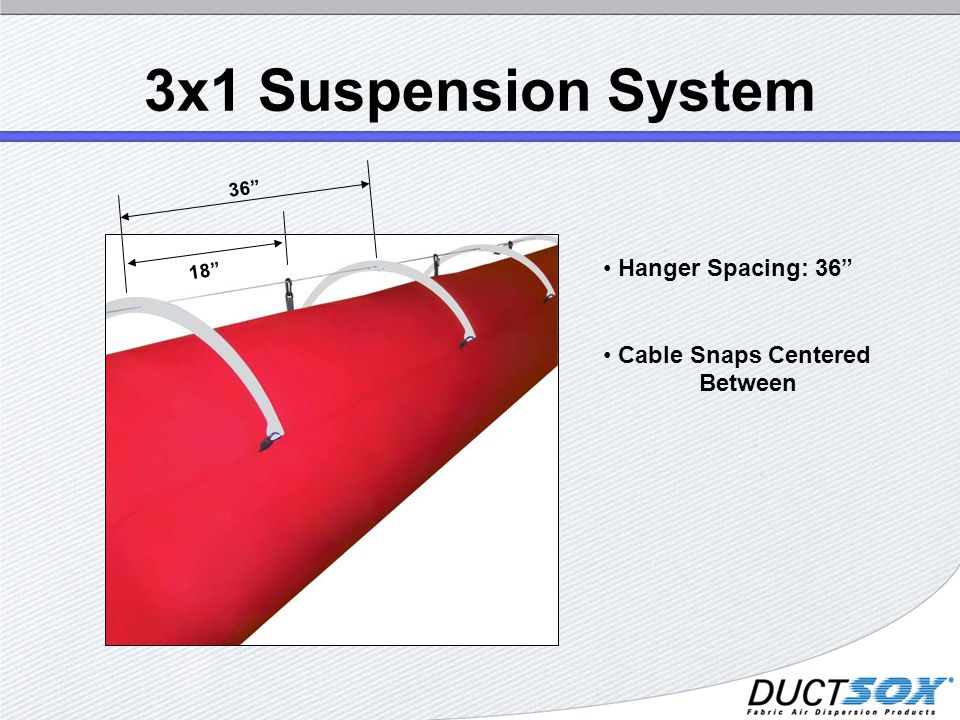

3 3x1 Suspension System Hanger Spacing: 36 Cable Snaps Centered Between 18 36

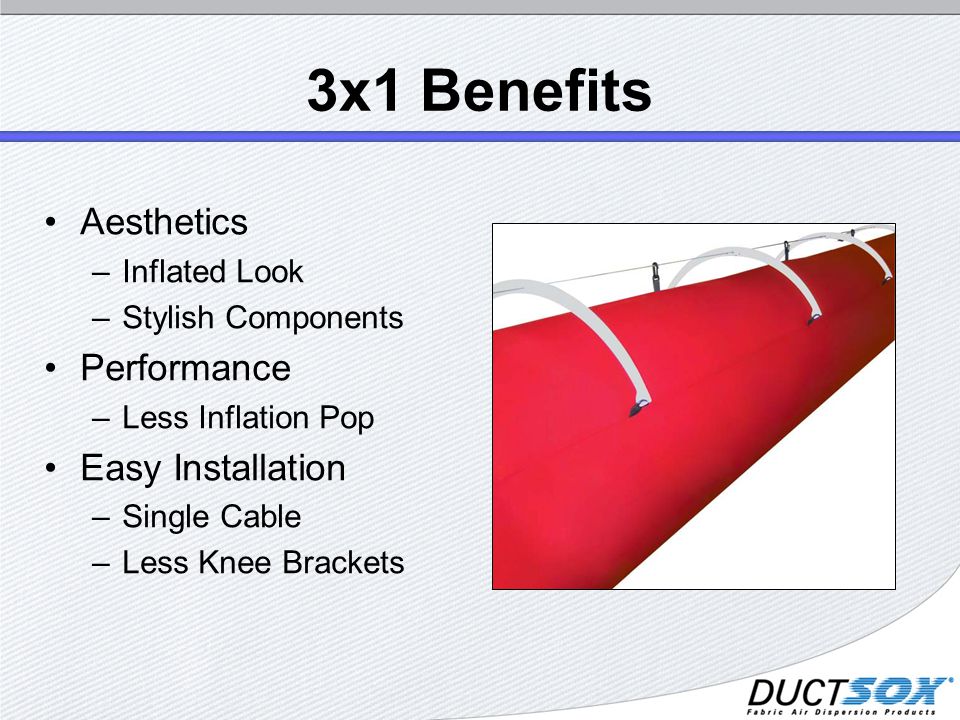

4 3x1 Benefits Aesthetics –Inflated Look –Stylish Components Performance –Less Inflation Pop Easy Installation –Single Cable –Less Knee Brackets

5 Deflated vs. Inflated Deflated Inflated

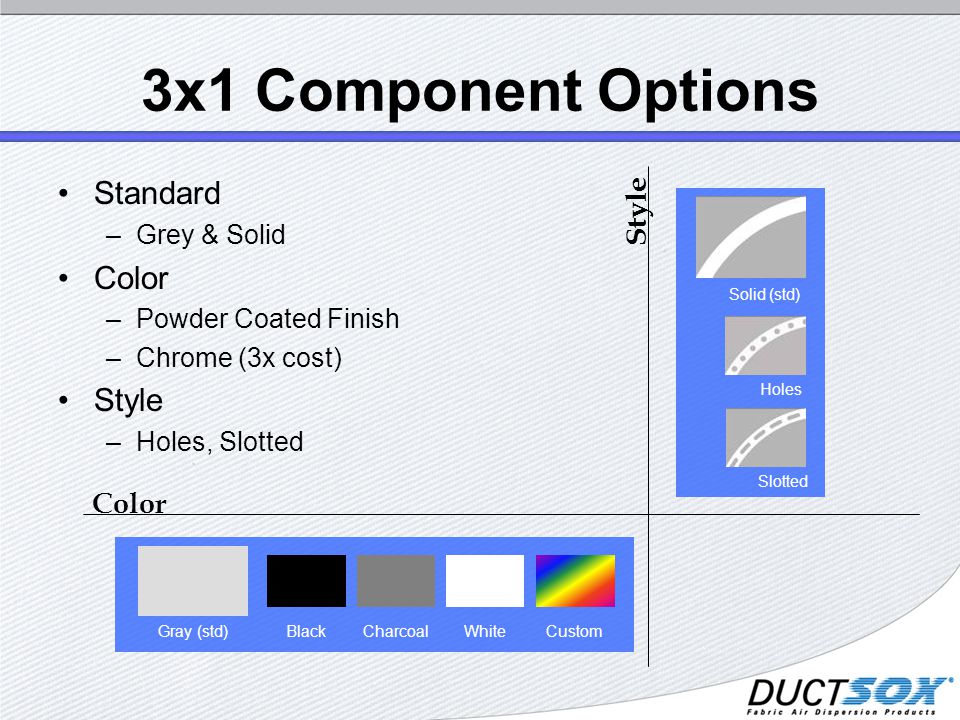

6 3x1 Component Options Standard –Grey & Solid Color –Powder Coated Finish –Chrome (3x cost) Style –Holes, Slotted Color Style Gray (std)BlackCharcoalWhiteCustom Solid (std) Holes Slotted

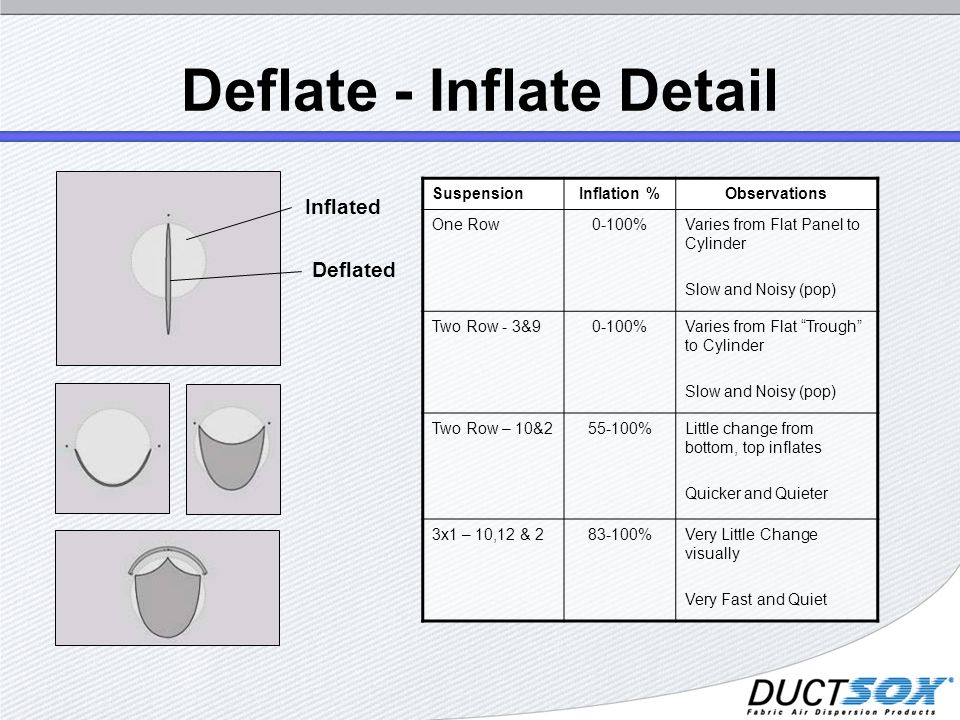

7 Deflate - Inflate Detail Inflated Deflated SuspensionInflation %Observations One Row0-100%Varies from Flat Panel to Cylinder Slow and Noisy (pop) Two Row - 3&90-100%Varies from Flat Trough to Cylinder Slow and Noisy (pop) Two Row – 10& %Little change from bottom, top inflates Quicker and Quieter 3x1 – 10,12 & %Very Little Change visually Very Fast and Quiet

8 3x1 Installation 1.Install 1 Row Tension Cable 2.Install DuctSox by connect 12 oclock cable clips first 3.Connect 3x1 Hanger to DuctSox, positioned over cable A.Back Clip B.Front Clip C.Secure hanger to Cable 4.Secure DuctSox Position Inlet DuctBelt and Anchors Clamp Last Cable Snap with Cable Clamp A C B

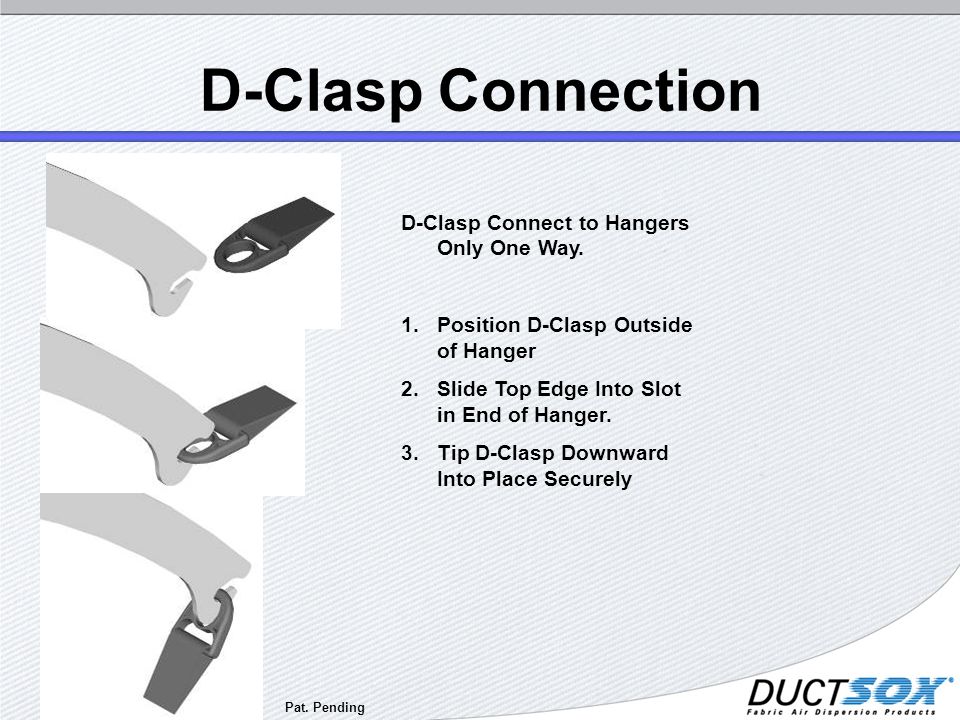

9 D-Clasp Connection D-Clasp Connect to Hangers Only One Way. 1.Position D-Clasp Outside of Hanger 2.Slide Top Edge Into Slot in End of Hanger. 3.Tip D-Clasp Downward Into Place Securely Pat. Pending

10 Cable Lock Detail Position Cable into Vertical Slot. Shape reduces binding on cable – allows hanger to slide easily. Plug locks cable into place. Pat. Pending

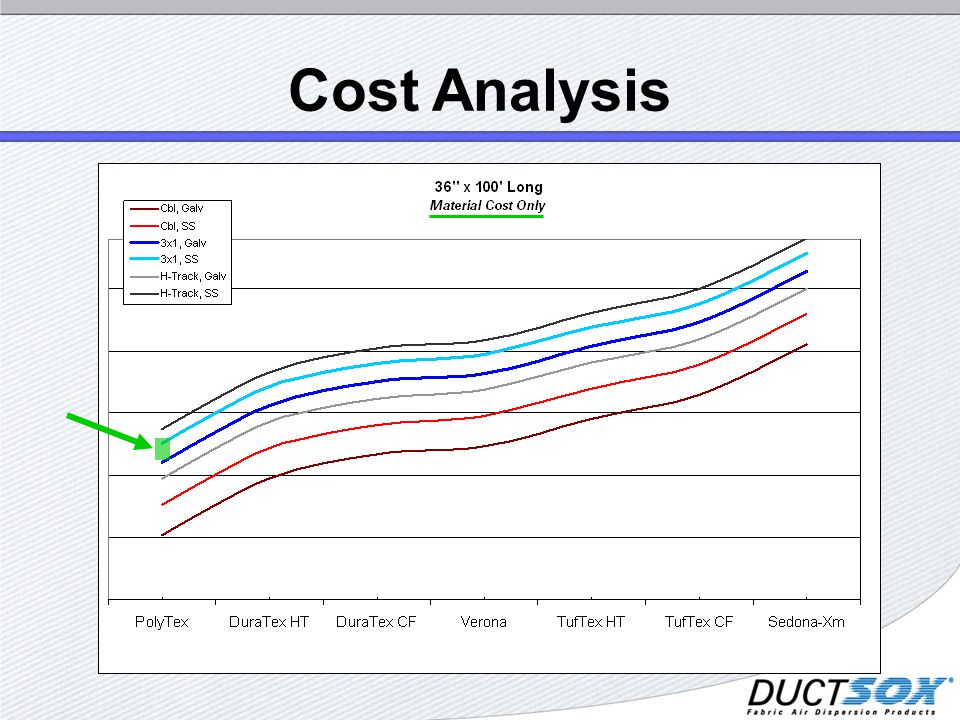

11 Cost Analysis

12

13 !! Excluding Knee Brackets Est. Installation Times: H-Track: 14.5 Hrs 2 Row Cable: 8.5 Hrs 3x1 Cable: 5.4 Hrs 3x1 w/ Xm: Compared To: 2 Row H-Track: -18.8% 2 Row Cable: +13.1%

14 Bracket Comparison Supports Double Row3x1 System Supports

15 3x1 Suspension System Re-Inventing DuctSox Installation Better Aesthetics Smooth Inflation Easy Installation
