1 Comparing GEM Regional, GEM-LAM 2.5 and RUC Model Simulations of Mesoscale Features over Southern Ontario 2009 CMOS Congress 31 May – 4 June, Halifax, NS David Sills, Norbert Driedger and Emma Hung Cloud Physics and Severe Weather Research Section, Environment Canada, Toronto, Canada

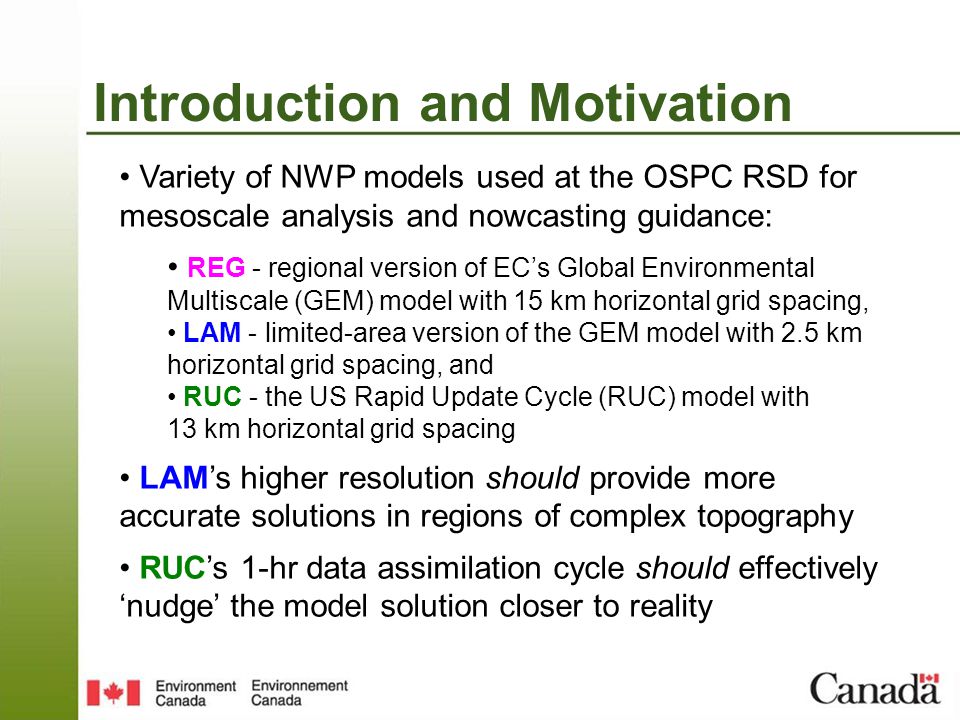

2 Introduction and Motivation Variety of NWP models used at the OSPC RSD for mesoscale analysis and nowcasting guidance: REG - regional version of ECs Global Environmental Multiscale (GEM) model with 15 km horizontal grid spacing, LAM - limited-area version of the GEM model with 2.5 km horizontal grid spacing, and RUC - the US Rapid Update Cycle (RUC) model with 13 km horizontal grid spacing LAMs higher resolution should provide more accurate solutions in regions of complex topography RUCs 1-hr data assimilation cycle should effectively nudge the model solution closer to reality

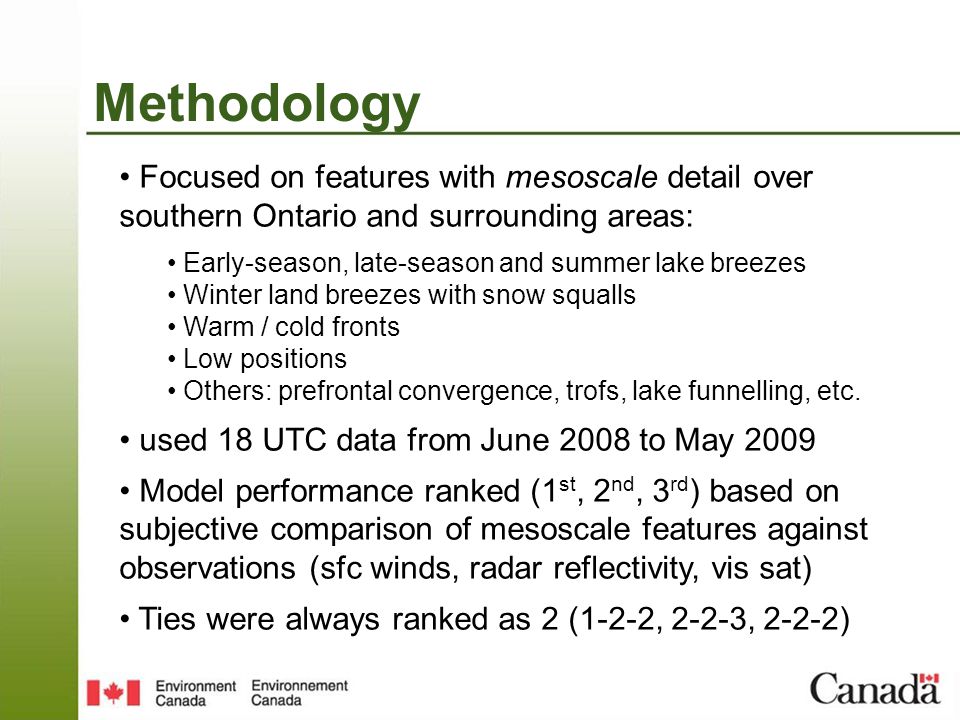

3 Methodology Focused on features with mesoscale detail over southern Ontario and surrounding areas: Early-season, late-season and summer lake breezes Winter land breezes with snow squalls Warm / cold fronts Low positions Others: prefrontal convergence, trofs, lake funnelling, etc. used 18 UTC data from June 2008 to May 2009 Model performance ranked (1 st, 2 nd, 3 rd ) based on subjective comparison of mesoscale features against observations (sfc winds, radar reflectivity, vis sat) Ties were always ranked as 2 (1-2-2, 2-2-3, 2-2-2)

4 232 mesoscale features were compared from 217 days Overall averaged rankings: LAM – 1.78 RUC – 1.94 REG – 2.19 LAM ranked higher than REG: 115 events or 49.5% RUC ranked higher than REG: 103 events or 44.4% 1s2s3s1s + 2s LAM RUC REG Results - Overall

5 Model rankings have clear monthly differences LAM model superior Aug-Oct and Feb-Mar, worse than REG Nov and Jan RUC model superior Nov-Jan and Apr-May, worse than REG Oct and Mar No month has REG the highest ranked model Results – By Month

6 Model ranking also has clear differences based on feature type LAM superior with early and late season lake breezes, worse than REG for winter land breezes RUC superior with low positions, worse than REG for early- and late- season lake breezes REG does well with winter land breezes Results – By Feature Type (N=25) (N=19) (N=32) (N=105) (N=21) (N=23)

7 Results – By Convection Is there a difference for summer convective environments? Very little change for convection vs. no convection Model rankings consistent as well Summer – All Events Summer - Convection Summer – No Convection LAM RUC REG

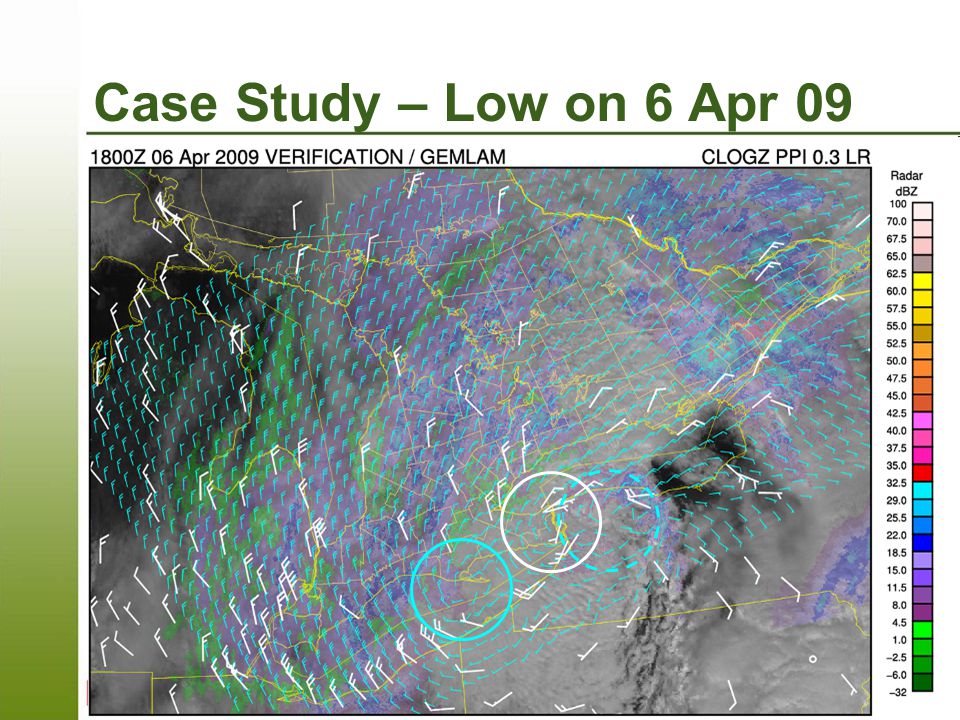

8 Case Study – Low on 6 Apr 09

9

10

11 Late Season Lake Breezes - 15 Oct 09

12

13

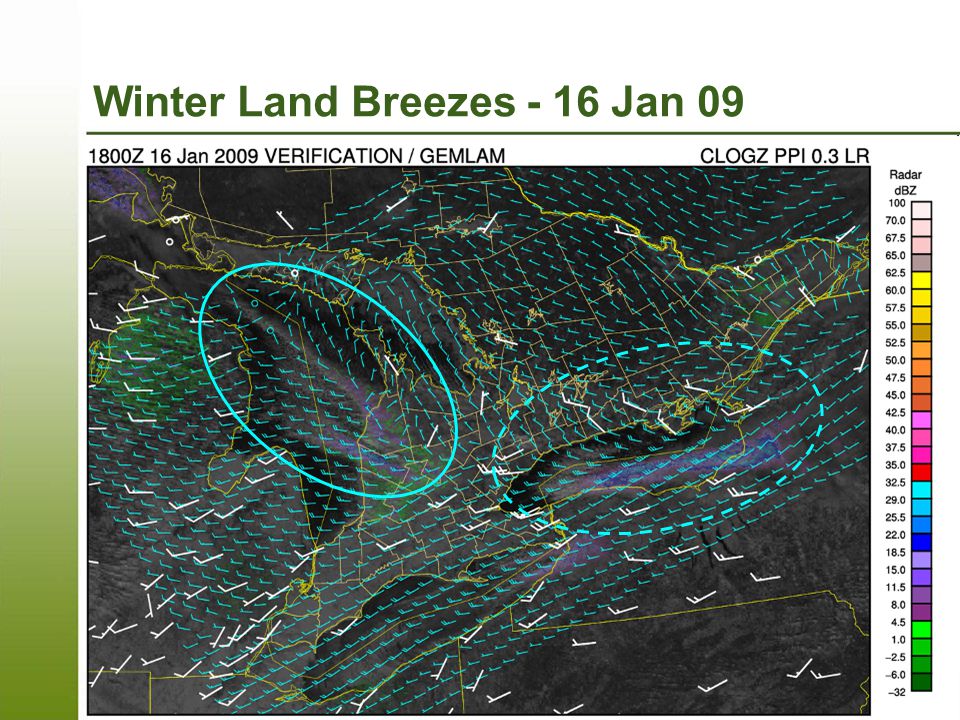

14 Winter Land Breezes - 16 Jan 09

15

16

17 Conclusions Overall, the mesoscale features generated by the LAM and the RUC were closer to observations than the REG, with LAM having the highest averaged ranking There were clear monthly differences in model rankings, as well in differences due to feature type

18 Conclusions Contd The LAM and RUC ranked about the same for summer lake breezes and warm/cold fronts The LAM ranked first for early- and late- season lake breezes, while RUC ranked first for low positions LAM ranked last for winter land breezes, while RUC ranked last for early- and late- season lake breezes

19 There appeared to be little difference between events with convection and events without convection This is a preliminary investigation – a more objective approach and larger sample sizes are needed Would a high-resolution LAM with an hourly data assimilation cycle produce even better results? Conclusions Contd

20 Thank you!
