1 Soil Phosphorus Tests in the North-Central Region Antonio Mallarino Iowa State University

2 Basics of Soil Testing A relative measurement of nutrient sufficiency for plants. Tests measure an amount of nutrient that is proportional to the amount actual available for plants. Many P tests are used and measure different amounts of P. The amount measured has no meaning by itself and cannot by used without calibration.

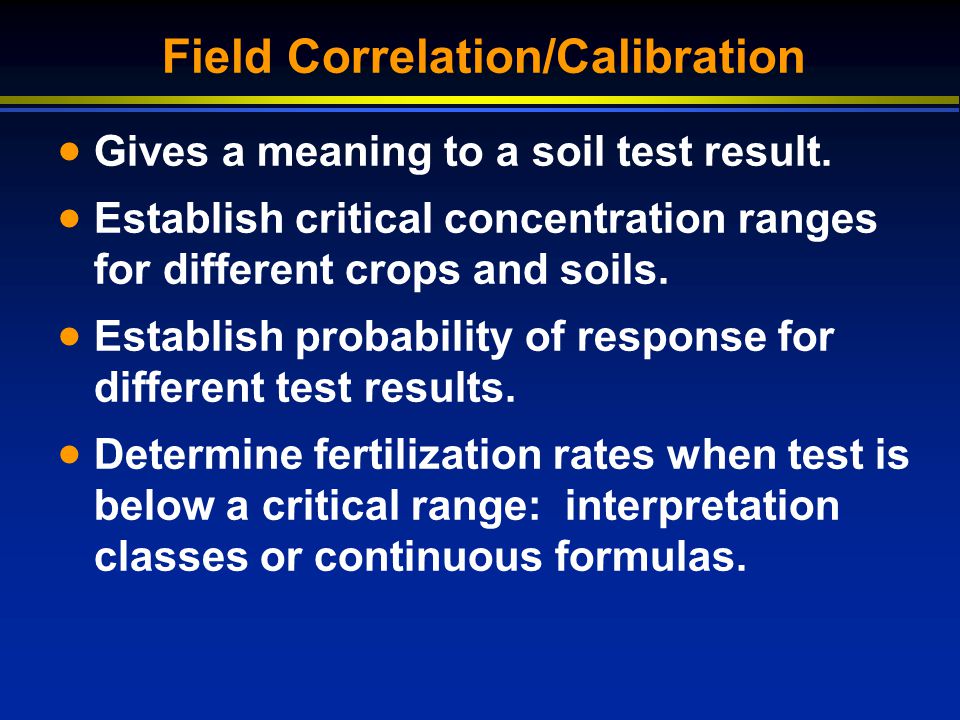

3 Field Correlation/Calibration Gives a meaning to a soil test result. Establish critical concentration ranges for different crops and soils. Establish probability of response for different test results. Determine fertilization rates when test is below a critical range: interpretation classes or continuous formulas.

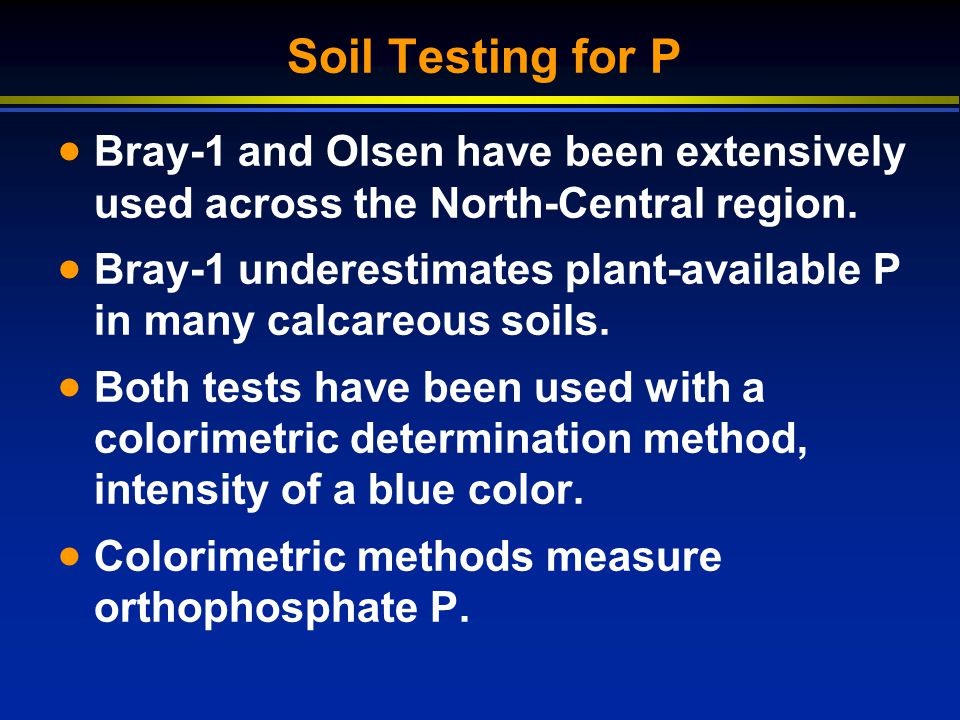

4 Soil Testing for P Bray-1 and Olsen have been extensively used across the North-Central region. Bray-1 underestimates plant-available P in many calcareous soils. Both tests have been used with a colorimetric determination method, intensity of a blue color. Colorimetric methods measure orthophosphate P.

5 Common Extractive Solutions Bray-1: HCl + NH 4 F Olsen or bicarbonate: NaHCO 3 (pH 8.5). Mehlich-3:CH 3 COOH + HNO 3 + NH 4 F + EDTA NH 4 NO 3 + EDTA

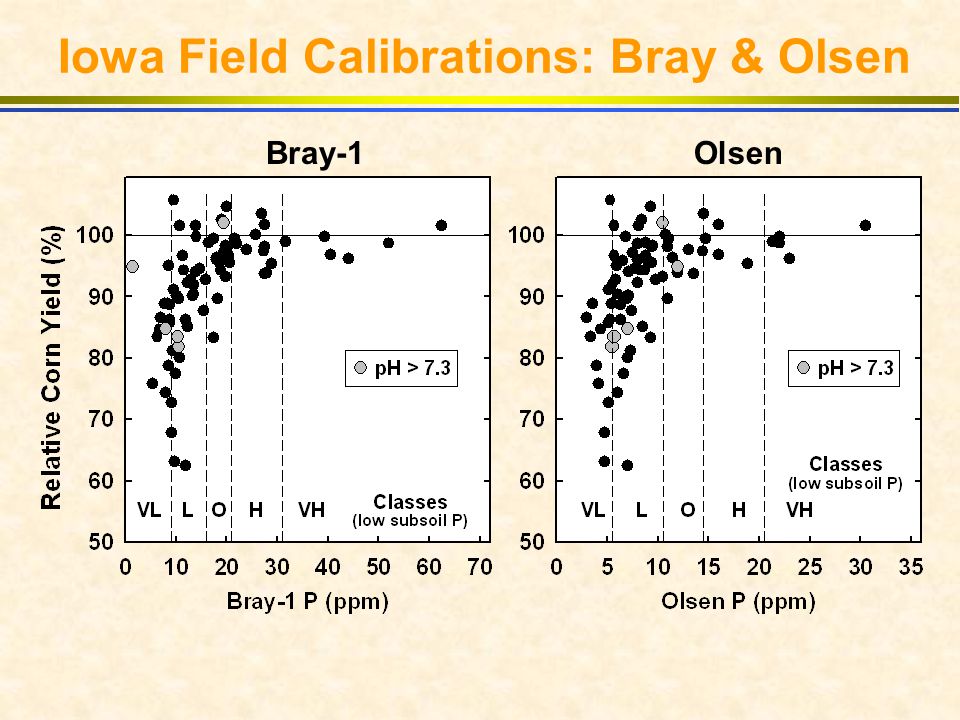

6 Iowa Field Calibrations: Bray & Olsen Bray-1Olsen

7 The Mehlich-3 Extractant M3 extractant began to be used in the NC Region for P, K, Ca, Mg, and some micronutrients during the late 1990s. The NCR-13 committee included the M3 among procedures for P, K, Ca, and Mg. Iowa published field calibrations for M3- K and the M3-P colorimetric in 1999. M3- P is similar to Bray-1 P, except in some high-pH soils.


9 Bray-1 Vs M3 and Soil pH

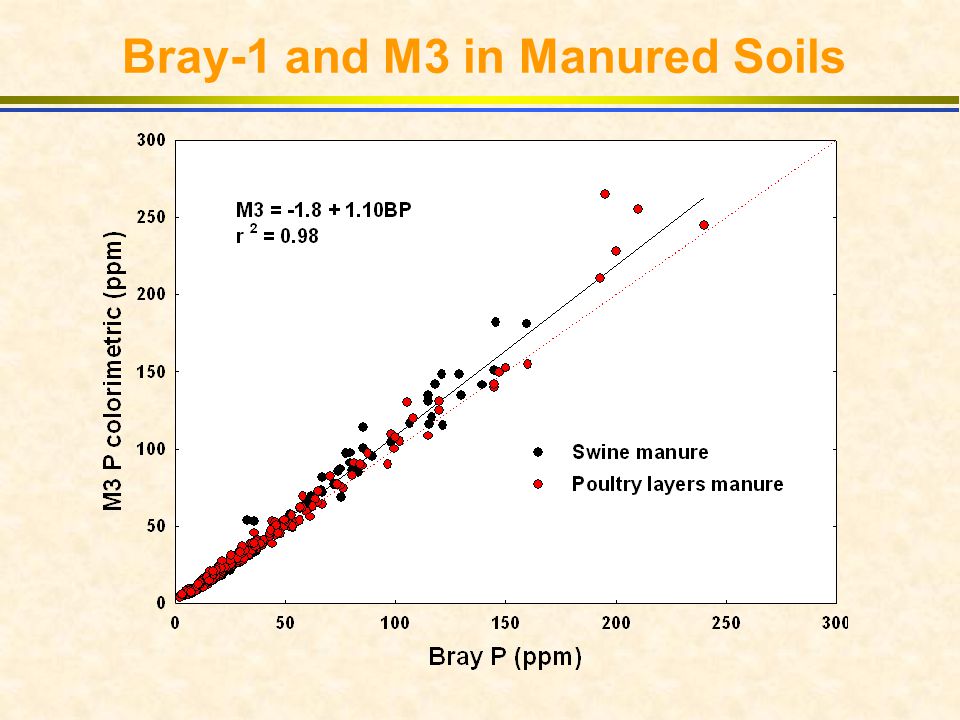

10 Bray-1 and M3 in Manured Soils

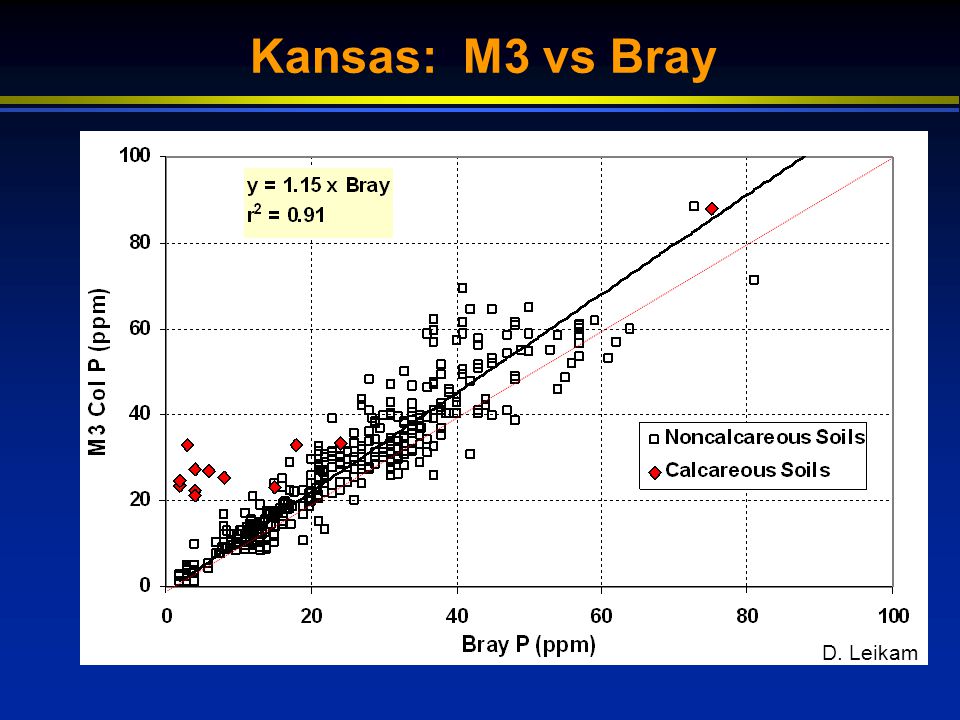

11 Kansas: M3 vs Bray D. Leikam

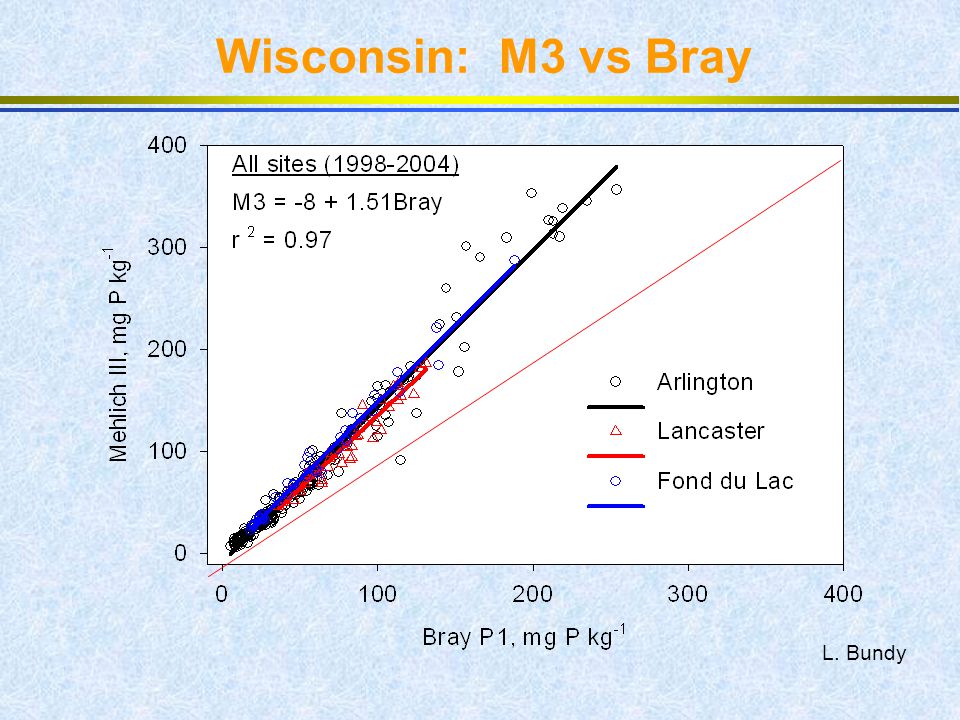

12 Wisconsin: M3 vs Bray L. Bundy

13 Iowa Field Calibrations: Bray and M3 Bray-1M3 Colorimetric

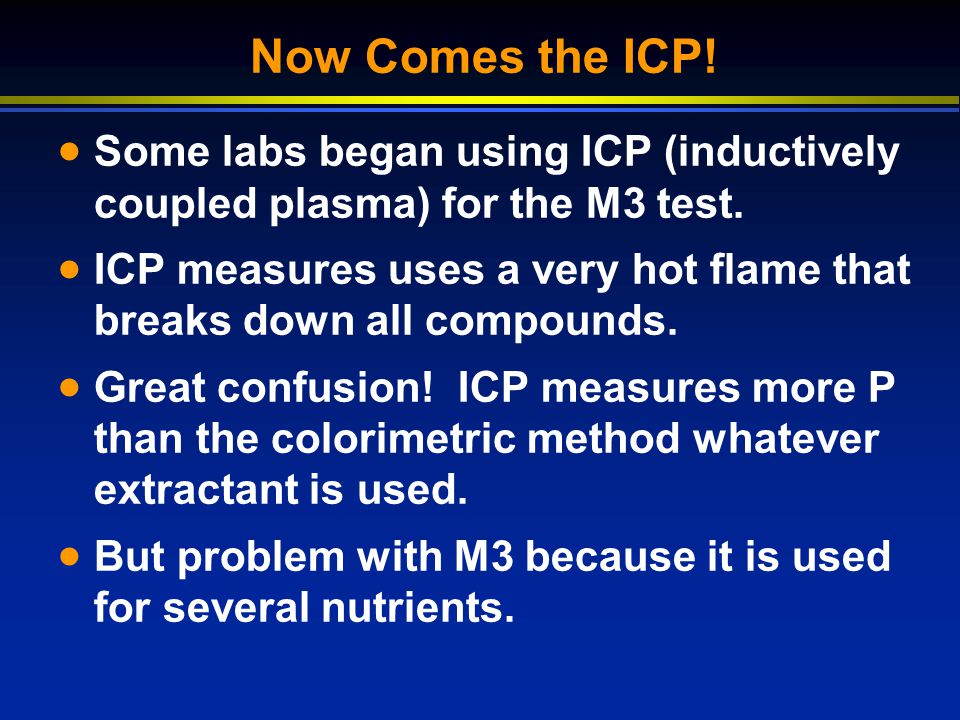

14 Now Comes the ICP! Some labs began using ICP (inductively coupled plasma) for the M3 test. ICP measures uses a very hot flame that breaks down all compounds. Great confusion! ICP measures more P than the colorimetric method whatever extractant is used. But problem with M3 because it is used for several nutrients.

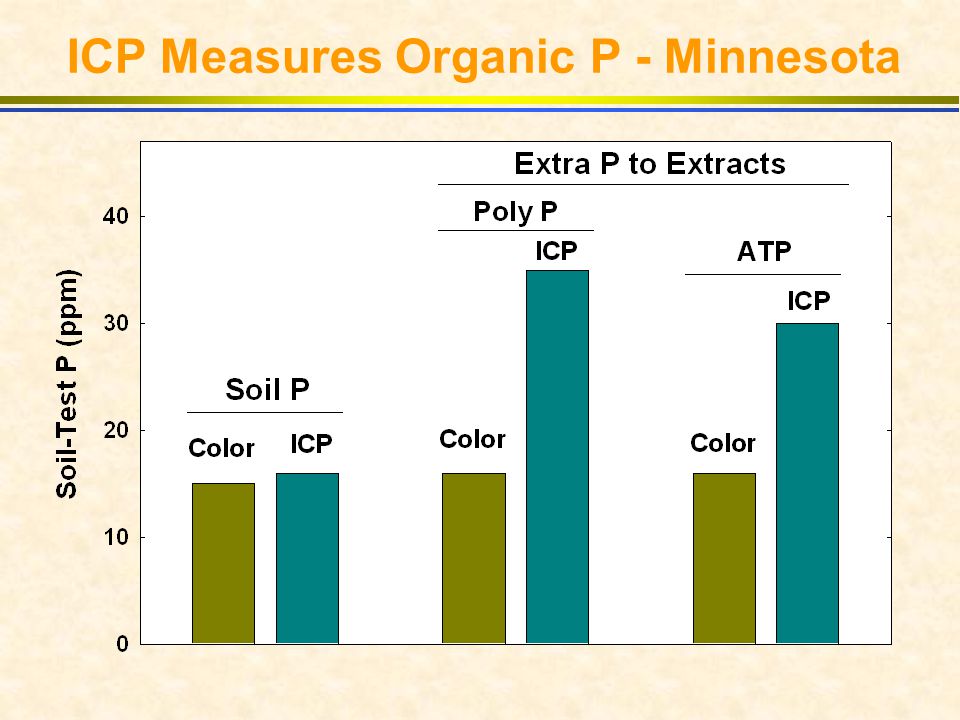

15 ICP Measures Organic P - Minnesota

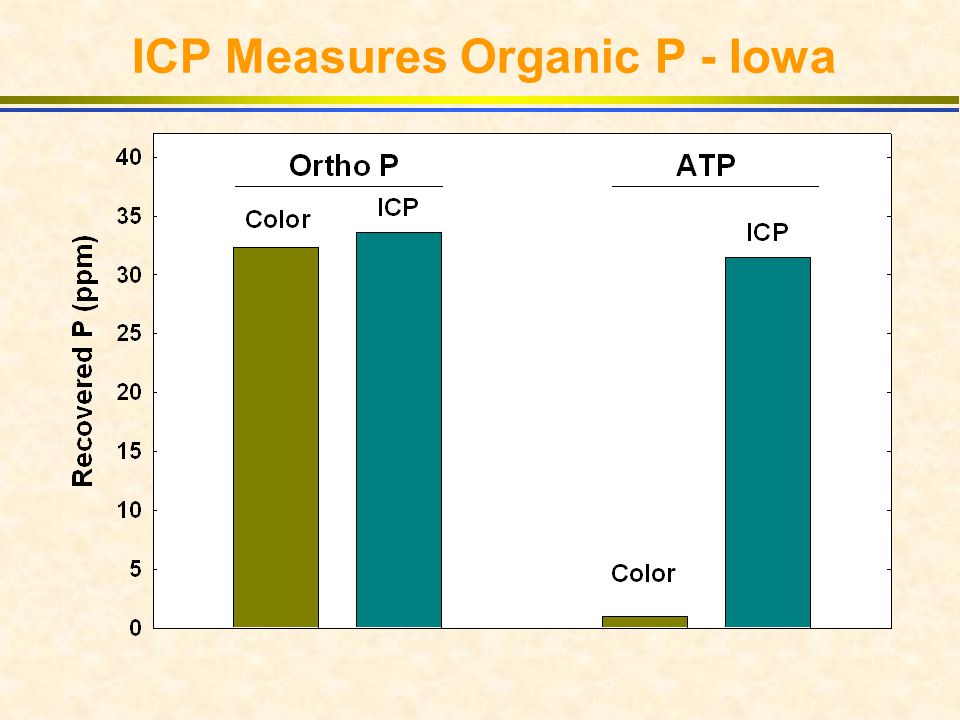

16 ICP Measures Organic P - Iowa

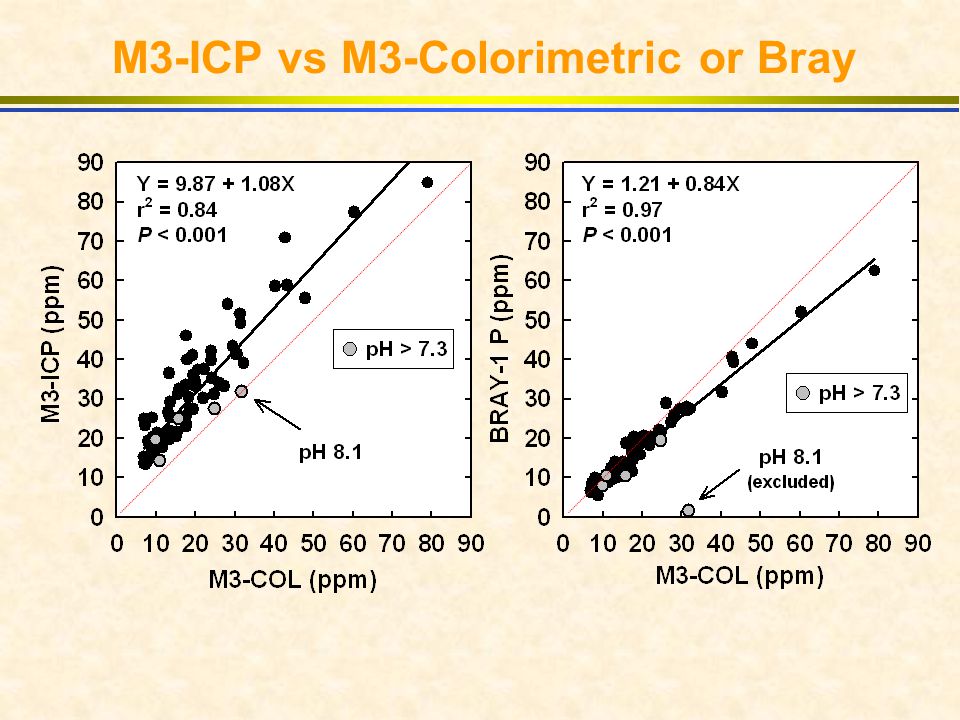

17 M3-ICP vs M3-Colorimetric or Bray

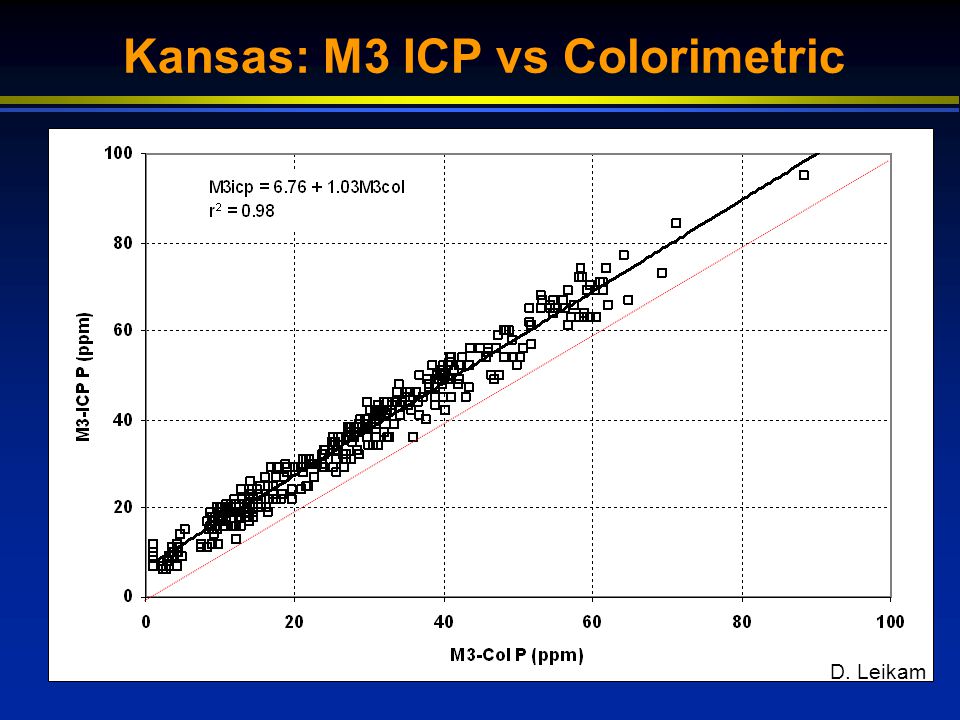

18 Kansas: M3 ICP vs Colorimetric D. Leikam

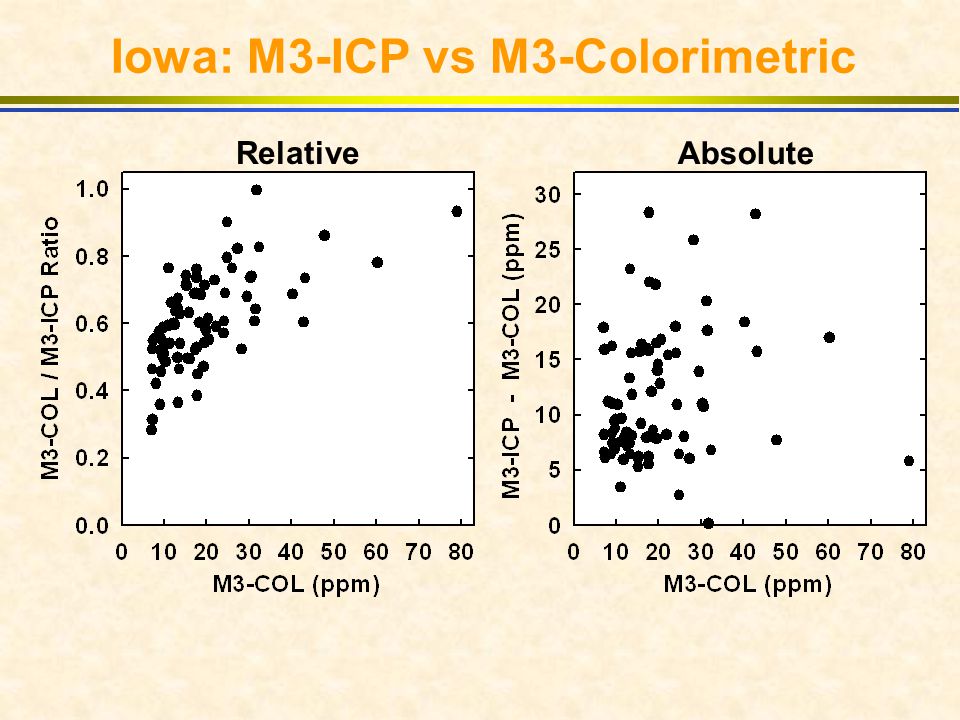

19 Iowa: M3-ICP vs M3-Colorimetric Relative Absolute

20 Kansas: M3 Colorimetric/ICP Ratio D. Leikam

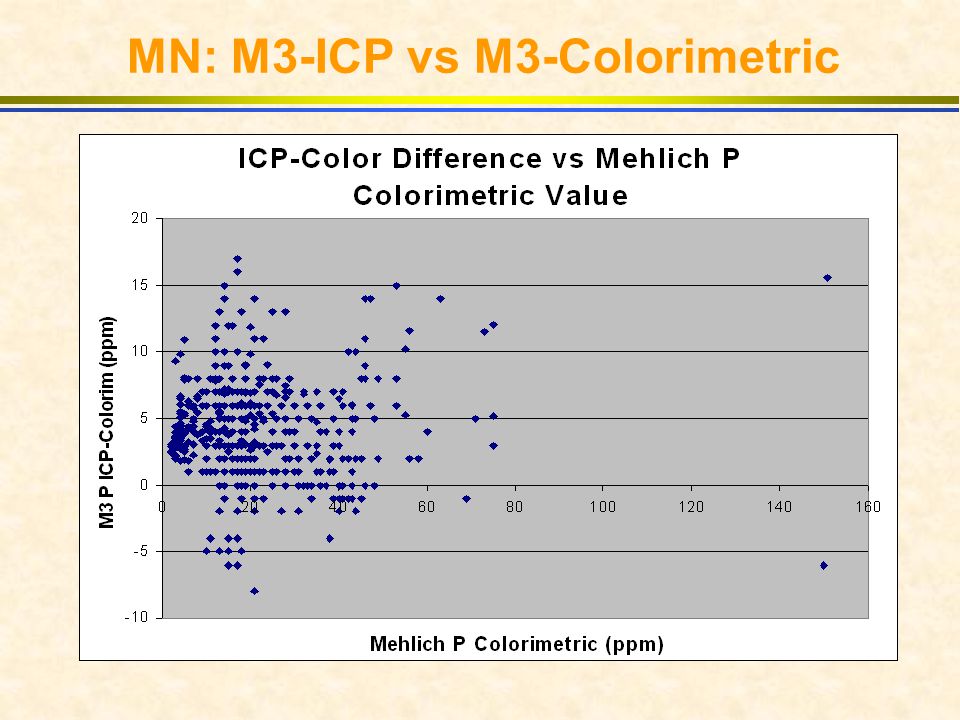

21 MN: M3-ICP vs M3-Colorimetric

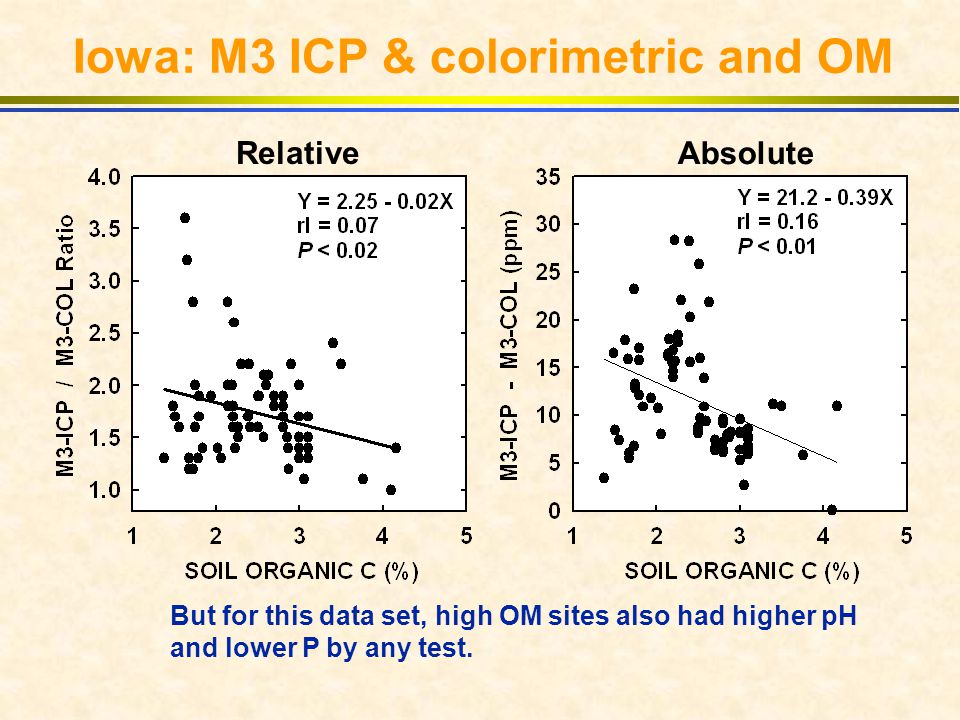

22 Iowa: M3 ICP & colorimetric and OM Relative Absolute But for this data set, high OM sites also had higher pH and lower P by any test.

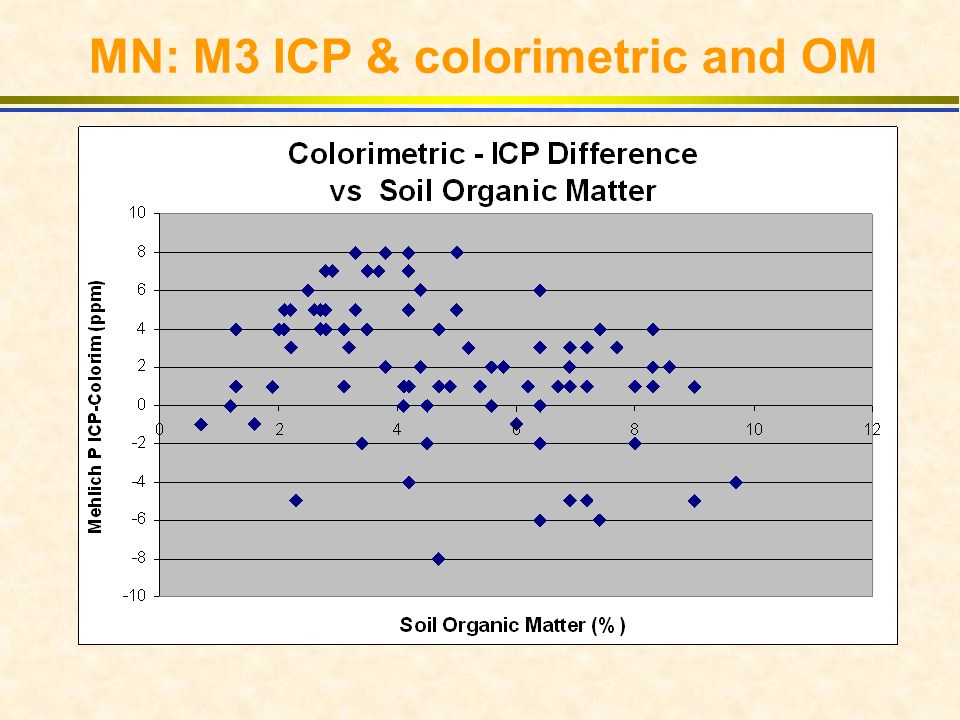

23 MN: M3 ICP & colorimetric and OM

24 Iowa: M3 ICP & colorimetric and pH Relative Absolute But for this data set, high pH sites also had higher OM and lower P by any test.

25 MN: M3 ICP & colorimetric and pH

26 NCR-13 M3 ICP-Colorimetric Work ICP extra P seems to be derived from soluble organic P compounds. IA, MN, MO: No relationship with soil organic matter or manure history. Not clear results for pH. Sometimes ICP - Colorimetric difference is smaller for high- pH soils, but often have less P. Many public and private labs: P from ICP correlates well with colorimetric P but there is no reliable, constant factor.

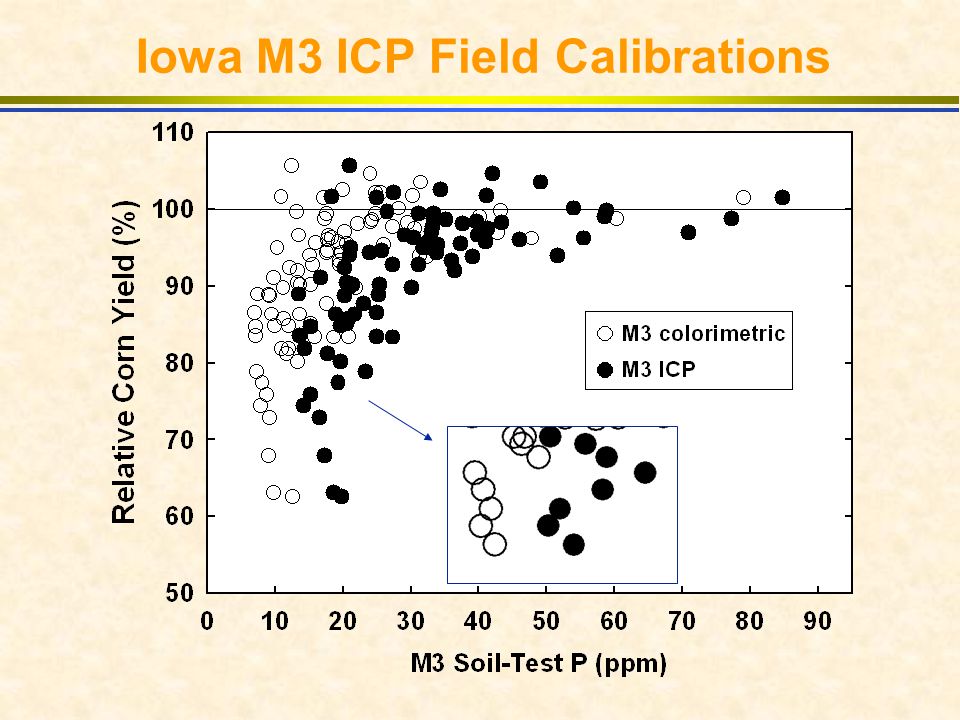

27 Iowa M3 ICP Field Calibrations


29 Critical Soil P Concentrations Model Bray-1M3-Col M3-ICP ------------------- ppm P ------------------ Cate-Nelson 13 16 20 Lin-Plateau 20 21 32 Quad-Plateau 26 28 43

30 Iowa M3 ICP & Color Interpretations ColorimetricICP

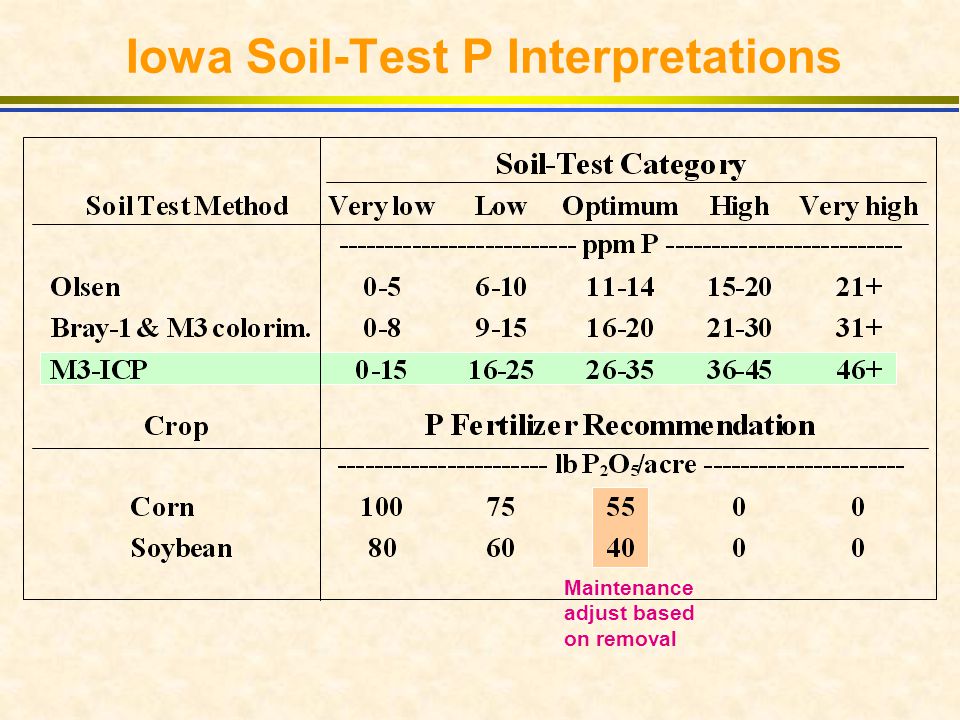

31 Maintenance adjust based on removal Iowa Soil-Test P Interpretations

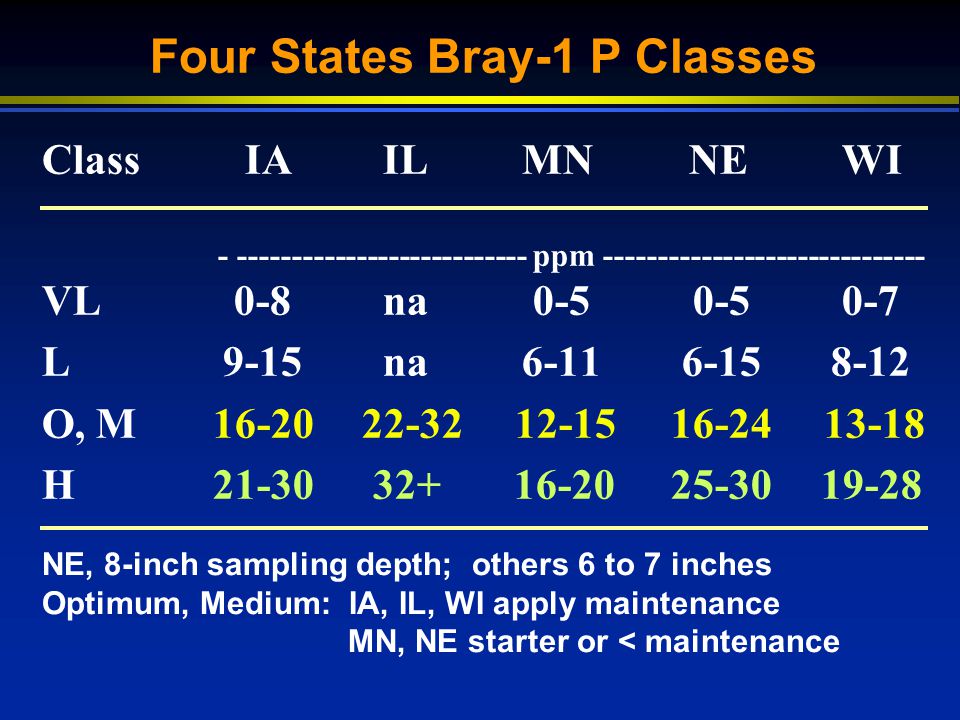

32 Four States Bray-1 P Classes Class IA ILMN NE WI - --------------------------- ppm ------------------------------ VL0-8 na 0-5 0-5 0-7 L 9-15 na6-11 6-15 8-12 O, M 16-20 22-32 12-15 16-24 13-18 H 21-30 32+ 16-20 25-30 19-28 NE, 8-inch sampling depth; others 6 to 7 inches Optimum, Medium: IA, IL, WI apply maintenance MN, NE starter or < maintenance

33 Environmental Soil Phosphorus Tests

34 Dissolved P in Runoff

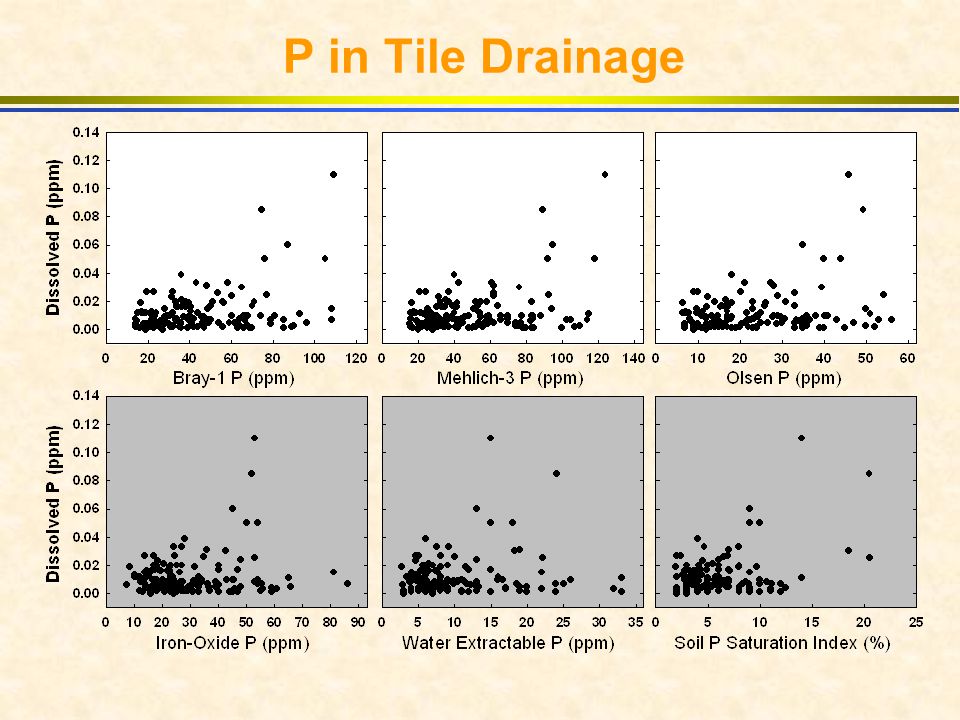

35 P in Tile Drainage

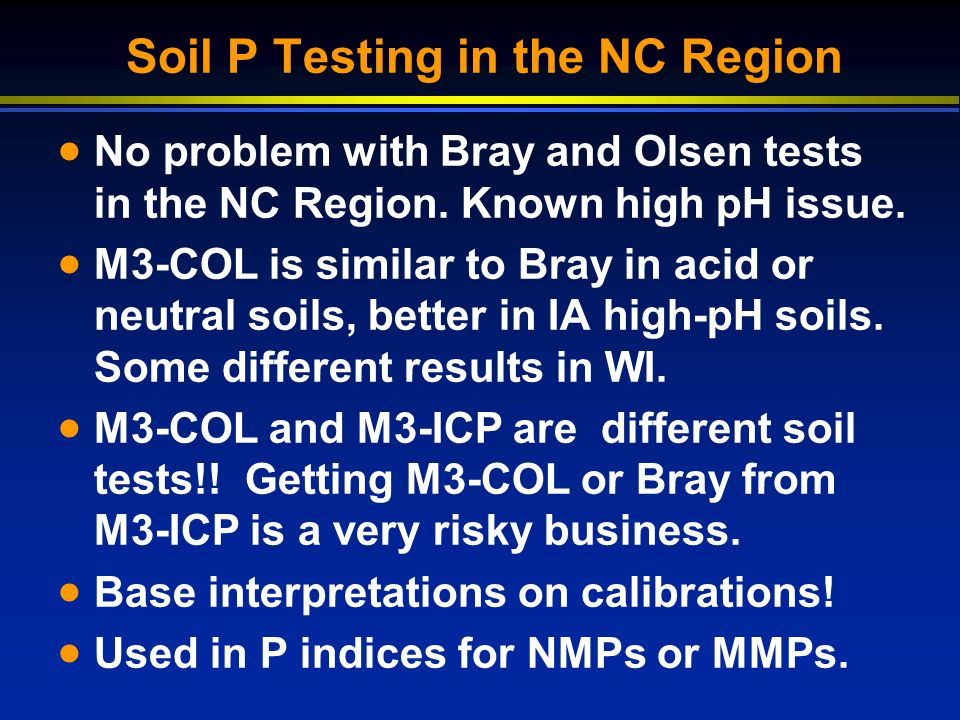

36 Soil P Testing in the NC Region No problem with Bray and Olsen tests in the NC Region. Known high pH issue. M3-COL is similar to Bray in acid or neutral soils, better in IA high-pH soils. Some different results in WI. M3-COL and M3-ICP are different soil tests!! Getting M3-COL or Bray from M3-ICP is a very risky business. Base interpretations on calibrations! Used in P indices for NMPs or MMPs.
