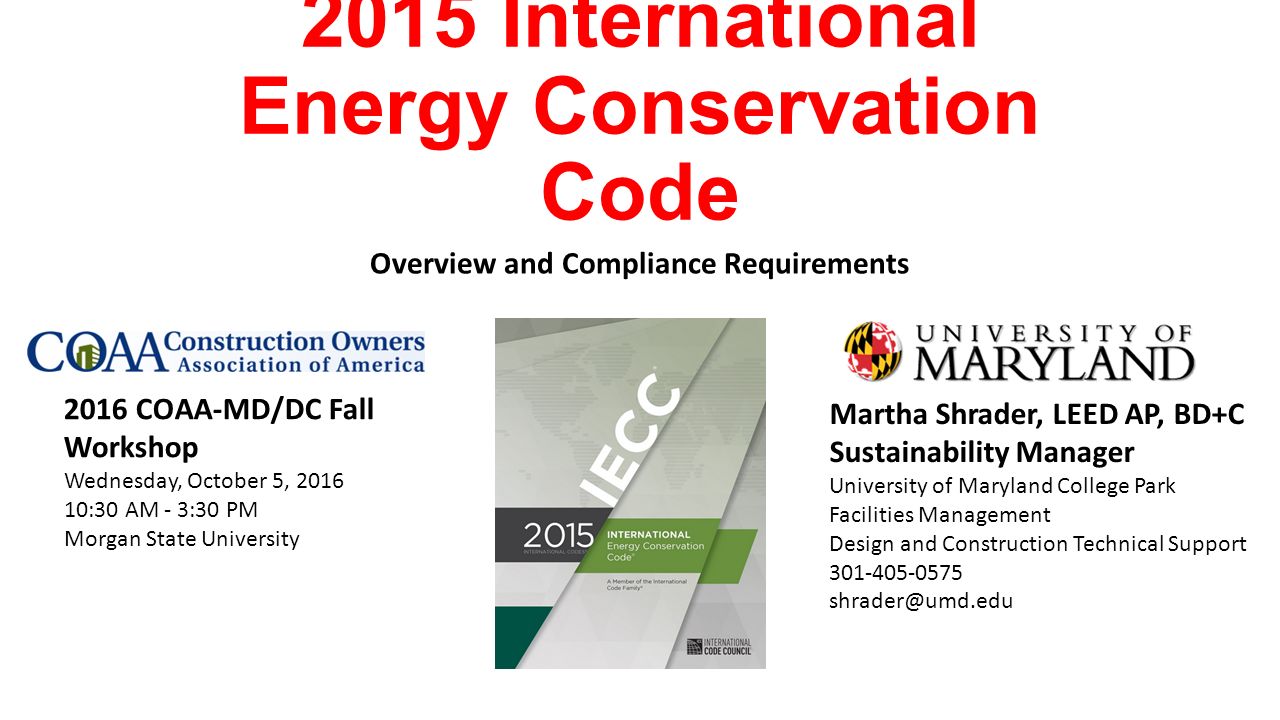

1. 2015 International Energy Conservation Code Overview and Compliance Requirements Martha Shrader, LEED AP, BD+C Sustainability Manager University of Maryland College Park Facilities Management Design and Construction Technical Support 301-405-0575 shrader@umd.edu 2016 COAA-MD/DC Fall Workshop Wednesday, October 5, 2016 10:30 AM - 3:30 PM Morgan State University

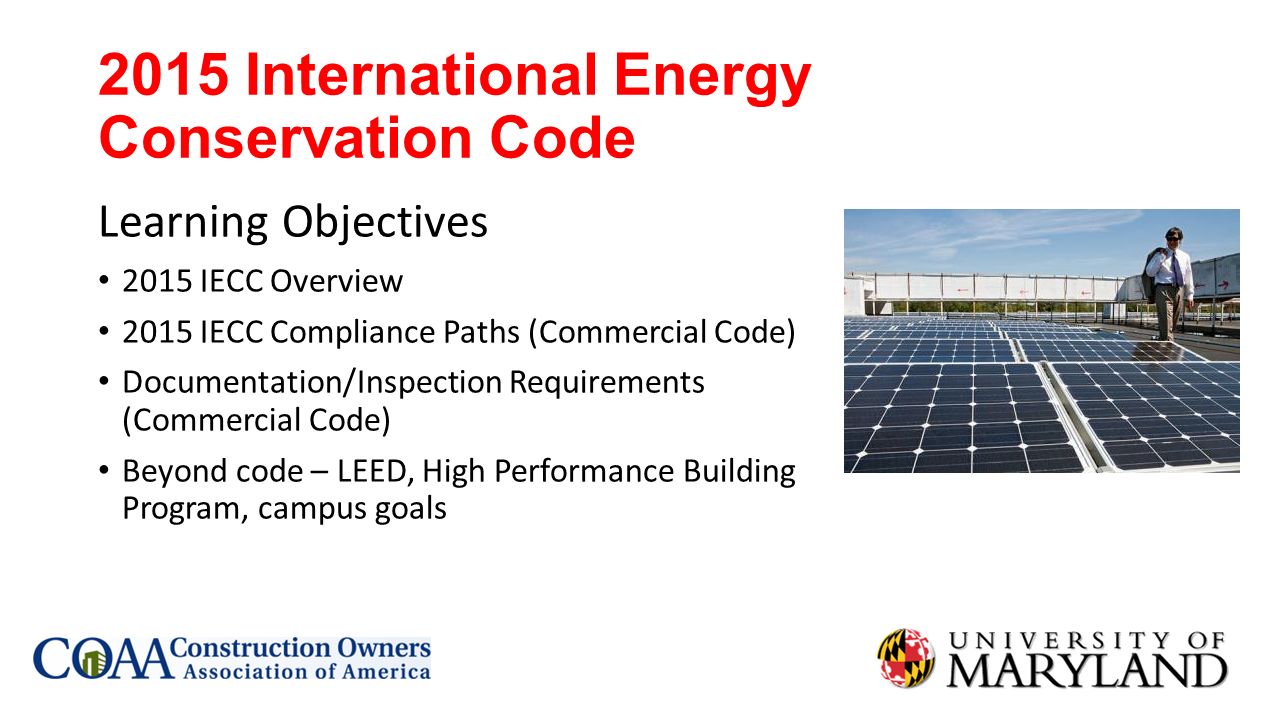

2. 2015 International Energy Conservation Code Learning Objectives 2015 IECC Overview 2015 IECC Compliance Paths (Commercial Code) Documentation/Inspection Requirements (Commercial Code) Beyond code – LEED, High Performance Building Program, campus goals

3. 2015 International Energy Conservation Code Learning Objectives 2015 IECC Overview 2015 IECC Compliance Paths (Commercial Code) Documentation/Inspection Requirements (Commercial Code) Beyond code – LEED, High Performance Building Program, campus goals

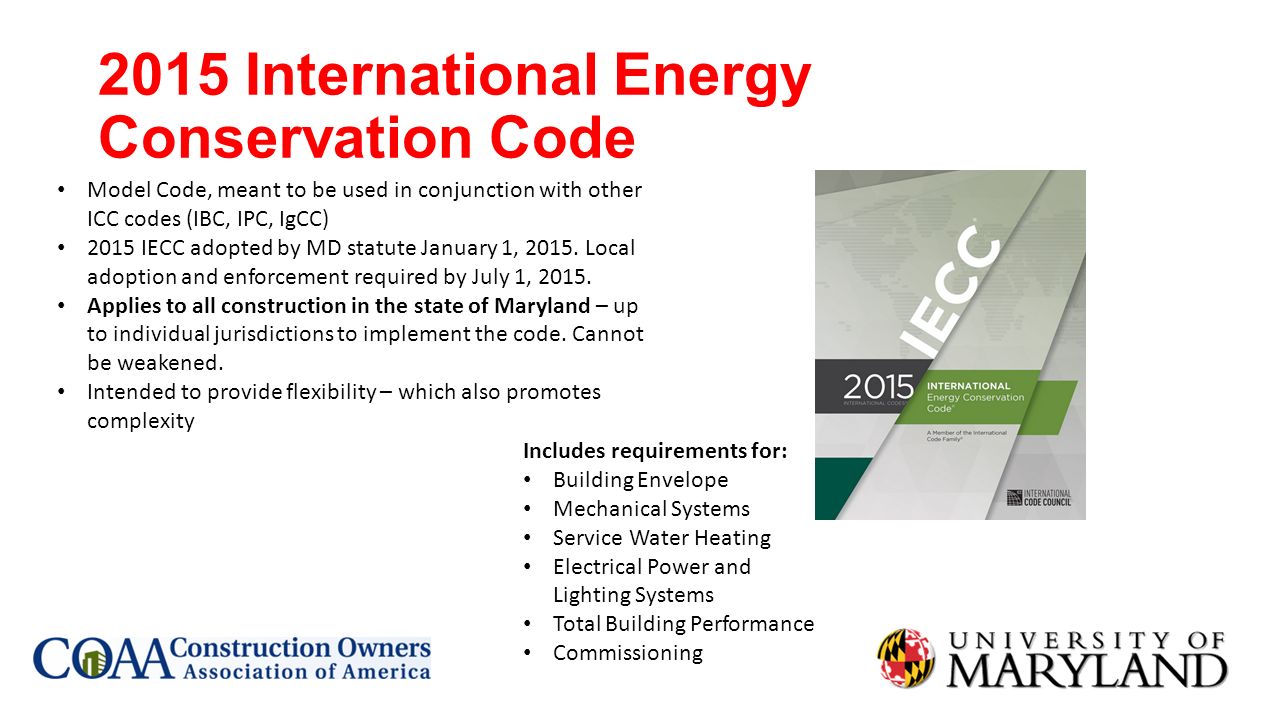

4. 2015 International Energy Conservation Code Model Code, meant to be used in conjunction with other ICC codes (IBC, IPC, IgCC) 2015 IECC adopted by MD statute January 1, 2015. Local adoption and enforcement required by July 1, 2015. Applies to all construction in the state of Maryland – up to individual jurisdictions to implement the code. Cannot be weakened. Intended to provide flexibility – which also promotes complexity Includes requirements for: Building Envelope Mechanical Systems Service Water Heating Electrical Power and Lighting Systems Total Building Performance Commissioning

5. IECC Definitions Addition: an extension or increase in the conditioned space floor area or height of a building or structure C502.1 General. Additions to an existing building, building system or portion thereof shall conform to the provisions of this code as those provisions relate to new construction without requiring the unaltered portion of the existing building or building system to comply with this code. Repair: the reconstruction or renewal of any part of an existing building for the purpose of its maintenance or to correct damage Section 501.3 Maintenance. Buildings and structures, and parts thereof, shall be maintained in a safe and sanitary condition. Devices and systems that are required by this code shall be maintained in conformance to the code edition under which it was installed…

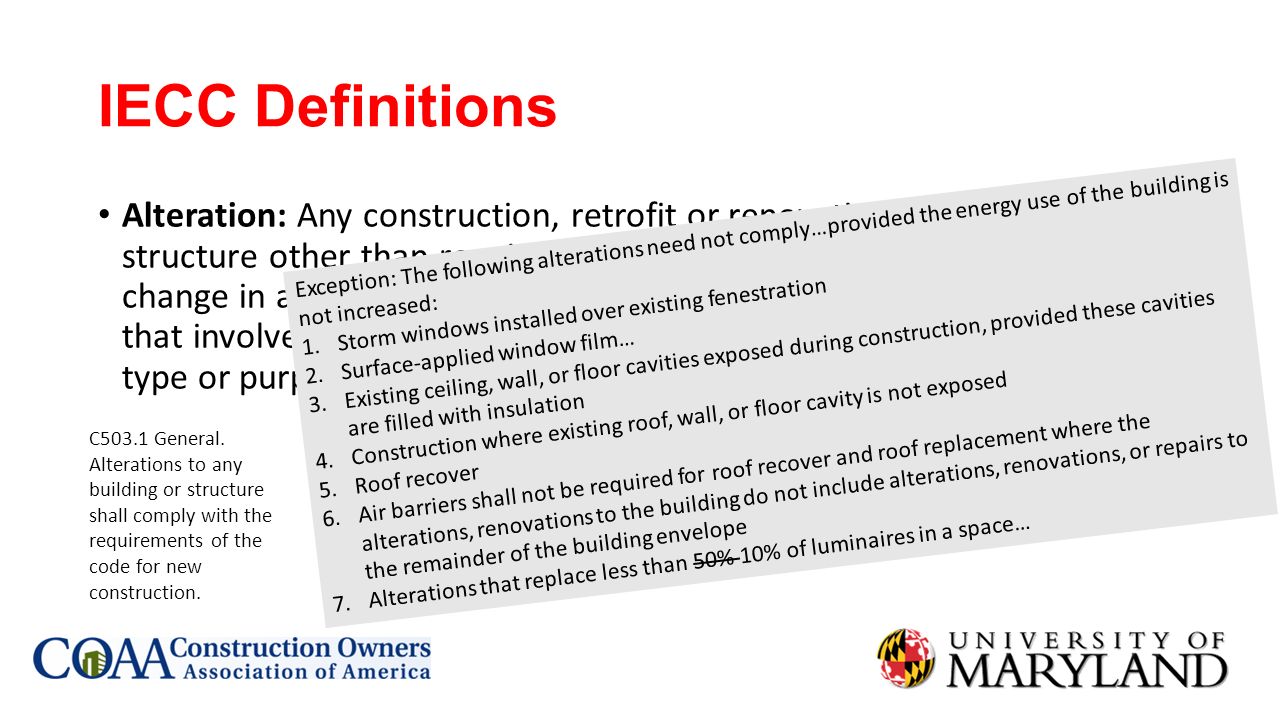

6. IECC Definitions Alteration: Any construction, retrofit or renovation to an existing structure other than repair or addition that requires a permit. Also, a change in a building, electrical, gas, mechanical or plumbing system that involves an extension, addition, or change to the arrangement, type or purpose of the original installation that requires a permit. C503.1 General. Alterations to any building or structure shall comply with the requirements of the code for new construction. Exception: The following alterations need not comply…provided the energy use of the building is not increased: 1.Storm windows installed over existing fenestration 2.Surface-applied window film… 3.Existing ceiling, wall, or floor cavities exposed during construction, provided these cavities are filled with insulation 4.Construction where existing roof, wall, or floor cavity is not exposed 5.Roof recover 6.Air barriers shall not be required for roof recover and roof replacement where the alterations, renovations to the building do not include alterations, renovations, or repairs to the remainder of the building envelope 7.Alterations that replace less than 50% 10% of luminaires in a space…

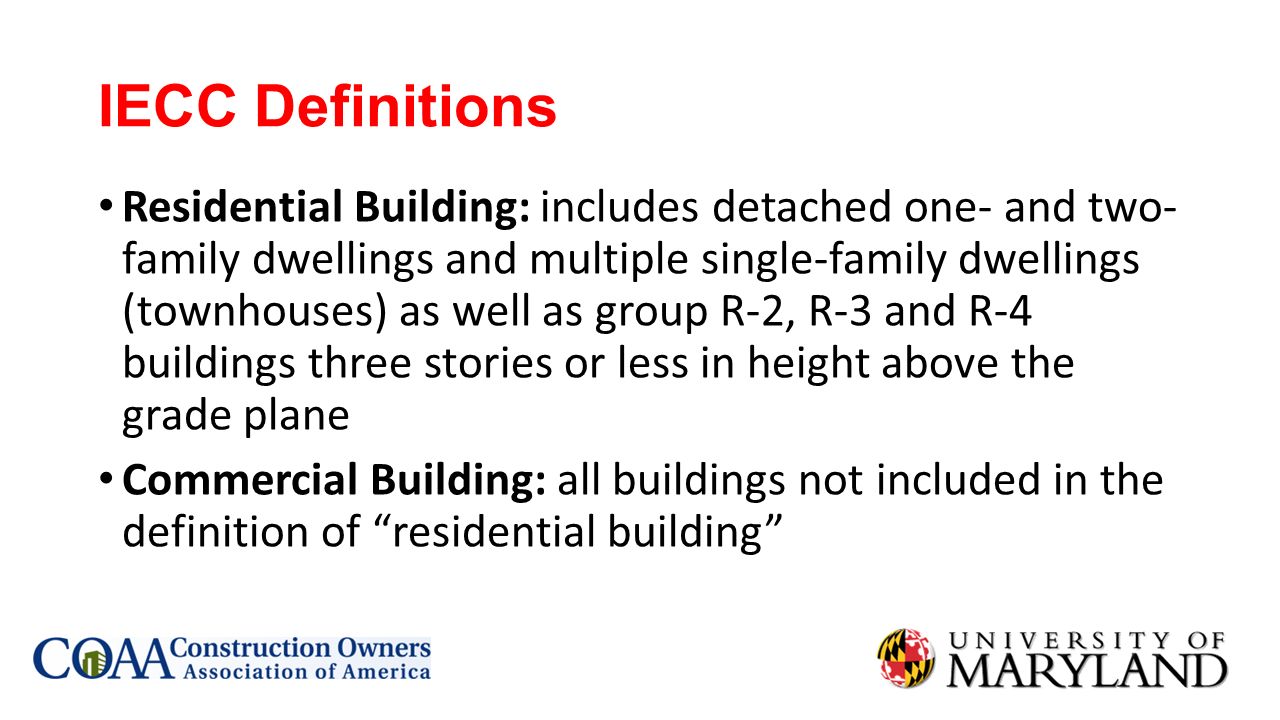

7. IECC Definitions Residential Building: includes detached one- and two- family dwellings and multiple single-family dwellings (townhouses) as well as group R-2, R-3 and R-4 buildings three stories or less in height above the grade plane Commercial Building: all buildings not included in the definition of “residential building”

8. Residential or Commercial? Cambridge Hall – 4 stories above grade – Commercial Code Carroll Hall – 3 stories above grade – Residential Code Mixed use – one story commercial, 2 stories residential – BOTH Commercial and Residential Code Mixed use – one story commercial, four stories residential – Commercial Code

9. 2015 International Energy Conservation Code Learning Objectives 2015 IECC Overview 2015 IECC Compliance Paths (Commercial Code) Documentation/Inspection Requirements (Commercial Code) Beyond code – LEED, High Performance Building Program, campus goals

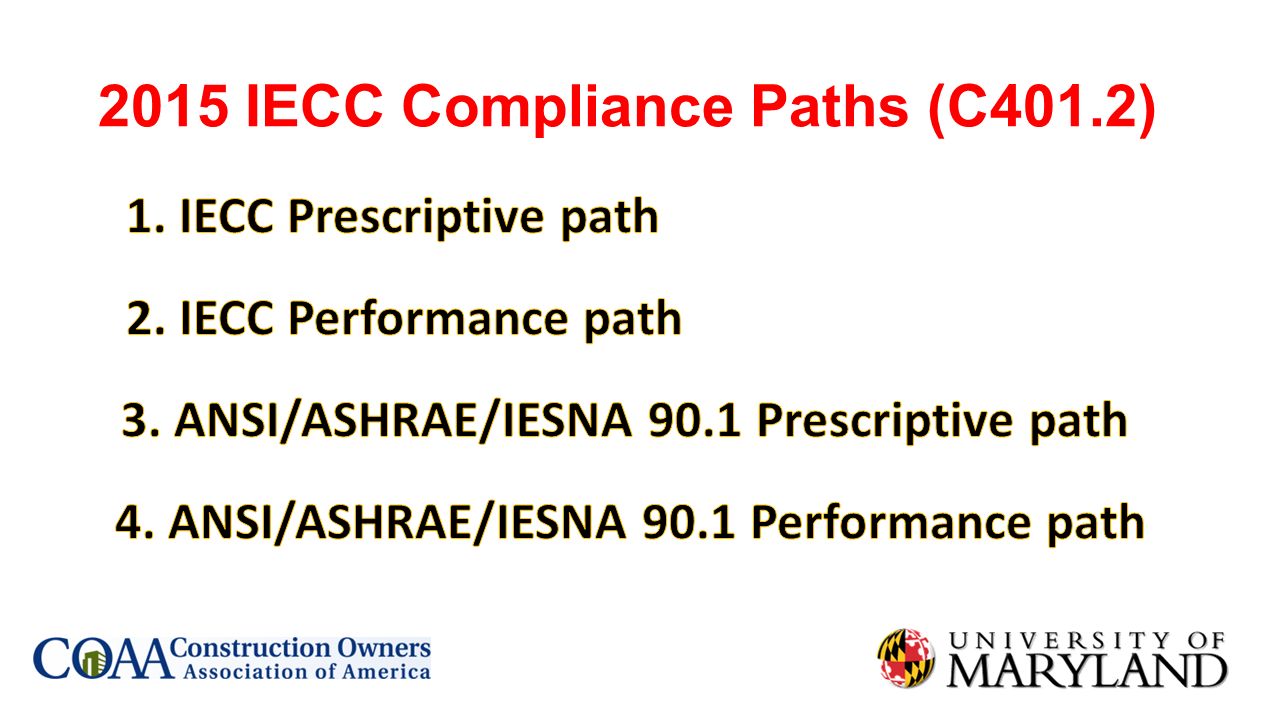

10. 2015 IECC Compliance Paths (C401.2)

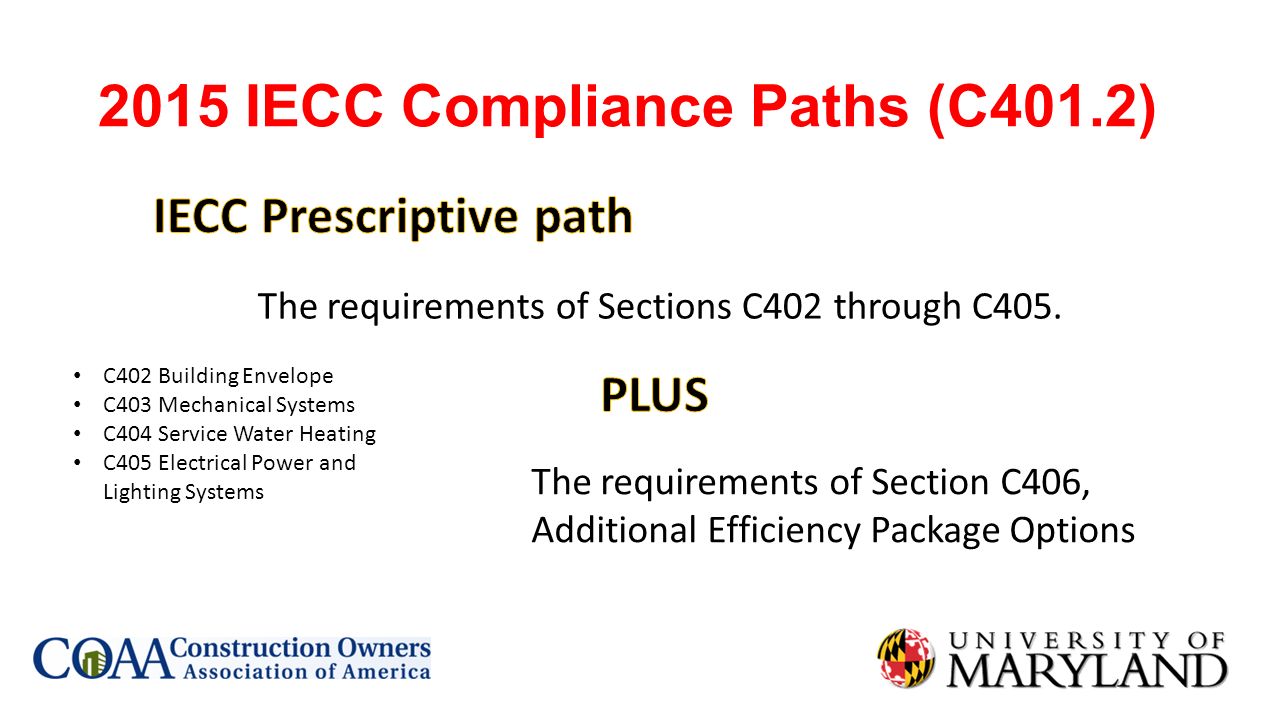

11. The requirements of Sections C402 through C405. The requirements of Section C406, Additional Efficiency Package Options C402 Building Envelope C403 Mechanical Systems C404 Service Water Heating C405 Electrical Power and Lighting Systems

12. IECC Section C406 – Additional Efficiency Package Options Buildings shall comply with at least one of the following  C406.2 More efficient HVAC performance  C406.3 Reduced lighting power density  C406.4 Enhanced lighting controls  C406.5 On-site supply of renewable energy  C406.6 Provision of a dedicated outdoor air system  C406.7 High-efficiency service water heating

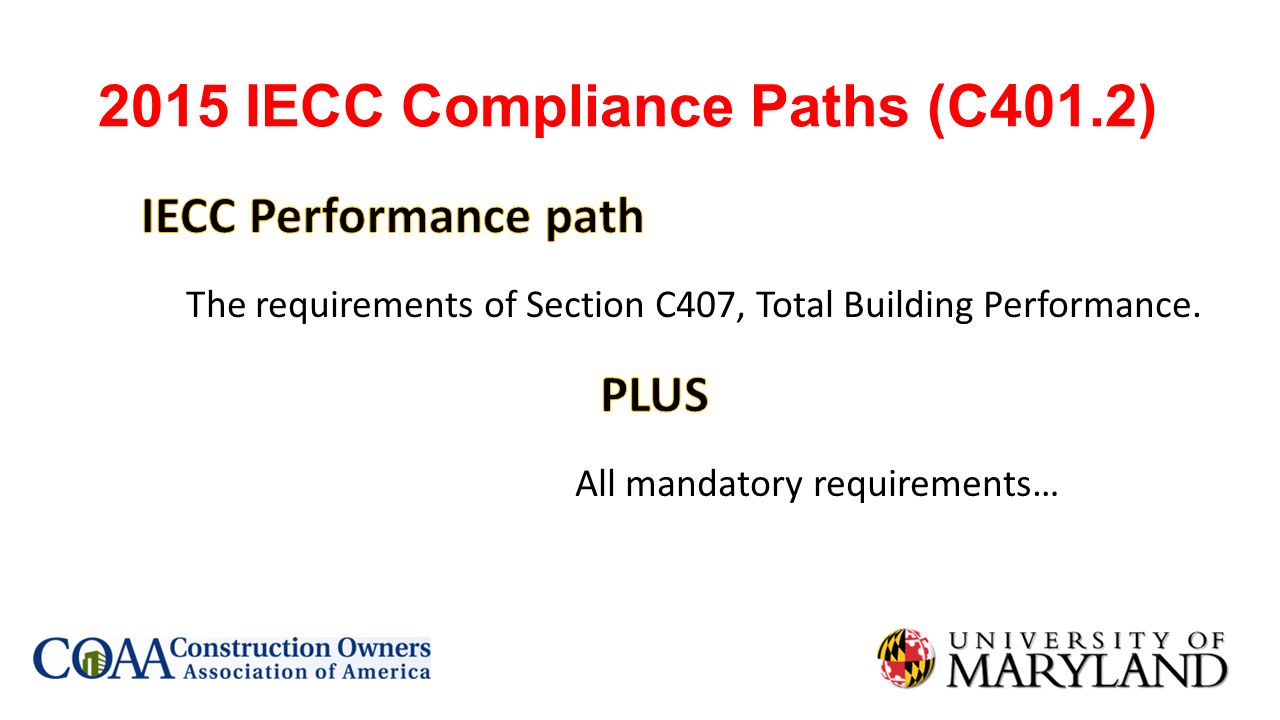

13. 2015 IECC Compliance Paths (C401.2) The requirements of Section C407, Total Building Performance. All mandatory requirements…

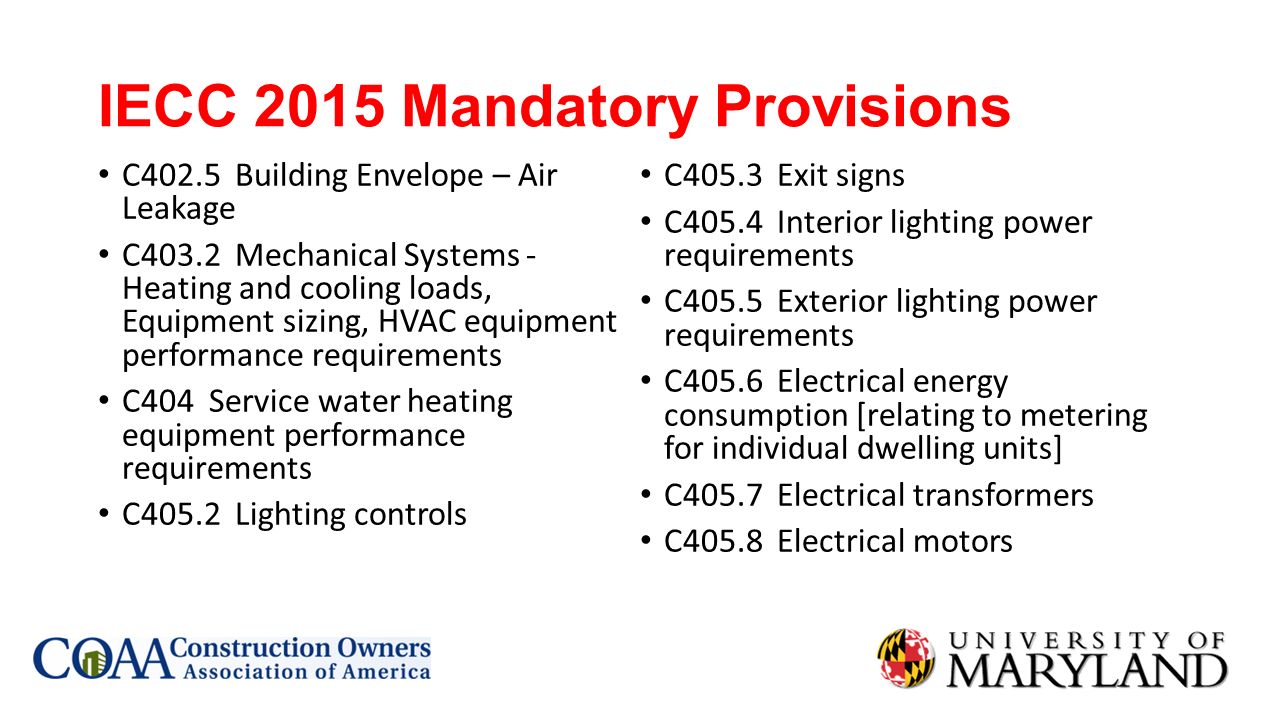

14. IECC 2015 Mandatory Provisions C402.5 Building Envelope – Air Leakage C403.2 Mechanical Systems - Heating and cooling loads, Equipment sizing, HVAC equipment performance requirements C404 Service water heating equipment performance requirements C405.2 Lighting controls C405.3 Exit signs C405.4 Interior lighting power requirements C405.5 Exterior lighting power requirements C405.6 Electrical energy consumption [relating to metering for individual dwelling units] C405.7 Electrical transformers C405.8 Electrical motors

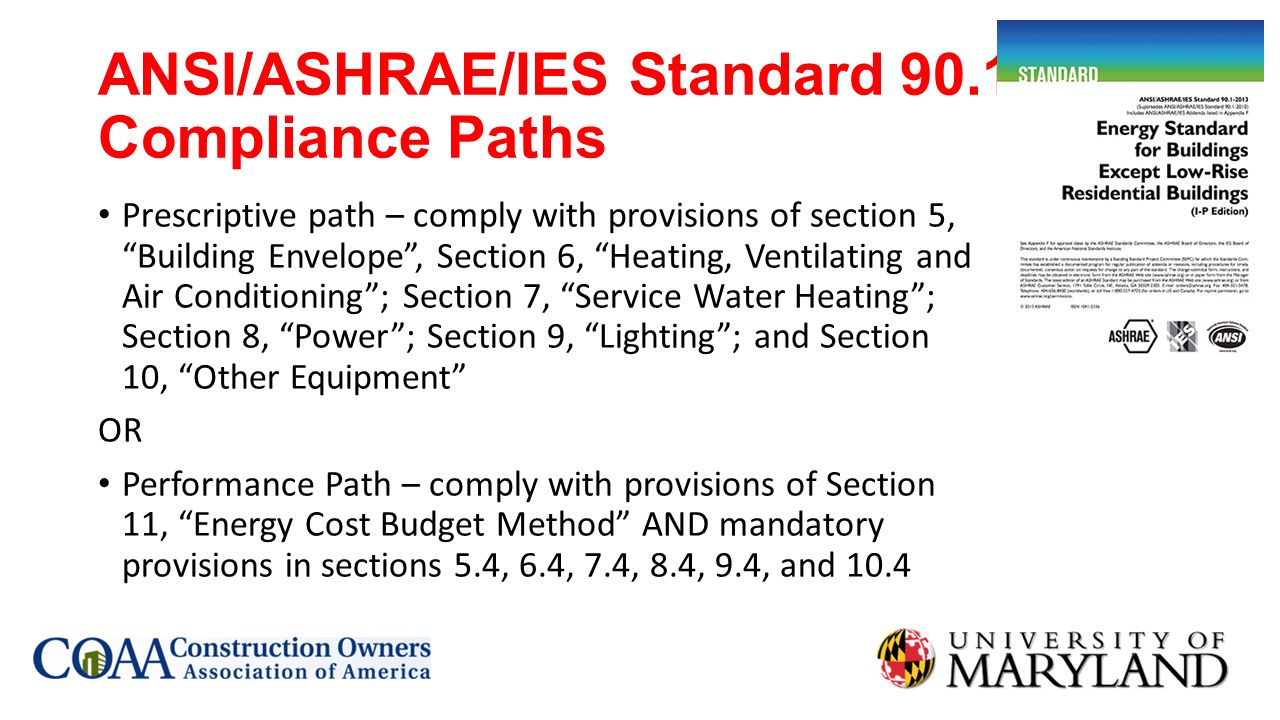

15. ANSI/ASHRAE/IES Standard 90.1-2013 Compliance Paths Prescriptive path – comply with provisions of section 5, “Building Envelope”, Section 6, “Heating, Ventilating and Air Conditioning”; Section 7, “Service Water Heating”; Section 8, “Power”; Section 9, “Lighting”; and Section 10, “Other Equipment” OR Performance Path – comply with provisions of Section 11, “Energy Cost Budget Method” AND mandatory provisions in sections 5.4, 6.4, 7.4, 8.4, 9.4, and 10.4

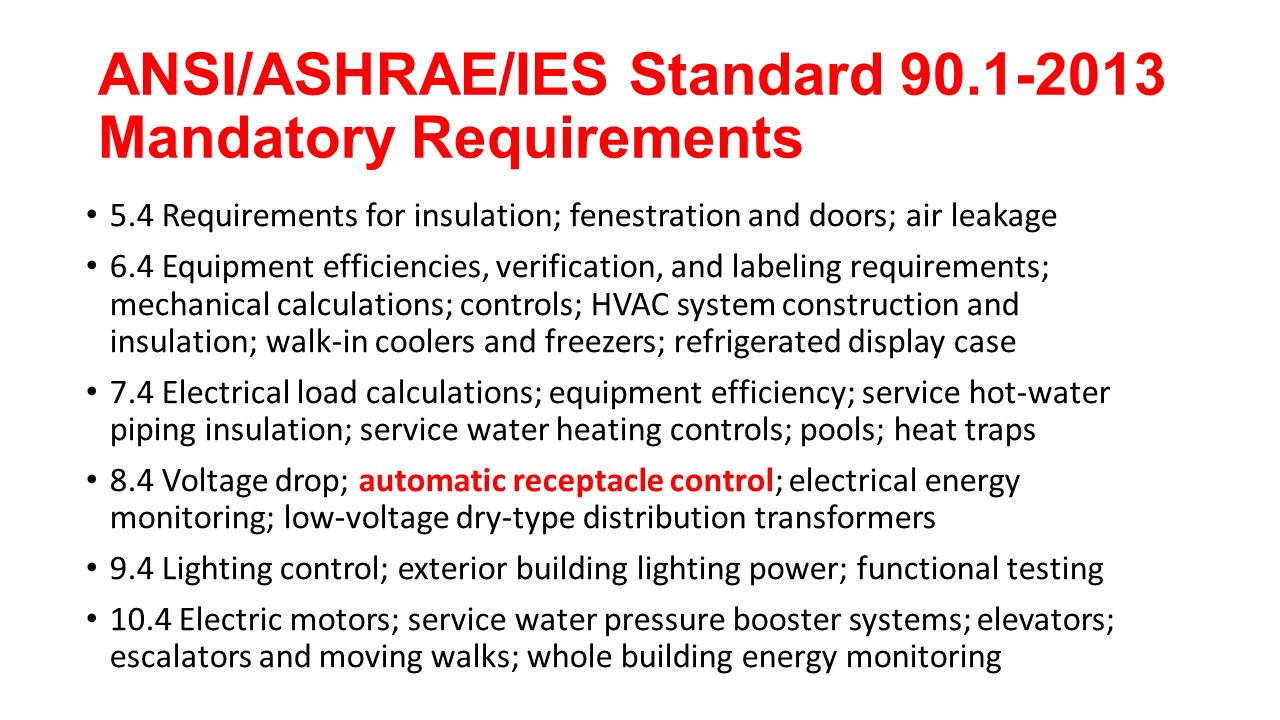

16. ANSI/ASHRAE/IES Standard 90.1-2013 Mandatory Requirements 5.4 Requirements for insulation; fenestration and doors; air leakage 6.4 Equipment efficiencies, verification, and labeling requirements; mechanical calculations; controls; HVAC system construction and insulation; walk-in coolers and freezers; refrigerated display case 7.4 Electrical load calculations; equipment efficiency; service hot-water piping insulation; service water heating controls; pools; heat traps 8.4 Voltage drop; automatic receptacle control; electrical energy monitoring; low-voltage dry-type distribution transformers 9.4 Lighting control; exterior building lighting power; functional testing 10.4 Electric motors; service water pressure booster systems; elevators; escalators and moving walks; whole building energy monitoring

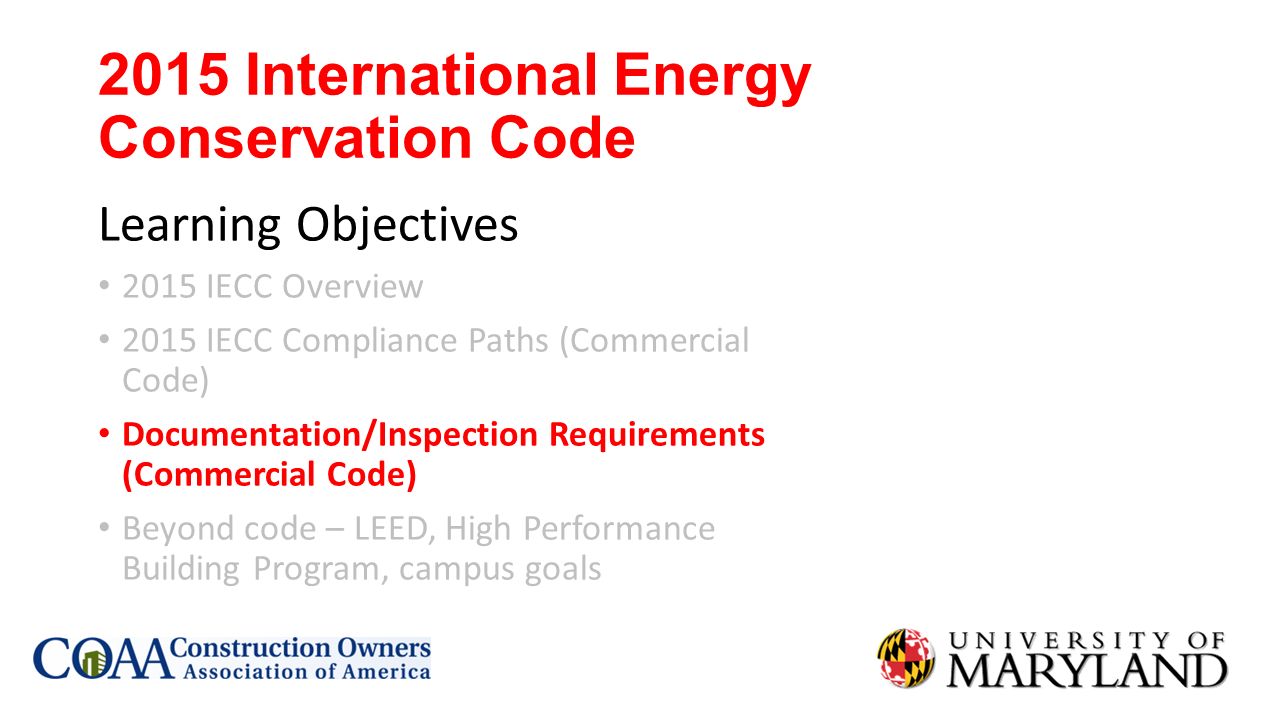

17. 2015 International Energy Conservation Code Learning Objectives 2015 IECC Overview 2015 IECC Compliance Paths (Commercial Code) Documentation/Inspection Requirements (Commercial Code) Beyond code – LEED, High Performance Building Program, campus goals

18. Energy Code Conformance Documentation - Information on construction documents C103.2 Details shall include, but are not limited to, the following [twelve] items as applicable. 1.Insulation materials and R-values 2.Fenestration U-factors and solar heat gain coefficients (SHGC) 3.Area-weighted U-factor and SHGC calculations 4.Mechanical system design criteria 5.Mechanical and service water heating system and equipment types, sizes, and efficiencies 6.Economizer description

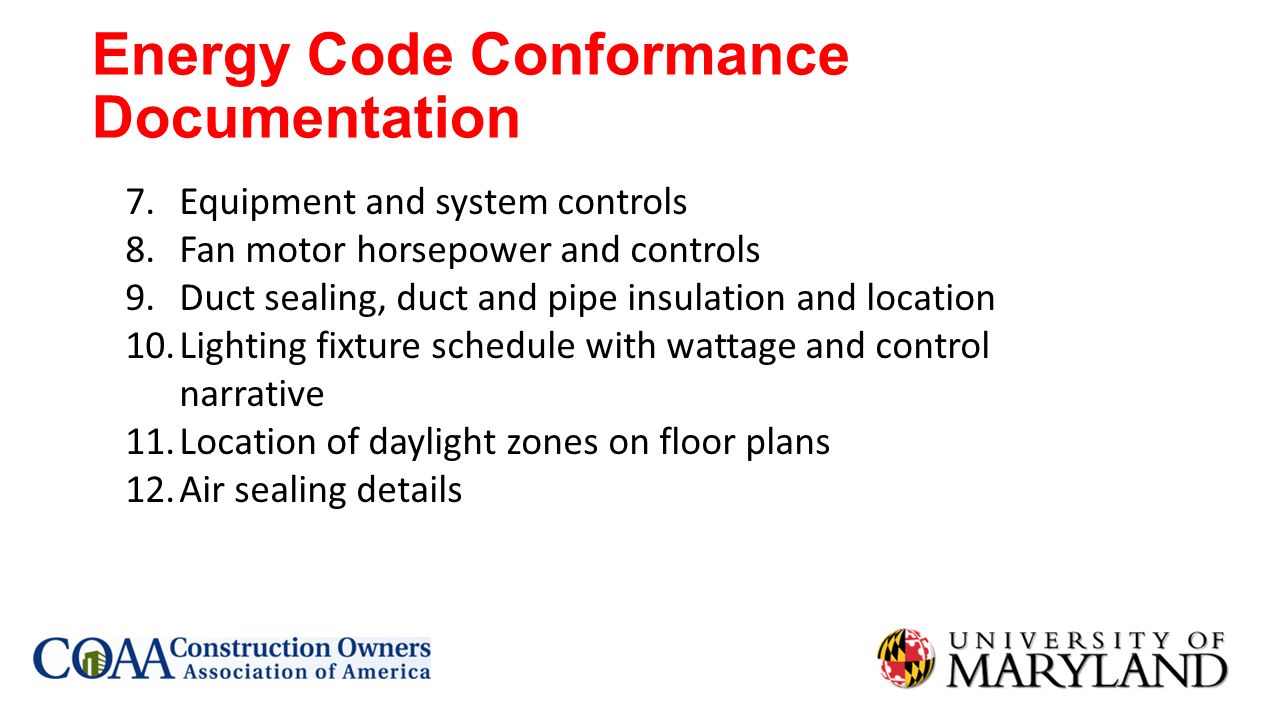

19. Energy Code Conformance Documentation 7.Equipment and system controls 8.Fan motor horsepower and controls 9.Duct sealing, duct and pipe insulation and location 10.Lighting fixture schedule with wattage and control narrative 11.Location of daylight zones on floor plans 12.Air sealing details

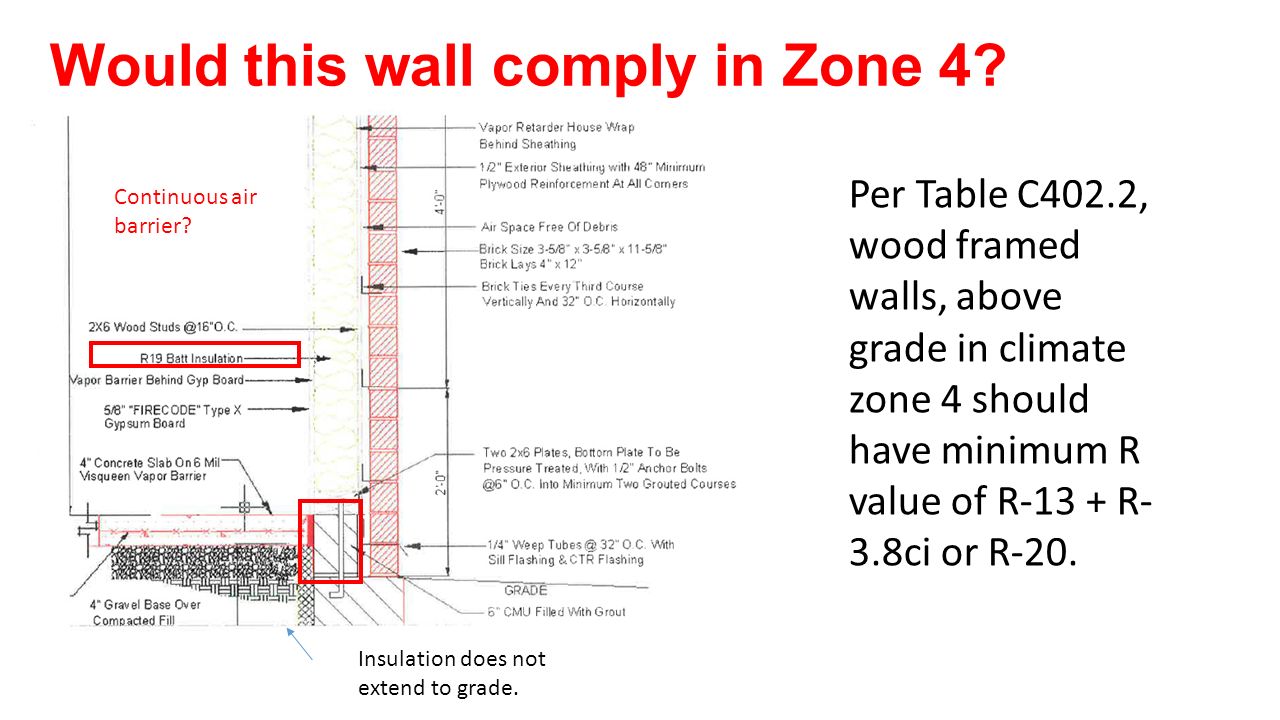

20. Continuous air barrier? Insulation does not extend to grade. Per Table C402.2, wood framed walls, above grade in climate zone 4 should have minimum R value of R-13 + R- 3.8ci or R-20. Would this wall comply in Zone 4?

21. Does this detail have the information needed to show compliance ? C103.2 1. Insulation materials and their R-values.

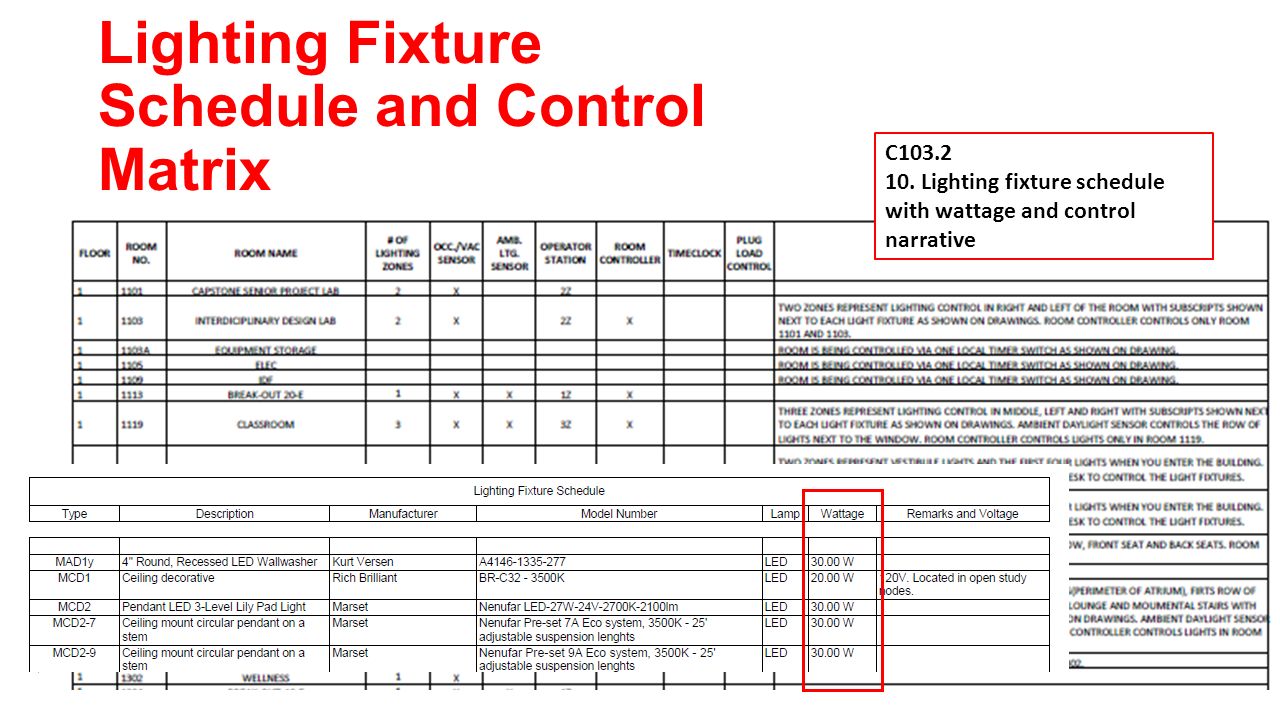

22. Lighting Fixture Schedule and Control Matrix C103.2 10. Lighting fixture schedule with wattage and control narrative

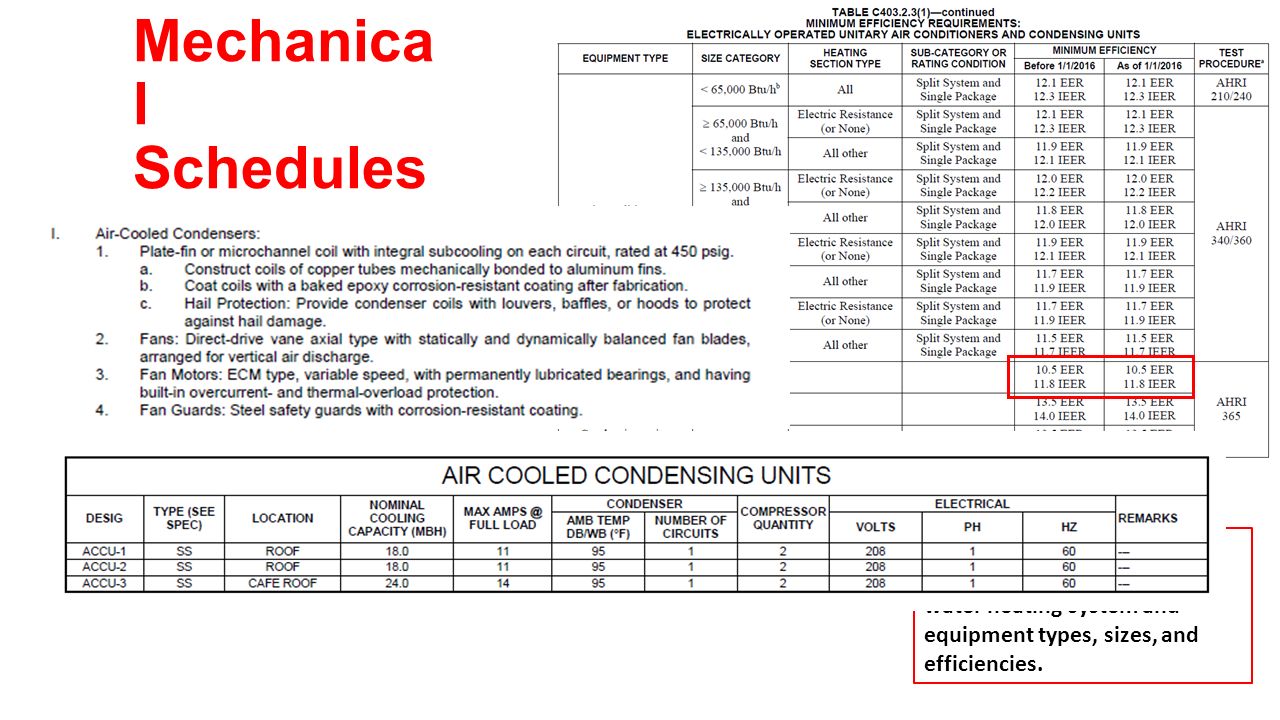

23. Mechanica l Schedules C103.2 5. Mechanical and service water heating system and equipment types, sizes, and efficiencies.

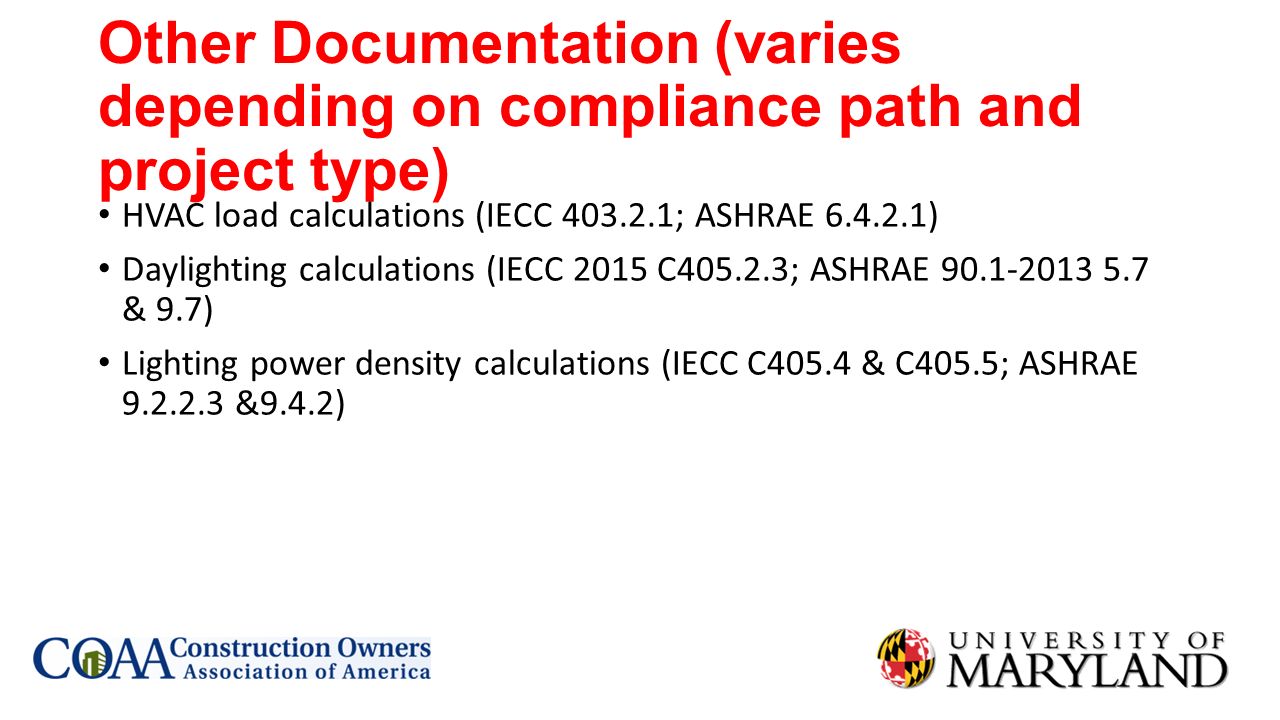

24. Other Documentation (varies depending on compliance path and project type) HVAC load calculations (IECC 403.2.1; ASHRAE 6.4.2.1) Daylighting calculations (IECC 2015 C405.2.3; ASHRAE 90.1-2013 5.7 & 9.7) Lighting power density calculations (IECC C405.4 & C405.5; ASHRAE 9.2.2.3 &9.4.2)

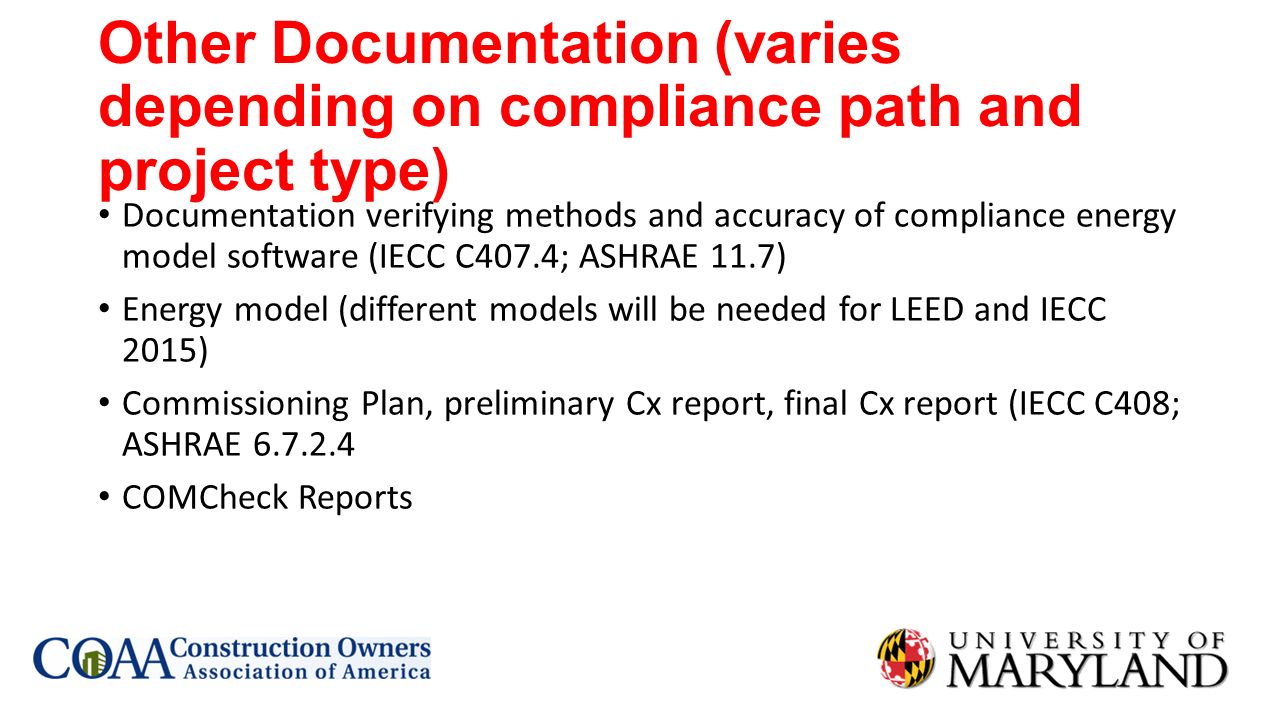

25. Other Documentation (varies depending on compliance path and project type) Documentation verifying methods and accuracy of compliance energy model software (IECC C407.4; ASHRAE 11.7) Energy model (different models will be needed for LEED and IECC 2015) Commissioning Plan, preliminary Cx report, final Cx report (IECC C408; ASHRAE 6.7.2.4 COMCheck Reports

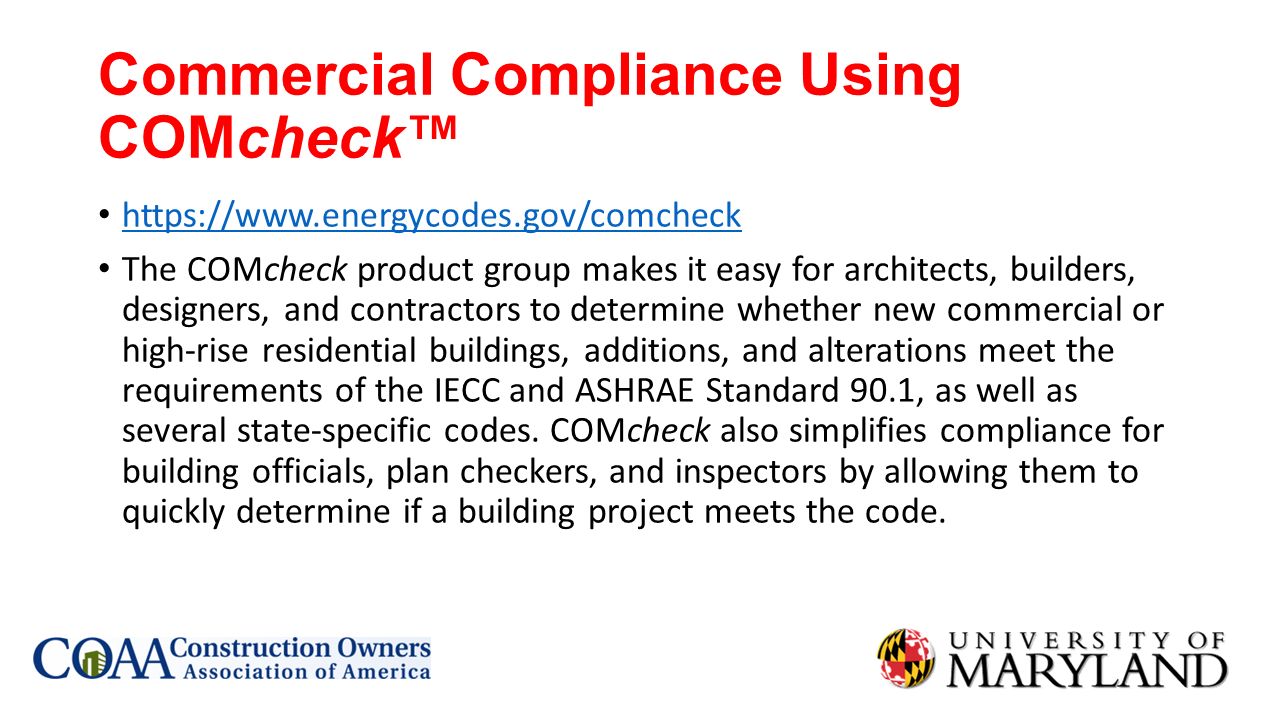

26. Commercial Compliance Using COMcheck™ https://www.energycodes.gov/comcheck The COMcheck product group makes it easy for architects, builders, designers, and contractors to determine whether new commercial or high-rise residential buildings, additions, and alterations meet the requirements of the IECC and ASHRAE Standard 90.1, as well as several state-specific codes. COMcheck also simplifies compliance for building officials, plan checkers, and inspectors by allowing them to quickly determine if a building project meets the code.

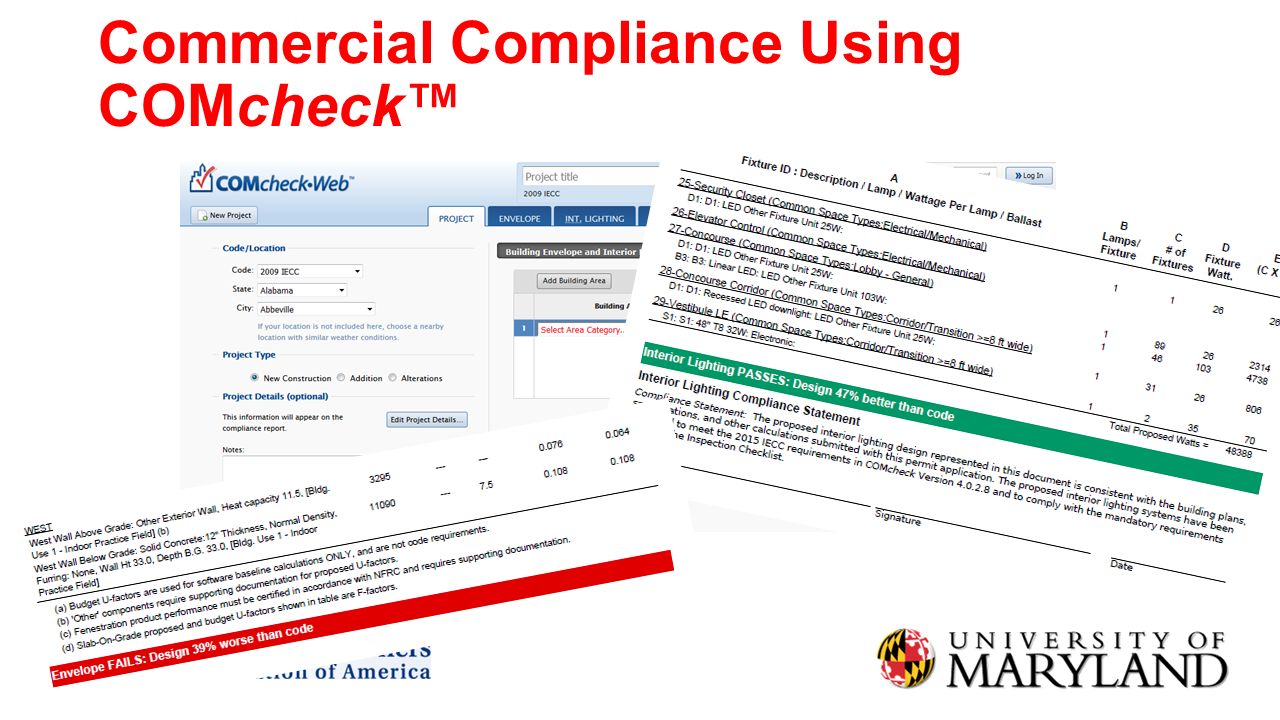

27. Commercial Compliance Using COMcheck™

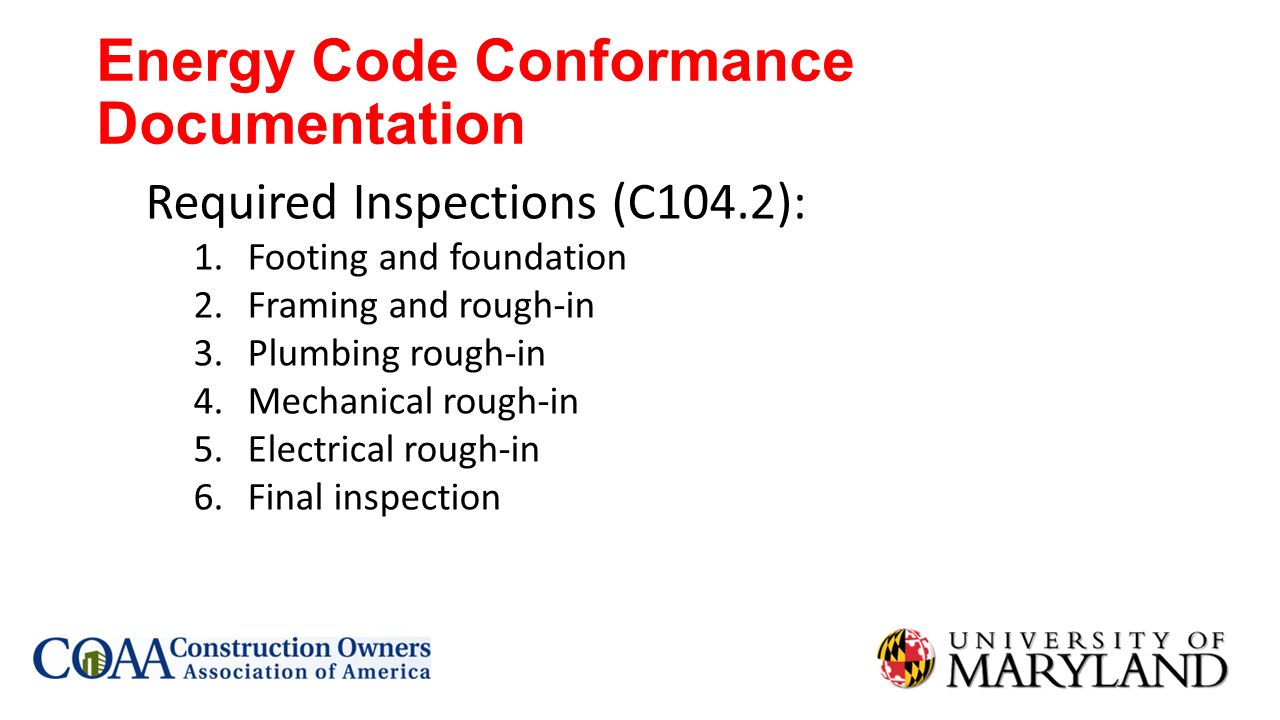

28. Energy Code Conformance Documentation Required Inspections (C104.2): 1.Footing and foundation 2.Framing and rough-in 3.Plumbing rough-in 4.Mechanical rough-in 5.Electrical rough-in 6.Final inspection

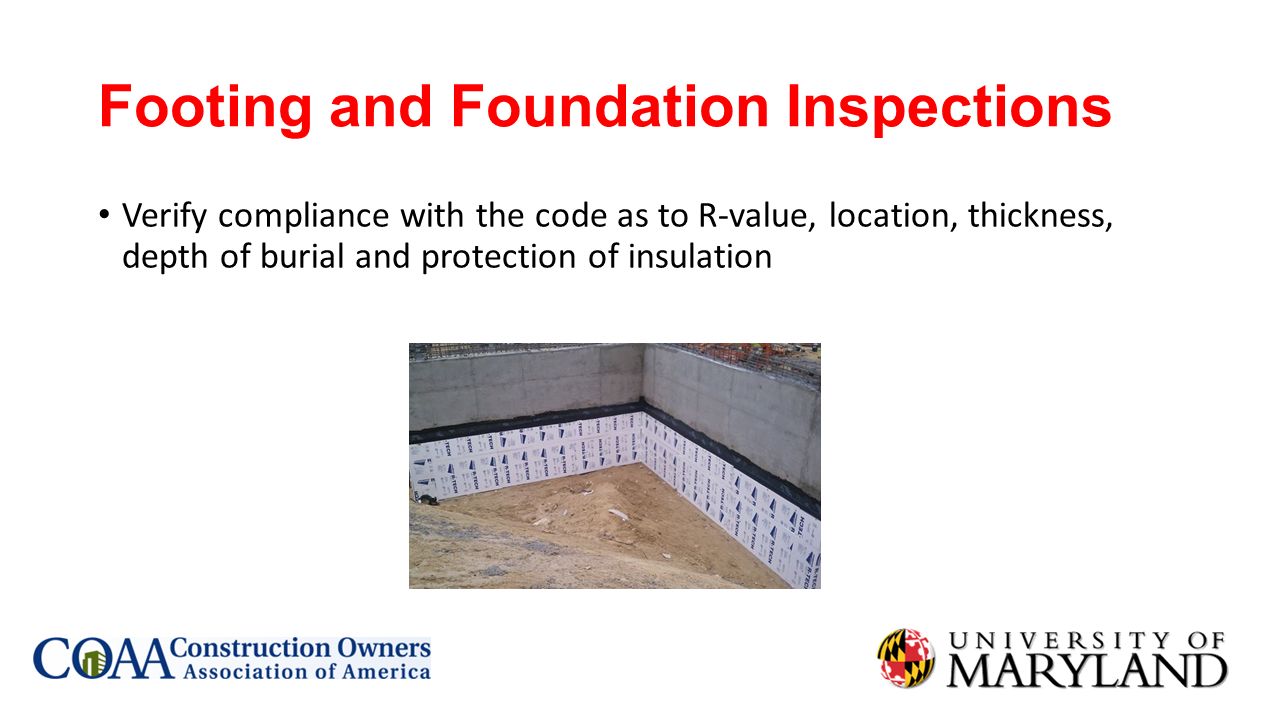

29. Footing and Foundation Inspections Verify compliance with the code as to R-value, location, thickness, depth of burial and protection of insulation

30. Framing and Rough-in Inspections Inspections shall be made before application of interior finish and shall verify compliance with code as to: Types of insulation and corresponding R-values and their correct and proper installation Fenestration properties (U-factor, SHGC, VT) and proper installation Air leakage controls as required by code and approved plans and specs https://www.youtube.com/watch?v=mE6DZ7Hcwoc https://www.youtube.com/watch?v=19V4CrHMiF0

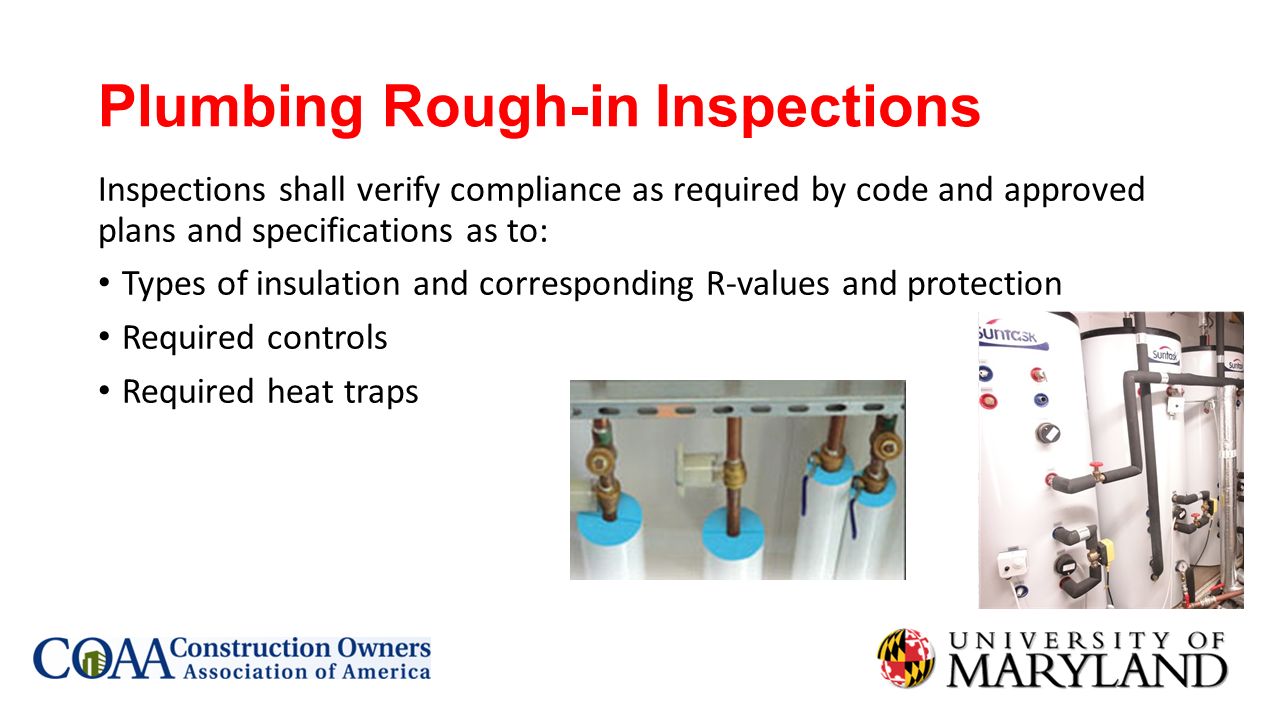

31. Plumbing Rough-in Inspections Inspections shall verify compliance as required by code and approved plans and specifications as to: Types of insulation and corresponding R-values and protection Required controls Required heat traps

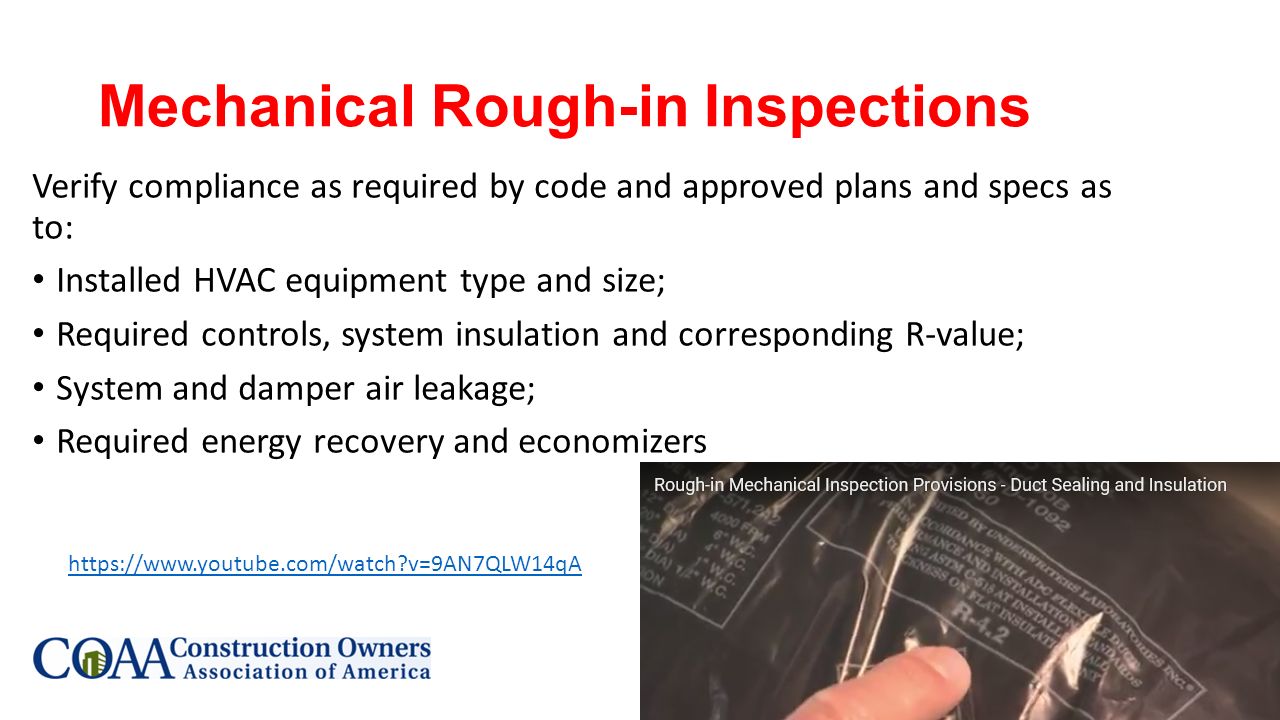

32. Mechanical Rough-in Inspections Verify compliance as required by code and approved plans and specs as to: Installed HVAC equipment type and size; Required controls, system insulation and corresponding R-value; System and damper air leakage; Required energy recovery and economizers https://www.youtube.com/watch?v=9AN7QLW14qA

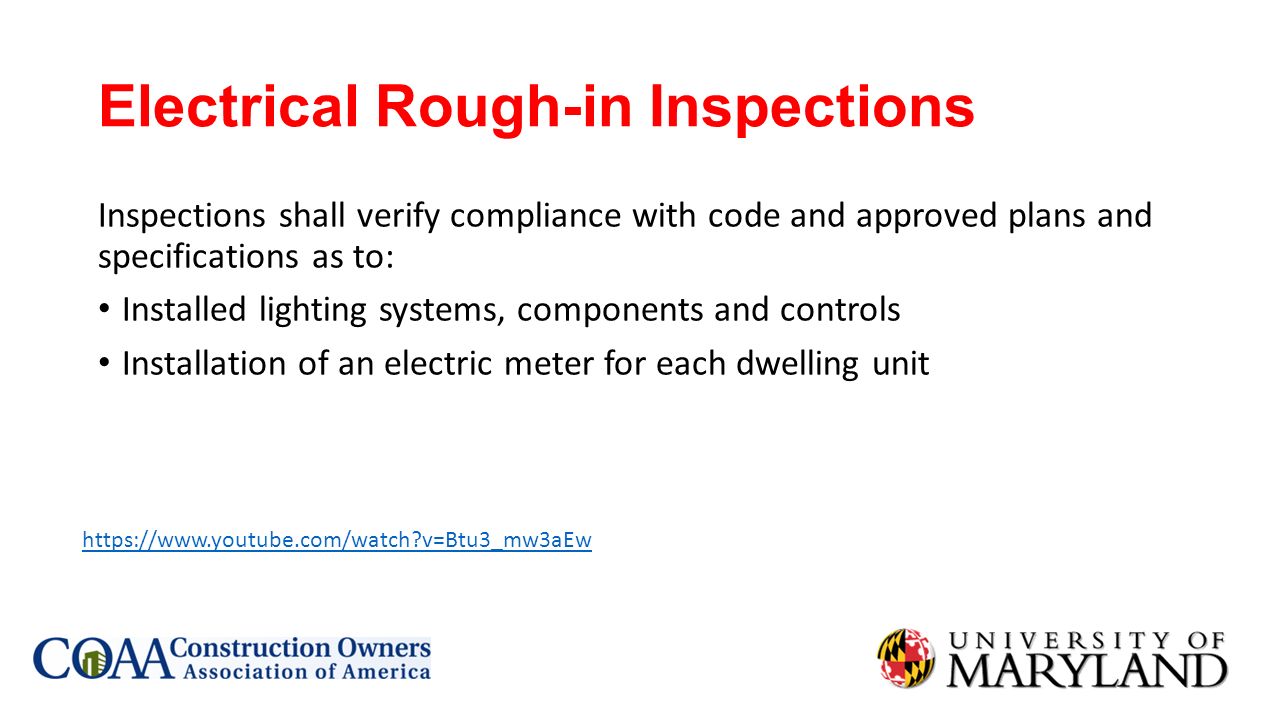

33. Electrical Rough-in Inspections Inspections shall verify compliance with code and approved plans and specifications as to: Installed lighting systems, components and controls Installation of an electric meter for each dwelling unit https://www.youtube.com/watch?v=Btu3_mw3aEw

34. Final Inspection Final inspection shall include: Verification of the installation and proper operation of all required building controls, and documentation verifying activities associated with required building commissioning have been conducted and findings of non-compliance corrected. Final inspection shall not occur until the preliminary Cx report is received.

35. 2015 International Energy Conservation Code Learning Objectives 2015 IECC Overview 2015 IECC Compliance Paths (Commercial Code) Documentation/Inspection Requirements (Commercial Code) Beyond code – LEED, High Performance Building Program, campus goals

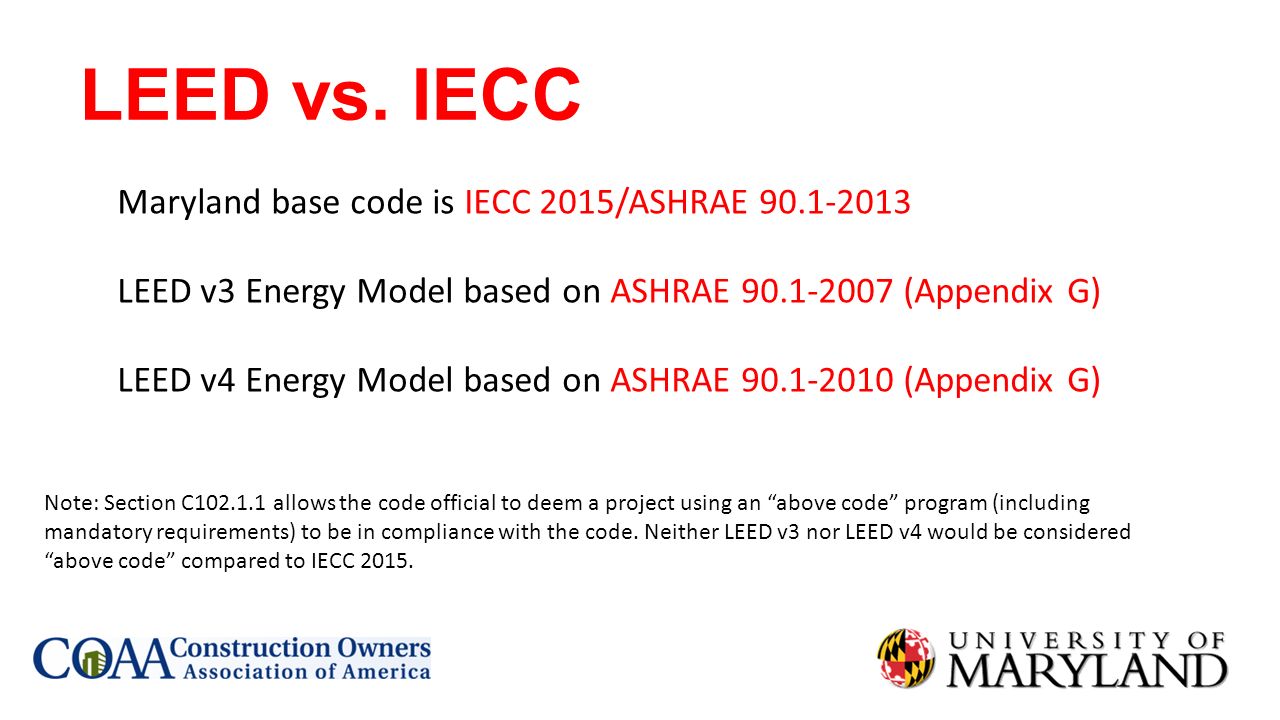

36. LEED vs. IECC Maryland base code is IECC 2015/ASHRAE 90.1-2013 LEED v3 Energy Model based on ASHRAE 90.1-2007 (Appendix G) LEED v4 Energy Model based on ASHRAE 90.1-2010 (Appendix G) Note: Section C102.1.1 allows the code official to deem a project using an “above code” program (including mandatory requirements) to be in compliance with the code. Neither LEED v3 nor LEED v4 would be considered “above code” compared to IECC 2015.

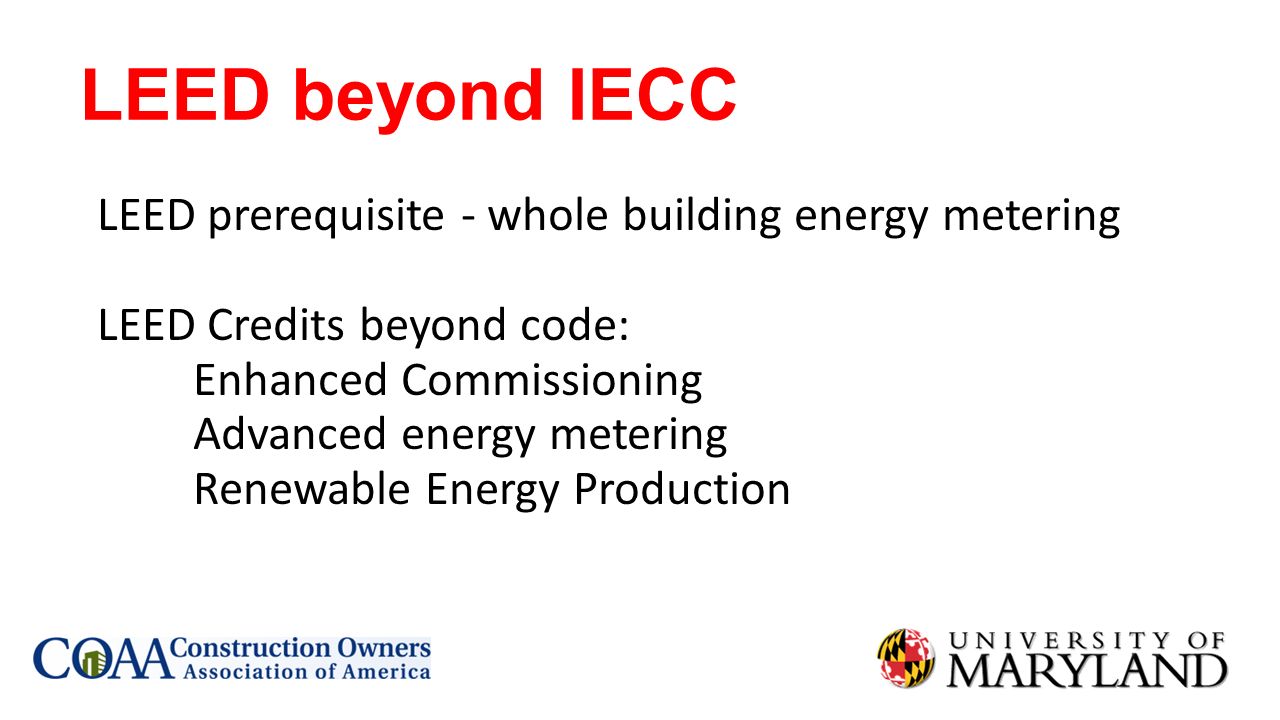

37. LEED beyond IECC LEED prerequisite - whole building energy metering LEED Credits beyond code: Enhanced Commissioning Advanced energy metering Renewable Energy Production

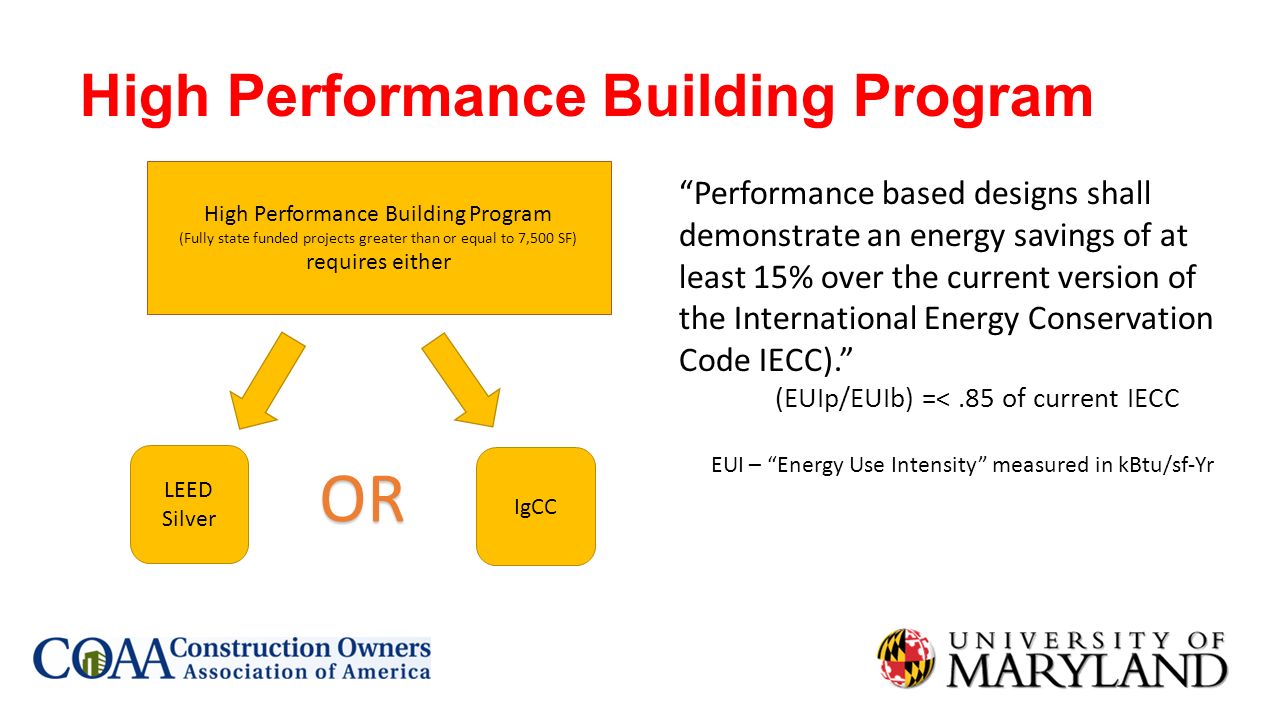

38. High Performance Building Program (Fully state funded projects greater than or equal to 7,500 SF) requires either LEED Silver OR IgCC “Performance based designs shall demonstrate an energy savings of at least 15% over the current version of the International Energy Conservation Code IECC).” (EUIp/EUIb) =<.85 of current IECC EUI – “Energy Use Intensity” measured in kBtu/sf-Yr

39. New University of Maryland College Park Energy Analysis Requirements - During Design Energy modeling early in the process to inform the design Preference for “open source” modeling software Energy modeling reports at each design phase

40. New University of Maryland College Park Energy Analysis Requirements – After Occupancy As Built energy model which incorporates any major changes that occur during construction Review of energy usage 12 months after occupancy to identify areas where building is not performing as designed and provide recommendations for addressing issues

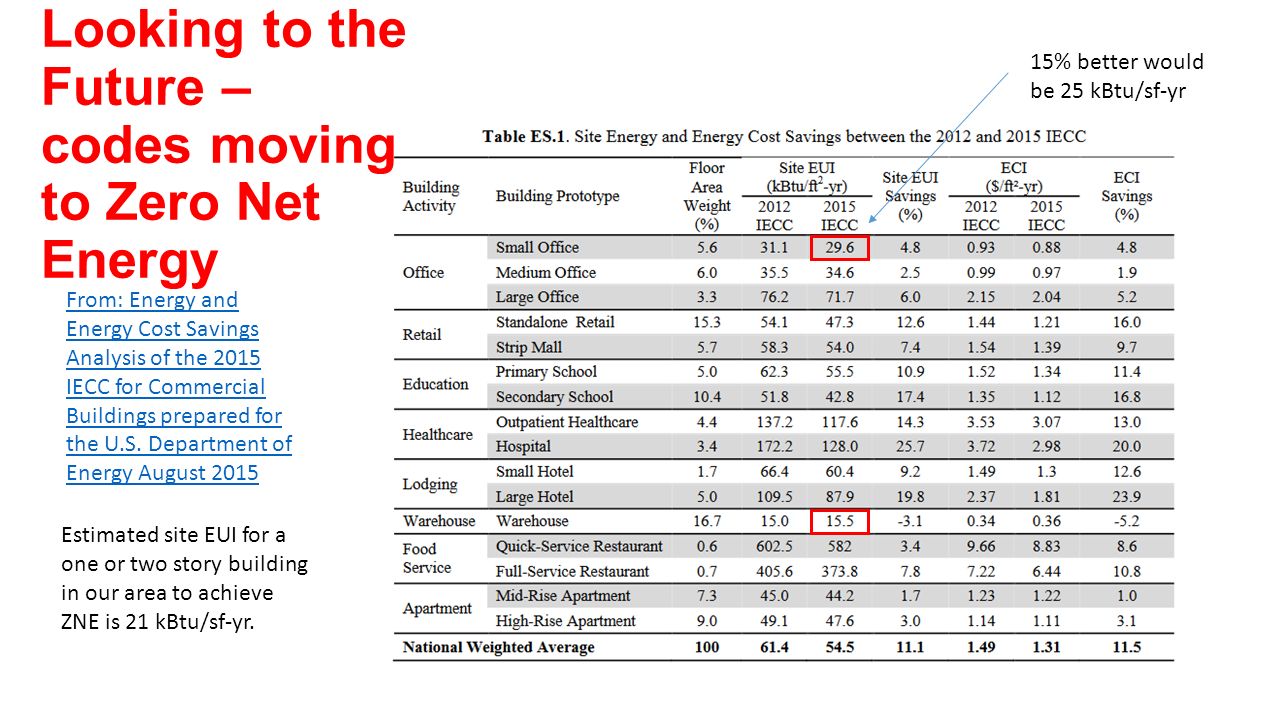

41. From: Energy and Energy Cost Savings Analysis of the 2015 IECC for Commercial Buildings prepared for the U.S. Department of Energy August 2015 Looking to the Future – codes moving to Zero Net Energy Estimated site EUI for a one or two story building in our area to achieve ZNE is 21 kBtu/sf-yr. 15% better would be 25 kBtu/sf-yr

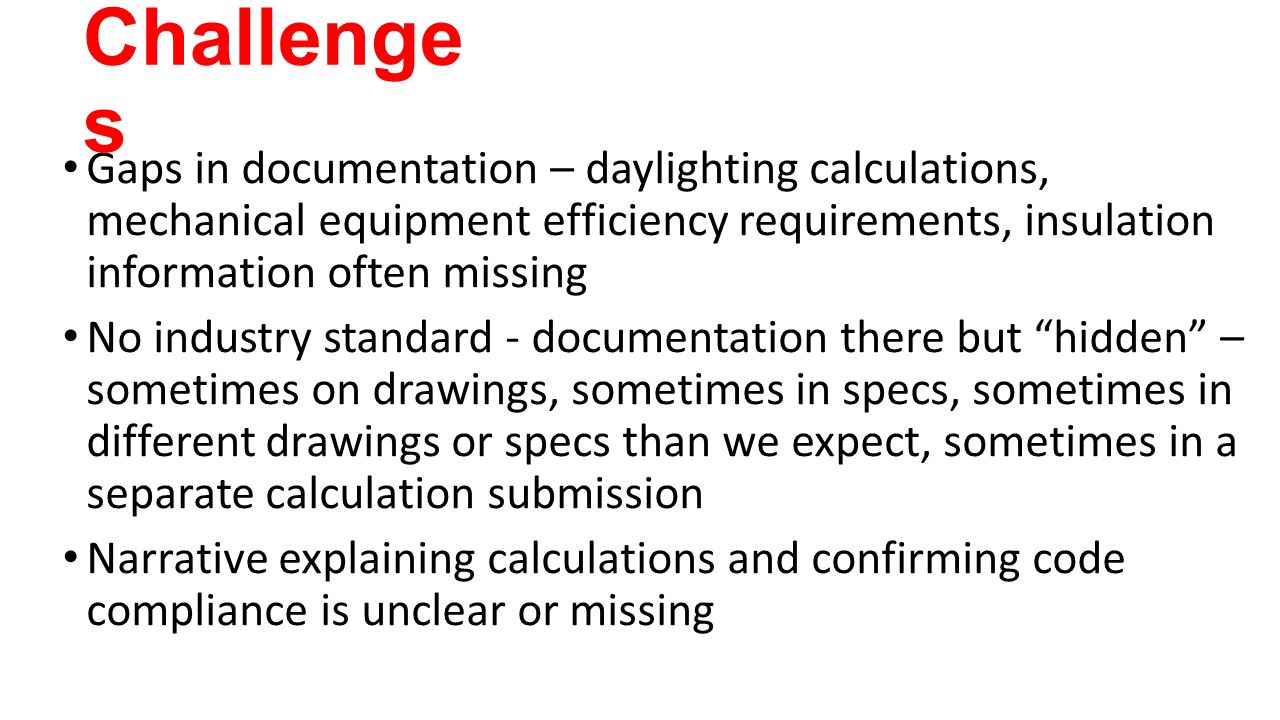

42. Gaps in documentation – daylighting calculations, mechanical equipment efficiency requirements, insulation information often missing No industry standard - documentation there but “hidden” – sometimes on drawings, sometimes in specs, sometimes in different drawings or specs than we expect, sometimes in a separate calculation submission Narrative explaining calculations and confirming code compliance is unclear or missing Challenge s

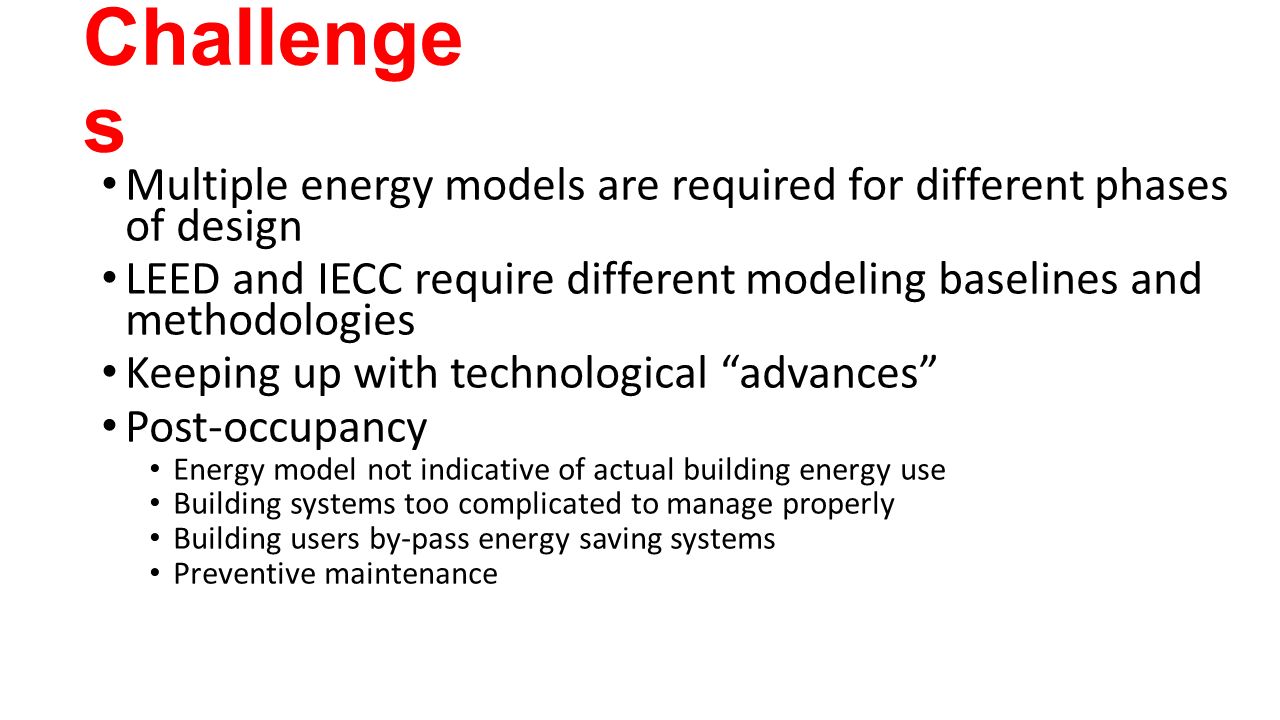

43. Multiple energy models are required for different phases of design LEED and IECC require different modeling baselines and methodologies Keeping up with technological “advances” Post-occupancy Energy model not indicative of actual building energy use Building systems too complicated to manage properly Building users by-pass energy saving systems Preventive maintenance

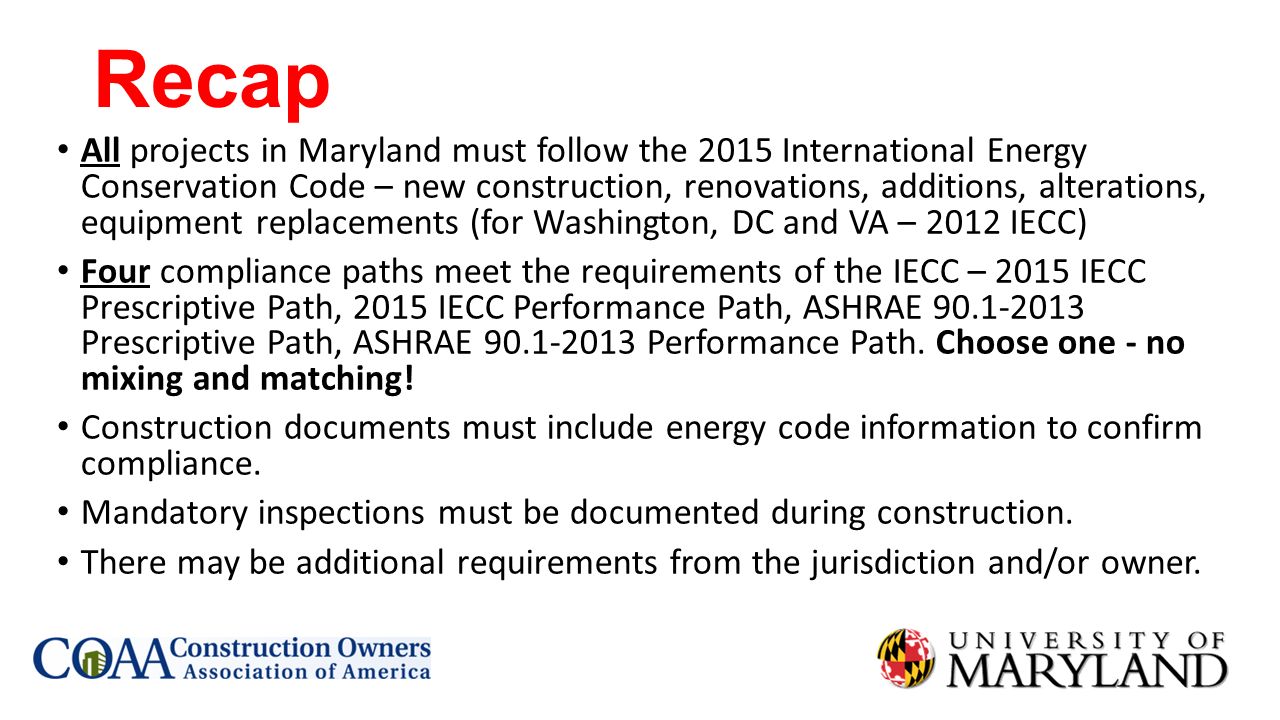

44. Recap All projects in Maryland must follow the 2015 International Energy Conservation Code – new construction, renovations, additions, alterations, equipment replacements (for Washington, DC and VA – 2012 IECC) Four compliance paths meet the requirements of the IECC – 2015 IECC Prescriptive Path, 2015 IECC Performance Path, ASHRAE 90.1-2013 Prescriptive Path, ASHRAE 90.1-2013 Performance Path. Choose one - no mixing and matching! Construction documents must include energy code information to confirm compliance. Mandatory inspections must be documented during construction. There may be additional requirements from the jurisdiction and/or owner.

45. Overview and Compliance Requirements 2015 International Energy Conservation Code Code Questions? Contact the Energy Code Coach – sponsored by Maryland Energy Administration (301) 899-0017 energycodecoach@newportpartnersllc.com Check out the resource and training sections at EnergyCodes.gov. EnergyCodes.gov
