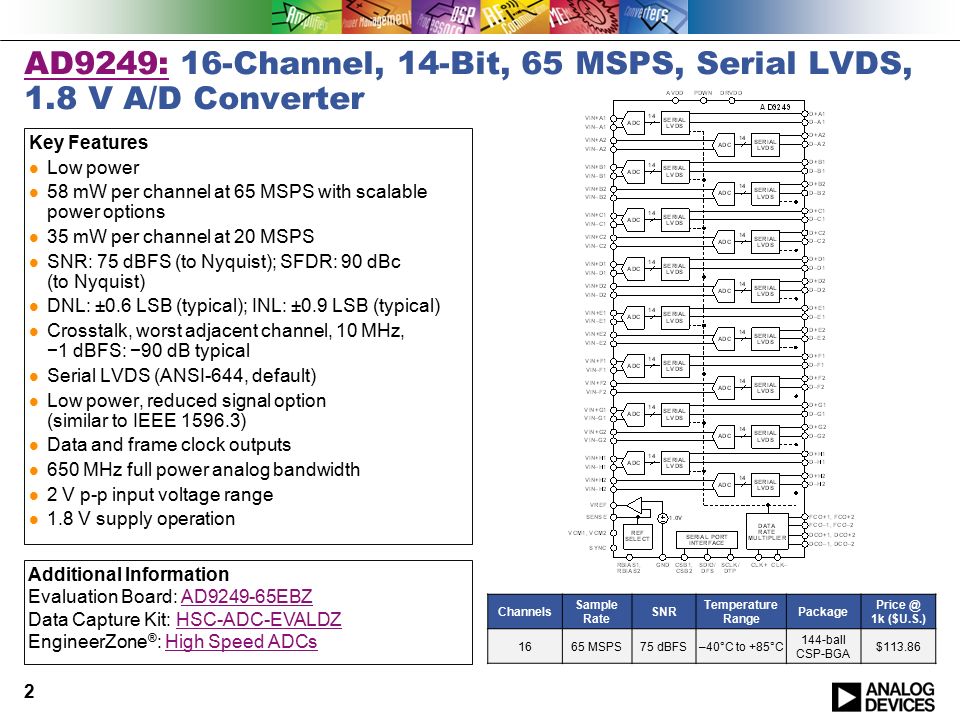

2. AD9249:AD9249: 16-Channel, 14-Bit, 65 MSPS, Serial LVDS, 1.8 V A/D Converter Key Features Low power 58 mW per channel at 65 MSPS with scalable power options 35 mW per channel at 20 MSPS SNR: 75 dBFS (to Nyquist); SFDR: 90 dBc (to Nyquist) DNL: ±0.6 LSB (typical); INL: ±0.9 LSB (typical) Crosstalk, worst adjacent channel, 10 MHz, −1 dBFS: −90 dB typical Serial LVDS (ANSI-644, default) Low power, reduced signal option (similar to IEEE 1596.3) Data and frame clock outputs 650 MHz full power analog bandwidth 2 V p-p input voltage range 1.8 V supply operation Additional Information Evaluation Board: AD9249-65EBZAD9249-65EBZ Data Capture Kit: HSC-ADC-EVALDZHSC-ADC-EVALDZ EngineerZone ® : High Speed ADCsHigh Speed ADCs Channels Sample Rate SNR Temperature Range Package Price @ 1k ($U.S.) 1665 MSPS75 dBFS–40°C to +85°C 144-ball CSP-BGA $113.86 2

3. AD9361:AD9361: RF Agile Transceiver Key Features RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs Band: 70 MHz to 6.0 GHz Supports TDD and FDD operation Tunable channel BW: <200 kHz to 56 MHz Dual receivers: 6 differential or 12 single-ended inputs Superior receiver sensitivity with a noise figure < 2.5 dB Rx gain control Real-time monitor and control signals for manual gain Independent automatic gain control Additional Information Companion Products EngineerZone: Wideband RF Transceivers Community, FPGA Reference Designs CommunityWideband RF Transceivers Community FPGA Reference Designs Community Wiki Page SDR Brochure: (http://www.analog.com/static/ imported-files/overviews/Software-Defined-Radio- Solutions-From-ADI.pdf) Channels Frequency Range Noise Figure at Temperature Range Package Price @ 1k ($U.S.) 2 Tx and 2 Rx 70 MHz to 6 GHz 1 GHz: 2 dB 2 GHz: 3 dB –40°C to +85°C 144-ball CSP_BGA $175.00 3

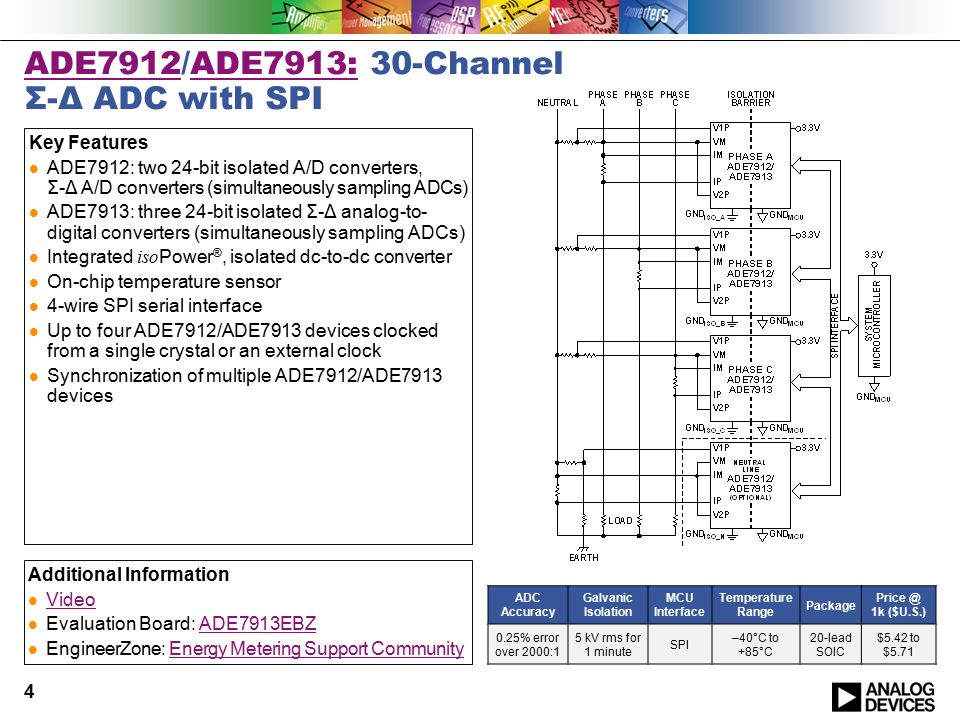

4. ADE7912ADE7912/ADE7913: 30-Channel Σ-Δ ADC with SPIADE7913: Key Features ADE7912: two 24-bit isolated A/D converters, Σ-Δ A/D converters (simultaneously sampling ADCs) ADE7913: three 24-bit isolated Σ-Δ analog-to- digital converters (simultaneously sampling ADCs) Integrated iso Power ®, isolated dc-to-dc converter On-chip temperature sensor 4-wire SPI serial interface Up to four ADE7912/ADE7913 devices clocked from a single crystal or an external clock Synchronization of multiple ADE7912/ADE7913 devices Additional Information Video Evaluation Board: ADE7913EBZADE7913EBZ EngineerZone: Energy Metering Support CommunityEnergy Metering Support Community ADC Accuracy Galvanic Isolation MCU Interface Temperature Range Package Price @ 1k ($U.S.) 0.25% error over 2000:1 5 kV rms for 1 minute SPI –40°C to +85°C 20-lead SOIC $5.42 to $5.71 4

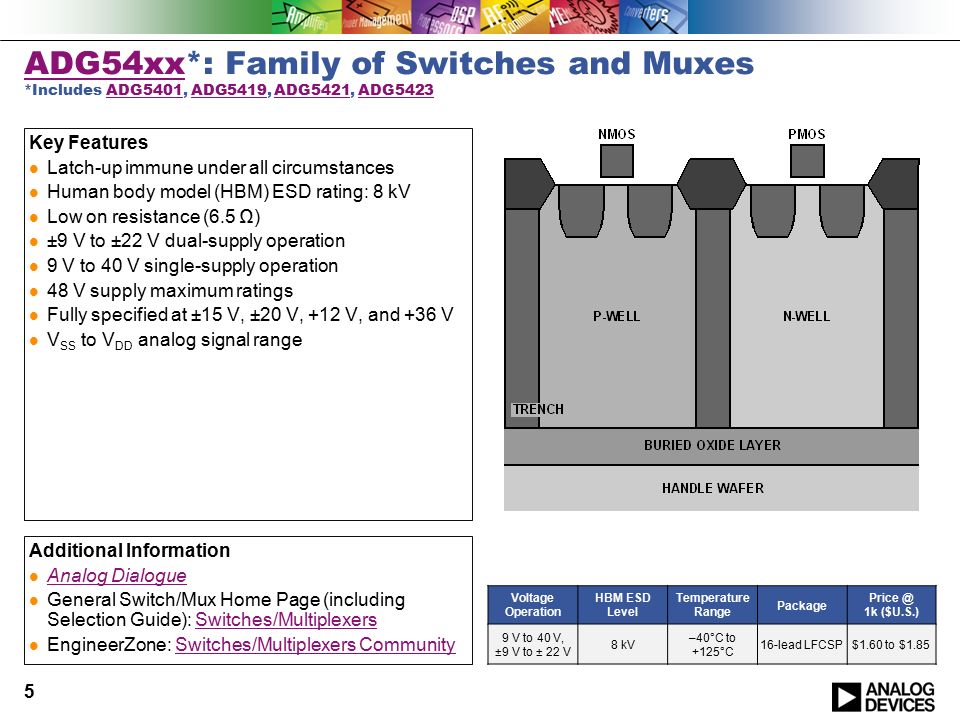

5. ADG54xxADG54xx*: Family of Switches and Muxes *Includes ADG5401, ADG5419, ADG5421, ADG5423ADG5401ADG5419ADG5421ADG5423 Key Features Latch-up immune under all circumstances Human body model (HBM) ESD rating: 8 kV Low on resistance (6.5 Ω) ±9 V to ±22 V dual-supply operation 9 V to 40 V single-supply operation 48 V supply maximum ratings Fully specified at ±15 V, ±20 V, +12 V, and +36 V V SS to V DD analog signal range Additional Information Analog Dialogue General Switch/Mux Home Page (including Selection Guide): Switches/MultiplexersSwitches/Multiplexers EngineerZone: Switches/Multiplexers CommunitySwitches/Multiplexers Community Voltage Operation HBM ESD Level Temperature Range Package Price @ 1k ($U.S.) 9 V to 40 V, ±9 V to ± 22 V 8 kV –40°C to +125°C 16-lead LFCSP$1.60 to $1.85 5

6. ADM7151:ADM7151: 800 mA, Ultralow Noise/High PSRR Adjustable V OUT LDO Key Features Input voltage range: 4.5 V to 16 V Maximum output current: 800 mA Adjustable output from 1.5 V to 5.1 V Low noise: 1.0 μV rms total integrated noise from 100 Hz to 100 kHz and 1.6 μV rms, total integrated noise from 10 Hz to 100 kHz Noise spectral density: <1.7 nV√Hz above 10 kHz PSRR of >90 dB from 1 kHz to 100 kHz, >60 dB @ 1 MHz, V OUT = 5 V Dropout voltage: 600 mV @ V OUT = 5 V/800 mA load Initial accuracy: ±1% Accuracy over line, load, and temperature: ±2% Quiescent current, I GND = 4.3 mA @ no load Low shutdown current: 0.1 μA Additional Information Evaluation Board: ADM7151ADM7151 ADIsimPower Tool EngineerZone: Power Management CommunityPower Management Community Noise @ f = 100 Hz to 100 kHz PSRR @ 100 kHz Temperature Range Package Price @ 1k ($U.S.) 1.0 µV rms94 dB –40°C to +125°C 8-lead LFCSP and 8-lead SOIC $3.64 6

7. ADM8316,ADM8316, ADM8318, ADM8319, ADM8320, ADM8322: Family of Supervisor WatchdogsADM8318,ADM8319,ADM8320,ADM8322: Key Features 26 reset threshold options 2.5 V to 5 V in 100 mV increments 4 reset timeout options 1 ms, 20 ms, 140 ms, and 1120 ms (minimum) 4 watchdog timeout options 6.3 ms, 102 ms, 1600 ms, and 25.6 sec (typical) Manual reset input Multiple reset output options Low power consumption Qualified for automotive applications Additional Information EngineerZone: Power Management CommunityPower Management Community High Performance Power Management Products Brochure (http://www.analog.com/static/imported-files/overviews/ High-Performance-Power-Management-Products.pdf) Operating Voltage Range Supply Current (Max) Reset Threshold Increments Temperature Range Package Price @ 1k ($U.S.) 1.0 V to 5.5 V 20 µA 26 options from 2.5 V to 5 V in 100 mV increments –40°C to +125°C 5-lead SOT-23 $0.49 to $0.69 7

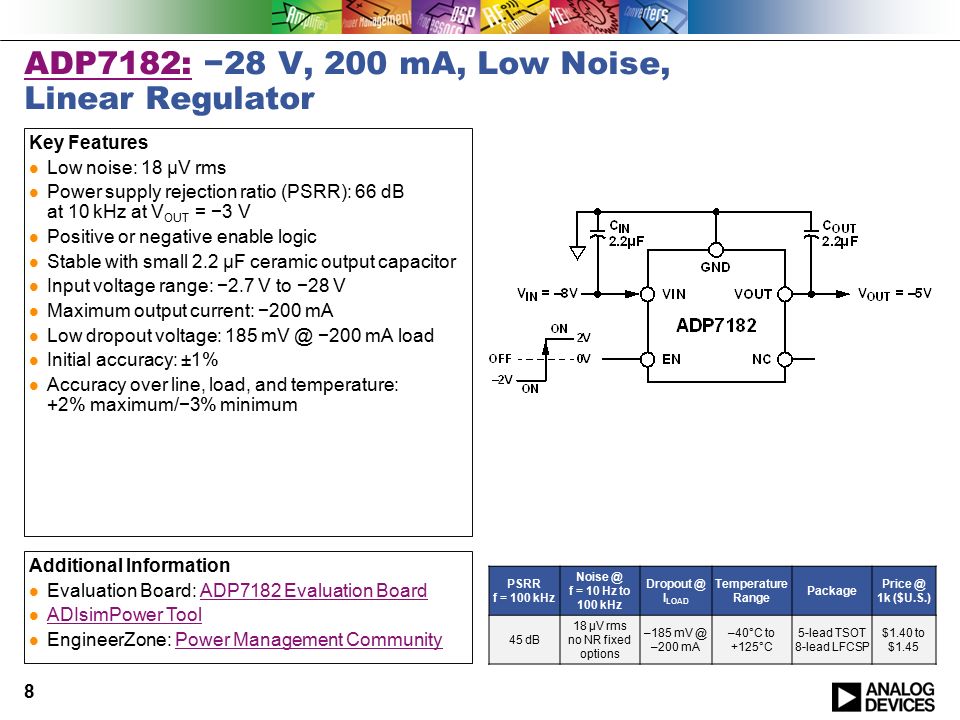

8. ADP7182:ADP7182: −28 V, 200 mA, Low Noise, Linear Regulator Key Features Low noise: 18 μV rms Power supply rejection ratio (PSRR): 66 dB at 10 kHz at V OUT = −3 V Positive or negative enable logic Stable with small 2.2 μF ceramic output capacitor Input voltage range: −2.7 V to −28 V Maximum output current: −200 mA Low dropout voltage: 185 mV @ −200 mA load Initial accuracy: ±1% Accuracy over line, load, and temperature: +2% maximum/−3% minimum Additional Information Evaluation Board: ADP7182 Evaluation BoardADP7182 Evaluation Board ADIsimPower Tool EngineerZone: Power Management CommunityPower Management Community PSRR f = 100 kHz Noise @ f = 10 Hz to 100 kHz Dropout @ I LOAD Temperature Range Package Price @ 1k ($U.S.) 45 dB 18 µV rms no NR fixed options –185 mV @ –200 mA –40°C to +125°C 5-lead TSOT 8-lead LFCSP $1.40 to $1.45 8

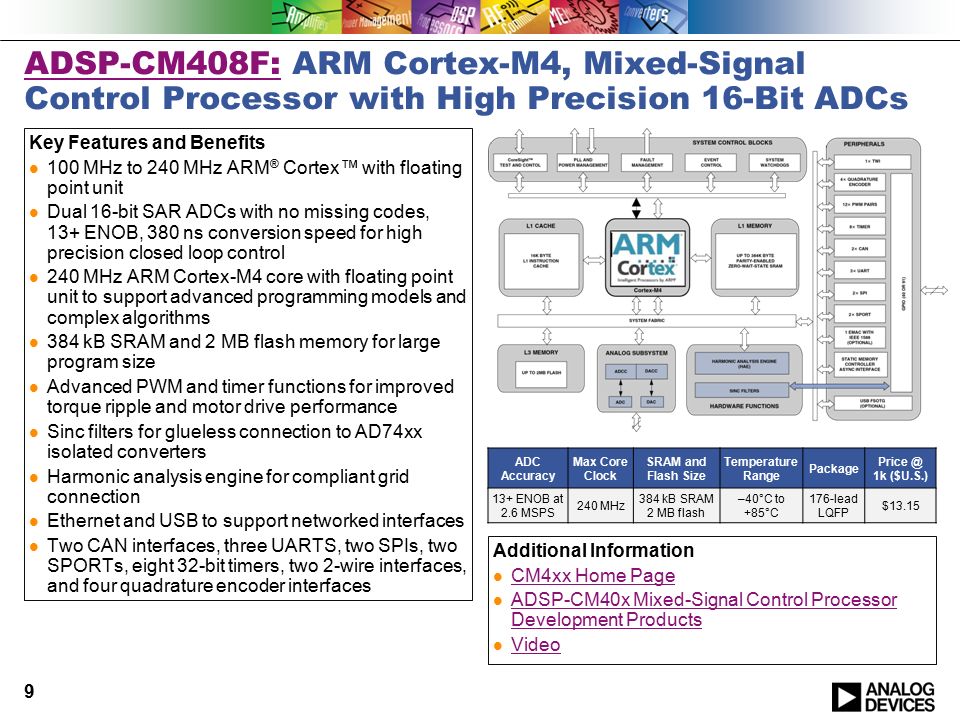

9. ADSP-CM408F:ADSP-CM408F: ARM Cortex-M4, Mixed-Signal Control Processor with High Precision 16-Bit ADCs Key Features and Benefits 100 MHz to 240 MHz ARM ® Cortex™ with floating point unit Dual 16-bit SAR ADCs with no missing codes, 13+ ENOB, 380 ns conversion speed for high precision closed loop control 240 MHz ARM Cortex-M4 core with floating point unit to support advanced programming models and complex algorithms 384 kB SRAM and 2 MB flash memory for large program size Advanced PWM and timer functions for improved torque ripple and motor drive performance Sinc filters for glueless connection to AD74xx isolated converters Harmonic analysis engine for compliant grid connection Ethernet and USB to support networked interfaces Two CAN interfaces, three UARTS, two SPIs, two SPORTs, eight 32-bit timers, two 2-wire interfaces, and four quadrature encoder interfaces Additional Information CM4xx Home Page ADSP-CM40x Mixed-Signal Control Processor Development Products ADSP-CM40x Mixed-Signal Control Processor Development Products Video ADC Accuracy Max Core Clock SRAM and Flash Size Temperature Range Package Price @ 1k ($U.S.) 13+ ENOB at 2.6 MSPS 240 MHz 384 kB SRAM 2 MB flash –40°C to +85°C 176-lead LQFP $13.15 9

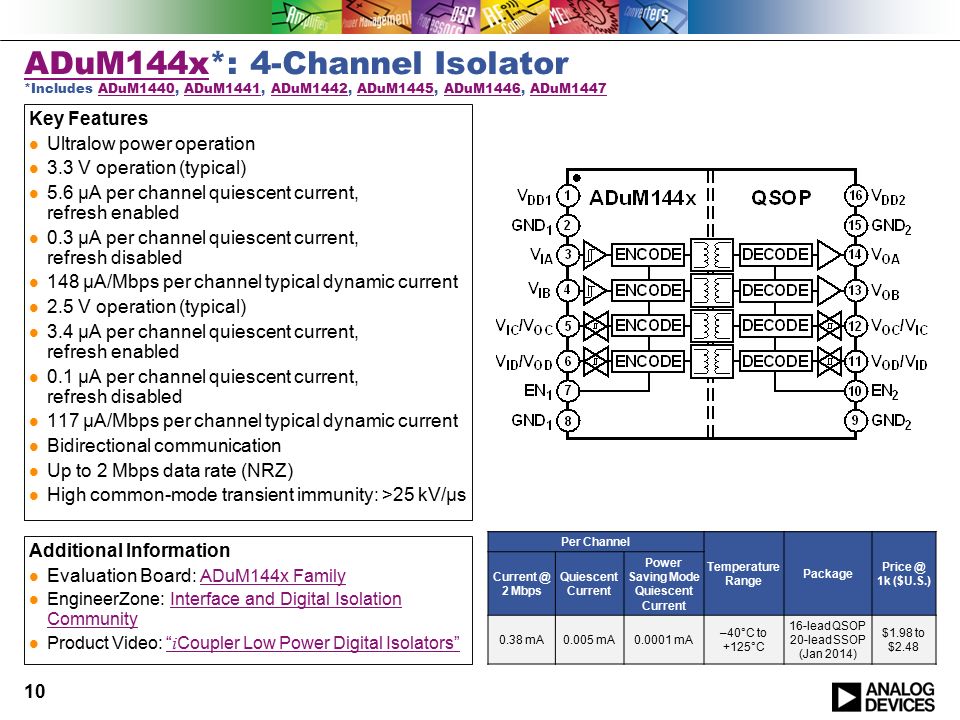

10. ADuM144xADuM144x*: 4-Channel Isolator *Includes ADuM1440, ADuM1441, ADuM1442, ADuM1445, ADuM1446, ADuM1447ADuM1440ADuM1441ADuM1442ADuM1445ADuM1446ADuM1447 Key Features Ultralow power operation 3.3 V operation (typical) 5.6 µA per channel quiescent current, refresh enabled 0.3 µA per channel quiescent current, refresh disabled 148 µA/Mbps per channel typical dynamic current 2.5 V operation (typical) 3.4 µA per channel quiescent current, refresh enabled 0.1 µA per channel quiescent current, refresh disabled 117 µA/Mbps per channel typical dynamic current Bidirectional communication Up to 2 Mbps data rate (NRZ) High common-mode transient immunity: >25 kV/µs Additional Information Evaluation Board: ADuM144x Family ADuM144x Family EngineerZone: Interface and Digital Isolation CommunityInterface and Digital Isolation Community Product Video: “ i Coupler Low Power Digital Isolators”“ i Coupler Low Power Digital Isolators” Per Channel Temperature Range Package Price @ 1k ($U.S.) Current @ 2 Mbps Quiescent Current Power Saving Mode Quiescent Current 0.38 mA0.005 mA0.0001 mA –40°C to +125°C 16-lead QSOP 20-lead SSOP (Jan 2014) $1.98 to $2.48 10

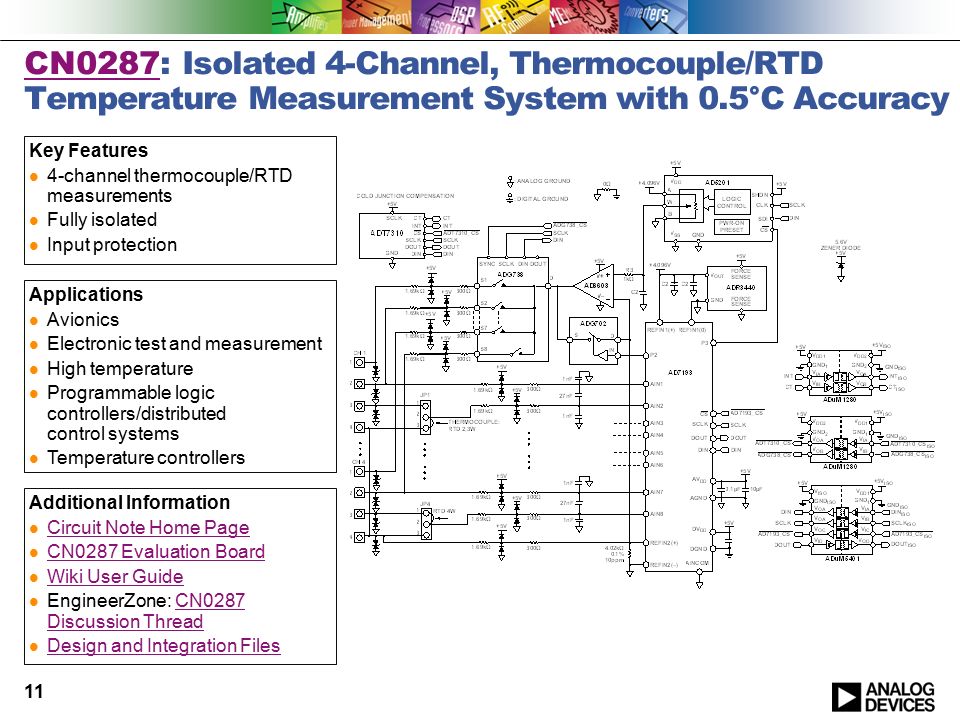

11. CN0287CN0287: Isolated 4-Channel, Thermocouple/RTD Temperature Measurement System with 0.5°C Accuracy Key Features 4-channel thermocouple/RTD measurements Fully isolated Input protection Applications Avionics Electronic test and measurement High temperature Programmable logic controllers/distributed control systems Temperature controllers Additional Information Circuit Note Home Page CN0287 Evaluation Board Wiki User Guide EngineerZone: CN0287 Discussion ThreadCN0287 Discussion Thread Design and Integration Files 11
