1 The World Leader in High Performance Signal Processing Solutions Introducing Next Generation of iso Power Products October 2012

2 ADI is Expanding the iso Power Portfolio  Introducing the Newest Versions of Our Popular iso Power Products  Achieving 150mW of Output Power in a Tiny SSOP-20 Package Input voltages range from 3.3V to 5V Output voltage is resistor adjustable from 3.15V to 5V Regulated output with internal PWM feedback Power saving Enable feature  Including Digital Isolators which are Superior to Optocouplers Higher speed – up to 100Mbps Lower power Higher reliability Higher levels of integration making them easier to use

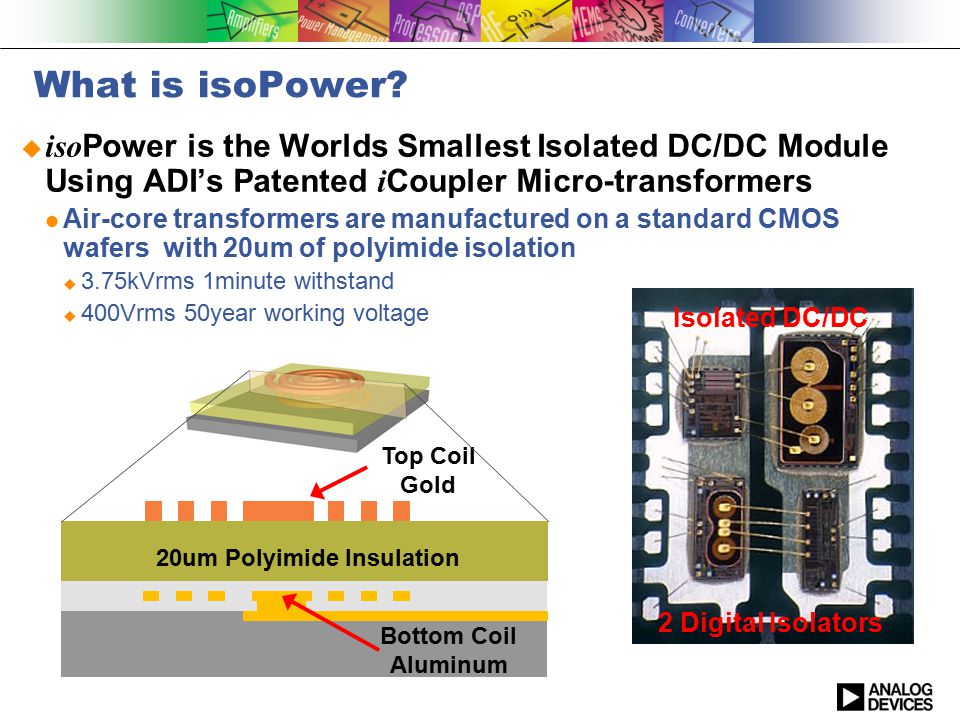

3 What is isoPower?  iso Power is the Worlds Smallest Isolated DC/DC Module Using ADI’s Patented i Coupler Micro-transformers Air-core transformers are manufactured on a standard CMOS wafers with 20um of polyimide isolation  3.75kVrms 1minute withstand  400Vrms 50year working voltage CMOS Silicon Substrate Top Coil Gold Bottom Coil Aluminum 20um Polyimide Insulation Isolated DC/DC 2 Digital Isolators

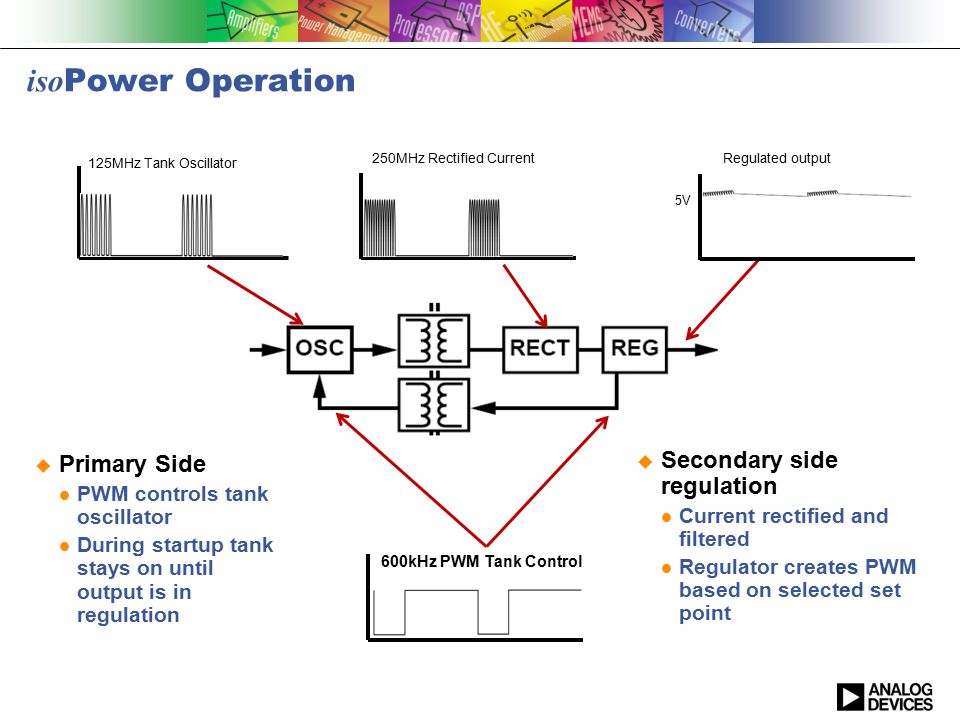

4 iso Power Operation  Primary Side PWM controls tank oscillator During startup tank stays on until output is in regulation  Secondary side regulation Current rectified and filtered Regulator creates PWM based on selected set point 125MHz Tank Oscillator 250MHz Rectified Current 600kHz PWM Tank Control 5V Regulated output

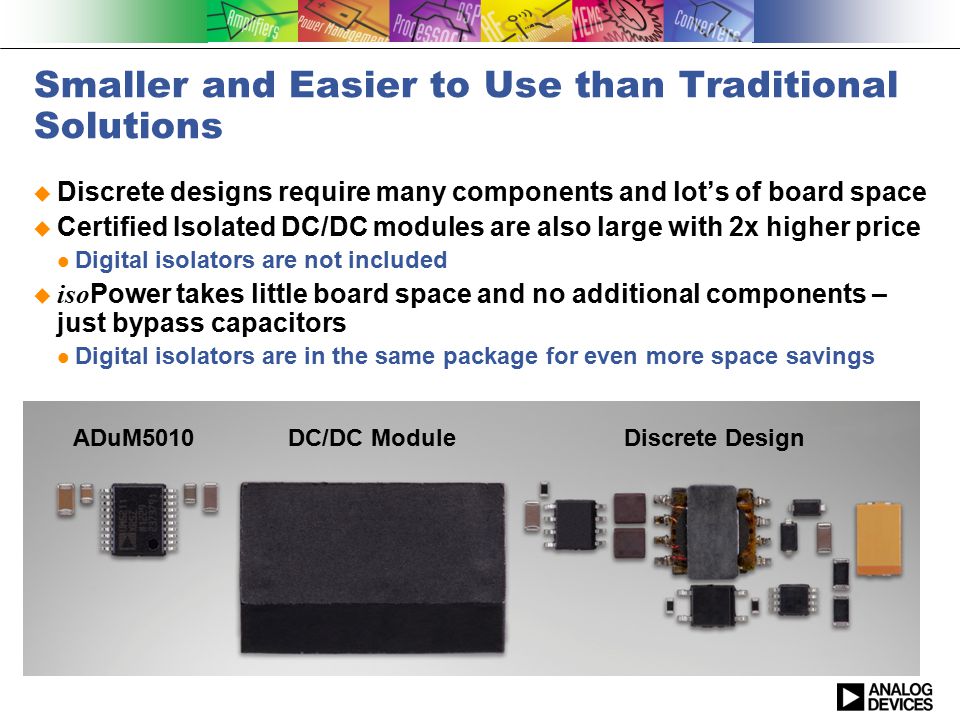

5 Discrete DesignDC/DC ModuleADuM5010 Smaller and Easier to Use than Traditional Solutions  Discrete designs require many components and lot’s of board space  Certified Isolated DC/DC modules are also large with 2x higher price Digital isolators are not included  iso Power takes little board space and no additional components – just bypass capacitors Digital isolators are in the same package for even more space savings

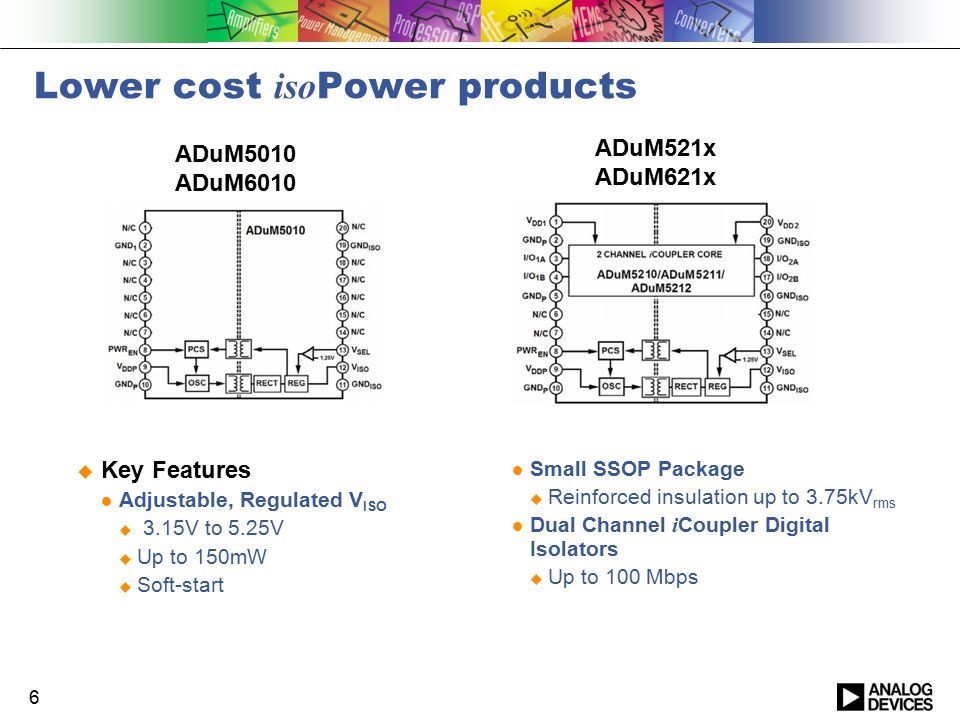

6 Lower cost iso Power products  Key Features Adjustable, Regulated V ISO  3.15V to 5.25V  Up to 150mW  Soft-start Small SSOP Package  Reinforced insulation up to 3.75kV rms Dual Channel i Coupler Digital Isolators  Up to 100 Mbps 6 ADuM521x ADuM621x ADuM5010 ADuM6010

7 Newly Released Product Family  Future iso Power products will be available with additional channels and features  For more information on these and other isoPower products go to 2.5kVrms3.75kVrmsChannel Directionality 10k OEM Price ADuM5010X0$1.40 ADuM5210X2/0$2.10 ADuM5211X1/1$2.10 ADuM5212X0/2$2.10 ADuM6010X0$2.02 ADuM6210X2/0$3.04 ADuM6211X1/1$3.04 ADuM6212X0/2$3.04

8 Many Benefits for Many Applications Self-contained in One Surface Mount Package  Simplifies Isolated System Designs  Reduces Board Space  Lowers Circuit Costs Appropriate For  Industrial Control  Test and Measurement  Communications Infrastructure  Automotive  Industrial Motors  Energy Management  Power Distribution  Transportation  Industrial Test Equipment

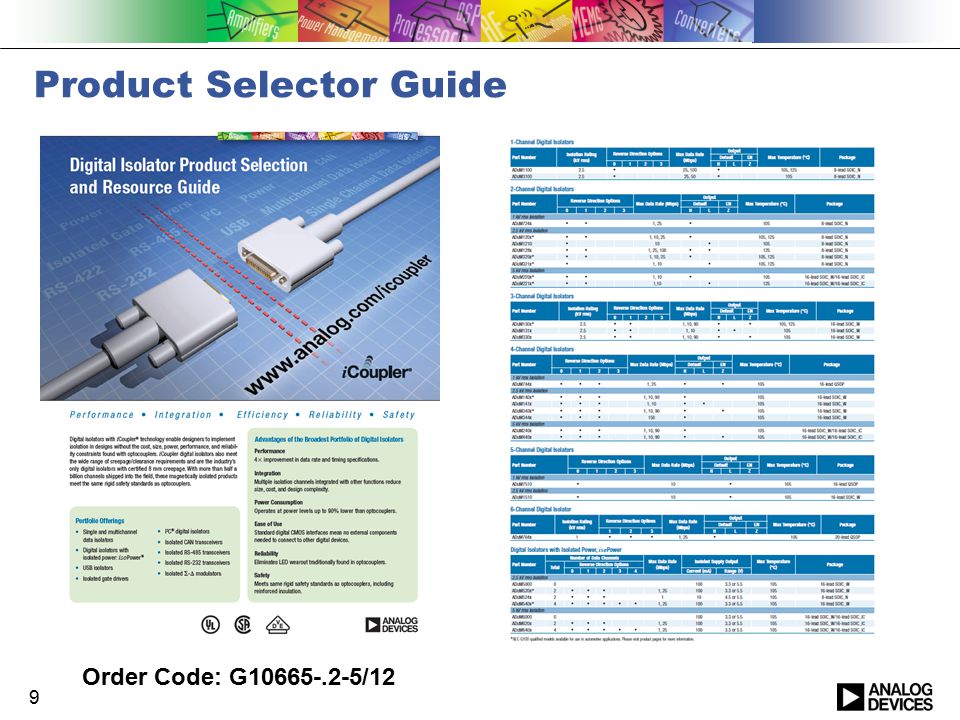

9 Product Selector Guide 9 Order Code: G /12

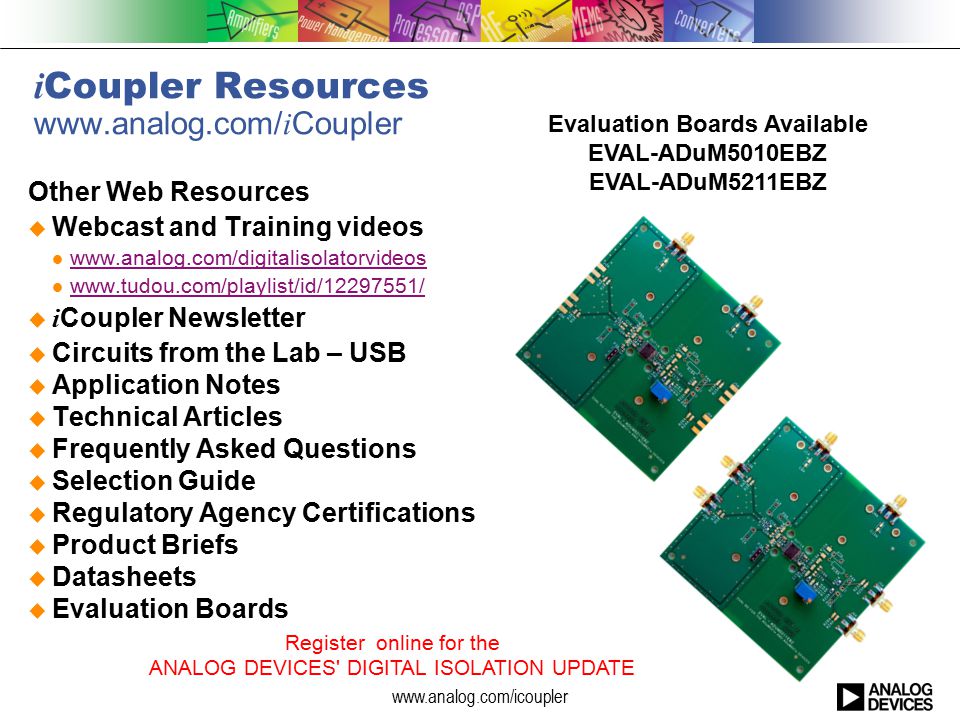

10 i Coupler Resources i Coupler Other Web Resources  Webcast and Training videos  i Coupler Newsletter  Circuits from the Lab – USB  Application Notes  Technical Articles  Frequently Asked Questions  Selection Guide  Regulatory Agency Certifications  Product Briefs  Datasheets  Evaluation Boards Register online for the ANALOG DEVICES' DIGITAL ISOLATION UPDATE Evaluation Boards Available EVAL-ADuM5010EBZ EVAL-ADuM5211EBZ
