1. ADP, ATP and Cellular Respiration Copyright Cmassengale

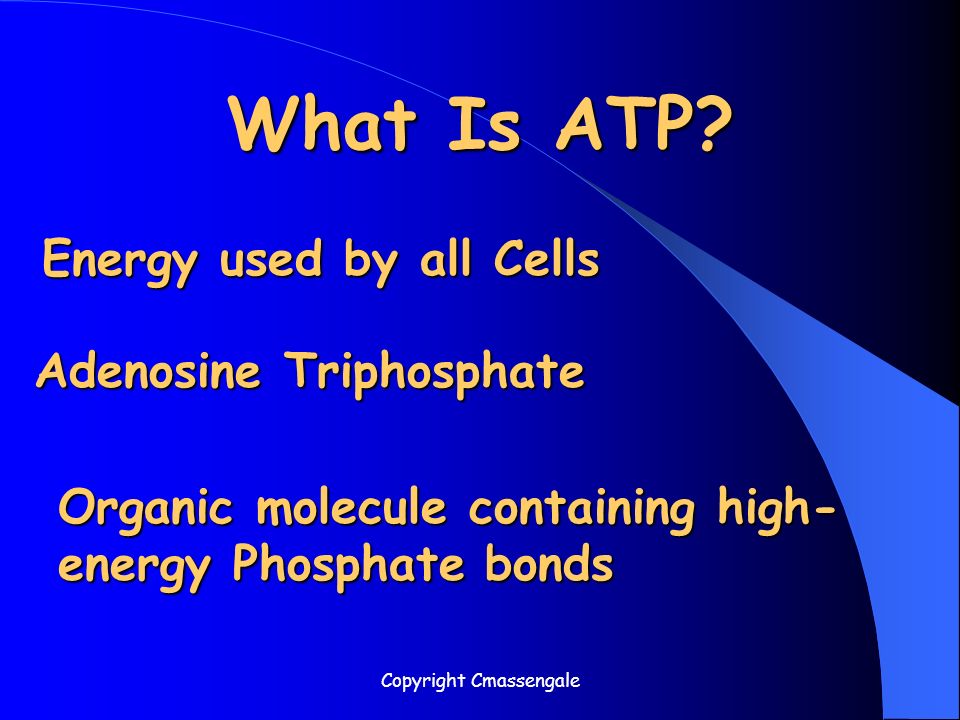

2. What Is ATP? Energy used by all Cells Adenosine Triphosphate Organic molecule containing high- energy Phosphate bonds Copyright Cmassengale

3. Chemical Structure of ATP 3 Phosphates Ribose Sugar Adenine Base Copyright Cmassengale

4. What Does ATP Do for You? It supplies YOU with ENERGY! Copyright Cmassengale

5. How Do We Get Energy From ATP? By breaking the high- energy bonds between the last two phosphates in ATP Copyright Cmassengale

6. What is the Process Called? HYDROLYSIS (Adding H 2 O) H2OH2O Copyright Cmassengale

7. How Does That Happen? An Enzyme! Copyright Cmassengale

8. How is ATP Re-Made? The reverse of the previous process occurs. Another Enzyme is used! ATP Synthetase Copyright Cmassengale

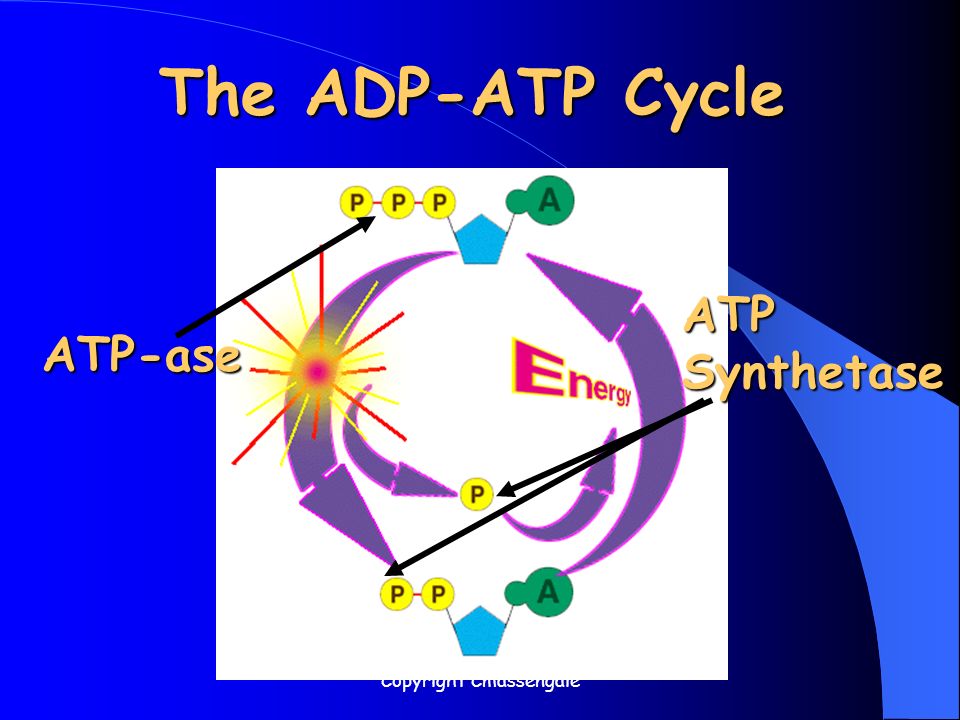

9. The ADP-ATP Cycle ATP-ase ATP Synthetase Copyright Cmassengale

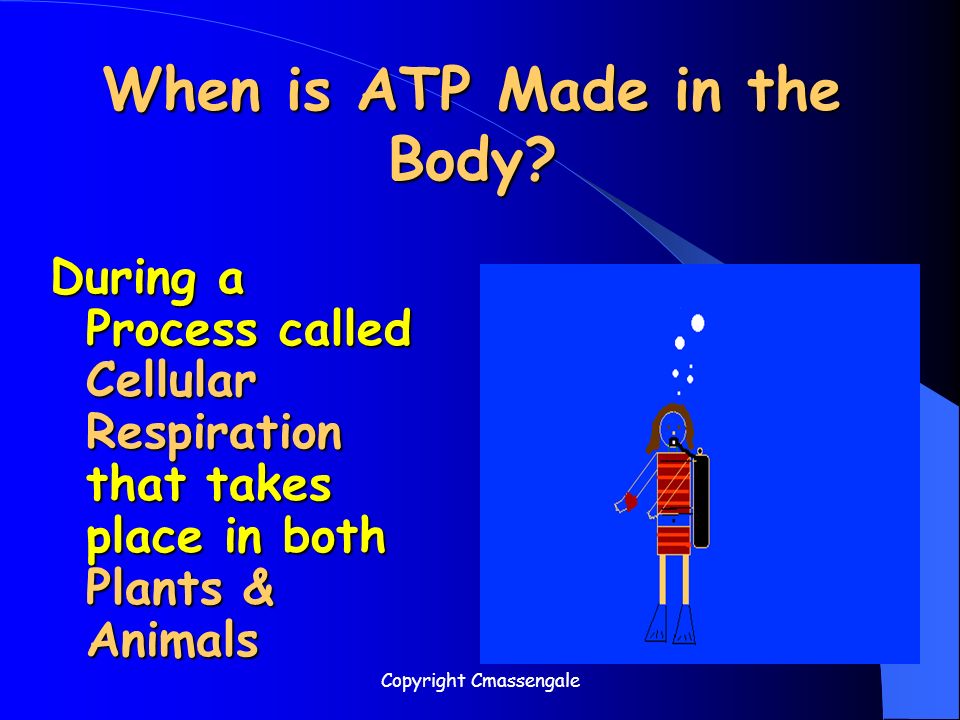

10. When is ATP Made in the Body? During a Process called Cellular Respiration that takes place in both Plants & Animals Copyright Cmassengale

11. Cellular Respiration Includes pathways that require oxygen Includes pathways that require oxygen Glucose is oxidized and O 2 is reduced Glucose is oxidized and O 2 is reduced Glucose breakdown is therefore an oxidation-reduction reaction Glucose breakdown is therefore an oxidation-reduction reaction Breakdown of one glucose results in 36 to 38 ATP molecules Breakdown of one glucose results in 36 to 38 ATP molecules Copyright Cmassengale

12. Overall Equation for Cellular Respiration 6CO 2 + 6H 2 0 + e - + 36-38 ATP’s C 6 H 12 O 6 + 6O 2 YIELDS Copyright Cmassengale

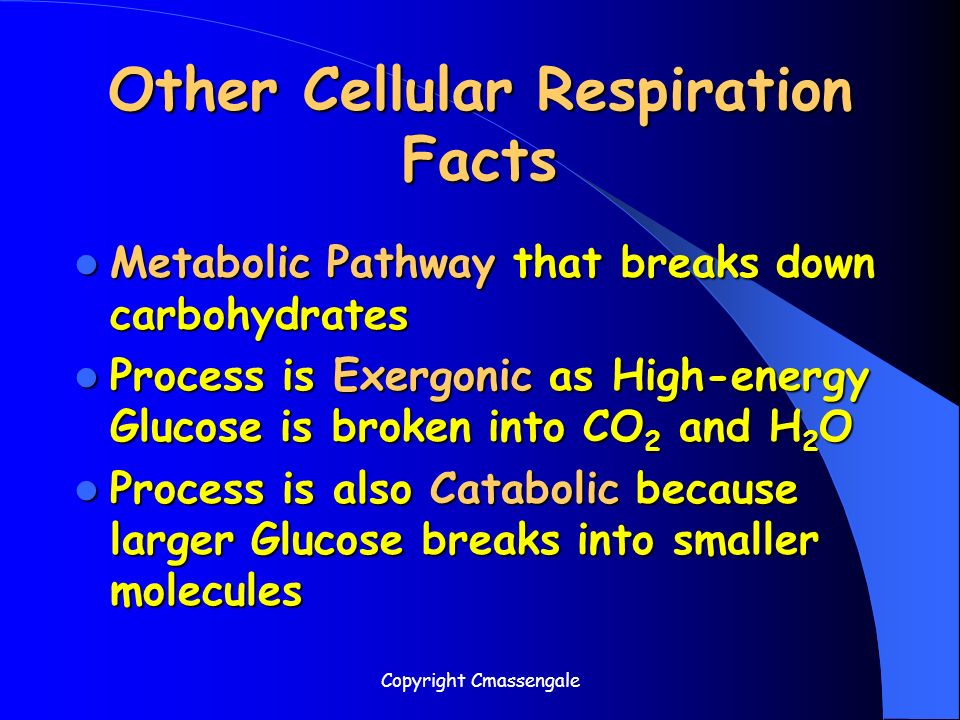

13. Other Cellular Respiration Facts Metabolic Pathway that breaks down carbohydrates Metabolic Pathway that breaks down carbohydrates Process is Exergonic as High-energy Glucose is broken into CO 2 and H 2 O Process is Exergonic as High-energy Glucose is broken into CO 2 and H 2 O Process is also Catabolic because larger Glucose breaks into smaller molecules Process is also Catabolic because larger Glucose breaks into smaller molecules Copyright Cmassengale

14. What are the Stages of Cellular Respiration? Glycolysis Glycolysis The Krebs Cycle The Krebs Cycle The Electron Transport Chain The Electron Transport Chain Copyright Cmassengale

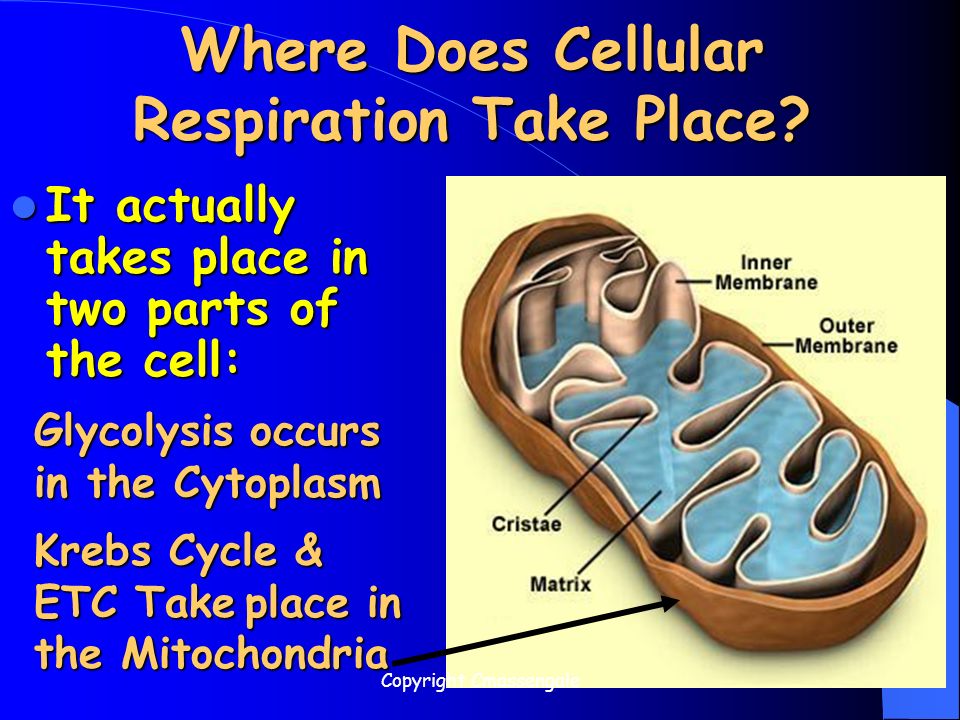

15. Where Does Cellular Respiration Take Place? It actually takes place in two parts of the cell: It actually takes place in two parts of the cell: Glycolysis occurs in the Cytoplasm Krebs Cycle & ETC Takeplace in the Mitochondria Krebs Cycle & ETC Take place in the Mitochondria Copyright Cmassengale

16. Review of Mitochondria Structure Smooth outer Membrane Smooth outer Membrane Folded inner membrane Folded inner membrane Folds called Cristae Folds called Cristae Space inside cristae called the Matrix Space inside cristae called the Matrix Copyright Cmassengale

17. Diagram of the Process Occurs in Cytoplasm Occurs in Matrix Occurs across Cristae Copyright Cmassengale

18. Glycolysis Summary Takes place in the Cytoplasm Anaerobic (Doesn’t Use Oxygen) Requires input of 2 ATP Glucose split into two molecules of Pyruvate or Pyruvic Acid Copyright Cmassengale

19. Glycolysis Summary Also produces 2 NADH and 4 ATP Also produces 2 NADH and 4 ATP Pyruvate is oxidized to Acetyl CoA and CO 2 is removed Pyruvate is oxidized to Acetyl CoA and CO 2 is removed Copyright Cmassengale

20. Glycolysis Diagram Copyright Cmassengale

21. Fermentation Occurs when O 2 NOT present (anaerobic)  Occurs when O 2 NOT present (anaerobic)  Called Lactic Acid fermentation in muscle cells (makes muscles tired)  Called Alcoholic fermentation in yeast (produces ethanol)  Nets only 2 ATP Copyright Cmassengale

22. A Little Krebs Cycle History Discovered by Hans Krebs in 1937 Discovered by Hans Krebs in 1937 He received the Nobel Prize in physiology or medicine in 1953 for his discovery He received the Nobel Prize in physiology or medicine in 1953 for his discovery Forced to leave Germany prior to WWII because he was Jewish Forced to leave Germany prior to WWII because he was Jewish Copyright Cmassengale

23. Krebs Cycle Summary Requires Oxygen (Aerobic) Requires Oxygen (Aerobic) Cyclical series of oxidation reactions that give off CO 2 and produce one ATP per cycle Cyclical series of oxidation reactions that give off CO 2 and produce one ATP per cycle Turns twice per glucose molecule Turns twice per glucose molecule Produces two ATP Produces two ATP Takes place in matrix of mitochondria Takes place in matrix of mitochondria Copyright Cmassengale

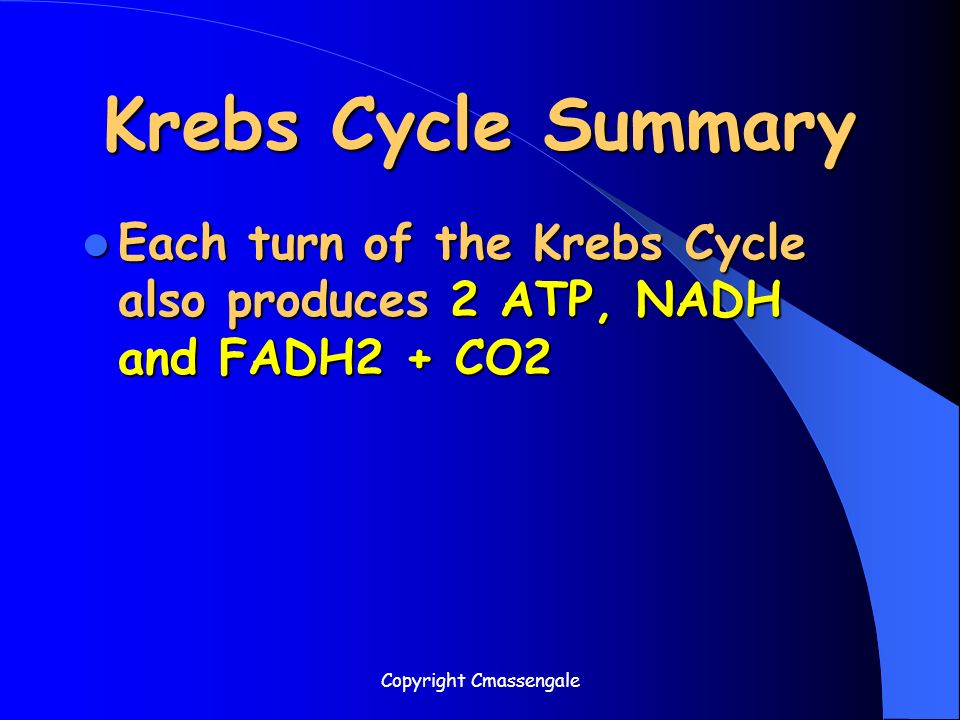

24. Krebs Cycle Summary Each turn of the Krebs Cycle also produces 2 ATP, NADH and FADH2 + CO2 Each turn of the Krebs Cycle also produces 2 ATP, NADH and FADH2 + CO2 Copyright Cmassengale

25. Krebs Cycle ATP Copyright Cmassengale

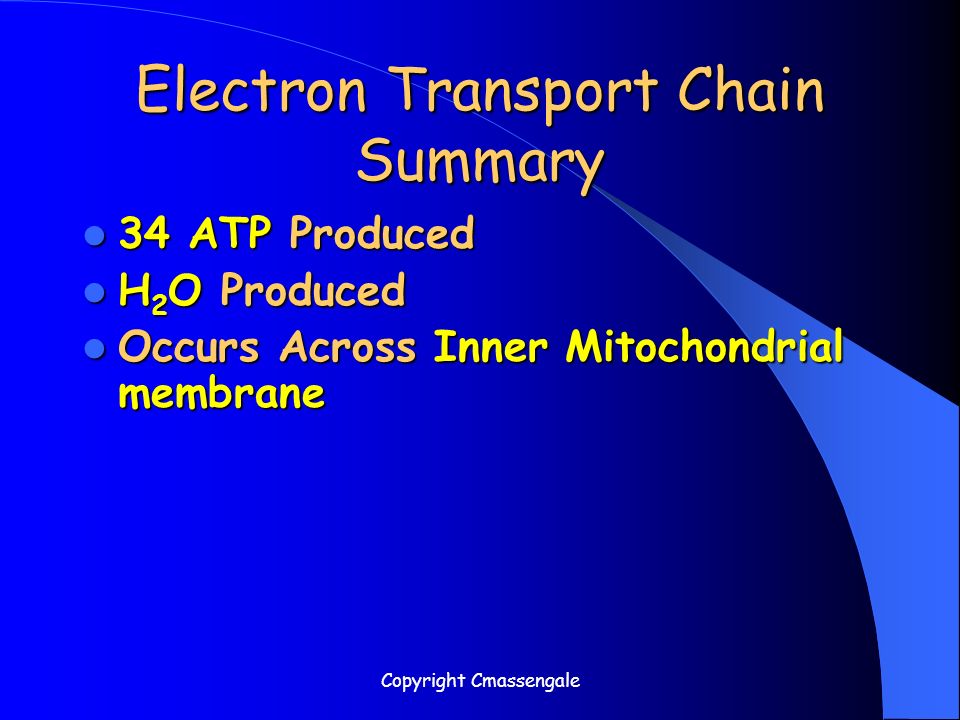

26. Electron Transport Chain Summary 34 ATP Produced 34 ATP Produced H 2 O Produced H 2 O Produced Occurs Across Inner Mitochondrial membrane Occurs Across Inner Mitochondrial membrane Copyright Cmassengale

27. Electron Transport Chain Animation Electron Transport Chain Animation Copyright Cmassengale
