H.Weerts HEP Division Argonne National Lab DOE site visit Sept 23-24, 2009 Workshop on Detector R&D 7-9 October, 2010 Fermilab Argonne Detector R&D Program.

H.Weerts HEP Division Argonne National Lab DOE site visit Sept 23-24, 2009 Workshop on Detector R&D 7-9 October, 2010 Fermilab Argonne Detector R&D Program and Facilities “Back to Basics….”

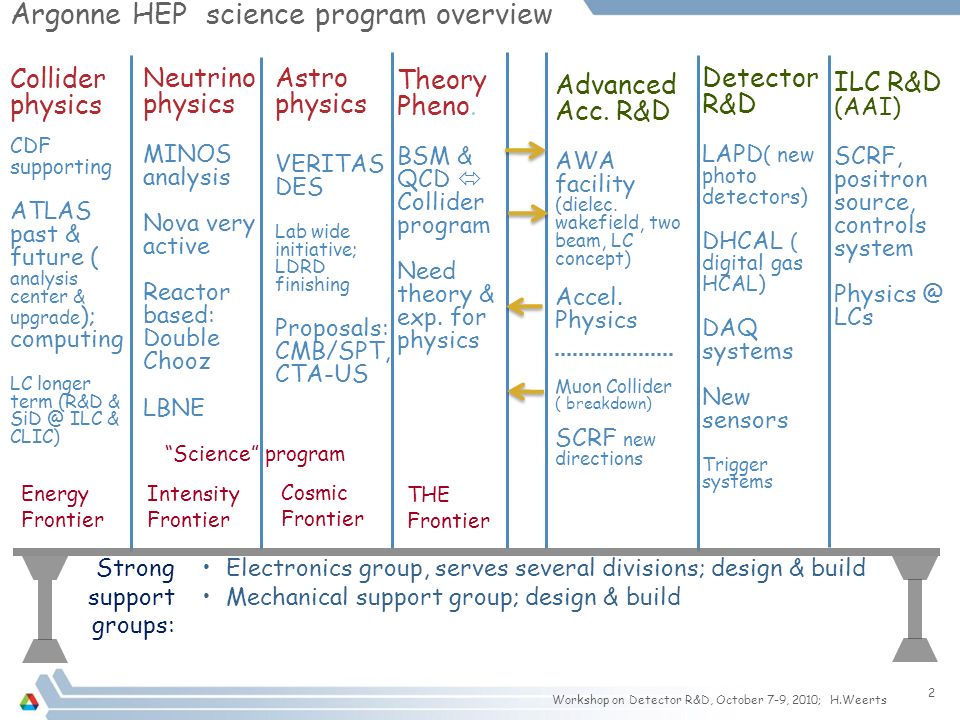

2 Argonne HEP science program overview Collider physics CDF supporting ATLAS past & future ( analysis center & upgrade ); computing LC longer term (R&D & SiD @ ILC & CLIC) Neutrino physics MINOS analysis Nova very active Reactor based: Double Chooz LBNE Advanced Acc. R&D AWA facility (dielec. wakefield, two beam, LC concept) Accel. Physics Muon Collider ( breakdown) SCRF new directions Theory Pheno. BSM & QCD  Collider program Need theory & exp. for physics Detector R&D LAPD ( new photo detectors) DHCAL ( digital gas HCAL) DAQ systems New sensors Trigger systems Astro physics VERITAS DES Lab wide initiative; LDRD finishing Proposals: CMB/SPT, CTA-US “Science” program ILC R&D (AAI) SCRF, positron source, controls system Physics @ LCs Workshop on Detector R&D, October 7-9, 2010; H.Weerts Energy Frontier Intensity Frontier Cosmic Frontier THE Frontier Strong support groups: Electronics group, serves several divisions; design & build Mechanical support group; design & build

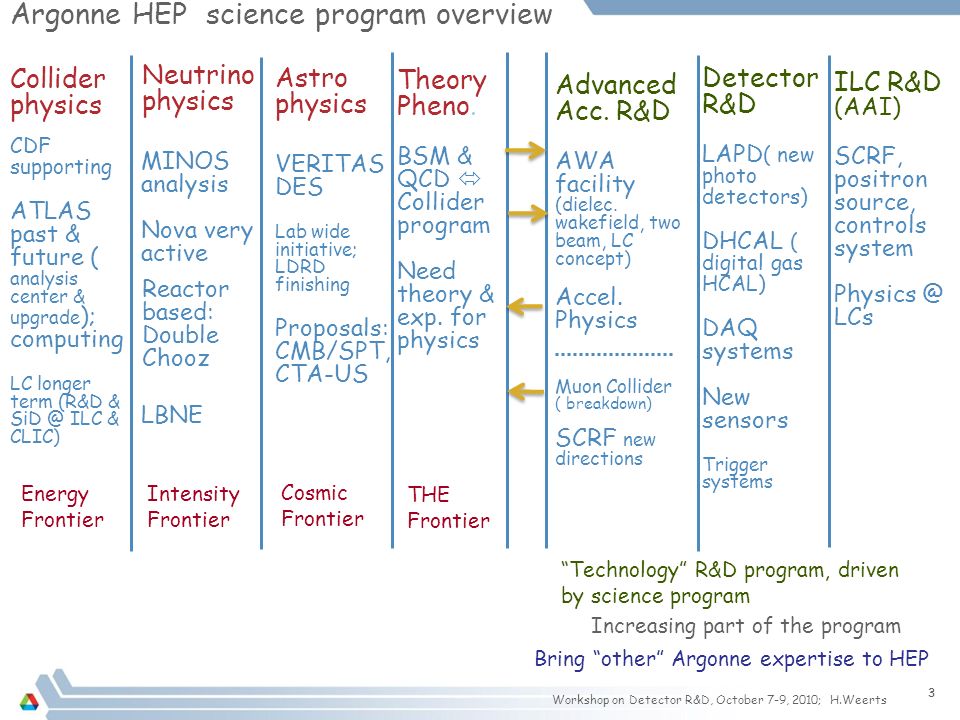

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 3 3 Argonne HEP science program overview Collider physics CDF supporting ATLAS past & future ( analysis center & upgrade ); computing LC longer term (R&D & SiD @ ILC & CLIC) Neutrino physics Reactor based: Double Chooz Advanced Acc. R&D AWA facility (dielec. wakefield, two beam, LC concept) Accel. Physics Muon Collider ( breakdown) SCRF new directions Theory Pheno. BSM & QCD  Collider program Need theory & exp. for physics Detector R&D LAPD ( new photo detectors) DHCAL ( digital gas HCAL) DAQ systems New sensors Trigger systems Astro physics VERITAS DES Lab wide initiative; LDRD finishing Proposals: CMB/SPT, CTA-US ILC R&D (AAI) SCRF, positron source, controls system Physics @ LCs “Technology” R&D program, driven by science program Increasing part of the program Bring “other” Argonne expertise to HEP Energy Frontier Intensity Frontier Cosmic Frontier THE Frontier MINOS analysis Nova very active LBNE

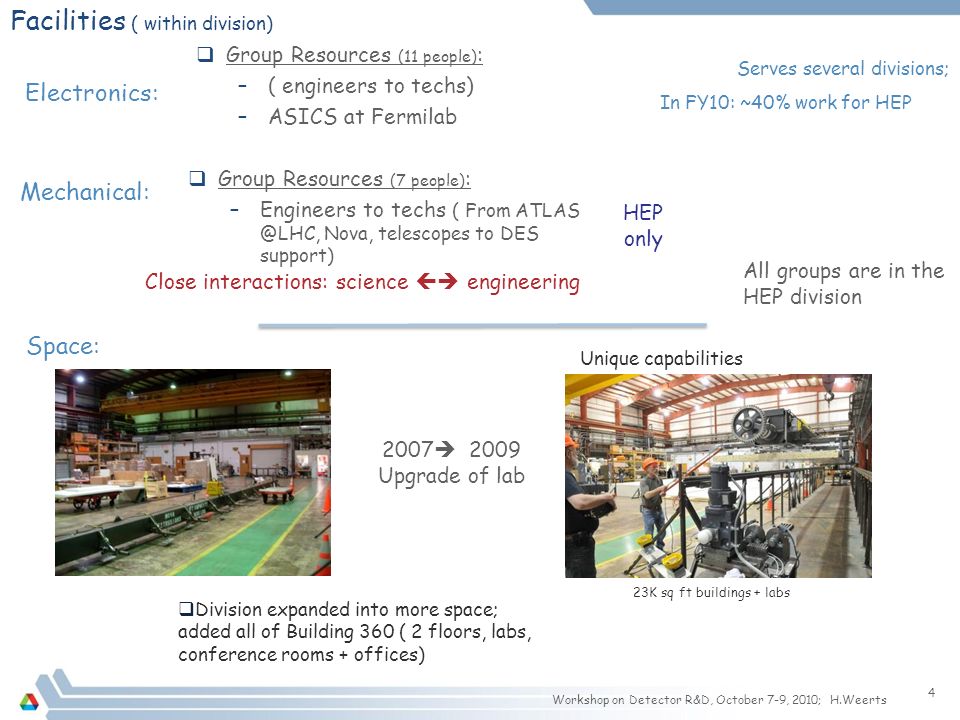

Facilities ( within division) 4 Electronics: Mechanical: All groups are in the HEP division  Group Resources (11 people) : –( engineers to techs) –ASICS at Fermilab Serves several divisions; In FY10: ~40% work for HEP  Group Resources (7 people) : –Engineers to techs ( From ATLAS @LHC, Nova, telescopes to DES support) Unique capabilities HEP only Workshop on Detector R&D, October 7-9, 2010; H.Weerts  Division expanded into more space; added all of Building 360 ( 2 floors, labs, conference rooms + offices) Space: 23K sq ft buildings + labs Close interactions: science  engineering 2007  2009 Upgrade of lab

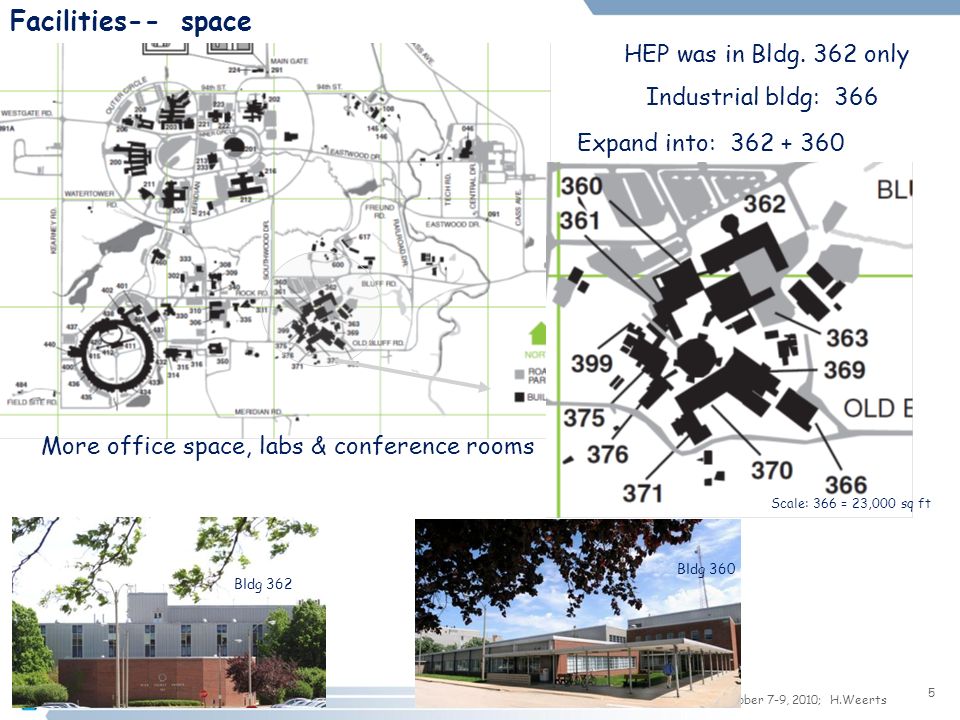

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 5 Facilities-- space HEP was in Bldg. 362 only Industrial bldg: 366 More office space, labs & conference rooms Expand into: 362 + 360 Scale: 366 = 23,000 sq ft Bldg 362 Bldg 360

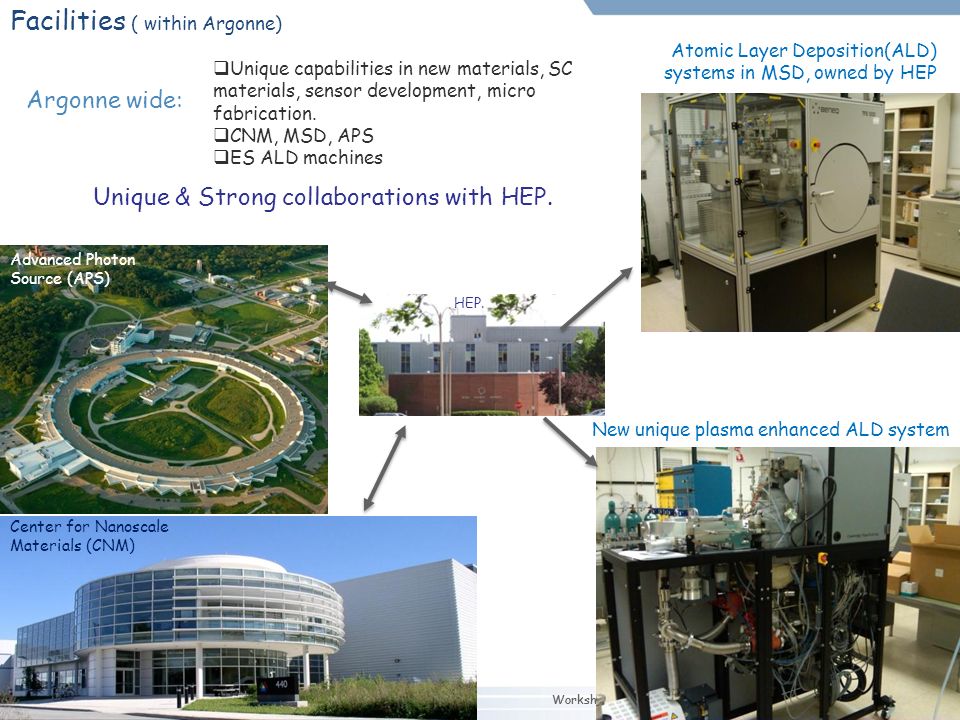

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 6 Facilities ( within Argonne) 6 Workshop on Detector R&D, October 7-9, 2010; H.Weerts  Unique capabilities in new materials, SC materials, sensor development, micro fabrication.  CNM, MSD, APS  ES ALD machines Atomic Layer Deposition(ALD) systems in MSD, owned by HEP Argonne wide: Unique & Strong collaborations with HEP. New unique plasma enhanced ALD system Advanced Photon Source (APS) Center for Nanoscale Materials (CNM) HEP.

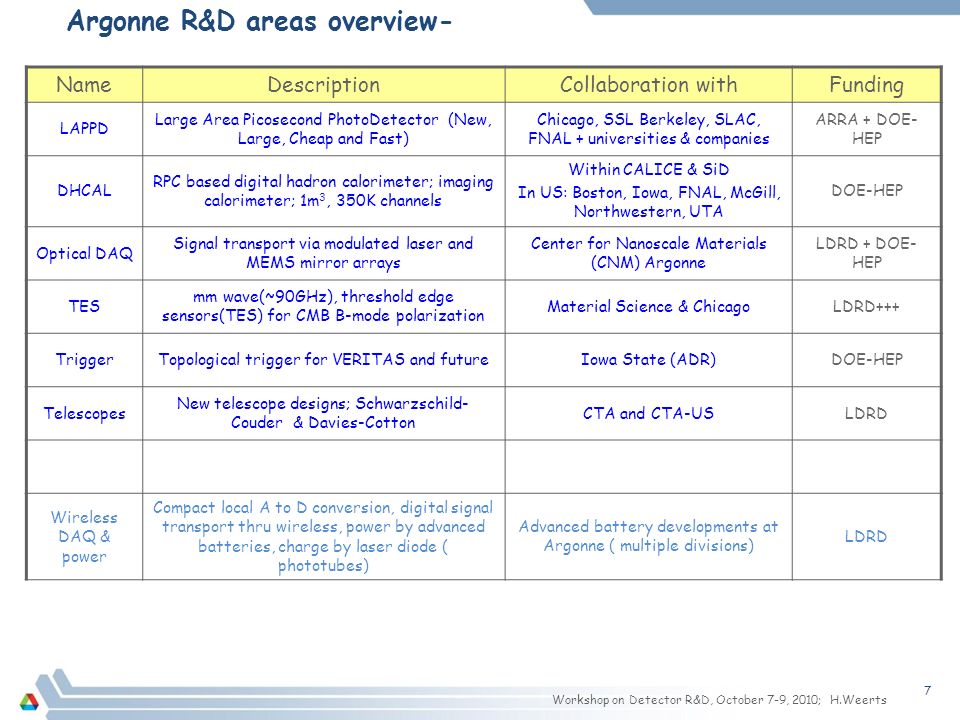

7 Argonne R&D areas overview- Workshop on Detector R&D, October 7-9, 2010; H.Weerts NameDescriptionCollaboration withFunding LAPPD Large Area Picosecond PhotoDetector (New, Large, Cheap and Fast) Chicago, SSL Berkeley, SLAC, FNAL + universities & companies ARRA + DOE- HEP DHCAL RPC based digital hadron calorimeter; imaging calorimeter; 1m 3, 350K channels Within CALICE & SiD In US: Boston, Iowa, FNAL, McGill, Northwestern, UTA DOE-HEP Optical DAQ Signal transport via modulated laser and MEMS mirror arrays Center for Nanoscale Materials (CNM) Argonne LDRD + DOE- HEP TES mm wave(~90GHz), threshold edge sensors(TES) for CMB B-mode polarization Material Science & ChicagoLDRD+++ TriggerTopological trigger for VERITAS and futureIowa State (ADR)DOE-HEP Telescopes New telescope designs; Schwarzschild- Couder & Davies-Cotton CTA and CTA-USLDRD Wireless DAQ & power Compact local A to D conversion, digital signal transport thru wireless, power by advanced batteries, charge by laser diode ( phototubes) Advanced battery developments at Argonne ( multiple divisions) LDRD

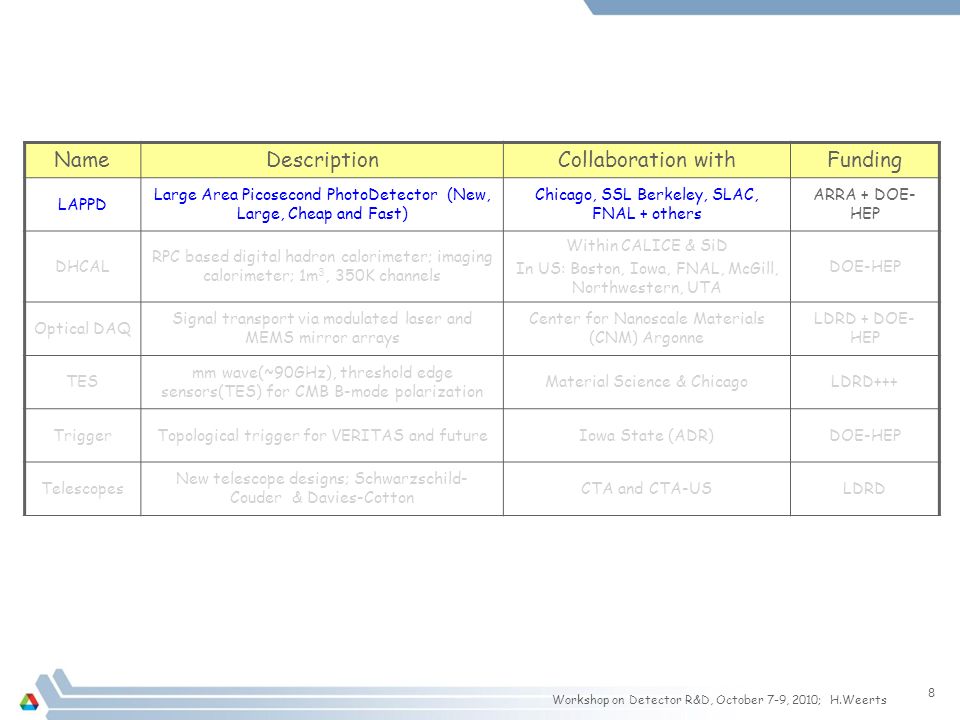

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 8 NameDescriptionCollaboration withFunding LAPPD Large Area Picosecond PhotoDetector (New, Large, Cheap and Fast) Chicago, SSL Berkeley, SLAC, FNAL + others ARRA + DOE- HEP DHCAL RPC based digital hadron calorimeter; imaging calorimeter; 1m 3, 350K channels Within CALICE & SiD In US: Boston, Iowa, FNAL, McGill, Northwestern, UTA DOE-HEP Optical DAQ Signal transport via modulated laser and MEMS mirror arrays Center for Nanoscale Materials (CNM) Argonne LDRD + DOE- HEP TES mm wave(~90GHz), threshold edge sensors(TES) for CMB B-mode polarization Material Science & ChicagoLDRD+++ TriggerTopological trigger for VERITAS and futureIowa State (ADR)DOE-HEP Telescopes New telescope designs; Schwarzschild- Couder & Davies-Cotton CTA and CTA-USLDRD

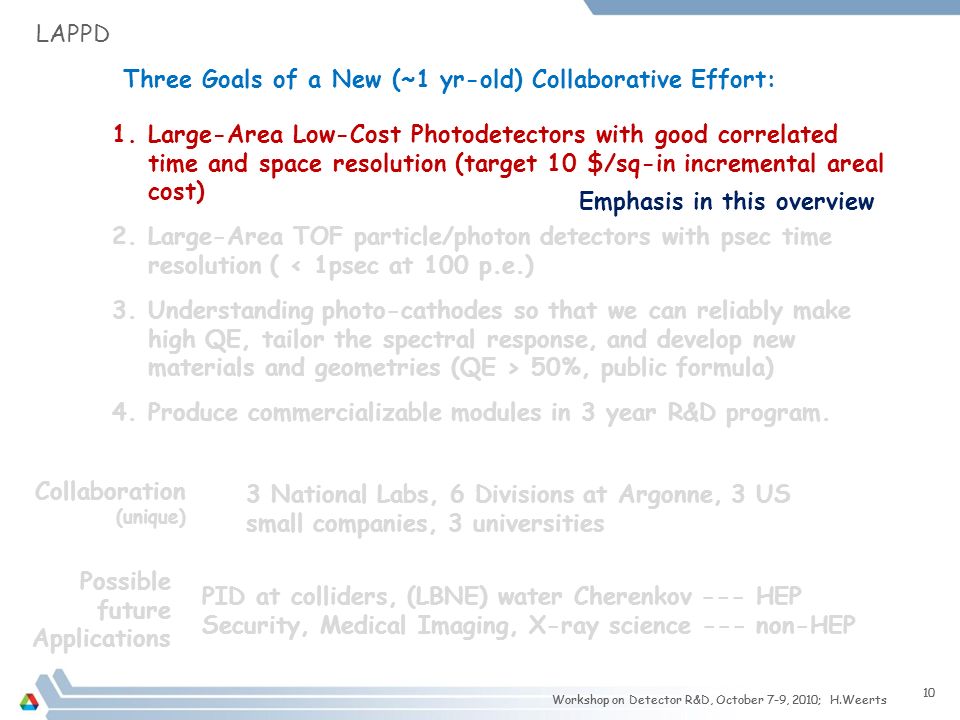

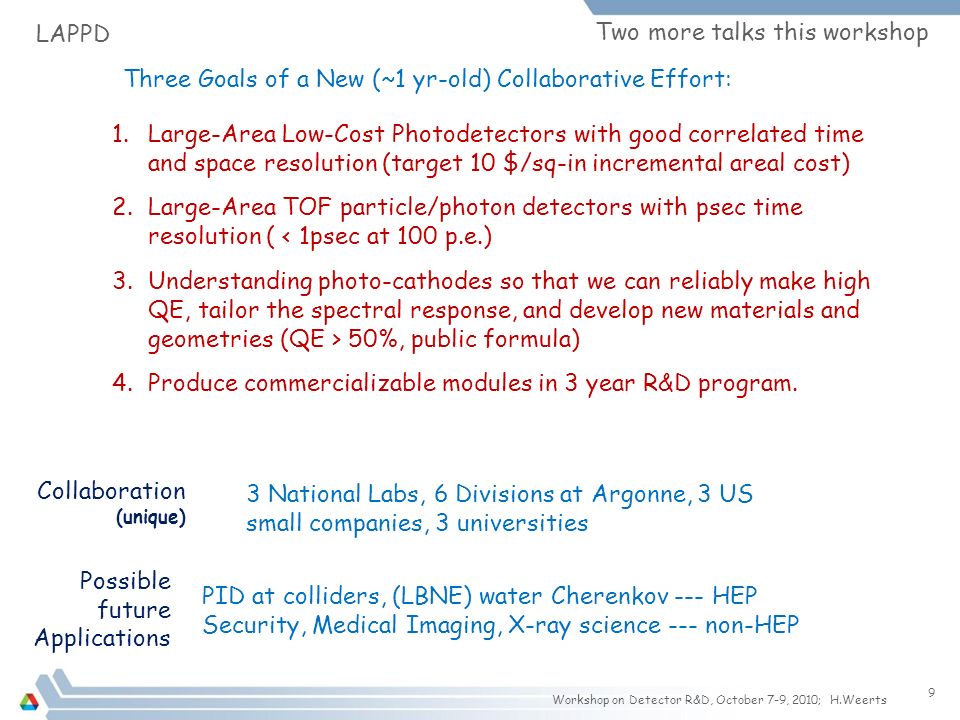

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 9 LAPPD Two more talks this workshop Three Goals of a New (~1 yr-old) Collaborative Effort: 1.Large-Area Low-Cost Photodetectors with good correlated time and space resolution (target 10 $/sq-in incremental areal cost) 2.Large-Area TOF particle/photon detectors with psec time resolution ( < 1psec at 100 p.e.) 3.Understanding photo-cathodes so that we can reliably make high QE, tailor the spectral response, and develop new materials and geometries (QE > 50%, public formula) 4.Produce commercializable modules in 3 year R&D program. 3 National Labs, 6 Divisions at Argonne, 3 US small companies, 3 universities Collaboration (unique) Possible future Applications PID at colliders, (LBNE) water Cherenkov --- HEP Security, Medical Imaging, X-ray science --- non-HEP

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 10 Workshop on Detector R&D, October 7-9, 2010; H.Weerts 10 LAPPD Three Goals of a New (~1 yr-old) Collaborative Effort: 1.Large-Area Low-Cost Photodetectors with good correlated time and space resolution (target 10 $/sq-in incremental areal cost) 2.Large-Area TOF particle/photon detectors with psec time resolution ( < 1psec at 100 p.e.) 3.Understanding photo-cathodes so that we can reliably make high QE, tailor the spectral response, and develop new materials and geometries (QE > 50%, public formula) 4.Produce commercializable modules in 3 year R&D program. 3 National Labs, 6 Divisions at Argonne, 3 US small companies, 3 universities Collaboration (unique) Possible future Applications PID at colliders, (LBNE) water Cherenkov --- HEP Security, Medical Imaging, X-ray science --- non-HEP Emphasis in this overview

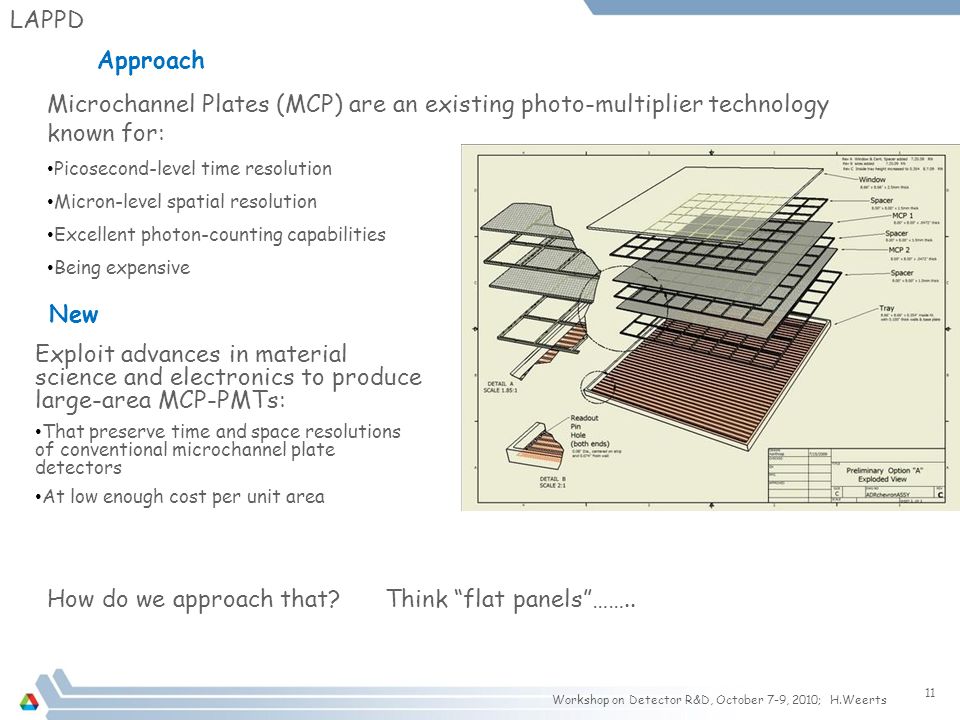

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 11 LAPPD Approach Exploit advances in material science and electronics to produce large-area MCP-PMTs: That preserve time and space resolutions of conventional microchannel plate detectors At low enough cost per unit area How do we approach that? Think “flat panels”…….. Microchannel Plates (MCP) are an existing photo-multiplier technology known for: Picosecond-level time resolution Micron-level spatial resolution Excellent photon-counting capabilities Being expensive New

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 12 LAPPD Anatomy of an MCP-PMT 1.Photocathode 2.Multichannel Plates 3.Anode (stripline) structure 4.Vacuum Assembly 5.Front-End Electronics Conversion of photons to electrons.

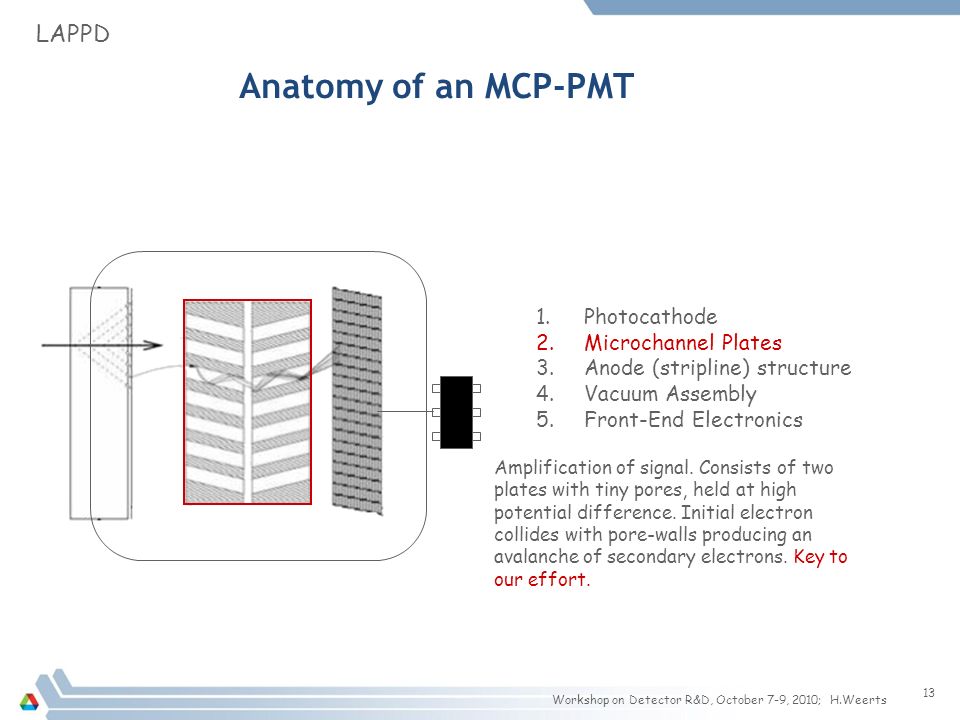

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 13 LAPPD Anatomy of an MCP-PMT 1.Photocathode 2.Microchannel Plates 3.Anode (stripline) structure 4.Vacuum Assembly 5.Front-End Electronics Amplification of signal. Consists of two plates with tiny pores, held at high potential difference. Initial electron collides with pore-walls producing an avalanche of secondary electrons. Key to our effort.

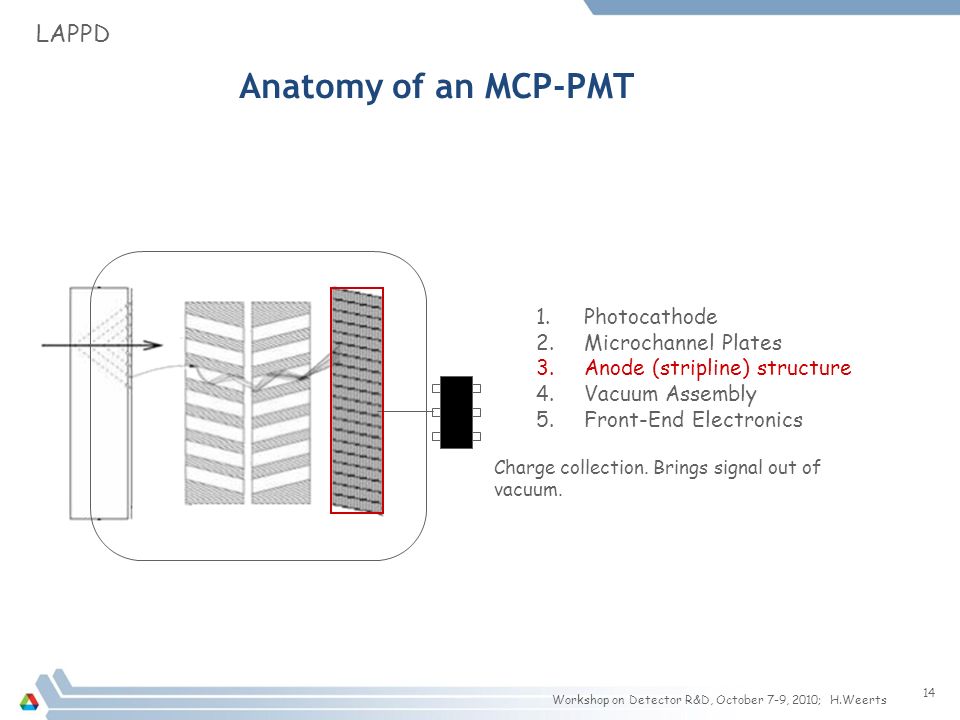

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 14 LAPPD Anatomy of an MCP-PMT 1.Photocathode 2.Microchannel Plates 3.Anode (stripline) structure 4.Vacuum Assembly 5.Front-End Electronics Charge collection. Brings signal out of vacuum.

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 15 LAPPD Anatomy of an MCP-PMT 1.Photocathode 2.Microchannel Plates 3.Anode (stripline) structure 4.Vacuum Assembly 5.Front-End Electronics Maintenance of vacuum. Provides mechanical structure and stability to the complete device.

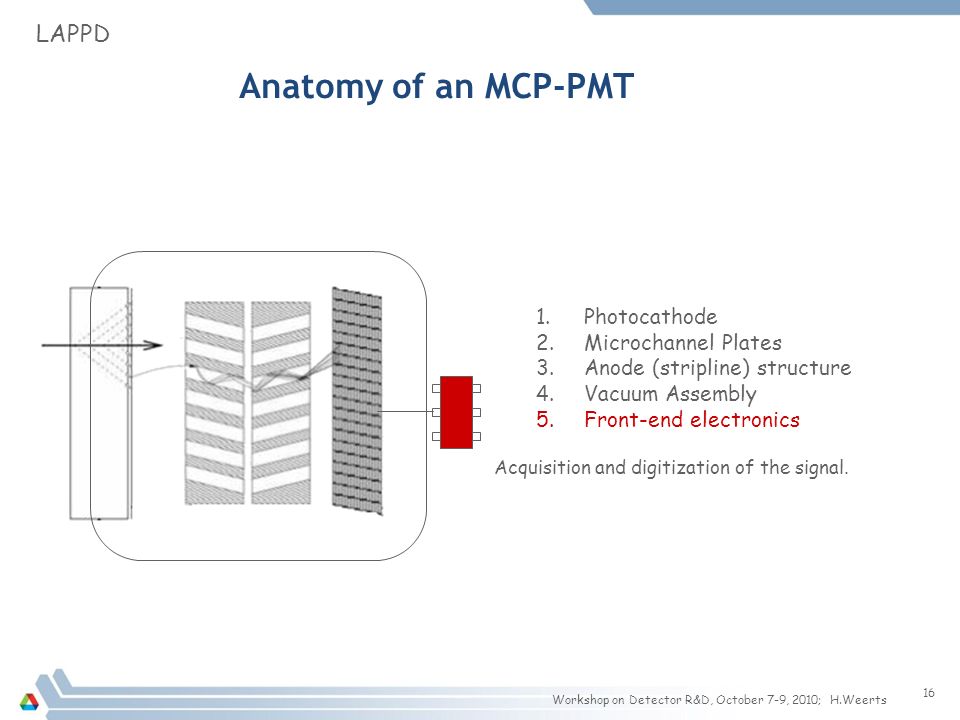

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 16 LAPPD Anatomy of an MCP-PMT 1.Photocathode 2.Microchannel Plates 3.Anode (stripline) structure 4.Vacuum Assembly 5.Front-end electronics Acquisition and digitization of the signal.

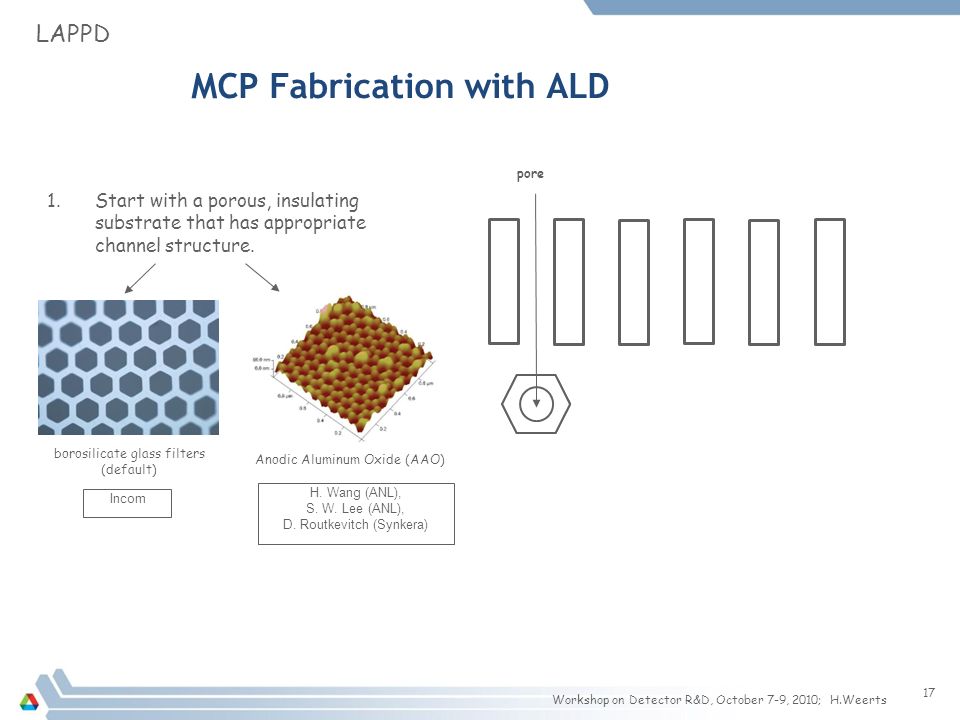

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 17 LAPPD MCP Fabrication with ALD pore 1.Start with a porous, insulating substrate that has appropriate channel structure. borosilicate glass filters (default) Anodic Aluminum Oxide (AAO) H. Wang (ANL), S. W. Lee (ANL), D. Routkevitch (Synkera) Incom

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 18 LAPPD MCP Fabrication with ALD pore 1.Start with a porous, insulating substrate that has appropriate channel structure. 2.Apply a resistive coating (ALD) borosilicate glass filters (default) Anodic Aluminum Oxide (AAO)

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 19 LAPPD MCP Fabrication with ALD pore borosilicate glass filters (default) Anodic Aluminum Oxide (AAO) 1.Start with a porous, insulating substrate that has appropriate channel structure. 2.Apply a resistive coating (ALD) 3.Apply an emissive coating (ALD) SiO 2 Conventional MCP’s: Alternative ALD Coatings: MgO ZnO (ALD SiO 2 also) Al 2 O 3

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 20 LAPPD MCP Fabrication with ALD 1 KV pore borosilicate glass filters (default) Anodic Aluminum Oxide (AAO) 1.Start with a porous, insulating substrate that has appropriate channel structure. 2.Apply a resistive coating (ALD) 3.Apply an emissive coating (ALD) 4.Apply a conductive coating to the top and bottom (thermal evaporation or sputtering) SiO 2 Conventional MCP’s: Alternative ALD Coatings: MgO ZnO (ALD SiO 2 also) Al 2 O 3

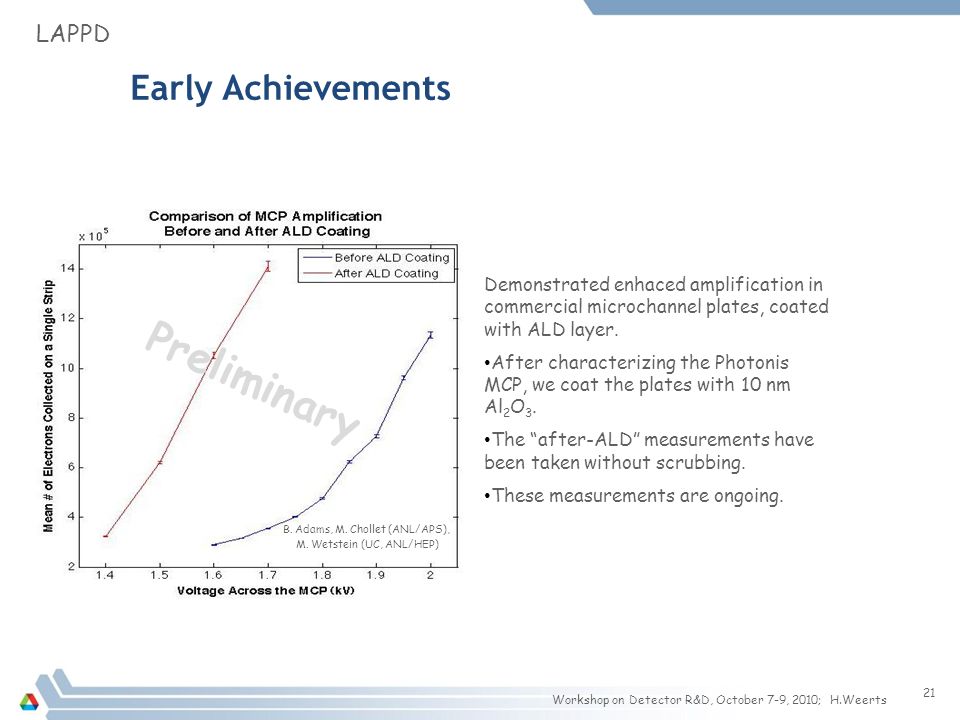

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 21 LAPPD Early Achievements Demonstrated enhaced amplification in commercial microchannel plates, coated with ALD layer. After characterizing the Photonis MCP, we coat the plates with 10 nm Al 2 O 3. The “after-ALD” measurements have been taken without scrubbing. These measurements are ongoing. Preliminary B. Adams, M. Chollet (ANL/APS), M. Wetstein (UC, ANL/HEP)

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 22 LAPPD Early Achievements Demonstrated process of MCP fabrication by atomic layer deposition on a 33mm glass filter. Able to control resistance of the plates for several different chemistries Preliminary Demonstrated >10 5 amplification on Argonne- made, ALD-functionalized glass plates

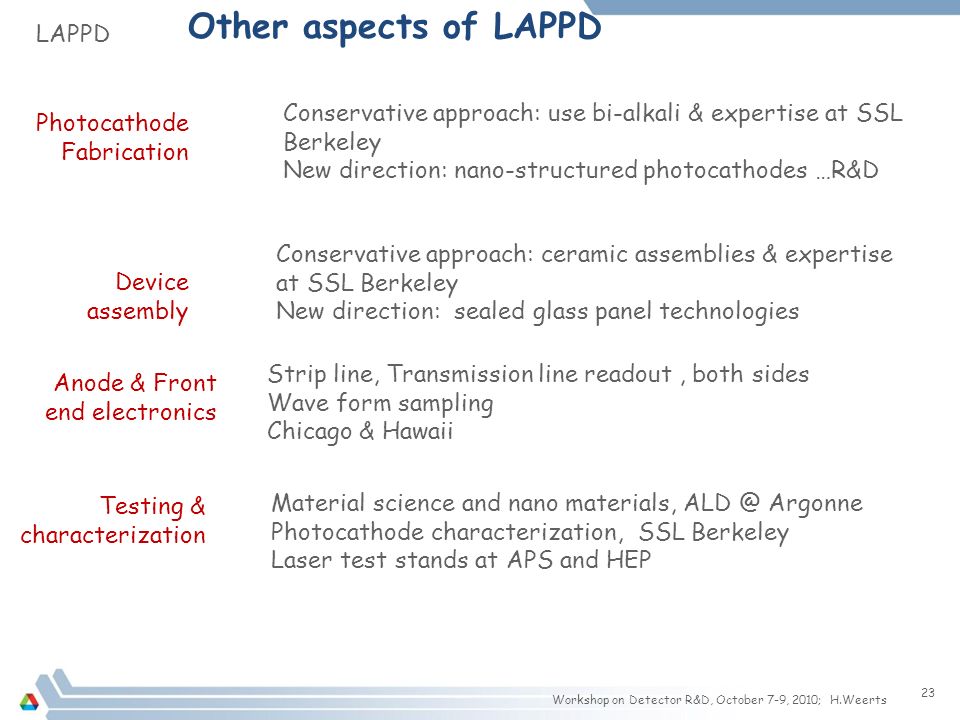

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 23 LAPPD Other aspects of LAPPD Photocathode Fabrication Conservative approach: use bi-alkali & expertise at SSL Berkeley New direction: nano-structured photocathodes …R&D Device assembly Anode & Front end electronics Testing & characterization Conservative approach: ceramic assemblies & expertise at SSL Berkeley New direction: sealed glass panel technologies Strip line, Transmission line readout, both sides Wave form sampling Chicago & Hawaii Material science and nano materials, ALD @ Argonne Photocathode characterization, SSL Berkeley Laser test stands at APS and HEP

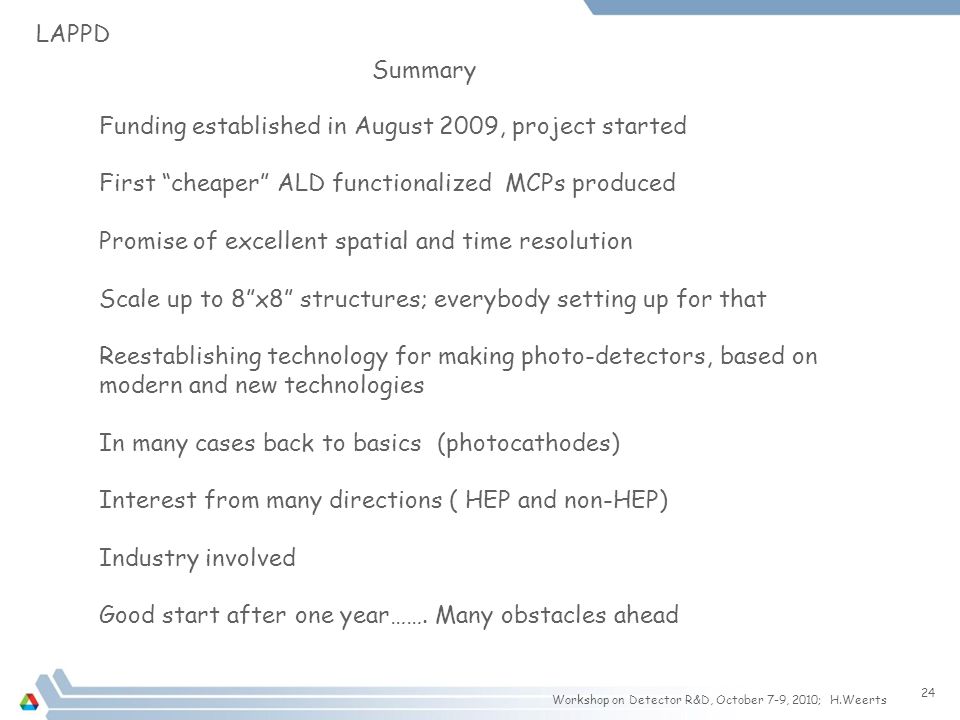

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 24 LAPPD Summary Funding established in August 2009, project started First “cheaper” ALD functionalized MCPs produced Promise of excellent spatial and time resolution Scale up to 8”x8” structures; everybody setting up for that Reestablishing technology for making photo-detectors, based on modern and new technologies In many cases back to basics (photocathodes) Interest from many directions ( HEP and non-HEP) Industry involved Good start after one year……. Many obstacles ahead

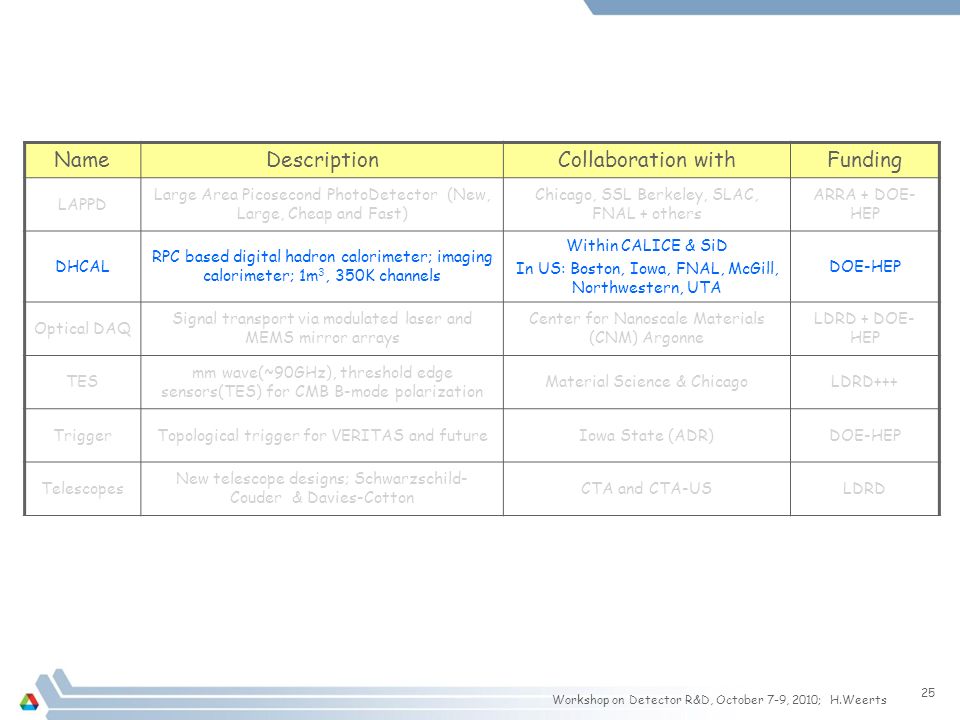

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 26 DHCAL Development of Imaging Hadron Calorimetry Physics at lepton colliders requires “precision “ measurement of jets, most common approach is Particle Flow --- requires imaging calorimeters One approach is RPC gas based Digital Hadron Calorimeter Collaborative effort of Argonne, Boston University, FNAL, IHEP (Beijing), University of Iowa, McGill University, Northwestern University, University of Texas at Arlington Sandwich calorimeter with Absorber – 20 mm thick steel plates Active elements – Resistive Plate Chambers (RPCs) Readout Longitudinally – every layer individually Laterally – 1 x 1 cm 2 pads Resolution 1 bit/pad ILC detector concepts RPC-DHCAL = Baseline of SiD RPC-DHCAL = Alternative option of ILD Part of

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 27 DHCAL 27 R&D – RPCs Measurement of basic performance criteria Development of specific designs Staged Approach R&D – Electronic readout Development of front-end ASIC (DCAL chip) Development of digital readout system Vertical Slice Test Test of concept with small scale calorimeter R&D – RPCs Design of larger chambers Gas mixing rack R&D – Electronic readout Next iteration of DCAL chip Improved front-end boards Physics prototype Proof of DHCAL concept Measurement of hadronic showers Current activity 0.4 m 2 2560 channels 40 m 2 350,000 channels

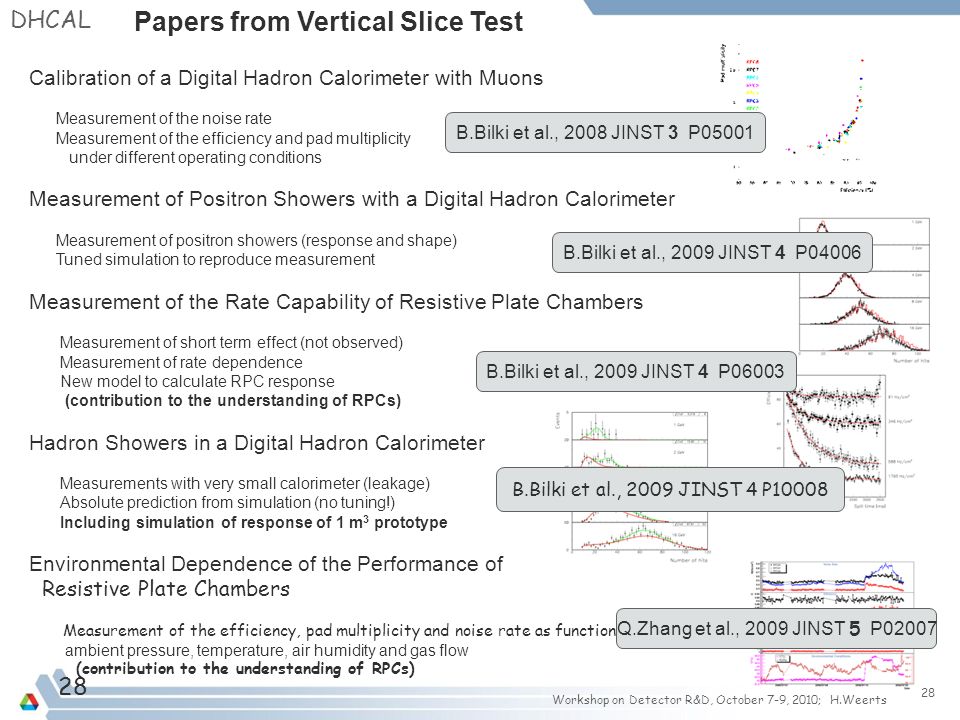

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 28 DHCAL 28 Papers from Vertical Slice Test Calibration of a Digital Hadron Calorimeter with Muons Measurement of the noise rate Measurement of the efficiency and pad multiplicity under different operating conditions Measurement of Positron Showers with a Digital Hadron Calorimeter Measurement of positron showers (response and shape) Tuned simulation to reproduce measurement Measurement of the Rate Capability of Resistive Plate Chambers Measurement of short term effect (not observed) Measurement of rate dependence New model to calculate RPC response (contribution to the understanding of RPCs) Hadron Showers in a Digital Hadron Calorimeter Measurements with very small calorimeter (leakage) Absolute prediction from simulation (no tuning!) Including simulation of response of 1 m 3 prototype Environmental Dependence of the Performance of Resistive Plate Chambers Measurement of the efficiency, pad multiplicity and noise rate as function of ambient pressure, temperature, air humidity and gas flow (contribution to the understanding of RPCs) B.Bilki et al., 2008 JINST 3 P05001 B.Bilki et al., 2009 JINST 4 P04006 B.Bilki et al., 2009 JINST 4 P06003 B.Bilki et al., 2009 JINST 4 P10008 Q.Zhang et al., 2009 JINST 5 P02007

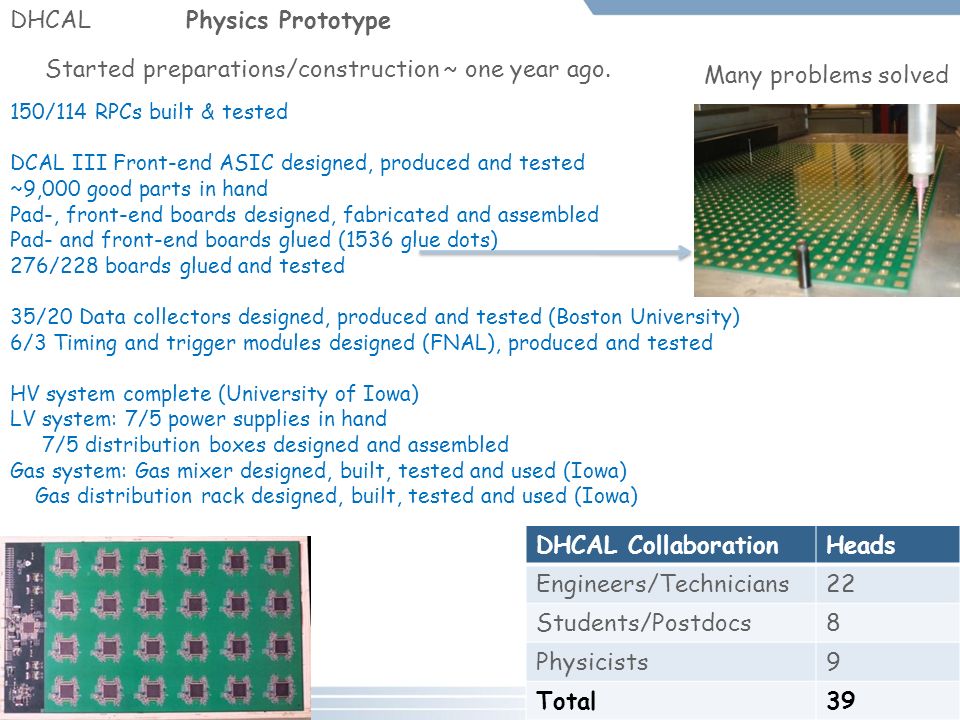

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 29 DHCALPhysics Prototype Started preparations/construction ~ one year ago. Many problems solved 150/114 RPCs built & tested DCAL III Front-end ASIC designed, produced and tested ~9,000 good parts in hand Pad-, front-end boards designed, fabricated and assembled Pad- and front-end boards glued (1536 glue dots) 276/228 boards glued and tested 35/20 Data collectors designed, produced and tested (Boston University) 6/3 Timing and trigger modules designed (FNAL), produced and tested HV system complete (University of Iowa) LV system: 7/5 power supplies in hand 7/5 distribution boxes designed and assembled Gas system: Gas mixer designed, built, tested and used (Iowa) Gas distribution rack designed, built, tested and used (Iowa) DHCAL CollaborationHeads Engineers/Technicians22 Students/Postdocs8 Physicists9 Total39

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 30 DHCAL Cassette Assembly 3 RPCs assembled into a cassette Front-plate is copper (for cooling of ASICs) and back plane is steel Cassette is compressed horizontally with a set of 4 (Badminton) strings Strings are tensioned to ~ 20 lbs Assembly - Not very difficult - Best timing so far: 45 minutes/cassette 40/38 cassettes assembled

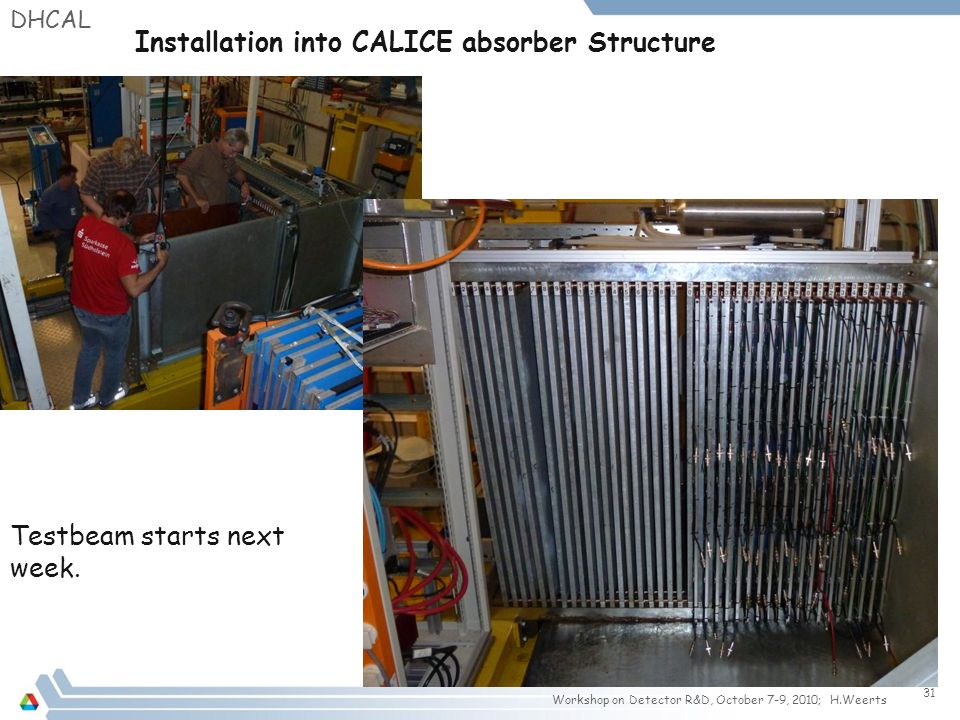

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 31 DHCAL Installation into CALICE absorber Structure Testbeam starts next week.

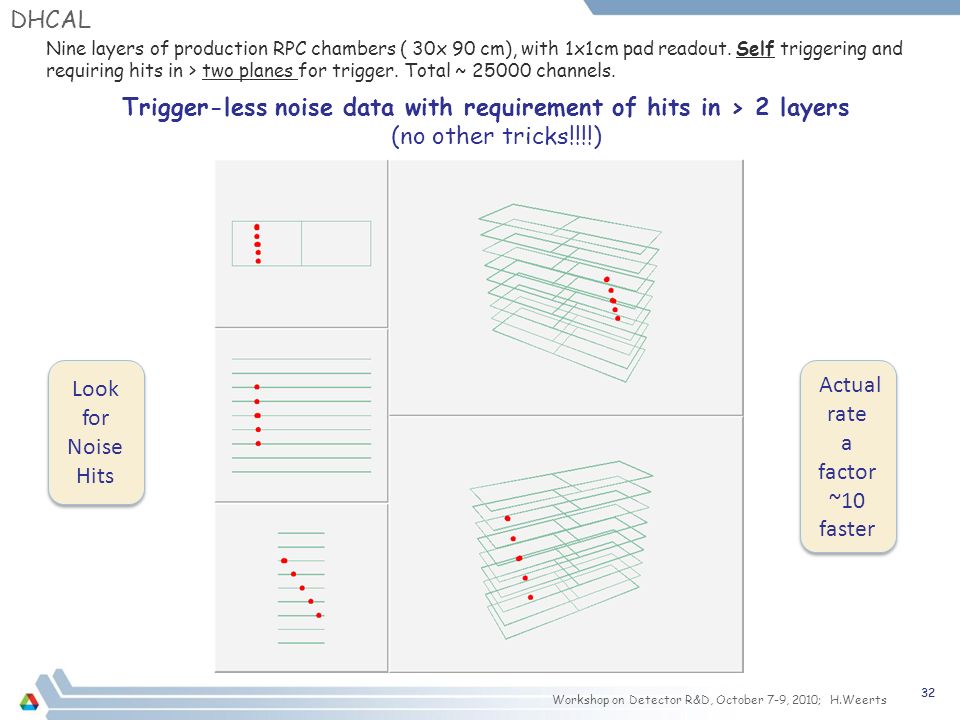

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 32 DHCAL 32 Trigger-less noise data with requirement of hits in > 2 layers (no other tricks!!!!) Look for Noise Hits Look for Noise Hits Actual rate a factor ~10 faster Actual rate a factor ~10 faster Nine layers of production RPC chambers ( 30x 90 cm), with 1x1cm pad readout. Self triggering and requiring hits in > two planes for trigger. Total ~ 25000 channels.

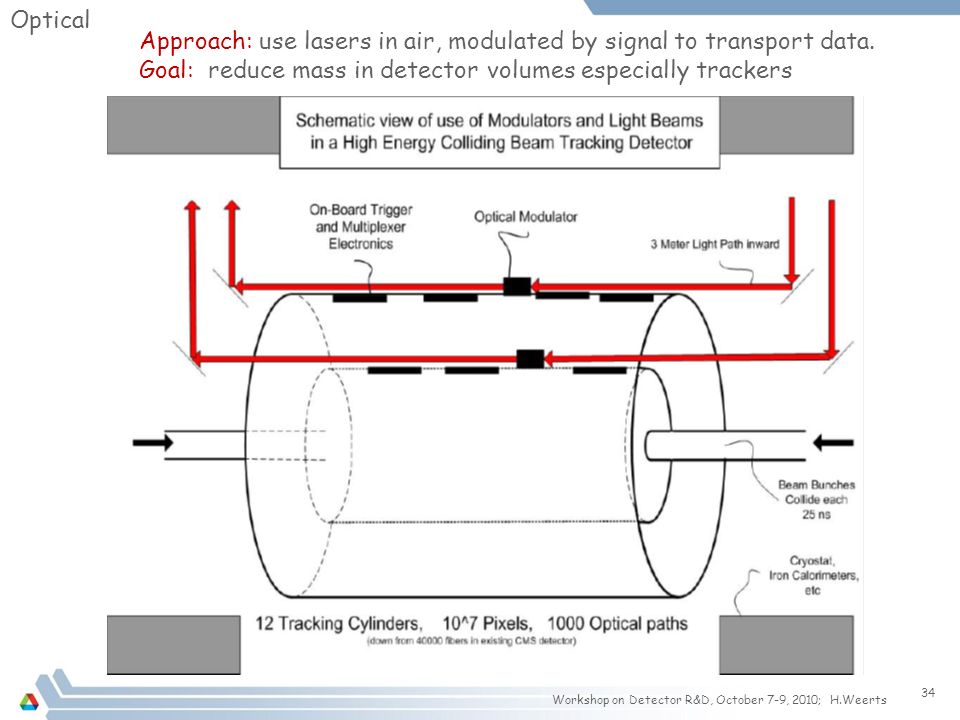

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 34 Optical Approach: use lasers in air, modulated by signal to transport data. Goal: reduce mass in detector volumes especially trackers

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 35 Optical Reasons for Optical Modulators: Very little electric power : laser is outside tracking volume Integrated into CMOS Communicate between chips with no copper (MIT, IBM, Intel, … are developing devices for beams between chips) Reasons for Beams in air : Size of connections between Detector layers Small Lenses and Mirrors - No fiber connectors Replace fibers No fiber mass No fiber plant / fiber routing Possibly more rad. hard – needs more study Cheaper ? (Harvard Broadband Lab and LBL) Tracking Trigger Utilize combined Beams and Modulators Low-mass, broadband link between tracking layers Reliability ATLAS tracking has lost 100 of 300 VCSEL

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 36 Optical on off a-Si GeSi a-Si GeSi a-Si Tapered vertical coupler MIT Design of GeSi Device Structure Liu et al, Opt. Express. 15, 623-628 (2007) Fabricated with 180 nm CMOS technology Small footprint (30 µm 2 ) Extinction ratio: 11 dB @ 1536 nm; 8 dB at 1550 nm Operation spectrum range 1539-1553 nm Ultra-low energy consumption (50 fJ/bit, or 50 µW at 1Gb/s) GHz bandwidth 3V p-p AC, 6 V bias Same process used to make a photodetector

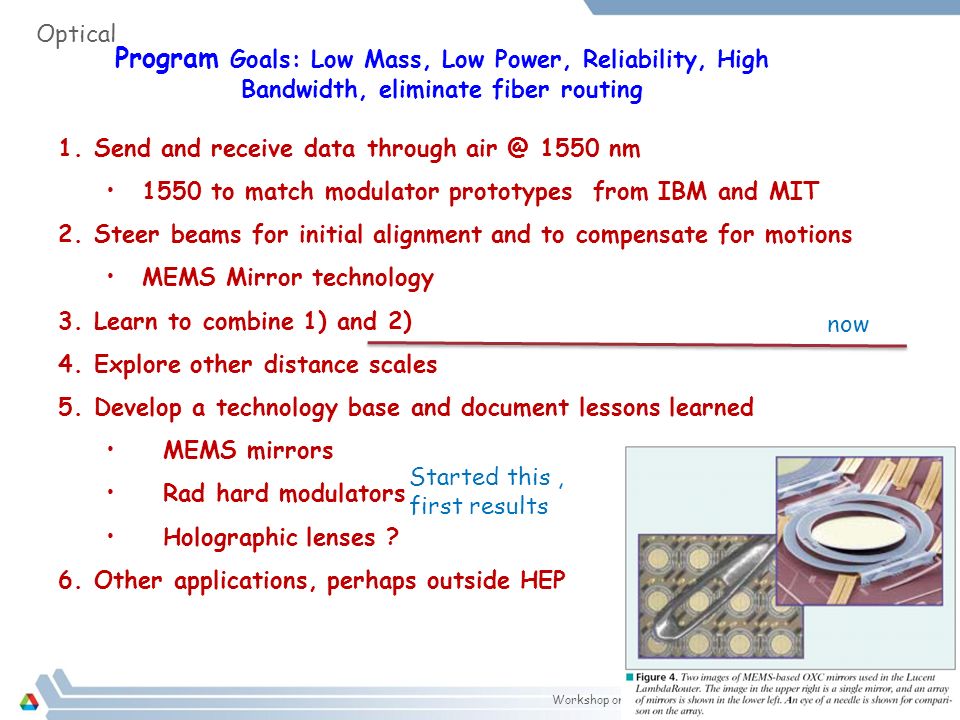

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 37 Optical Program Goals: Low Mass, Low Power, Reliability, High Bandwidth, eliminate fiber routing 1.Send and receive data through air @ 1550 nm 1550 to match modulator prototypes from IBM and MIT 2.Steer beams for initial alignment and to compensate for motions MEMS Mirror technology 3.Learn to combine 1) and 2) 4.Explore other distance scales 5.Develop a technology base and document lessons learned MEMS mirrors Rad hard modulators Holographic lenses ? 6.Other applications, perhaps outside HEP Started this, first results now

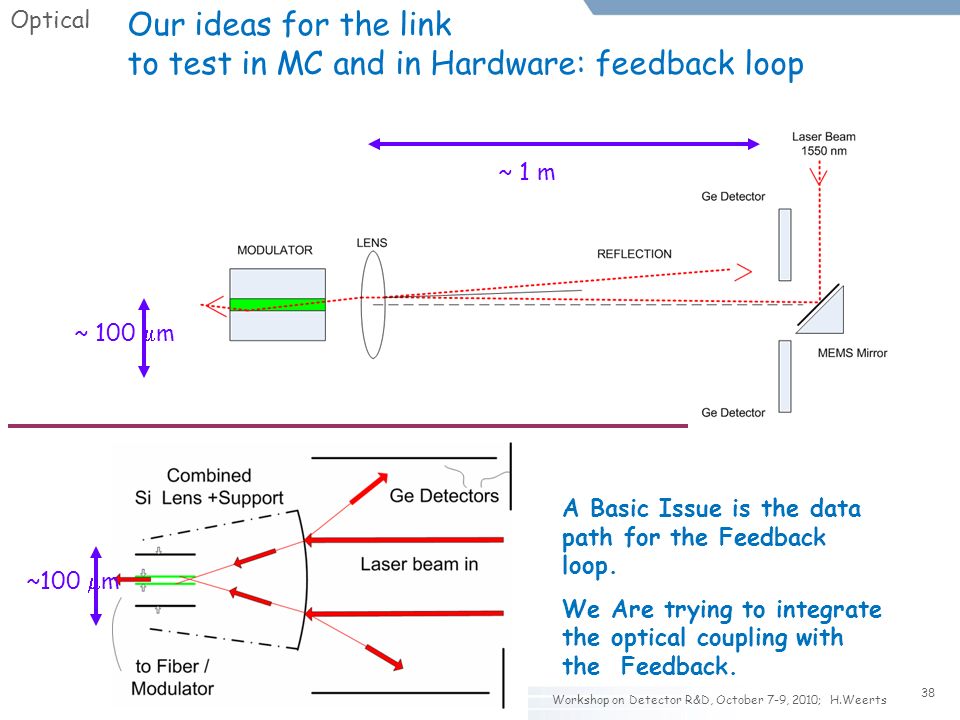

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 38 Optical Our ideas for the link to test in MC and in Hardware: feedback loop ~ 1 m ~ 100  m A Basic Issue is the data path for the Feedback loop. We Are trying to integrate the optical coupling with the Feedback. ~ 1 m

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 39 Optical No filter, 5Hz motion  MEMS Input Grounded, no motion Filter, 5Hz motion  Filter, no motion  No filter, no motion  Coping with resonance in commercial MEMS mirror in feedback loop System noise gives about 7 microns position noise at 2 meters. Mirrors from Argonne CNM will have a different suspension system. 6.8  1.5  4.5  230  RMS

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 41 TES Polarization of Cosmic Microwave Background (CMB) gives us information about high energy state of early universe. To measure with South Pole telescope (SPT) need new 90GHz low noise sensors. Development at Argonne over last few years….from scratch ElectroThermal Feedback R T Bolometry: A Broadly Applicable, Ultra-Sensitive Thermal Detection Thermometer: Voltage biased transition edge sensor (TES). Measure incident power (pW) by change in bias current using SQUIDS. Apparent simplicity is deceptive! Absorber 250 mK bath Radiation Weak thermal link

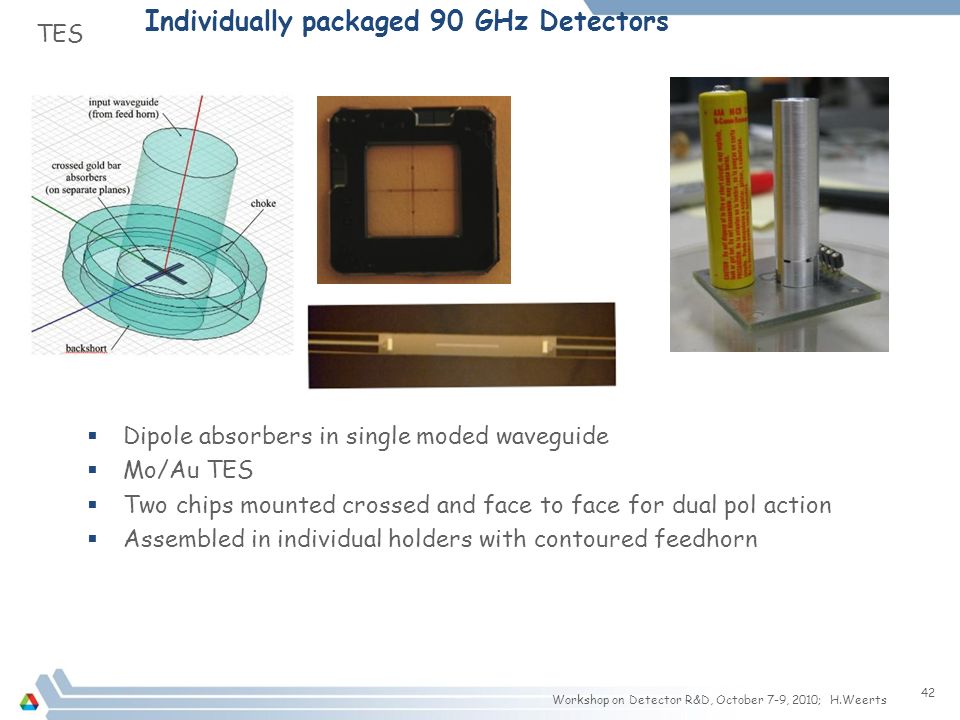

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 42 TES Individually packaged 90 GHz Detectors  Dipole absorbers in single moded waveguide  Mo/Au TES  Two chips mounted crossed and face to face for dual pol action  Assembled in individual holders with contoured feedhorn

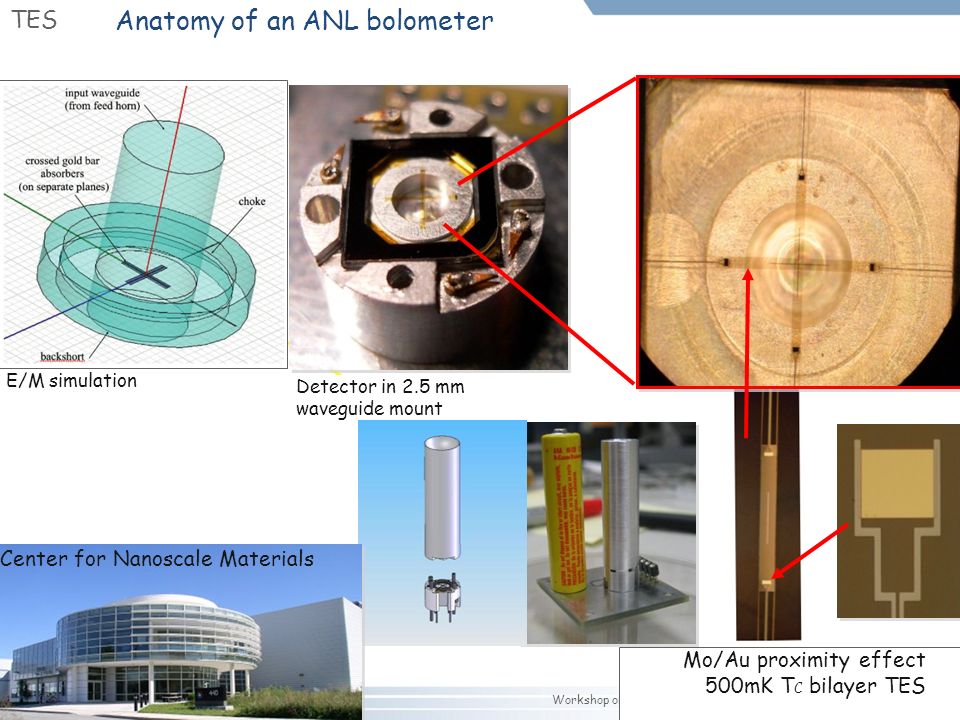

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 43 TES Anatomy of an ANL bolometer E/M simulation Mo/Au proximity effect 500mK T C bilayer TES Detector in 2.5 mm waveguide mount Center for Nanoscale Materials

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 44 TES Sensors being tested. Will be installed in a few months in SPT…. Complete November 2011. A) Deploy SPTpol (11/2011) ANL providing 90 GHz channel and participating in SPTpol & ongoing dark energy data analysis.

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 46 Trigger 46 VHE Gamma-ray Technique VERITAS Parameters: 12m Davies-Cotton telescopes Energy: 100 GeV – 30 TeV Energy Res.: 15-20% Field of View: 3.5 degrees Angular Res:.1 deg (1 TeV), 0.14 deg at 200 GeV (68% containment) Camera is composed of ~500 1” PMTs Simple 3 level trigger: Level 1: ~4-5 pe’s on 1 PMT Level 2: Signal on 3 adjacent PMTs Level 3: Signal on multiple telescopes

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 47 Trigger 47 ANL/ISU VERITAS Trigger Upgrade Motivation: Lower Energy Threshold/Bkgd CR Rejection at trigger level Overview: Level2 upgrade (underway) Topological Trigger (to be added later) Calculate major axis of image ellipse to determine parallactic displacement: the intersection of axes at multiple telescope level. Collaborative effort between Argonne HEP and Iowa State University Monte Carlo simulation of  /hadron separation with ParralaxWidth Simulation with array of 19 10m telescopes spaced at 60m Successful field test spring 2009 to compare to existing trigger. Plan to install first telescope fall 2010; remaining telescopes in early 2011.

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 49 Telescope 49 New Telescope Designs (ANL/UCLA) Improved Angular Resolution Wider FOV Secondary Optics: telescope with short F/D & compact high resolution, wide FOV cameras. Telescopes with Enhanced Performance Challenging: Never built before

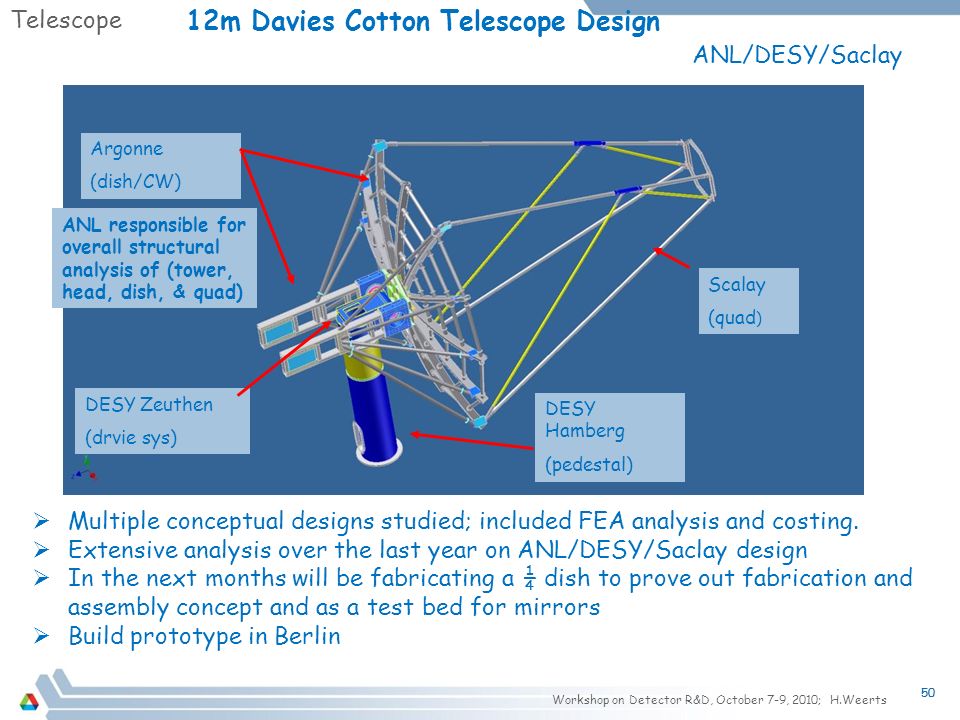

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 50 Telescope 50 12m Davies Cotton Telescope Design ANL/DESY/Saclay  Multiple conceptual designs studied; included FEA analysis and costing.  Extensive analysis over the last year on ANL/DESY/Saclay design  In the next months will be fabricating a ¼ dish to prove out fabrication and assembly concept and as a test bed for mirrors  Build prototype in Berlin DESY Hamberg (pedestal) DESY Zeuthen (drvie sys) Scalay (quad ) Argonne (dish/CW) ANL responsible for overall structural analysis of (tower, head, dish, & quad)

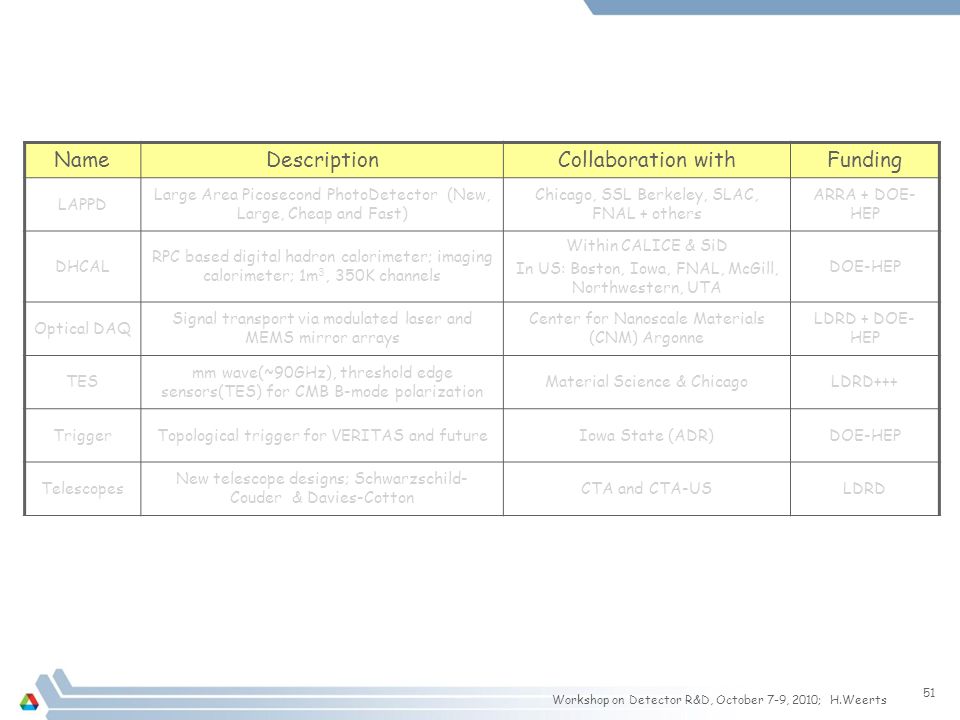

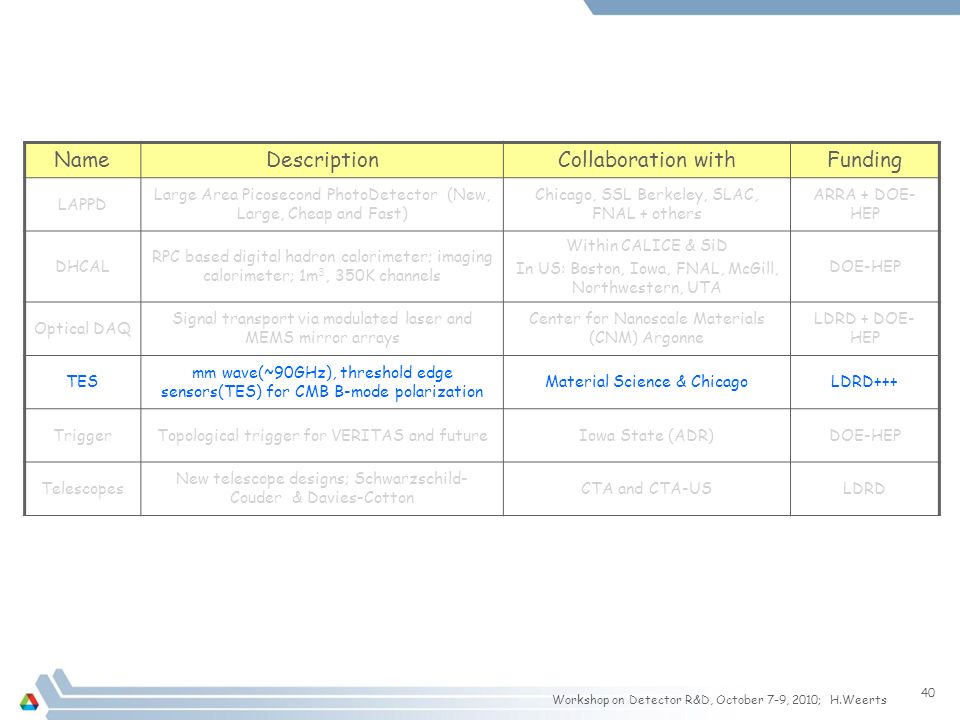

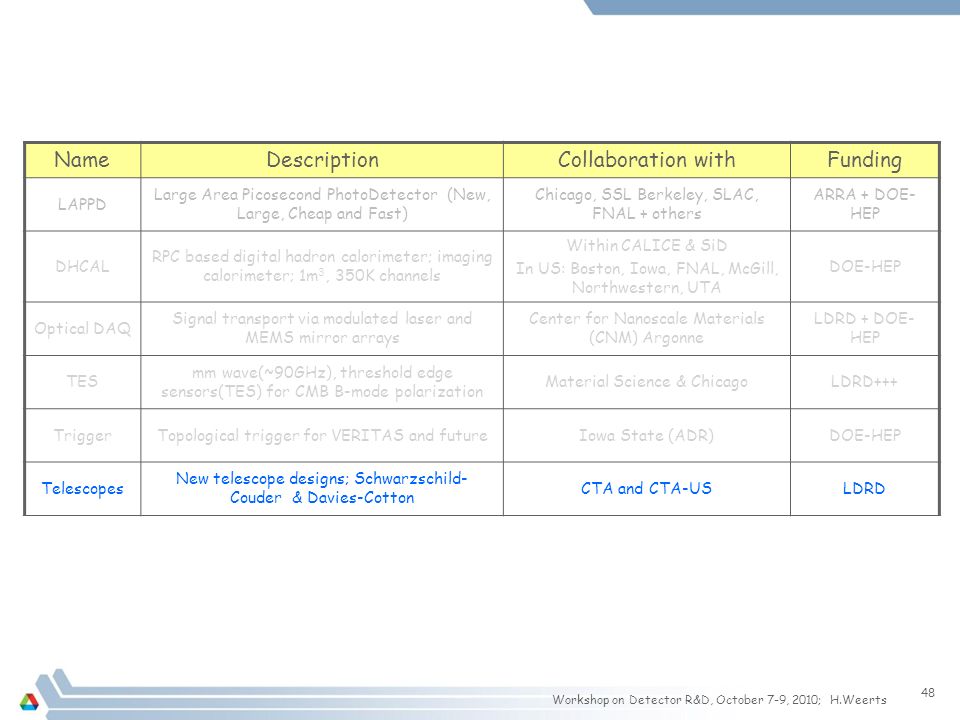

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 52 NameDescriptionCollaboration withFunding LAPPD Large Area Picosecond PhotoDetector (New, Large, Cheap and Fast) Chicago, SSL Berkeley, SLAC, FNAL + others ARRA + DOE- HEP DHCAL RPC based digital hadron calorimeter; imaging calorimeter; 1m 3, 350K channels Within CALICE & SiD In US: Boston, Iowa, FNAL, McGill, Northwestern, UTA DOE-HEP Optical DAQ Signal transport via modulated laser and MEMS mirror arrays Center for Nanoscale Materials (CNM) Argonne LDRD + DOE- HEP TES mm wave(~90GHz), threshold edge sensors(TES) for CMB B-mode polarization Material Science & ChicagoLDRD+++ TriggerTopological trigger for VERITAS and futureIowa State (ADR)DOE-HEP Telescopes New telescope designs; Schwarzschild- Couder & Davies-Cotton CTA and CTA-USLDRD Two kind of directions in Argonne detector R&D program R&D “Conventional” HEP R&D, extending existing concepts and expertise Bring in new expertise, from other fields, enable new technologies, engage other disciplines to make transformational progress.

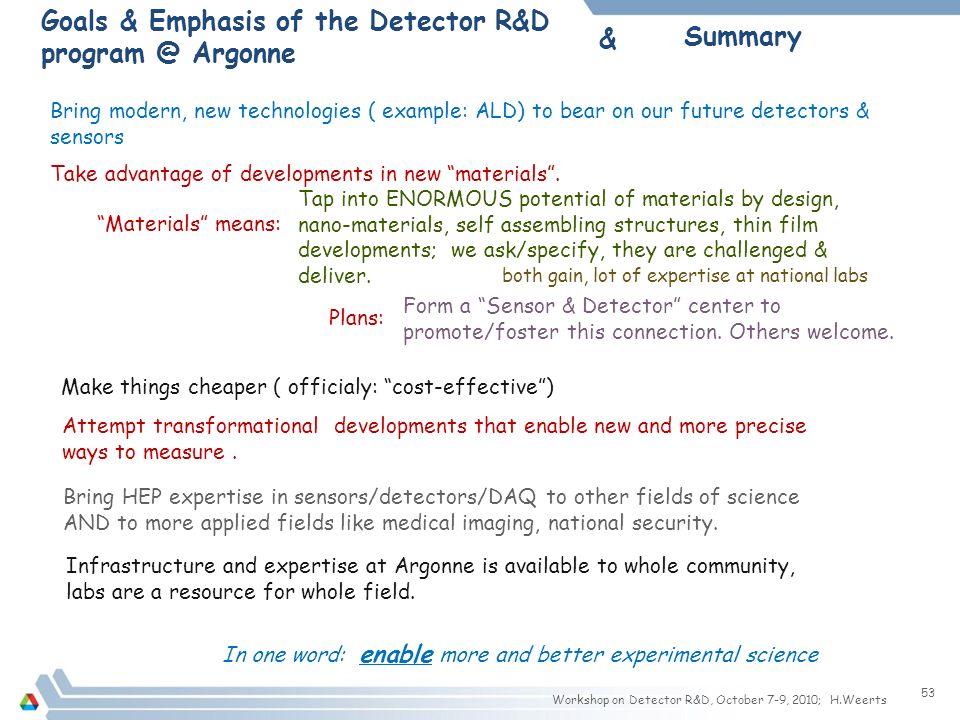

Goals & Emphasis of the Detector R&D program @ Argonne 53 Bring HEP expertise in sensors/detectors/DAQ to other fields of science AND to more applied fields like medical imaging, national security. Workshop on Detector R&D, October 7-9, 2010; H.Weerts Take advantage of developments in new “materials”. Make things cheaper ( officialy: “cost-effective”) Form a “Sensor & Detector” center to promote/foster this connection. Others welcome. Bring modern, new technologies ( example: ALD) to bear on our future detectors & sensors “Materials” means: Tap into ENORMOUS potential of materials by design, nano-materials, self assembling structures, thin film developments; we ask/specify, they are challenged & deliver. Plans: Attempt transformational developments that enable new and more precise ways to measure. In one word: enable more and better experimental science Summary & both gain, lot of expertise at national labs Infrastructure and expertise at Argonne is available to whole community, labs are a resource for whole field.

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 54 The End

Workshop on Detector R&D, October 7-9, 2010; H.Weerts 55 Backup slides
