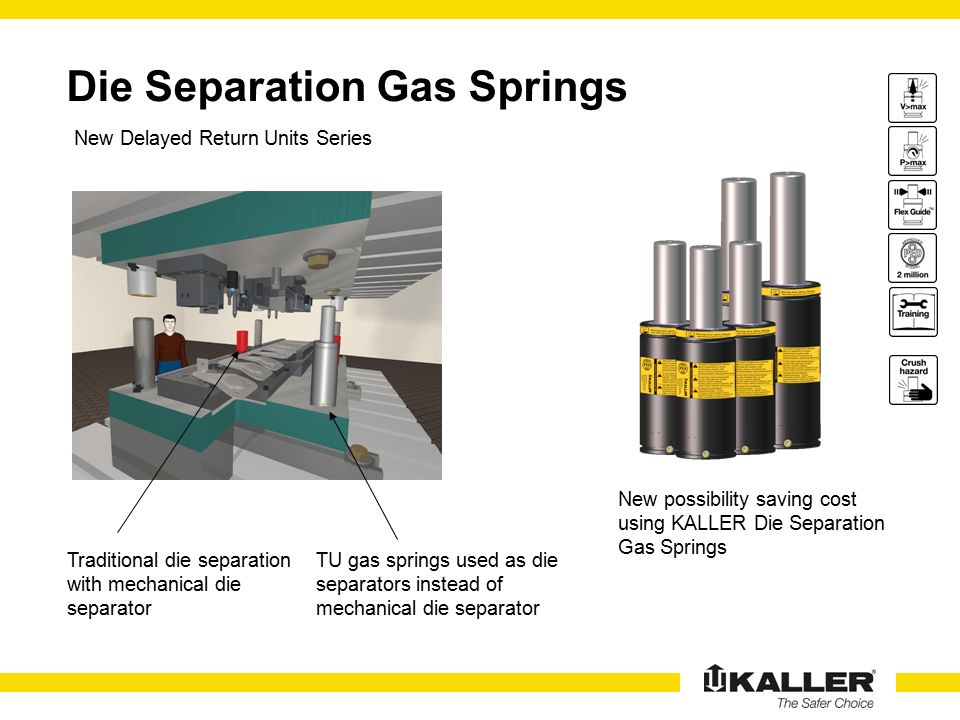

1. Die Separation Gas Springs Traditional die separation with mechanical die separator TU gas springs used as die separators instead of mechanical die separator New possibility saving cost using KALLER Die Separation Gas Springs New Delayed Return Units Series

2. Die Separation Gas Springs Benefits of KALLER Die Separation Gas Springs used as die separator: Lower press maintenance and energy saving Minimal stroke during the production No speed limitation Standard gas springs used as die separation springs KALLER Die Separation Gas Springs Advantages

3. Based on TU outside dimension Return speed approx. 150 mm/min Saves up to 5 kW / spring depending of used stroke Die Separation Gas Springs L = 140 + (2 x S) Lmin = 140 + S S 3 TU DS Longer life time due to less stroke Same mounting possibilities as TU ModelsStrokes DS 3000160;200;250;300 DS 5000160;200;250;300 DS 7500160;200;250;300 Models

4. Full stroke return time is 1-2 minutes Less used stroke gives higher energy saving The springback is up to 10% of the total stroke length depending on the used stroke length Die Separation Gas Springs Performance

5. Die Separation Gas Springs New possibility to save cost using KALLER Die Separation Gas Springs Available 2011-09-15 DS 3000, DS 5000, DS 7500 Summary
