1

2

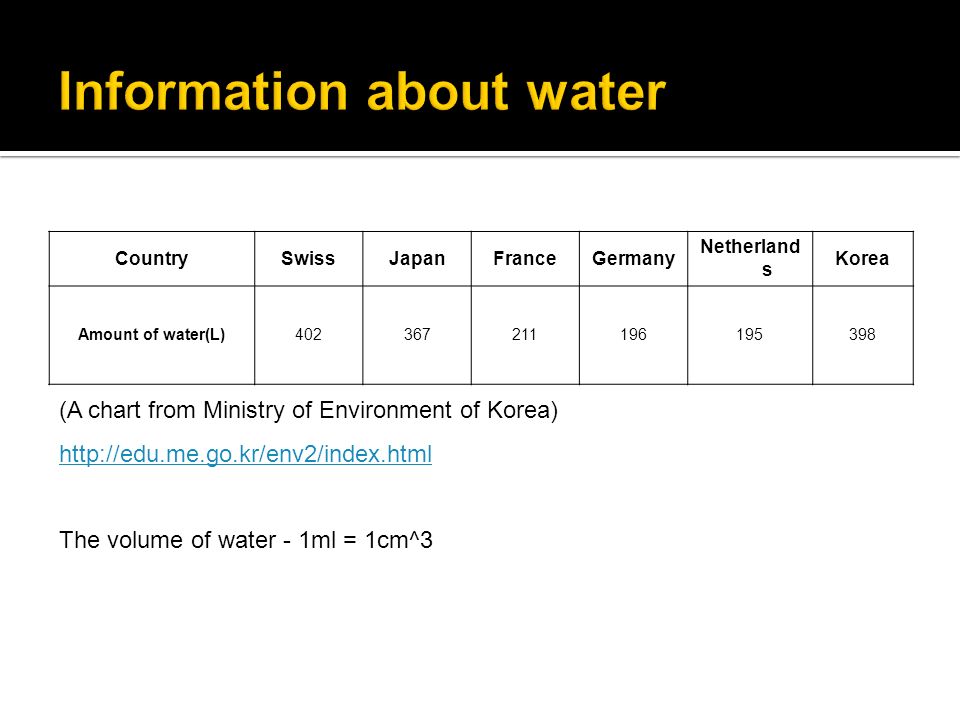

3 CountrySwissJapanFranceGermany Netherland s Korea Amount of water(L)402367211196195398 (A chart from Ministry of Environment of Korea) http://edu.me.go.kr/env2/index.html The volume of water - 1ml = 1cm^3

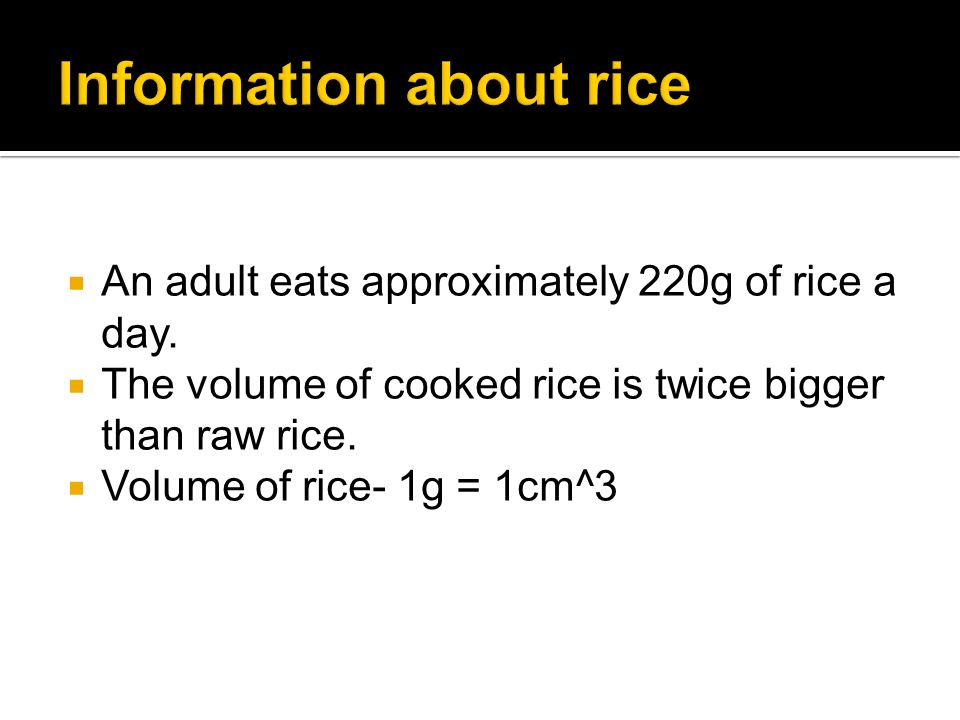

4  An adult eats approximately 220g of rice a day.  The volume of cooked rice is twice bigger than raw rice.  Volume of rice- 1g = 1cm^3

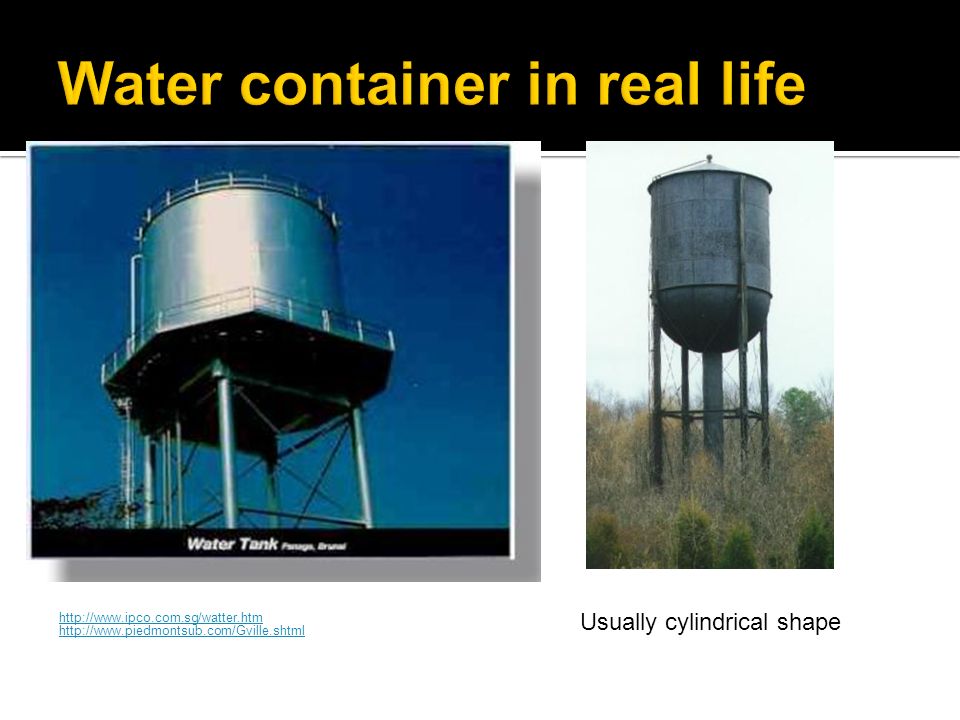

5 http://www.ipco.com.sg/watter.htm http://www.piedmontsub.com/Gville.shtml Usually cylindrical shape

6 http://www.foodmixers.com/models_vessels.asp

7

8

9  A shower- 30L  A bath- 80L  Washing Machine- 100L  Washing Dishes-20L  Drinking Water- about 2.6L  Flushing Toilet- 10L

10 A person uses about 212L of water a day. A family of 2 adults and 2 children will use 212L*3(2 children use 212L)=636L 636L-100L(washing machine)-240L(Bath)- 40L(2 times of washing dishes)= 260L 50 families will use 260L*50=13000L a day. ∴ 13000L*14=182000L for two weeks.

11  Shape- Cylinder (Not fragile)  A cylinder’s TSA calculation method = πr^2 + 2πrh = πr(r+2h)

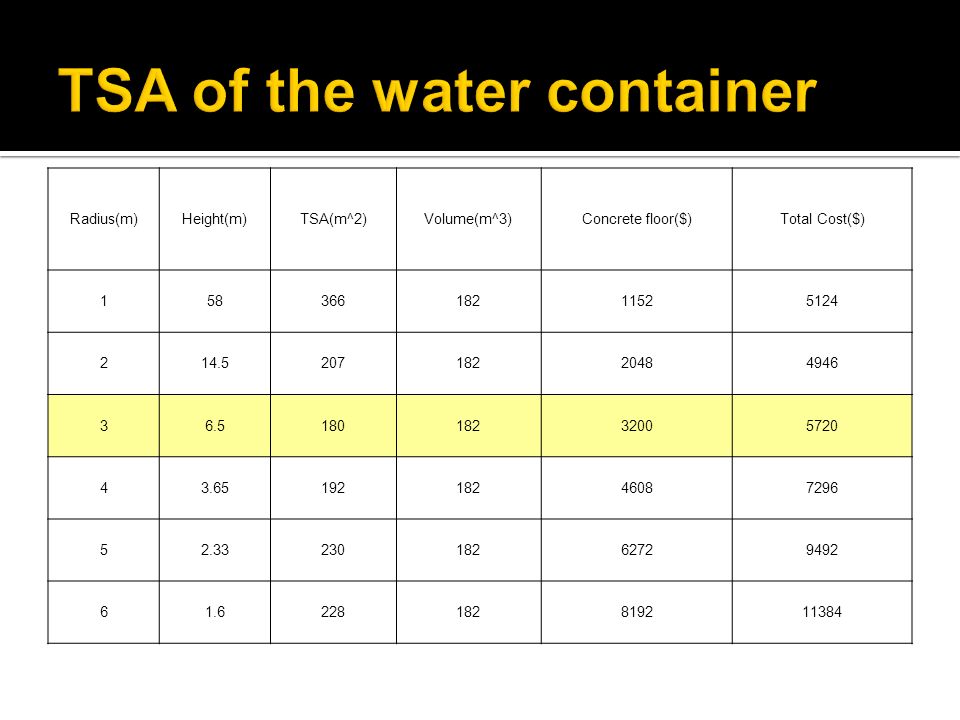

12 Radius(m)Height(m)TSA(m^2)Volume(m^3)Concrete floor($)Total Cost($) 15836618211525124 214.520718220484946 36.518018232005720 43.6519218246087296 52.3323018262729492 61.6228182819211384

13  Sensible height -Using 2m as the radius of the container gives us the cheapest cost. However, if we use 2m as the radius of the water container, the height is too high. (14.5m is about the height of the fifth floor of an apartment.) Thus we chose stability rather than cheap cost, and decided to use 3m as the radius.

14  For the concrete floor, we added 1m margin for every side to make people easy to step on it.  Costs are rounded up to the nearest whole number- To show the clear differences between values

15  Height- 6.5m  Radius-3m  Volume- about 182m^3  Cost of cylinder- $2507  Cost of cement floor-$3200  Total cost- $5707

16

17  An adult- eats about 0.25kg of rice a day  A child- Assume that a child will eat the half of the amount an adult eats a day  A family(2 adults, 2 kids)- Eats about 0.8kg of rice a day  50 families for 2 weeks- 0.8kg*50*14 = 560kg

18 Shape= Rectangular prism 1cm^3= 1ml= 1g ∴ 1kg= 1000cm^3 ∴ 560kg= 560000cm^3 (= 0.56m^3)

19 Length(m)Width(m)Height(m)TSA(m^2)Volume(m^3)Concrete floor($)Total cost($) 110.563.240.56512557 0.56113.680.56399451

20  Sensible shape -We chose rectangular prism for the shape of the container, because the pack of rice is shaped like a rectangle (with smoother edges). Since rectangular shape is easy to contain rectangular objects, the pack of rice will fit easily in the rectangular shaped container.

21  Rounded up to the nearest whole number- Shows a clear change between two values.  No floor- Water container needs a steel floor to contain water (liquid), but steel floor is not needed to contain rice (solid).  For concrete floor, we only added 0.5m margin each for every side, since the size of the container is very small.

22  Length, height= 1m  Width= 0.56m  No floor  Volume= 0.56m^3  Cost of the prism ≒ $52  Cost of the concrete floor ≒ $399  Total cost ≒ $451

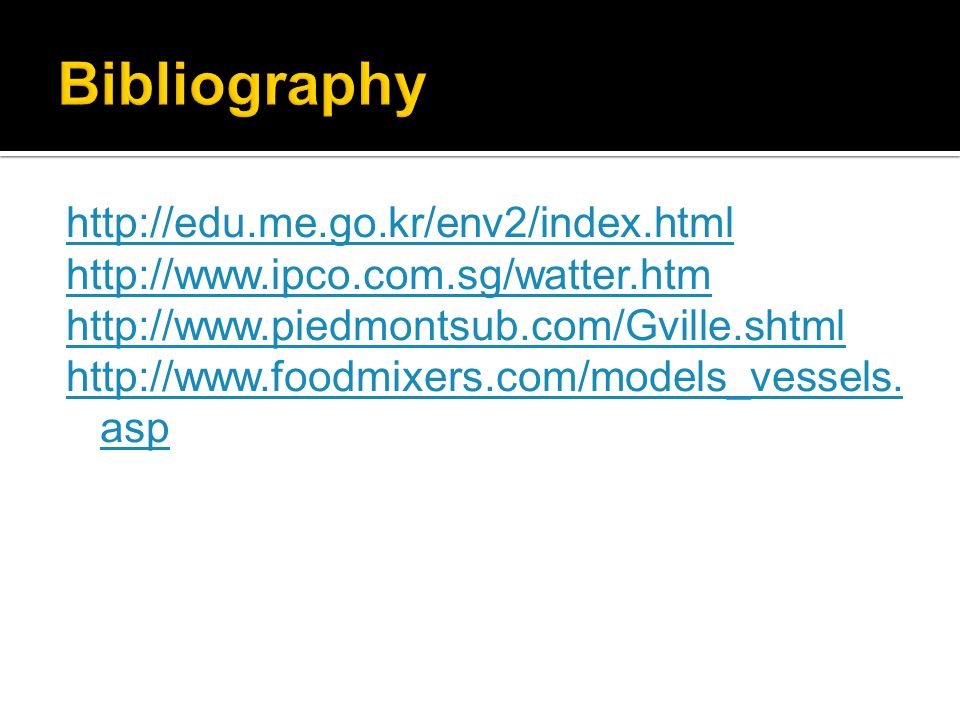

23 http://edu.me.go.kr/env2/index.html http://www.ipco.com.sg/watter.htm http://www.piedmontsub.com/Gville.shtml http://www.foodmixers.com/models_vessels. asp
