1. Peng Ning CSC 600 Fall 2001 (Friday, 10/26/2001) Research Topics in Network Security, Secure E-Commerce and Temporal Databases

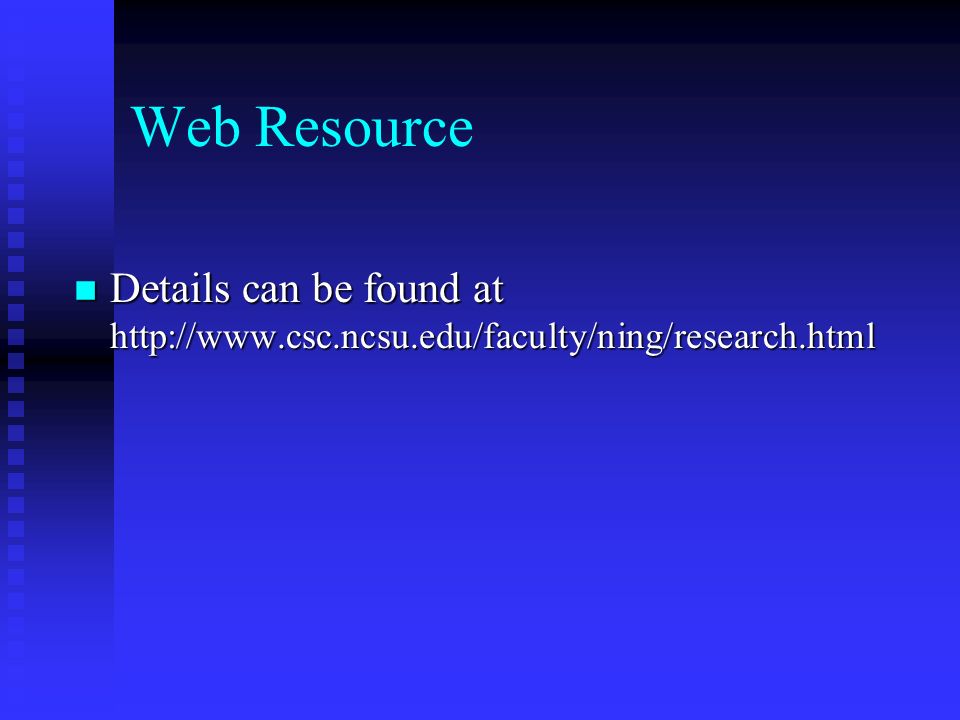

2. Web Resource n Details can be found at http://www.csc.ncsu.edu/faculty/ning/research.html

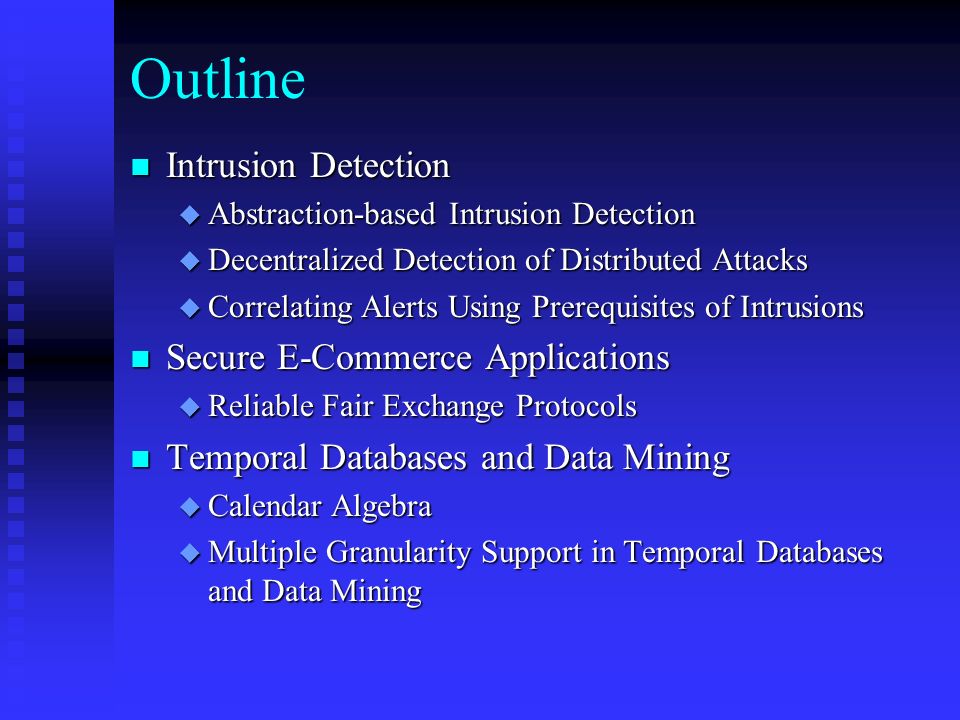

3. Outline n Intrusion Detection u Abstraction-based Intrusion Detection u Decentralized Detection of Distributed Attacks u Correlating Alerts Using Prerequisites of Intrusions n Secure E-Commerce Applications u Reliable Fair Exchange Protocols n Temporal Databases and Data Mining u Calendar Algebra u Multiple Granularity Support in Temporal Databases and Data Mining

4. Abstraction-based Intrusion Detection

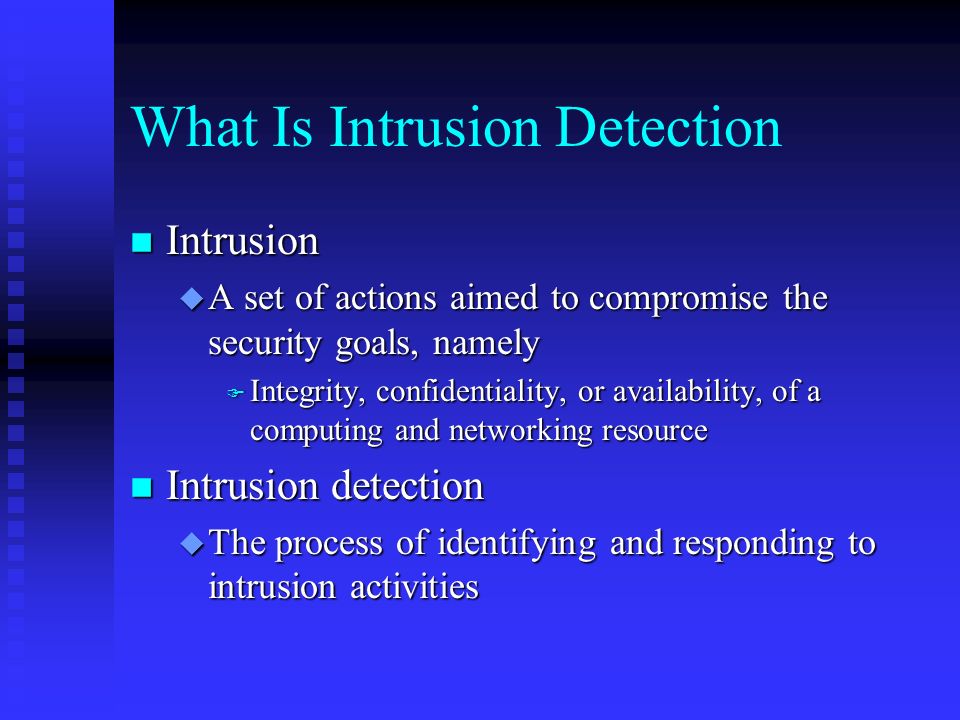

5. What Is Intrusion Detection n Intrusion u A set of actions aimed to compromise the security goals, namely F Integrity, confidentiality, or availability, of a computing and networking resource n Intrusion detection u The process of identifying and responding to intrusion activities

6. Why Do We Need Intrusion Detection? n n Approaches to protecting information systems u u Prevention F F E.g., Encryption, Authentication, Access control F F Fail to protect our systems due to flaws in design and development processes u u Detection & Response F A second line of defense F Better understanding of the security of information systems.

7. What Is Abstraction n By Webster’s New World Dictionary of American English u Formation of an idea, as of the qualities or properties of a thing, by mental separation from particular instances or material objects. n In intrusion detection, abstraction is important to u Hide the difference between heterogeneous systems u Hide unnecessary details

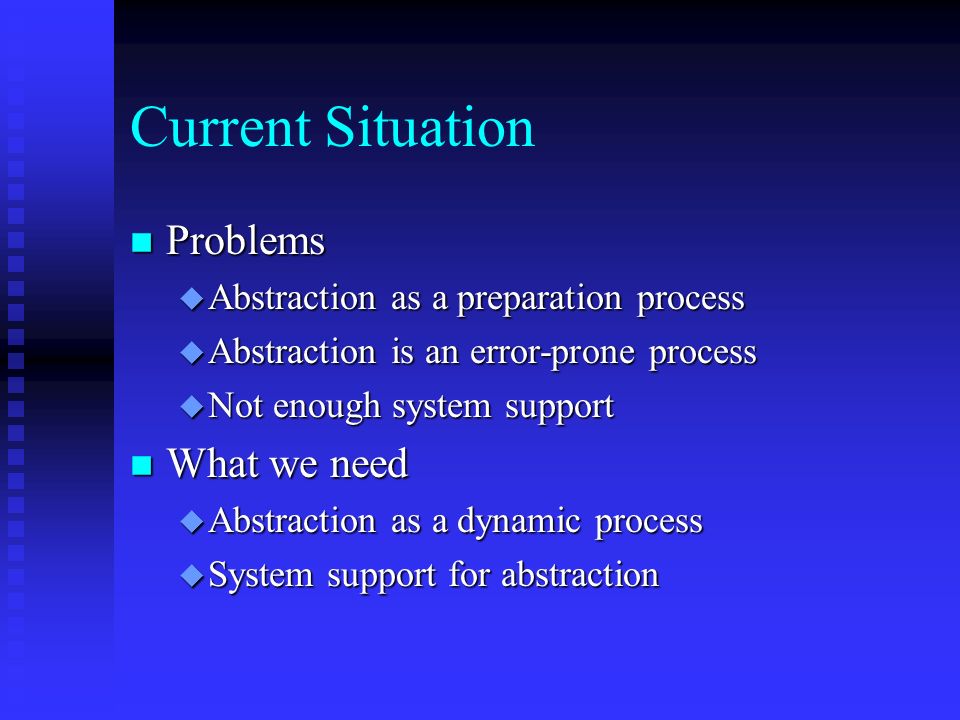

8. Current Situation n Problems u Abstraction as a preparation process u Abstraction is an error-prone process u Not enough system support n What we need u Abstraction as a dynamic process u System support for abstraction

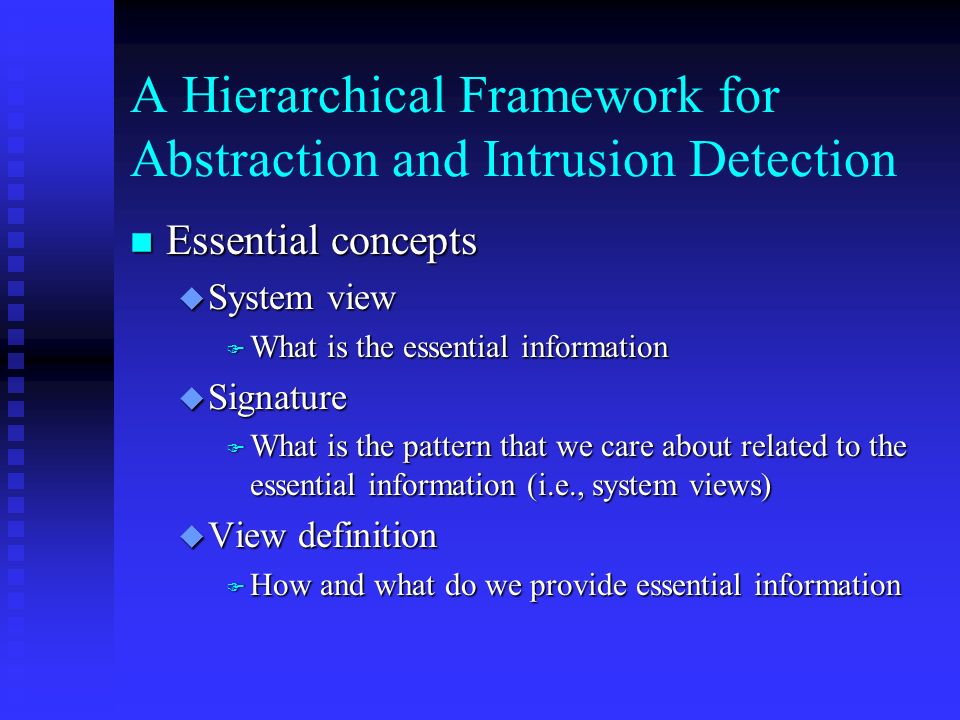

9. A Hierarchical Framework for Abstraction and Intrusion Detection n Essential concepts u System view F What is the essential information u Signature F What is the pattern that we care about related to the essential information (i.e., system views) u View definition F How and what do we provide essential information

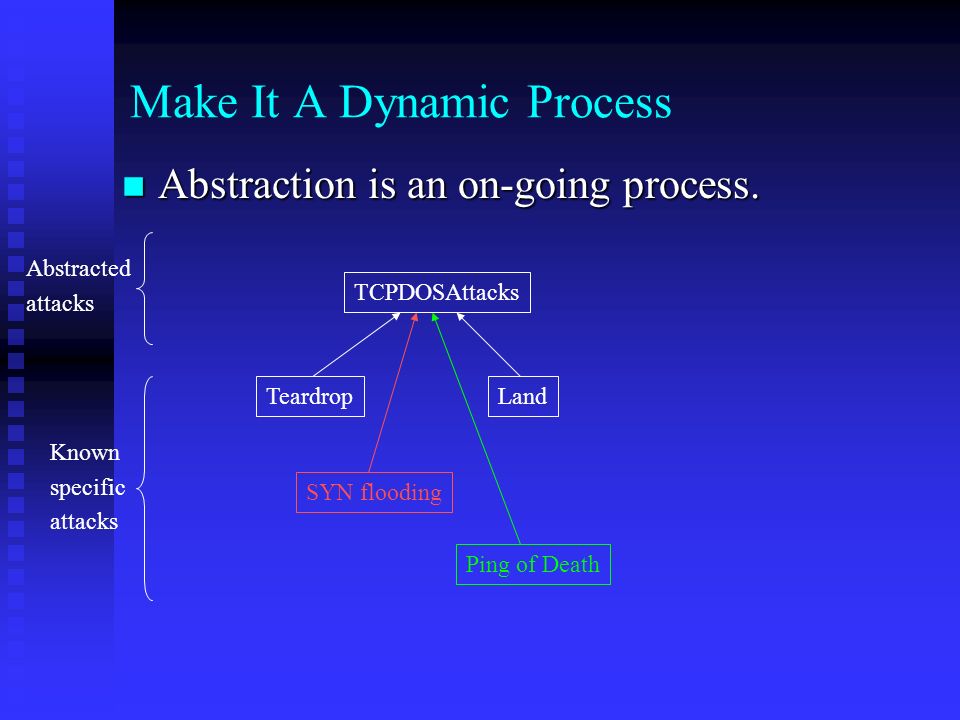

10. Make It A Dynamic Process n Abstraction is an on-going process. TCPDOSAttacks LandTeardrop SYN flooding Ping of Death Known specific attacks Abstracted attacks

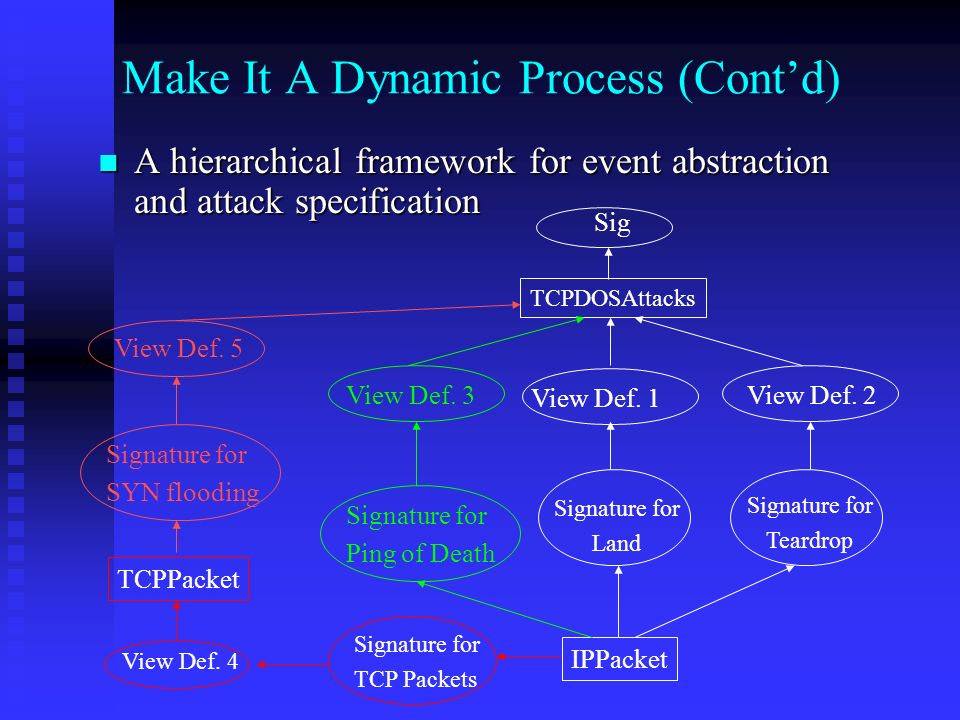

11. Make It A Dynamic Process (Cont’d) n A hierarchical framework for event abstraction and attack specification IPPacket Signature for Land Signature for Teardrop View Def. 1View Def. 2 TCPDOSAttacks Signature for Ping of Death View Def. 3 Signature for SYN flooding View Def. 5 Sig Signature for TCP Packets TCPPacket View Def. 4

12. Decentralized Detection of Distributed Attacks

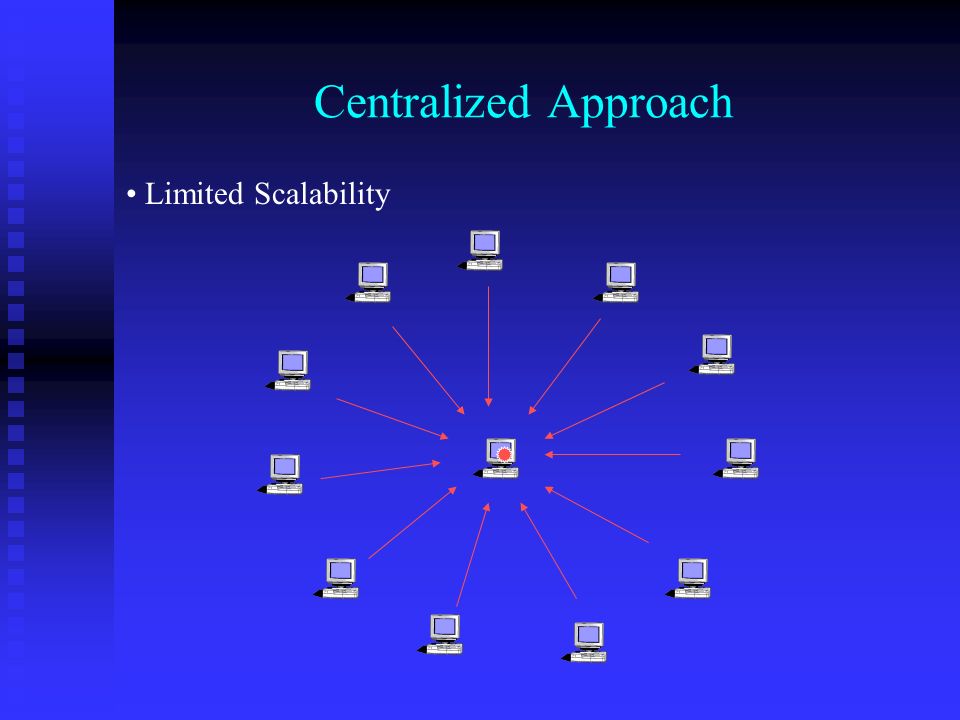

13. Centralized Approach Limited Scalability

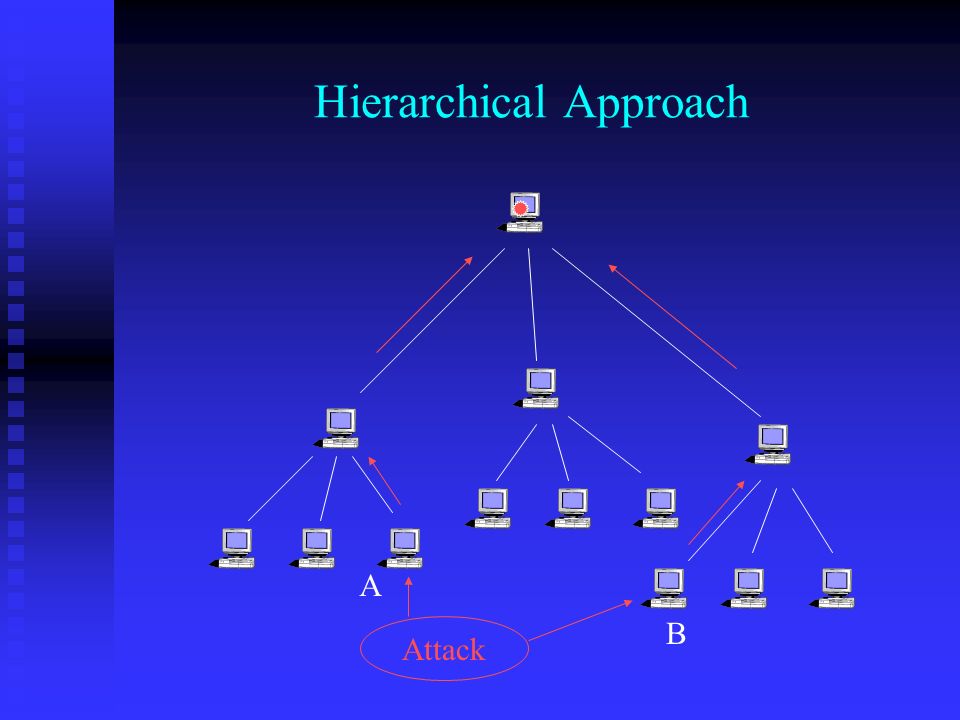

14. Hierarchical Approach Attack A B

15. Decentralized Approach Attack A B

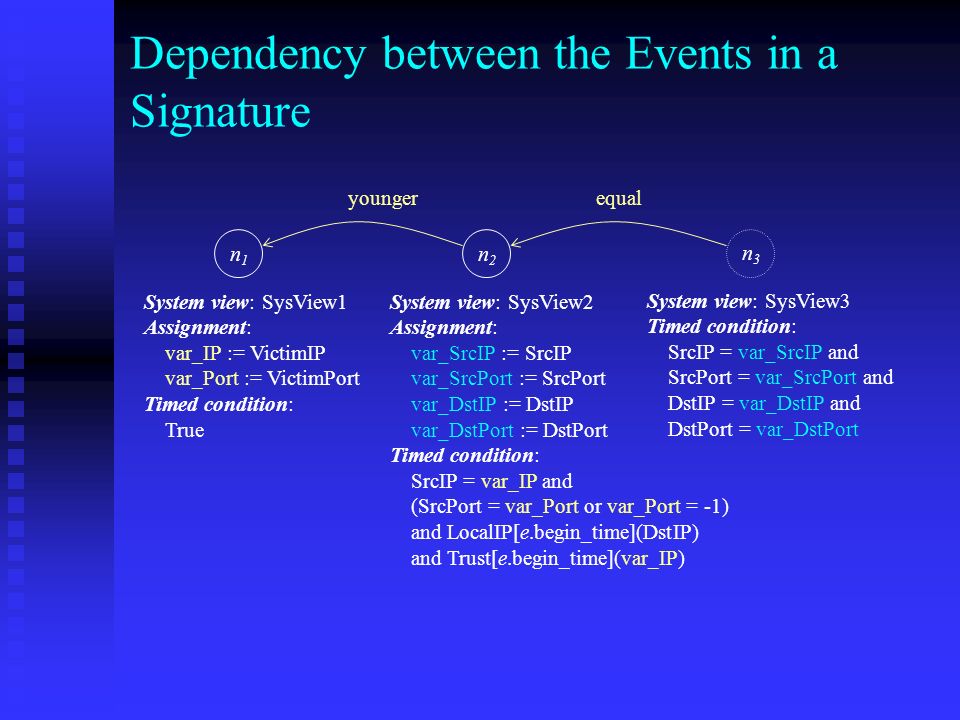

16. Dependency between the Events in a Signature youngerequal n1n1 n2n2 n3n3 System view: SysView1 Assignment: var_IP := VictimIP var_Port := VictimPort Timed condition: True System view: SysView2 Assignment: var_SrcIP := SrcIP var_SrcPort := SrcPort var_DstIP := DstIP var_DstPort := DstPort Timed condition: SrcIP = var_IP and (SrcPort = var_Port or var_Port = -1) and LocalIP[e.begin_time](DstIP) and Trust[e.begin_time](var_IP) System view: SysView3 Timed condition: SrcIP = var_SrcIP and SrcPort = var_SrcPort and DstIP = var_DstIP and DstPort = var_DstPort

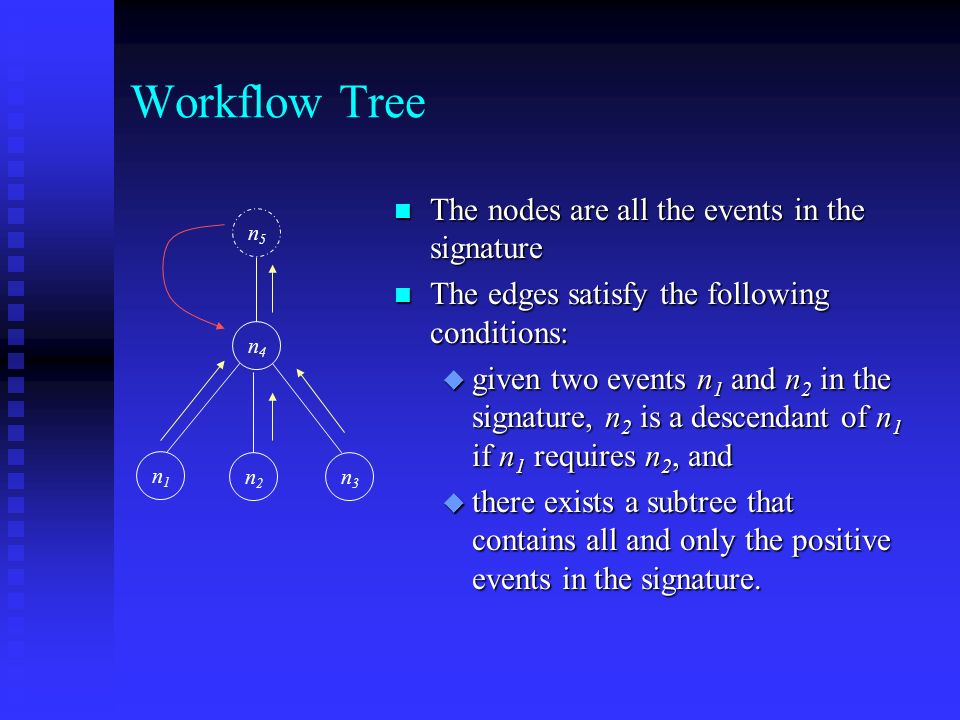

17. Workflow Tree n The nodes are all the events in the signature n The edges satisfy the following conditions: u given two events n 1 and n 2 in the signature, n 2 is a descendant of n 1 if n 1 requires n 2, and u there exists a subtree that contains all and only the positive events in the signature. n2n2 n1n1 n3n3 n4n4 n5n5

18. Detecting the Mitnick Attack Variable values and timestamps Network monitor Host BHost A detection task n 1 detection task n 2 detection task n 3 Workflow tree n1n1 n2n2 n3n3 TCPDOSAttack Events Local TCP connections Local TCP connections

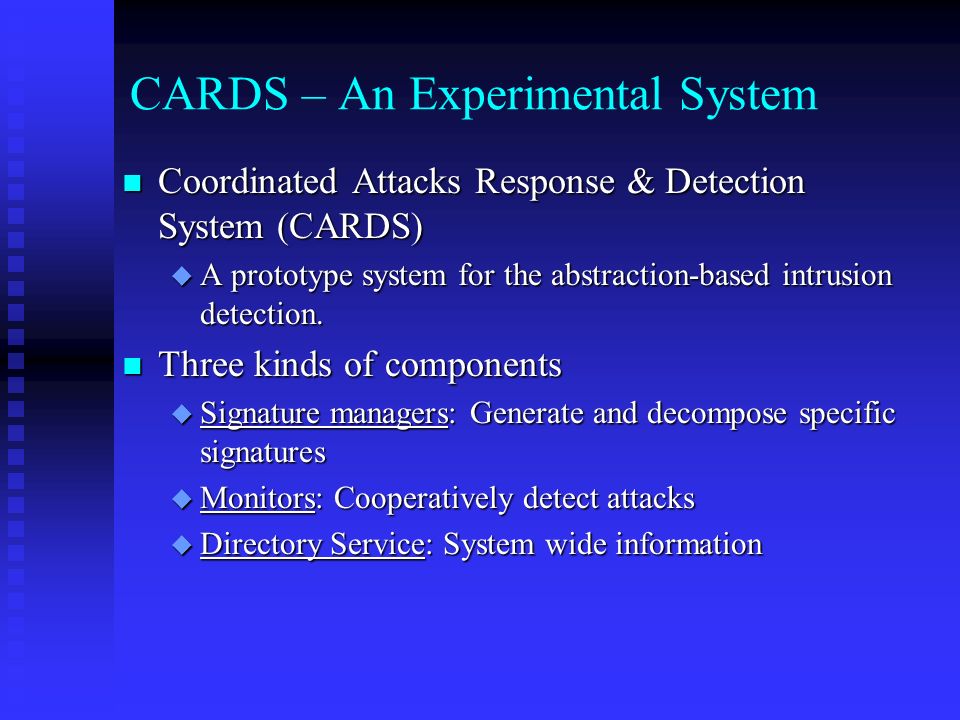

19. CARDS – An Experimental System n Coordinated Attacks Response & Detection System (CARDS) u A prototype system for the abstraction-based intrusion detection. n Three kinds of components u Signature managers: Generate and decompose specific signatures u Monitors: Cooperatively detect attacks u Directory Service: System wide information

20. CARDS Architecture … Signature Managers … … Monitors Target systems Directory Service register retrieve distribute tasks detect attacks Probes

21. Correlating Alerts Using Prerequisites of Intrusions

22. Motivation n Current IDSs focus on detecting low-level security related events u Large number of alerts u Large number of false alerts u Low-level alerts are presented independently, though there may be logical steps or intrusion strategies behind them. u Unable to detect novel or unknown attacks.

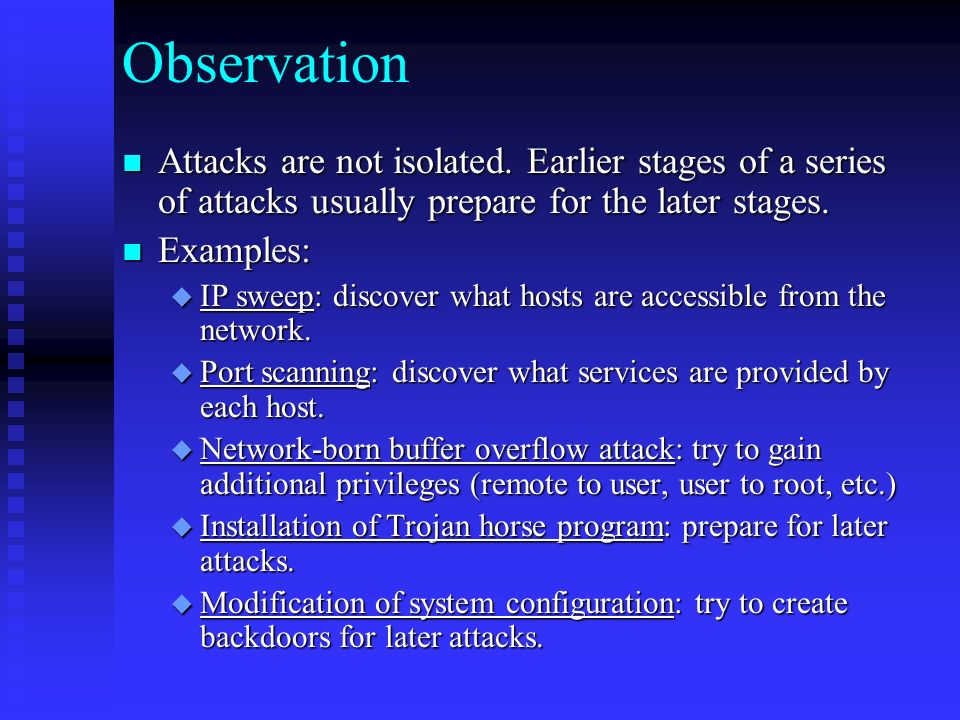

23. Observation n Attacks are not isolated. Earlier stages of a series of attacks usually prepare for the later stages. n Examples: u IP sweep: discover what hosts are accessible from the network. u Port scanning: discover what services are provided by each host. u Network-born buffer overflow attack: try to gain additional privileges (remote to user, user to root, etc.) u Installation of Trojan horse program: prepare for later attacks. u Modification of system configuration: try to create backdoors for later attacks.

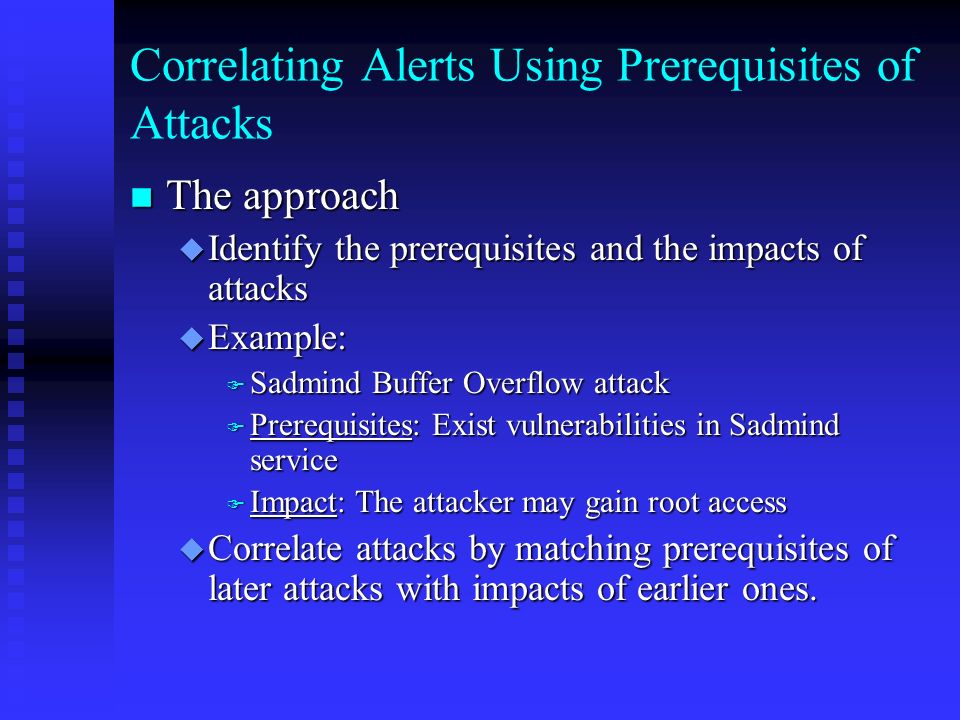

24. Correlating Alerts Using Prerequisites of Attacks n The approach u Identify the prerequisites and the impacts of attacks u Example: F Sadmind Buffer Overflow attack F Prerequisites: Exist vulnerabilities in Sadmind service F Impact: The attacker may gain root access u Correlate attacks by matching prerequisites of later attacks with impacts of earlier ones.

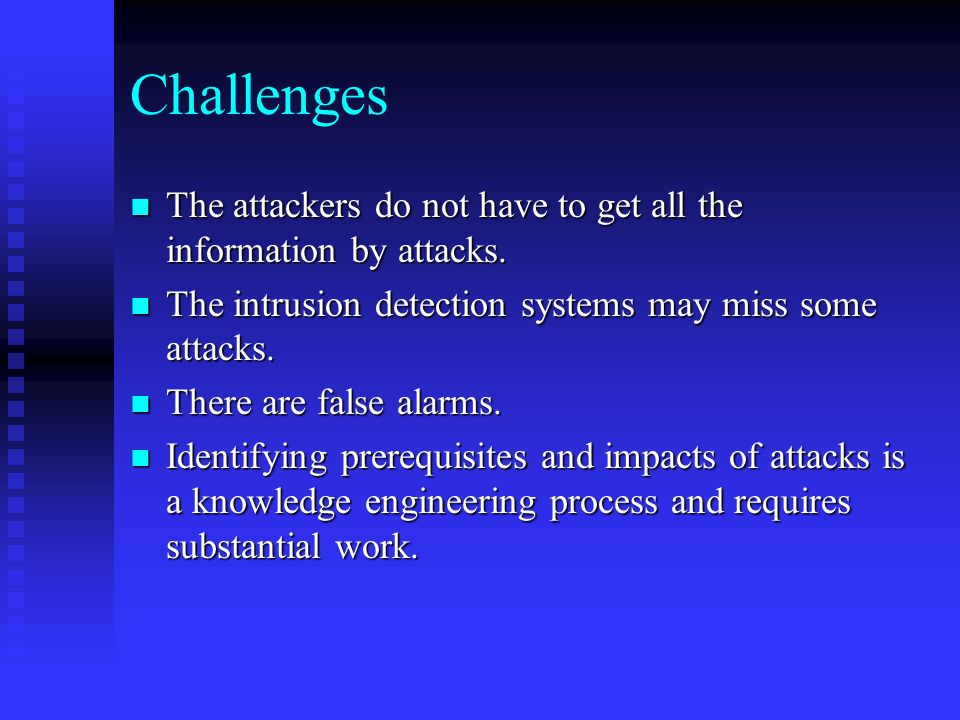

25. Challenges n The attackers do not have to get all the information by attacks. n The intrusion detection systems may miss some attacks. n There are false alarms. n Identifying prerequisites and impacts of attacks is a knowledge engineering process and requires substantial work.

26. Reliable Fair Exchange Protocols

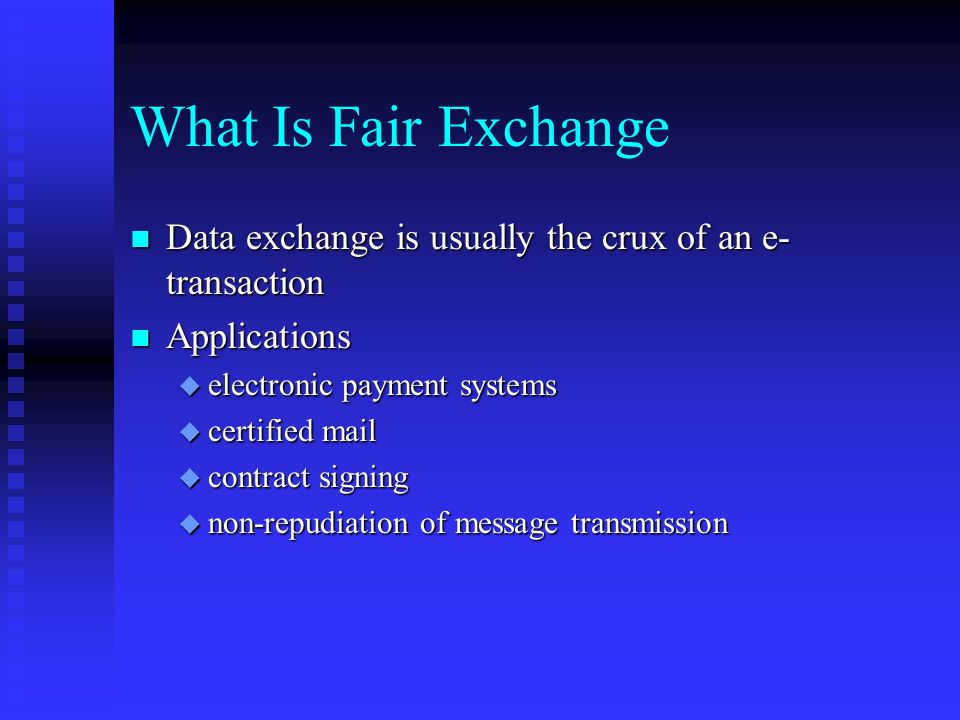

27. What Is Fair Exchange n Data exchange is usually the crux of an e- transaction n Applications u electronic payment systems u certified mail u contract signing u non-repudiation of message transmission

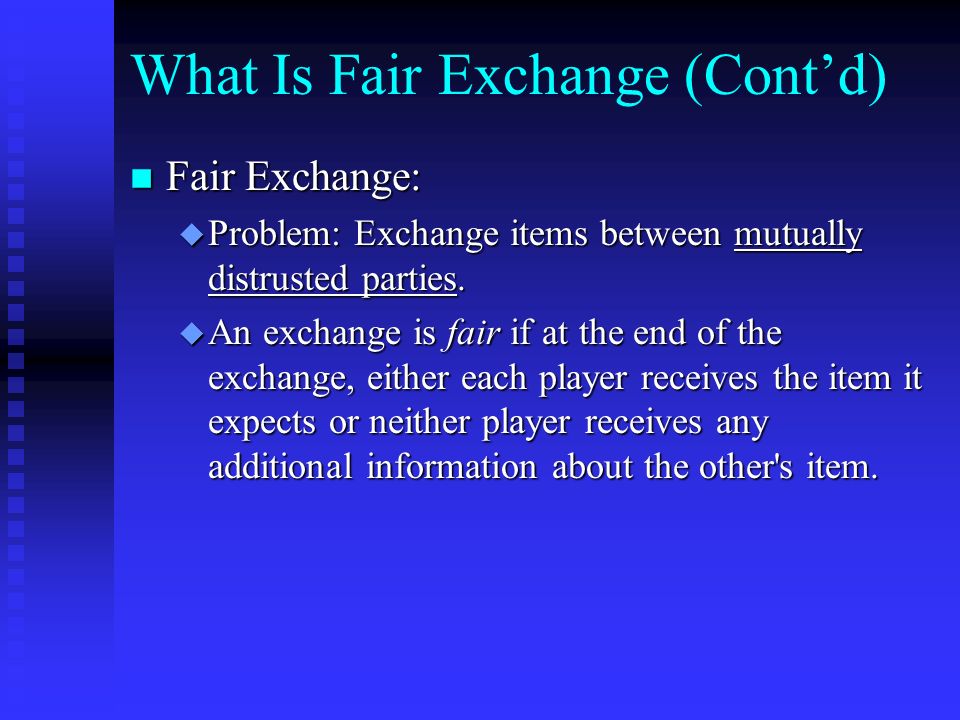

28. What Is Fair Exchange (Cont’d) n Fair Exchange: u Problem: Exchange items between mutually distrusted parties. u An exchange is fair if at the end of the exchange, either each player receives the item it expects or neither player receives any additional information about the other's item.

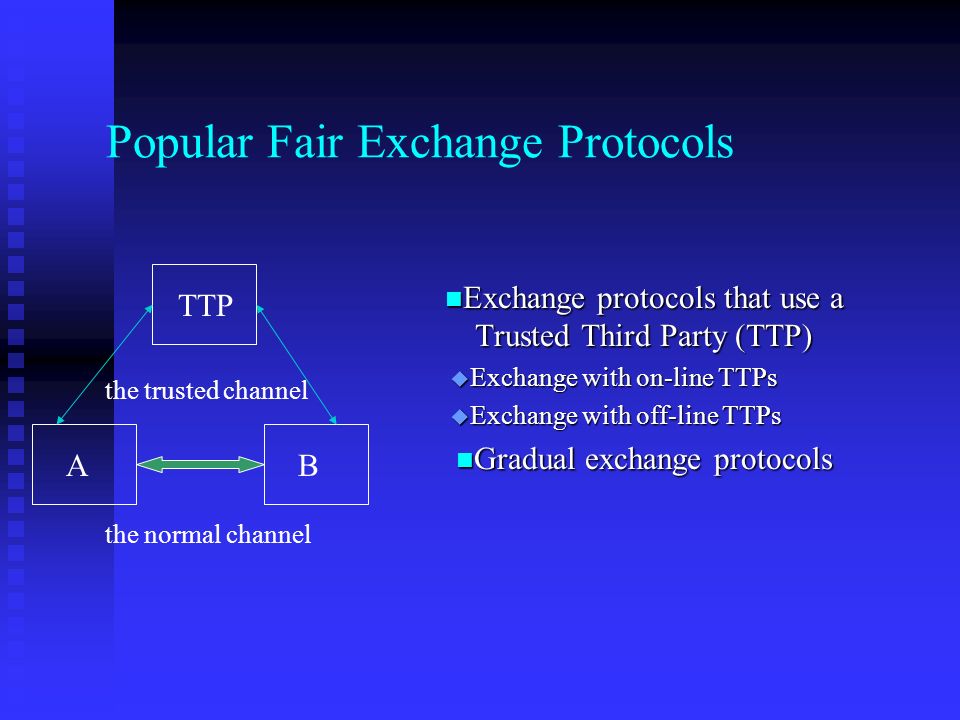

29. Popular Fair Exchange Protocols n Exchange protocols that use a Trusted Third Party (TTP) u Exchange with on-line TTPs u Exchange with off-line TTPs n Gradual exchange protocols TTP AB the normal channel the trusted channel

30. What Is the Current Problem? n System failure u Fairness cannot be assured if there is a system failure during an exchange. n Our goal is to systematically survive system failures

31. Our Solutions n Distributed Transaction processing u A transaction is a sequence of operations that either commits or aborts u Atomicity can mask all the failures that may happen during the execution of a transaction n Message logging u Pessimistic message logging: ensures fairness, but costs too much u Optimistic message logging: cheaper, but cannot ensure fairness u Semantics-based message logging: exploits exchange semantics to reduce logging costs without losing fairness F Point of no return

32. Calendar Algebra

33. Why Do We Need Calendar Algebra n Applications need flexible way to represent and reason about time granularities n Examples u A manager wants to know the sales data for this business month (or this Christmas season). u A secretary needs to arrange a meeting on the first business day next month. u Thanksgiving day is the fourth Thursday in November.

34. Calendar Algebra n Goals u Can generate granularities from a single “bottom granularity” u Reflect the ways that people construct new granularities from existing ones u Provide the ability for people to add/change granularities in the system

35. Calendar Algebra By Examples n Grouping operation day week … -1 0 1 2 … 7 8 9 … 14 … … 0 1 2 … anchor Group size

36. Calendar Algebra By Examples (cont’d) n Altering Tick operation period anchor alteration day week … 0 1 … 7 8 … 14 15 … 21 … … 1 2 3 … day WeirdWeek … 0 1 … 7 8 … 1314 … 20 21 … … 1 2 3 …

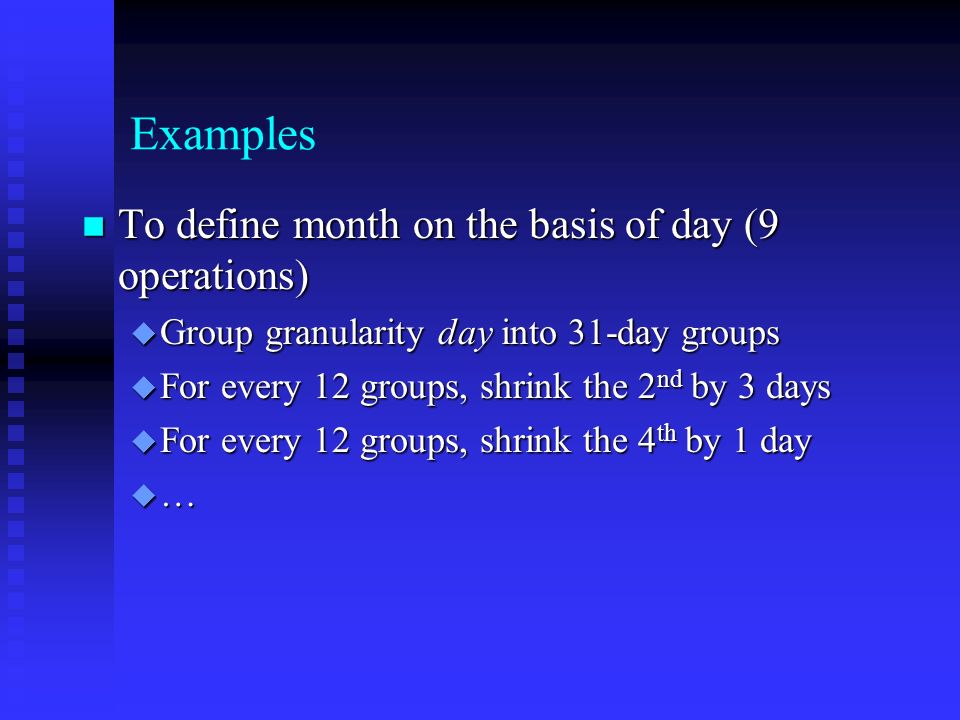

37. Examples n To define month on the basis of day (9 operations) u Group granularity day into 31-day groups u For every 12 groups, shrink the 2 nd by 3 days u For every 12 groups, shrink the 4 th by 1 day u …

38. Calendar Algebra By Examples (cont’d) n Shifting operation GMT-Hour … 5 6 … 10 … 15 … 20 … USEast-Hour …0 1 … 5 … 10 … 15 …

39. Calendar Algebra By Examples (cont’d) n Combing operation u Business month can be formed by combining all business days within each month. b-day month b-month

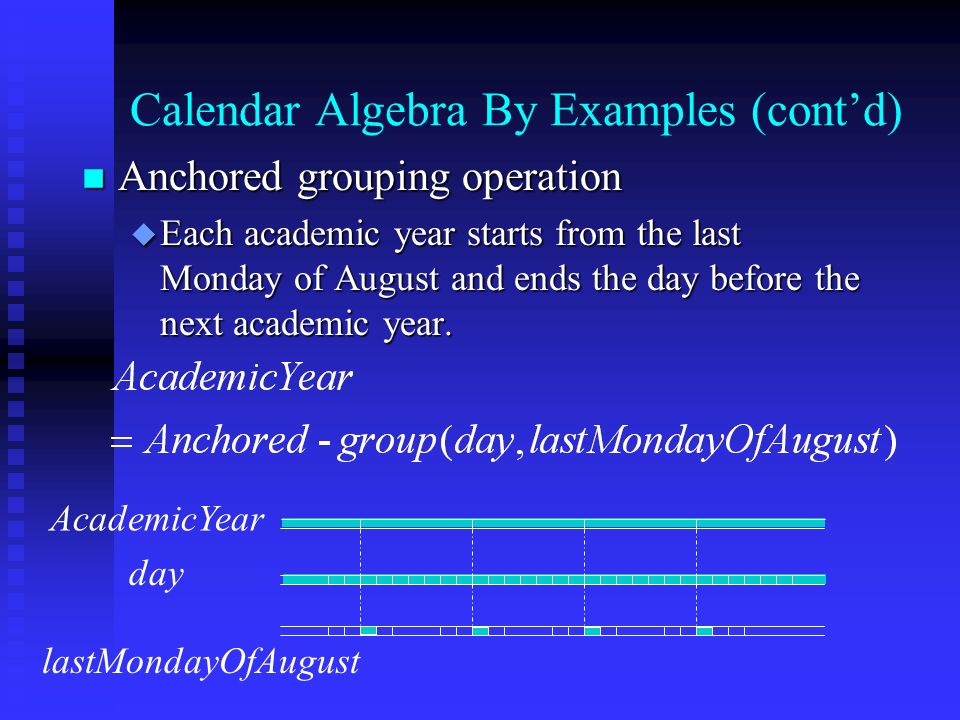

40. Calendar Algebra By Examples (cont’d) n Anchored grouping operation u Each academic year starts from the last Monday of August and ends the day before the next academic year. lastMondayOfAugust day AcademicYear

41. Calendar Algebra By Examples (cont’d) n Subset operation u The years in the 20 th century are the years from 1900 to 1999. year 20CenturyYear 1899 1900 … 1999 2000 1900 … 1999

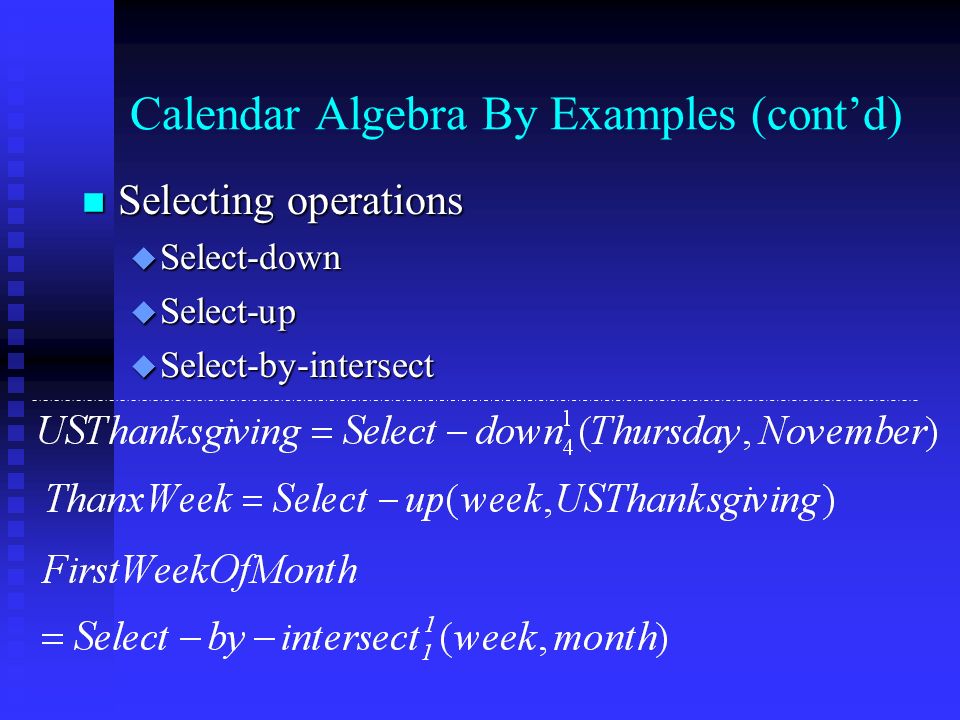

42. Calendar Algebra By Examples (cont’d) n Selecting operations u Select-down u Select-up u Select-by-intersect

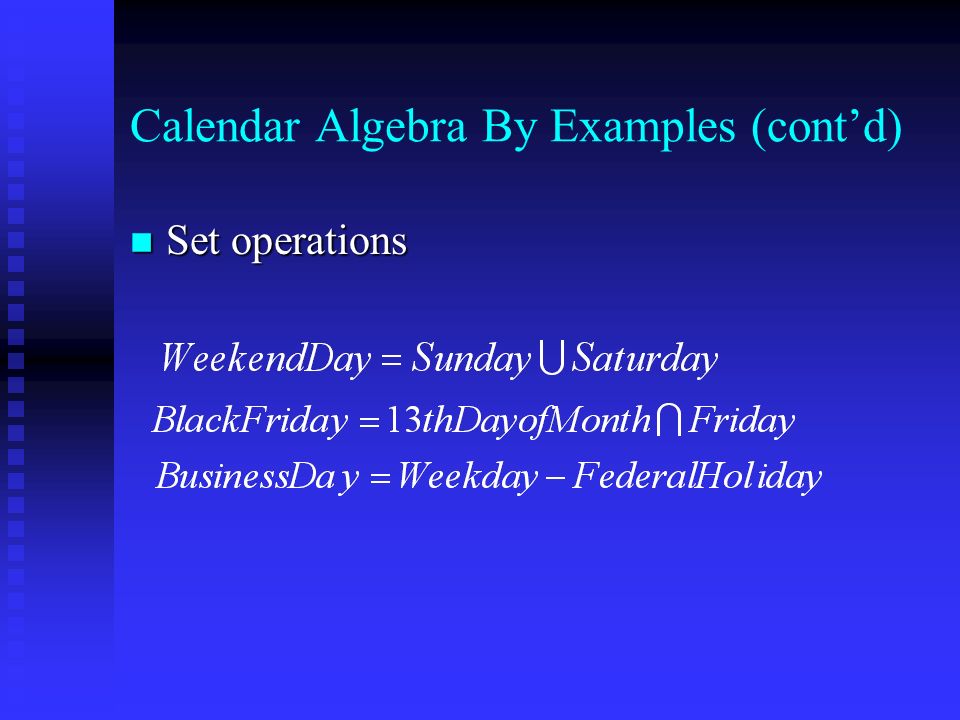

43. Calendar Algebra By Examples (cont’d) n Set operations

44. Temporal Data Mining

45. Calendar-based Patterns n Calendar-based patterns are patterns described in terms of calendar units (e.g., year, month, day, etc.) n Examples: u Every Monday and Tuesday u Every first Monday of every month u Every Thanksgiving day

46. Applications of Calendar Patterns to Data Mining n Discovery of event patterns u Can be directly described by calendar-based patterns. n Temporal Association Rule u Example: F Turkey and pumpkin pie are frequently sold together in the week before Thanksgiving.

47. Web Resources n http://www.csc.ncsu.edu/faculty/ning/ http://www.csc.ncsu.edu/faculty/ning/
