1 Network Security Testing Techniques Presented By:- Sachin Vador

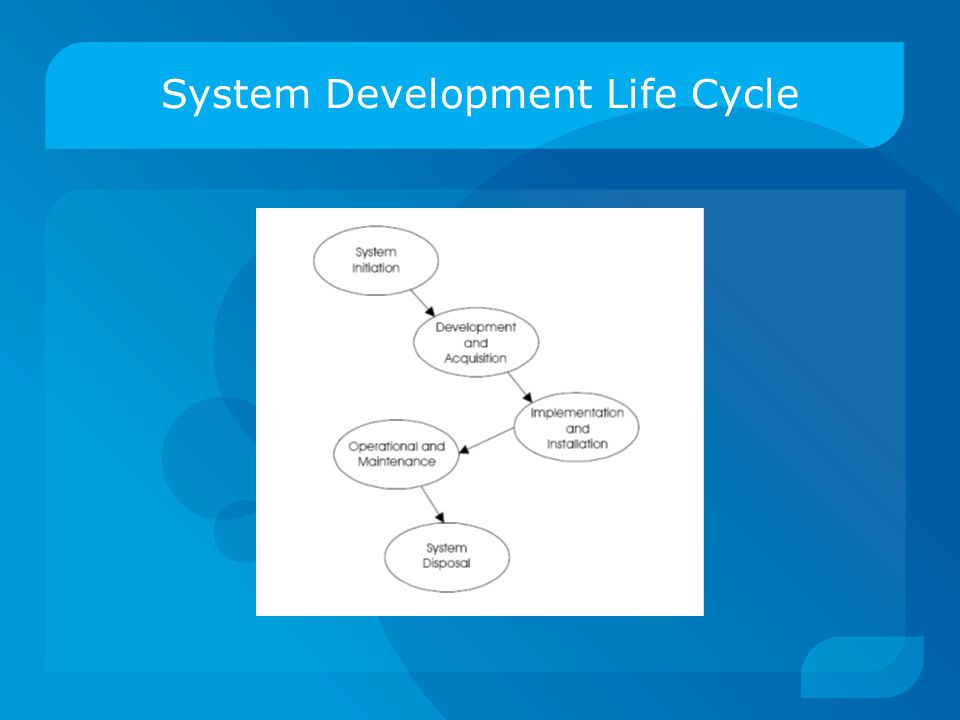

2 System Development Life Cycle

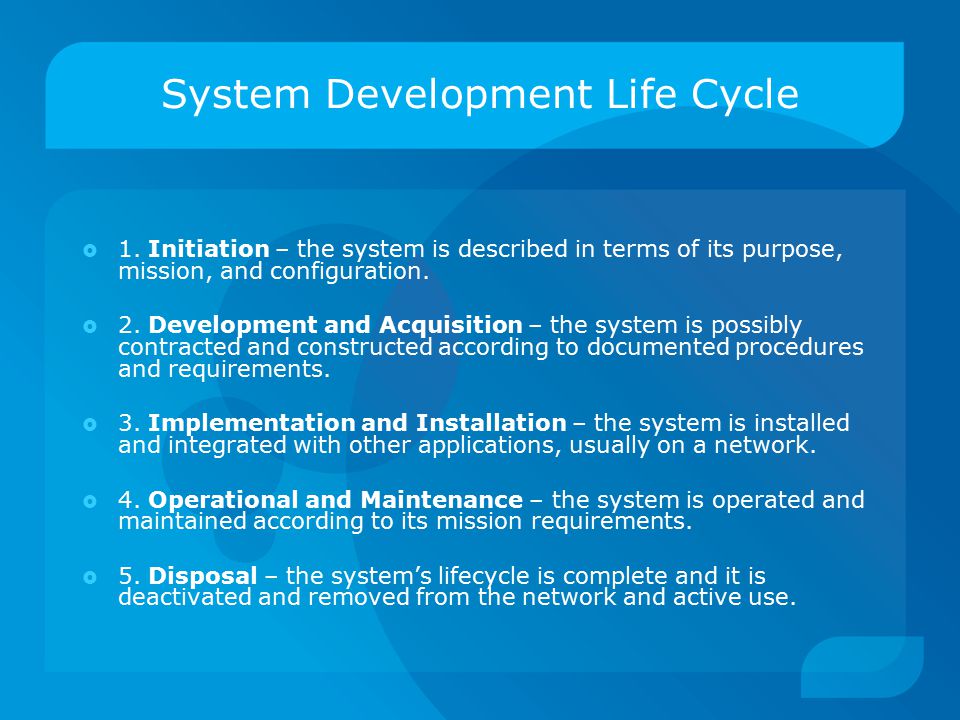

3  1. Initiation – the system is described in terms of its purpose, mission, and configuration.  2. Development and Acquisition – the system is possibly contracted and constructed according to documented procedures and requirements.  3. Implementation and Installation – the system is installed and integrated with other applications, usually on a network.  4. Operational and Maintenance – the system is operated and maintained according to its mission requirements.  5. Disposal – the system’s lifecycle is complete and it is deactivated and removed from the network and active use.

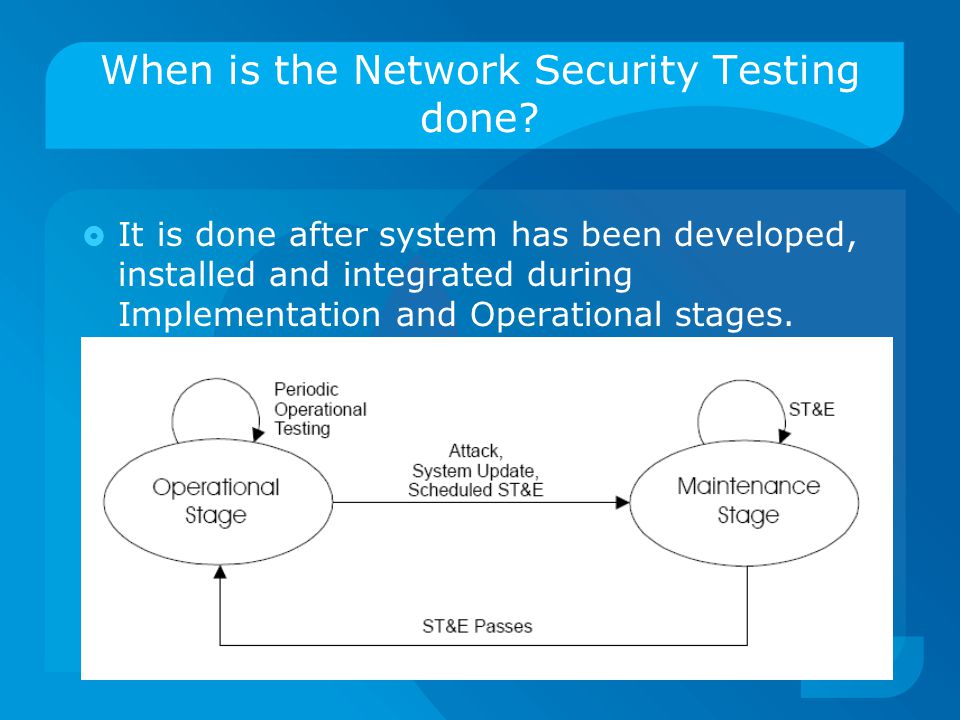

4 When is the Network Security Testing done?  It is done after system has been developed, installed and integrated during Implementation and Operational stages.

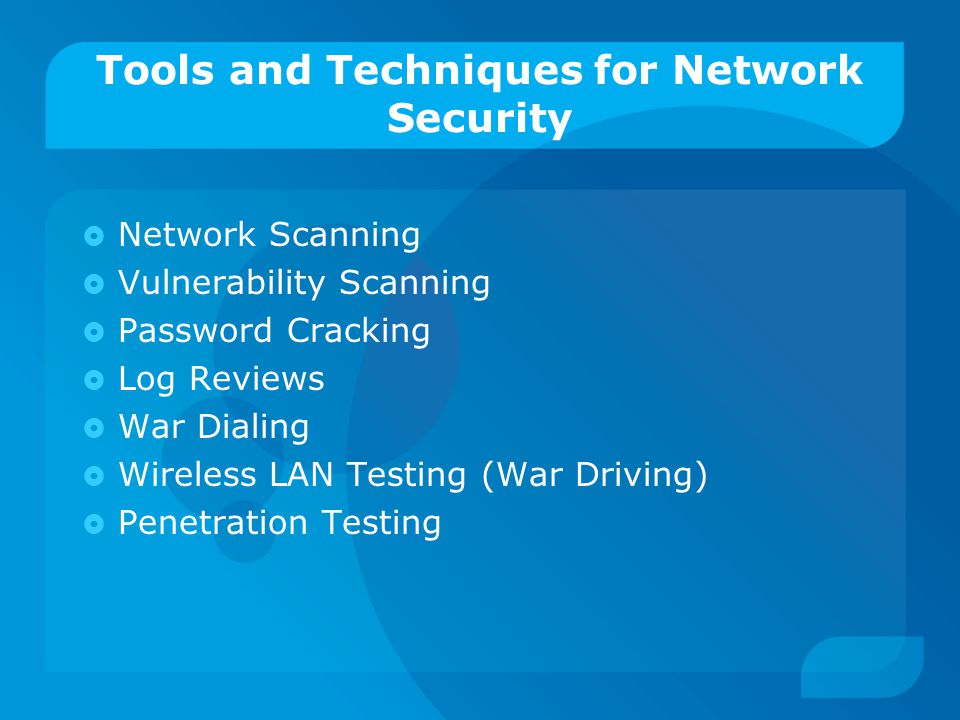

5 Tools and Techniques for Network Security  Network Scanning  Vulnerability Scanning  Password Cracking  Log Reviews  War Dialing  Wireless LAN Testing (War Driving)  Penetration Testing

6 Network Scanning  Scan for connected hosts  Scan for services running on the host  Scan for which applications are running those services  How Scanning takes place? Ping the hosts using ICMP ECHO and Reply. Look for open TCP/UDP ports.  Operating system fingerprinting. Not reliable as firewalls can be configured to camouflage the operating system.

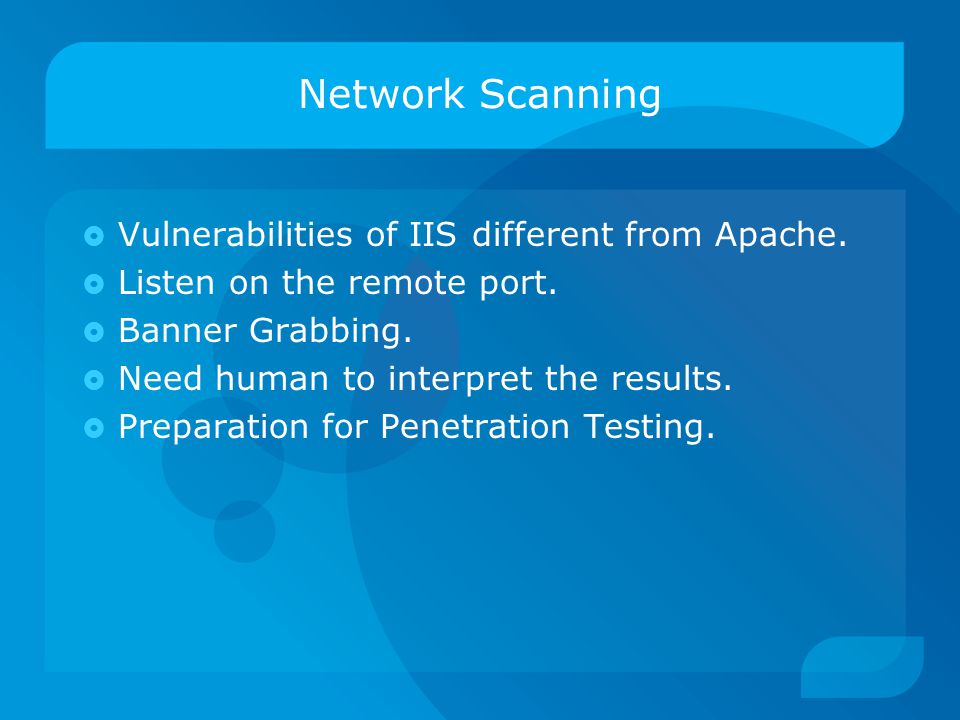

7 Network Scanning  Vulnerabilities of IIS different from Apache.  Listen on the remote port.  Banner Grabbing.  Need human to interpret the results.  Preparation for Penetration Testing.

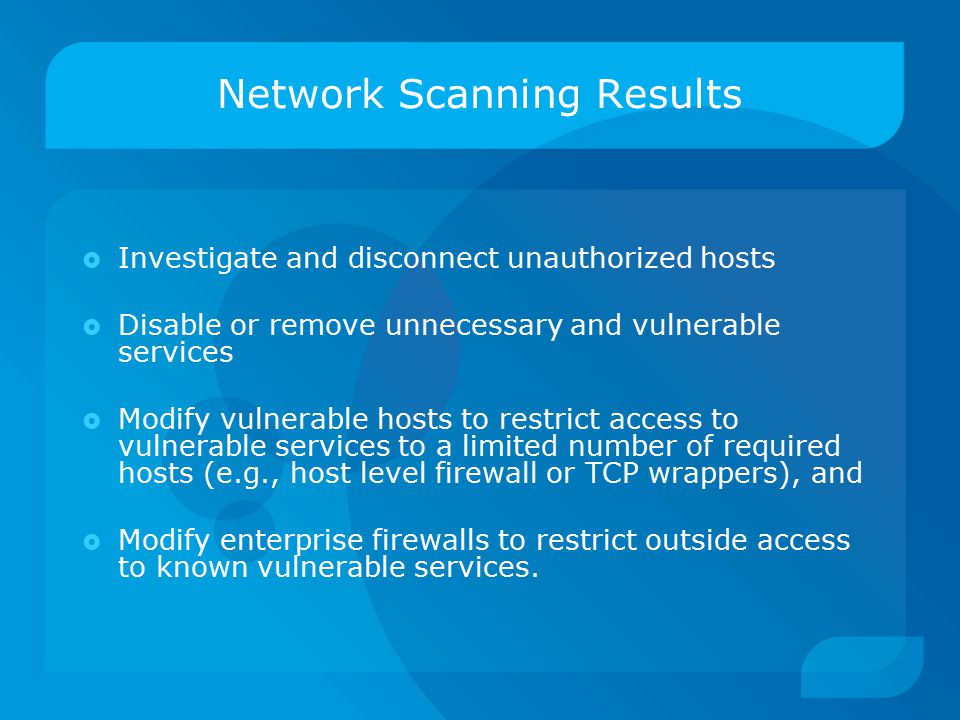

8 Network Scanning Results  Investigate and disconnect unauthorized hosts  Disable or remove unnecessary and vulnerable services  Modify vulnerable hosts to restrict access to vulnerable services to a limited number of required hosts (e.g., host level firewall or TCP wrappers), and  Modify enterprise firewalls to restrict outside access to known vulnerable services.

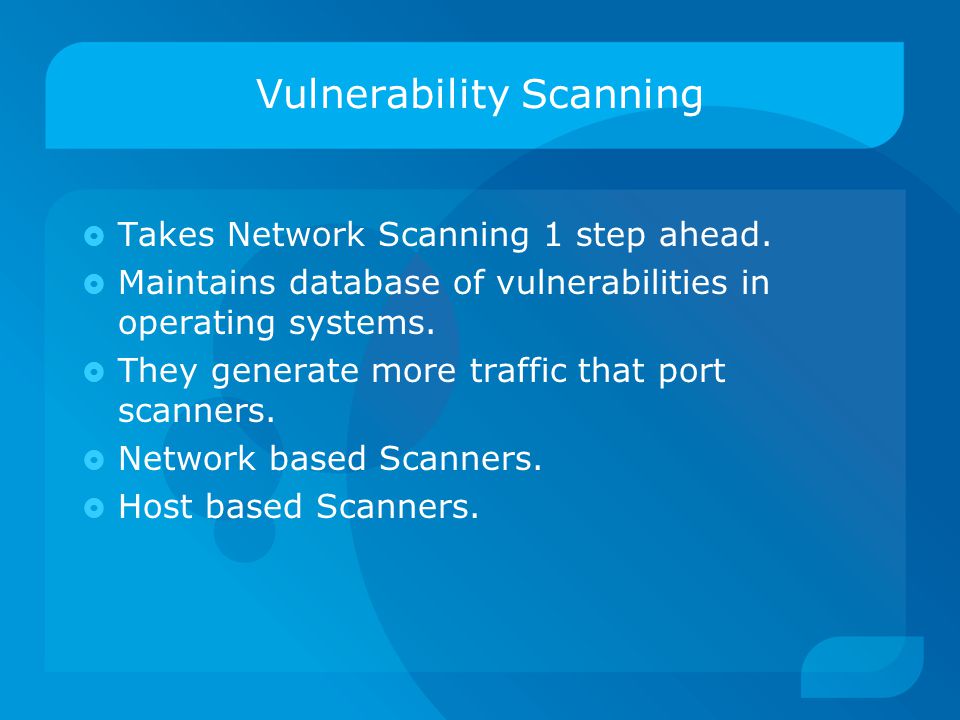

9 Vulnerability Scanning  Takes Network Scanning 1 step ahead.  Maintains database of vulnerabilities in operating systems.  They generate more traffic that port scanners.  Network based Scanners.  Host based Scanners.

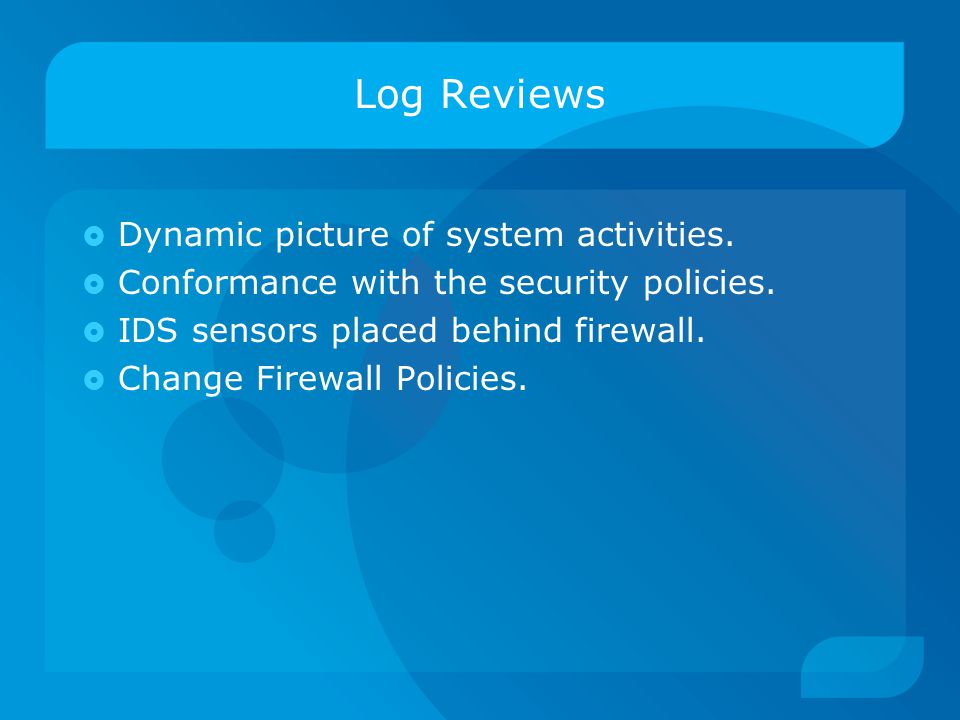

10 Log Reviews  Dynamic picture of system activities.  Conformance with the security policies.  IDS sensors placed behind firewall.  Change Firewall Policies.

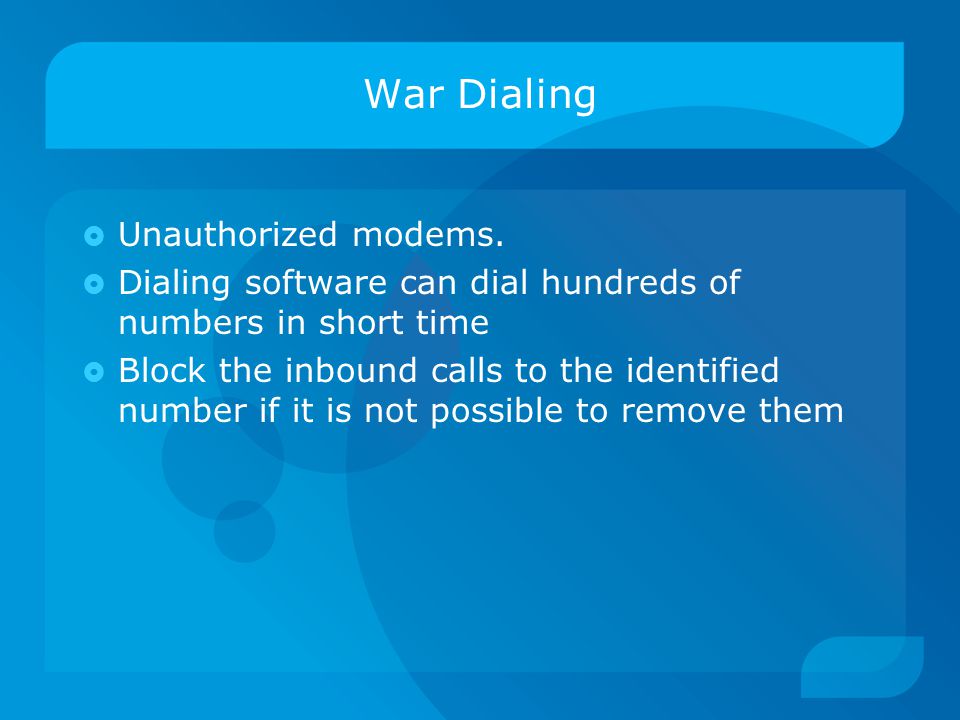

11 War Dialing  Unauthorized modems.  Dialing software can dial hundreds of numbers in short time  Block the inbound calls to the identified number if it is not possible to remove them

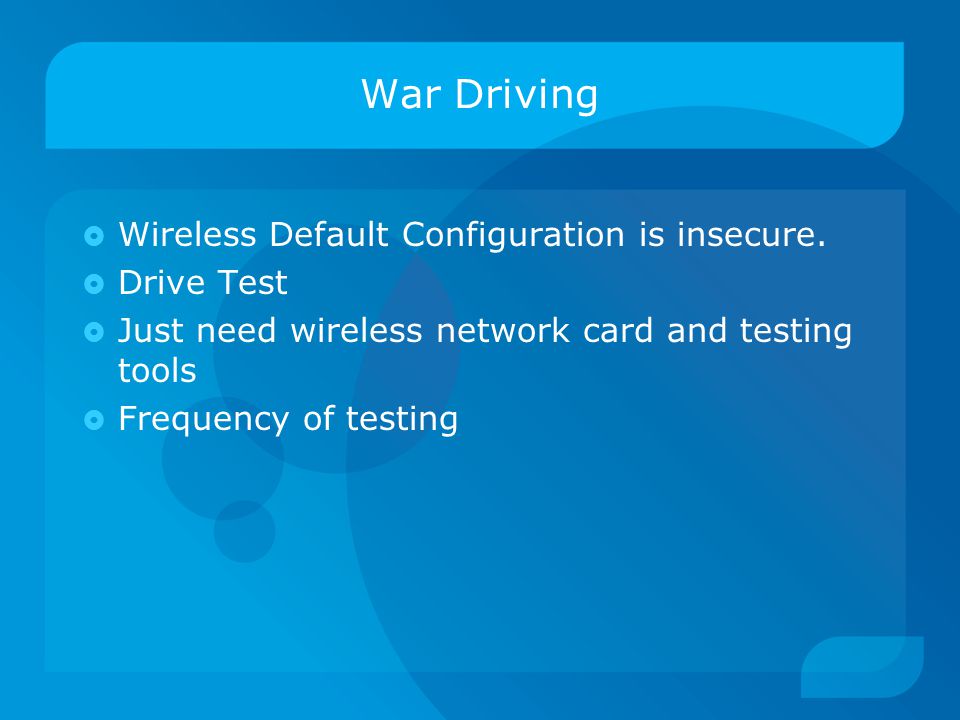

12 War Driving  Wireless Default Configuration is insecure.  Drive Test  Just need wireless network card and testing tools  Frequency of testing

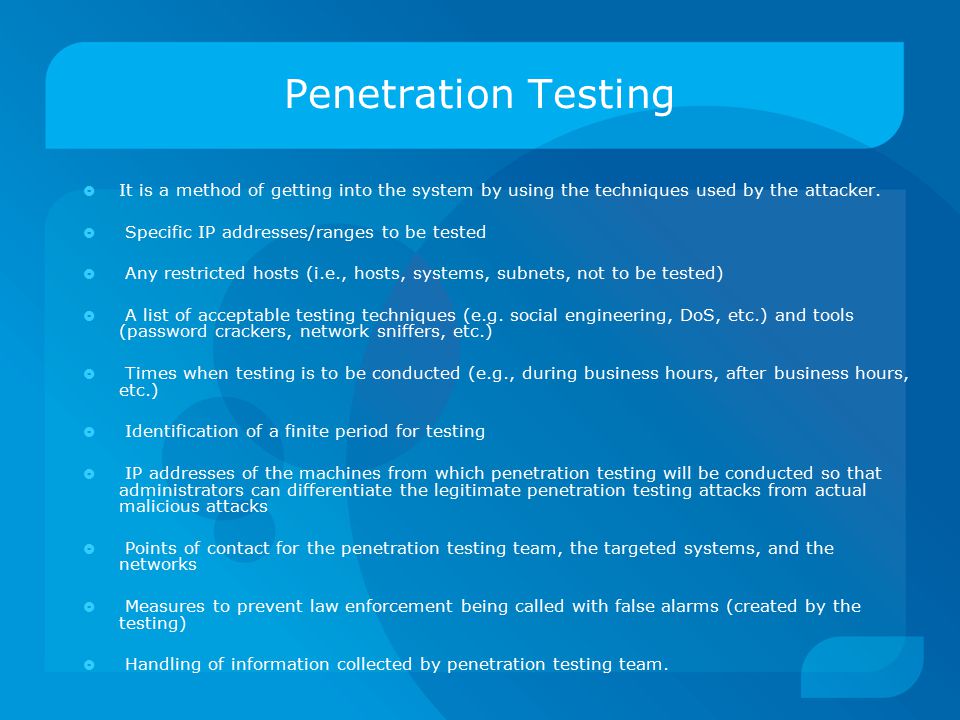

13 Penetration Testing  It is a method of getting into the system by using the techniques used by the attacker.  Specific IP addresses/ranges to be tested  Any restricted hosts (i.e., hosts, systems, subnets, not to be tested)  A list of acceptable testing techniques (e.g. social engineering, DoS, etc.) and tools (password crackers, network sniffers, etc.)  Times when testing is to be conducted (e.g., during business hours, after business hours, etc.)  Identification of a finite period for testing  IP addresses of the machines from which penetration testing will be conducted so that administrators can differentiate the legitimate penetration testing attacks from actual malicious attacks  Points of contact for the penetration testing team, the targeted systems, and the networks  Measures to prevent law enforcement being called with false alarms (created by the testing)  Handling of information collected by penetration testing team.

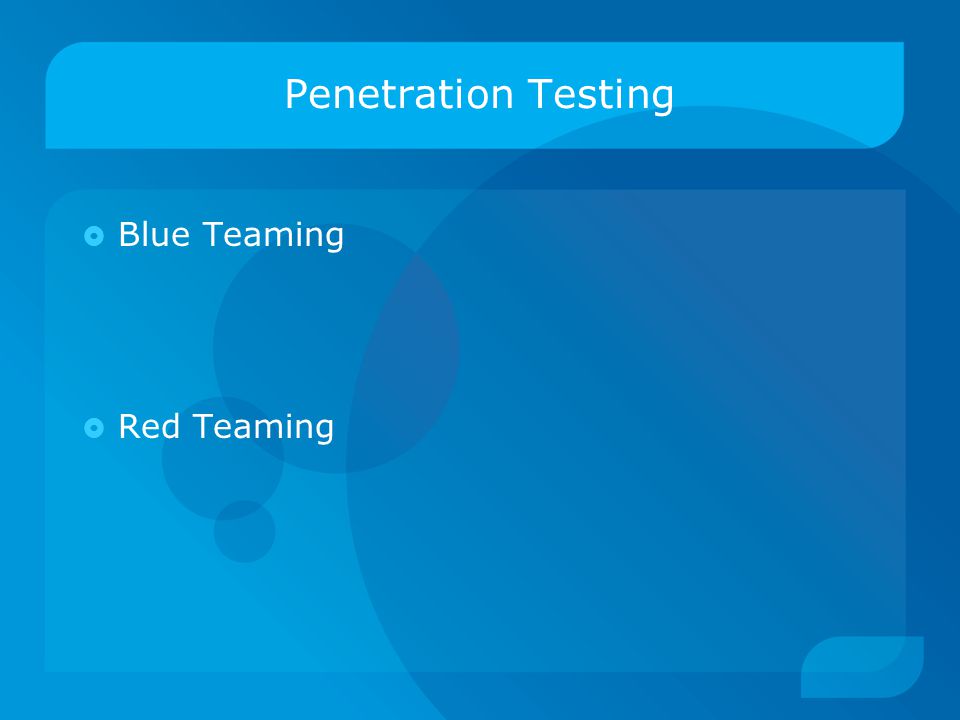

14 Penetration Testing  Blue Teaming  Red Teaming

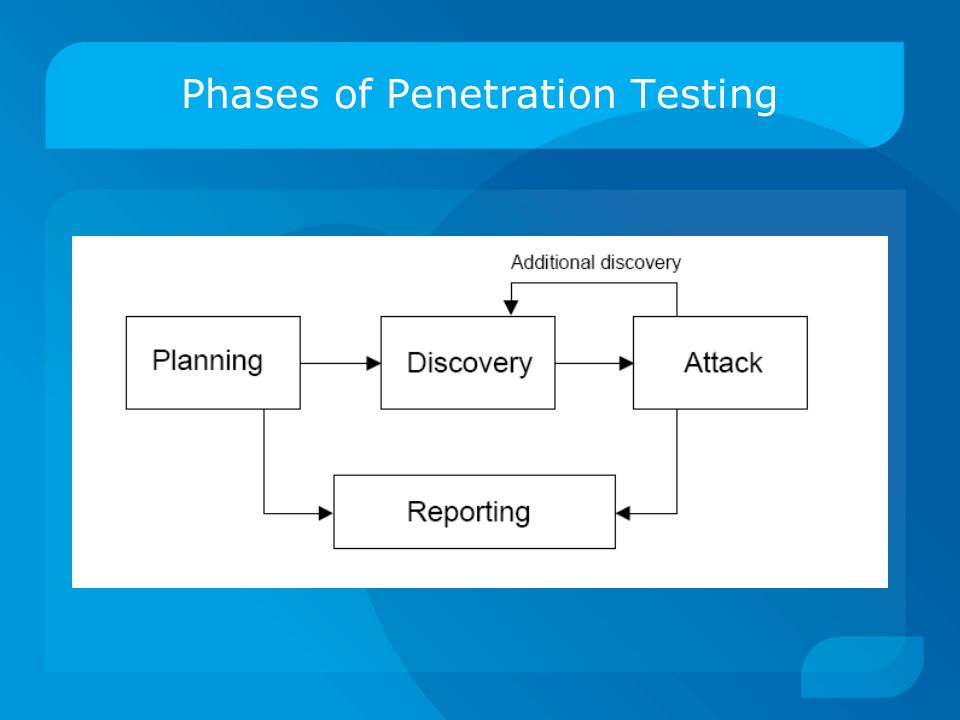

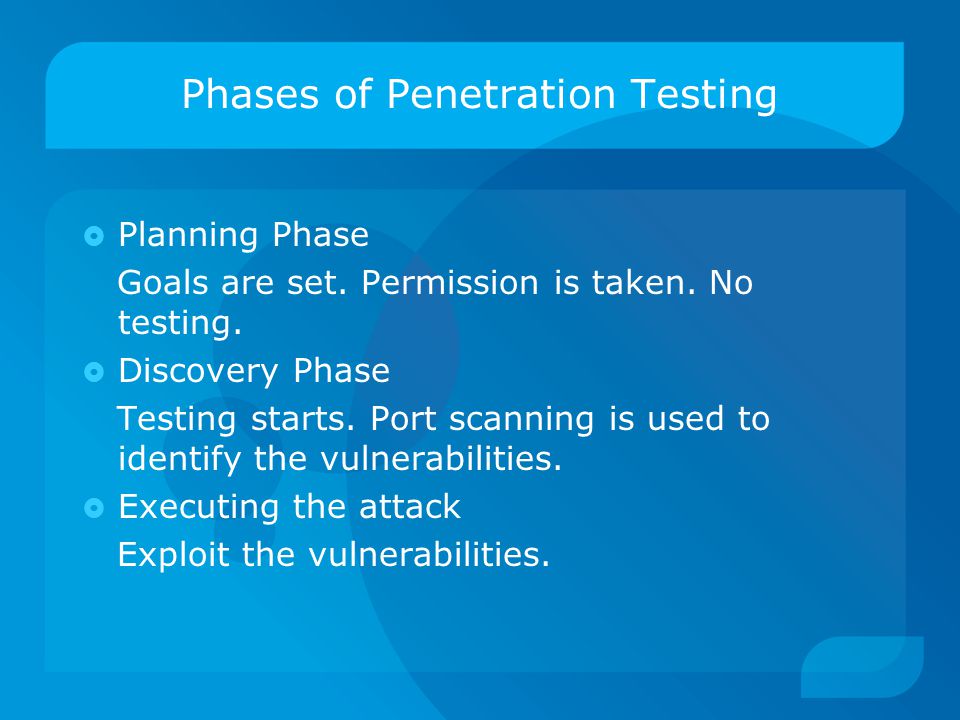

15 Phases of Penetration Testing

16  Planning Phase Goals are set. Permission is taken. No testing.  Discovery Phase Testing starts. Port scanning is used to identify the vulnerabilities.  Executing the attack Exploit the vulnerabilities.

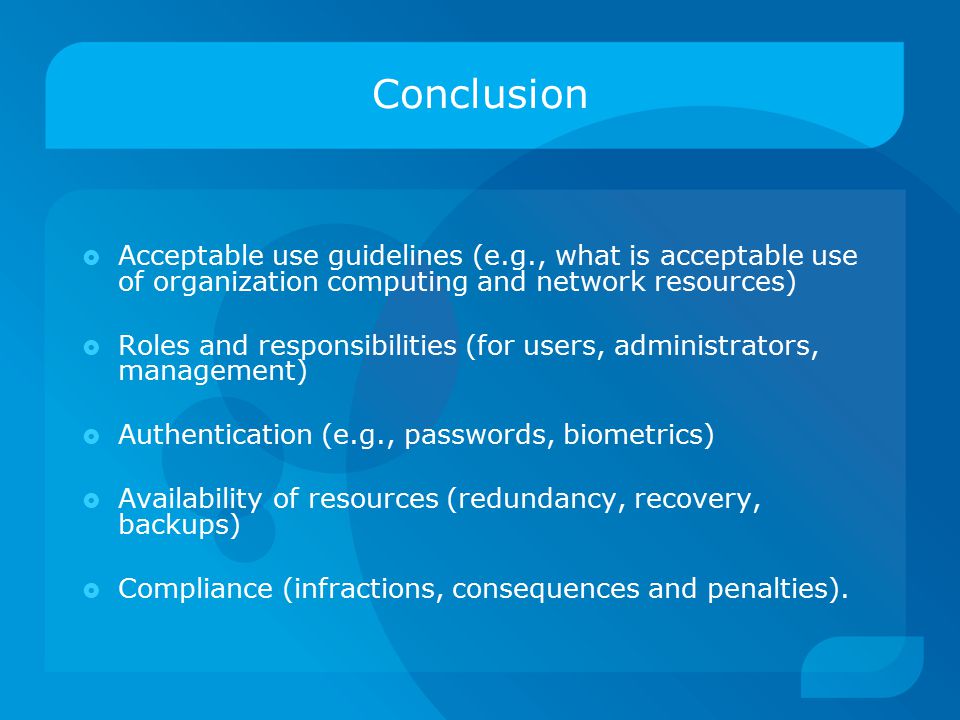

17 Conclusion  Acceptable use guidelines (e.g., what is acceptable use of organization computing and network resources)  Roles and responsibilities (for users, administrators, management)  Authentication (e.g., passwords, biometrics)  Availability of resources (redundancy, recovery, backups)  Compliance (infractions, consequences and penalties).

18 Questions ?
