1. DSP C5000 Chapter 3 Addressing Modes Copyright © 2003 Texas Instruments. All rights reserved.

2. ESIEE, Slide 2Objectives  Present the main addressing modes and allocation of sections  Present the main addressing modes of the C54 family  Present the main addressing modes of the C55 family  Explain how to use these addressing modes  Do exercises to practice using the different addressing modes

3. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 3Outline Generalities on addressing modes Generalities on addressing modes C54x C54x C55x C55x

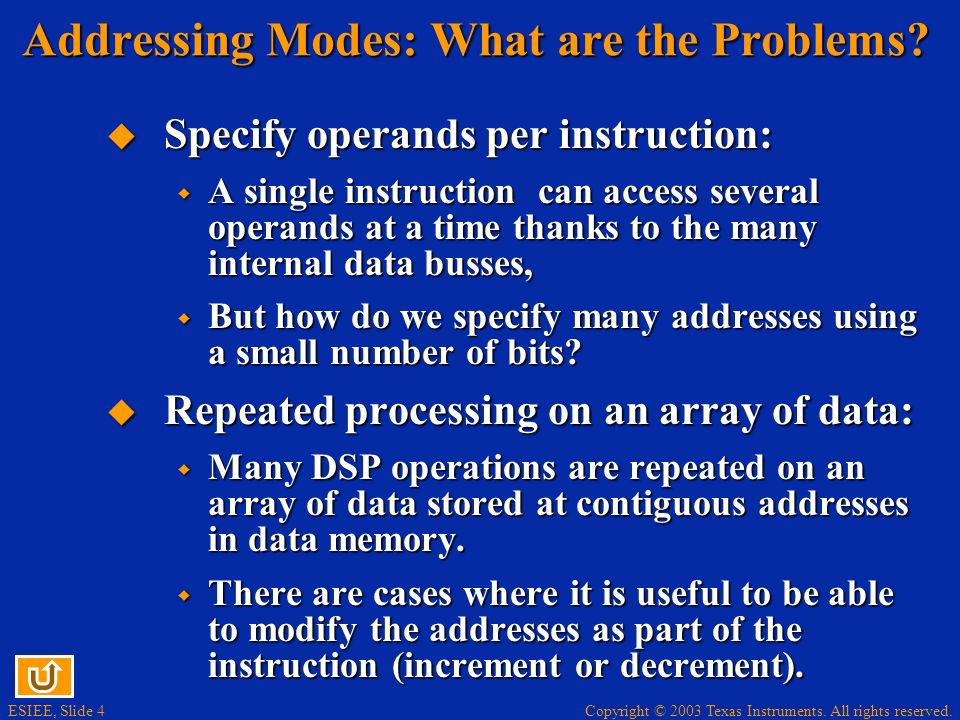

4. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 4 Addressing Modes: What are the Problems?  Specify operands per instruction:  A single instruction can access several operands at a time thanks to the many internal data busses,  But how do we specify many addresses using a small number of bits?  Repeated processing on an array of data:  Many DSP operations are repeated on an array of data stored at contiguous addresses in data memory.  There are cases where it is useful to be able to modify the addresses as part of the instruction (increment or decrement).

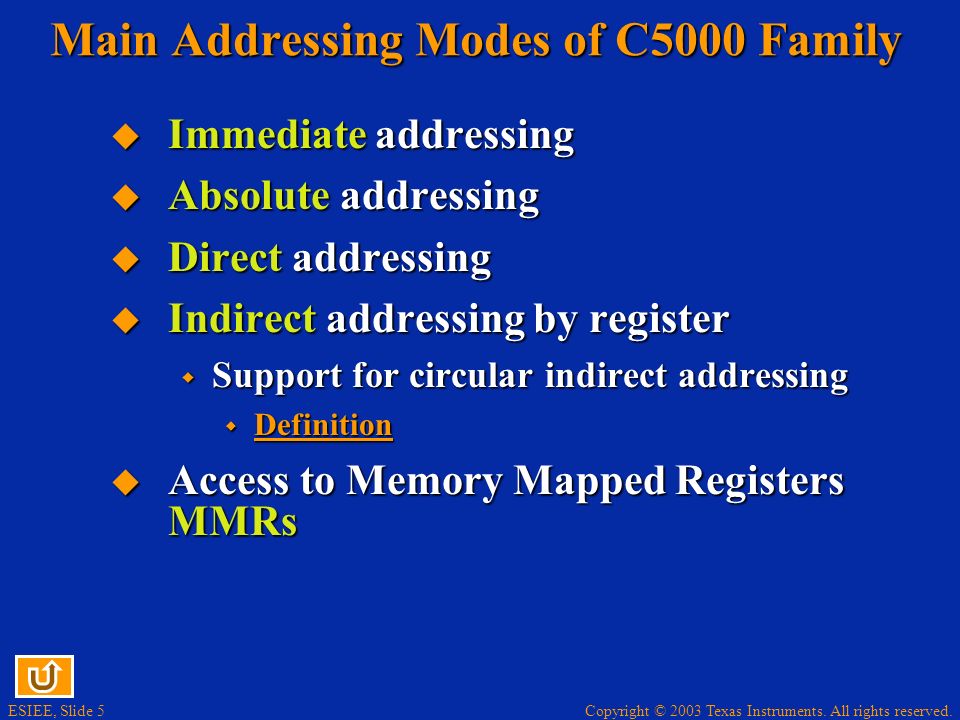

5. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 5 Main Addressing Modes of C5000 Family  Immediate addressing  Absolute addressing  Direct addressing  Indirect addressing by register  Support for circular indirect addressing  Definition Definition  Access to Memory Mapped Registers MMRs

6. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 6 Allocating Sections

7. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 7Example RAM x[3] RAM y C5000 CPU System Diagram DROM init[3] EPROM(code) y = x1 + x0 + x2 Algorithm How do we allocate the proper sections?   Allocate sections (code, constants, vars)   Setup addressing modes   Add the values (x1 + x0 + x2)   Store the result (y) Procedure

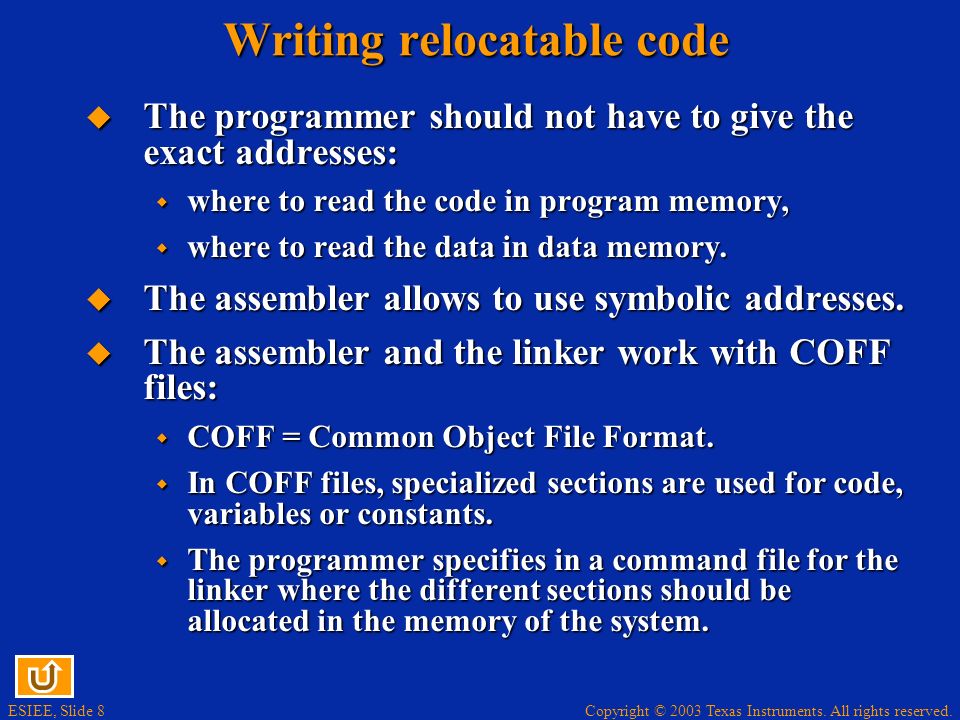

8. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 8 Writing relocatable code  The programmer should not have to give the exact addresses:  where to read the code in program memory,  where to read the data in data memory.  The assembler allows to use symbolic addresses.  The assembler and the linker work with COFF files:  COFF = Common Object File Format.  In COFF files, specialized sections are used for code, variables or constants.  The programmer specifies in a command file for the linker where the different sections should be allocated in the memory of the system.

9. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 9 Definition of Sections  Different sections for code, vars, constants.  The sections can be initialized or not.  An initialized section is filled with code or constant values.  An uninitialized section reserves memory space for a variable.  The sections can have default names or names given by the programmer.

10. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 10 Definition and names of Sections  The programmer uses special directives to identify the sections.

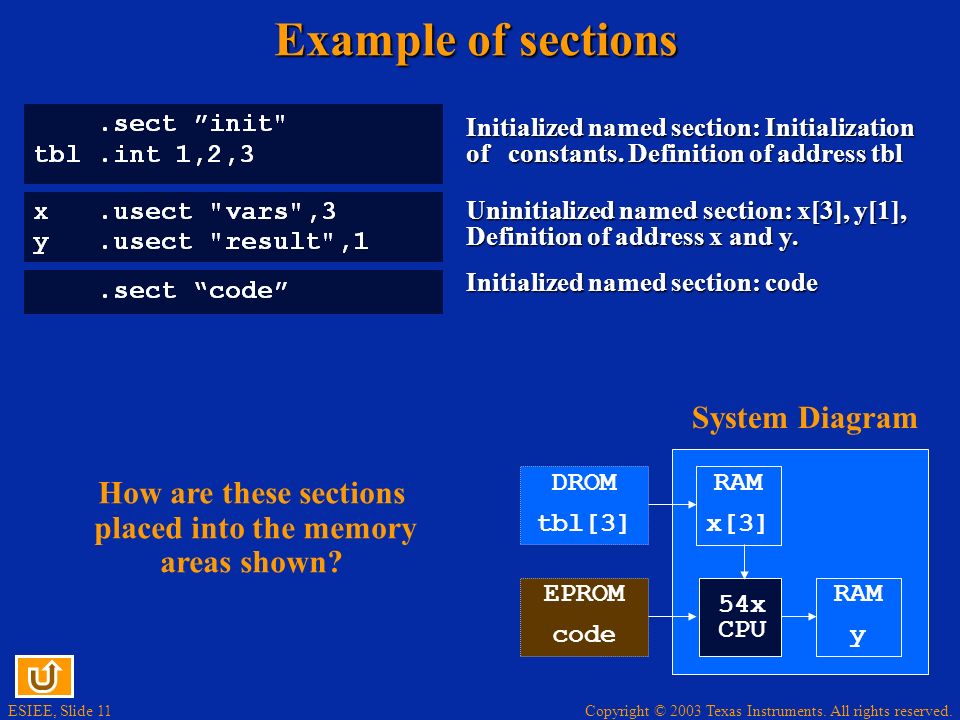

11. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 11 Example of sections Initialized named section: Initialization of constants. Definition of address tbl Uninitialized named section: x[3], y[1], Definition of address x and y. Initialized named section: code RAM x[3] RAM y 54x CPU System Diagram DROM tbl[3] EPROM code How are these sections placed into the memory areas shown?

12. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 12 C54x Addressing Modes

13. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 13 Format of Data and Instructions, Internal Busses of the C54x Family  In the C54x DSP, the data and program memories are organized in 16-bit words. Data busses have a 16-bit width.  Data and instructions are generally of size N=16 bits.  Some instructions may take several 16-bit words.  Some data operands may be double precision and occupy 2 words.  Internal busses: 2 data read, 1 data write

14. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 14 Terms from the User’s Guide

15. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 15 Immediate Addressing Mode #  Instruction contains the value of the operand. Value is preceded by #.  Example:  Add the value 4 to the content of accumulator A.  Useful for initializations.  Long (16 bits) or short values:  For long values: instruction uses 2 words. ADD #4,A

16. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 16 Immediate Addressing Mode #  16 bit value  2 words, 2 cycles  Initialization of ARi for example  Short value  3, 5, 8, 9 bits constant  1 word, 1 cycle  To initialize short length registers or bit fields:  DP, ASM …  Not always available Example: STM#1234h,AR2 Load AR2 with the value 1234h. Example: LD#6, DP Load DP with the value 6.

17. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 17 Example: MMR (Memory Mapped Registers) and Immediate Addressing   STM (STore to Memory-mapped register) stores an immediate value to the specified MMR or Scratch address.   #tbl is the 16-bit address of the first element of the array tbl.   MMR = Memory Mapped Registers   Scratch memory

18. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 18 Direct Addressing Mode @  Direct addressing = random access from a specified base address.  The instruction contains an offset relative to the base address.  The base address can be the beginning of a data memory page or the stack pointer.  The data memory is virtually divided in 512 pages of 128 words (512x128 = 2 16 ).  Data Page DP relative direct address  CPL bit (ComPiler Mode bit) = 0 in ST1  Stack Pointer SP relative direct address  CPL bit = 1 in ST1

19. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 19 Data memory pages

20. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 20 Direct Addressing Mode @  For DP relative mode:  The 16 bit address is split into 9 MSB and 7 LSB.  The 7 LSB of the operand address are given in the instruction,  The 9 MSB are in the DP register.  For SP relative mode  The 7 bits given in the instruction are used as an offset from the SP to obtain the address.  In both cases, only 7 bits are used in the instruction for the operand address.

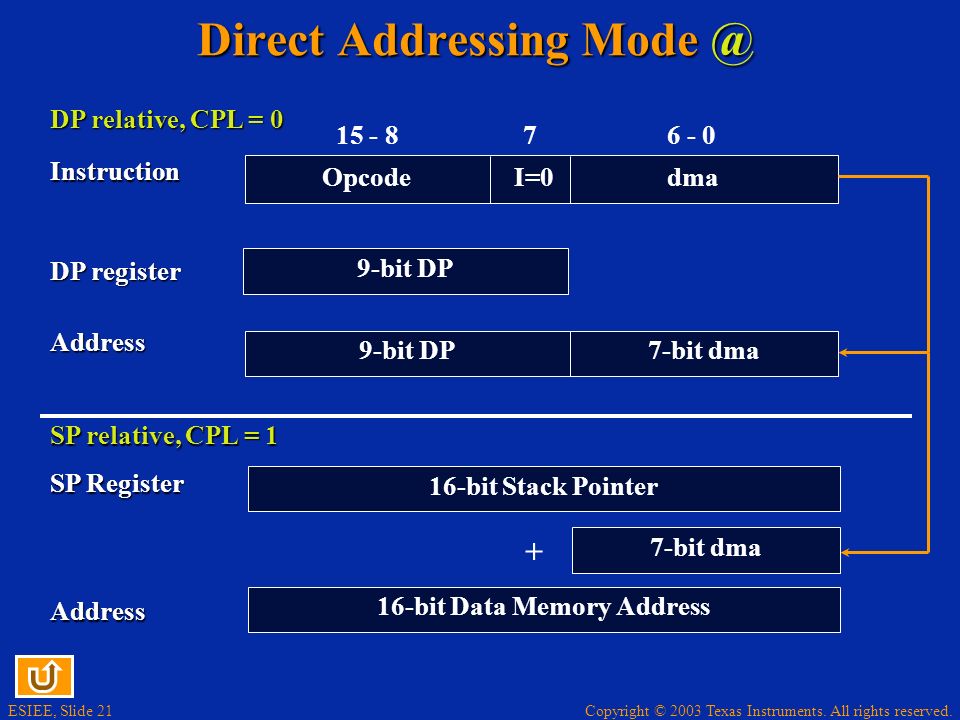

21. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 21 Direct Addressing Mode @ OpcodeI=0dma 15 - 876 - 0 7-bit dma9-bit DP Instruction DP relative, CPL = 0 Address SP relative, CPL = 1 16-bit Stack Pointer 7-bit dma + 16-bit Data Memory Address Address 9-bit DP DP register SP Register

22. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 22 Direct Addressing Mode @, example DP = 2, page 2 Offset in the instruction = 1 Address = 0101 in hexadecimal

23. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 23Example   This instruction loads the upper 9 bits of address x into DP (in ST0)   CPL = 0   To be sure that x and x+1 are in the same page: use Blocking.

24. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 24 Direct Addressing Mode @, DP relative  When DP is initialized, it allows single- word single-cycle instructions with easy to understand symbols for addresses.  Defines 512 pages (selected by the 9 bits of DP) of 128 words (selected by the 7 bits in instruction) in data memory.  CPL is reset by:  RSBX CPL ; CPL = 0 on reset  Blocking of data in the same page  In the linker command file: .bss : > RAM BLOCK = 128  In the assembler file .bss x, 2, 1 ; specify all variables in one page

25. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 25 Direct Addressing Mode @, SP relative  Used by the C compiler  Useful for stack based operations  Controlled by the CPL bit. Set by:  SSBX CPL

26. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 26 Indirect Addressing Mode *ARi  Compatible with pointers in C.  8 ARi Auxiliary Registers to store the addresses of the operands. They are used as pointers.  2 ARAU = Auxiliary Registers Arithmetic Units to realize operations on the addresses stored in the ARi.  1 operand (Smem) or 2 operands (Xmem, Ymem) can be specified by indirect addressing in 1 instruction.  Very efficient for DSP operations.

27. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 27 Indirect addressing mode *ARi  AR0 can be used as an index.  Support for circular addressing  details in next slides  Bit Reversed BR addressing for FFT  ARi can be modified during the instruction  The possible modifications or operations on ARi depend on the number of operands specified by indirect addressing in the instruction.  Pointers (ARi) must be initialized before use.

28. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 28 Circular buffer and addressing on C54x

29. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 29 Circular addressing with C54x  Circular indirect addressing mode: %  *ARi-%, *ARi+%, *ARi-0%, *ARi+0%, *ARi(lk)%  In dual operand mode Xmem, Ymem:  *ARi+0% only valid mode  To perform a decrement, store a negative value in AR0.  BK register:  Stores the size N of the circular buffer.  Must be initialized before use.  There may be several circular buffers at different addresses at the same time but with the same length.

30. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 30 Limitations on Start Addresses of Circular Buffers  If N is written on nb bits in binary, the start address must have its nb LSB at 0:  Examples:  for N=32, 6 LSB of start address =0  for N=30, 5 LSB of start address =0  To access a circular buffer:  Initialize BK with N (nb bits)  Choose 1 ARi as a pointer  The effective start address of the buffer is the value in ARi with its nb LSB at 0.  The end address = start addess +N-1.

31. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 31 Indirect Addressing: ARi Specifications and Options for Modification  For a single operand Smem:  16 possible options for Smem,  4 bits for the option + 3 bits for the ARi.  The address is specified by 4 + 3 = 7 bits.  For 2 operands Xmem, Ymem:  Only 4 ARi can be used: AR2 to AR5.  Only 4 possible options for the operations on the ARi.  Each address needs 2 + 2 = 4 bits, so 2x4=8 bits are necessary for the 2 addresses.

32. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 32 Indirect Addressing Options for ARi modifications, Single operand Smem

33. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 33 Indirect Addressing Options for ARi for Double Operand Xmem and Ymem

34. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 34 Indirect Addressing Mode *ARi  There are latencies to consider: no latencySTM, MVDK no latencySTM, MVDK 1 cycleMVDM, MVKD, MVDD 1 cycleMVDM, MVKD, MVDD 2 cyclesSTLM, ST, etc 2 cyclesSTLM, ST, etc  ARi are read/modified in access phase, so the debugger will appear to show ARs changing early.  CMPT must = 0 (bit5, ST1) is 0 on reset is 0 on reset is forced to 0 with RSBX CMPT is forced to 0 with RSBX CMPT CMPT (Compatibility Mode Bit) = 1 allows ‘C2x/’C2xx/C5x styled ARP operation for ARs. But this mode is discouraged. CMPT (Compatibility Mode Bit) = 1 allows ‘C2x/’C2xx/C5x styled ARP operation for ARs. But this mode is discouraged.

35. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 35Example   Initialization of AR1 and AR2.   Copy the values from table in DROM to RAM (via A). Indirect addressing allows sequential access to data. RAM x[3] RAM y 54x CPU System Diagram DROM tbl[3] EPROM code

36. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 36 Absolute Addressing Mode *()  Allows us to specify a complete operand address in an instruction. *(Address)  The address can be in data, program or IO memory. 16 bits.  2 words, 2 cycles. Data Memory AddrData.. x: 01FF 1000 y: 0200 0500.. 0 0 0 0 0 0 1 0 0 0Acc A 0 0 0 0 0 0 1 5 0 0.data x:.word 1000h y:.word 0500h.text LD*(x),A ADD*(y),A

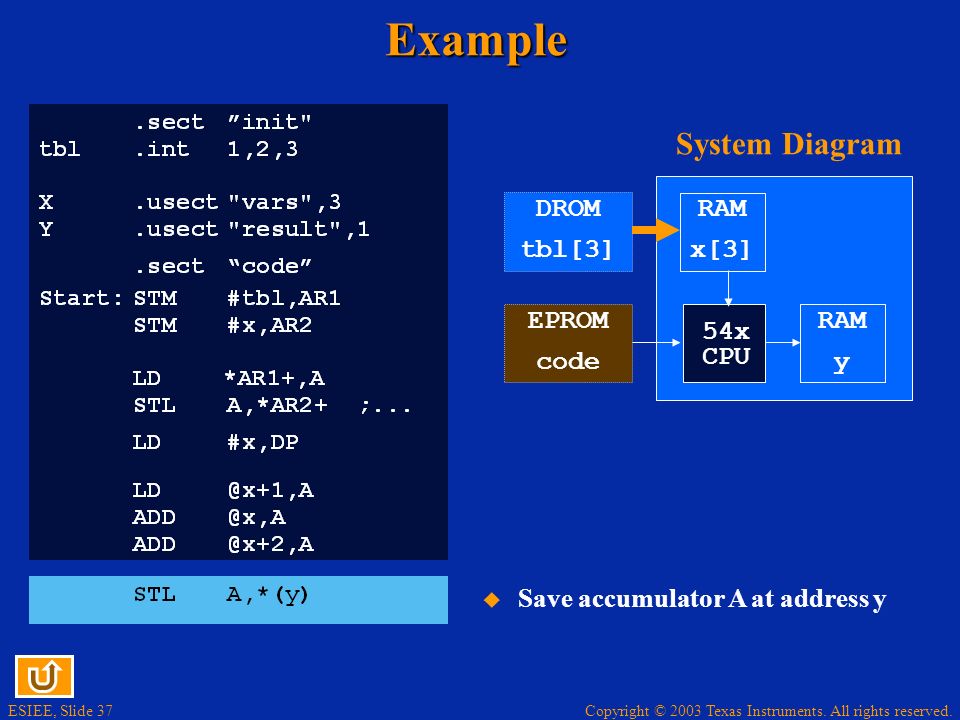

37. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 37Example RAM x[3] RAM y 54x CPU System Diagram DROM tbl[3] EPROM code   Save accumulator A at address y

38. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 38 MMR Memory Mapped Registers Addressing  MMRs are in page 0 of data memory.  They can be accessed by some specific MMR instructions allowing simple access to page 0.  In these cases DP, SP and CPL are ignored 0000h 0060h 007Fh MMRs Scratch Tip: use the.mmregs directive to allow MMR names to be interpreted as addresses LDM, STLM MMR  Acc STM #  MMR PSHM, POPM MMR  Stack MVDM, MVMD MMR  Dmem MVMM AR, SP  AR, SP

39. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 39 MMR Memory Mapped Registers Addr. Name(Hex)Description IMR0000Interrupt Mask Register IFR0001Interrupt Flag Register -----2 - 5Reserved ST00006Status 0 Register ST10007Status 1 Register AL0008A accumulator low (A[15:00]) AH0009A accumulator high (A[31:16]) AG000AA accumulator guard (A[39:32]) BL000BB accumulator low (B[15:00]) BH000CB accumulator high (B[31:16]) BG000DB accumulator guard (B[39:32]) T000ETemporary Register TRN000FTransition Register Addr. Name(Hex)Description AR00010Address Register 0 AR10011Address Register 1 AR20012Address Register 2 AR30013Address Register 3 AR40014Address Register 4 AR50015Address Register 5 AR60016Address Register 6 AR70017Address Register 7 SP0018Stack Pointer Register BK0019Circular Size Register BRC001ABlock Repeat Counter RSA001BBlock Repeat Start Address REA001CBlock Repeat End Address PMST001DPMST Register -------01E-01FReserved Note: XPC and Peripheral MMR locations are device dependent

40. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 40 MMR Memory Mapped Registers Addressing  When accessing MMRs, latencies need to be considered.  STM (STore to Memory-mapped register):  Stores an immediate value to the specified MMR or Scratch memory address.  Writes the values during the access phase of the pipeline to avoid latencies.

41. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 41 Exercise on Addressing Modes of C54x Given: DP=0 DP=4 DP=6 Address/Data (HEX) 6020200100300100 CPL=0611202016030130 CMPT=0622024030260 ProgramABDP AR0AR1AR2 LD#0,DP STM#2,AR0 STM#200h,AR1 STM#300h,AR2 LD@61h,A ADD*AR1+,A SUB@60h,A,B ADD*AR1+,B,A LD#6,DP ADD@1,A ADD*AR2+,A SUB*AR2+,A SUB#32,A ADD*AR1-0,A,B SUB*AR2-0,B,A STLA,62h 120 260 390 380 Addr Mode

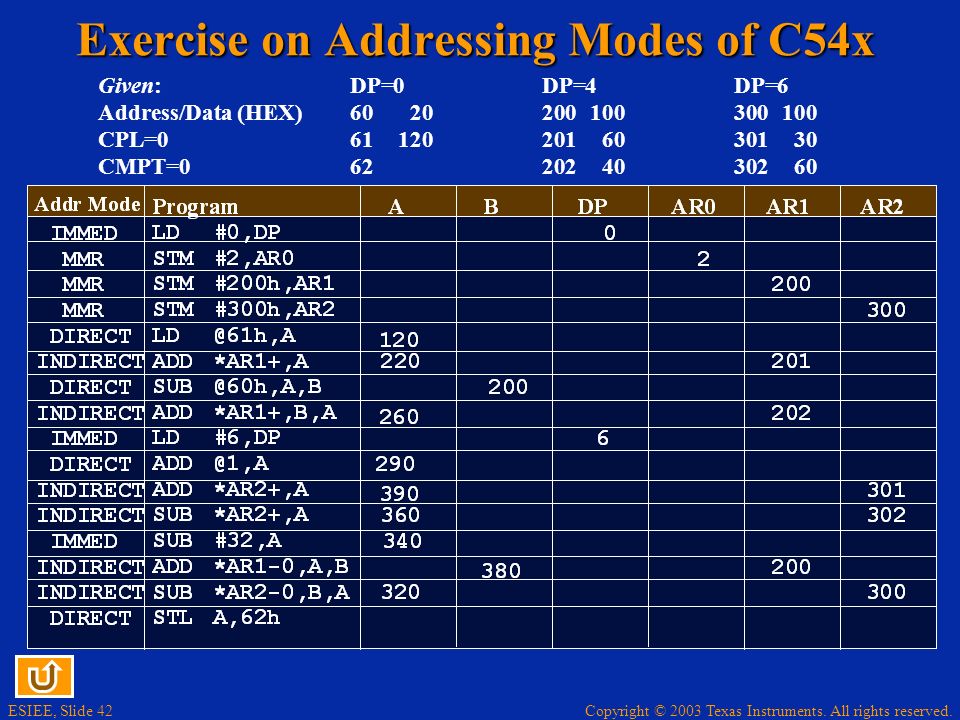

42. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 42 Exercise on Addressing Modes of C54x Given: DP=0 DP=4 DP=6 Address/Data (HEX) 6020200100300100 CPL=0611202016030130 CMPT=0622024030260

43. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 43 C55x Addressing Modes

44. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 44 Format of Data and Instructions, Internal Busses for the C55x Family  Unified program-data memory map: byte-aligned for program and word- aligned for data.  Has a variable length instruction set (8- 16-24-32-40-48 bits).  Program address bus: 24 bits, 16 Mbytes  4 instructions bytes are fetched at a time  6 bytes are decoded at a time  Internal data busses: 3 data read, 2 data write  Data addresses: 8 Mwords of 16 bits segmented into 64K pages, 23-bit address. A 24-bit address is automatically generated by the hardware by adding a LSB = 0.

45. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 45 C55x Addressing Modes  Direct  Indirect  Absolute  MMR  Loading constants in registers (e.g. immediate) y = x0 + x1 + x2 Algorithm RAM x[3] RAMy IP DA 55xx CPU System Diagram ROM tbl[3] y = x0 + x1 + x2 This algorithm will again be used as an example for the different addressing modes.

46. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 46 Loading Constants in Registers #  Used for initialization of registers.  Used to be called immediate addressing  Addressing registers:  16-bits long: ARi, DP, CDP (Coefficient Data Pointer)  23-bits long: XARi, XDP, XCDP  The 7 MSB of Xreg specify the 64K page.  The ARAU auxiliary Register Arithmetic Unit is 16 bits wide: update of ARi and CDP are done modulo 64K.  Initialization example: AMOV #adr,XAR3

47. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 47Example x.usect “vars”,4 y.usect “vars”,1.sect “init”.sect “init” tbl.int 1,2,3,4.sect “code”.sect “code” indir: AMOV #x,XAR0 AMOV #tbl,XAR6 AMOV #tbl,XAR6 RAM x[3] RAMy IP DA 55xx CPU ROM tbl[3] y = x0 + x1 + x2 = 23-bit address 16-bit ARn 23-bit XARn X

48. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 48 Direct Addressing Mode @  Gives the instruction a positive 7bit offset from DP (non-aligned).  In the case where the bit CPL=0 in ST1.  Calculation in the ARAU modulo 64K 7-bit @x = + 23-bit address 16-bit DP 23-bit XDP X

49. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 49Example x.usect “vars”,4 y.usect “vars”,1.sect “init”.sect “init” tbl.int 1,2,3,4.sect “code”.sect “code” How is XDP initialized? RAM x[3] RAMy IP DA 55xx CPU ROM tbl[3] y = x0 + x1 + x2 ADD:MOV @(x+0),AC0 ADD @(x+1),AC0 ADD @(x+2),AC0

50. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 50Example  Constant value contained in instruction opcode  (-x) used in instruction to tell the assembler HOW to create the 7-bit offset from non-aligned XDP A in AMOV means in AD-phase. The MDP has to be reloaded every time we cross a 64K page.

51. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 51 Directive.dp for Direct Addressing  Instead of using (-x) to help the assembler calculate the proper 7-bit offset,  We can use the directive.dp to set the base address for the assembler calculation of the 7-bit offset. .dp base_address The @addr in the instruction is interpreted as a 23-bit address. The.dp provides a compile-time base address. The assembler determines the 7-bit offset by: (@addr-.dp_value)&7F

52. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 52 Indirect Addressing Mode *ARi  Similar to the case of the C54x, but:  23-bit addresses,  Extended registers XARi on 23 bits specify the complete address,  ARAU calculates on 16 bits (modulo 64K),  8 ARi 16-bit pointers used in the instructions.

53. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 53 Indirect Addressing Options for Pointer ARi Modifications  Assumes ST2_55 ARMS =0 and ST1_55 C54CM =0.  The reset condition is C54CM=1.

54. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 54 Address Register Mode Select Bit ARMS  ARMS bit = bit 15 of ST2_55  ARMS=0 at reset DSP mode  For ARMS=1, CONTROL mode  T1 cannot be used as offset  No bit reversed addressing  New mode:  *ARi(short(#k3)) or *SP(short(#k3))  Useful for the C compiler  The C compiler sets ARMS = 1.

55. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 55 Modifying TAs Registers  TAx registers = T0-3, AR0-7.  Special instructions:  AADD, ASUB, AMOV  Can be used to modify TAs registers during the address (AD) phase of the pipeline, while instructions without A operates during the execution (X) phase.  They only work on the TAx registers. Examples:

56. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 56Example + + RAMx[4] RAMy IP DA 55xx CPU ROMtbl[4] y = x0 + x1 + x1

57. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 57 Circular Buffer Addressing Mode

58. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 58 Circular Buffer Addressing Mode The even XARn (i.e. 0,2,4,6) determines the 64K Page

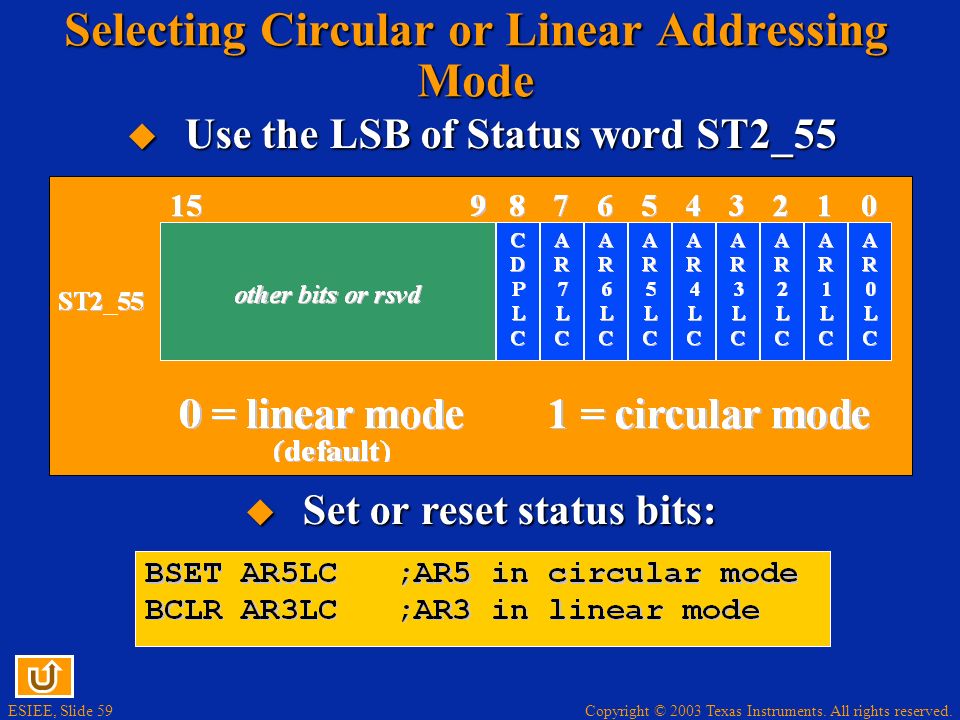

59. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 59 Selecting Circular or Linear Addressing Mode  Use the LSB of Status word ST2_55  Set or reset status bits:

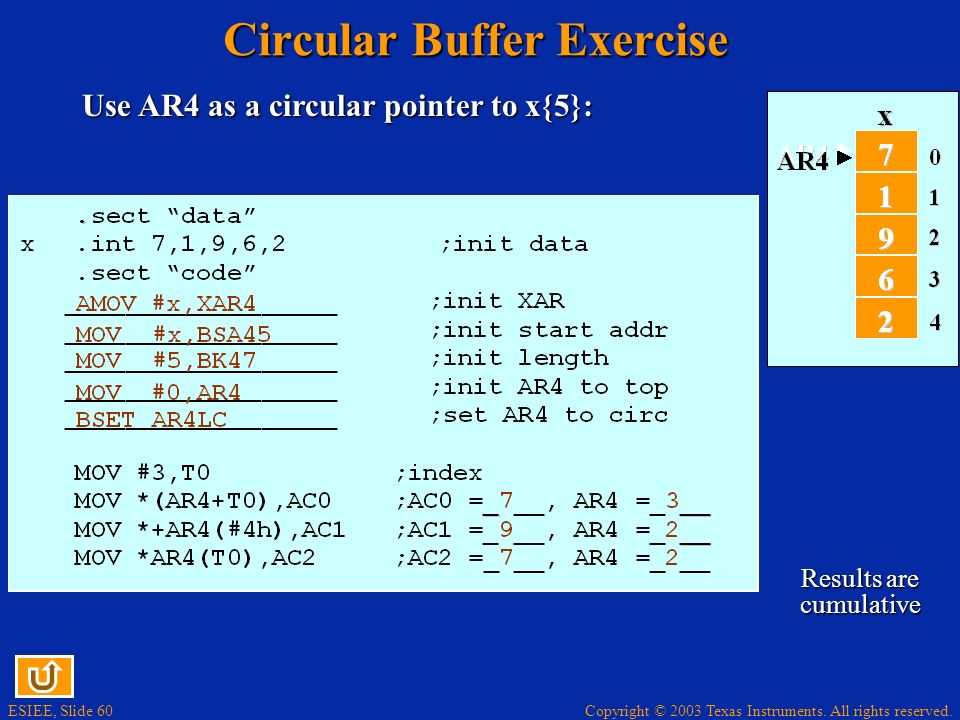

60. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 60 Circular Buffer Exercise Use AR4 as a circular pointer to x{5}: Results are cumulative

61. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 61 Comparison of C54x and C55x circular addressing modes  3 BK registers in C55X instead of 1 in C54x: allows for several simultaneous circular buffers with different size.  In C54x, circular addressing mode is specified in indirect addressing type % in the instructions.  In C55x, the mode in set in status register ST2_55 for each register (linear or circular). No memory alignment constraint.

62. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 62 Absolute Addressing *(#)  *(#) = 23 bit address  Fast: no initialization,  But long instruction because it contains the 23 bit address.  If the address is in the 64K work page, it is possible to specify a 16-bit only address:  abs16*(#label)

63. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 63ExampleRAMx[4] RAMy IP DA 55xx CPU ROMtbl[4] y = x0 + x1 + x2

64. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 64 MMR Addressing Using mmap()  MMRs are located between 0 and 5F.  Scratch memory is located between 60 and 7F.  mmap() forces bits 22:7 to zero.  Useful to access MMR and scratch memory without initialization of addressing registers.  Useful only for direct addressing.

65. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 65 Access Peripheral Registers  The I/O space is internal.  The PDP (Peripheral Data Pointer) register is used to access ports using direct addressing.  It is a 9bit register. Its value is concatenated with the 7 bits in the instruction to obtain a full 16-bit peripheral address.  The port() modifier selects the peripheral map

66. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 66 Access Peripheral Registers 0000h FFFFh I/O - Peripheral Memory Map DMA McBSP EHPI EMIF Timers Power Dwn Instr Cache GPIO abs: MOV port(#addr),T1 dir: MOV #addr,PDP MOV T1,port(@addr) MOV T1,port(@addr) indir: AMOV #addr,AR4 MOV port(*AR4),T1 MOV port(*AR4),T1

67. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 67 Directives for Addressing Modes  3 Mode bits affect addressing:  ARMS: Address Register Mode Select  C54CM: C54 Compatibility Mode  C54CM=1 on reset, native C55x coding requires C54CM=0.  CPL: ComPiLer Mode  3 directives help the assembler to check the syntax and responds with ERROR in case of inconsistency: .arms_on or.arms_off .c54cm_on or.c54cm_off .cpl_onor.cpl_off

68. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 68 Modifying Status Bits BCLR ARMS;clear ARMS BSET CPL;set CPL BCLR C54CM;clear C54CM BSET/BCLR bit_name

69. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 69 Addressing Exercise 02_0105h 21h x = 02_0106h 02_0107h 02_0108h 02_0206h XDP XDP  The initial state of each instruction is shown here...  Below, write down the state after each instr 30h 40h 50h 60h XAR1 T0 2 02_0106h 02_0106h.dp x

70. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 70 Addressing Exercise – Solution 02_0105h 21h x = 02_0106h 02_0107h 02_0108h 02_0206h XDP XDP  The initial state of each instruction is shown here...  Below, write down the state after each instr 30h 40h 50h 60h XAR1 T0 2 02_0106h 02_0106h.dp x

71. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 71

72. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 72 Circular buffer and circular addressing  A circular buffer of length N is a block of contiguous memory words addressed by a pointer using a modulo N addressing mode.  The 2 extreme words of the memory block are considered as contiguous.  Characteristics of a circular buffer:  Instead of moving the N data in memory, just modify the pointers.  When a new data x(n) arrives, the pointer is incremented and the new data is written in place of the oldest one.

73. Copyright © 2003 Texas Instruments. All rights reserved. ESIEE, Slide 73 Trace of Memory and Pointer in a Circular Buffer of Length 3  Very often used for FIR filters.
