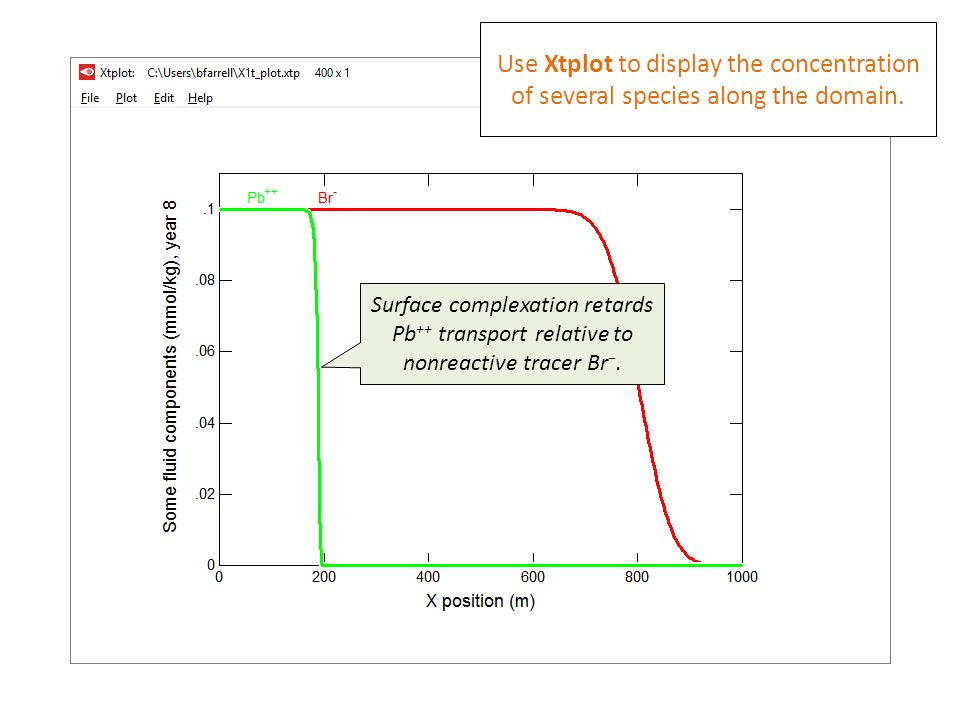

1. Surface complexation retards Pb ++ transport relative to nonreactive tracer Br −. Use Xtplot to display the concentration of several species along the domain.

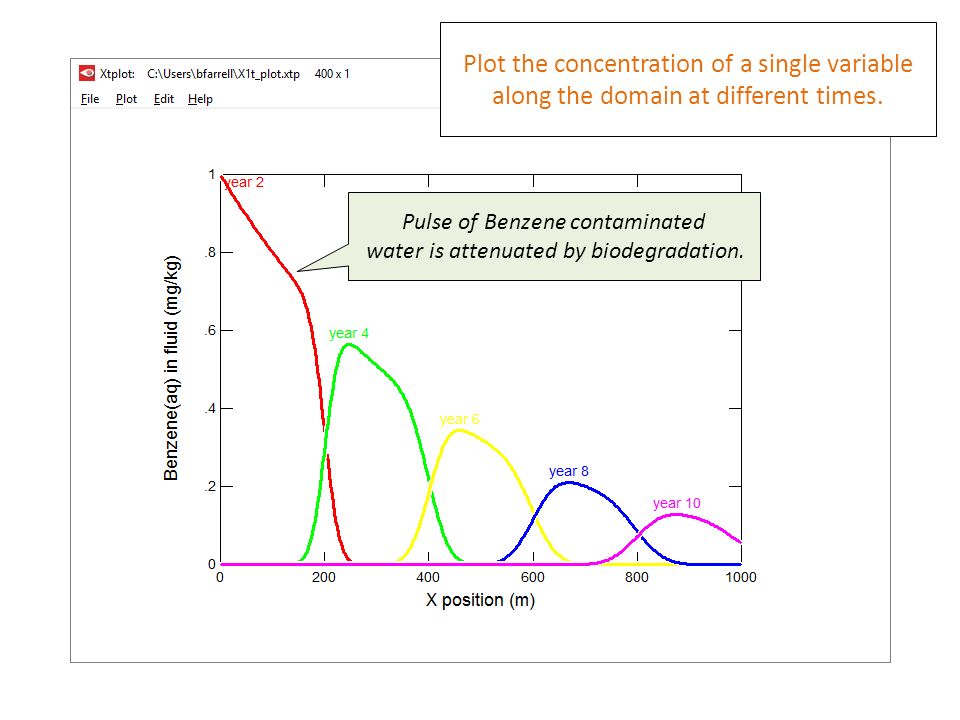

2. Pulse of Benzene contaminated water is attenuated by biodegradation. Plot the concentration of a single variable along the domain at different times.

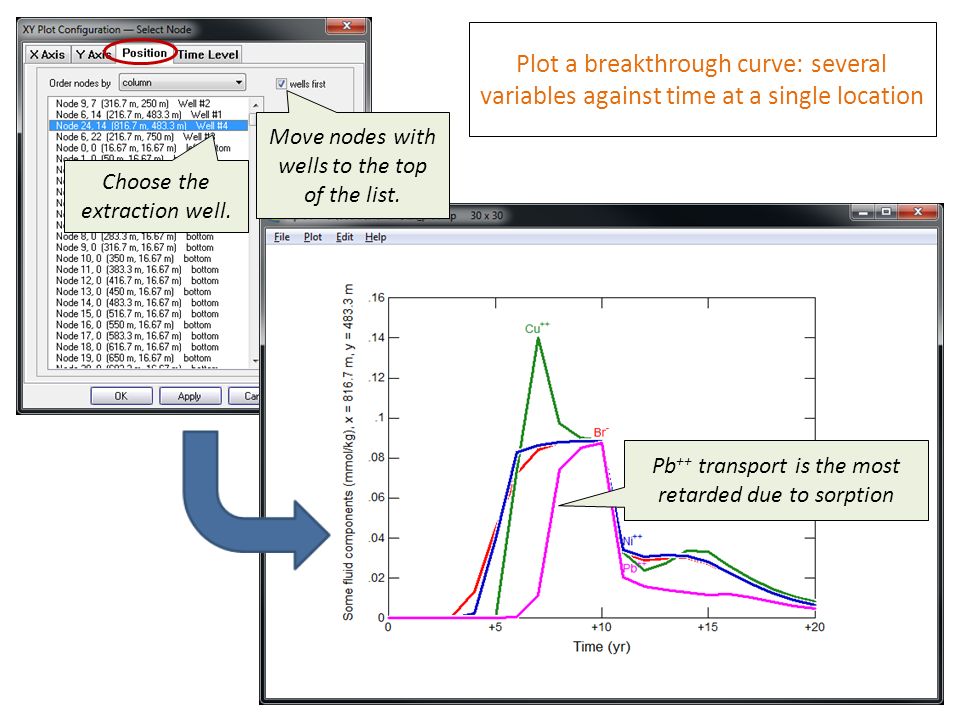

3. Move nodes with wells to the top of the list. Choose the extraction well. Plot a breakthrough curve: several variables against time at a single location Pb ++ transport is the most retarded due to sorption

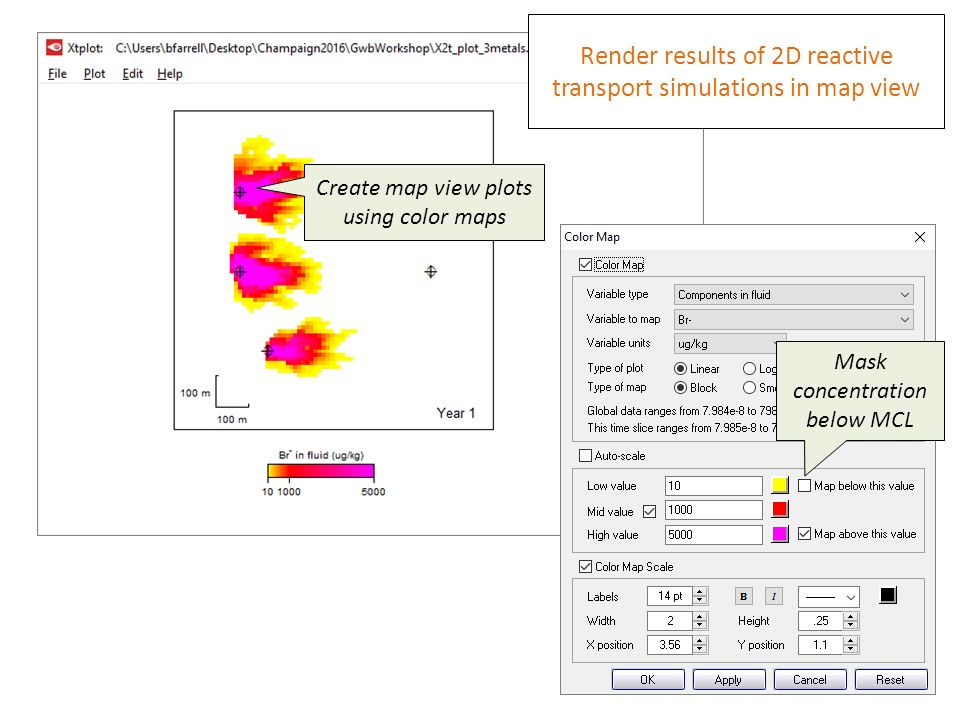

4. Render results of 2D reactive transport simulations in map view Create map view plots using color maps Mask concentration below MCL

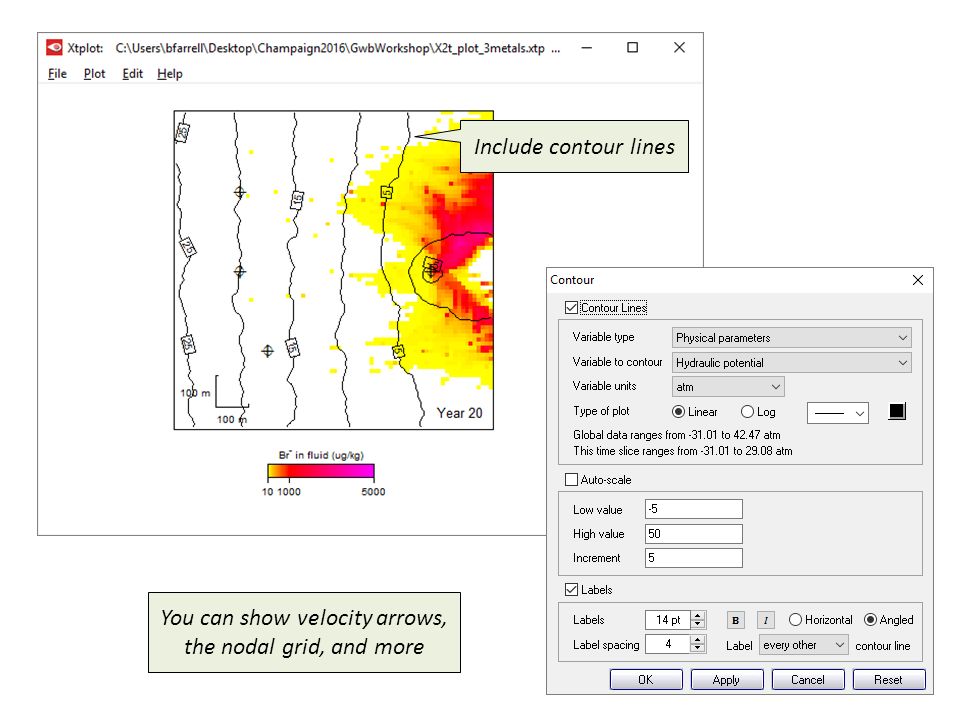

5. Include contour lines You can show velocity arrows, the nodal grid, and more

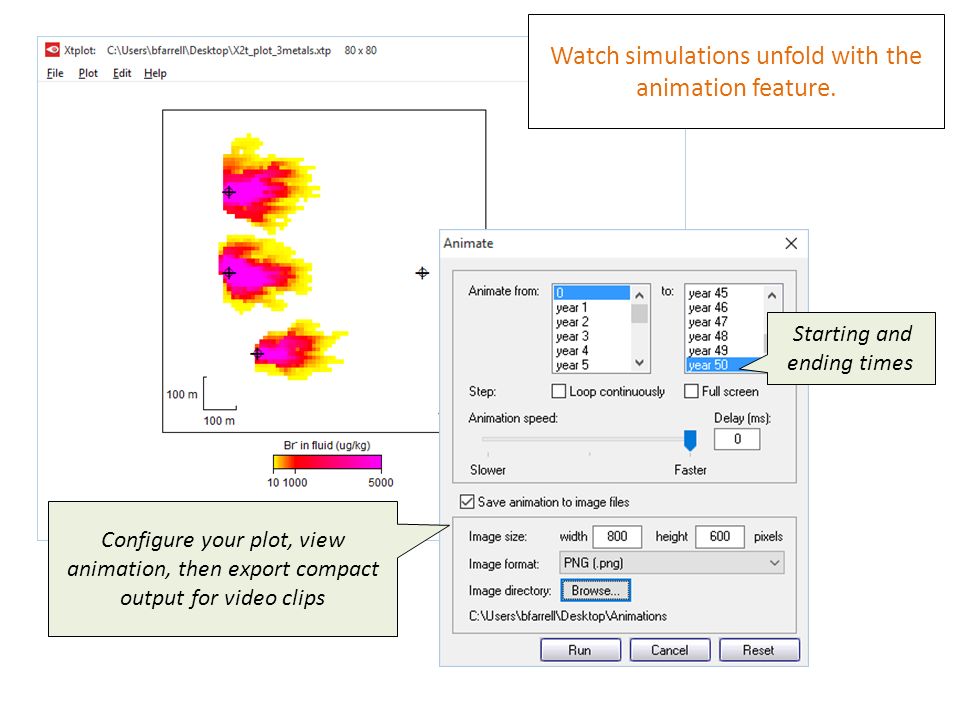

6. Watch simulations unfold with the animation feature. Starting and ending times Configure your plot, view animation, then export compact output for video clips

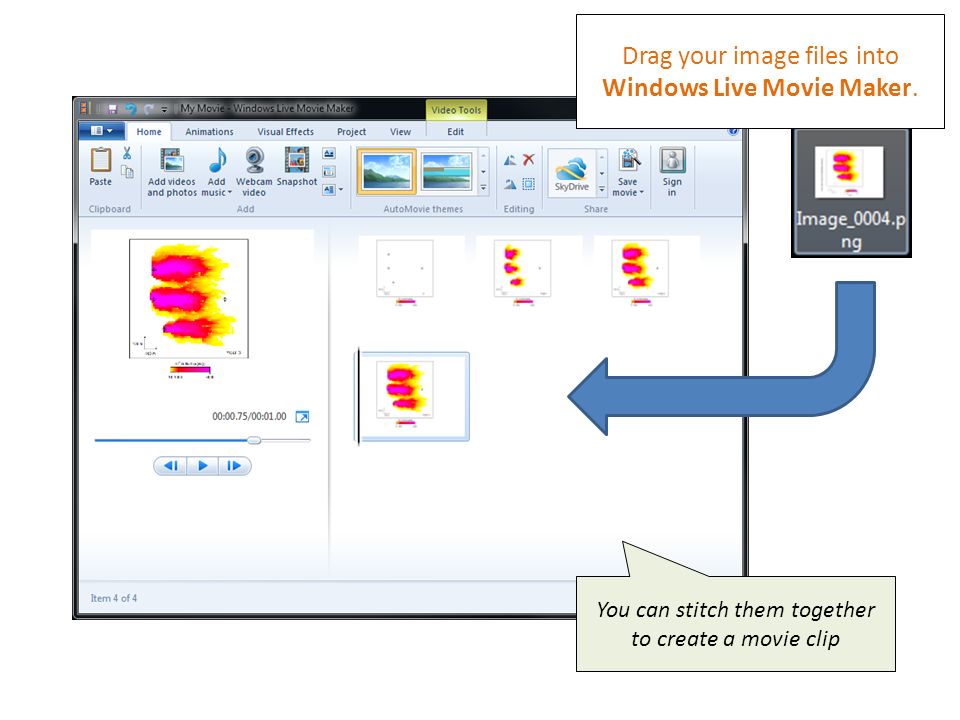

7. Drag your image files into Windows Live Movie Maker. You can stitch them together to create a movie clip
