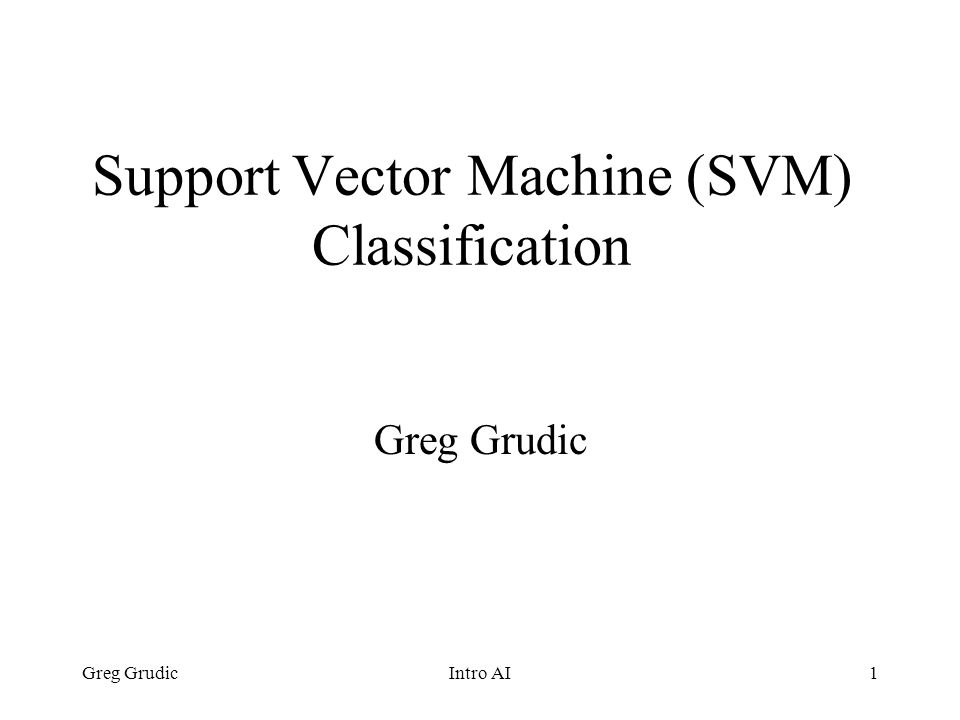

1. Greg GrudicIntro AI1 Support Vector Machine (SVM) Classification Greg Grudic

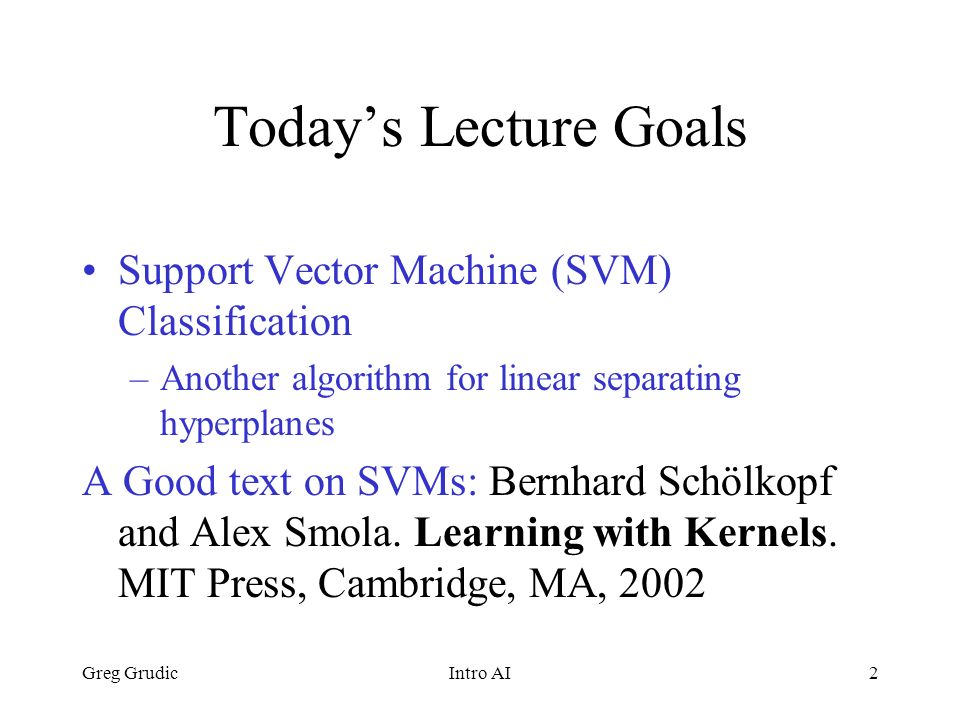

2. Intro AI2 Today’s Lecture Goals Support Vector Machine (SVM) Classification –Another algorithm for linear separating hyperplanes A Good text on SVMs: Bernhard Schölkopf and Alex Smola. Learning with Kernels. MIT Press, Cambridge, MA, 2002

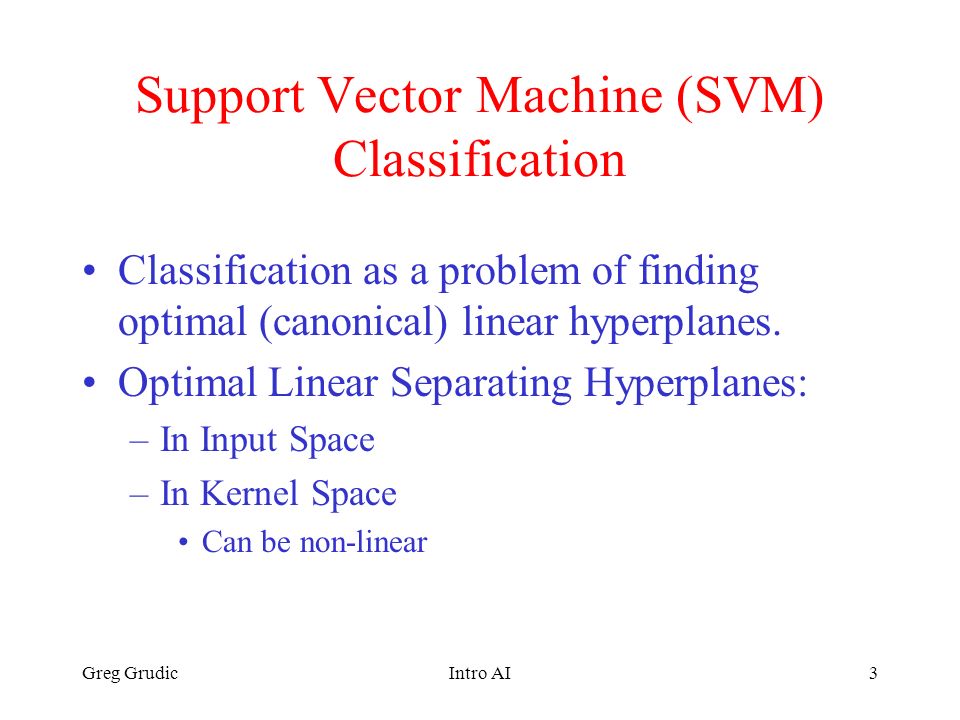

3. Greg GrudicIntro AI3 Support Vector Machine (SVM) Classification Classification as a problem of finding optimal (canonical) linear hyperplanes. Optimal Linear Separating Hyperplanes: –In Input Space –In Kernel Space Can be non-linear

4. Greg GrudicIntro AI4 Linear Separating Hyper-Planes How many lines can separate these points? NO! Which line should we use?

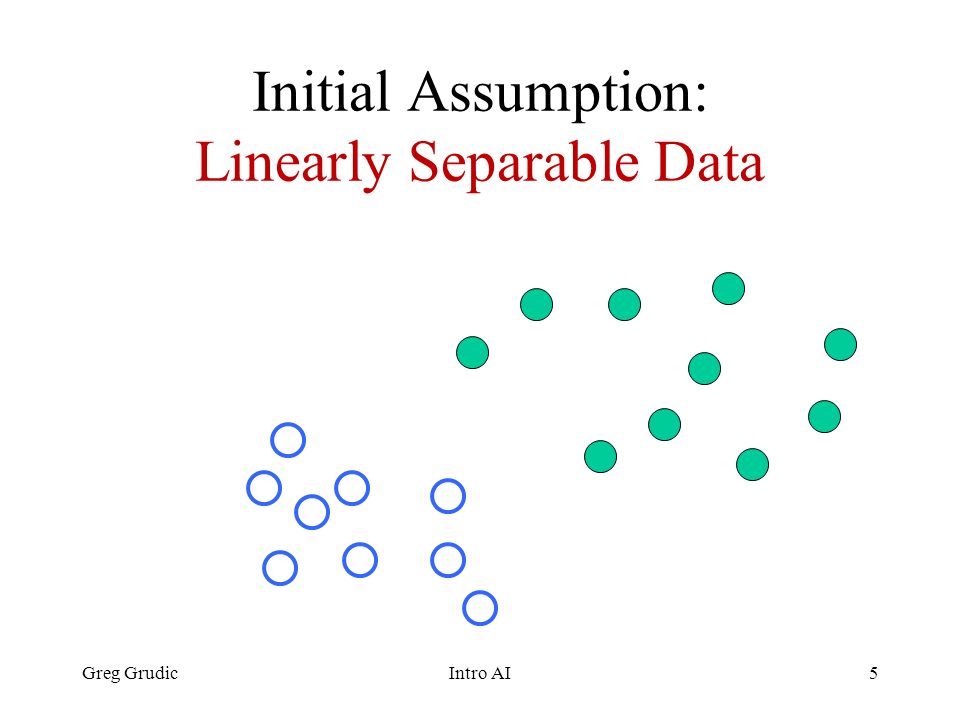

5. Greg GrudicIntro AI5 Initial Assumption: Linearly Separable Data

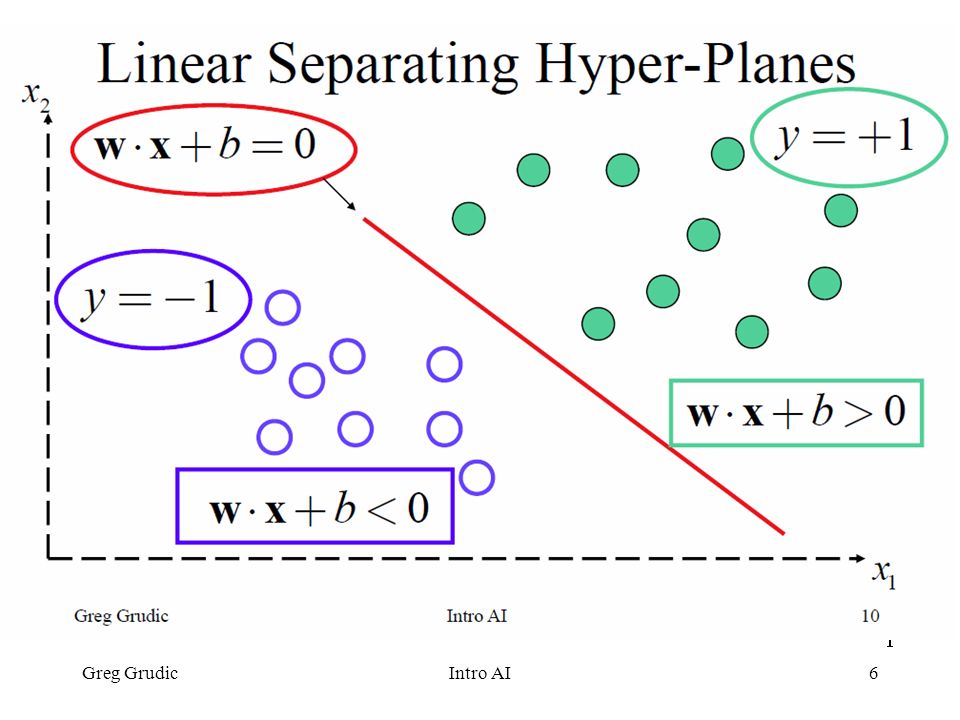

6. Greg GrudicIntro AI6 Linear Separating Hyper-Planes

7. Greg GrudicIntro AI7 Linear Separating Hyper-Planes Given data: Finding a separating hyperplane can be posed as a constraint satisfaction problem (CSP): Or, equivalently: If data is linearly separable, there are an infinite number of hyperplanes that satisfy this CSP

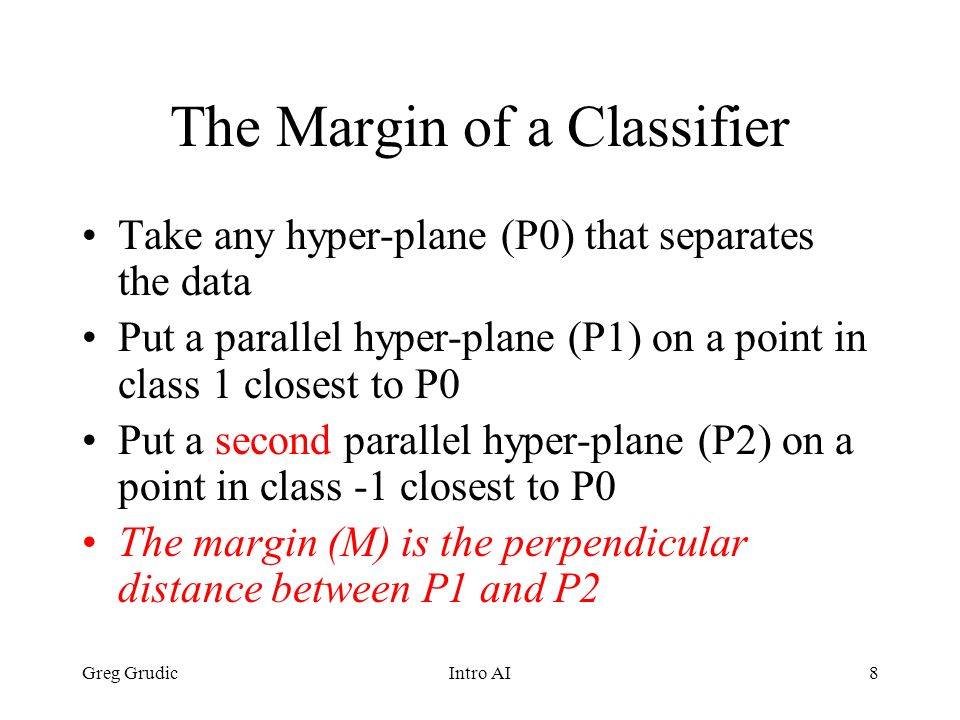

8. Greg GrudicIntro AI8 The Margin of a Classifier Take any hyper-plane (P0) that separates the data Put a parallel hyper-plane (P1) on a point in class 1 closest to P0 Put a second parallel hyper-plane (P2) on a point in class -1 closest to P0 The margin (M) is the perpendicular distance between P1 and P2

9. Greg GrudicIntro AI9 Calculating the Margin of a Classifier P0 P2 P1 P0: Any separating hyperplane P1: Parallel to P0, passing through closest point in one class P2: Parallel to P0, passing through point closest to the opposite class Margin (M): distance measured along a line perpendicular to P1 and P2

10. Model parameters must be chosen such that, for on P1 and for on P2: SVM Constraints on the Model Parameters Greg GrudicIntro AI10 For any P0, these constraints are always attainable. Given the above, then the linear separating boundary lies half way between P1 and P2 and is given by: Resulting Classifier:

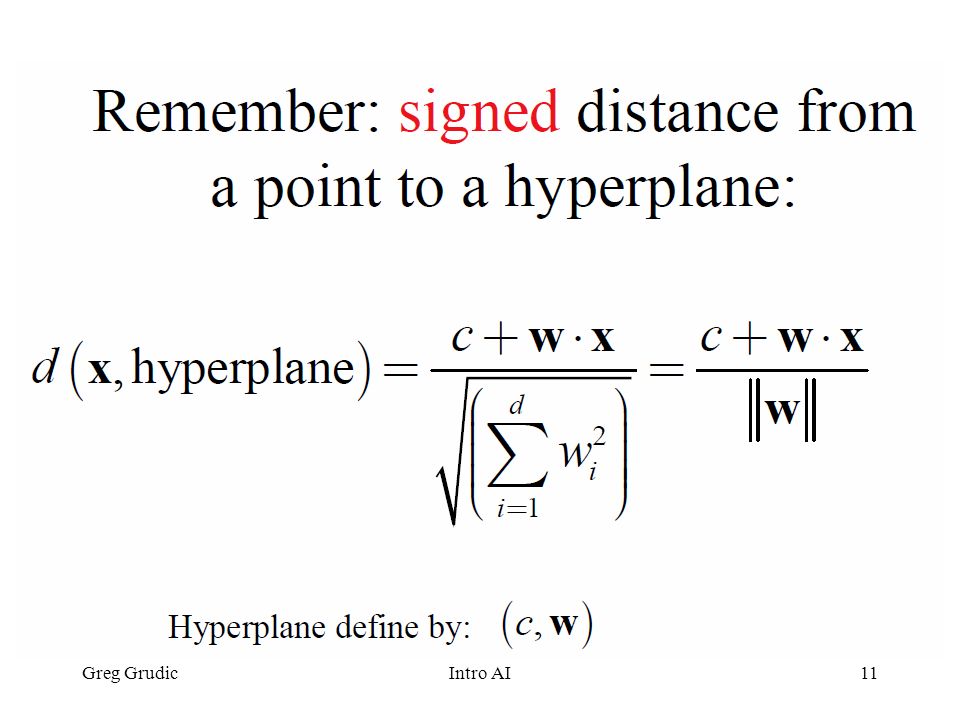

11. Remember: signed distance from a point to a hyperplane: Greg GrudicIntro AI11 Hyperplane define by:

12. Calculating the Margin (1) Greg GrudicIntro AI12

13. Calculating the Margin (2) Greg GrudicIntro AI13 Take absolute value to get the unsigned margin: Signed Distance

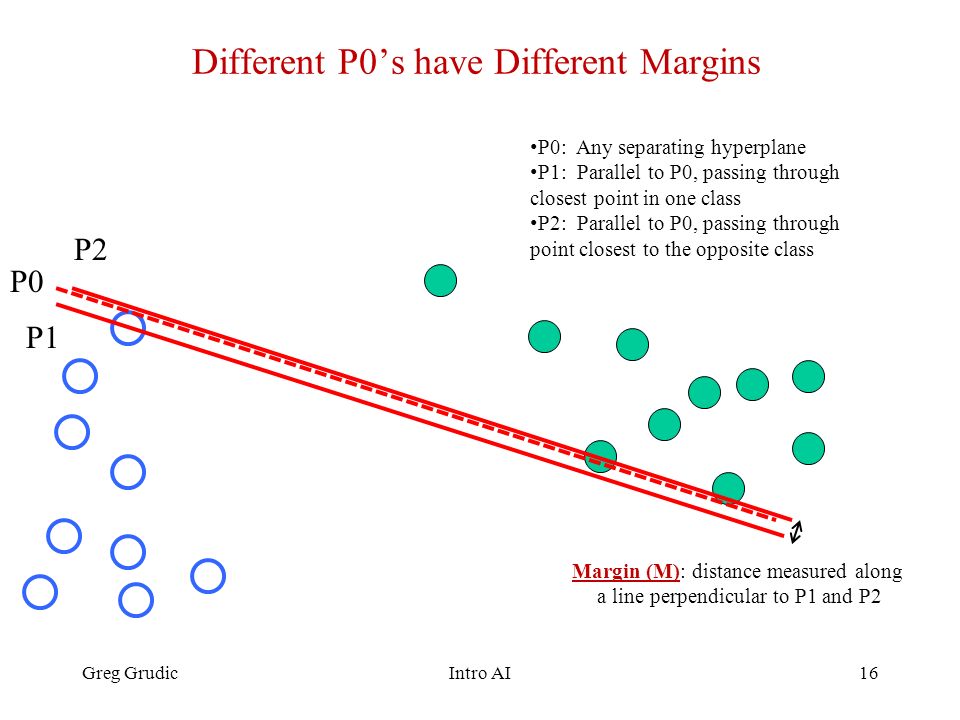

14. Greg GrudicIntro AI14 Different P0’s have Different Margins P0 P2 P1 P0: Any separating hyperplane P1: Parallel to P0, passing through closest point in one class P2: Parallel to P0, passing through point closest to the opposite class Margin (M): distance measured along a line perpendicular to P1 and P2

15. Greg GrudicIntro AI15 Different P0’s have Different Margins P0 P2 P1 P0: Any separating hyperplane P1: Parallel to P0, passing through closest point in one class P2: Parallel to P0, passing through point closest to the opposite class Margin (M): distance measured along a line perpendicular to P1 and P2

16. Greg GrudicIntro AI16 Different P0’s have Different Margins P0 P2 P1 P0: Any separating hyperplane P1: Parallel to P0, passing through closest point in one class P2: Parallel to P0, passing through point closest to the opposite class Margin (M): distance measured along a line perpendicular to P1 and P2

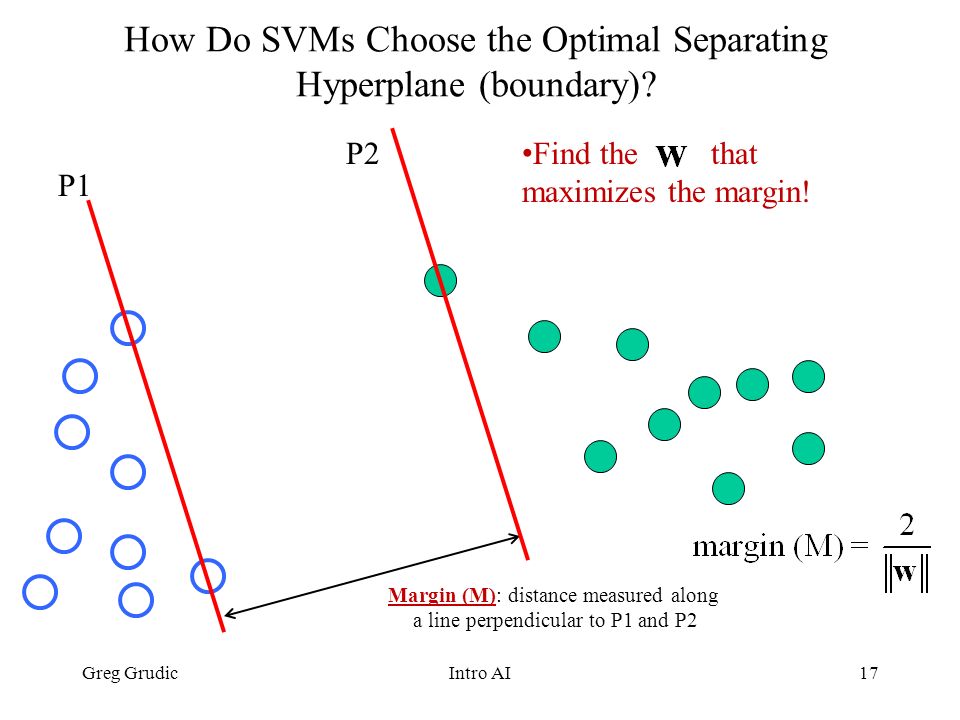

17. Greg GrudicIntro AI17 How Do SVMs Choose the Optimal Separating Hyperplane (boundary)? P2 P1 Find the that maximizes the margin! Margin (M): distance measured along a line perpendicular to P1 and P2

18. Greg GrudicIntro AI18 SVM: Constraint Optimization Problem Given data: Minimize subject to: The Lagrange Function Formulation is used to solve this Minimization Problem

19. Greg Grudic Intro AI 19 The Lagrange Function Formulation For every constraint we introduce a Lagrange Multiplier: The Lagrangian is then defined by: Where - the primal variables are - the dual variables are Goal: Minimize Lagrangian w.r.t. primal variables, and Maximize w.r.t. dual variables

20. Greg GrudicIntro AI20 Derivation of the Dual Problem At the saddle point (extremum w.r.t. primal) This give the conditions Substitute into to get the dual problem

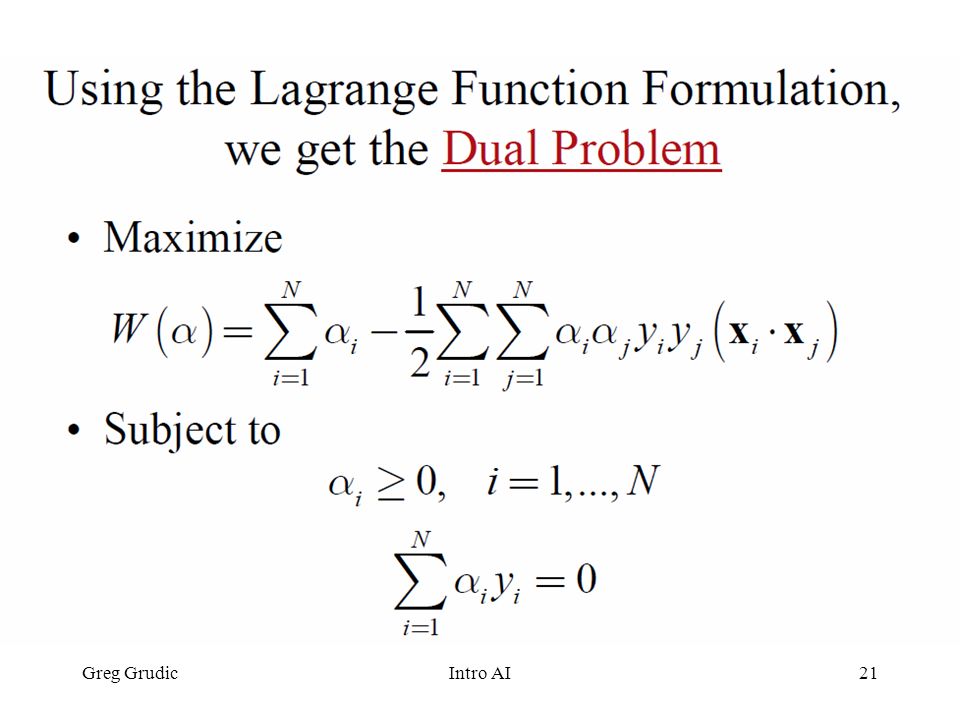

21. Greg GrudicIntro AI21 Using the Lagrange Function Formulation, we get the Dual Problem Maximize Subject to

22. Properties of the Dual Problem Solving the Dual gives a solution to the original constraint optimization problem For SVMs, the Dual problem is a Quadratic Optimization Problem which has a globally optimal solution Gives insights into the NON-Linear formulation for SVMs Greg GrudicIntro AI22

23. Greg GrudicIntro AI23 Support Vector Expansion (1) OR is also computed from the optimal dual variables

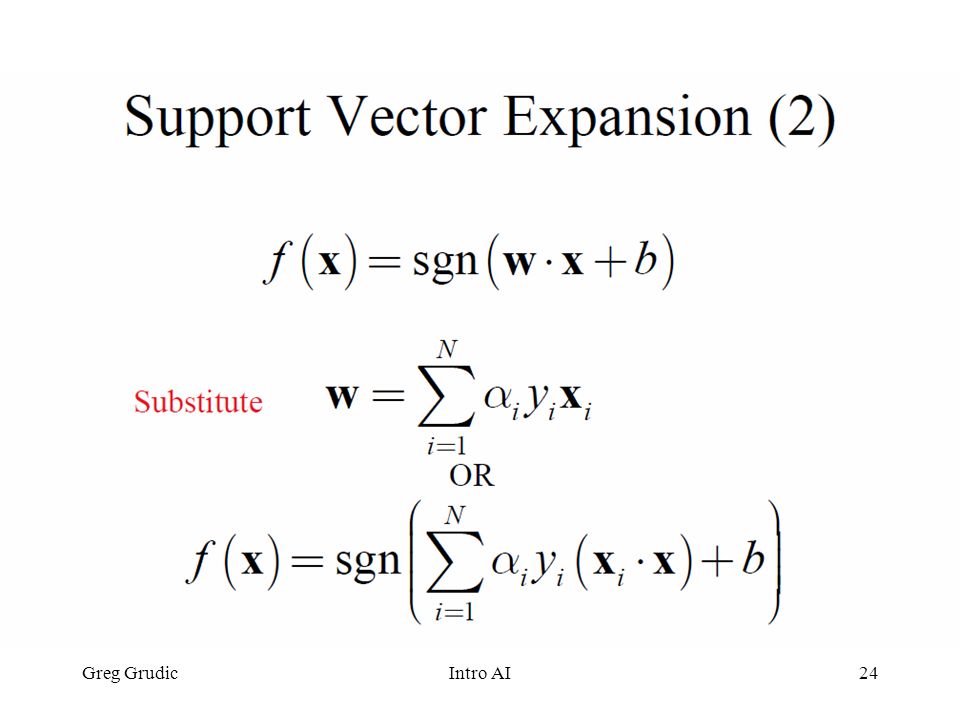

24. Greg GrudicIntro AI24 Support Vector Expansion (2) OR Substitute

25. Greg GrudicIntro AI25 What are the Support Vectors? Maximized Margin

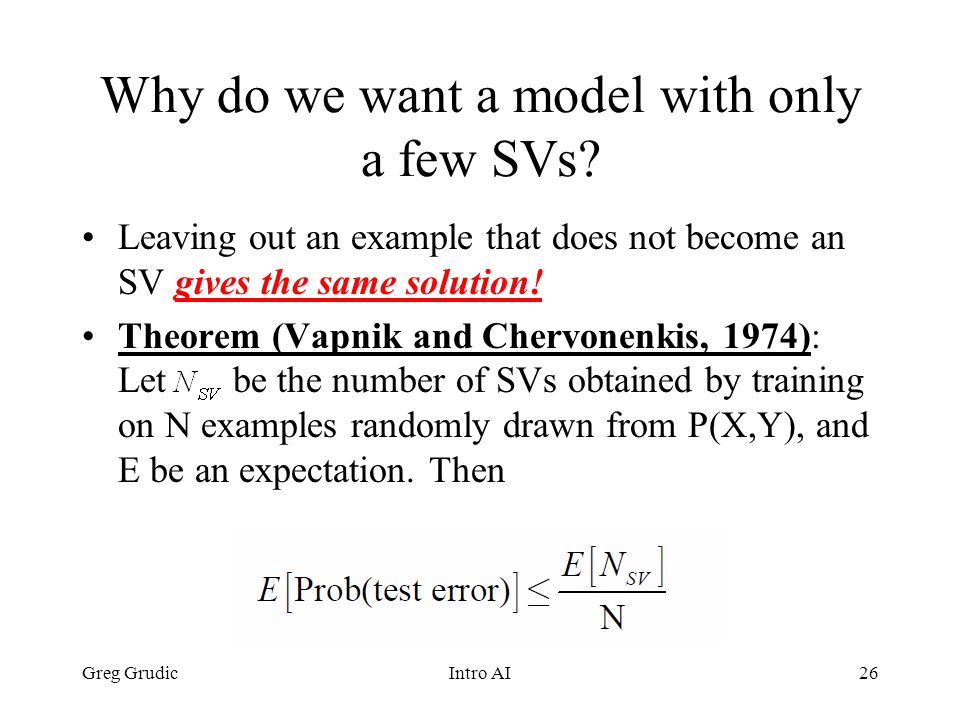

26. Greg GrudicIntro AI26 Why do we want a model with only a few SVs? Leaving out an example that does not become an SV gives the same solution! Theorem (Vapnik and Chervonenkis, 1974): Let be the number of SVs obtained by training on N examples randomly drawn from P(X,Y), and E be an expectation. Then

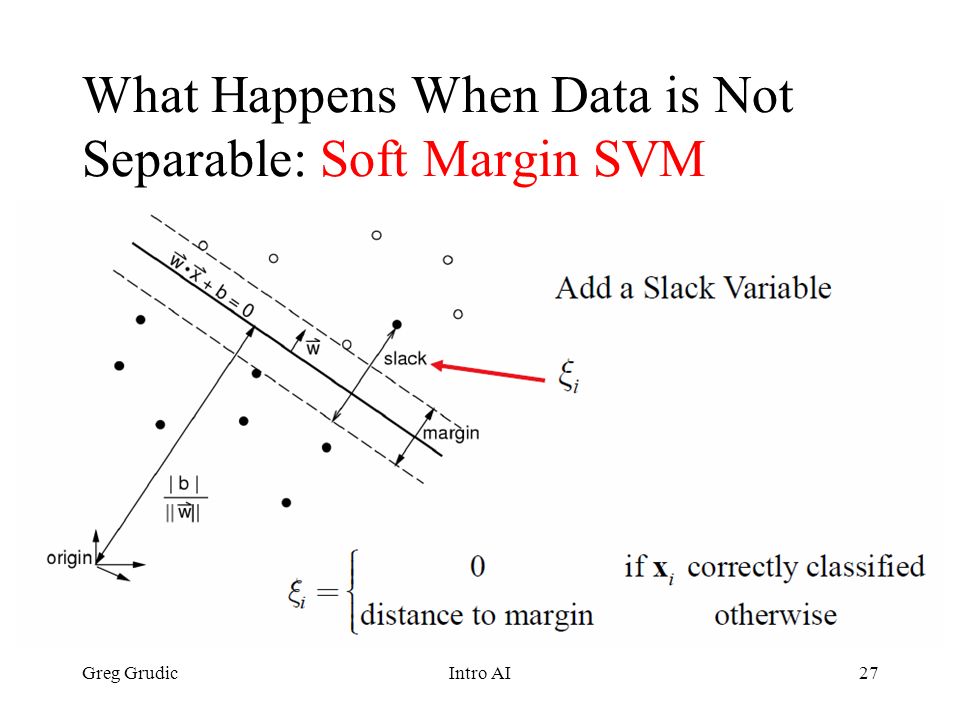

27. Greg GrudicIntro AI27 What Happens When Data is Not Separable: Soft Margin SVM Add a Slack Variable

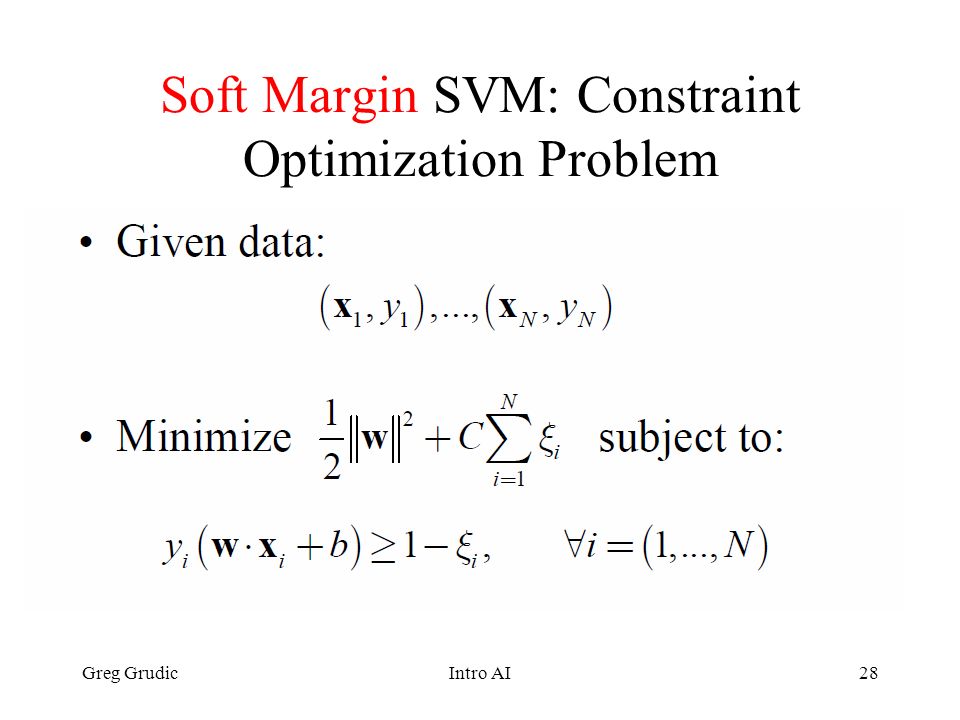

28. Greg GrudicIntro AI28 Soft Margin SVM: Constraint Optimization Problem Given data: Minimize subject to:

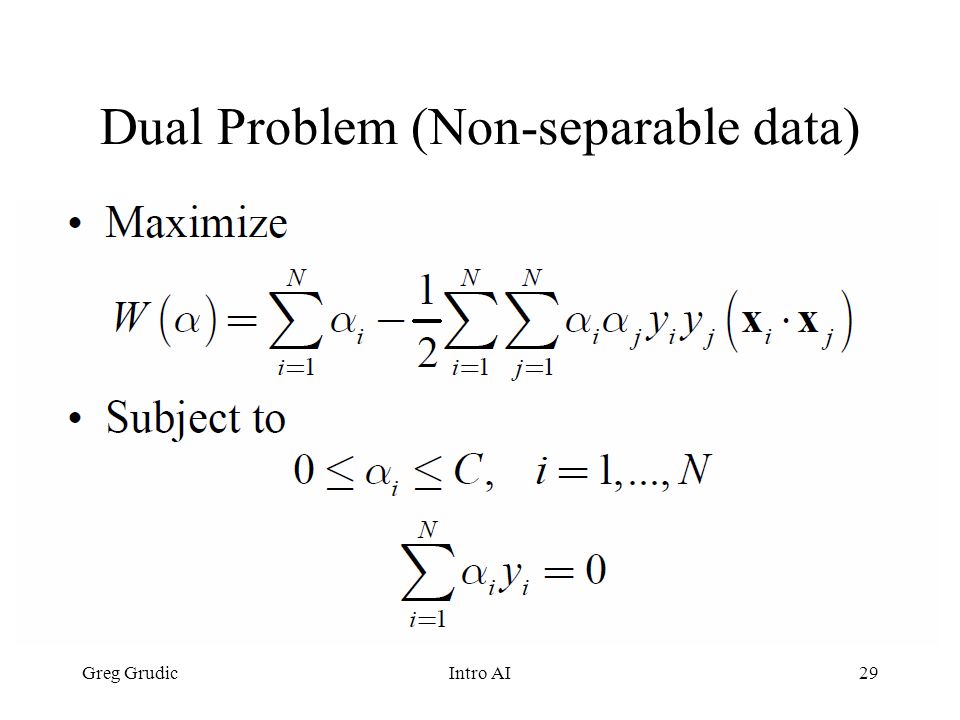

29. Greg GrudicIntro AI29 Dual Problem (Non-separable data) Maximize Subject to

30. Greg GrudicIntro AI30 Same Decision Boundary

31. Greg GrudicIntro AI31 Mapping into Nonlinear Space Goal: Data is linearly separable (or almost) in the nonlinear space.

32. Greg GrudicIntro AI32 Nonlinear SVMs KEY IDEA: Note that both the decision boundary and dual optimization formulation use dot products in input space only!

33. Greg GrudicIntro AI33 Kernel Trick Replace with Can use the same algorithms in nonlinear kernel space! Inner Product

34. Greg GrudicIntro AI34 Nonlinear SVMs Maximize: Boundary:

35. Greg GrudicIntro AI35 Need Mercer Kernels

36. Greg GrudicIntro AI36 Gram (Kernel) Matrix Training Data: Properties: Positive Definite Matrix Symmetric Positive on diagonal N by N

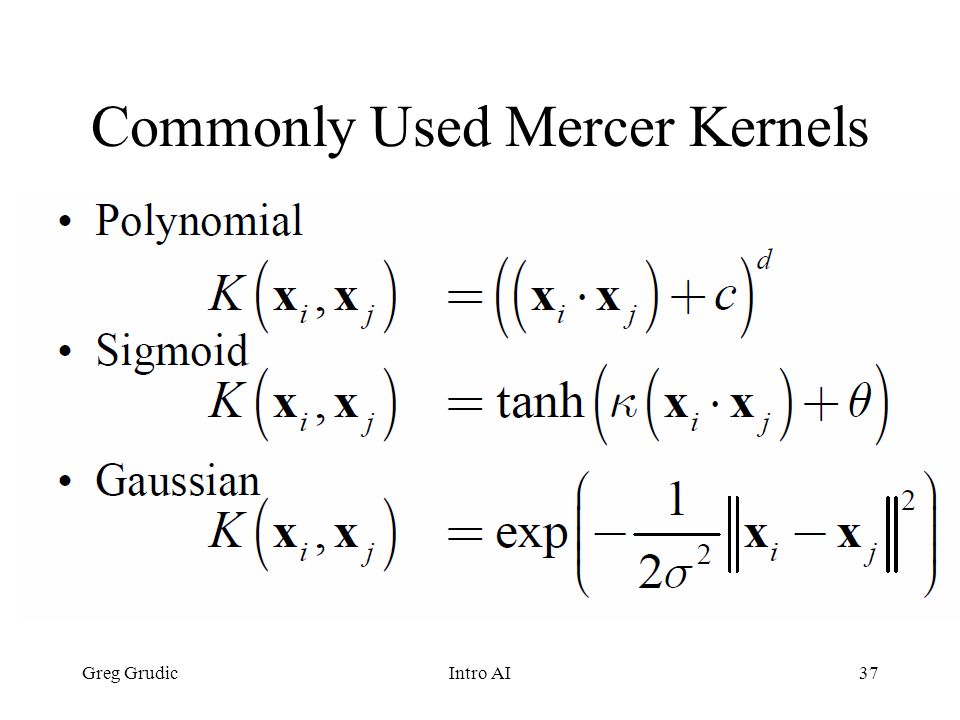

37. Greg GrudicIntro AI37 Commonly Used Mercer Kernels Polynomial Sigmoid Gaussian

38. Why these kernels? There are infinitely many kernels –The best kernel is data set dependent –We can only know which kernels are good by trying them and estimating error rates on future data Definition: a universal approximator is a mapping that can arbitrarily well model any surface (i.e. many to one mapping) Motivation for the most commonly used kernels –Polynomials (given enough terms) are universal approximators However, Polynomial Kernels are not universal approximators because they cannot represent all polynomial interactions –Sigmoid functions (given enough training examples) are universal approximators –Gaussian Kernels (given enough training examples) are universal approximators –These kernels have shown to produce good models in practice Greg GrudicIntro AI38

39. Greg GrudicIntro AI39 Picking a Model (A Kernel for SVMs)? How do you pick the Kernels? –Kernel parameters These are called learning parameters or hyperparamters –Two approaches choosing learning paramters Bayesian –Learning parameters must maximize probability of correct classification on future data based on prior biases Frequentist –Use the training data to learn the model parameters –Use validation data to pick the best hyperparameters. More on learning parameter selection later

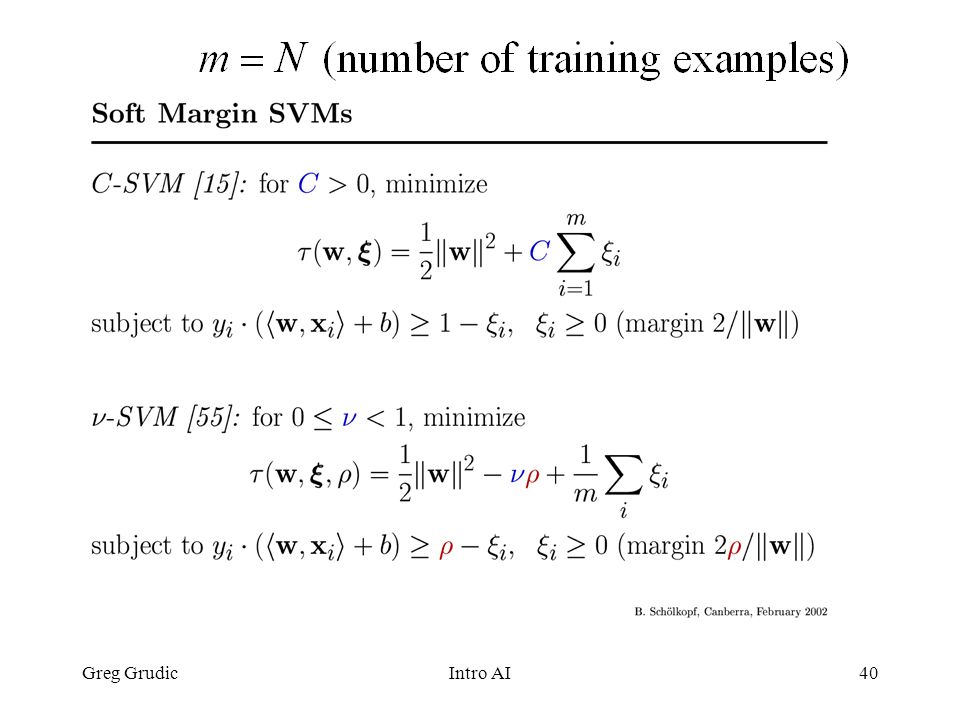

40. Greg GrudicIntro AI40

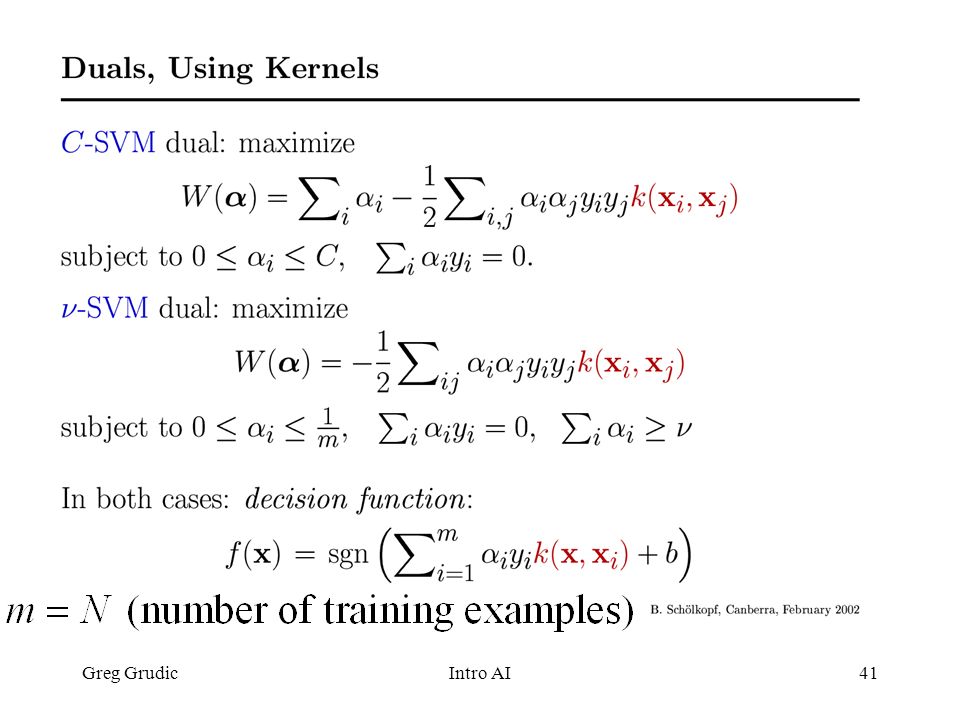

41. Greg GrudicIntro AI41

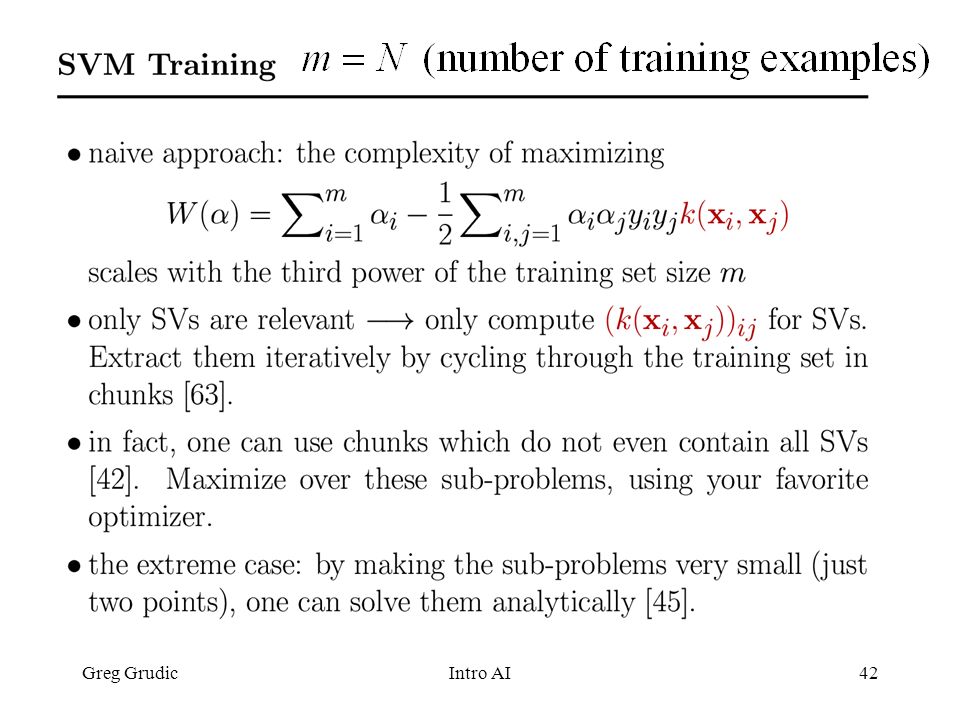

42. Greg GrudicIntro AI42

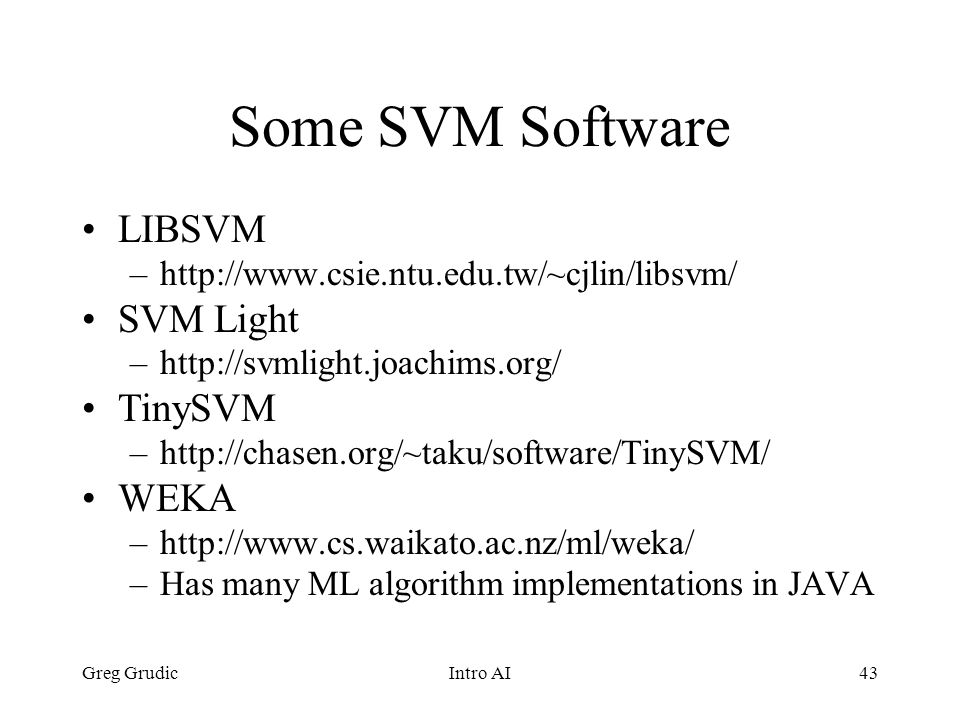

43. Some SVM Software LIBSVM –http://www.csie.ntu.edu.tw/~cjlin/libsvm/ SVM Light –http://svmlight.joachims.org/ TinySVM –http://chasen.org/~taku/software/TinySVM/ WEKA –http://www.cs.waikato.ac.nz/ml/weka/ –Has many ML algorithm implementations in JAVA Greg GrudicIntro AI43

44. Greg GrudicIntro AI44 MNIST: A SVM Success Story Handwritten character benchmark –60,000 training and 10,0000 testing –Dimension d = 28 x 28

45. Greg GrudicIntro AI45 Results on Test Data SVM used a polynomial kernel of degree 9.

46. Greg GrudicIntro AI46 SVM (Kernel) Model Structure
