Orthographic Drawing
2
Today I will be learning to : Improve my graphic skills by learning how to draw an Orthographic Projection of a 3D object All: Will be able to list the 3 Orthographic views. Most: Will be able to describe why we use guidelines Some: Will be able to evaluate why we use orthographic drawings.
3
What is an Orthographic Projection? An orthographic projection is a way of drawing a 3D object in 2D. They are used to show technical information and dimensions. They must be accurate.
4

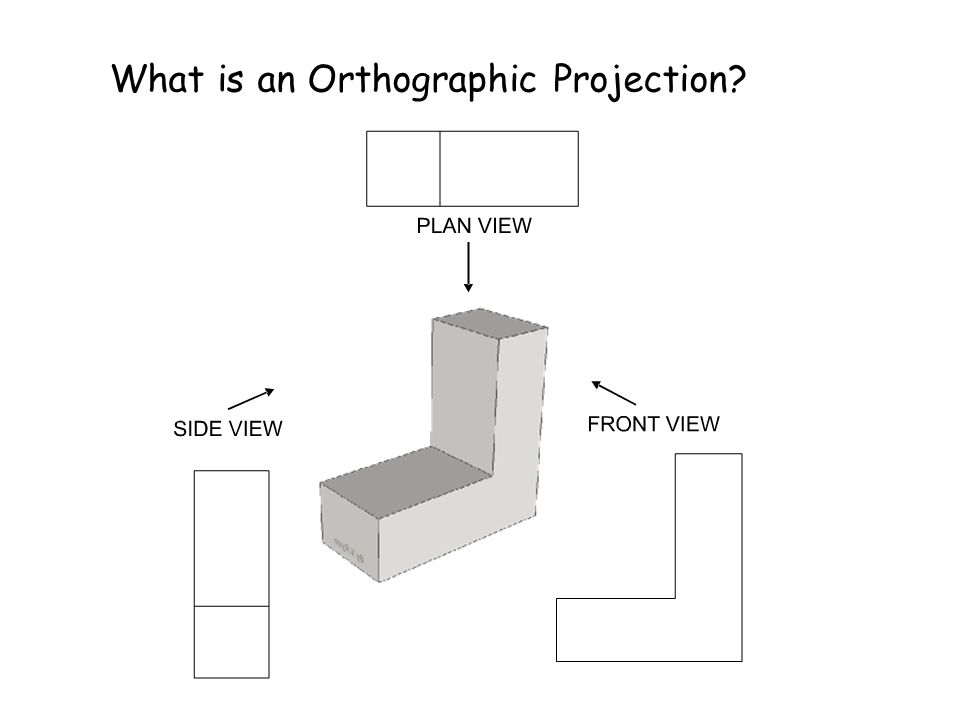

What is an Orthographic Projection?
5

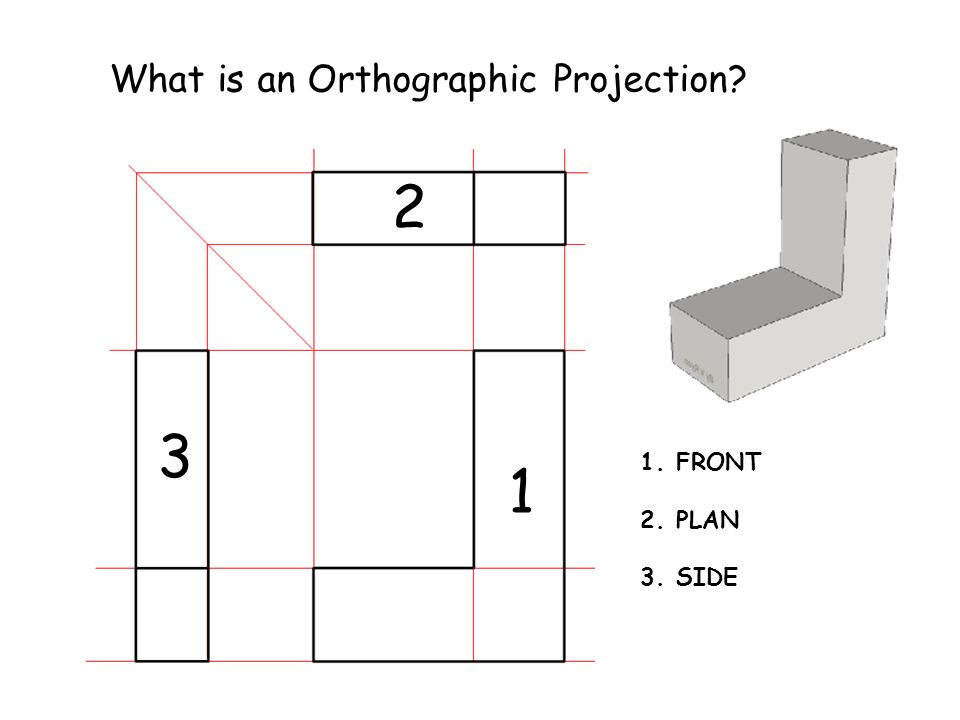

1.FRONT 2.PLAN 3.SIDE 1 2 3
6

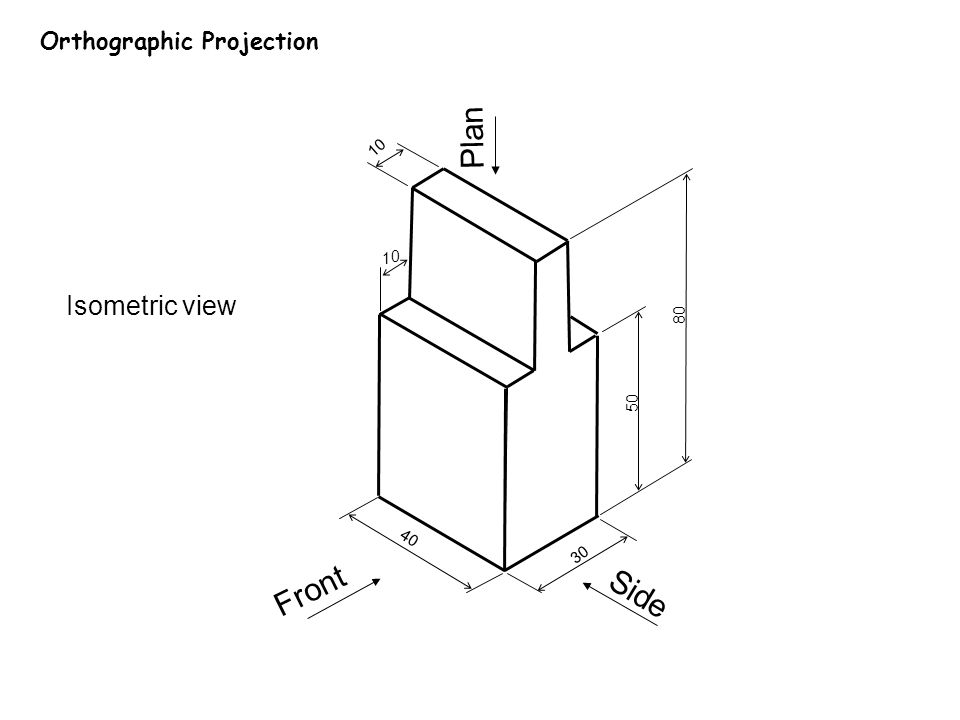

1 0 10 80 50 30 40 Front Side Plan Isometric view Orthographic Projection
7

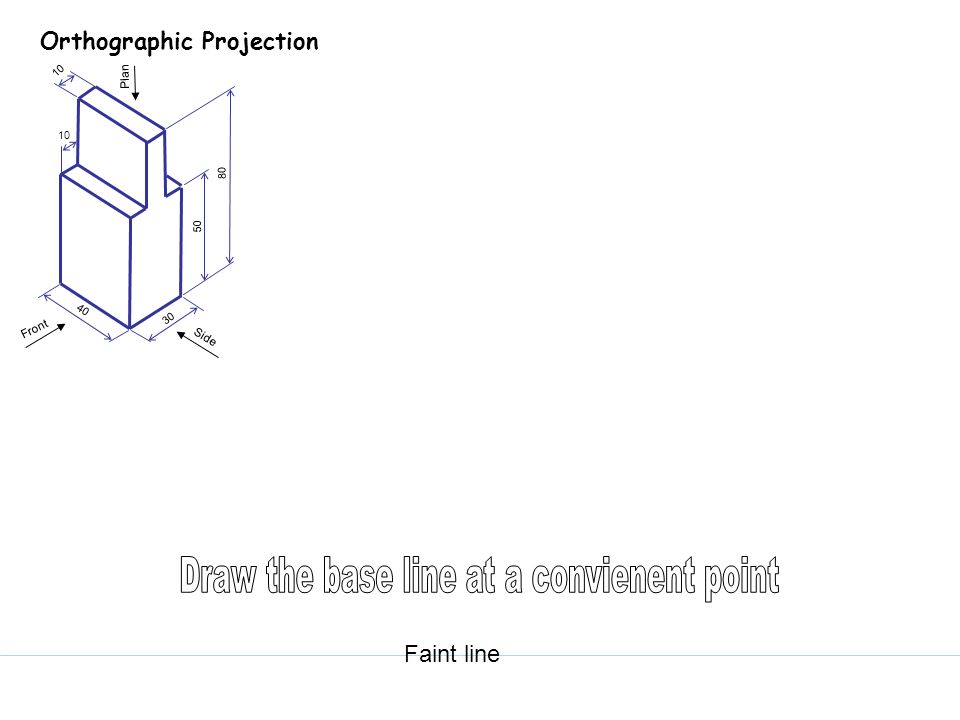

Faint line Orthographic Projection 10 80 50 30 40 Side Plan Front
8

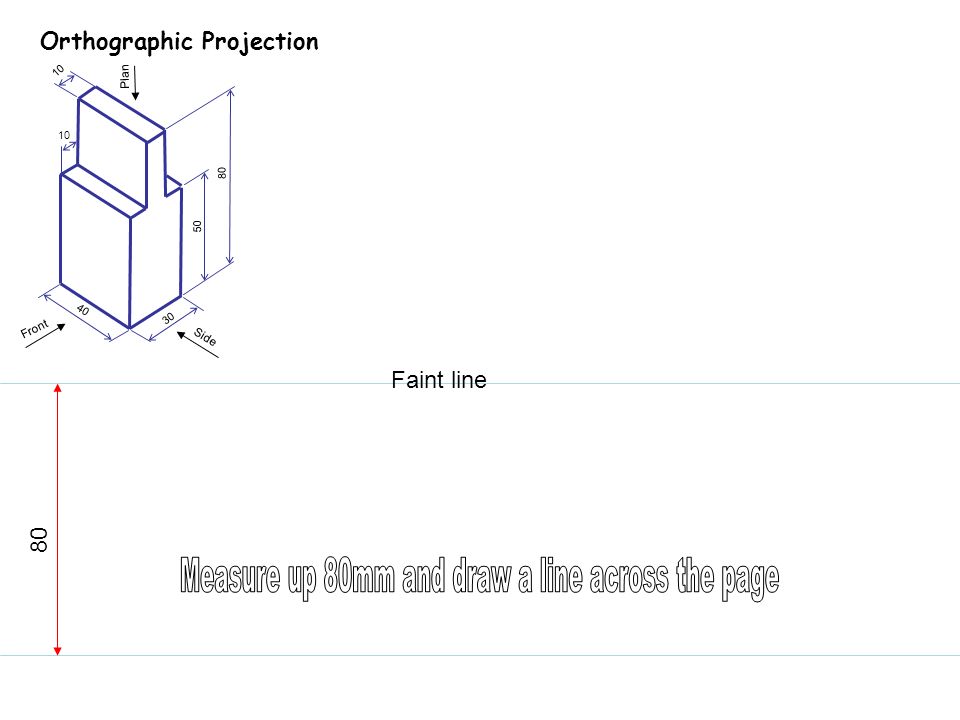

Orthographic Projection 10 80 50 30 40 Side Plan Front 80 Faint line
9

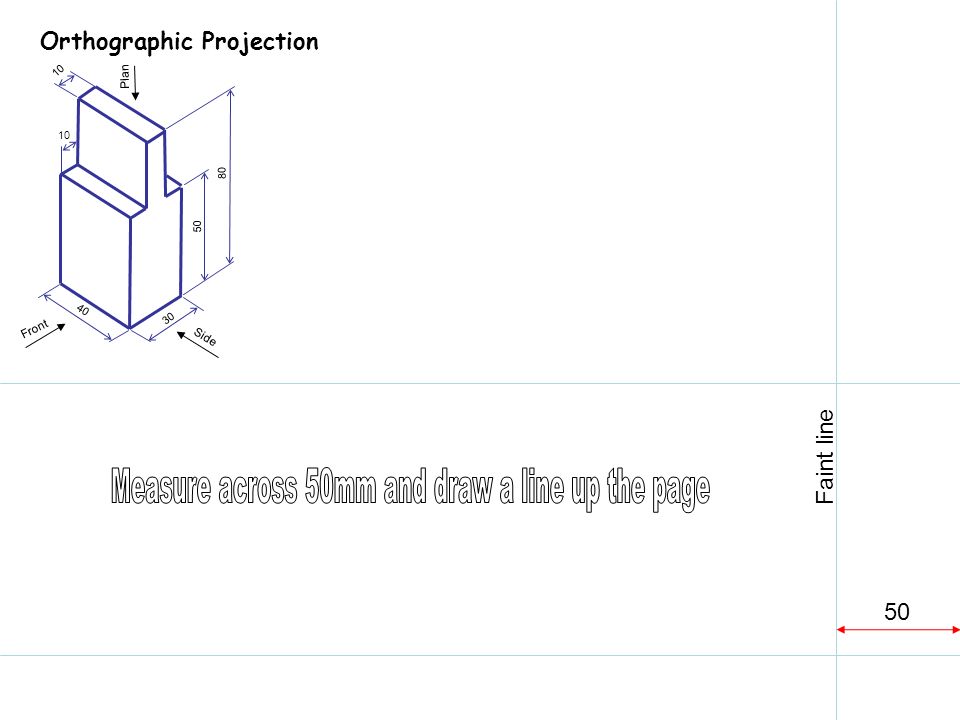

Orthographic Projection 10 80 50 30 40 Side Plan Front 50 Faint line
10

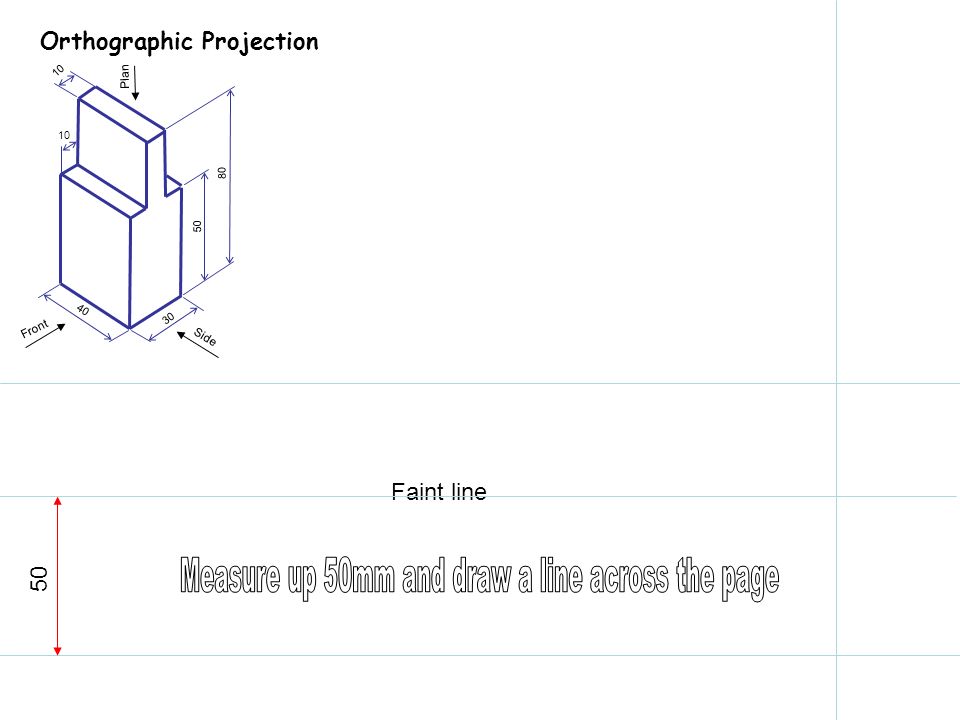

Orthographic Projection 10 80 50 30 40 Side Plan Front 50 Faint line
11

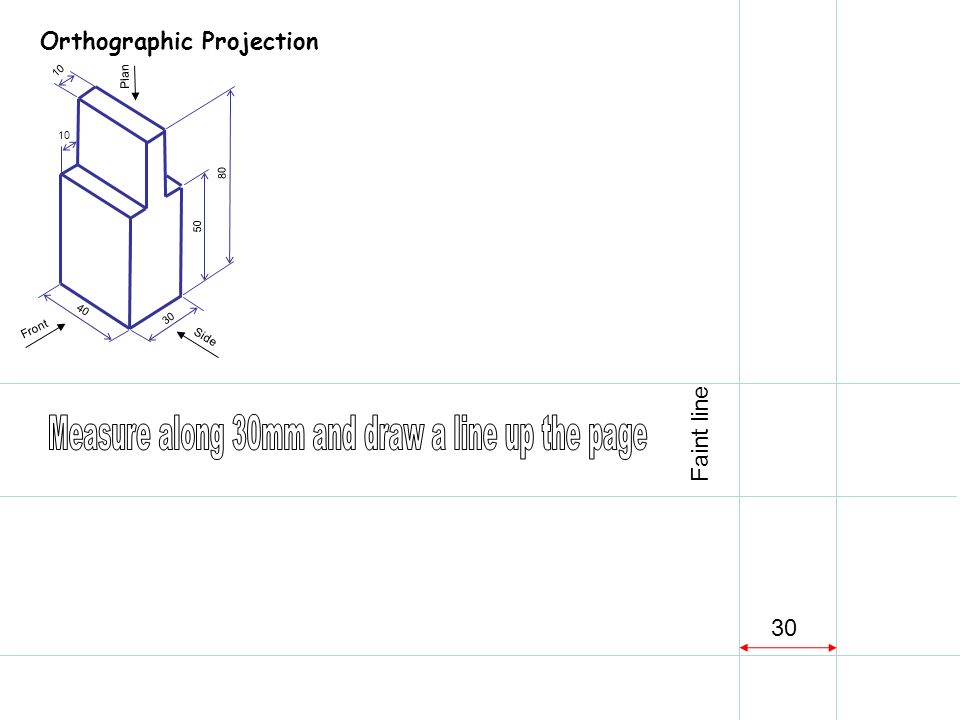

Orthographic Projection 10 80 50 30 40 Side Plan Front 30 Faint line
12
Orthographic Projection 10 80 50 30 40 Side Plan Front 10 Faint line
13

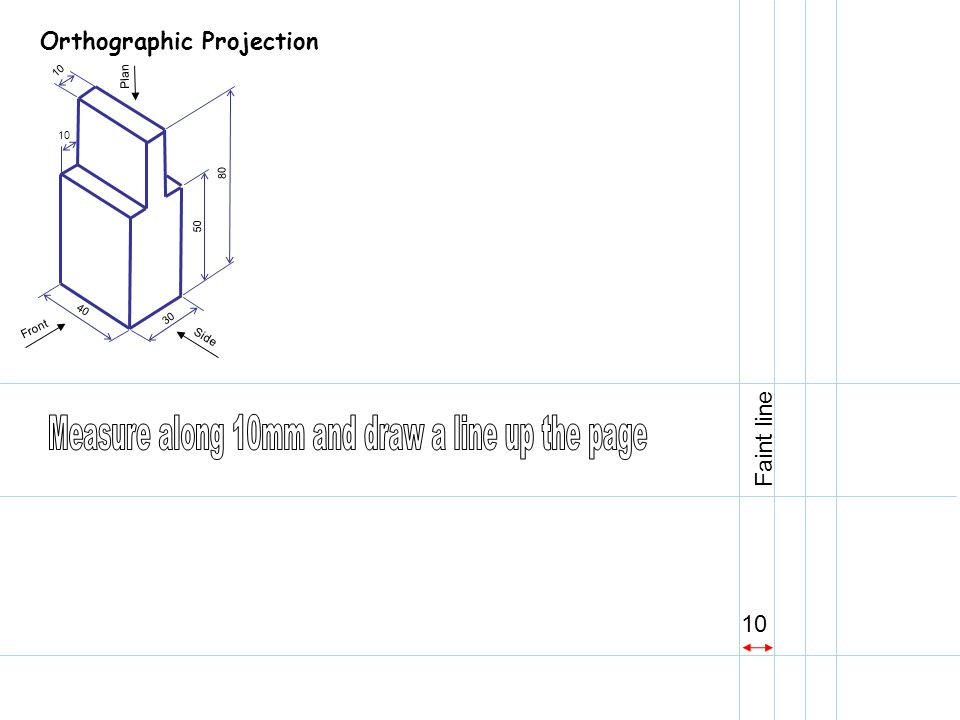

Orthographic Projection 10 80 50 30 40 Side Plan Front 10 Faint line
14

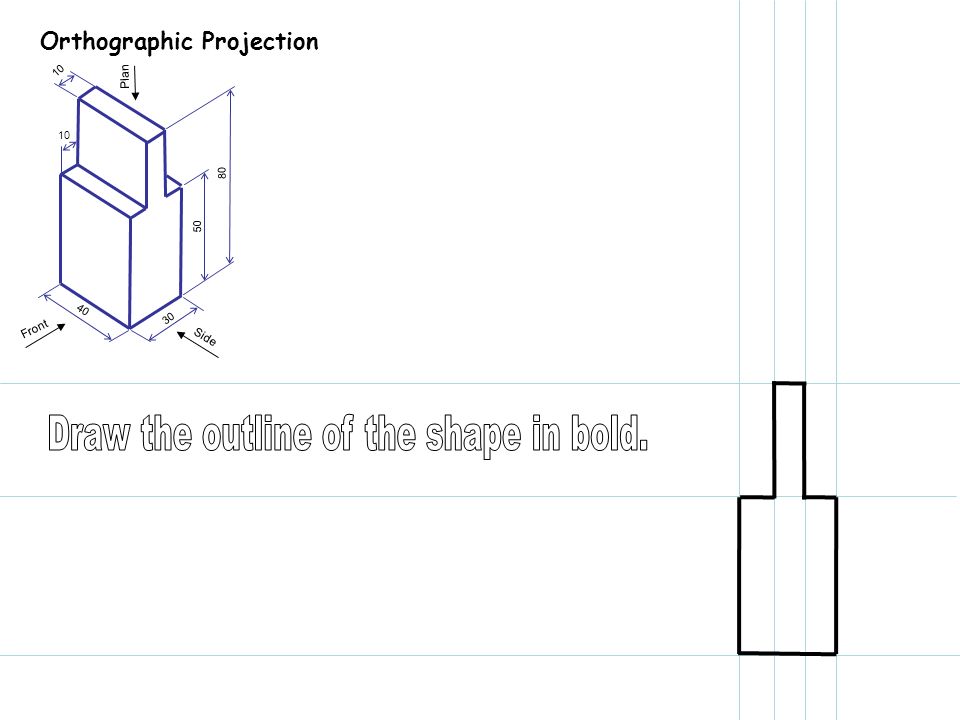

Orthographic Projection 10 80 50 30 40 Side Plan Front
15

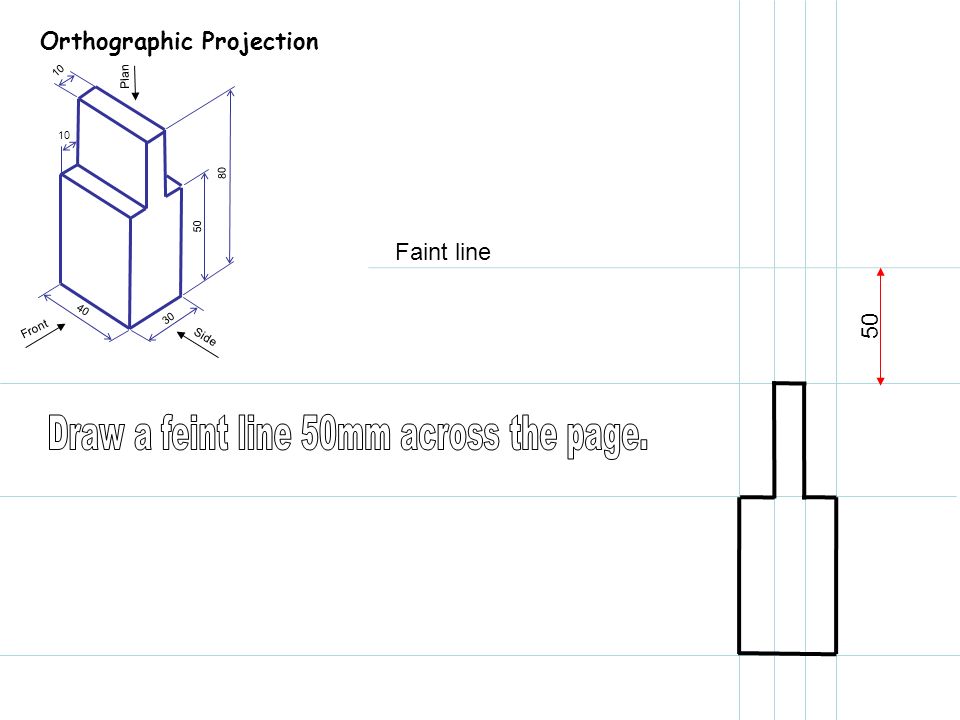

Orthographic Projection 10 80 50 30 40 Side Plan Front 50 Faint line
16
Orthographic Projection 10 80 50 30 40 Side Plan Front 40 Faint line
17

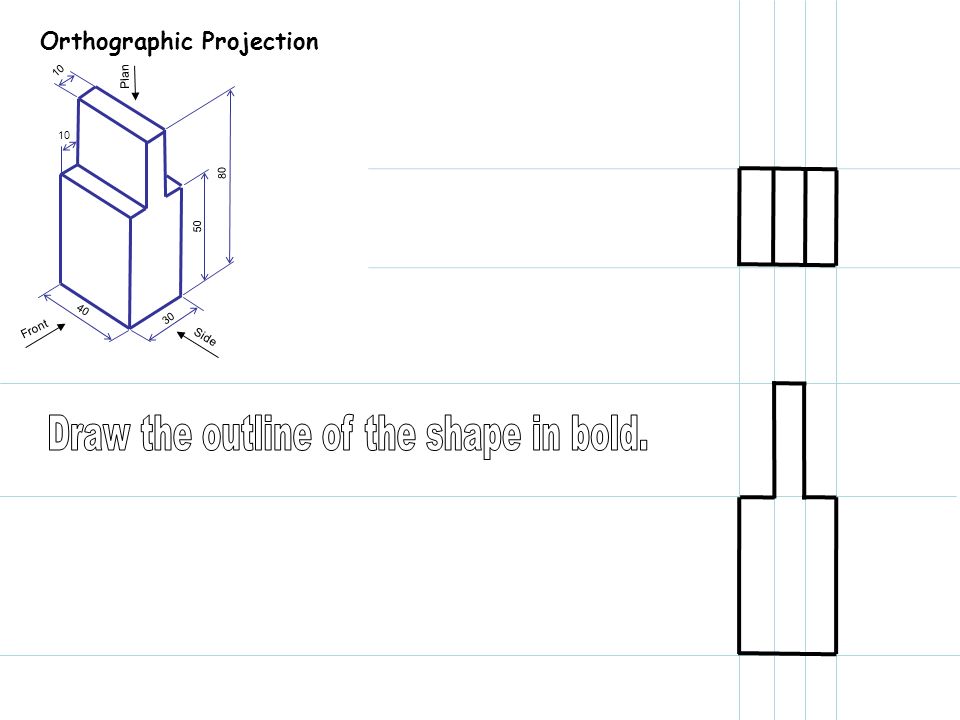

Orthographic Projection 10 80 50 30 40 Side Plan Front
18
Orthographic Projection 10 80 50 30 40 Side Plan Front Faint line
19

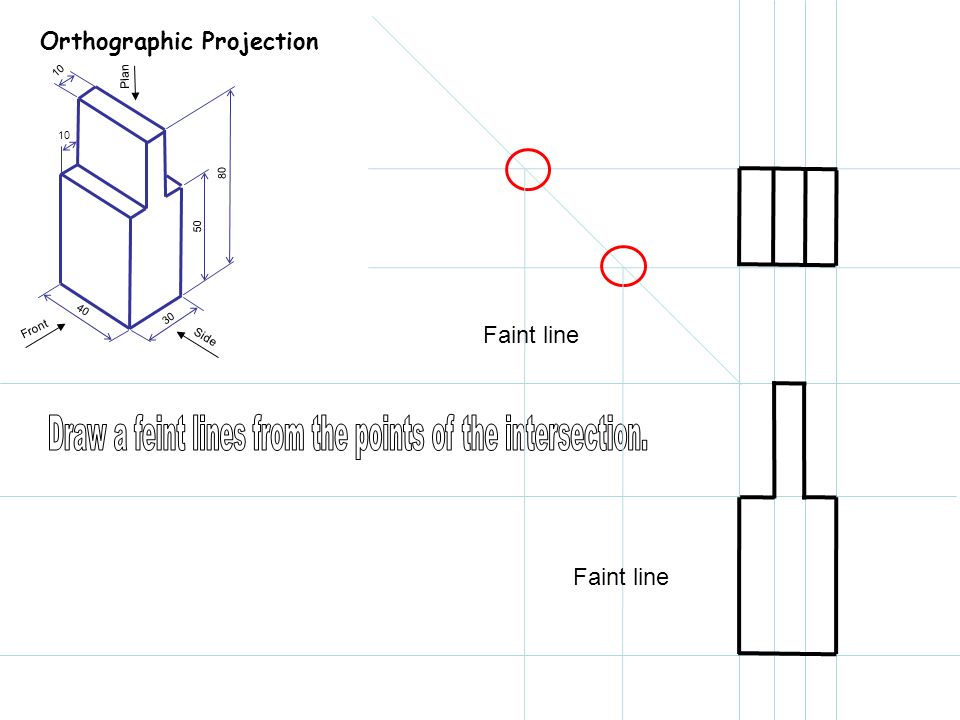

Orthographic Projection 10 80 50 30 40 Side Plan Front Faint line
20

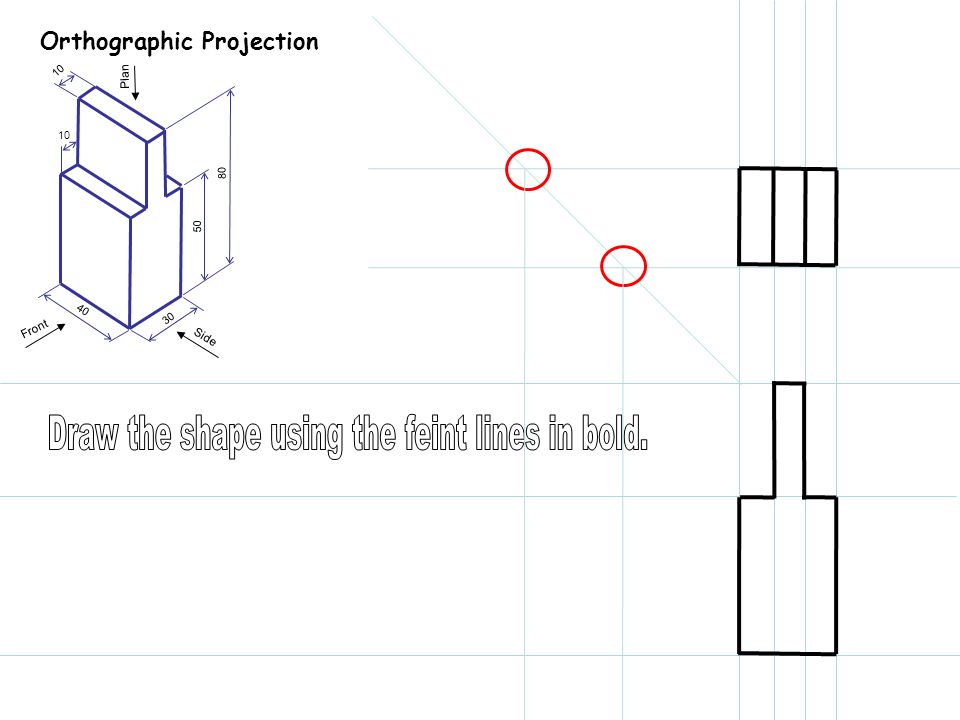

Orthographic Projection 10 80 50 30 40 Side Plan Front
21

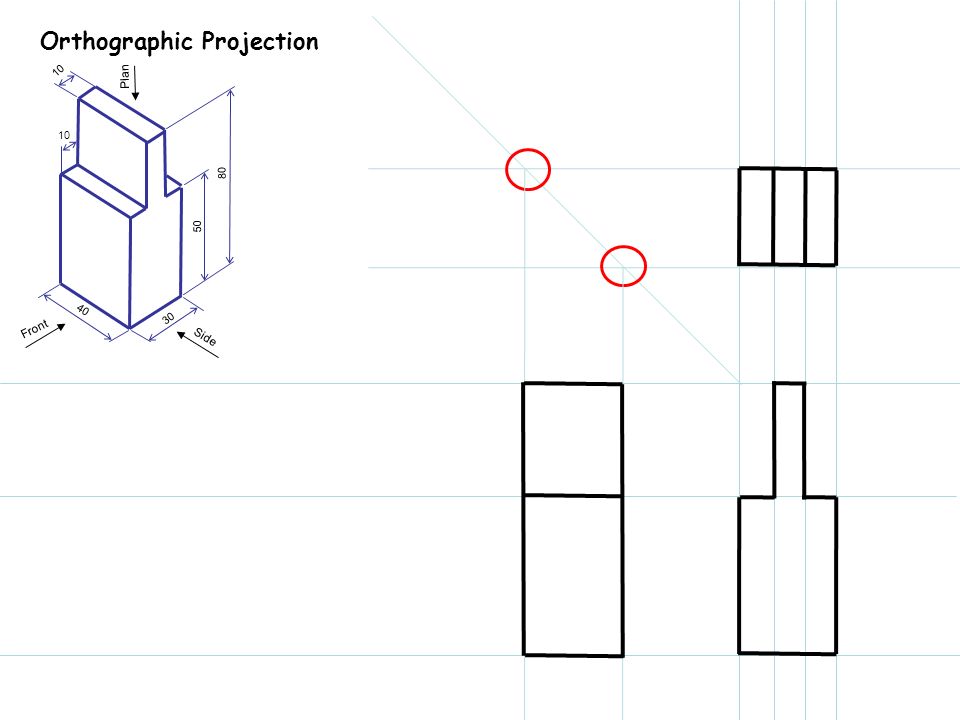

Orthographic Projection 10 80 50 30 40 Side Plan Front
22

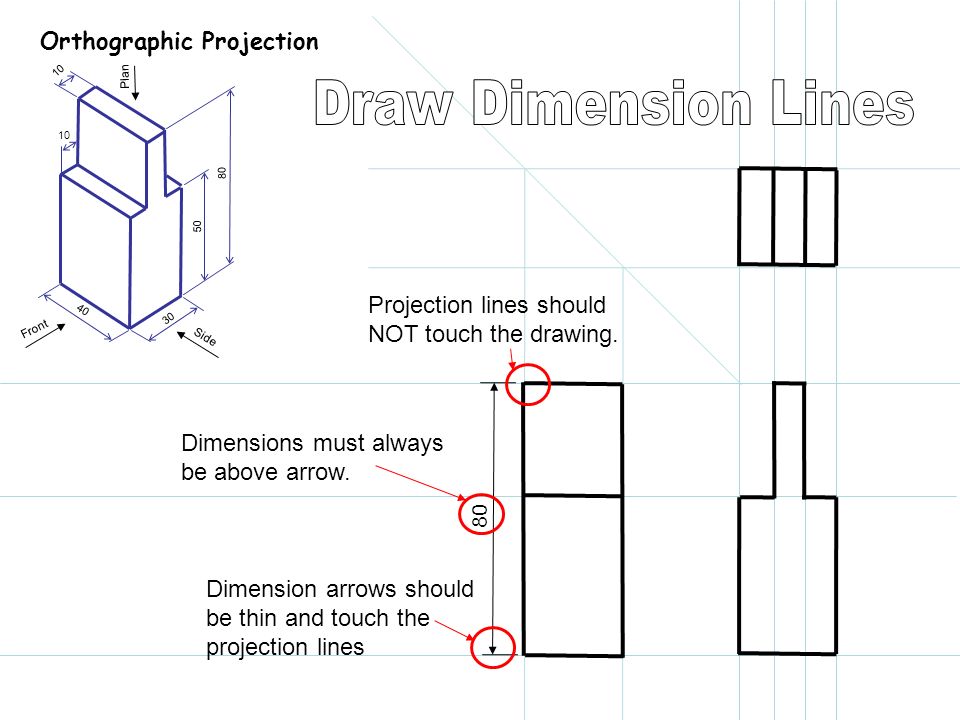

Orthographic Projection 10 80 50 30 40 Side Plan Front 80 Projection lines should NOT touch the drawing. Dimension arrows should be thin and touch the projection lines Dimensions must always be above arrow.
23

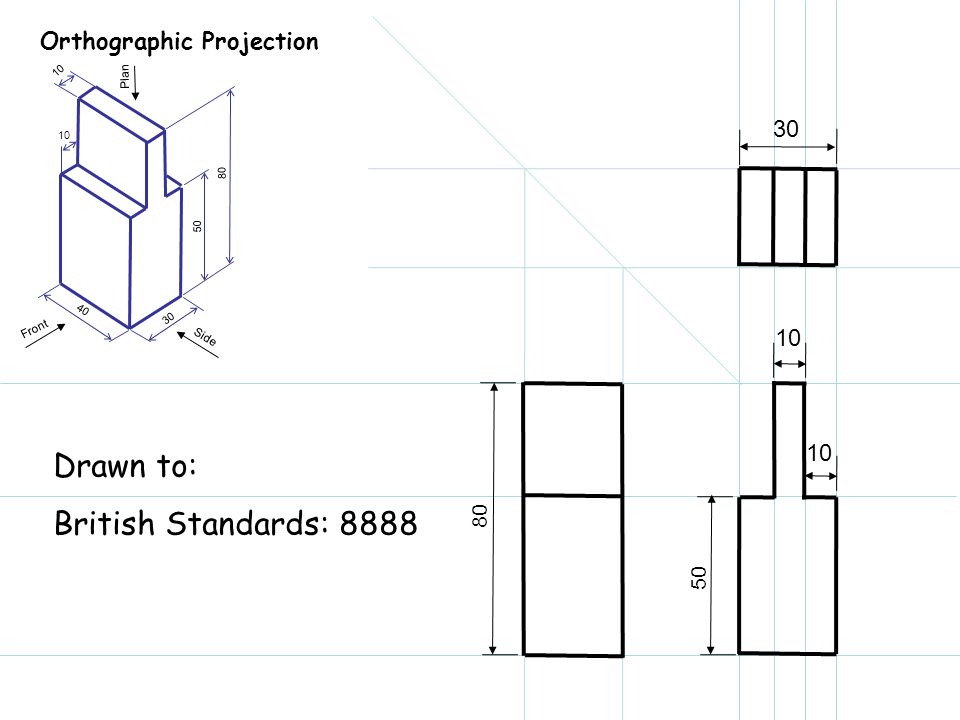

Orthographic Projection 10 80 50 30 40 Side Plan Front 80 50 10 30 Drawn to: British Standards: 8888
24
Today I will be learning to : Improve my graphic skills by learning how to draw an Orthographic Projection of a 3D object All: Will be able to list the 3 Orthographic views. Most: Will be able to describe why we use guidelines Some: Will be able to evaluate why we use orthographic drawings.
