1. Beam Wire Scanner for PS/SPS/PSB Mechanical 3D Model Review (for BE/RF-ABP Impedance meeting 02.Nov.2015) Dmitry Gudkov Mechanical Engineer BE/BI-ML

2.  Beam Wire Scanner Functional Description.  Beam Wire Scanner Upgraded system and Prototype in PSB.  Prototype in PSB. 3D model review.  Schedule  Questions and Discussion Contents

3. Beam Wire Scanner Upgraded system and Prototype in PSB New Design (Upgraded system) Smaller beam sizes at higher beam intensities High velocity of the wire - 20ms-1 Accurate and direct wire position determination without bellows All the mobile parts are located inside the vacuum chamber and share the same shaft New design is needed First Prototype in the PSB PSB 4L1

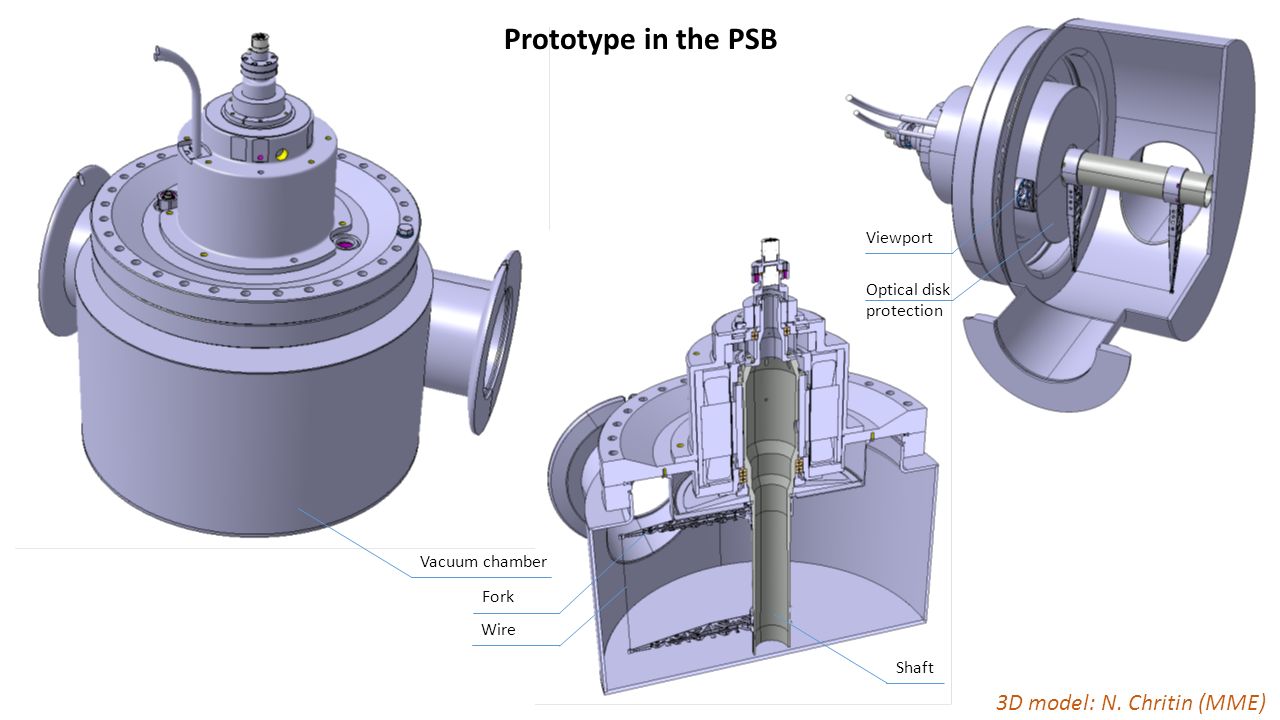

4. Vacuum chamber Wire Fork Shaft Viewport Optical disk protection Prototype in the PSB 3D model: N. Chritin (MME)

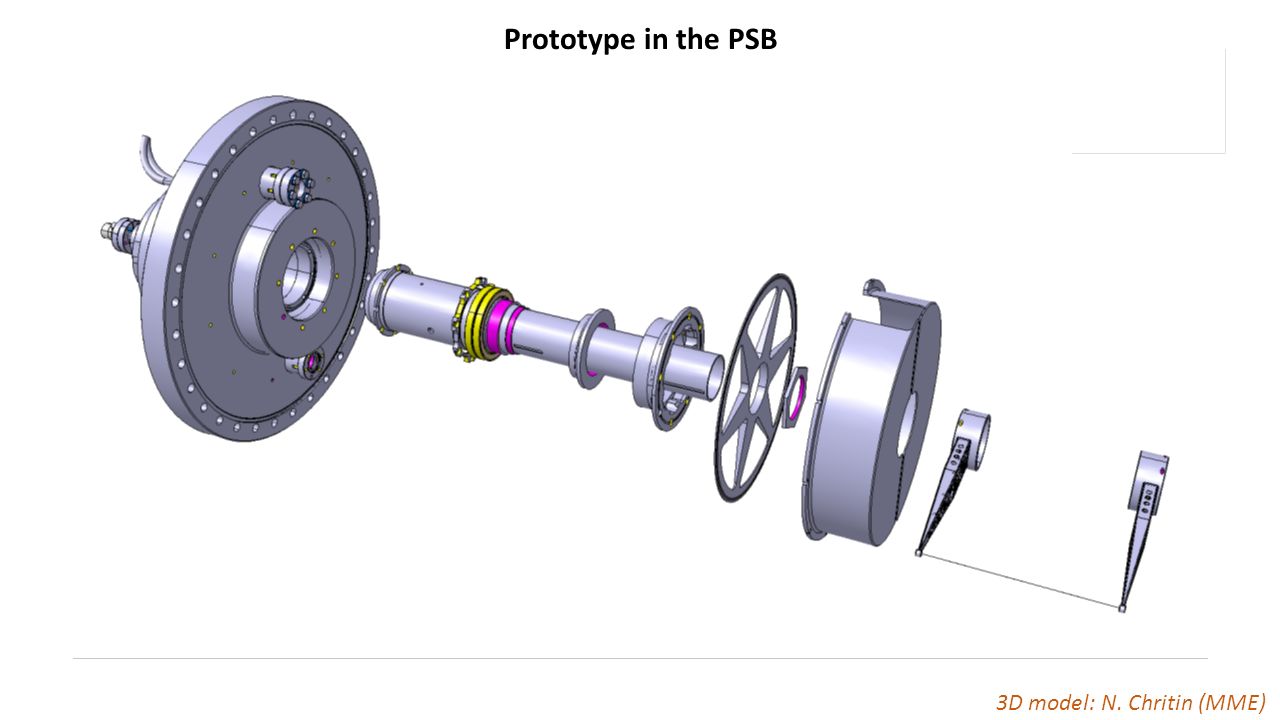

5. Prototype in the PSB 3D model: N. Chritin (MME)

6. Beam Wire Scanner Prototype for PSB. Schedule

7. Series Production of Beam Wire Scanners (PS, SPS, PSB). Schedule PS x 5; SPS x 5; PSB x 8 (18 instruments in total) Plan is to have the same design of the instrument for all the machines

8. According to schedule the productions drawings should be started. We would like to get the feedback from impedance team before launching production drawings for BWS PSB prototype: Geometry of vacuum chamber Optical disk shield Possibly add several vacuum interfaces for diagnostic tools (CF16) on the chamber Questions and Discussion

9. Thank you for your attention!

10. Extra slides

11. Beam Wire Scanner BWS Prototype 2 for SPS, tests in LAB Design of BWS for PSB PSB 4L1 (4 x BWSh)PSB 11L1 (4 x BWSv) W. Andreazza, N. Chritin, D. Gudkov, P. Magagnin

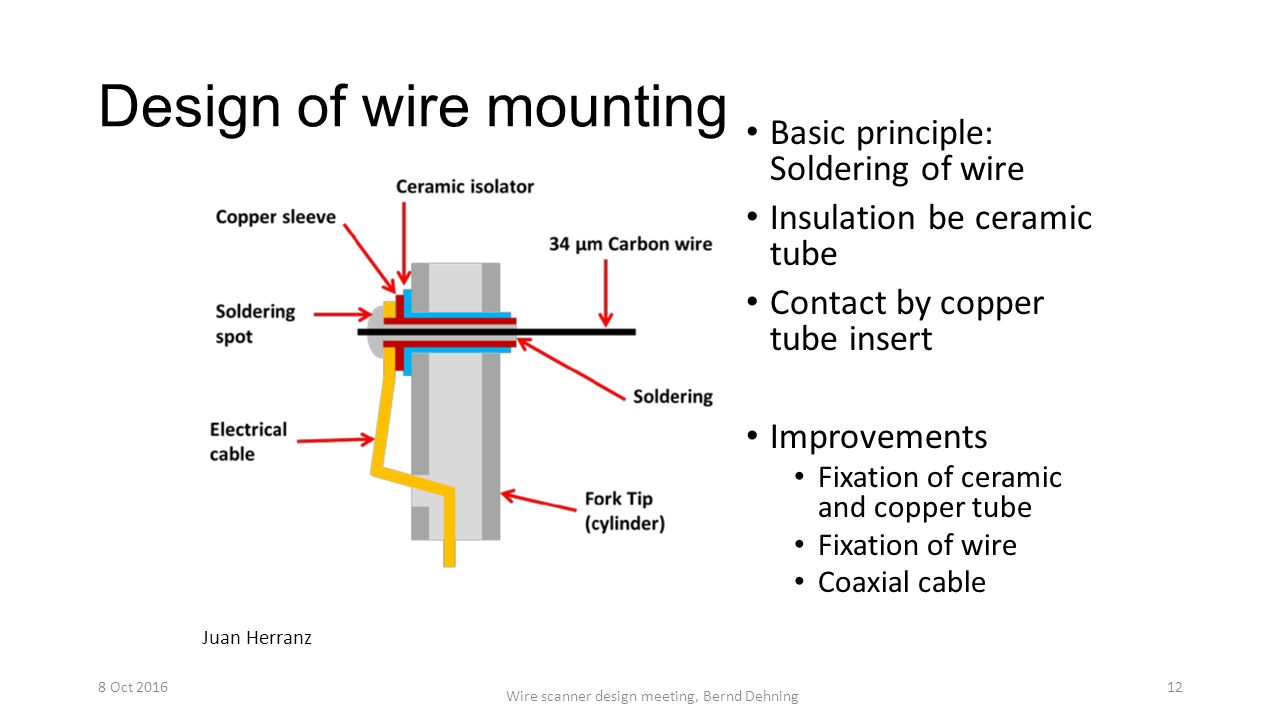

12. 8 Oct 2016 Wire scanner design meeting, Bernd Dehning 12 Design of wire mounting Basic principle: Soldering of wire Insulation be ceramic tube Contact by copper tube insert Improvements Fixation of ceramic and copper tube Fixation of wire Coaxial cable Juan Herranz

13. Beam Wire Scanner Functional Description A beam wire scan is an interceptive method for transverse beam profile measurements. The working principle of wire scanners consists on the passage of a very thin carbon wire (~30um) through the particle beam. The secondary particle shower generated by the beam/wire interaction, during the wire passage, is detected outside of the beam pipe and transformed into an electrical current proportional to the loss intensity. The beam profile is reconstructed by plotting the losses intensity versus the wire position (figure left). Using the measurements of these devices the beam emittance, and therefore the accelerator luminosity are calculated
