Chapter 21 Exact Differential Equation Chapter 2 Exact Differential Equation.

Similar presentations


Presentation on theme: "Chapter 21 Exact Differential Equation Chapter 2 Exact Differential Equation."— Presentation transcript:

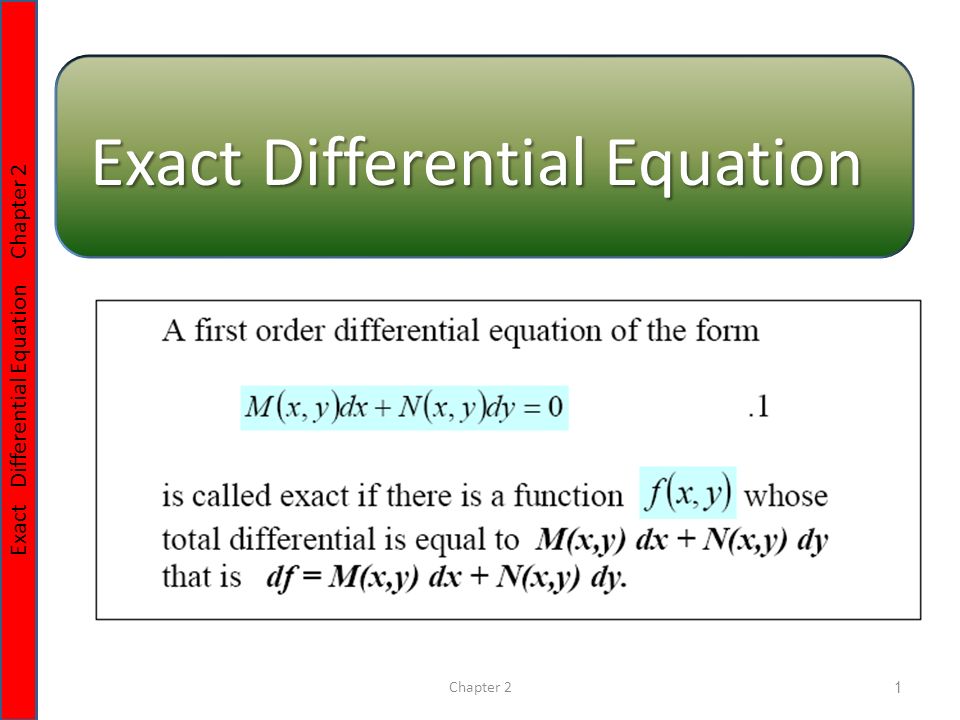

1 Chapter 21 Exact Differential Equation Chapter 2 Exact Differential Equation

2 Chapter 22 Exact Differential Equation Chapter 2

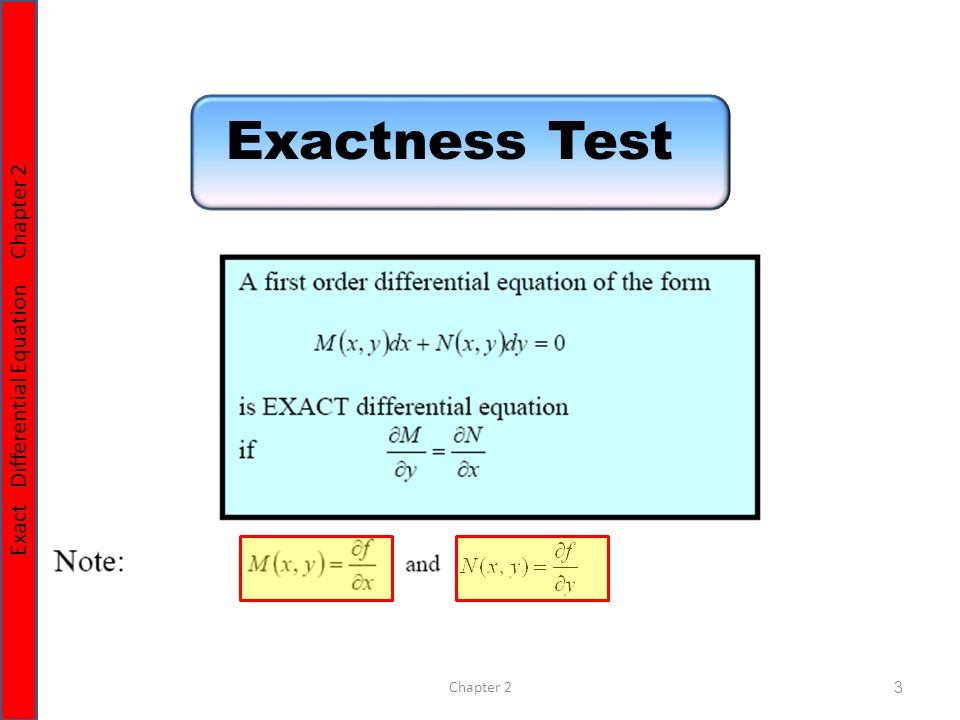

3 Chapter 23 Exact Differential Equation Chapter 2 Exactness Test

4 Chapter 24 Exact Differential Equation Chapter 2 STEP:1 STEP:2

5 Chapter 25 Exact Differential Equation Chapter 2 STEP:3 Find k(y) STEP:4 STEP:5 STEP:6

6 Chapter 26 Exact Differential Equation Chapter 2

7 Chapter 27 Exact Differential Equation Chapter 2

8 Example : Exact quation Exact Differential Equation Chapter 2

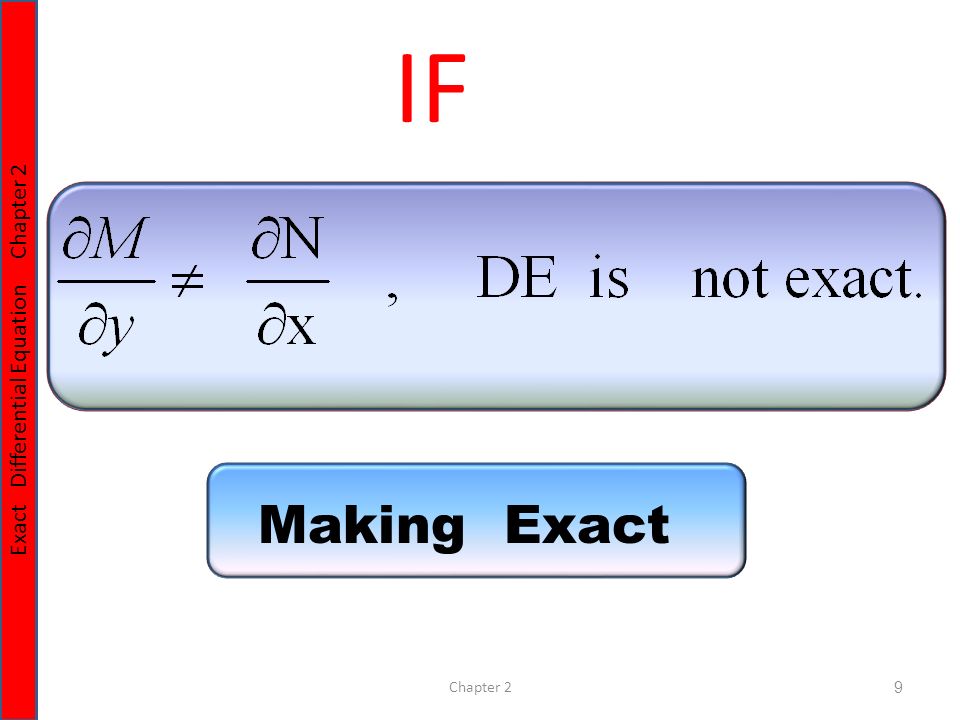

9 Chapter 29 Exact Differential Equation Chapter 2 Making Exact IF

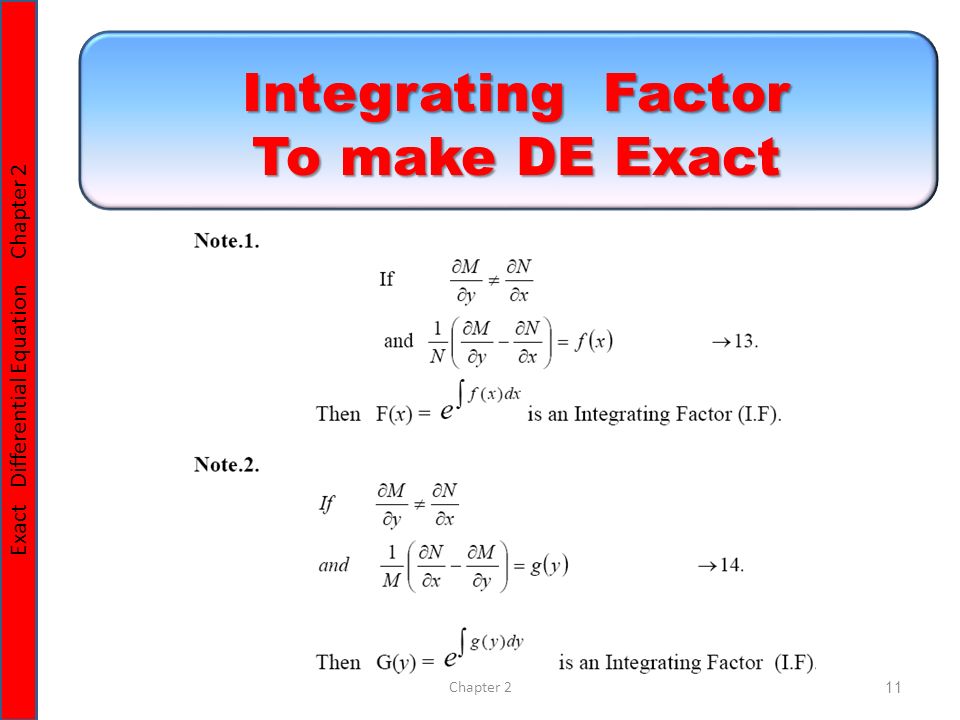

10 Integrating Factor To make DE Exact Exact Differential Equation Chapter 2

11 Chapter 211 Exact Differential Equation Chapter 2 Integrating Factor To make DE Exact

12 Chapter 212 To make Exact Differential Equation Chapter 2

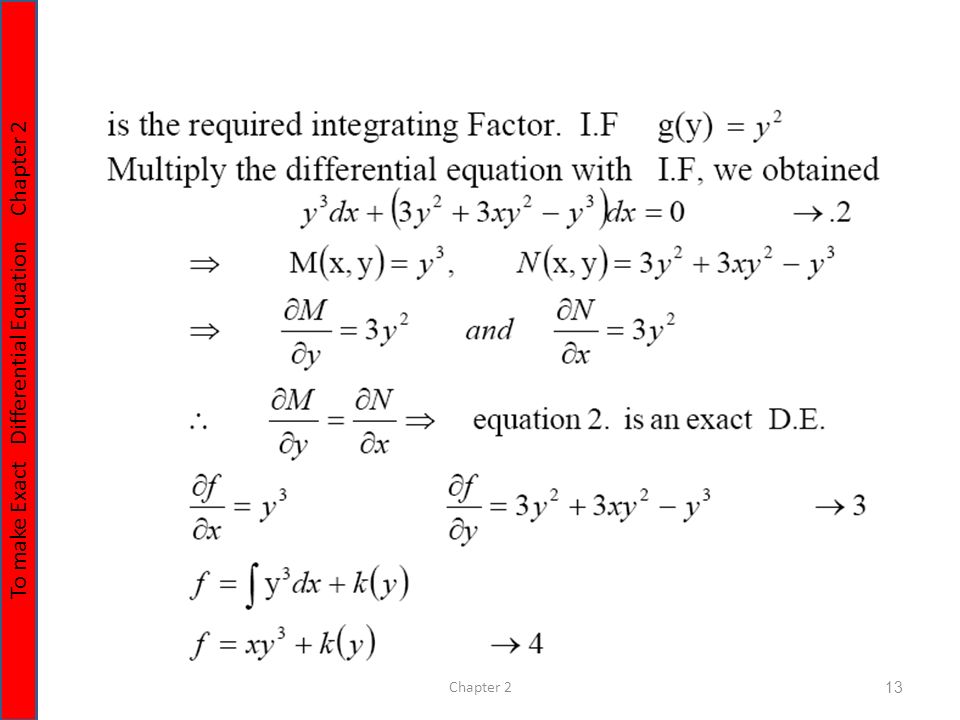

13 Chapter 213 To make Exact Differential Equation Chapter 2

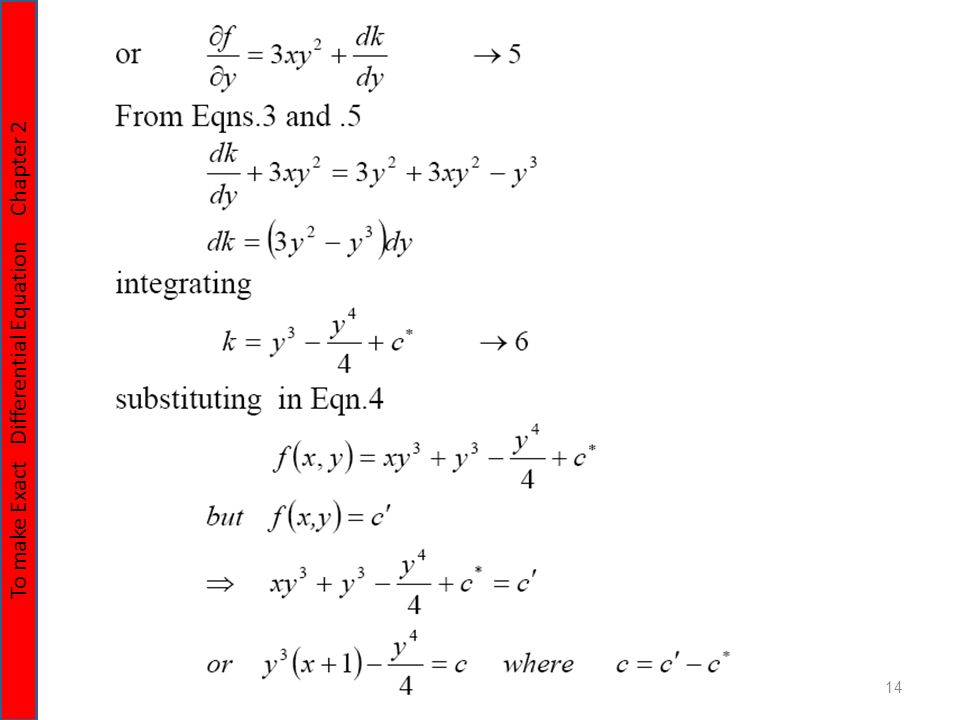

14 Chapter 214 To make Exact Differential Equation Chapter 2

15 Chapter 215 To make Exact Differential Equation Chapter 2 Exercise: Solve the differential equation by making it exact Solution is Integrating factor is f(x) = x

16 Chapter 2 16 To make Exact Differential Equation Chapter 2 Exercise: Integrating factor is Solution is C = 5
