1. rapidformXO Design from 3D scan data TM Maarten Houben March 2007

2. ©2006 Rapidform Inc. All rights reserved. Products  Create parametric CAD models from 3D scan data  Verify parts with deviation analysis and GD&T  Collect, clean and optimize 3D scan data

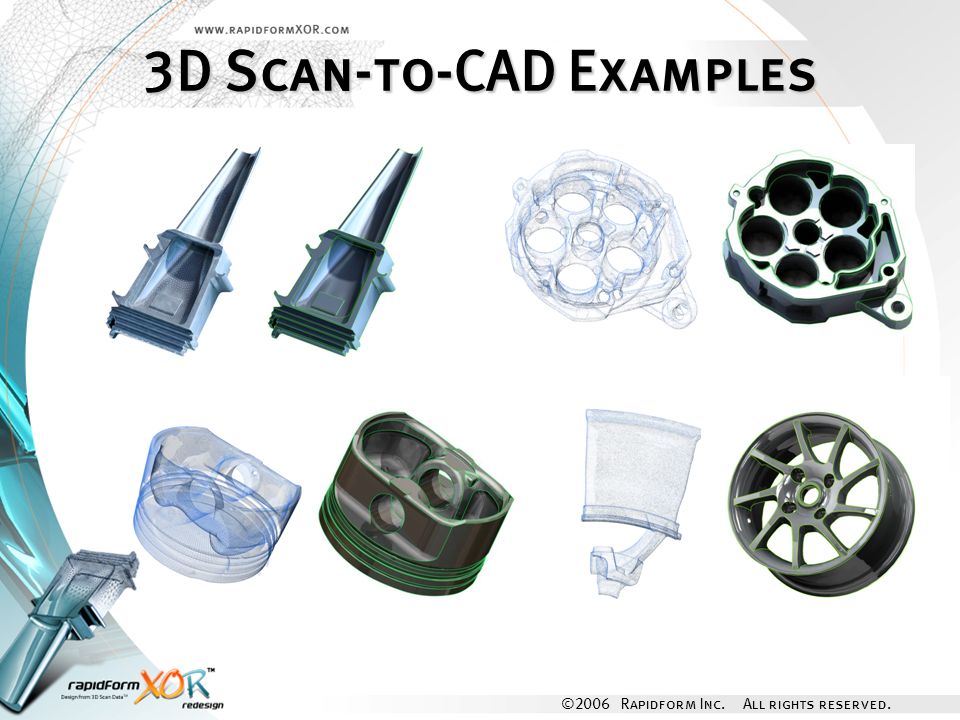

3. ©2006 Rapidform Inc. All rights reserved. 3D Scan-to-CAD Examples

4. ©2006 Rapidform Inc. All rights reserved. XOR is fast! Scan time: 30 min Modeling time: 2 hr Model accuracy:50 µ m total time: 2.5 hr accuracy: 50 µ m scan time: 1 hr redesign: 2 hr Scan time: 1 hr Modeling time: 2 hr Scan time: 1 hr Modeling time: 3 hr Scan time: 20 min Modeling time: 1 hr scan time: 1 hr redesign: 3 hr

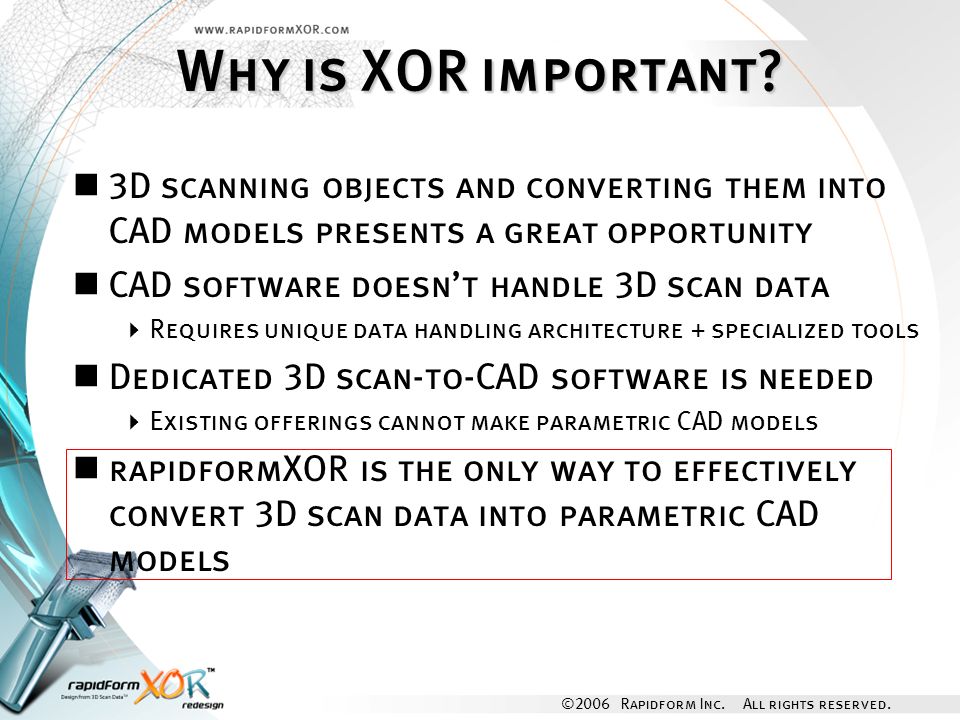

5. ©2006 Rapidform Inc. All rights reserved. Why is XOR important? 3D scanning objects and converting them into CAD models presents a great opportunity CAD software doesn’t handle 3D scan data  Requires unique data handling architecture + specialized tools Dedicated 3D scan-to-CAD software is needed  Existing offerings cannot make parametric CAD models rapidformXOR is the only way to effectively convert 3D scan data into parametric CAD models

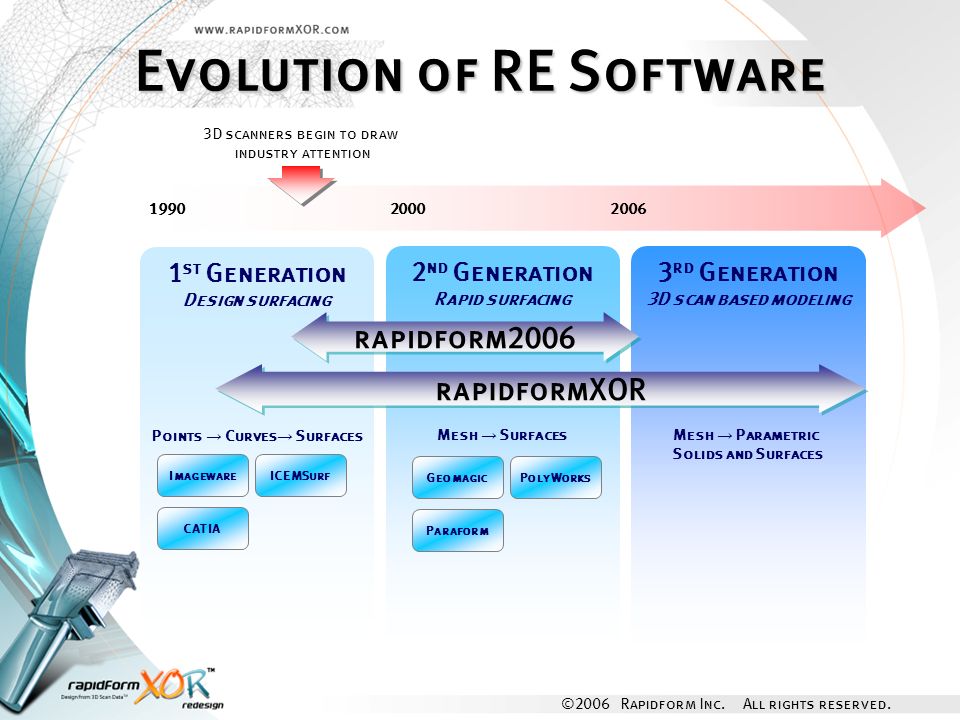

6. ©2006 Rapidform Inc. All rights reserved. Evolution of RE Software 1 st Generation Design surfacing Points → Curves → Surfaces 2 nd Generation Rapid surfacing Mesh → Surfaces 3 rd Generation 3D scan based modeling Mesh → Parametric Solids and Surfaces 1990 2000 2006 Imageware CATIA ICEMSurf GeomagicPolyWorks Paraform rapidformXOR rapidform2006 3D scanners begin to draw industry attention

7. ©2006 Rapidform Inc. All rights reserved. Downstream use Send CAD solid models via Parasolid, stp & igs  Models contain feature intelligence  More usable than dumb surface models Direct CAD interfaces  Transfer geometry, feature intelligence & complete paramaetric modeling history  Truly native models inside your CAD system Output to RP, CAM, CFD  STL, IGS, STP, Parasolid

8. ©2006 Rapidform Inc. All rights reserved. XOR workflow Import polygon mesh data Import polygon mesh data Clean polygon mesh (as needed) Clean polygon mesh (as needed) Auto segment & align Auto segment & align Decide modeling strategy Decide modeling strategy Redesign Send to CAD or other downstream application Send to CAD or other downstream application Import polygon mesh data Import polygon mesh data Other Data Source Bundled 3D Scanner Software

9. ©2006 Rapidform Inc. All rights reserved. XOR workflow Import polygon mesh data Import polygon mesh data Clean polygon mesh (as needed) Clean polygon mesh (as needed) Auto segment & align Auto segment & align Decide modeling strategy Decide modeling strategy Redesign Send to CAD or other downstream application Send to CAD or other downstream application Clean polygon mesh (as needed) Clean polygon mesh (as needed) Remove scanner artifacts Heal defects automatically Remove target marks Sharpen edges, etc. Fill holes & Reduce size Curvature-intelligent filling If needed, reduce mesh size Optimize Optimize facet size, aspect angle, etc. to convert scan data to CAE functional mesh Add Features on mesh Thicken, boolean or extrude Refit to other geometry

10. ©2006 Rapidform Inc. All rights reserved. XOR workflow Import polygon mesh data Import polygon mesh data Clean polygon mesh (as needed) Clean polygon mesh (as needed) Auto segment & align Auto segment & align Decide modeling strategy Decide modeling strategy Redesign Send to CAD or other downstream application Send to CAD or other downstream application Auto segment & align

11. ©2006 Rapidform Inc. All rights reserved. XOR workflow Import polygon mesh data Import polygon mesh data Clean polygon mesh (as needed) Clean polygon mesh (as needed) Auto segment & align Auto segment & align Decide modeling strategy Decide modeling strategy Redesign Send to CAD or other downstream application Send to CAD or other downstream application Decide modeling strategy Design Intent As-built Hybrid modeling Design surfaces Extract feature lines Create 3D sketches Loft, sweep, var. fillet etc. Mesh fit surfaces User defined Very accurate to mesh Auto Mesh fit surfaces Automatic Very fast Good for organic shapes Generate solids Cut cross sections Create sketches Extrude, revolve, etc.

12. ©2006 Rapidform Inc. All rights reserved. XOR workflow Import polygon mesh data Import polygon mesh data Clean polygon mesh (as needed) Clean polygon mesh (as needed) Auto segment & align Auto segment & align Decide modeling strategy Decide modeling strategy Redesign In allowable tol. Redesign In allowable tol. Send to CAD or other downstream application Send to CAD or other downstream application Redesign Accuracy Analyzer Redesign Accuracy Analyzer

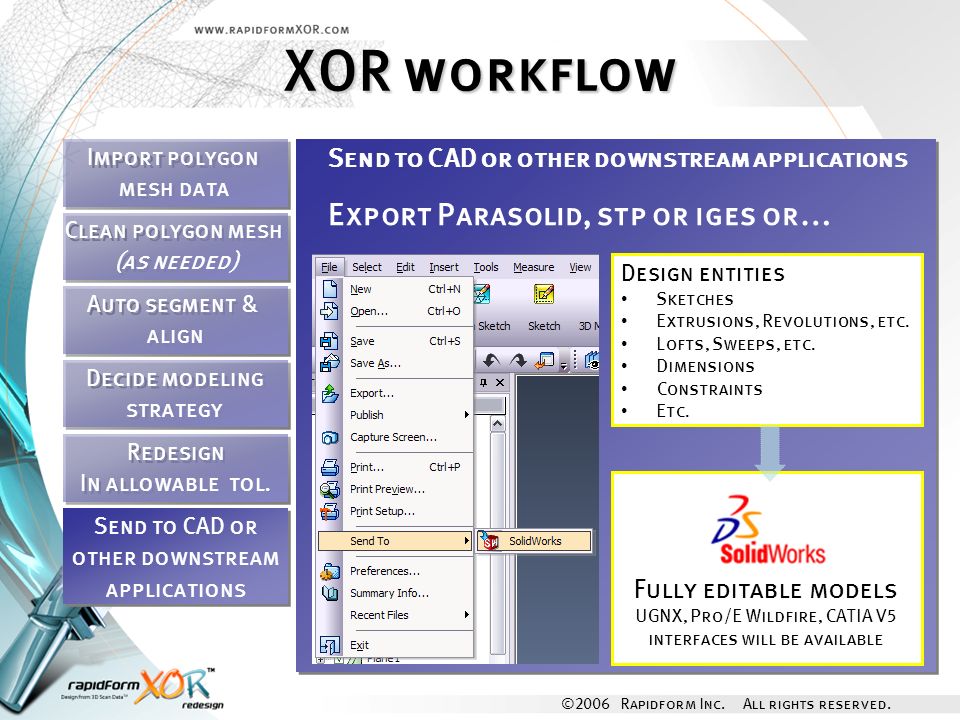

13. ©2006 Rapidform Inc. All rights reserved. XOR workflow Import polygon mesh data Import polygon mesh data Clean polygon mesh (as needed) Clean polygon mesh (as needed) Auto segment & align Auto segment & align Decide modeling strategy Decide modeling strategy Redesign In allowable tol. Redesign In allowable tol. Send to CAD or other downstream applications Send to CAD or other downstream applications Send to CAD or other downstream applications Export Parasolid, stp or iges or … Send to CAD or other downstream applications Export Parasolid, stp or iges or … Design entities Sketches Extrusions, Revolutions, etc. Lofts, Sweeps, etc. Dimensions Constraints Etc. Fully editable models UGNX, Pro/E Wildfire, CATIA V5 interfaces will be available

14. ©2006 Rapidform Inc. All rights reserved. Demo Videos at www.rapidformxor.com maartenh@rapidform.com (408).856.6200 Ext.106
