2. Objectives Compare and contrast intrusive and extrusive igneous rocks. What are igneous rocks? Describe the composition of magma. Discuss the factors that affect how rocks melt and crystallize. –igneous rock –lava –extrusive –intrusive Vocabulary –partial melting –fractional crystallization –Bowen’s reaction series

3. Lava is magma that flows out onto Earth’s surface. What are igneous rocks? Igneous rocks are rocks that are formed from the crystallization of magma. What are igneous rocks?

4. Types of Igneous Rocks Extrusive igneous rocks are fine-grained igneous rocks that cool quickly on Earth’s surface. What are igneous rocks? Intrusive igneous rocks are coarse-grained igneous rocks that cool slowly beneath Earth’s surface. Granite is the most common intrusive igneous rock.

5. Types of Igneous Rocks Careful study of granite rock formations revealed that they cut across other rock formations. What are igneous rocks? These cross-cutting relationships are evidence that the granite was intruded, or forced into, existing rocks. Magma cools slowly beneath Earth’s surface and forms course-grained igneous rocks such as granite.

6. Composition of Magma Magma is often a slushy mix of molten rock, gases, and mineral crystals. What are igneous rocks? The elements found in magma are the same major elements found in Earth’s crust: oxygen (O), silicon (Si), aluminum (Al), iron (Fe), magnesium (Mg), calcium (Ca), potassium (K), and sodium (Na).

7. Composition of Magma Magmas are classified as basaltic, andesitic, and rhyolitic, based on the amount of SiO 2 they contain. What are igneous rocks? Of all the compounds found in magma, silica (SiO 2 ) is the most abundant and has the greatest effect on magma characteristics. Silica content affects melting temperature and also impacts how quickly magma flows.

8. Origins of Magma In the laboratory, most rocks must be heated to temperatures of 800°C to 1200°C before they melt. What are igneous rocks? These temperatures are found in the upper mantle and lower crust. Scientists theorize that the remaining energy from Earth’s molten formation and the heat generated from the decay of radioactive elements are the sources of Earth’s thermal energy.

9. Origins of Magma Factors That Affect Magma Formation What are igneous rocks? –The main factors involved in the formation of magma are temperature, pressure, water content, and mineral composition. –Temperature generally increases with depth in Earth’s crust, a phenomenon known as the geothermal gradient.

10. Origins of Magma Factors That Affect Magma Formation What are igneous rocks? –Pressure increases with depth as a result of the weight of overlying rock. –As pressure on a rock increases, its melting point increases. –Rocks and minerals often contain small percentages of water. –As water content increases, the melting point decreases.

11. Origins of Magma Factors That Affect Magma Formation What are igneous rocks? –Mineral content also impacts how magma is formed as different minerals have different melting points. –In general, oceanic crust is rich in iron and magnesium and therefore melts at higher temperatures than continental crust, which contains higher levels of silicon and aluminum. –For rocks to melt, the right combination of temperature, pressure, and composition must be present.

12. Origins of Magma Factors That Affect Magma Formation What are igneous rocks? –Granite’s higher water content and mineral composition cause it to melt at a lower temperature than basalt.

13. How Rocks Melt Partial Melting What are igneous rocks? –Because different minerals have different melting points, not all parts of a rock melt at the same time. –Partial melting is the process whereby some minerals melt at low temperatures while other minerals remain solid.

14. How Rocks Melt Partial Melting What are igneous rocks? –If temperatures are not great enough to melt the entire rock, the resulting magma will have a different chemistry from that of the original rock. –This is one way in which different types of igneous rocks form.

15. How Rocks Melt Fractional Crystallization What are igneous rocks? –When magma cools, it crystallizes in the reverse order of partial melting—the first minerals to crystallize from magma are the last minerals to melt during partial melting. –Fractional crystallization is the process wherein different minerals form at different temperatures.

16. Bowen’s Reaction Series Bowen’s reaction series illustrates the relationship between cooling magma and mineral formation. What are igneous rocks? Bowen discovered two main patterns, or branches, of crystallization. –The first pattern is characterized by a continuous, gradual change of mineral compositions in the feldspar group. –The second pattern is characterized by an abrupt change of mineral type in the iron- magnesium groups.

17. Bowen’s Reaction Series What are igneous rocks?

18. Bowen’s Reaction Series Feldspars What are igneous rocks? –In Bowen’s reaction series, the right branch represents the feldspar minerals, which undergo a continuous change of composition. –As magma cools, the first feldspars to form are rich in calcium. –As cooling continues, their calcium-rich compositions change to sodium-rich compositions.

19. Bowen’s Reaction Series Feldspars What are igneous rocks? –In some instances, as when magma cools rapidly, the calcium-rich cores are unable to react completely with the magma. –The result is a zoned crystal that has sodium-rich outer layers and calcium- rich cores.

20. Bowen’s Reaction Series Iron-Rich Minerals What are igneous rocks? –The left branch of Bowen’s reaction series represents the iron-rich minerals. –These minerals undergo abrupt changes during fractional crystallization.

21. Bowen’s Reaction Series Iron-Rich Minerals What are igneous rocks? –As minerals form in the order shown in Bowen’s reaction series, elements are removed from the magma. –Silica and oxygen are left over at the end of the reaction series. –When the remaining melt, enriched with silica and oxygen, finally crystallizes, quartz is formed.

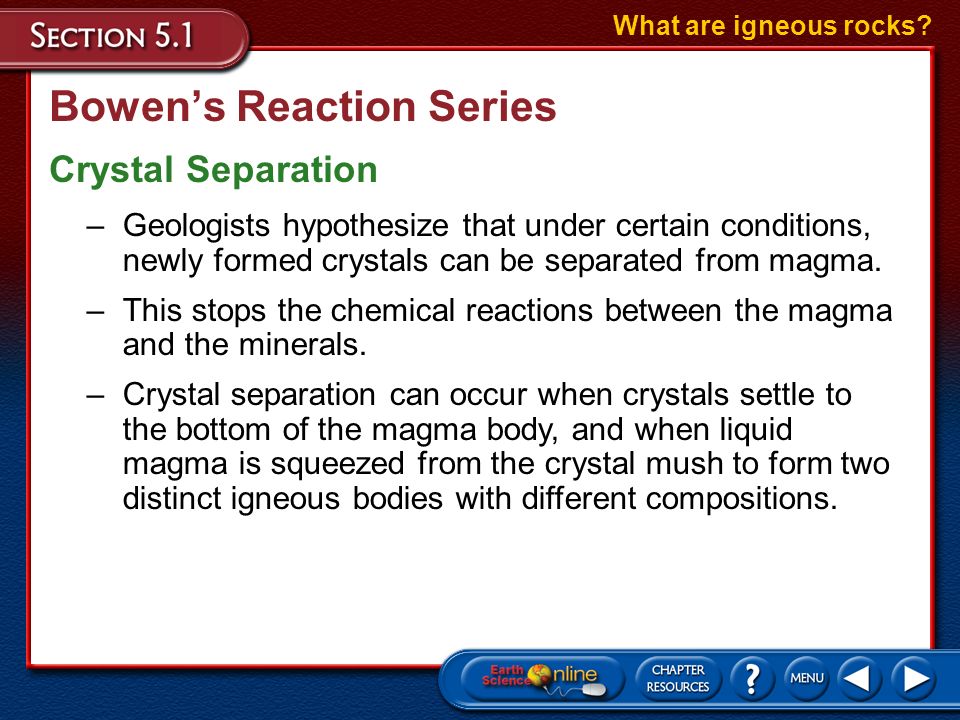

22. –Geologists hypothesize that under certain conditions, newly formed crystals can be separated from magma. –This stops the chemical reactions between the magma and the minerals. –Crystal separation can occur when crystals settle to the bottom of the magma body, and when liquid magma is squeezed from the crystal mush to form two distinct igneous bodies with different compositions. Bowen’s Reaction Series Crystal Separation What are igneous rocks?

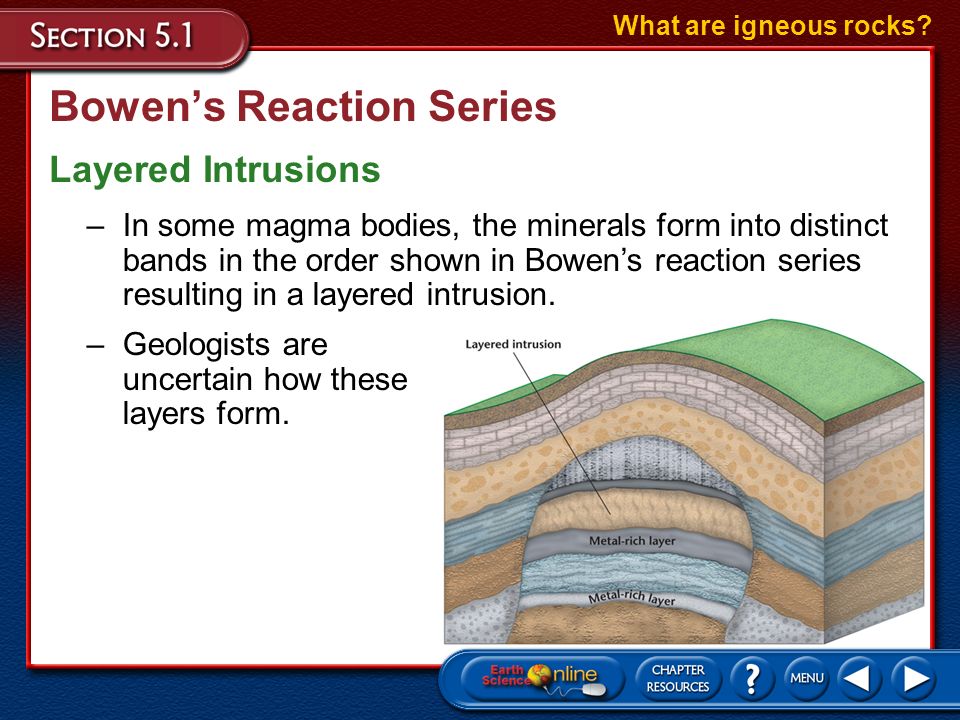

23. –In some magma bodies, the minerals form into distinct bands in the order shown in Bowen’s reaction series resulting in a layered intrusion. Bowen’s Reaction Series Layered Intrusions What are igneous rocks? –Geologists are uncertain how these layers form.

24. –Layered igneous intrusions can be valuable sources of rare metals. Bowen’s Reaction Series Layered Intrusions What are igneous rocks? –Some have very high concentrations of elements such as platinum, chromium, nickel, or gold.

25. Objectives Classify different types and textures of igneous rocks. Classifying Igneous Rocks Recognize the effects of cooling rates on the grain sizes of igneous rocks. Describe some uses of igneous rocks. –felsic –mafic –ultramafic –porphyritic Vocabulary –pegmatite –kimberlite

26. Classifying Igneous Rocks Igneous rocks are broadly classified as intrusive or extrusive. Classifying Igneous Rocks Igneous rocks are further classified by their mineral compositions. Physical properties such as grain size and texture serve as clues for the identification of various igneous rocks.

27. Mineral Composition The three main groups of igneous rocks—felsic, mafic, and intermediate—are classified according to their mineral compositions. Classifying Igneous Rocks –Felsic rocks, such as granite, are light-colored and have high silica contents. –Mafic rocks, such as gabbro, are dark-colored, have lower silica contents, and are rich in iron and magnesium. –Intermediate rocks, such as diorite, have some characteristics of both felsic and mafic rocks.

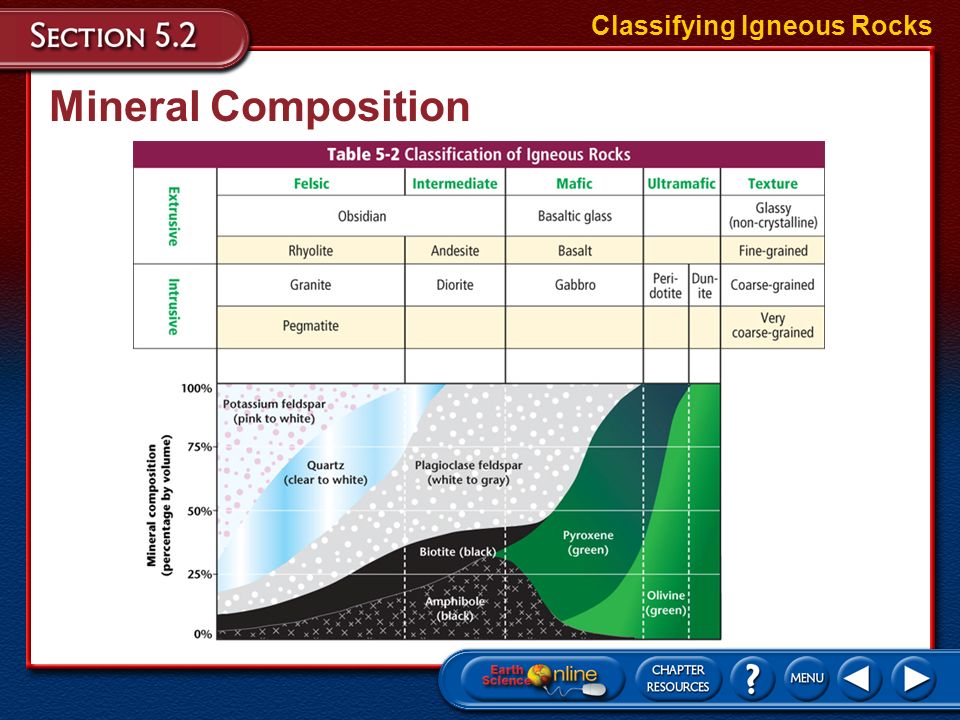

28. Mineral Composition Classifying Igneous Rocks

29. Mineral Composition Ultramafic Rocks Classifying Igneous Rocks –Ultramafic rocks are unusual in that they have low silica contents and very high levels of iron and magnesium. –Some scientists theorize ultramafic rocks are formed by the fractional crystallization of olivine and pyroxene. –Another hypothesis is that ultramafic rocks represent pieces of the upper mantle that have been brought close to Earth’s surface.

30. Grain Size In addition to differences in their mineral compositions, igneous rocks differ in the sizes of their grains. Classifying Igneous Rocks Cooling Rates –When lava flows on Earth’s surface, it cools quickly and there is not enough time for large crystals to form. –Extrusive igneous rocks have no visible mineral grains. –When magma cools slowly beneath Earth’s surface, there is sufficient time for large crystals to form. –Intrusive igneous rocks may have crystals larger than 1 cm.

31. Texture Often, it’s easier to observe the sizes of mineral grains than it is to observe their shapes. Classifying Igneous Rocks Many mineral grains have interlocking edges. As the grains crystallize from magma, they grow together and form irregular edges. During fractional crystallization, the minerals that form early in the process float in a liquid and have space in which to grow distinct crystal shapes.

32. Texture Porphyritic Texture Classifying Igneous Rocks –A rock that has a porphyritic texture is characterized by large, well-formed crystals surrounded by finer-grained crystals of the same mineral or different minerals. –Porphyritic textures indicate a complex cooling history wherein a slowly cooling magma suddenly began cooling rapidly.

33. Igneous Rocks as Resources Igneous rocks have several characteristics that make them especially useful as building materials. Classifying Igneous Rocks –The interlocking grain textures of igneous rocks help to give them strength. –Many of the minerals found in igneous rocks are resistant to weathering.

34. Ore Deposits Ores are minerals that contain a useful substance that can be mined at a profit. Classifying Igneous Rocks Valuable ore deposits are often associated with igneous intrusions. These deposits sometimes occur as veins.

35. Ore Deposits Veins Classifying Igneous Rocks –Some important metallic elements that are not included in common minerals are gold, silver, lead, and copper. –These elements, along with the dissolved silica, are released at the end of magma crystallization in a hot, mineral-rich fluid that fills cracks and voids in the surrounding rock. –This fluid solidifies to form metal-rich quartz veins, such as the gold-bearing veins.

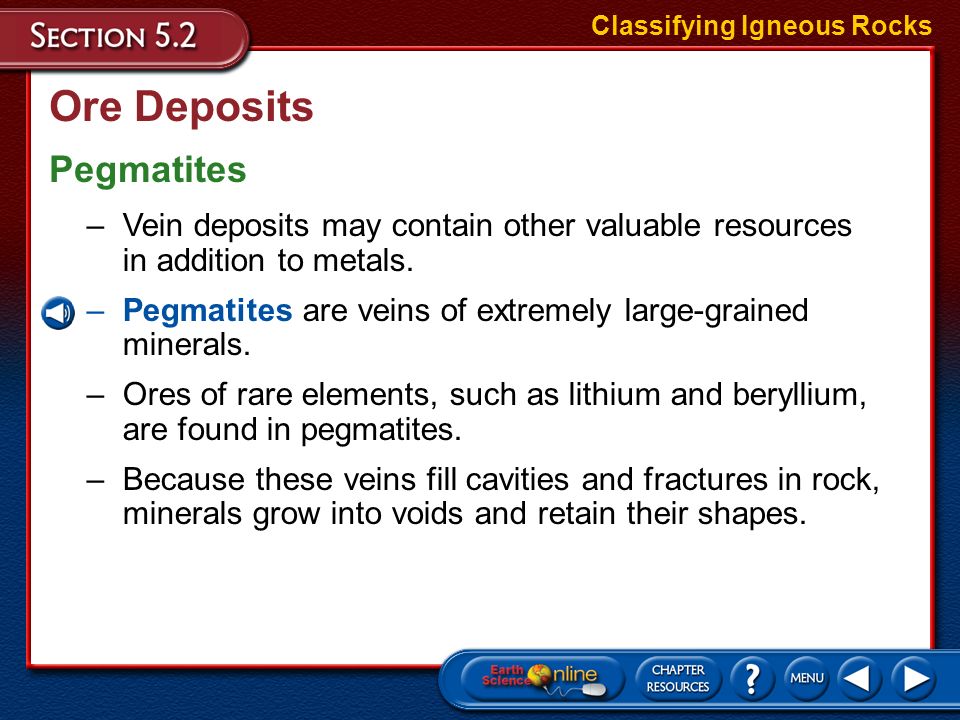

36. Ore Deposits Pegmatites Classifying Igneous Rocks –Vein deposits may contain other valuable resources in addition to metals. –Pegmatites are veins of extremely large-grained minerals. –Ores of rare elements, such as lithium and beryllium, are found in pegmatites. –Because these veins fill cavities and fractures in rock, minerals grow into voids and retain their shapes.

37. Ore Deposits Kimberlites Classifying Igneous Rocks –Diamond is a valuable mineral found in rare, ultramafic rocks known as kimberlites. –Kimberlites are a variety of peridotite and likely form deep in the crust at depths of 150 to 300 km or in the mantle. –Minerals found in kimberlites can form only under very high pressures. –Geologists hypothesize that kimberlite magma is intruded rapidly upwards towards Earth’s surface, where it forms long, narrow, pipelike structures.
