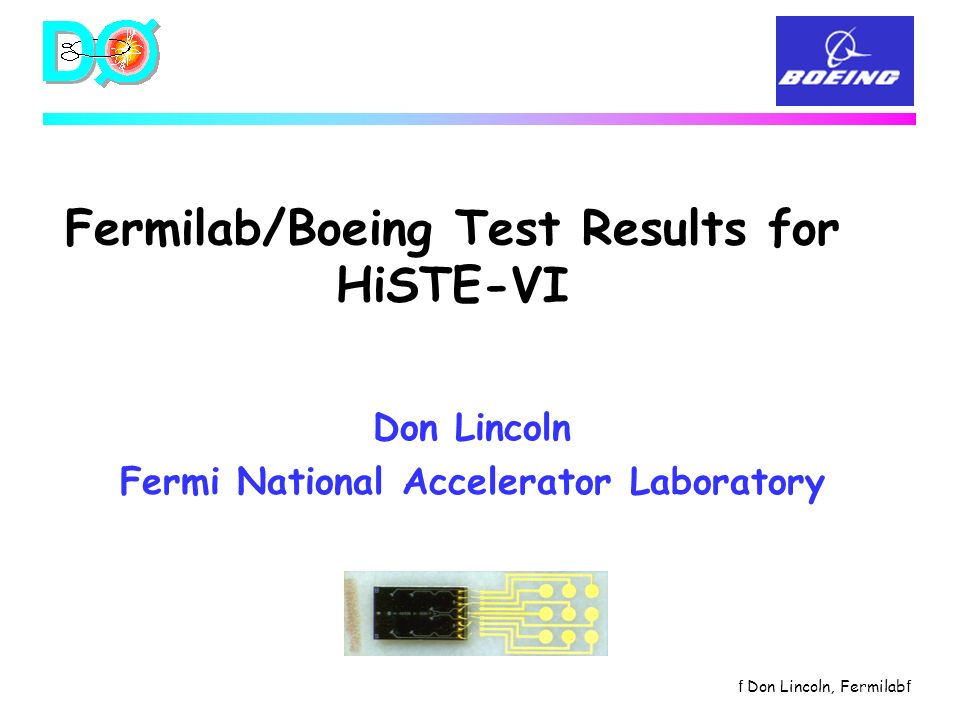

1 f Don Lincoln, Fermilab f Fermilab/Boeing Test Results for HiSTE-VI Don Lincoln Fermi National Accelerator Laboratory

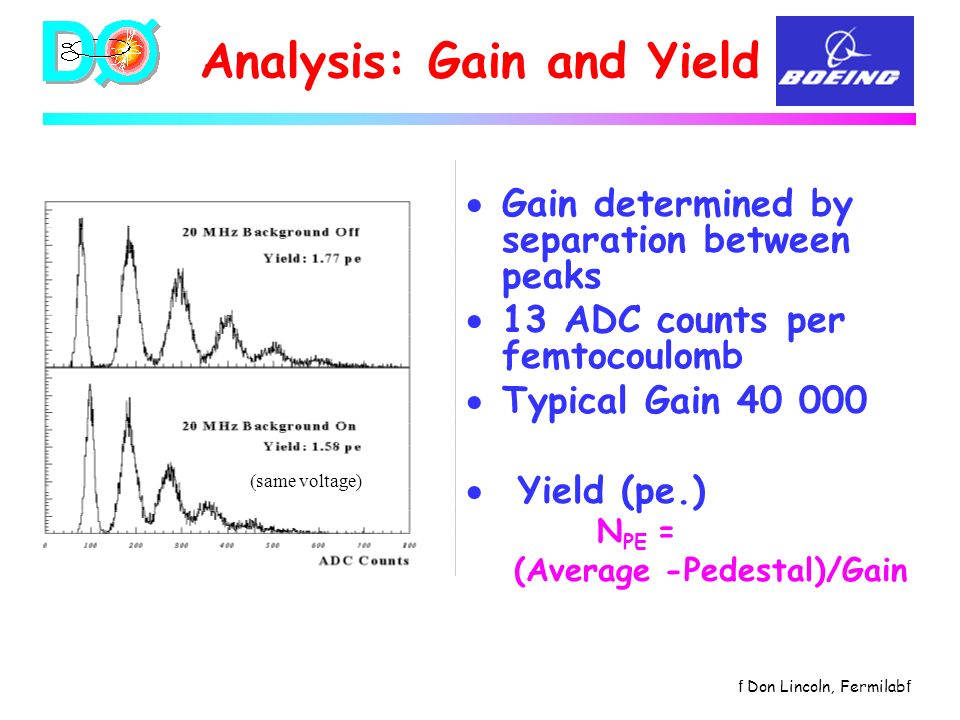

2 f Don Lincoln, Fermilab f Analysis: Gain and Yield  Gain determined by separation between peaks  13 ADC counts per femtocoulomb  Typical Gain 40 000  Yield (pe.) N PE = (Average -Pedestal)/Gain  same voltage)

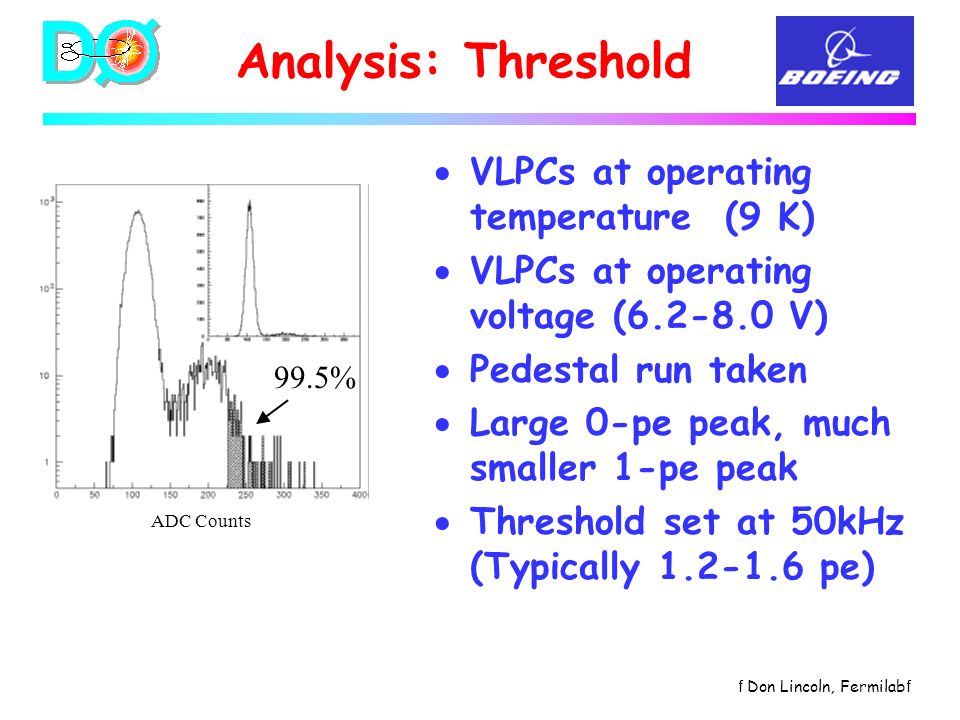

3 f Don Lincoln, Fermilab f Analysis: Threshold  VLPCs at operating temperature (9 K)  VLPCs at operating voltage (6.2-8.0 V)  Pedestal run taken  Large 0-pe peak, much smaller 1-pe peak  Threshold set at 50kHz (Typically 1.2-1.6 pe) 99.5% ADC Counts

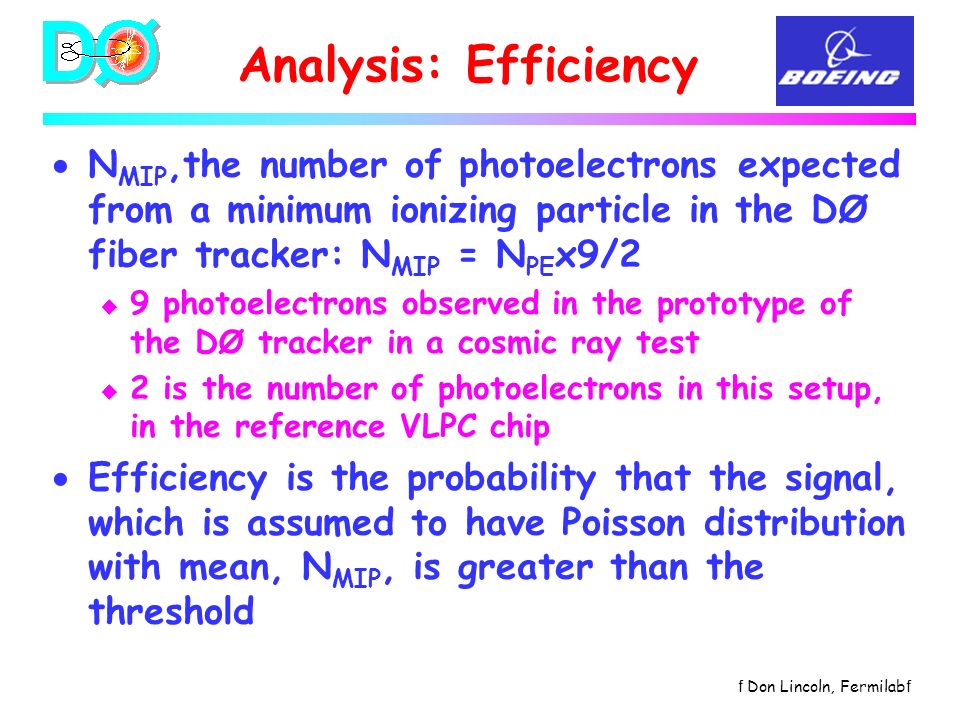

4 f Don Lincoln, Fermilab f Analysis: Efficiency  N MIP,the number of photoelectrons expected from a minimum ionizing particle in the DØ fiber tracker: N MIP = N PE x9/2 u 9 photoelectrons observed in the prototype of the DØ tracker in a cosmic ray test u 2 is the number of photoelectrons in this setup, in the reference VLPC chip  Efficiency is the probability that the signal, which is assumed to have Poisson distribution with mean, N MIP, is greater than the threshold

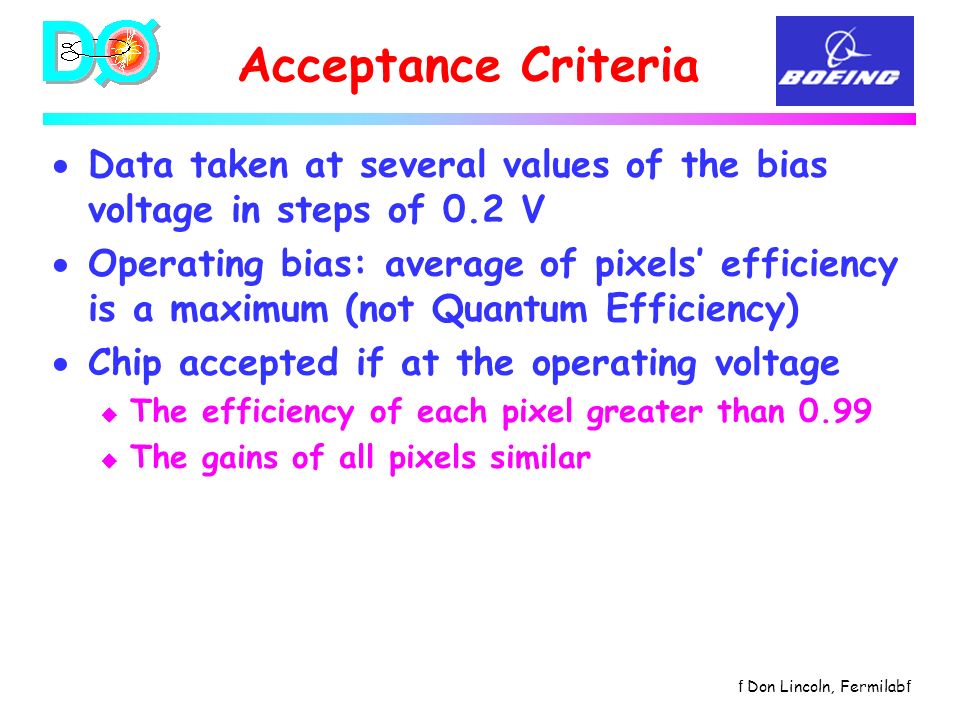

5 f Don Lincoln, Fermilab f Acceptance Criteria  Data taken at several values of the bias voltage in steps of 0.2 V  Operating bias: average of pixels’ efficiency is a maximum (not Quantum Efficiency)  Chip accepted if at the operating voltage u The efficiency of each pixel greater than 0.99 u The gains of all pixels similar

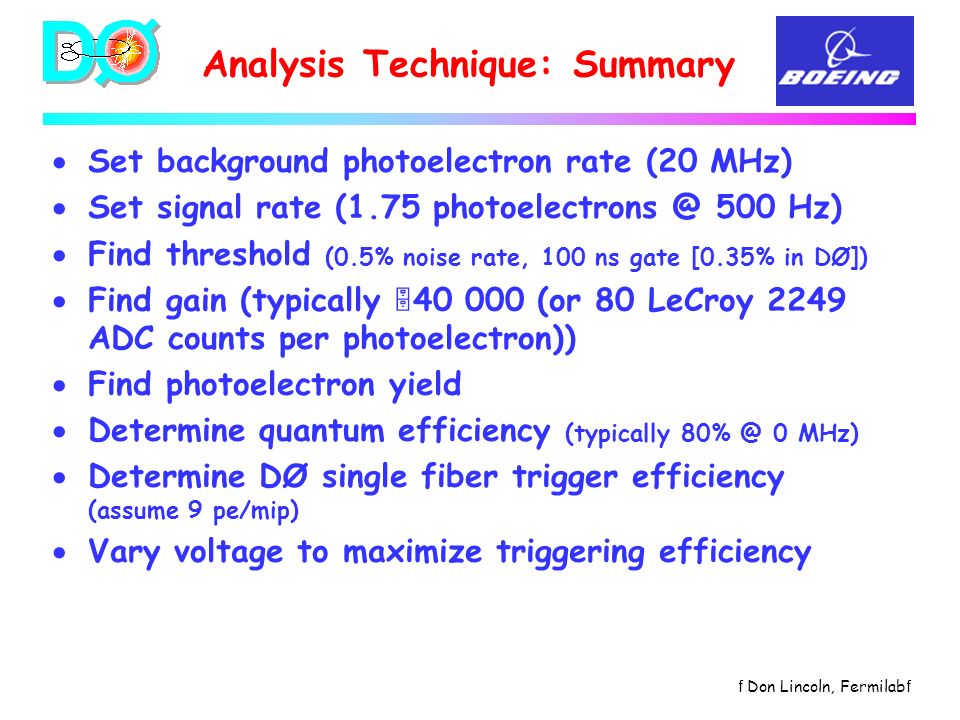

6 f Don Lincoln, Fermilab f Analysis Technique: Summary  Set background photoelectron rate (20 MHz)  Set signal rate (1.75 photoelectrons @ 500 Hz)  Find threshold (0.5% noise rate, 100 ns gate [0.35% in DØ])  Find gain (typically  40 000 (or 80 LeCroy 2249 ADC counts per photoelectron))  Find photoelectron yield  Determine quantum efficiency (typically 80% @ 0 MHz)  Determine DØ single fiber trigger efficiency (assume 9 pe/mip)  Vary voltage to maximize triggering efficiency

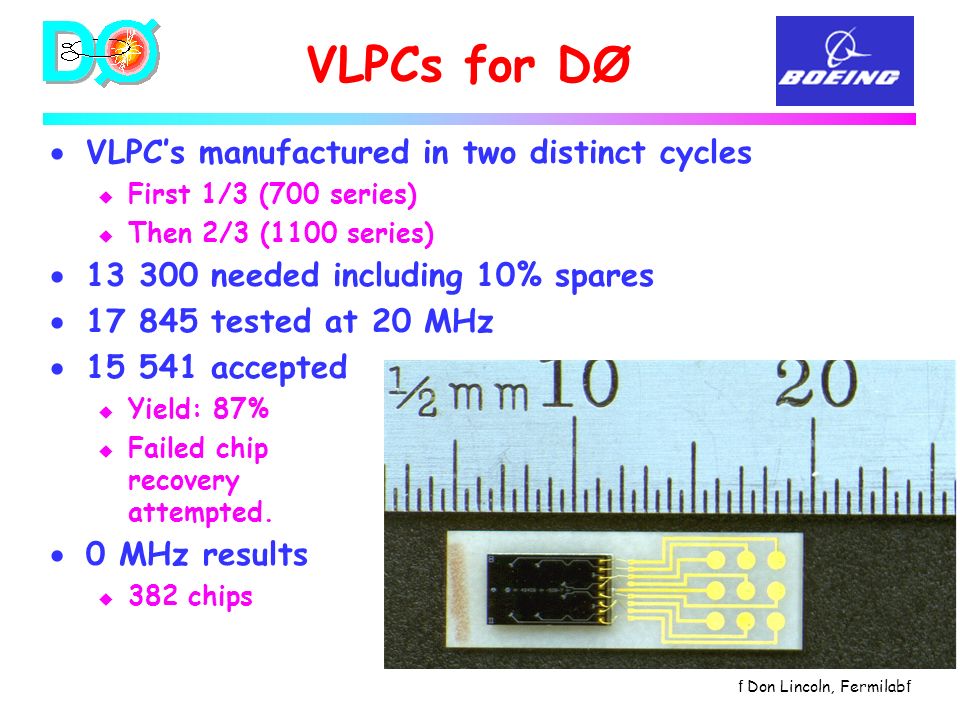

7 f Don Lincoln, Fermilab f VLPCs for DØ  VLPC’s manufactured in two distinct cycles u First 1/3 (700 series) u Then 2/3 (1100 series)  13 300 needed including 10% spares  17 845 tested at 20 MHz  15 541 accepted u Yield: 87% u Failed chip recovery attempted.  0 MHz results u 382 chips

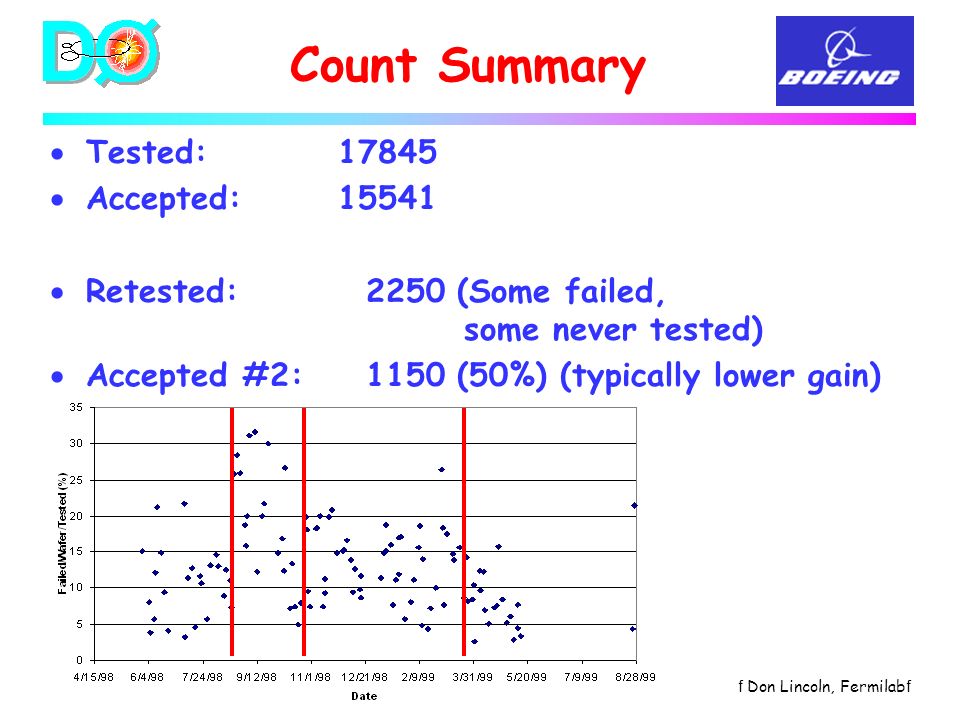

8 f Don Lincoln, Fermilab f Count Summary  Tested: 17845  Accepted: 15541  Retested: 2250 (Some failed, some never tested)  Accepted #2: 1150 (50%) (typically lower gain)

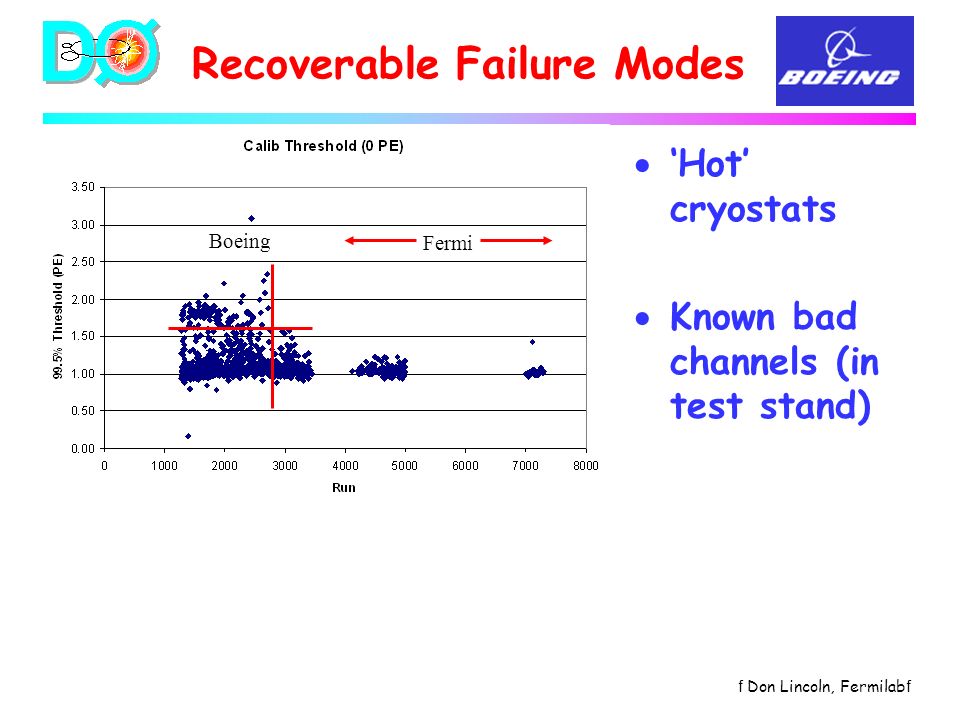

9 f Don Lincoln, Fermilab f Recoverable Failure Modes  ‘Hot’ cryostats  Known bad channels (in test stand) Boeing Fermi

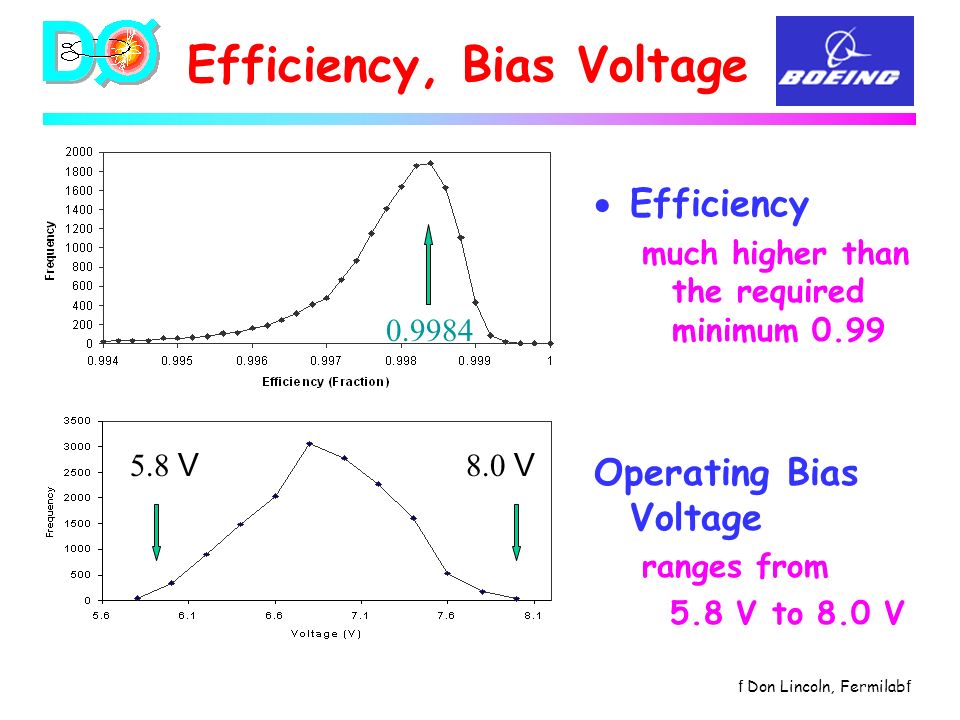

10 f Don Lincoln, Fermilab f Efficiency, Bias Voltage  Efficiency much higher than the required minimum 0.99 Operating Bias Voltage ranges from 5.8 V to 8.0 V   V  V

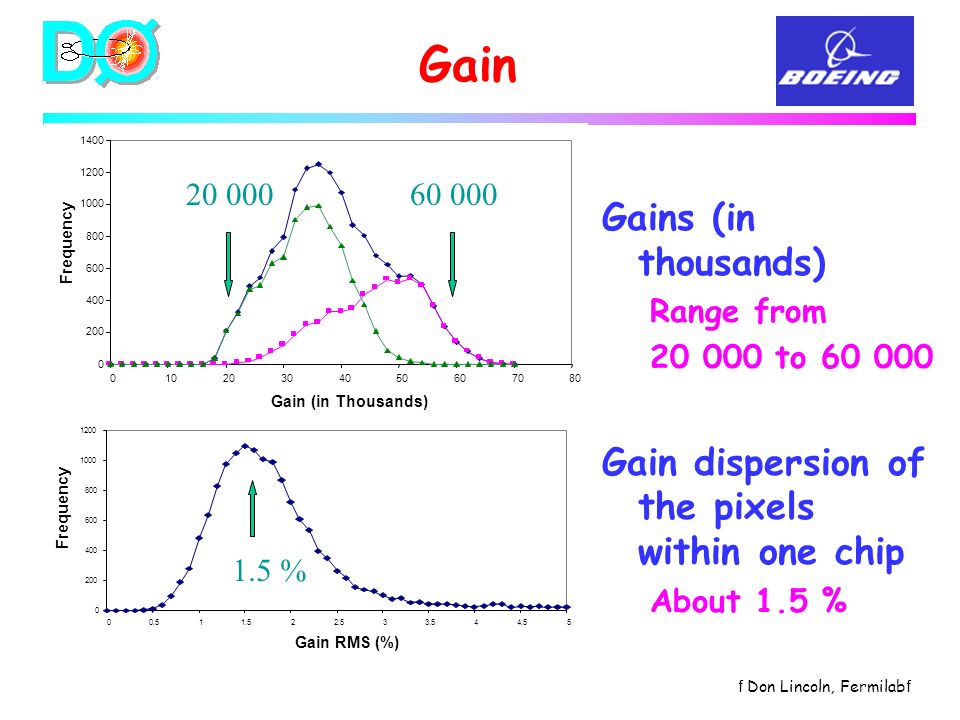

11 f Don Lincoln, Fermilab f 0 200 400 600 800 1000 1200 1400 01020304050607080 Gain (in Thousands) Frequency Gain Gains (in thousands) Range from 20 000 to 60 000 Gain dispersion of the pixels within one chip About 1.5 %  

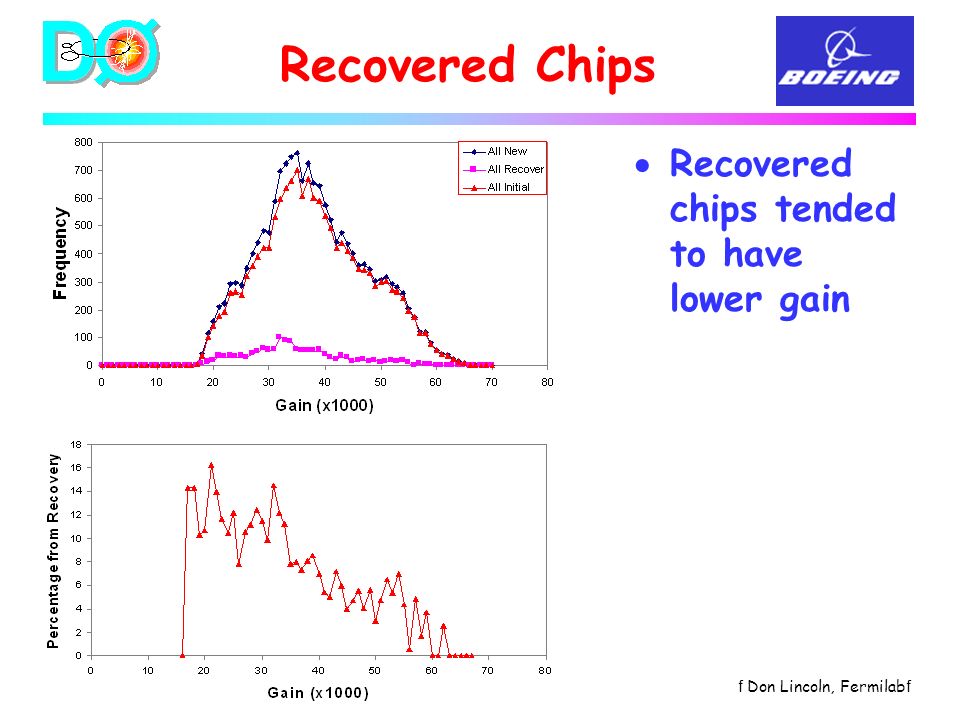

12 f Don Lincoln, Fermilab f Recovered Chips  Recovered chips tended to have lower gain

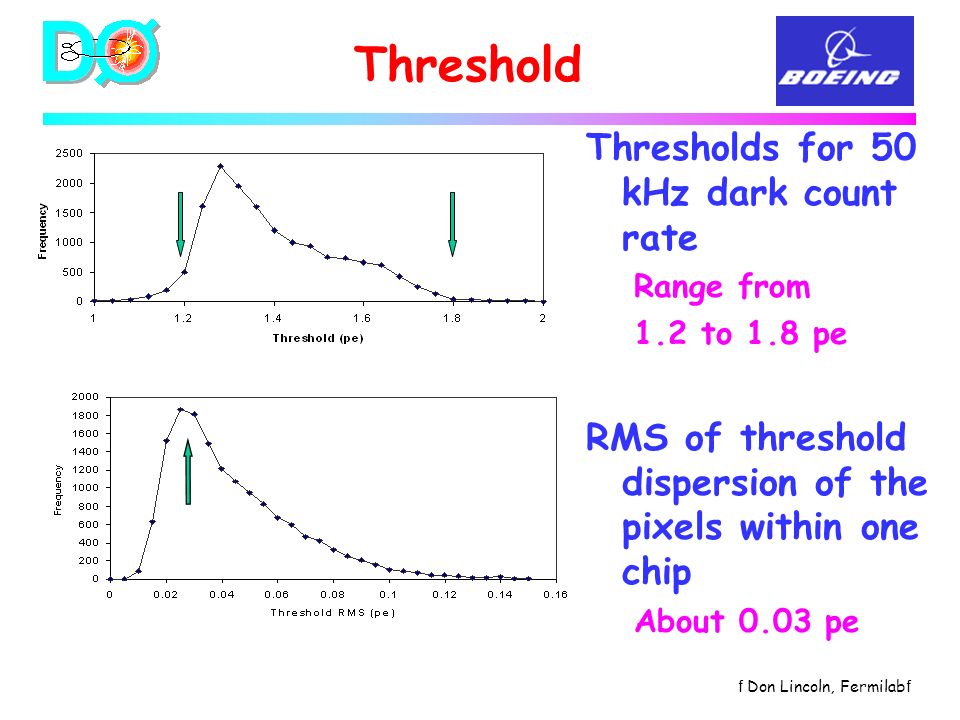

13 f Don Lincoln, Fermilab f Threshold Thresholds for 50 kHz dark count rate Range from 1.2 to 1.8 pe RMS of threshold dispersion of the pixels within one chip About 0.03 pe

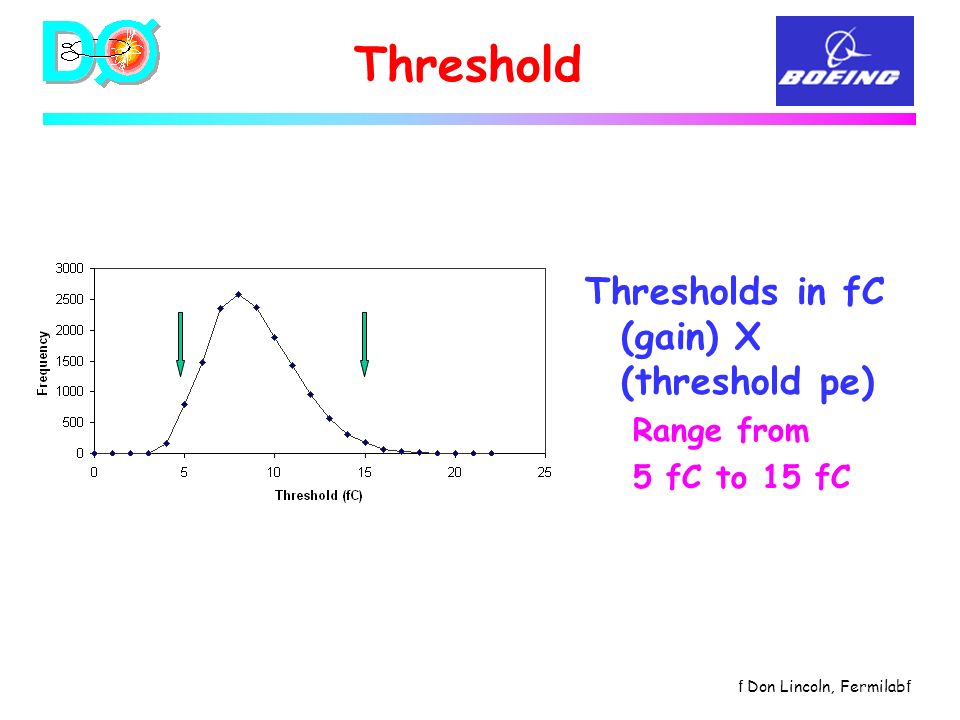

14 f Don Lincoln, Fermilab f Threshold Thresholds in fC (gain) X (threshold pe) Range from 5 fC to 15 fC

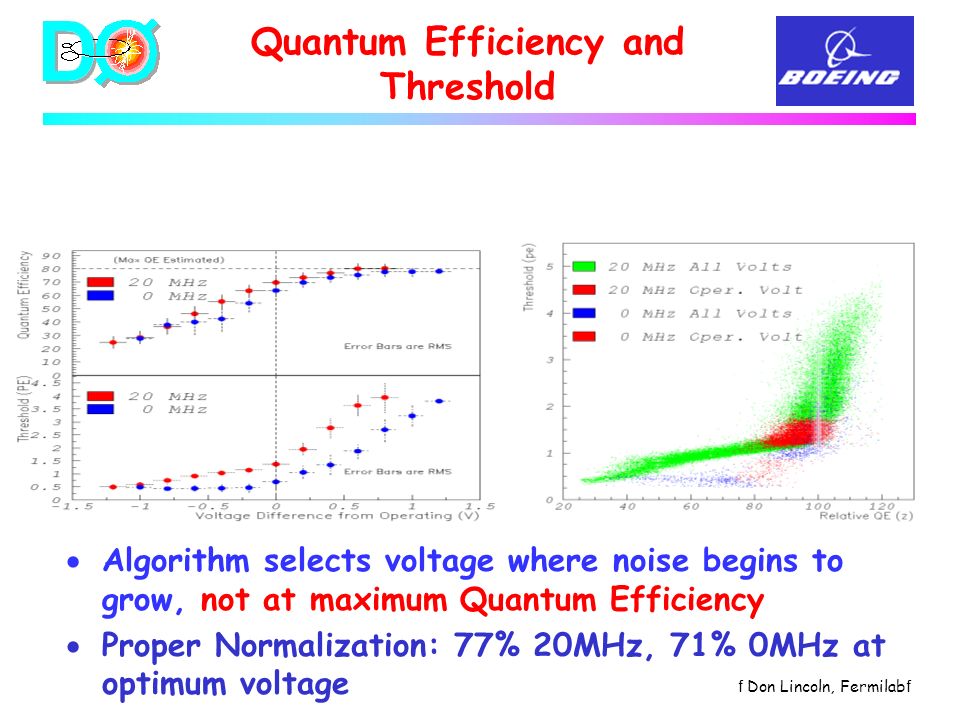

15 f Don Lincoln, Fermilab f Quantum Efficiency and Threshold  Algorithm selects voltage where noise begins to grow, not at maximum Quantum Efficiency  Proper Normalization: 77% 20MHz, 71% 0MHz at optimum voltage

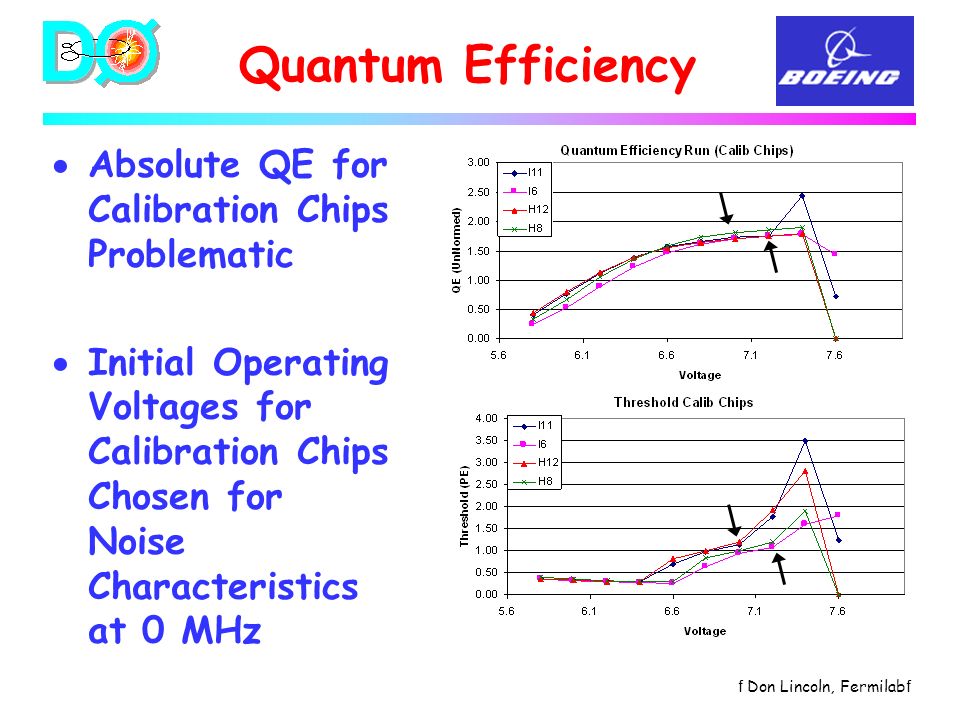

16 f Don Lincoln, Fermilab f Quantum Efficiency  Absolute QE for Calibration Chips Problematic  Initial Operating Voltages for Calibration Chips Chosen for Noise Characteristics at 0 MHz

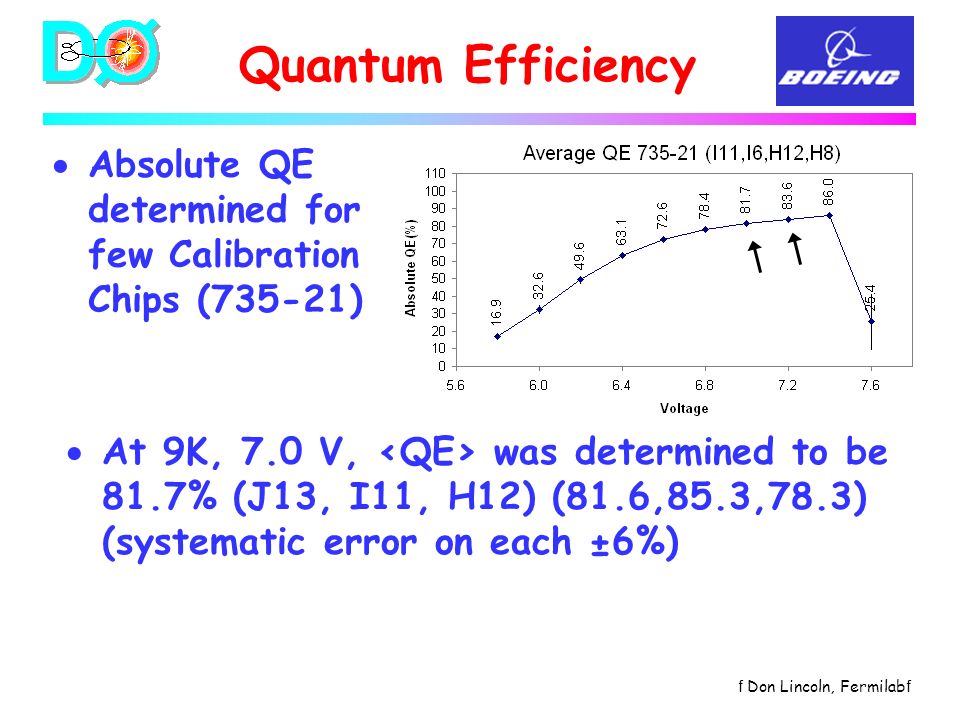

17 f Don Lincoln, Fermilab f Quantum Efficiency  Absolute QE determined for few Calibration Chips (735-21)  At 9K, 7.0 V, was determined to be 81.7% (J13, I11, H12) (81.6,85.3,78.3) (systematic error on each ±6%)

18 f Don Lincoln, Fermilab f Qualitative Threshold  Noise grows very quickly, once a voltage threshold is exceeded.

19 f Don Lincoln, Fermilab f Gain Behavior  Gain poorly correlated with voltage, but relative gain extremely correlated. RMS 1.9%

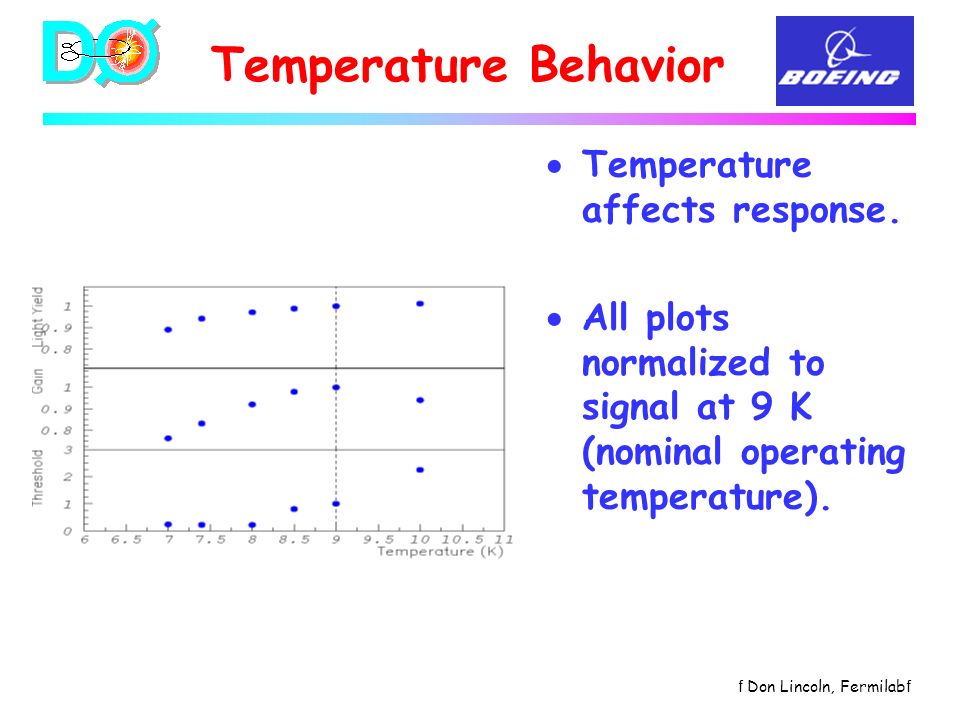

20 f Don Lincoln, Fermilab f Temperature Behavior  Temperature affects response.  All plots normalized to signal at 9 K (nominal operating temperature).

21 f Don Lincoln, Fermilab f Linearity at 0 MHz Background  VLPC’s are linear to <10% for Equivalent PE ~600 (~750 photons)  Slight gain dependence, although gain is only tangentially related.  Linearity independent of voltage (limited checking). Response of High Gain VLPC 0.1 1 10 100 1000 1.E+001.E+011.E+021.E+031.E+041.E+05 Equivalent Photoelectrons = QE(for one pe) * photons Integrated Charge (Arbitrary Units) measured linear reference Gain ~50 000 Gain ~30 000 Normalization Point Measurement Artifact

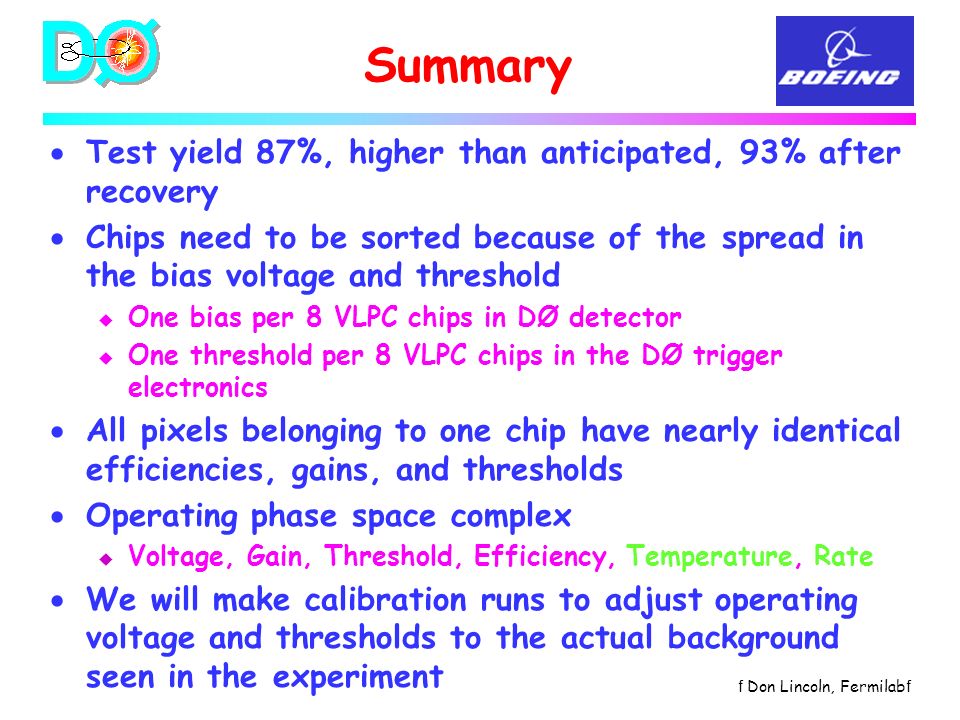

22 f Don Lincoln, Fermilab f Summary  Test yield 87%, higher than anticipated, 93% after recovery  Chips need to be sorted because of the spread in the bias voltage and threshold u One bias per 8 VLPC chips in DØ detector u One threshold per 8 VLPC chips in the DØ trigger electronics  All pixels belonging to one chip have nearly identical efficiencies, gains, and thresholds  Operating phase space complex u Voltage, Gain, Threshold, Efficiency, Temperature, Rate  We will make calibration runs to adjust operating voltage and thresholds to the actual background seen in the experiment
