1. PHYSIOLOGY OF
THYROID
HORMONES

2. By the end of this session, the student should:
Understand the significance of the conversion of tetraiodothyronine (T4) to triiodothyronine (T3) and reverse T3 (rT3) in extrathyroidal tissues.
Understand how thyroid hormones produce their cellular effects.
Describe the physiological effects of thyroid hormones in the body.
Outline the mechanisms for regulation of thyroid hormone.
Correlate knowledge to hypo- and hypersecretion of thyroid hormones.

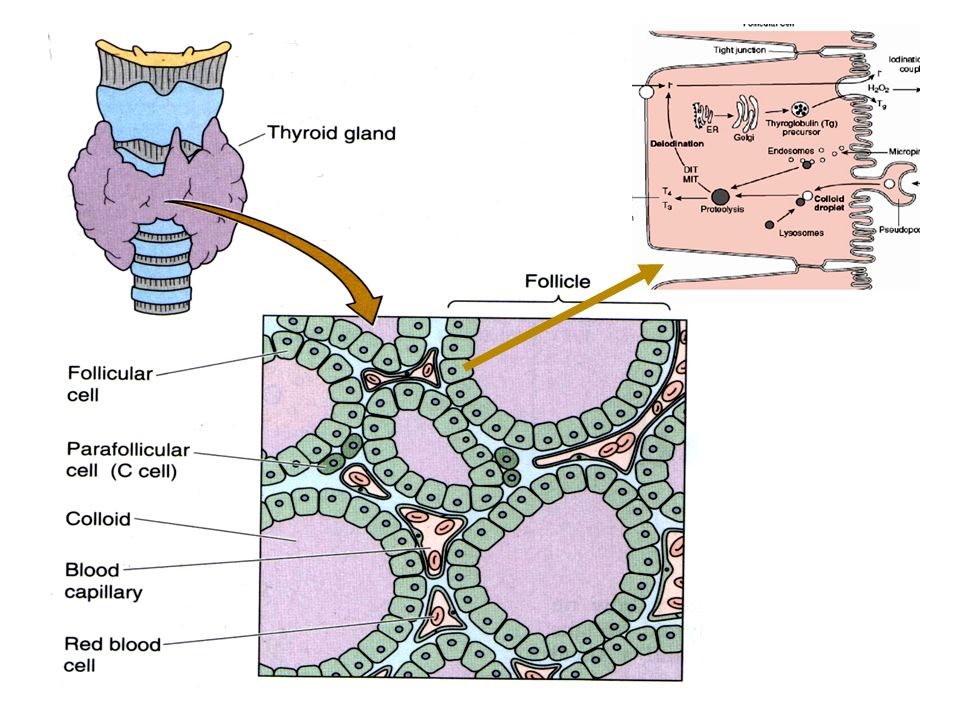

3. Gross and Microscopic anatomy

6. Thyroid Hormones The thyroid gland forms & releases:
1- Triiodothyronine (T3) & tetraiodothyronie (T4) or thyroxine: Secreted by follicular cells.
2- Calcitonin: secreted by parafollicular (C) cells.

7. Thyroxine (T4) & triiodothyronine (T3)
They are iodinated derivatives of tyrosine amino acid.
Thyroid gland secretes:
- T4 (forms 90% of the output).
- T3 (the remaining 10%)
N.B.: Most of serum T3 comes form peripheral conversion of T4 in the tissues

8. Active uptake of inorganic iodide (I-).
Oxidation of I- to organic iodine I2.
Iodination of tyrosine to produce mono & diiodotyrosine.
Oxidative coupling to form T3 & T4.

9. Synthesis of thyroid hormone

10. Storage & Release

11. Transport The transport proteins are: Bound Free Plasma level 99.8%
0.2%
0.15 mcg% T3
99.98%
0.02%
8 mcg% T4
The transport proteins are:
Thyroid binding globulin (TBG) (α-globulin) (50%)
Thyroxine binding prealbumin (TBPA). (40%)
Plasma albumin. (10%).

12. Functions
1- Intracellular actions of thyroid hormones:

13. ↑ size & number of mitochondria -----> ↑ rate of respiration.
↑ activity & amount of membrane Na-K ATPase
Stimulate amino acid transport across the cell membrane -----> facilitate protein synthesis.
Activates proteolytic & lysosomal enzymes especially in muscles

14. 2- effect on growth: a) Physical growth:
- Has a permissive effect on GH & potentiate the effect of somatomedins.
- Eruption & development of teeth Closure of fontannels.
b) Mental growth:
- Growth, development & function of CNS during fetal life & 1st few years after birth.
- Myelination of nerve fibers & development of synapses.

15. C) Sexual growth:
- Essential for normal menestrual cycle & spermatogenesis (fertility).
- Stimulates milk secretion during lactation.

16. 3- Metabolic action: a) General metabolism:
- 1 mg of thyroxine increase heat production by 1000 calories.
- This is due to increased O2 consumption & metabolic rate.
- This is called “calorigenic action” of thyroid hormone.
- this occurs in all body tissues except: adult brain, retina, gonads, lymphoid tissues & lung.
- In anterior pituitary, thyroid ↓ metabolism due to negative feedback.

17. b) Protein Metabolism:
- Normal levels of thyroid hormones stimulate protein synthesis & growth (anabolic).
- Excess thyroid hormone causes protein catabolism.
c) Carbohydrate Metabolism:
In physiologic amounts:
Enhance action of insulin.
Stimulate glycogenesis.
Stimulate glucose utilization.

18. d) Lipid Metabolism: However, in pharmacological doses it will:
- ↑ intestinal absorption of glucose.
- hepatic glycogenolysis b y catecholamines.
- Gluconeogenesis.
d) Lipid Metabolism:
- It stimulates all aspects of lipid metabolism including: synthesis, mobilization & utilization.

19. It decreases the level of cholesterol, triglycerides and phopholipids in the blood But increases the level of free fatty acid & glycerol.
e) Vitamin & drugs Metabolism:
- hepatic conversion of carotene into vitamin A.
↑ utilization & clearance of all vitamines.
↑clearance of a number of drugs including digitalis.

20. 4- Effect on body systems:
a) Cardiovascular system:
i. Increased heart rate: due to
- stimulation of metabolism of SAN.
- Increased sensitivity of SAN to circulating catecholamines.
- Increased body temperature > Peripheral V.D > Increased Venous return (Bainbridge reflex) & hypotension (Mary’s law).

21. ii. Increased strength of myocardial contractility: due to?
iii. Increased cardiac output.
iv. Arterial blood pressure:
- Increased systolic ABP. due to????
- Decreased diastolic ABP. due to????
- Increased pulse pressure.

22. b) Respiratory system:
Increased rate & depth of respiration due to???????
c) Gastrointestinal tract:
- Stimulate secretion of digestive juices (including gastric HCl) increased appetite.
- Stimulate intestinal motility & absorption.
d) Hemopoietic system:
i. stimulate erythropoiesis through:
- increased metabolism of bone marrow.
- increased secretion of erythropoitin hormone.
- increased absorption of vitamin B12 from the ileum.

23. ii. Shift of O2 dissociation curve to the right due to increased 2,3-DPG formation in RBCs.
e- Endocrine System:
i. negative feedback inhibition on the pituitary TSH.
ii. Synergistic action on catecholamines:
- it increased number of catecholamines receptors & sensitivity to catecholamines.
- it appears that CVS & CNS manifestations of thyroid are due to this synergism.
iii. Permissive effect on glucagon, cortisol & GH.

24. - Increased sex hormone binding globulin level -----> decreased clearance of sex hormones.
- Increased cortisol clearance in the liver > increased ACTH.
f- Skeletal muscle:
- Essential for normal function of the skeletal muscle.

25. Control of Thyroid Functions
1- Thyroid Stimulating Hormone (TSH)
- a glycoprotein secreted by thyrotrop basophil.
- Actions:
a) stimulate all steps of thyroid hormone secretion & release.
b) increase the size & vascularity of thyroid gland. Follicular cells becomes columnar & active.
N.B.: Prolonged stimulation of the gland by TSH > ↑ size (hypertrophy) & number (hyperplasia) of follicular cells > enlargement of thyroid gland (goiter).

26. Control of TSH secretion:
1- Hypothalamic TRH:
- through hypothalamo-hypophyseal portal circulation.
- TRH is stimulated by cold & inhibited by cortisol.
2- Negative feedback effect of thyroid hormone: more directly at the level of anterior pituitary thyrotrop than on the level of anterior hypothalamus

27. 2- Thyroid Stimulating Immunoglobulin (TSI)
- It is an immunoglobulin produced by B-lymphocytes of patients with Grave’s disease. So, Grave’s disease is an autoimmune disease.
- It was called “long acting thyroid stimulator” (LATS).
- Its action is similar to TSH BUT:
i – it has more prolonged action (12 hours).
ii – it is not inhibited by negative feedback of T3 & T4.
iii – It can cross the placenta & stimulates fetal thyroid.

28. 3 – Iodine supply (blood iodine level):
- Normal daily requirement is μg in adults (1 mg per week). It is increased during stress as growth & pregnancy.
Sources: sea foods (fish, cod liver oil).
Deficient in areas away from the sea as oasis. It is compensated by providing iodinated table salt which was adopted by many health programs.
- Plasma iodine:
* inorganic iodide = 0.3 μg %
* Organic iodide = 4-8 μg % (protein bound iodine = PBI)

29. Iodine Deficiency Mild Sever prolonged ↓ iodide supply to the gland
↓ synthesis of T3 & T4
↓ ↓ synthesis of T3 & T4
↑ pituitary TSH secretion
↑ ↑ pituitary TSH secretion
Physiological Goiter
Which compensate for thyroid deficiency
(Euthyroidism)
Colloid Goiter
Which can not compensate for thyroid deficiency
(hypothyroidism)

30. This is called “Wolf-Chaikoff Effect”
Excess Iodine
Moderate
Marked
Mild transient inhibition of thyroid synthesis in normal individuals
Has no effect since the excess iodine is stored in the gland as iodide pool
- Inhibit organic binding of iodine.
- inhibit TSH effect by ↓ cAMP.
- inhibit proteolysis of thyroglobulin.
This is called “Wolf-Chaikoff Effect”

31. Significance of Wolf-Chaikoff Effect:
- Patients tending to be subjected to thyroidectomy operation takes high doses of KI for 2 weeks before the operation.
- This will decrease the size & vascularity of the gland making the gland more operable during the surgery & decrease the surgical operation.
- Since the effect is transient, more periods of high iodine intake is useless & the gland starts to increase in size again.

32. 4- Antithyroid drugs (Goitrogens):
Definition: These are substances which interfere with one or more steps of thyroid hormone synthesis.
Effect: ↓ T3 & T4 secretion > ↑ TSH secretion > goiter.
They include:
a) Thiocyanate & percholrate.
b) Thiouracil drugs.
c) Large doses of iodide.
d) Naturally occurring goitrogens:
As cabbage, cauliflower, and turnips. Contains progoitrogens which are activated in the intestine.

33. 5- Age:
Thyroid functions tends to decrease with advancing age.
6- Pregnancy.
Thyroid functions increases with pregnancy due to hCG which has TSH-like activity
7- Stress as cold weather.

34. Disorders of the Thyroid Gland
Hypofunction (hypothyroidism)
Hyperfunction (hyperthyroidism)
Cretinism
Myxoedema
