1. GPU Functional Simulator Yi Yang yangyi@eecs.ucf.edu CDA 6938 term project Orlando April. 20, 2008

2. University of Central Florida Outline Motivation and background Software design Implementation Test cases Future work

3. University of Central Florida Motivation and background Motivation  Better understanding of GPU  Improving the GPU architecture. Background  Two GPU manufacturers: Nvidia and ATI  Similar programming mode: block vs group share memory vs lds  ATI uses vliw  We want to work on both.

4. University of Central Florida Software design Programming Model Layer  Platform independent  Define abstract part, most of ISA: ISA, Register  Implement similar most of resource: group, wavefront, … Hardware Implementation Layer  Implement the abstract part of PML for different platform ATI NVIDIA

5. University of Central Florida Programming Model Layer Code parser to get instruction list Allocate resource by the configuration file: group, thread, share memory, memory, wavefront schedule. Load input stream from txt file. Wavefront schedule executes instruction list on the wavefronts When instruction is executed on one thread, instruction update the resource: register of thread, share memory of group, texture(global) memory of gpuprogram. Save the output memory to txt file

6. University of Central Florida Code Parser(HIL) read the assembly and parse it into instructions INST LABEL NO: unique # of instruction Stream core label: one of x, y, z, w, t INST: Operand

7. University of Central Florida Operand(HIL) Global Purpose Register: 0 y: ADD ____, R0.x, -0.5 Previous Vector(x, y, z, w) and Previous Scalar (t) 3 t: F_TO_I ____, R0.x 4 t: MULLO_UINT R1.z, 1, PS3 Temporary Register 3 t: RCP_UINT T0.x, R1.x Constant Register 1 z: AND_INT ____, R0.x, (0x0000003F, 8.828180325e-44f).x

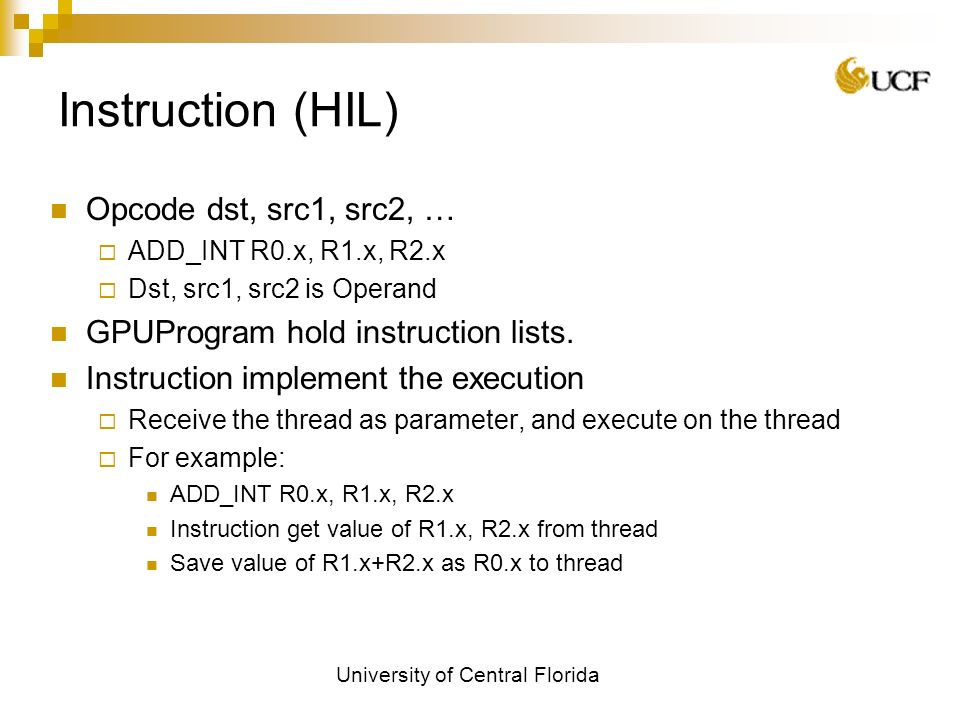

8. University of Central Florida Instruction (HIL) Opcode dst, src1, src2, …  ADD_INT R0.x, R1.x, R2.x  Dst, src1, src2 is Operand GPUProgram hold instruction lists. Instruction implement the execution  Receive the thread as parameter, and execute on the thread  For example: ADD_INT R0.x, R1.x, R2.x Instruction get value of R1.x, R2.x from thread Save value of R1.x+R2.x as R0.x to thread

9. University of Central Florida Memory Handle (HIL) Texture Memory  0 SAMPLE R1, R0.xyxx, t0, s0 UNNORM(XYZW)  EXP_DONE: PIX0, R0  Cache support (future work) Global Memory  6 RD_SCATTER R3, DWORD_PTR[0+R2.x], ELEM_SIZE(3) UNCACHED BURST_CNT(0)  03 MEM_EXPORT_WRITE_IND: DWORD_PTR[0+R1.x].x___, R0, ELEM_SIZE(3)  Coalesced support: First thread handle (future work) Use the text file as input and output.

10. University of Central Florida Thread(PML) Belong Group Hold Data Unit(HIL)  128 bit (x, y, z, w) + 32 bit ( t )  Most of resource is 4 component: register  One thread processor is five-way, and have 5 output (x,y,z,w,t) Hold mapping table of Register (GPR, CR, TR) to Data Unit

11. University of Central Florida Wavefront(PML) Hold Program counter Hold the thread id list Belong to Group

12. University of Central Florida Group(PML) Hold threads Hold wavefront Belong to GPUProgram Hold Share memory(PML)  Instruction access the share memory through Group  Instruction (HIL) 12 LOCAL_DS_WRITE (8) R0, STRIDE(16) SIMD_REL 17 LOCAL_DS_READ R2, R2.xy WATERFALL

13. University of Central Florida Wavefront Schedule(PML) Current version (function simulator)  Pick up one instruction, let all wavefronts execute this operation. for time simulator  Decided by the hardware capacity and software request  Decided by the static instruction list  Decided by execution result

14. University of Central Florida GPUProgram(PML) Code parser parses instruction list Load input stream from txt file to memory. Allocate resource by the configuration file: group, thread, share memory, memory, wavefront schedule. Wavefront schedule executes instruction list on the wavefronts  When instruction is executed on one thread, instruction update the resources: register of thread, share memory of group, texture(global) memory of gpuprogram. Save the output memory to txt file

15. University of Central Florida Test case Sum, division, subtract, multiplication  Support texture memory  Support different data types (int, float, uint, int1, int4…)  Support fundamental ALU operations (+-*/, shift, and, compare, cast) domain_sum  Support global memory read and write Sum_share_memory  support share memory read and write  Support group, wavefront Branch and Loop: to be done  Support constant buffer  Loop operation

16. University of Central Florida Future work Now support 30 of 200 instructions for ATI Support Nvidia, optimize two layers design Timing simulator
