1.Stars move from east to west over the course of the night 2.Change slightly from one night to the next 3.However, their relative positions remain.

Similar presentations


Presentation on theme: "1.Stars move from east to west over the course of the night 2.Change slightly from one night to the next 3.However, their relative positions remain."— Presentation transcript:

1

2

3 1.Stars move from east to west over the course of the night 2.Change slightly from one night to the next 3.However, their relative positions remain unchanged (relative to each other)

4

5

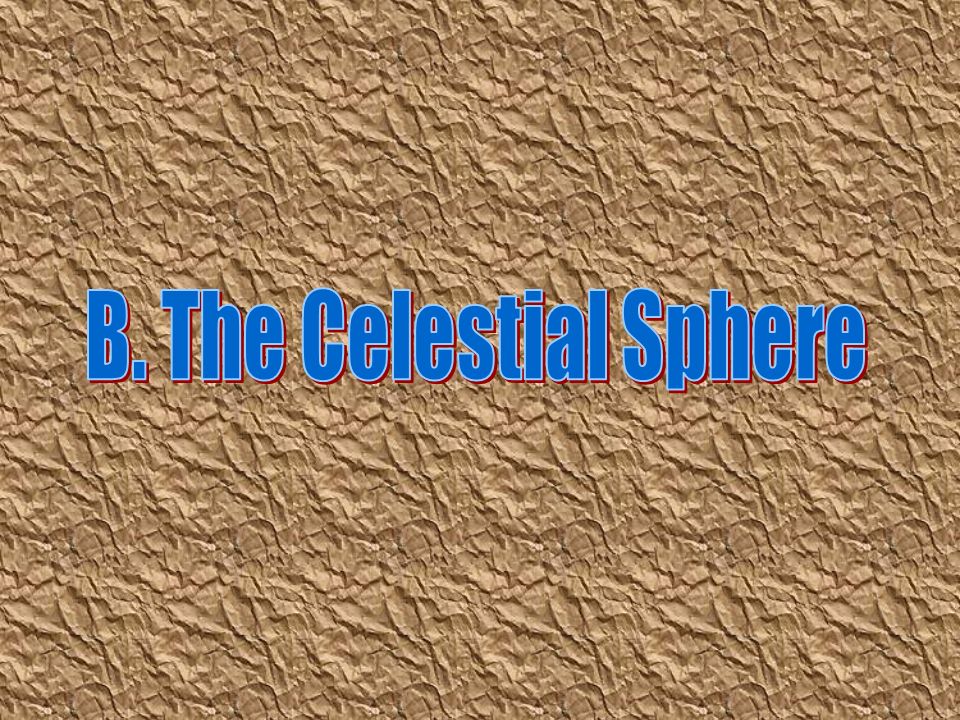

6 1.An imaginary sphere surrounding the earth (infinite distance) 2.Uses earth’s system of coordinates and landmarks a.North Pole b.South Pole c.Equator

7 Meridians Meridians: ½-circles running from pole to pole Meridians measure longitude on earth Prime Meridian: 0 point

8 Parallels Parallels: full circles parallel to the equator Parallels measure latitude on earth Latitude and longitude are measured as angles Degrees  Minutes  Seconds

9

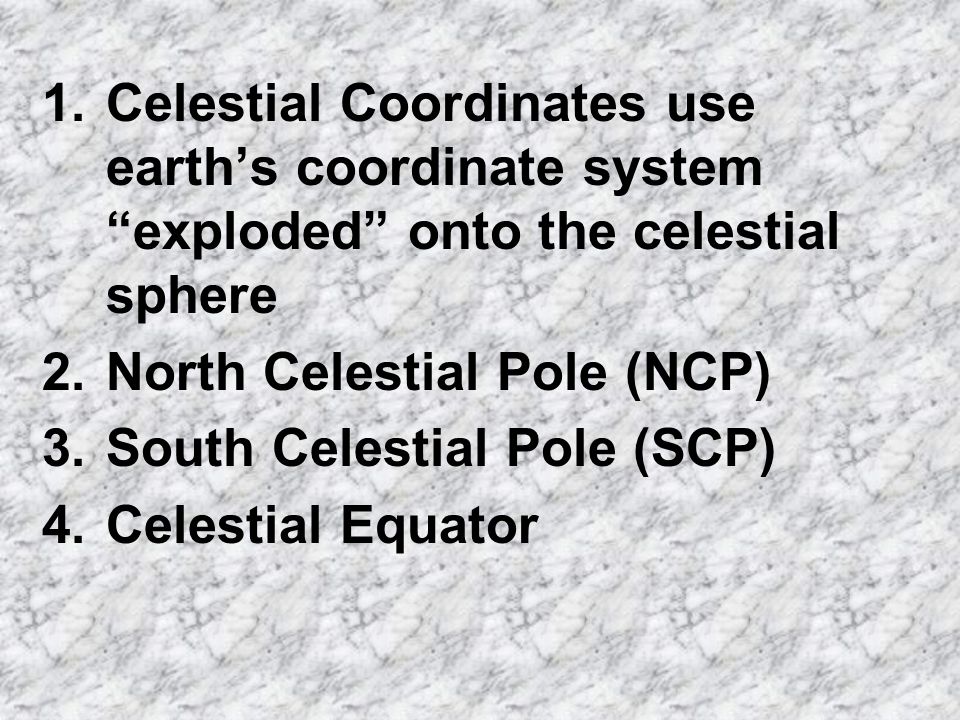

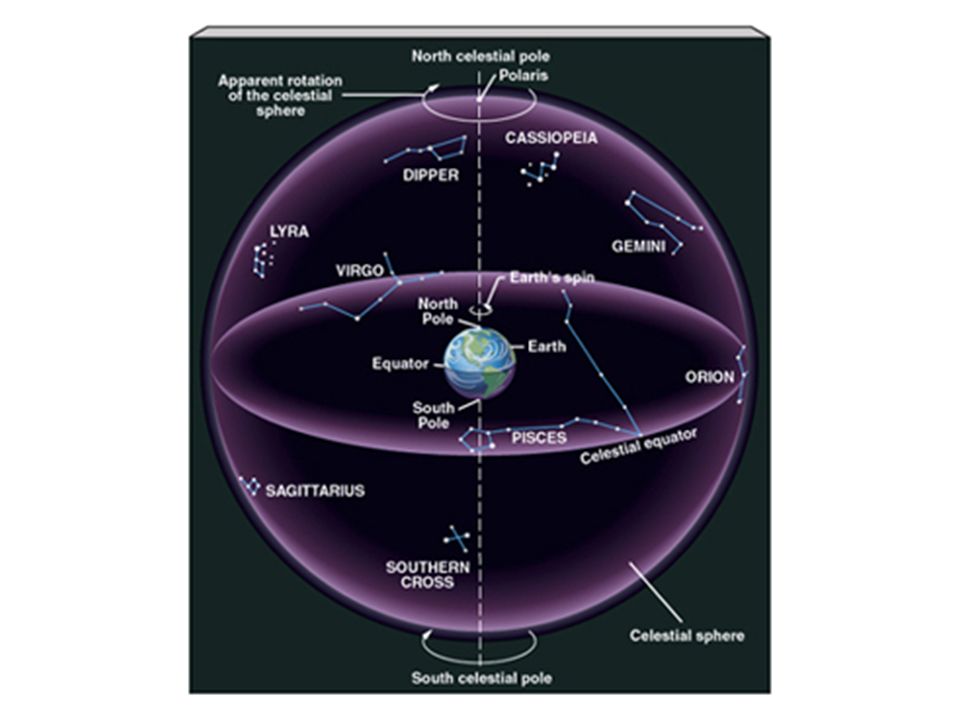

10 1.Celestial Coordinates use earth’s coordinate system “exploded” onto the celestial sphere 2.North Celestial Pole (NCP) 3.South Celestial Pole (SCP) 4.Celestial Equator

11

12 5. Parallels are measured as declination a. + or - 90° from the C.E. (0º) 6. Meridians are measured as Right Ascension a. Measured in hours, minutes, seconds

13

14

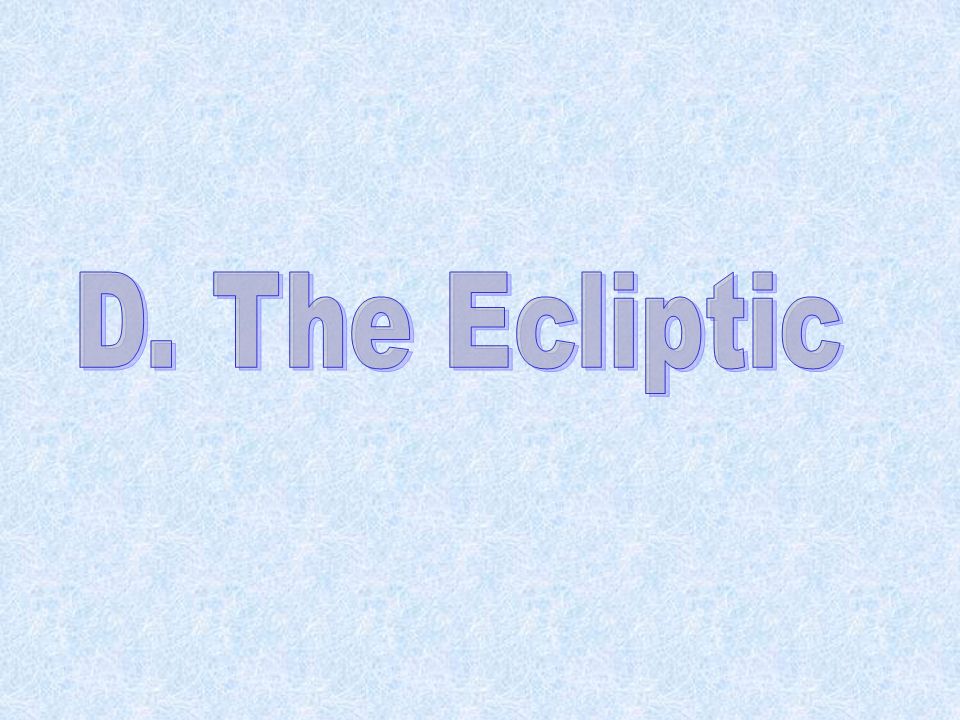

15 1.Annual “path” of the Sun in the sky 2.Tilted 23½° with respect to the celestial equator 3.Vernal Equinox 4.Autumnal Equinox 5.Summer Solstice 6.Winter Solstice

16 Constellations The sky is divided into 88 regions; the constellations Based on early Greek systems, names Constellations of the Zodiac: lie along the ecliptic; sun passes “through” them

17

18

19
