1. Paulo Moreira On behalf of the GBT collaboration 2015 – 02 – 23
The LpGBT Project
Paulo Moreira
On behalf of the GBT collaboration
2015 – 02 – 23

2. Outline GBT Project News LpGBT & VL+ Link Architecture
The Low power GBTX (LpGBTX)
Achieving low lower operation
Link bandwidth
Downlink
Uplink – FEC 5
Uplink – FEC 12
Slow control functionality
LpGBT project developments
GBLD10
LpGBLD
LpGBTX

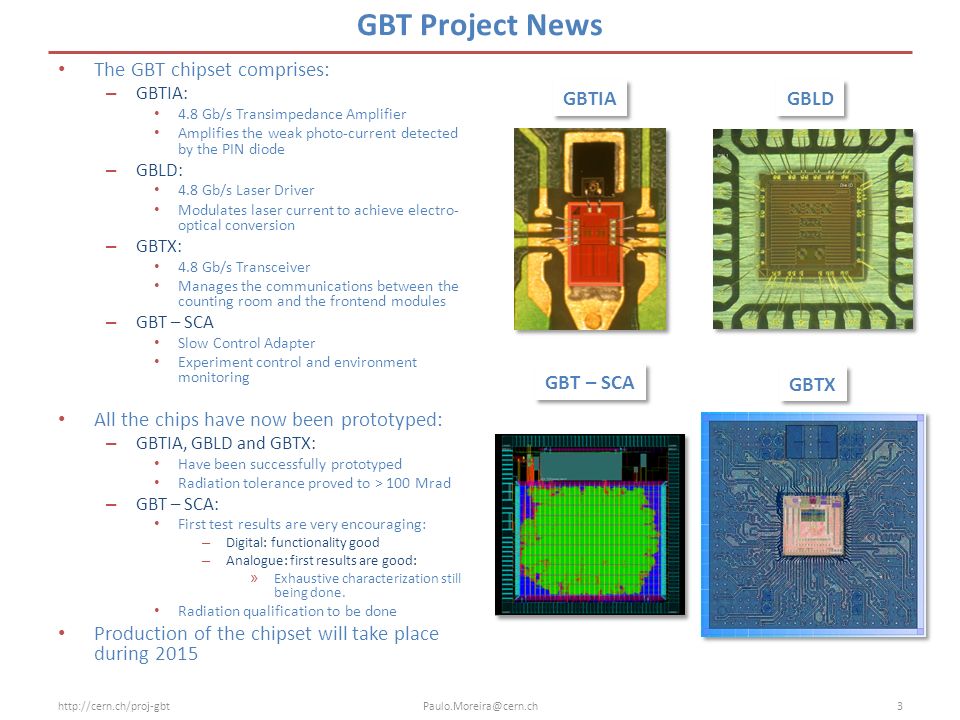

3. GBT Project News The GBT chipset comprises:
GBTIA:
4.8 Gb/s Transimpedance Amplifier
Amplifies the weak photo-current detected by the PIN diode
GBLD:
4.8 Gb/s Laser Driver
Modulates laser current to achieve electro-optical conversion
GBTX:
4.8 Gb/s Transceiver
Manages the communications between the counting room and the frontend modules
GBT – SCA
Slow Control Adapter
Experiment control and environment monitoring
All the chips have now been prototyped:
GBTIA, GBLD and GBTX:
Have been successfully prototyped
Radiation tolerance proved to > 100 Mrad
GBT – SCA:
First test results are very encouraging:
Digital: functionality good
Analogue: first results are good:
Exhaustive characterization still being done.
Radiation qualification to be done
Production of the chipset will take place during 2015
GBTIA
GBLD
GBT – SCA
GBTX

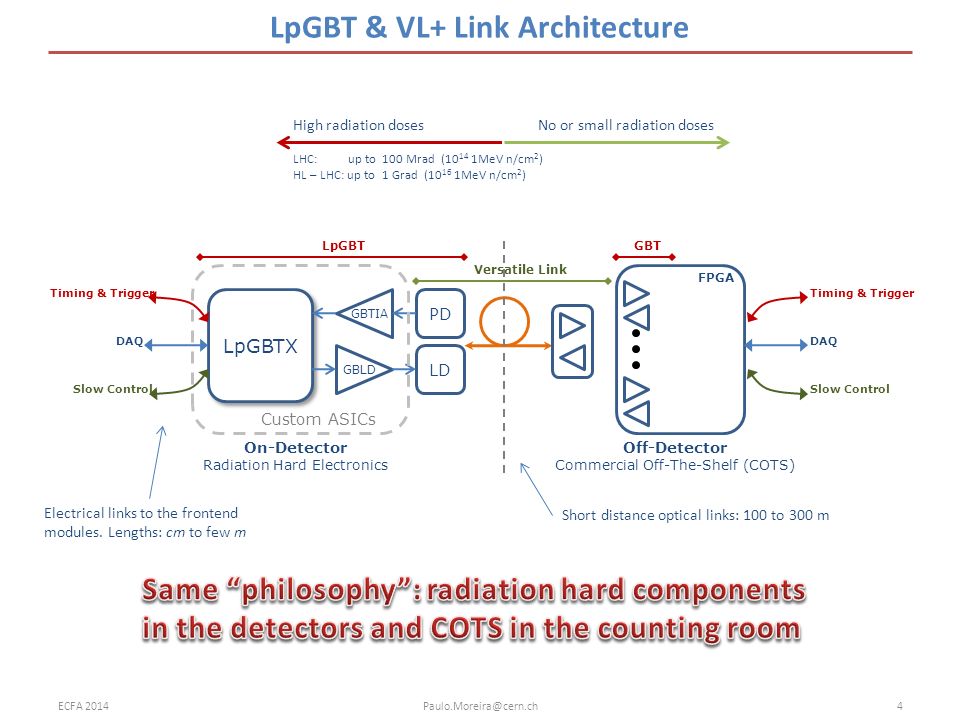

4. LpGBT & VL+ Link Architecture
High radiation doses
No or small radiation doses
LHC: up to 100 Mrad (1014 1MeV n/cm2) HL – LHC: up to 1 Grad (1016 1MeV n/cm2)
On-Detector
Radiation Hard Electronics
Off-Detector
Commercial Off-The-Shelf (COTS)
LpGBTX
GBTIA
GBLD PD LD
Custom ASICs
Timing & Trigger
DAQ
Slow Control
FPGA
LpGBT
GBT
Versatile Link
Electrical links to the frontend modules. Lengths: cm to few m
Short distance optical links: 100 to 300 m
Same “philosophy”: radiation hard components in the detectors and COTS in the counting room
ECFA 2014

5. The Low Power GBTX (LpGBTX)
Low Power Dissipation and Small Footprint:
Target: 500 mW
(GBTX: 2W)
Critical for pixel detectors
Critical for tracker/triggering detectors
Bandwidth:
Low-Power mode
2.56 Gb/s for the optical down link
5.12 Gb/s for the optical up link
High-Speed mode:
10.24 Gb/s for the optical up link
e-Links:
Down-links:
80, 160 and 320 Mb/s
Up-Links, Low-Power Mode:
160, 320 and 640 Mb/s
Up-Links, High-Speed Mode:
320, 640 and 1280 Mb/s
Functionality:
“Replica” of the GBTX
Reduced subset of the GBT Slow Control Adapter (GBT – SCA) functionality will be included
ECFA 2014

6. Achieving Low Power Operation
Technology
130 nm → 65 nm
Vdd: 1.5 V → 1.2 V
Architecture
Serializer / CDR circuits “merged”
Rationalization of the clock frequencies:
Single PLL will be used to generate all the clock frequencies needed
PLL shared by all the functional blocks
Binary counter generates all the required frequencies:
5.12 GHz down to 80 MHz (all with 50% duty cycle)
Transmit and receive frequencies are binary multiples of 40 MHz:
Down-link frame: 64 – bits (× 40 MHz)
Up-link frame: 128 or 256 – bits (× 40 MHz)
FPGA vendors documentation supports the use of these frame sizes:
Examples are:
Xilinx: Family 7
Altera: Family V and 10
Achronix: Speedster22iHD
Successful LAB demo made with XILINX Virtex7

7. Preliminary Downlink Single data rate: Frame: Error correction:
2.56 Gb/s
Frame:
Data field:
32 – bit
1.28 Gb/s
EC field:
2 – bit
80 Mb/s
IC field:
FEC field:
24 – bit
Error correction:
FEC:
Interleaving: 4
Symbol width: 3 – bit
Number of wrong symbols: 1 ( × 4)
Up to 12 consecutive bits
Efficiency: 56%
eLinks:
Data
16 80 Mb/s
8 160 Mb/s
4 320 Mb/s EC
1 80 Mb/s
Option 37
Frame (bits) 64
Header (bits) 4
Coded header
Yes
User field (bits) 36
Code (bits) 24
8-bit multiplicity
4.5
User Bandwidth (GHz)
1.44
# eLinks groups (8 bit)
eLinks bandwidth (MHz)
80/160/320
#eLinks
16/8/4
EC bandwidth (MHz) 80
IC bandwidth (MHz)
Corrected (bits) 12
Efficiency
56%
Preliminary
LpGBTX Block Diagrams

8. Uplink – FEC 5 (Target: Bandwidth)
Dual data rate:
5.12 Gb/s
10.24 Gb/s
Frame:
Data field:
112 / 224 – bit
4.48 / 8.96 Gb/s
EC field:
0 / 2 – bit
0 / 80 Mb/s
IC field:
2 / 2 – bit
80 / 80 Mb/s
FEC field:
10 / 20 – bit
Error correction:
FEC:
Interleaving: 1 / 2
Symbol width: 5 – bit
Number of wrong symbols: 1 ( × 1 / × 2)
Up to 5 / 10 consecutive bits
Efficiency: 89%
eLinks:
Data
/ Mb/s
/ Mb/s
7 640 / 1280 Mb/s EC
1 eLink @ 80 / 160 Mb/s
Bit rate
5.12 Gb/s
10.24 Gb/s
Option 7
Frame (bits)
128
2 x 128
Header (bits) 4
Coded header
Yes
User field (bits)
114
228
Code (bits) 10 20
16-bit multiplicity
7.125
14.25
User Bandwidth (GHz)
4.56
9.13
# eLinks groups (16 bit)
eLinks bandwidth (MHz)
160/320/640
320/640/1280
#eLinks
28/14/7
EC bandwidth (MHz) 80
IC bandwidth (MHz)
Corrected (bits) 5
2 x 5
Efficiency
89%
Preliminary
LpGBTX Block Diagrams

9. Uplink – FEC 12 (Target: SEU Tolerance)
Dual data rate:
5.12 Gb/s
10.24 Gb/s
Frame:
Data field:
96 / 192 – bit
3.84 / Gb/s
EC field:
2 / 4 – bit
80 / 160 Mb/s
IC field:
2 / 2 – bit
80 / 80 Mb/s
FEC field:
24 / 48 – bit
Error correction:
FEC:
Interleaving: 3 / 6
Symbol width: 4 – bit
Number of wrong symbols: 1 ( × 3 / × 6)
Up to 12 / 24 consecutive bits
Efficiency: 78%
eLinks:
Data
/ Mb/s
/ Mb/s
6 640 / 1280 Mb/s EC
1 eLink @ 80 / 160 Mb/s
Bit rate
5.12 Gb/s
10.24 Gb/s
Option 28
Frame (bits)
128
2 x 128
Header (bits) 4
Coded header
Yes
User field (bits)
100
200
Code (bits) 24 48
16-bit multiplicity
6.25
12.5
User Bandwidth (GHz) 8
# eLinks groups (16 bit) 6
eLinks bandwidth (MHz)
160/320/640
320/640/1280
#eLinks
24/12/6
EC bandwidth (MHz) 80
80/160
IC bandwidth (MHz)
Corrected (bits) 12
2 x 12
Efficiency
78%
Preliminary
LpGBTX Block Diagrams

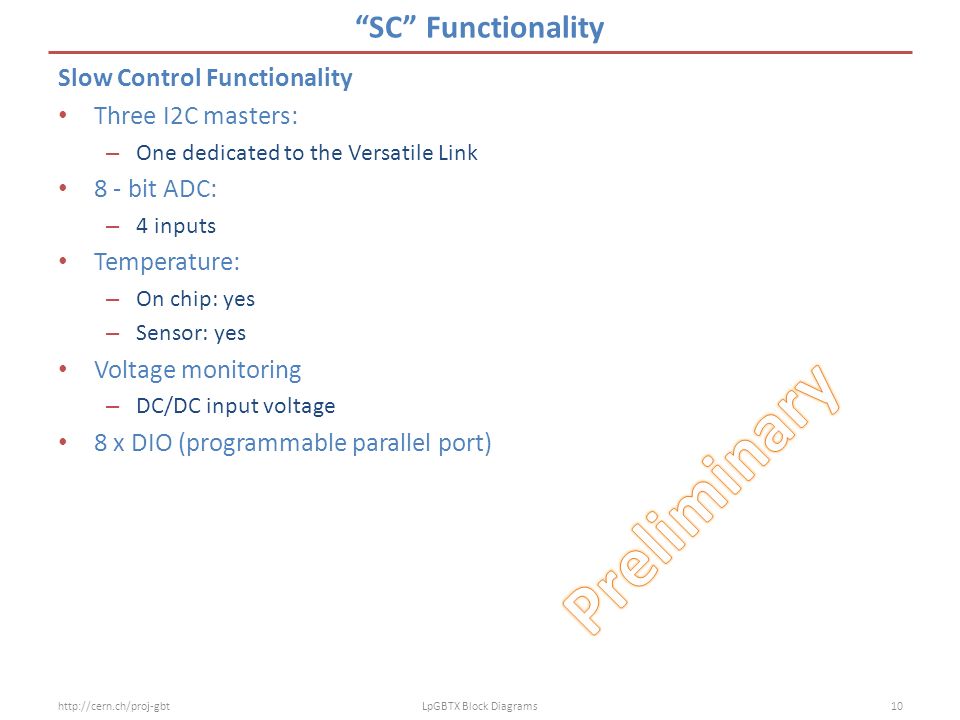

10. Preliminary “SC” Functionality Slow Control Functionality
Three I2C masters:
One dedicated to the Versatile Link
8 - bit ADC:
4 inputs
Temperature:
On chip: yes
Sensor: yes
Voltage monitoring
DC/DC input voltage
8 x DIO (programmable parallel port)
Preliminary
LpGBTX Block Diagrams

11. LpGBT development: GBLD10
Prototype:
A low-power 10 Gb/s laser driver was prototyped in 130 nm CMOS
Main Features:
VCSEL driver
Minimum bit rate : 10 Gb/s
Programable pre-emphasis
Modulation current: 0 – 12 mA
Distributed amplifier structure
QFN package, and ESD protection
Area: 2mm x 2mm (same as GLBD)
Measurement results:
Data rate: > 10 Gb/s
Power dissipation: 86 mW (typical settings)
Jitter: < 20 ps
Input Return Loss:
< -14 dB (0 – 5 GHz)
< -3 dB (10 GHz – 20 GHz)
Radiation hardness proved up to 200 Mrad
Electrical Eye 10 Gb/s
See: Zhang et all, TWEPP 2014
ECFA 2014

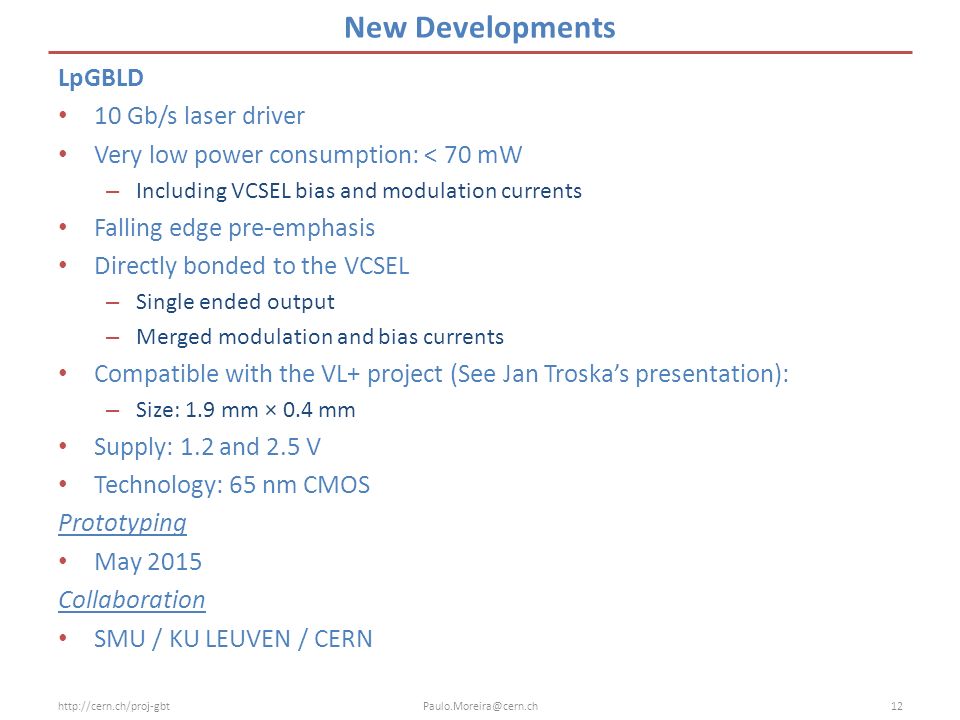

12. New Developments LpGBLD 10 Gb/s laser driver
Very low power consumption: < 70 mW
Including VCSEL bias and modulation currents
Falling edge pre-emphasis
Directly bonded to the VCSEL
Single ended output
Merged modulation and bias currents
Compatible with the VL+ project (See Jan Troska’s presentation):
Size: 1.9 mm × 0.4 mm
Supply: 1.2 and 2.5 V
Technology: 65 nm CMOS
Prototyping
May 2015
Collaboration
SMU / KU LEUVEN / CERN

13. New Developments LpGBTX Specification work undergoing
Will be released for discussion and approval with the experiments
Architecture definition
Phase-aligners definition and detailed design
Schedule
March/April 2015:
Approval of the specifications
January 2016:
Package design
June 2016:
Fabrication of the test systems
December 2016:
Prototyping of the full chip
April 2017:
Packaging
July 2017
Prototype testing
December 2017
TID and SEU testing
April 2018
Engineering run
Preparation of the production tests
Collaboration
CERN / SMU / KU LEUVEN

14. Backup Slides on the GBT Project

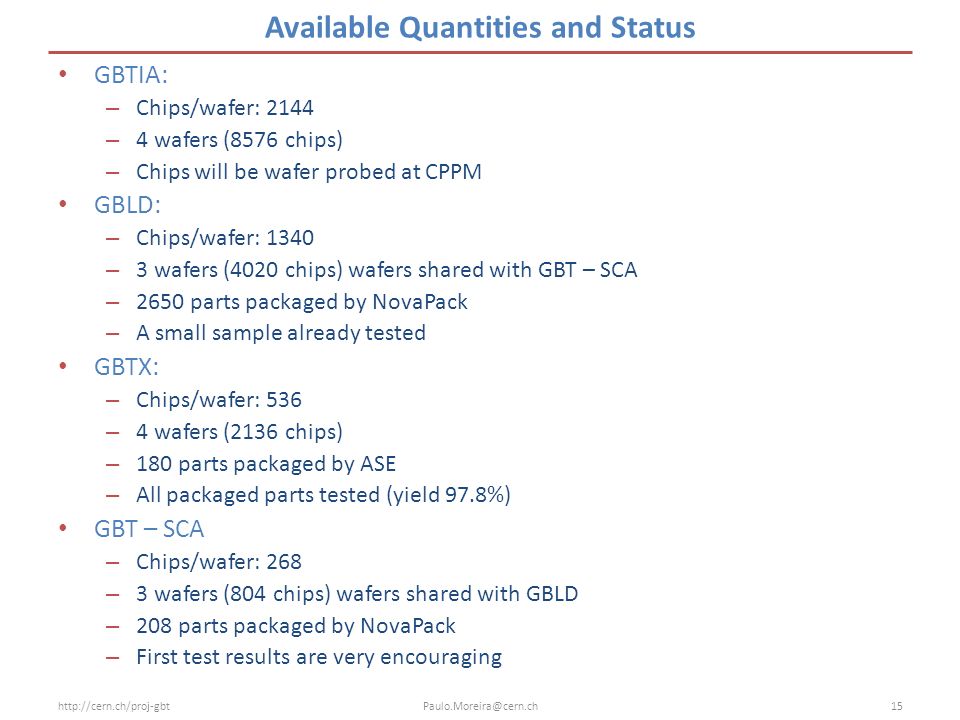

15. Available Quantities and Status
GBTIA:
Chips/wafer: 2144
4 wafers (8576 chips)
Chips will be wafer probed at CPPM
GBLD:
Chips/wafer: 1340
3 wafers (4020 chips) wafers shared with GBT – SCA
2650 parts packaged by NovaPack
A small sample already tested
GBTX:
Chips/wafer: 536
4 wafers (2136 chips)
180 parts packaged by ASE
All packaged parts tested (yield 97.8%)
GBT – SCA
Chips/wafer: 268
3 wafers (804 chips) wafers shared with GBLD
208 parts packaged by NovaPack
First test results are very encouraging

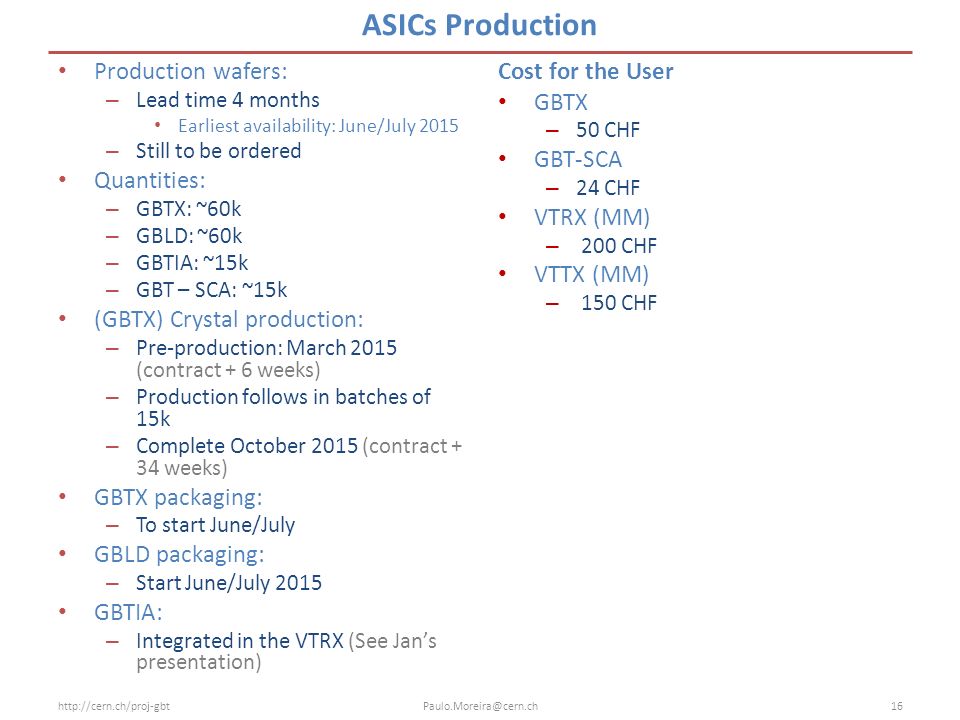

16. ASICs Production Production wafers: Quantities:
Lead time 4 months
Earliest availability: June/July 2015
Still to be ordered
Quantities:
GBTX: ~60k
GBLD: ~60k
GBTIA: ~15k
GBT – SCA: ~15k
(GBTX) Crystal production:
Pre-production: March 2015 (contract + 6 weeks)
Production follows in batches of 15k
Complete October 2015 (contract + 34 weeks)
GBTX packaging:
To start June/July
GBLD packaging:
Start June/July 2015
GBTIA:
Integrated in the VTRX (See Jan’s presentation)
Cost for the User
GBTX
50 CHF
GBT-SCA
24 CHF
VTRX (MM)
200 CHF
VTTX (MM)
150 CHF

17. GBT Chipset & VL Components Quantities (6 Feb. 2015)
TOSA
ROSA
Latch
VTRx
VTTx
GBTX
GBT-SCA
GBLD
GBTIA
User SM MM
LHCb
16000
2000
9000
7000
14000
6000
CMS HCAL
200
5690
270
2980
2710
1300
5890
470
CMS GEM
2930
ATLAS SmallWh
3500
1200
2350
1150
2300
ATLAS SmallWh option
ATLAS LArg
600
ATLAS LArg Option
3000
ALICE
10000
3600
6800
3200
5000
BE-BI-BL
500
BE-BI-QP
BE-CO-FE
6700
2500
4600
2100
220
Total
45420
13100
29330
13320
16160
38550
13500
52620
14300
Option
7200
Total with option
51420
32330
19160
45750
58620

18. Backup Slides on the LpGBT

19. Error Cross Section and Data Rate

20. DEC & ePortTx DSCR SerDes Phase Shifter Control SCA SCR ePortRx ENC
5.12 / Gb/s
2.56 Gb/s
refClk40MHz
cdrOut [63:0]
serIn [255:0]
DEC
&
DSCR
rxData[31:0]
SCR
ENC
rxEc[1:0]
ePortTx
eLinkOut[15:0]
ecOut
ePortRx
eLinkIn[27:0]
ecIn
40/…/1280 MHz
40 MHz
SCA
(Reduced set)
txData[159:0]
txEc[3:0]
Phase Shifter
eClock[27:0]
LpGBTX
Control
SerDes
40 / 80 / 160 / 320 / 640 /1280 MHz
rxIc[1:0]
txIc[1:0]
40/…/320 MHz
cnt[x:0]
psClk[3:0]
I2C (x3)
adcIn[3:0]
pio[7:0]
analog
data
control
clock
LpGBTX Block Diagrams
