1. Digital System Design using VHDL
ECOM 4311
Digital System Design using VHDL
Chapter 10
Finite State Machines

2. F INITE STATE MACHINES
(FSM) is a digital system whose outputs are a function of both its present input values and its past history of input values.
Information characterizing the effect of a FSM’s past history of input values is provided by its state (present state ).
Physically, a FSM’s state is represented by the value stored in a register called the state register.

3. Logic Diagram

4. Fully Synchronous FSM

5. Present State
The present state is stored as a binary value in the state register.
The number of memory elements in the state register is finite. If the state register has n memory elements, the maximum number of unique states the FSM can have is 2n. This number is also finite, hence the name finite state machine.

6. Next State
The combinational logic also computes the next state value from the FSM’s inputs and present state. This value is provided to the inputs of the state register.
At each triggering clock edge, the next state value is clocked into the state register and becomes the new present state value.

7. Outputs
A FSM’s outputs are computed by combinational logic that receives two sets of inputs. One set is the external inputs to the FSM. The other set is the FSM’s present state.
FSMs can be classified as either Mealy or Moore. These two kinds of FSMs differ in how their outputs are computed.

9. Mealy FSMs
Mealy FSM’s outputs are a function of both its inputs and its present state. Because of this, the outputs of a Mealy FSM can change as soon as any of its inputs change.
However, its state still cannot change until a triggering clock edge.

10. Moore FSMs
A Moore FSM’s outputs are a function of only its present state.
since a Moore FSM’s outputs are a function of only its present state, they can change only at a triggering clock edge.
In general, any sequential function can be implemented by either a Mealy FSM or a Moore FSM.
However, while a Moore FSM is often conceptually simpler, it usually requires more states than a Mealy FSM to implement the same function.
A FSM does not have to be exclusively Mealy or Moore. It can be a combination of both, having some outputs (Mealy outputs) and other outputs (Moore outputs).

12. FSM STATE DIAGRAMS
A state diagram provides an abstract graphical representation of the operation of FSM.
It allows the conceptualization of the FSM’s operation to be separated from its implementation.
Each individual state of the FSM is represented by a state circle, with the state’s name or its encoding located inside.
Directed arcs show the possible transitions from one state to another and under what input conditions each transition will occur.

13. FSM STATE DIAGRAMS
A state diagram must have a reset state

14. FSM STATE DIAGRAMS
For a state diagram to be completely specified, for every state the output and next state transition must be shown for all possible input combinations.
In some FSMs a transition from one particular state to another may be unconditional. The directed arc for such a transition will not be labeled with an input value.

15. State Table
The same information presented in a state diagram can be presented in a state table

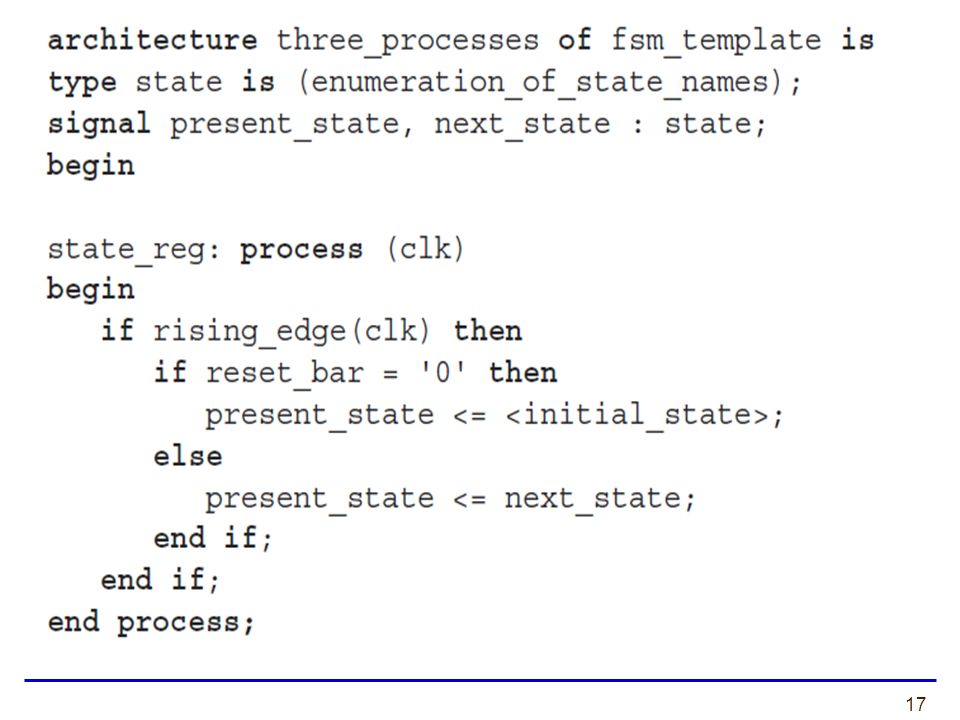

16. THREE-PROCESS FSM VHDL TEMPLATE
Once a FSM’s state diagram has been created, its VHDL code can be written. There are many ways a FSM can be described in VHDL.
One straightforward way is to code each block in Figure as a separate process. The result is a description consisting of three processes:
One describes the state register.
The other two describe the output combinational logic and the next state combinational logic.

20. Two- and One- Process FSM Templates
The three-process FSM template has the advantage that it is a one-to-one conceptual mapping to the FSM block diagram in Figure
It also has the advantage, from the coding perspective, that it is very readable and easy to modify and maintain.
However, it is certainly not the only template that we can use for an FSM.

21. Two- Process FSM Templates
One common variation is to use two processes and a set of conditional signal assignment statements.
In this approach, the state register and next state logic are implemented using processes as before.
The output logic is implemented by the set of conditional signal assignment statements using one statement for each output. .

22. One- Process FSM Templates
Another FSM template variation uses one process to describe both the state register and next state logic, and uses conditional signal assignment statements for the output logic.
Regardless of the approach used, if the same FSM is described, the resulting synthesized logic is the same.

23. Positive Edge Detector State Diagram

24. Positive Edge Detector State Diagram
The purpose of the positive edge detector is to detect a 0 to 1 transition on input a. There are two conditions that must be met to detect a 0 to 1 transition on a.
First, a must be 0 at a triggering clock edge.
Second, a must be 1 at the next triggering clock edge.

25. Positive Edge Detector State Diagram
First we need a state for the FSM to be placed in when it is reset by asserting clr_bar. This state was abstractly named state_a.
in state_a, if a is 1 at the next triggering clock edge, nothing of interest has occurred and the FSM transitions back to state_a.
However, if a is 0 at the next triggering clock edge, we have met the first condition. The FSM must denote this event by transitioning to a new state. We can name this state state_b.

26. Positive Edge Detector State Diagram
In state_b, if a is 0 at the next triggering clock edge, nothing of significance has occurred while in this state, so the transition is back to state_b.
However, if a is a 1 at the next triggering clock edge, the FSM has detected a positive edge.
This event is denoted by transitioning to a new state, state_c. In state_c, output a_pe is 1.

27. Positive Edge Detector State Diagram
Since the output is to be 1 for only one clock period after a positive edge on a has been detected, we must transition out of state_c at the next triggering clock edge, regardless of the value of a.
If a is 0 at the next triggering clock edge, we have met the first condition for a new positive edge on a, so the transition is to state_b.
If instead, a is 1 at the next triggering clock edge, we must wait for it to become 0 before we can detect the next positive edge, so the transition is to state_a.

28. Positive Edge Detector VHDL description
From the state diagram, a description of the edge detector can be written. This description, which follows the template in Listing , is given in Listing

33. Mealy FSM Edge Detector

38. COUNTERS AS MOORE FSMS
A simple counter is a special case of a Moore FSM where there are no inputs (other than the clock and reset) and the outputs are taken directly from the state register.

39. 2-bit Binary Counter FSM

40. Counter with state encoding defined by constants

43. Finally…. ?
Any Questions
