1. GroundMed Data Management System & On-Line Presentation of Monitoring Data Benedikt 23-02-2012 Andre Quintino Duarte

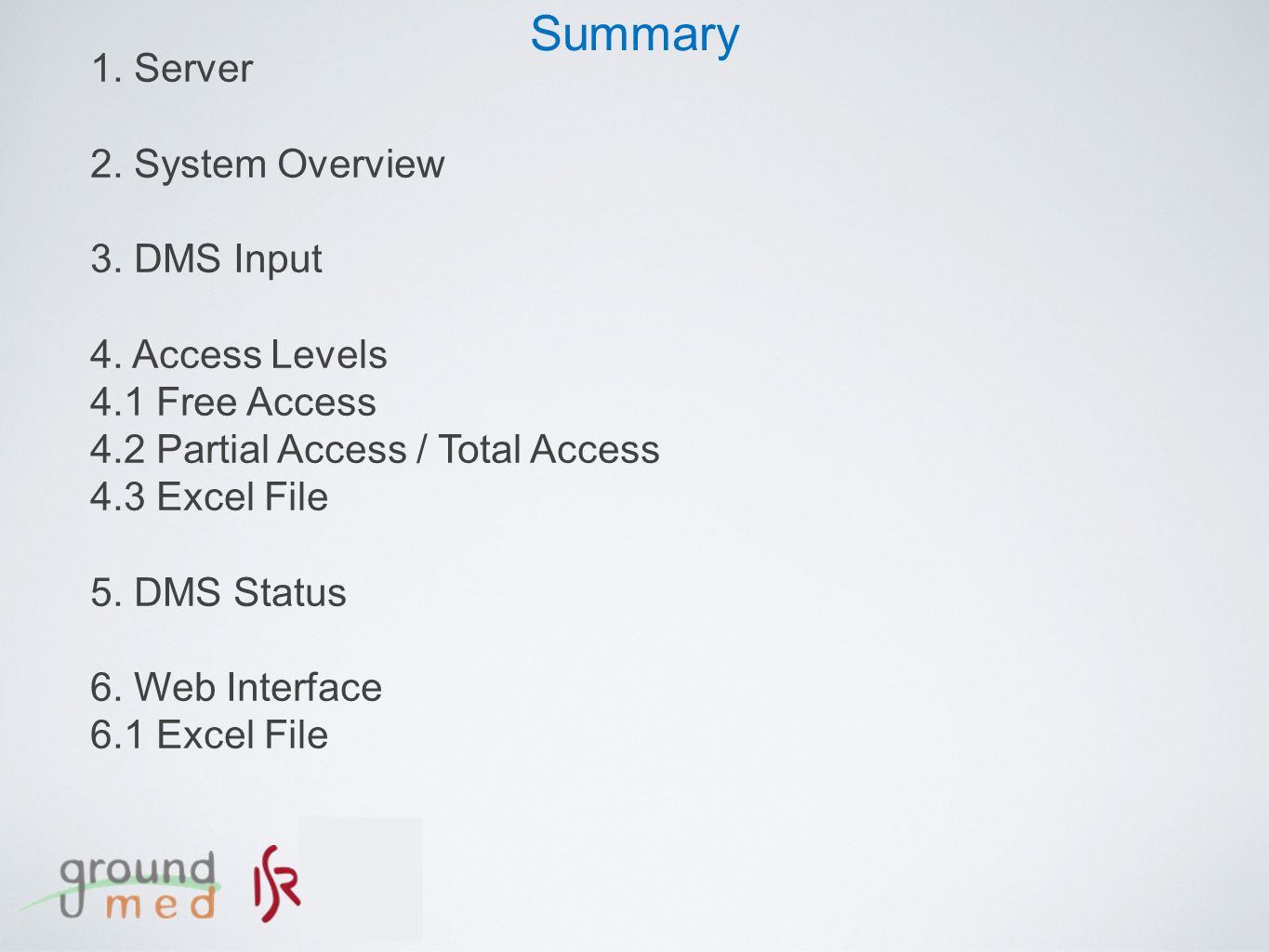

2. Summary 1. Server 2. System Overview 3. DMS Input 4. Access Levels 4.1 Free Access 4.2 Partial Access / Total Access 4.3 Excel File 5. DMS Status 6. Web Interface 6.1 Excel File

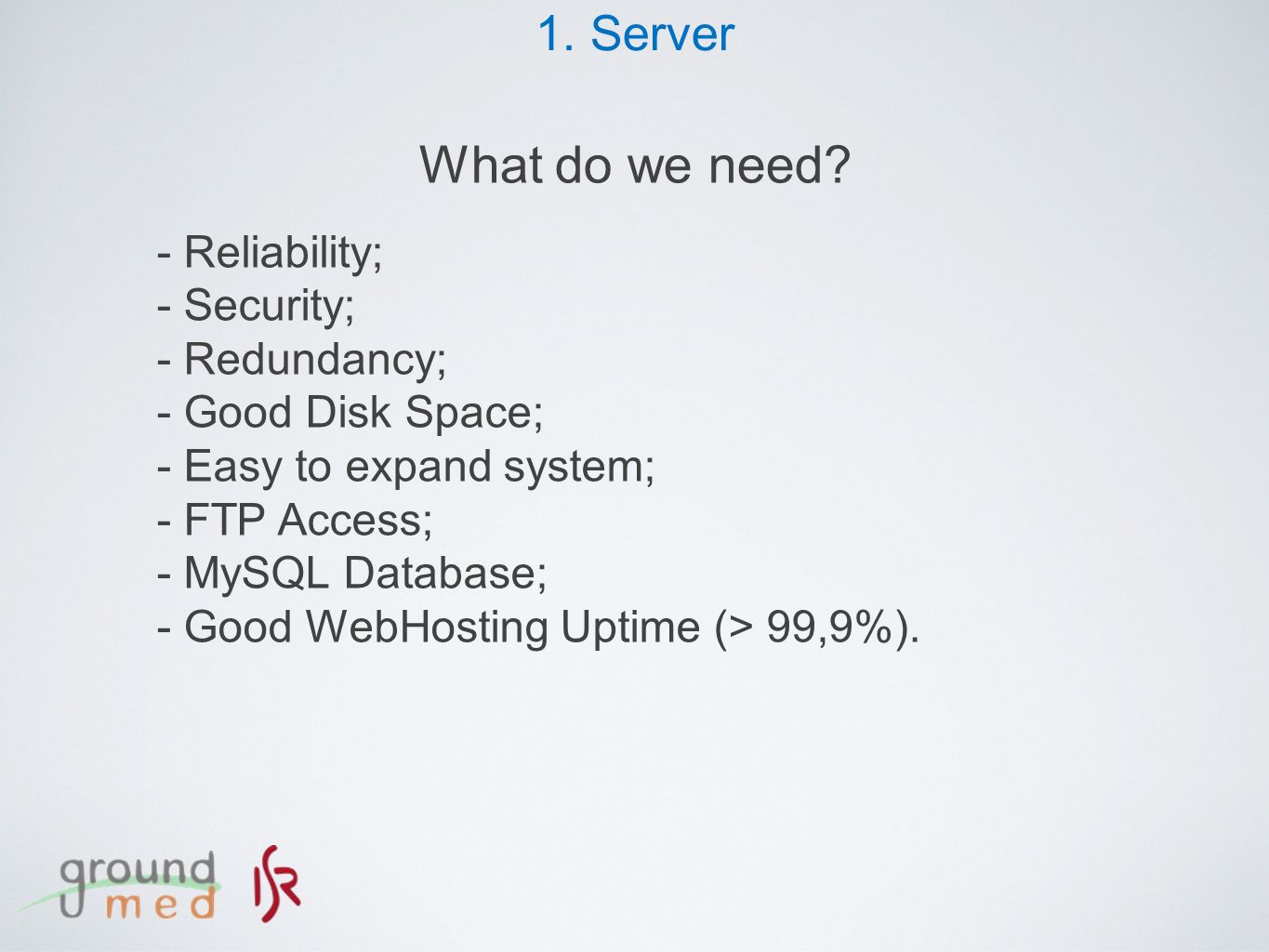

3. 1. Server - Reliability; - Security; - Redundancy; - Good Disk Space; - Easy to expand system; - FTP Access; - MySQL Database; - Good WebHosting Uptime (> 99,9%). What do we need?

4. 1. Server HP DL120 G7 Rack Data Server - Intel Xeon 4-core processor; - Multiple Hard Disk Drives; - RAID 5 (Speed + Data Protection); - Modular Server.

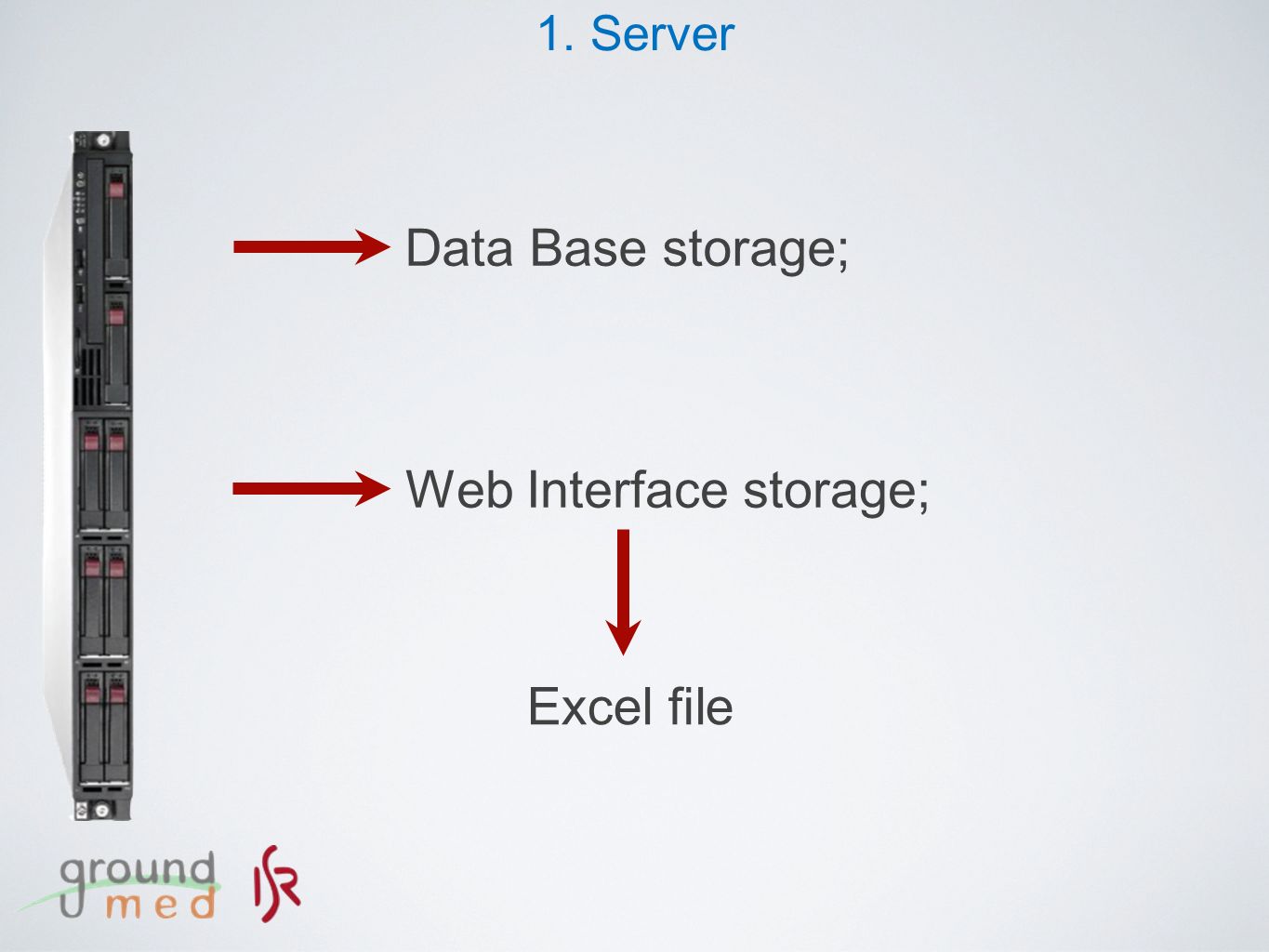

5. 1. Server Data Base storage; Web Interface storage; Excel file

6. 17/02/2012 10:37; 19.60; -2431.69; 19.98; 0.00; 0.00; 41.72; 33.98; 91.10; 38.59; 0.00; 36.50; 0.00; 0.00; 5.02; 358.34; 0.00; 12.34; 0.00; 122.13; 7.80; 0.00; 0.00; 534.13; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.68; 0.00; 0.00; 0.00; 0.00; 16.79; 0.00; 16.88; 0.00; 312.78; 10.36; 0.00; 0.27; 0.00; 614.25; 36.90; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:38; 19.31; -2441.81; 19.98; 0.00; 0.00; 41.70; 34.15; 91.10; 38.45; 0.00; 36.26; 0.00; 0.00; 5.03; 358.42; 0.00; 12.94; 0.00; 128.63; 7.80; 0.00; 0.00; 529.40; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.70; 0.00; 0.00; 0.00; 0.00; 16.78; 0.00; 16.88; 0.00; 312.78; 10.36; 0.00; 0.30; 0.00; 620.80; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:39; 20.03; -2447.11; 20.02; 0.00; 0.00; 41.53; 34.50; 91.10; 38.33; 0.00; 35.98; 0.00; 0.00; 5.03; 358.50; 0.00; 14.05; 0.00; 125.88; 7.80; 0.00; 0.00; 525.38; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.72; 0.00; 0.00; 0.00; 0.00; 16.77; 0.00; 16.87; 0.00; 312.78; 10.37; 0.00; 0.33; 0.00; 624.80; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:40; 20.61; -2449.36; 20.02; 0.00; 0.00; 41.60; 35.45; 91.10; 38.15; 0.00; 36.08; 0.00; 0.00; 5.03; 358.59; 0.00; 12.37; 0.00; 128.88; 7.80; 0.00; 0.00; 525.90; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.73; 0.00; 0.00; 0.00; 0.00; 16.76; 0.00; 16.85; 0.00; 312.78; 10.37; 0.00; 0.30; 0.00; 626.25; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:41; 20.85; -2455.81; 20.11; 0.00; 0.00; 41.66; 35.55; 91.10; 38.02; 0.00; 36.02; 0.00; 0.00; 5.02; 358.67; 0.00; 11.82; 0.00; 130.03; 7.80; 0.00; 0.00; 525.00; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.75; 0.00; 0.00; 0.00; 0.00; 16.78; 0.00; 16.86; 0.00; 312.78; 10.36; 0.00; 0.27; 0.00; 620.03; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:42; 21.01; -2447.73; 20.19; 0.00; 0.00; 41.59; 35.23; 91.10; 37.83; 0.00; 35.98; 0.00; 0.00; 5.02; 358.76; 0.00; 11.08; 0.00; 128.63; 7.80; 0.00; 0.00; 528.13; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.77; 0.00; 0.00; 0.00; 0.00; 16.84; 0.00; 16.92; 0.00; 312.78; 10.36; 0.00; 0.28; 0.00; 621.23; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:43; 20.63; -2455.14; 20.20; 0.00; 0.00; 41.44; 34.98; 91.10; 37.69; 0.00; 35.89; 0.00; 0.00; 5.02; 358.84; 0.00; 10.69; 0.00; 124.00; 7.80; 0.00; 0.00; 524.42; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.78; 0.00; 0.00; 0.00; 0.00; 16.92; 0.00; 17.00; 0.00; 312.78; 10.37; 0.00; 0.33; 0.00; 614.30; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:44; 20.63; -2468.23; 20.28; 0.00; 0.00; 41.22; 34.42; 91.10; 37.55; 0.00; 35.80; 0.00; 0.00; 5.02; 358.92; 0.00; 10.49; 0.00; 124.50; 7.80; 0.00; 0.00; 528.13; 10.80; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.80; 0.00; 0.00; 0.00; 0.00; 16.98; 0.00; 17.06; 0.00; 312.78; 10.37; 0.00; 0.30; 0.00; 616.75; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:45; 20.69; -2474.14; 20.42; 0.00; 0.00; 41.08; 33.75; 91.10; 37.43; 0.00; 35.69; 0.00; 0.00; 5.02; 359.01; 0.00; 10.36; 0.00; 121.10; 7.80; 0.00; 0.00; 525.75; 10.83; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.82; 0.00; 0.00; 0.00; 0.00; 17.01; 0.00; 17.09; 0.00; 312.78; 10.37; 0.00; 0.27; 0.00; 616.15; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 17/02/2012 10:46; 21.60; -2478.75; 20.55; 0.00; 0.00; 41.12; 33.98; 91.10; 37.28; 37.93; 35.55; 35.98; 0.00; 5.02; 359.09; 0.00; 10.31; 115.43; 122.92; 7.80; 0.00; 0.00; 535.25; 10.90; 0; 0; 0.00; 0.00; 0.00; 0.00; 0.00; 17.83; 0.00; 0.00; 0.00; 0.00; 17.04; 37.93; 17.13; 16.95; 312.78; 10.37; 0.00; 0.35; 3.04; 618.15; 37.00; 0; 0; 1.00; 5.00; NORMAL; HIGH PRESSURE; SYSTEM ON 2. System Overview

7. Septemes les Vallons, France DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System DAQ System Oradea, Romenia Coimbra, Portugal Benedikt, Slovenia Valencia, Spain Barcelona, Spain Padova, Italy Athens, Greece Internet DMS Server

8. 3. DMS Input PHP Script GroundMed DataBase ServerInternet 10 Minute Data

9. PHP Script 3. DMS Input GroundMed DataBase ServerInternet 10 Minute Data

10. Ground Med WebSit e Ground Med WebSit e 4. Access Levels Free Access Partial Access Total Access (Everyone can access to the real time web display) (Gound-Med partners access to the Excel file with all variables except the heat pump confidential information) (Full access to Excel files. ISR only) GroundMed DataBase +

11. Free Access - No Login is required; - Everyone can access to the real time web display; - Visible variables only (to be defined); - Access to all GroundMed Partners. 4. Access Levels 4.1 Free Access

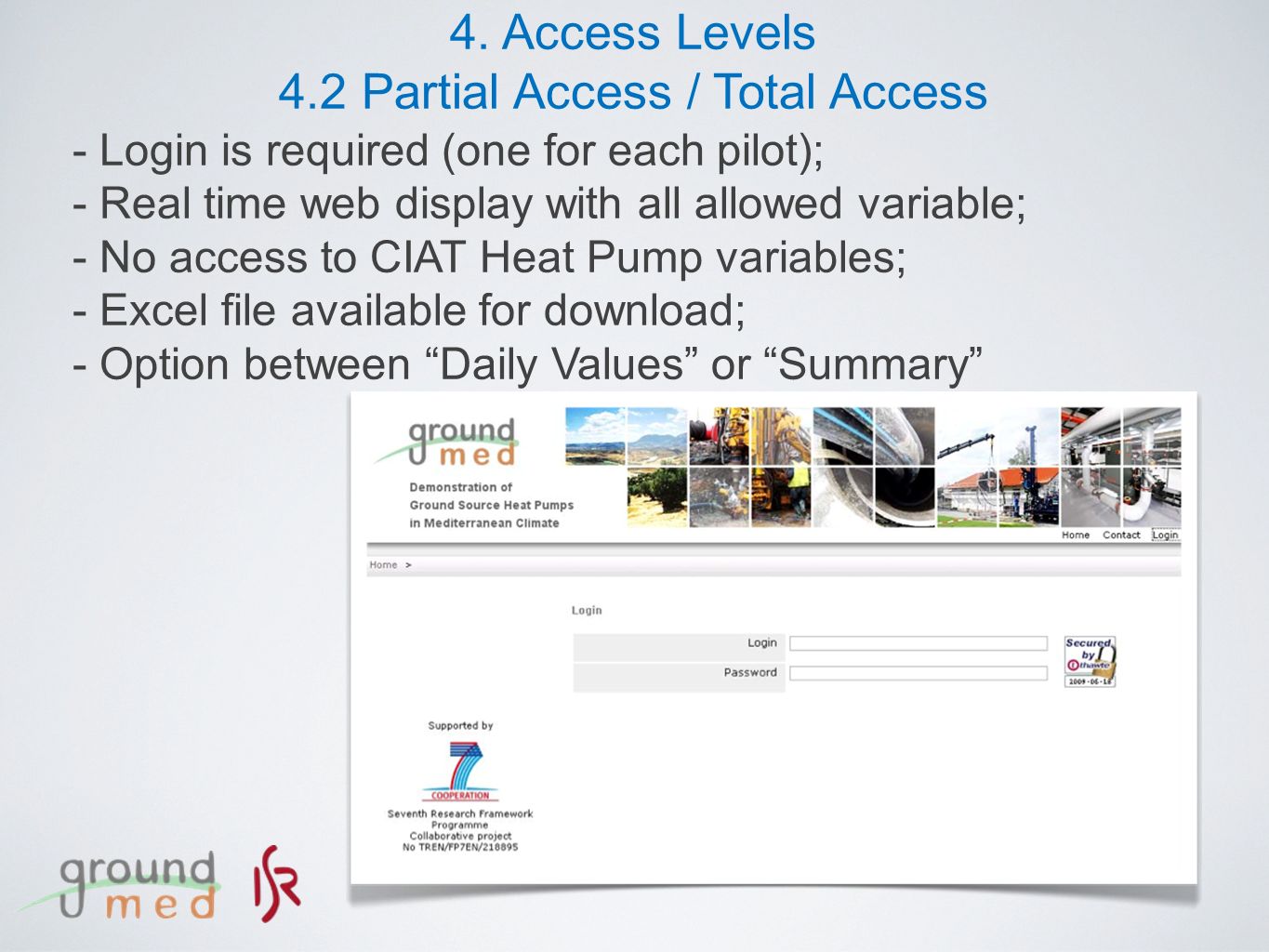

12. 4. Access Levels 4.2 Partial Access / Total Access - Login is required (one for each pilot); - Real time web display with all allowed variable; - No access to CIAT Heat Pump variables; - Excel file available for download; - Option between “Daily Values” or “Summary”

13. 4. Access Levels 4.3 Excel File

14. 5. DMS Status 2. Web Site (http://groundmed.isr.uc.pt) 2.1. Free Access 2.2. Partial Access 2.3. Full Access 1. Data Server 1.1. Input data from all GroundMed Pilots March

15. 5. DMS Status 2. Web Site (http://groundmed.isr.uc.pt)http://groundmed.isr.uc.pt 2.1. Free Access 2.2. Partial Access 2.3. Full Access 1. Data Server 1.1. Input data from all GroundMed Pilots March All users will get a different Login(next week).

16. 6. Web Interface

19. Partial Access - No Heat Pump variables available on the Real Time Values; - No Heat Pump variables available on the Excel file.

20. 6. Web Interface 6.1 Excel File.csv files can be opened with Microsoft Excel.

21. 6.1 Excel File

22. Thank You Andre Quintino Duarte
